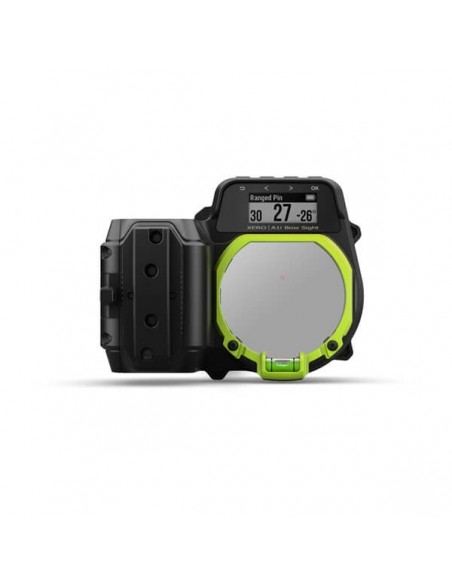

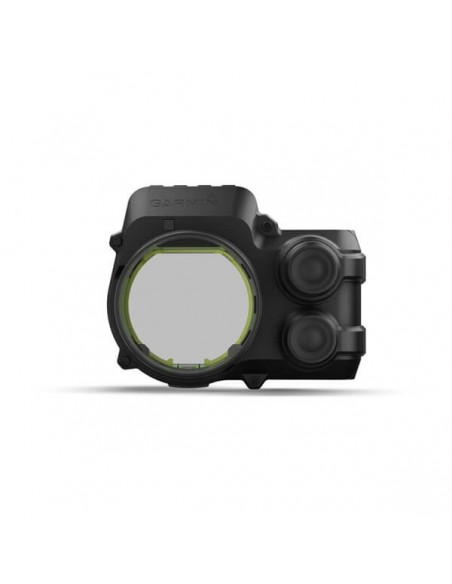

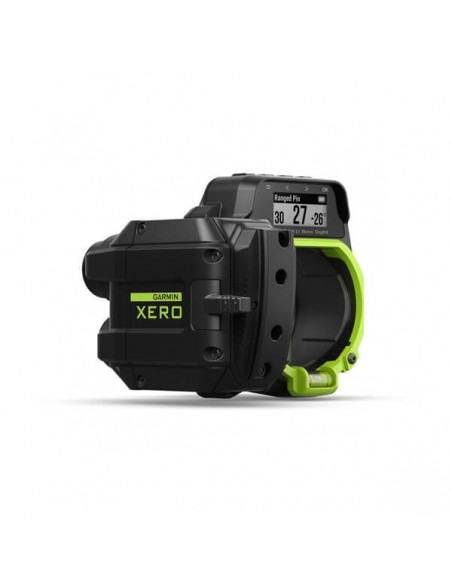

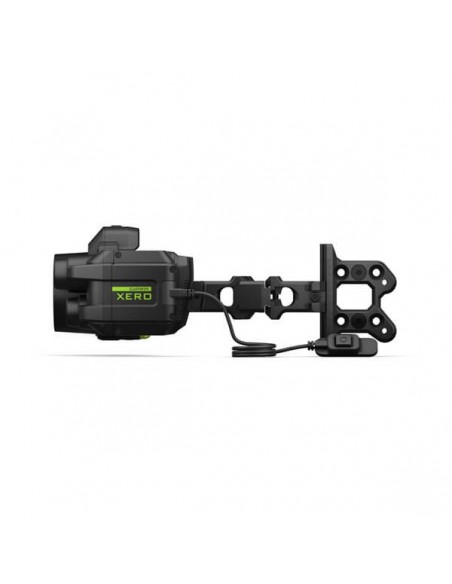

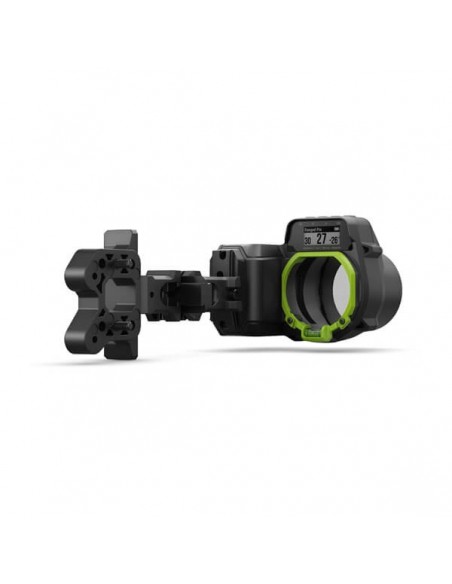

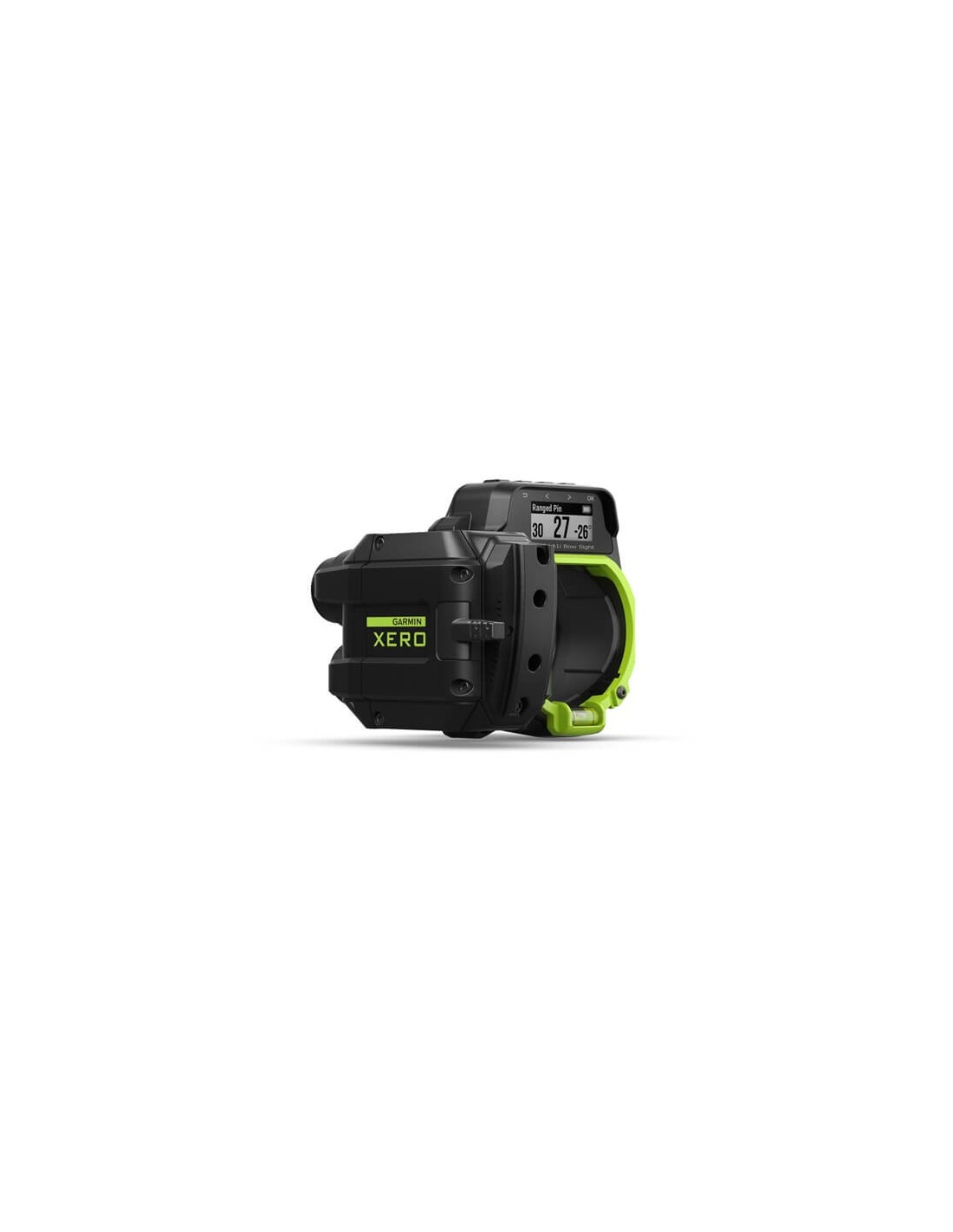

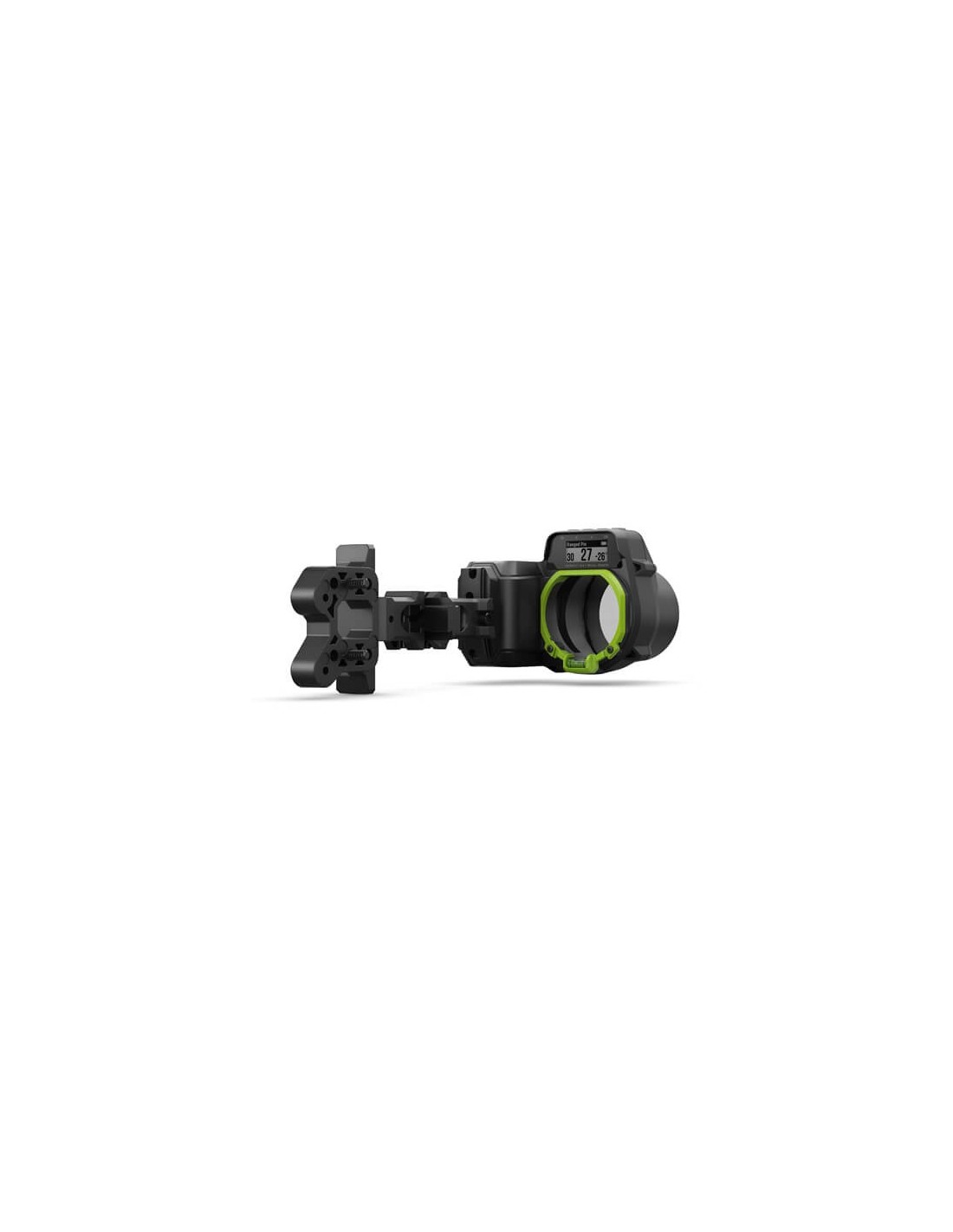

Xero A1i Bow Sight, left bow - GARMIN

Aim, aim and shoot the arrow with the pin on the target
Know the distance and shoot the arrow with the pin on the target and with minimal movement, thanks to Xero digital sights. These are the first digital laser rangefinders and bow-mounted target vision systems that measure compensated distance based on angle of fire and provide an LED pin to aid in aiming — even at different ranges. The LED pins automatically adjust brightness according to light conditions and allow you to see your target clearly, without being obstructed by physical pins. A single button trigger allows you to aim with the bow at rest or at full draw for hunting¹ up to 90m away or reflective targets up to 270m. Both the Xero A1 and A1i are customizable for single-pin or multi-pin configurations, or manual pin selection.

Multifunctional Design
Xero digital rangefinders mount directly to the bow, providing a highly accurate laser rangefinder which calculates the exact LED pin to use for the shot. No more wasting time using external rangefinders or trying to guess which pin to use.

Laser Rangefinder
No more guessing distances between pins. Xero A1 and A1i bow sights instantly provide accurate angle-compensated range for both hunting, up to 90m, and reflective targets, up to 270m, bow at rest or at full draw .

!#180797%%alt%%#!
LED Pins
The convenience of using bright LED pins is that you can see them clearly on the target, without being obstructed by physical pins. Xero A1 uses red color LEDs while A1i offers the option of using red or green LEDs.

To further customize the pin stack, you can now move the pin stack range up or down so you don't have to recalibrate it entirely. It will be necessary to re-set the mechanical adjustments to align the new pin stack and ensure that the arrow impact is correct. This is useful when you want the 20/30/40 pins to be centered in the housing for a single hunting style, but also if you want to achieve maximum range on other hunting styles.

!#180799 %%alt%%#!
Silent Button Trigger
When staying still and focused is essential, Xero bow sights require minimal movement, whether the bow is at rest or at full draw. The button is mounted in the most convenient position for the handle so that a finger is enough to silently activate the laser rangefinder, which provides the distance and the exact pin needed for the shot.

Customizable pins
The Xero bow sight can be customized to single-pin and multi-pin mode, or for specific distances, manual pin selection can be configured. Easily switch between fixed pin mode and single pin mode.

!#180801%%alt%%#!
Laser locate function
Use the Xero A1i in conjunction with companion Garmin GPS devices (sold separately) to locate your game or find arrows that show exactly where your game was when you shot or aimed. This way, you can directly navigate to that specific point and start searching.

!#178856%%alt%%#!
Multi-Arrow Profiles
Xero A1i allows you to save pin settings for different arch configurations. Save settings for different weights, lengths and arrowheads. Quickly switch from fast arrows for 3D to heavier arrows for hunting.

Shooting Dynamics
The Xero A1i bow sight includes additional information that helps the archer improve their performance. View data such as bow level at release, bow impulse duration and much more.

Practice makes perfect
Log your performance during shooting sessions and analyze your stats for different ranges and sessions over time.

Tournament Ready
You can record shooting dynamics even during a tournament where the use of range finders is not allowed. A competition file is created during the tournament, allowing you to go back and analyze the tilt from shot to shot.

Ensure your shot is aligned
Built-in level indicators let you eliminate the swings from the shot. A flashing upper pin indicates arc leaning to the right. A flashing lower pin indicates arc leaning to the left. The center pin is always fixed. These three pins will always appear away from the pointing pins.
