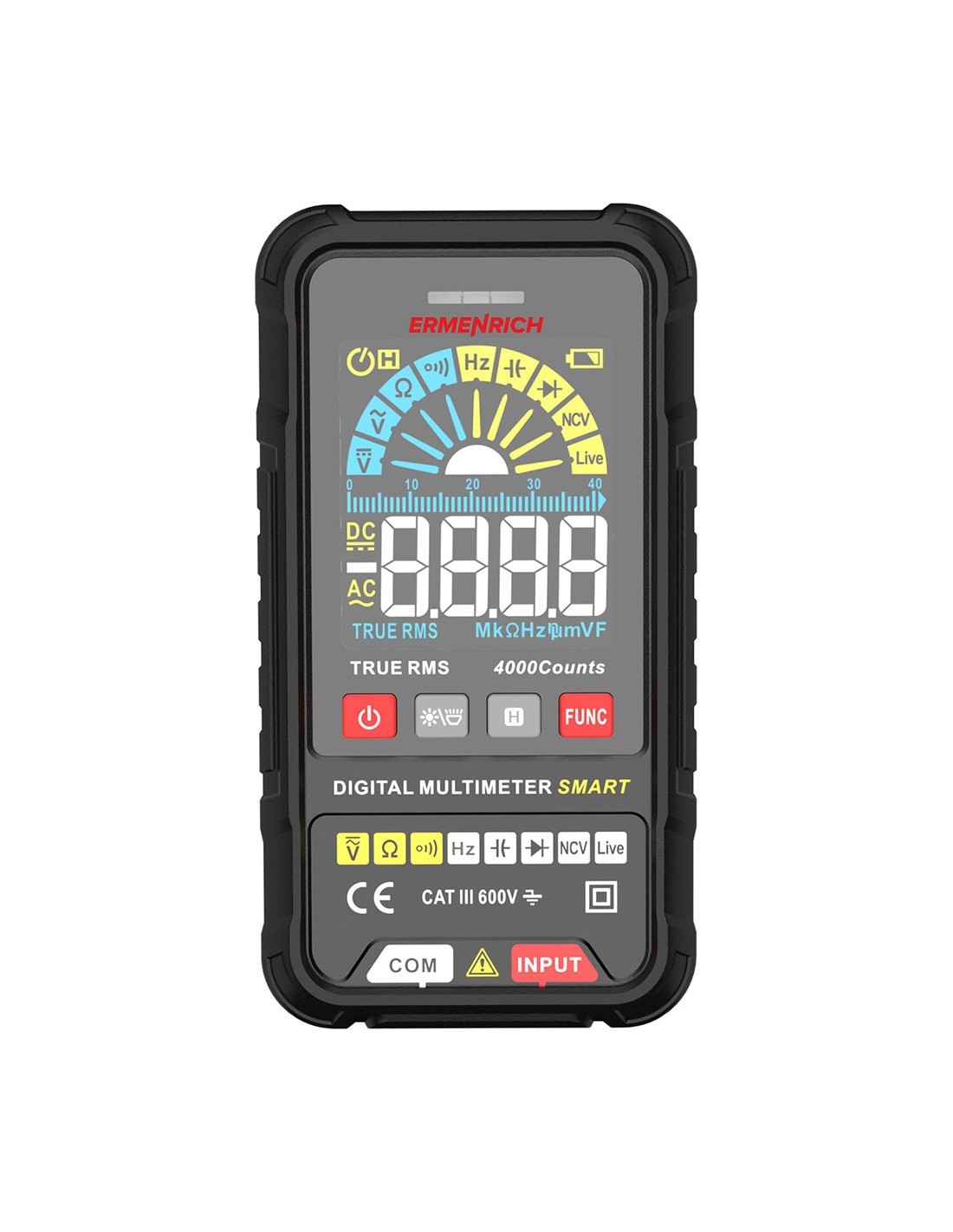

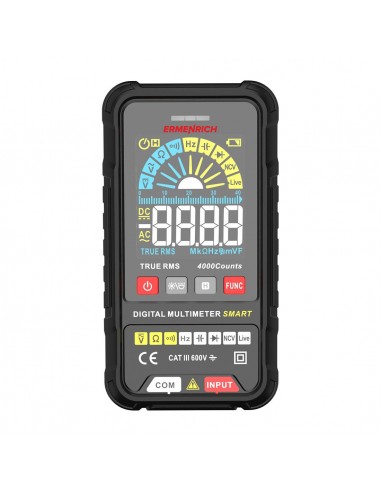

The Ermenrich Zing TC17 digital multimeter is a compact and accurate (true RMS value) measuring device for technicians and all-rounders. It is suitable for diagnostics of electrical networks in apartments, country houses, industrial premises, offices and cars as well as for diagnostics of electrical devices. The multimeter fits in your pocket, making it convenient to carry with you even if you're working in a large location.
The color screen displays the readings, but also features a graphic scale. Shows the complete measurement range and the value of a single measured parameter. When the device is turned on, the Smart function is activated. The device begins to automatically detect and measure the input parameters (resistance, voltage and continuity). If necessary, you can switch to manual control to access all operating modes. In addition to resistance and voltage, the multimeter measures capacitance and frequency. The continuity test mode combines resistance measurements. The NCV function detects dangerous voltage points, such as hidden wiring. There is the option of testing diodes for open and short circuits.
If the multimeter is in a hard-to-reach location that prevents you from reading the screen, you can press a button to freeze the readings and view them later using the lock function. There is a screen with backlight and a built-in flashlight. This device is powered by standard batteries.
Key functions:
- Color screen with a digital display and a graphic scale, calculations with true RMS value
- Functions of voltmeter, ohmmeter, capacitance meter, frequency meter
- Smart mode automatically detects and measures some parameters
- Diode test, phase detection , continuity test, NCV detector
- Lock function, integrated flashlight, battery powered
The package contains:
- Digital multimeter
- Test probes
- User manual and warranty card
| Brand | Ermenrich |
| Warranty | 5 лет |
| EAN | 5905555017624 |
| Package size (LxWxH) | 16x9x5 cm |
| Weight shipping | 0.28 kg |
| Select measurement limit | automatic |
| Basic functions | voltmeter, ohmmeter, electrical capacity meter, frequency meter |
| DC voltage measurement limit | 400 mV /4 V/40 V/400 V/600 V: error ±(0.5%+3) |
| AC voltage measurement limit | 4 /40/400/600 V: error ±(0.8%+3) |
| Resistance measurement limit | 400 Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/40 MΩ: error ±(1.0%+5) |
| Capacitance measurement limit | 4 nF/40 nF/400 nF/4 μF/40 μF/400 μF/4 mF: error ±(4.0%+5) |
| Frequency measurement limits | 4 Hz/40 Hz/400 Hz/4 kHz/40 kHz/200 kHz/400 kHz/4 MHz: error ±(1.0%+3) |
| Diode test | + (0–2 V) |
| Non-contact phase tester (NCV) | yes |
| True RMS value | yes |
| Hold function (fixes measurement) | yes |
| Automatic recognition function (Smart) | + (DC and AC voltage resistance and capacitance only) |
| Phase detector (voltage) | yes |
| Overvoltage category | CAT III 600 V |
| Display | VA |
| Maximum display value | 4000 |
| Display backlight | yes |
| Graphics scale | yes |
| Flashing light | yes |
| Safety standard | EN61010-1,-2-030; EN61010-2-033; EN61326-1 |
| Continuity test | + together with resistance measurement mode (< 500 Ω) |
| Power | 2 AAA batteries (not included) |
| Low battery indicator | yes |
| Automatic shutdown | yes |
