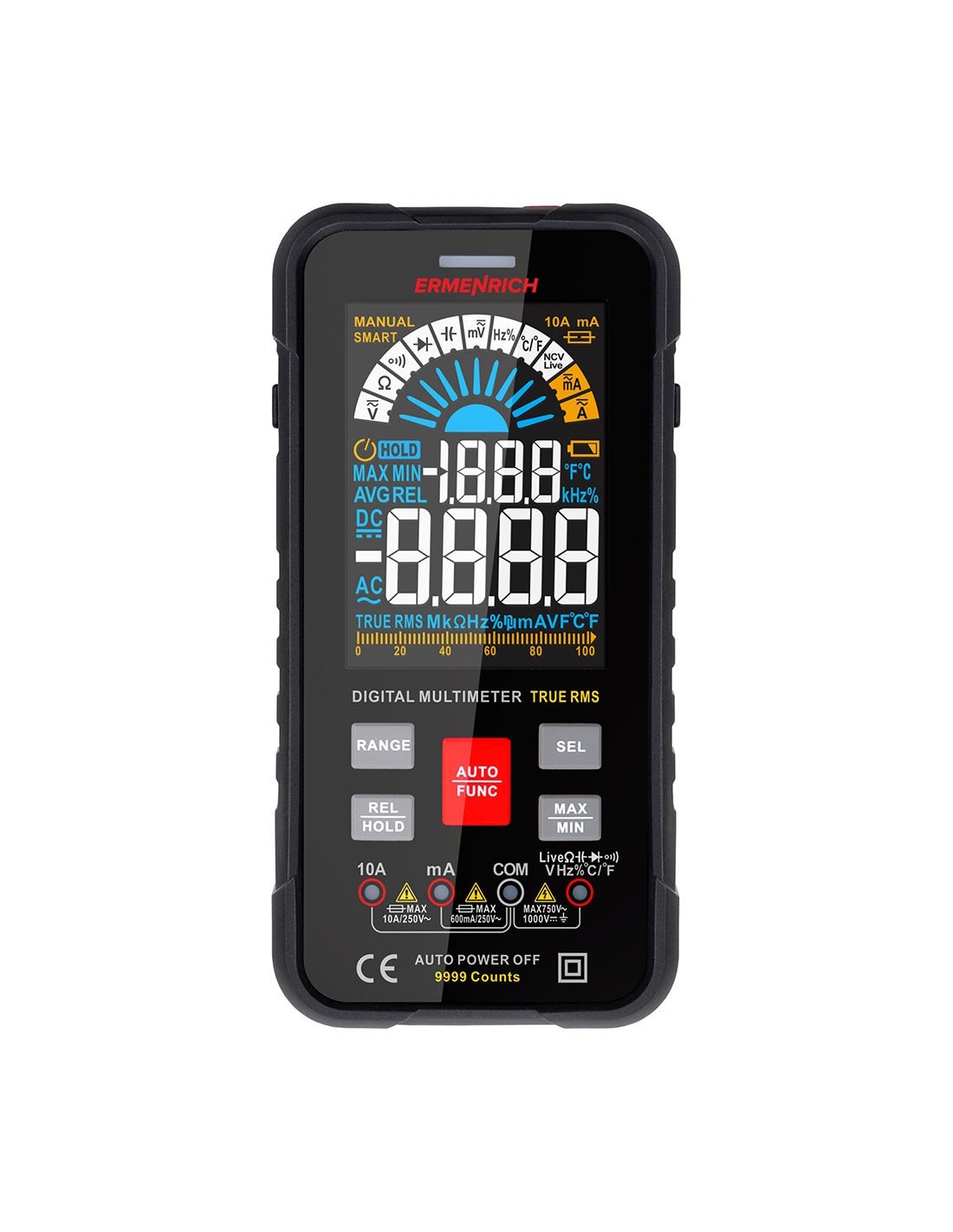

The Ermenrich Zing TC35 digital multimeter combines the functionality of many electrical measuring instruments: voltmeter, ammeter, ohmmeter, capacitance and frequency meter. It can measure the duty cycle and determine the temperature. You can select the measurement limit manually or automatically. The multimeter is compact, lightweight, with a color screen with numbers and graphic scale. The screen backlight and integrated flashlight make it easy to work in low-light environments.
A special feature of the multimeter is the relative measurement function (REL). If the button is pressed, the reference point will be saved in memory and the difference between the new value and the reference point will be calculated again. It is an intelligent device capable of carrying out measurements in fully automatic mode: the Smart function applies to voltage, resistance and continuity tests. You can switch to manual control at any time to use all functions.
The multimeter has additional modes: continuity test, diode test, face detector, non-contact high voltage (NCV) detection. There is a limit value locking and storage function. The device is powered by batteries.
Key functions:
- Multi-function measuring instrument: voltmeter, ammeter, ohmmeter, electrical capacity meter, frequency meter, duty cycle meter, thermocouple based temperature sensor
- Setting reference points for relative measurements
- Intelligent mode for automatic resistance measurement, voltage measurement and continuity test
- Diode test, continuity test (detection of open circuits and short circuits), identification of non-contact hidden wiring (NCV), phase detection
- Color screen with a graphic scale and numbers, backlight for working in dark areas
- Integrated flashlight, lock function, battery powered
The package contains:
- Digital multimeter
- Test probes
- Case
- User manual and warranty card
| Brand | Ermenrich |
| Warranty | 5 лет |
| EAN | 5905555017709 |
| Package size (WxDxH) | 20x11x6 cm |
| Shipping weight | 0.53 kg |
| Select size limit | car, manual |
| Basic functions | voltmeter, ammeter, ohmmeter, electrical capacity meter, frequency meter, duty cycle meter, thermocouple |
| DC voltage measurement limit | 99.99 mV/999.9 mV/9.999 V/99.9 V/1000 V: error ±(0.5% +3) |
| AC voltage measurement limit | 99.99 mV/999.9 mV/9.999 V/99.9 V/750 V: error ±(0.8%+3) |
| DC current measurement limit | 9.999/99.99/999.9 mA: error ±( 0.8%+3), 9.999 A: error ±(1.2%+3) |
| AC current measurement limit | 9.999/99 .99/999.9 mA: error ±(1.0%+3), 9.999 A: error ±(1.5%+3) |
| Resistance measurement limit | 99.99 Ω/999.9 Ω/9.999 kΩ/99.99 kΩ/999.9 kΩ: error ±(0.8%+3), 9.999 MΩ/99.99 MΩ: error ±(1.2%+3) |
| Capacitance measurement limit | 9.999 nF/99.99 nF/999.9 nF/9.999 µF/ 99.99 µF/999.9 µF: error ±(4.0%+3), 9.999 mF/99.99 mF: error ±(5.0%+5) |
| Frequency measurement limits | 99.99 Hz/999.9 Hz/9.999 kHz/99.99 kHz/999.9 kHz/9.999 MHz: error ±(1.0%+3 ) |
| Duty cycle measurement range | 1–99%: error ±(1.0%+2) |
| Diode tester | yes |
| Non-contact phase tester (NCV) | yes |
| True RMS value | yes |
| Hold function (fixes measurement) | yes |
| Limit value function (Min/Max) | yes |
| Relative value measurement (REL ) | yes |
| Automatic recognition function (Smart) | + (DC and AC voltage resistance and capacitance only) | td> |
| Phase detector (live) | yes |
| Overvoltage category | cat. III (1000 V) IV (600 V) |
| Display | VA |
| Maximum display value | 10000 |
| Graphics scale | yes |
| Blinking light | td> | yes |
| Safety standards | EN61010-1,-2-030; EN61010-2-033; EN61326-1 |
| Operating temperature range, °C | –40... +1000°C: error ±(1.0%+3 ) |
| Continuity test | yes |
| Power supply | 3 batteries AAA (not included) |
| Low battery indicator | yes |
| Auto power off | yes |
