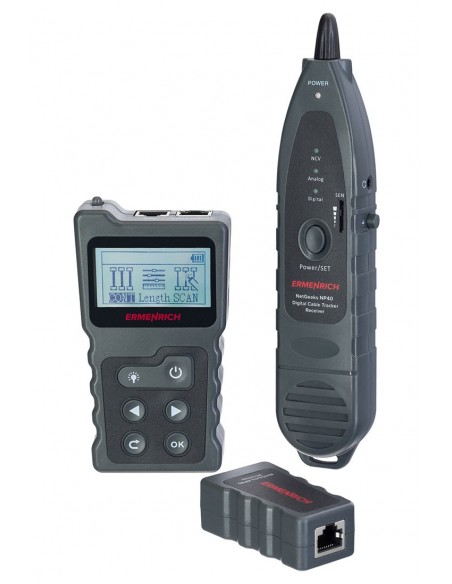

The Ermenrich NetGeeks NP40 multifunctional is a digital cable tester designed to trace twisted pair and telephone cables, to test lines for faults and installation errors, to measure cable length and distance up to the point where an interruption (open circuit) has occurred or a short circuit is present. This tool will prove to be very practical for technicians who implement and maintain a computer network or telephone network within an office, an entire building or a home.
In its basic operating mode, this tool can check for damage on individual electrical wires within a cable: open circuits, short circuits, twisted pairs. Using the cable length measurement mode it is possible to measure the total length of the cables within 200 meters, as well as the distance to the fault point. If necessary, calibration and TDR (time domain reflectometry) measurements can be performed with high accuracy.
The flash port function can be used to precisely find the port of the network switch or router to which the cable in question is connected. The PoE test identifies the PSE type and detects the midspan/endspan link. This meter can also measure voltage and polarity. The tester's receiver can be set to NCV mode to detect the presence of voltage without any contact.
The transmitter and receiver are powered by batteries (not included).
Key features:
- Cable tracing, line testing for faults and installation errors
- Measurement of cable length using TDR (reflectometry) technique of the pulse)
- Measurement of distance from short circuit or open circuit
- PoE test with voltage measurement, identification of PSE type, identification of midspan/endspan
- Flashing port and NCV functions, battery powered

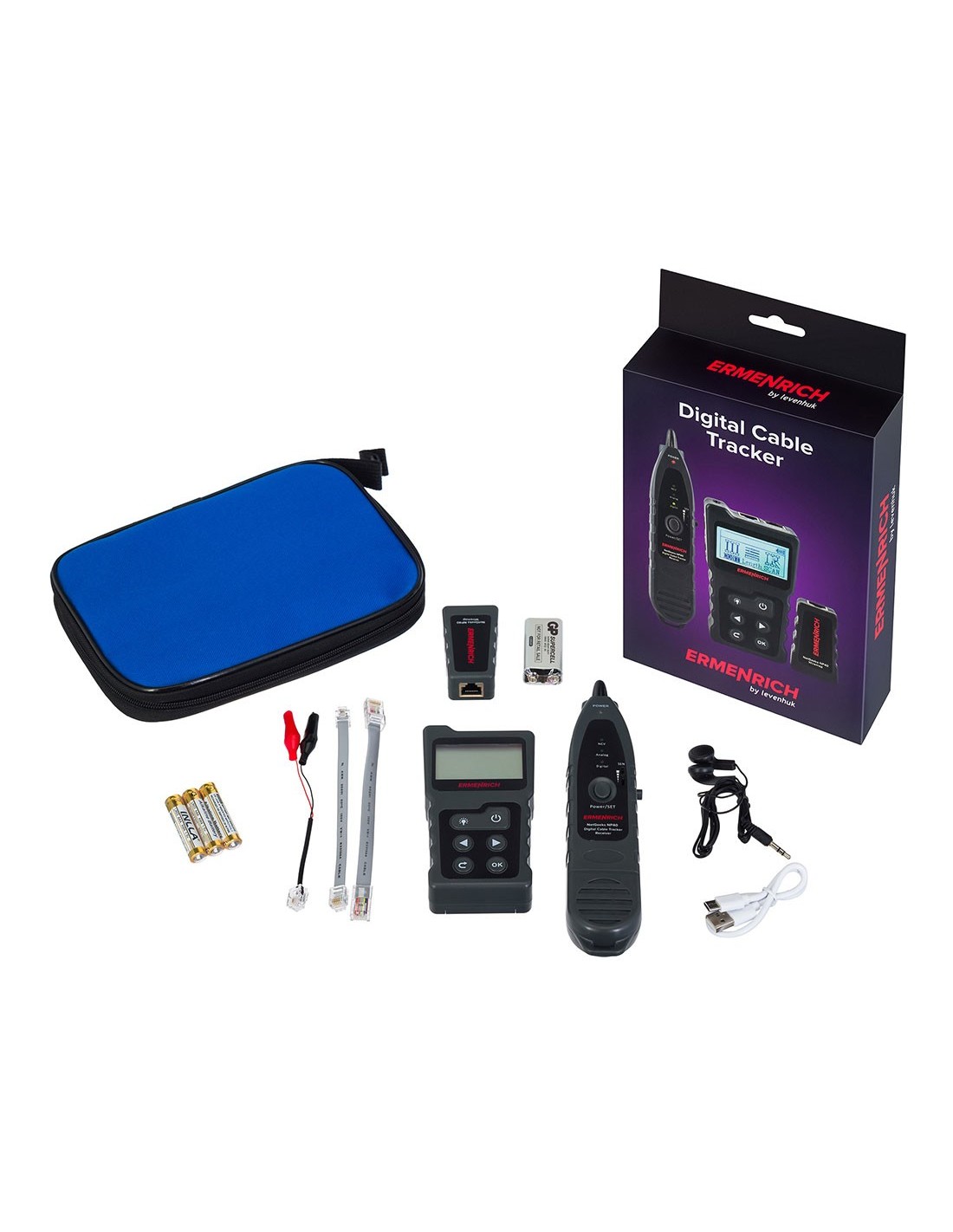

The package contains:
- Transmitter
- Receiver

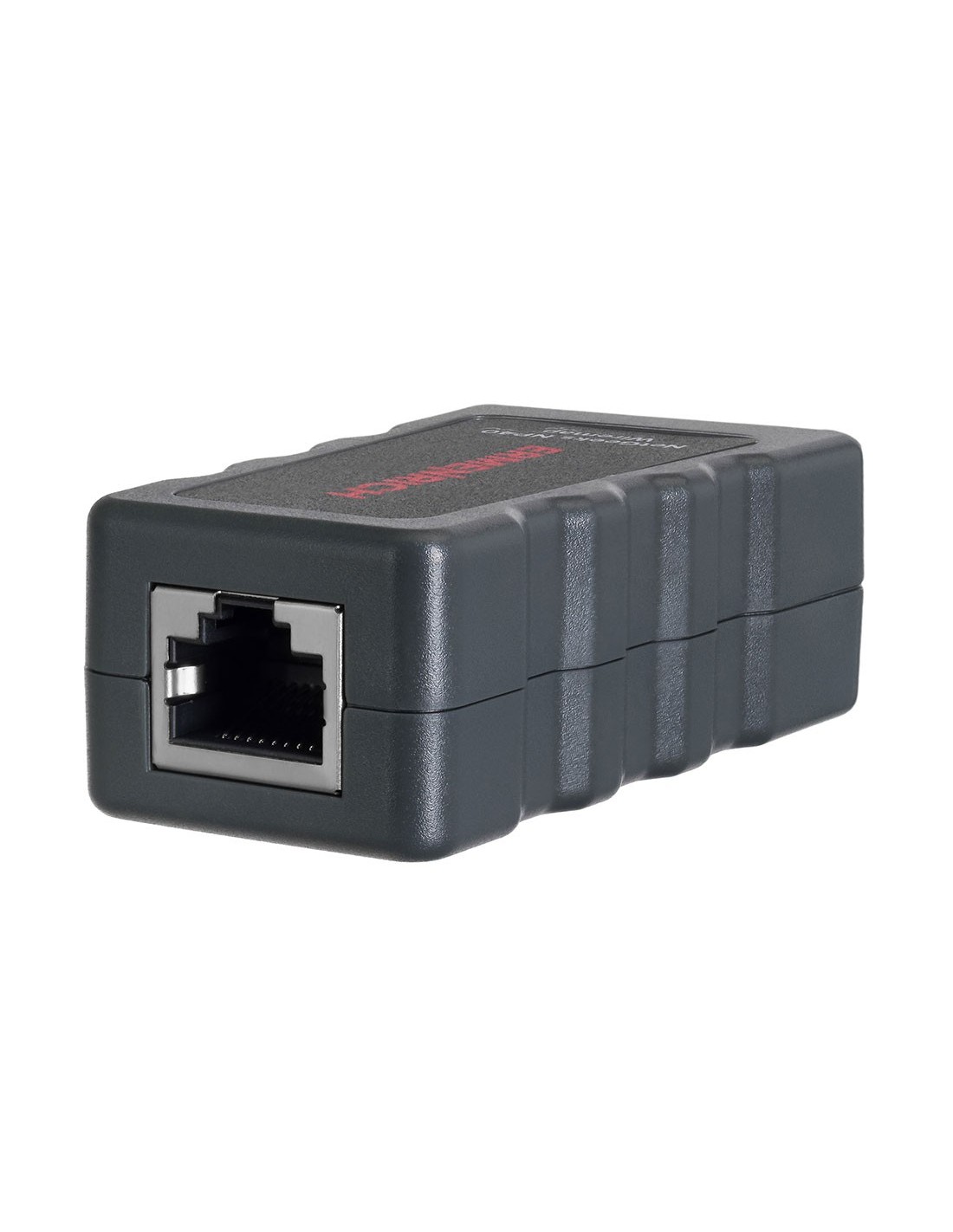

- Remote unit
- RJ11 patch cable
- RJ45 patch cable
- Alligator clip
- DC cable
- Earphones
- USB Type-C cable

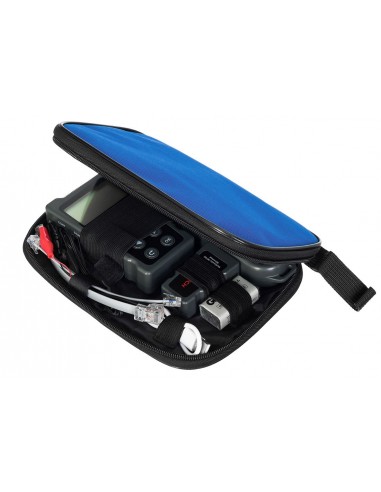

- Carrying bag
- User manual and warranty card ul>
| Brand | Ermenrich |
| Warranty | 5 лет |
| EAN | 5905555016948 |
| Package size (WxDxH) | 23x16x5 cm |
| Shipping weight | 0.52 kg |
| === Delimiter === | Transmitter |

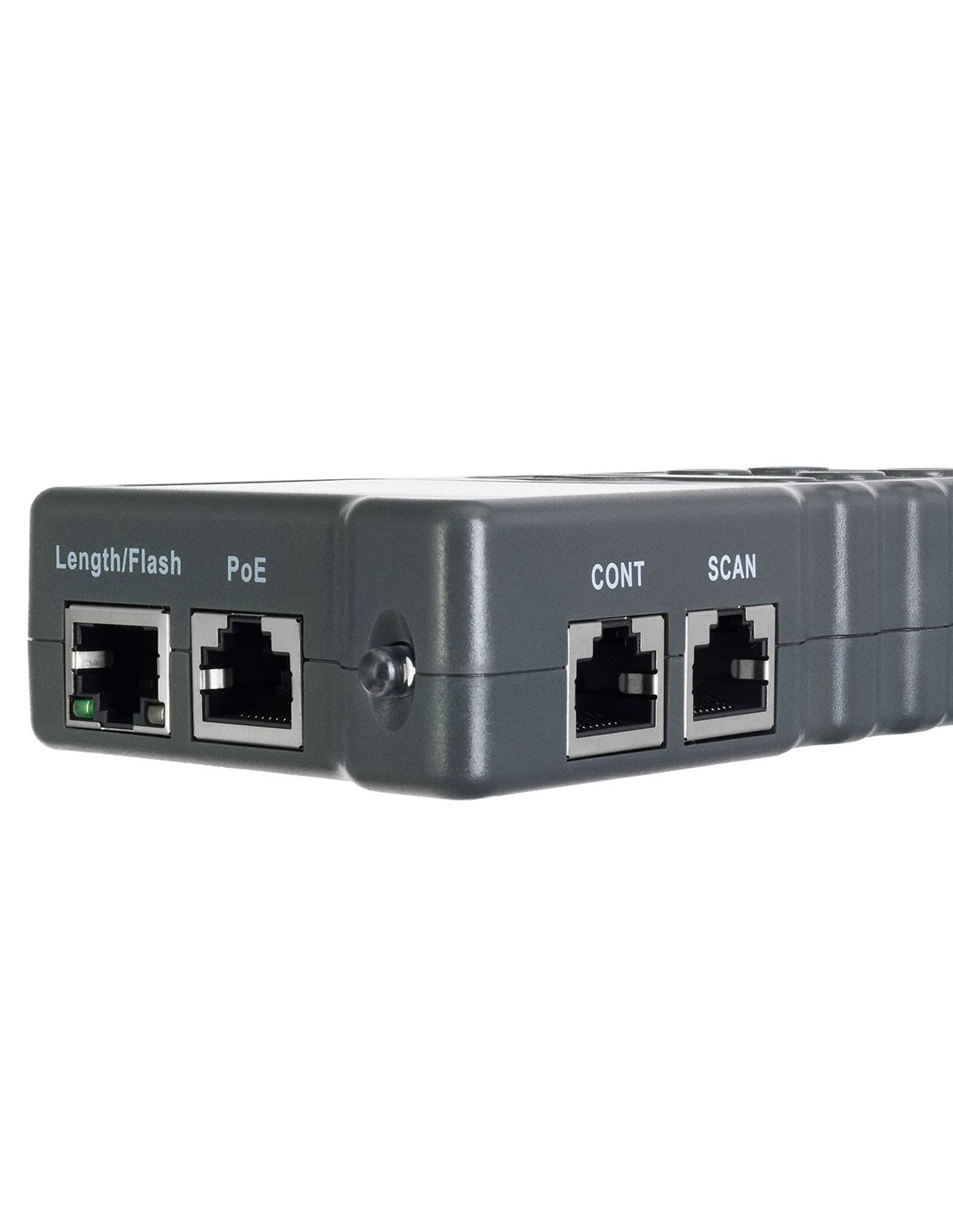

| Ports | PoE, Scan, Length/Flash, Cont |
| Traceable cable types | telephone cables, common electrical cables, STP/UTP network cables (CAT5E, CAT6, CAT6A) |
| Cable types tested | STP/UTP network cables (CAT5E, CAT6 and CAT6A) |
| Maximum tested cable length, m | 600 |
| Measure cable length | yes |
| Cable test | + (open circuits, short circuits, crossed, reversed and split pairs, crosstalk) |
| Flashing port function | +, (full duplex/half duplex, auto/non-auto negotiation, 10/100/1000Mbit/s) |
| Cable detection | yes |
| PoE test | yes |
| Voltage polarity detection | yes |
| === Delimiter === | Measurement of the length of the cables |
| Measurement method | reflectometry of a pulse in the time domino (TDR) |
| Unit of measurement | meters/yards, feet |
| Interval of measurement, m | 2.5 — 200 |
| Error | 3 (±0.5 m) |
| Measurement of the distance from the interruption in case of open circuits | yes |
| Measurement of the distance from the short circuit | yes |
| Calibration | + |
| Minimum cable length for calibration, m | 10 |
| Calibration error, % | 2 (±0.5 m) |
| === Delimiter === | PoE Test |
| PoE Power Type Test (PSE) | standard (IEEE 802.3at/af) / non-standard |
| Identifying midspan/endspan | yes |
| Operating voltage (DC), V | 5 — 60 |
| === Delimiter === | Key Features |
| Maximum operating current, mA | <150 |
| Protection | input voltage: 48 V, current: 5 mA |
| Display | LCD |
| Display resolution, px | 128х64 |
| Display backlight | yes |

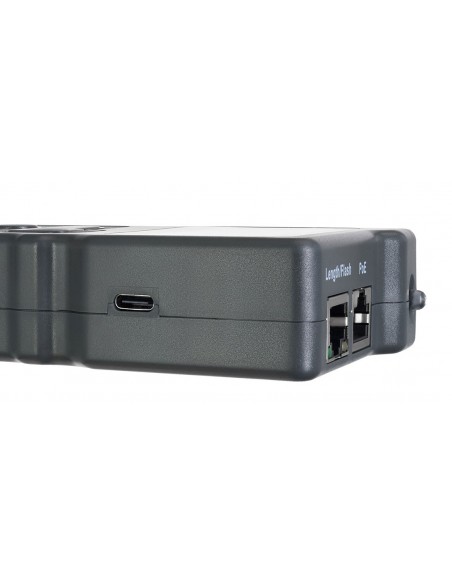

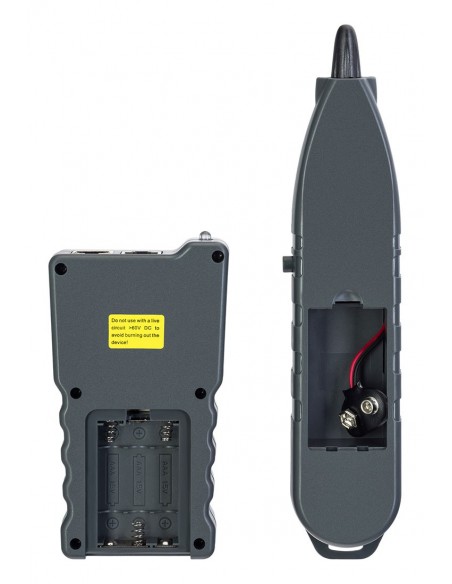

| Power supply | rechargeable via USB Type-C cable (included), 3 rechargeable AAA batteries (not included) |
| Low battery indicator | yes |
| Auto power off | 15 min, 60 min, 30 min |
| Range operating temperatures, °C | −10… +60 |
| Operating humidity range, % | 20…70 |
| === Delimiter === | Receiver/Remote Unit |
| Ports | RJ45, earphones |
| Adjustable sensitivity | yes |
| Non-contact voltage tester (NCV) | yes |
| Flashing light | yes |
| Maximum operating current, mA | <100 |
| Power supply | 9 V battery (not included) |
| Operating temperature range, °C | −10… +60 |
| Operating humidity range, % | 20…70 |
