Levenhuk MED 10T Trinocular Microscope - LEVENHUK

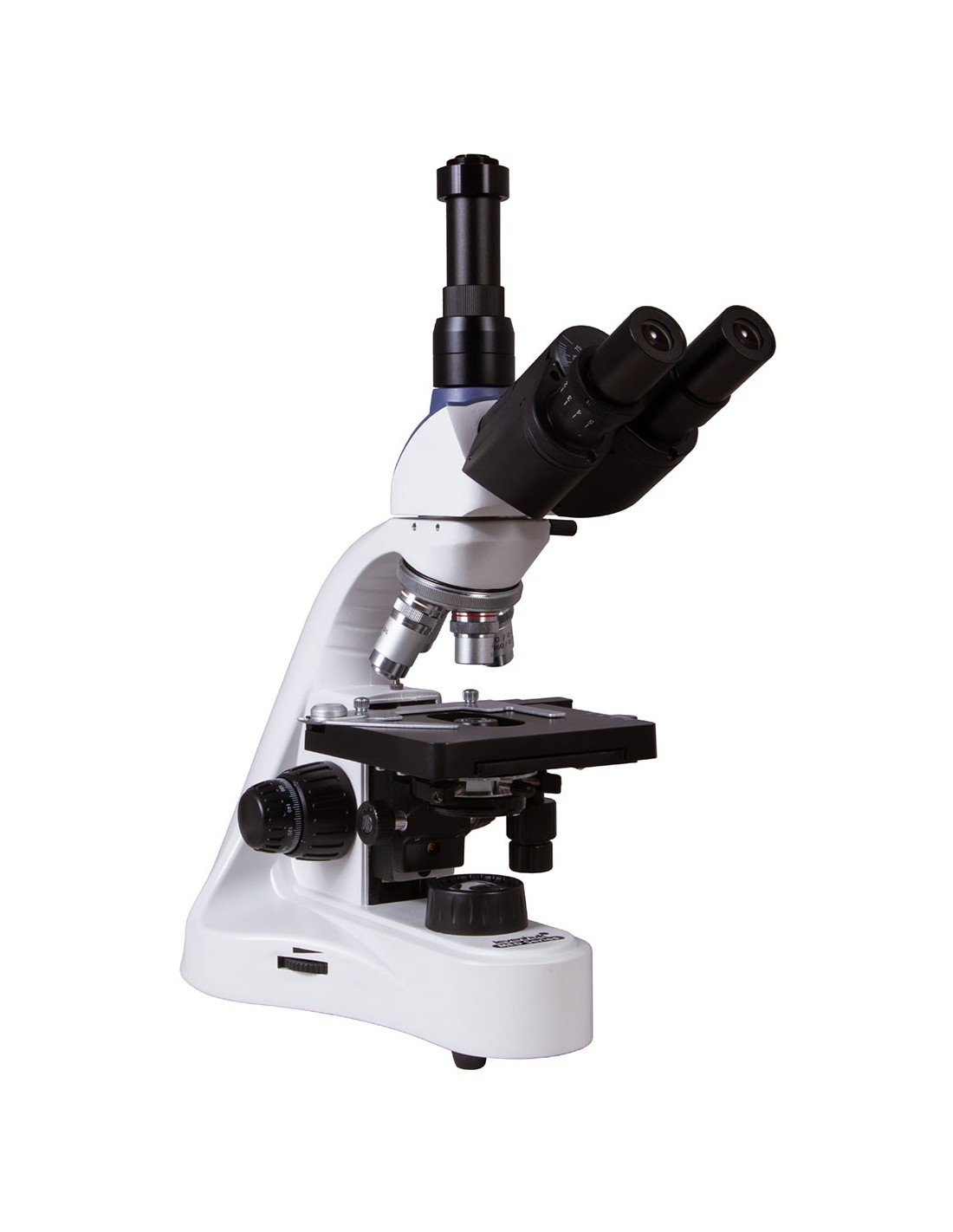

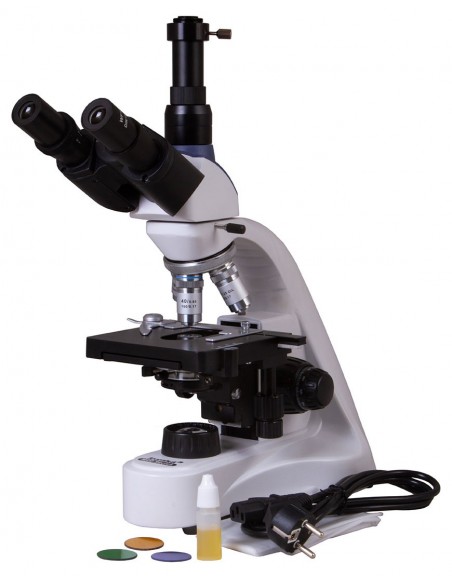

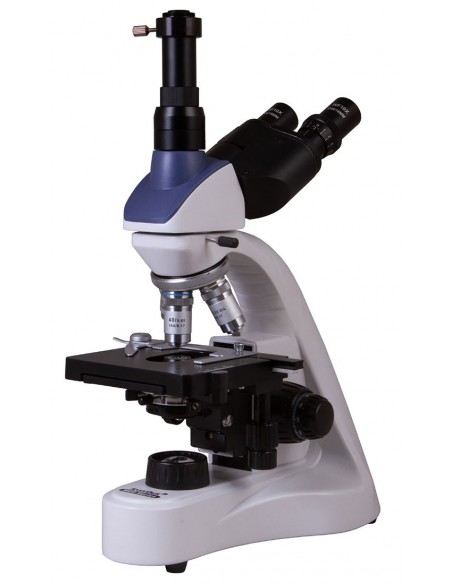

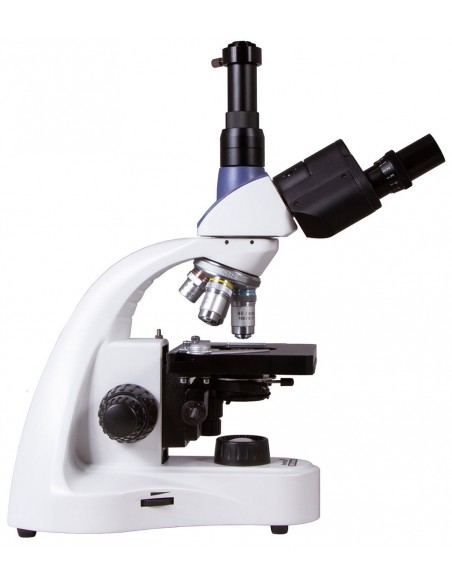

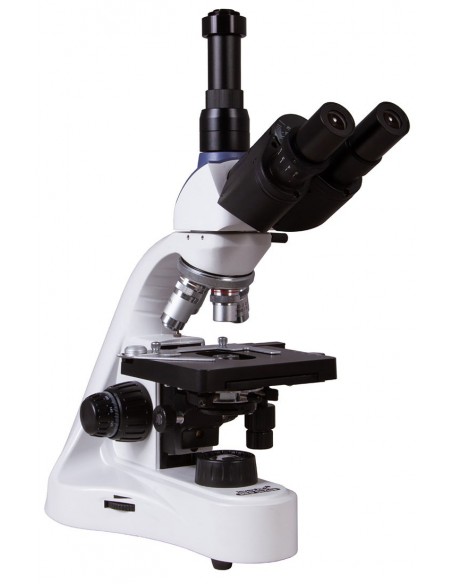

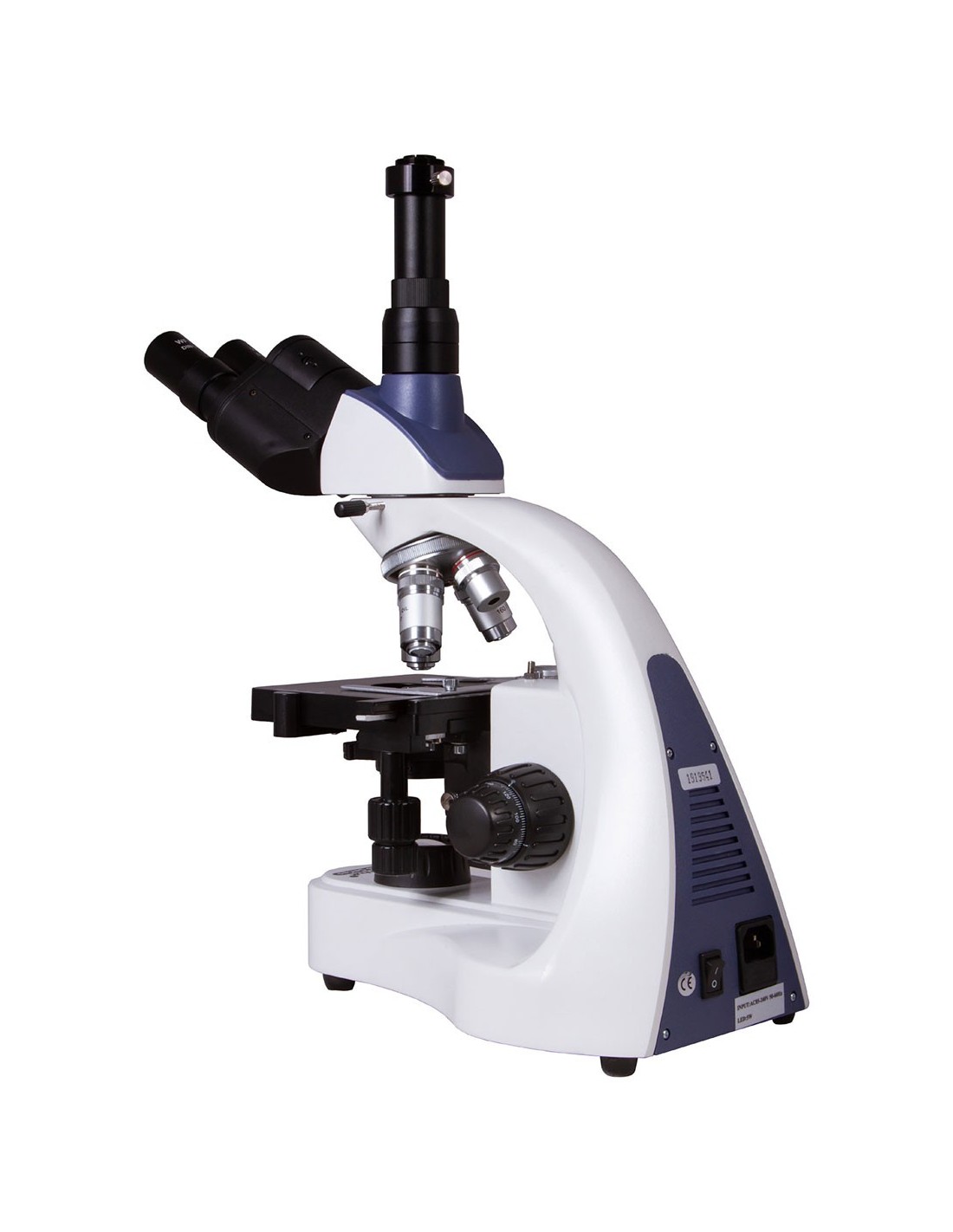

The Levenhuk MED 10T trinocular microscope is a laboratory model with achromatic optics for professional microscope investigations with magnifications from 40 to 1,000 times. This microscope is a perfect choice for university students, research work in a science center, or clinical and diagnostic work in a medical laboratory.

A trinocular head includes a binocular viewing node and a viewing tube installing a digital camera (a digital camera is purchased separately). A viewing part is tilted 30° providing comfortable extended observations. The trinocular head can be rotated 360°. Four achromatic objective lenses of various magnifications are installed in the microscope; The 40x and 100x objective lenses come with spring-loaded protective frames. Additionally, a 100x objective can be used for oil immersion observations (a bottle of immersion oil is included in the kit). The wide-field eyepieces feature diopter adjustment and offer good visibility. All optical elements are protected with antifungal coating.

A double-layer stage can be moved along two axes. The samples are placed under an objective lens of the microscope and can be moved with the help of a mechanical scale. Coarse and fine focus settings are available. The microscope's illumination system consists of a 5-watt LED light and an Abbe condenser with iris diaphragm and filter holder. The light is located under the stage and allows observations to be conducted using the brightfield method in transmitted light. The light is powered by an AC adapter. The lighting system also includes brightness adjustment.

Features:

• Laboratory microscope with 40–1000x magnification
• 360° rotatable trinocular head, 30° inclined
• Achromatic optics with antifungal coating
• 5W lower LED light with brightness adjustment
• Powered by AC adapter

The kit includes:

• Microscope base with stand
• Trinocular head rotatable 360°
• Achromatic objective lenses: 4х, 10х, 40xs, 100хs (oil) with antifungal coating
• Widefield eyepieces WF10x/18 mm with antifungal coating (2 pcs .)
• Abbe NA 1.25 condenser with iris diaphragm and filter holder
• Filters: blue, green, yellow
• Bottle of immersion oil
• 5 W LED
• Fuse (2 pcs.)
• Power cable for microscope
• Dust cover
• Adapter for camera
• User manual and lifetime warranty

Attention:

For information on the correct mains voltage, refer to the specification table; Never attempt to connect a 110V device to a 220V power outlet and vice versa without using a converter. Please note that mains voltage is 220–240 V in most European countries and 110 V in the United States and Canada.

Some things you can observe with a microscope:

The Levenhuk MED 10T trinocular microscope is compatible with Levenhuk digital cameras (purchased separately). Levenhuk cameras are mounted on the eyepiece tube, in place of an eyepiece.
