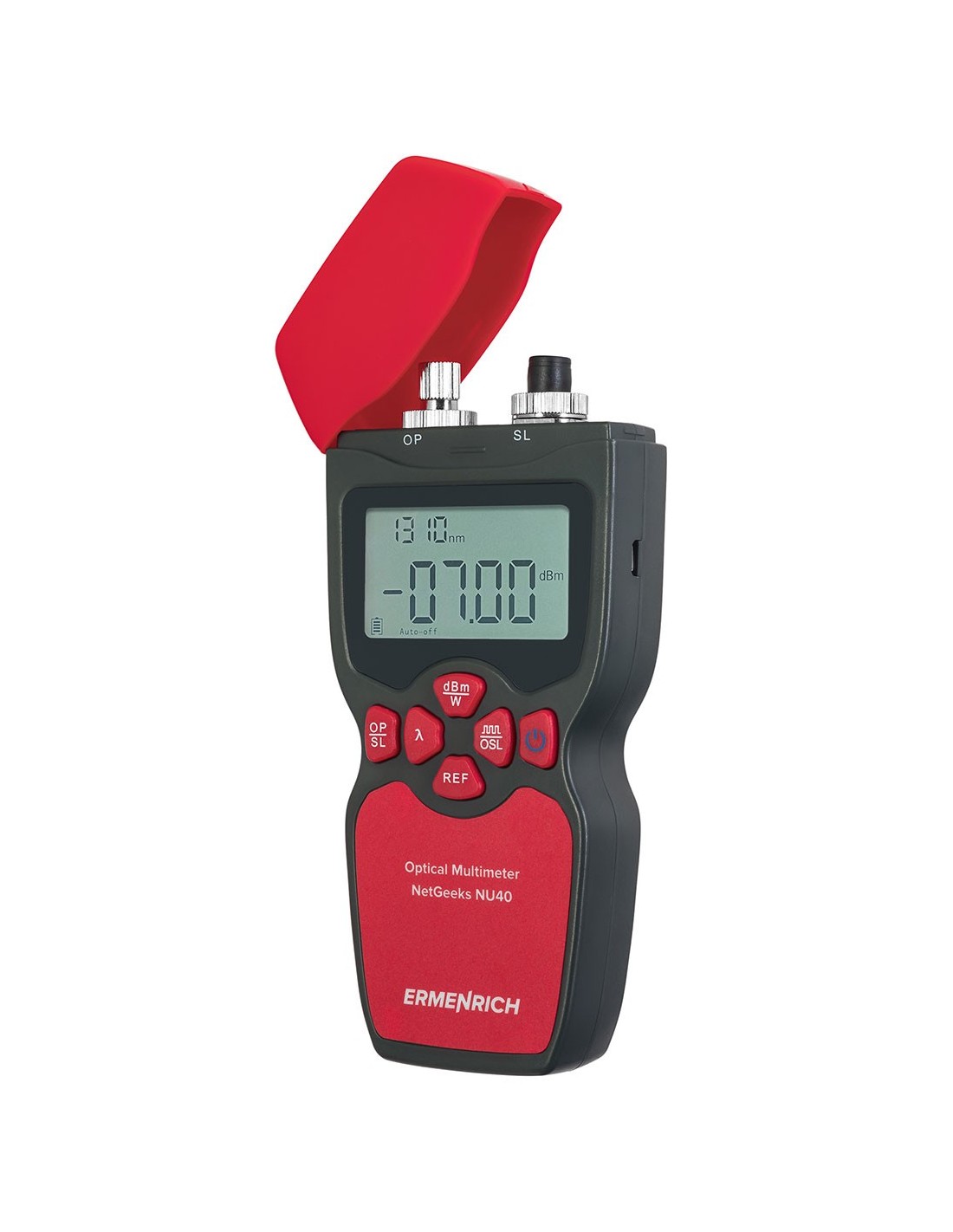

Ermenrich NetGeeks NU40 optical multimeter - ERMENRICH

Reference Art. OM-82559

€89.95

Tax included

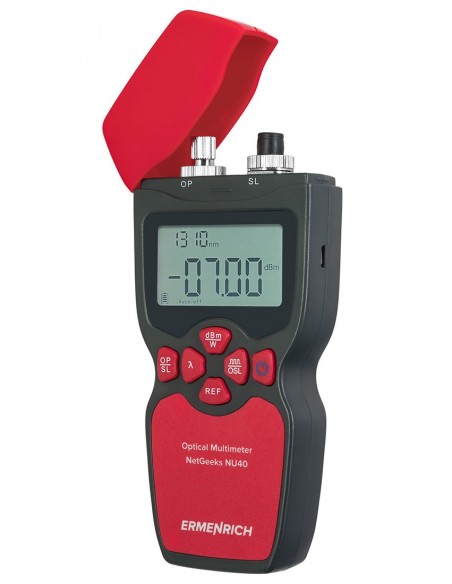

The Ermenrich NetGeeks NU40 optical multimeter, or optical power meter, is an essential tool for professionals who install and maintain fiber optic telecommunications lines. This tool allows you to measure absolute power and locate attenuations between two points of the transmission line. There is a light source test function.

Description
Product Details

The instrument is equipped with FC, SC, ST connectors and can work with single-mode (SMF) or multi-mode (MMF) cables. It is possible to vary and select the operating mode using buttons. Measurements are shown on the integrated screen, which is equipped with backlighting for working in low light conditions. The multimeter is powered by standard batteries (not included).

Key Features:

Supports single-mode (SMF) or multi-mode (MMF) cables ; FC, SC and ST connector
Absolute and relative optical power measurements, six wavelengths
Light source test function, two wavelengths
Powered by standard batteries, automatic power-off function for energy saving

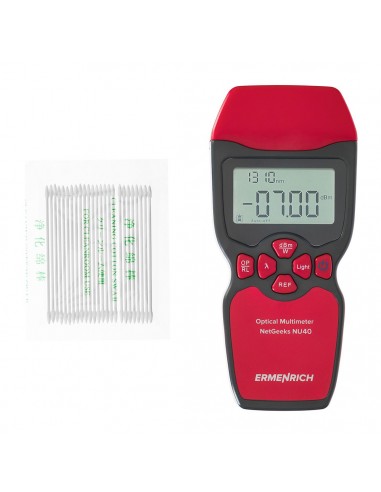

The package contains:

Transmitter li>

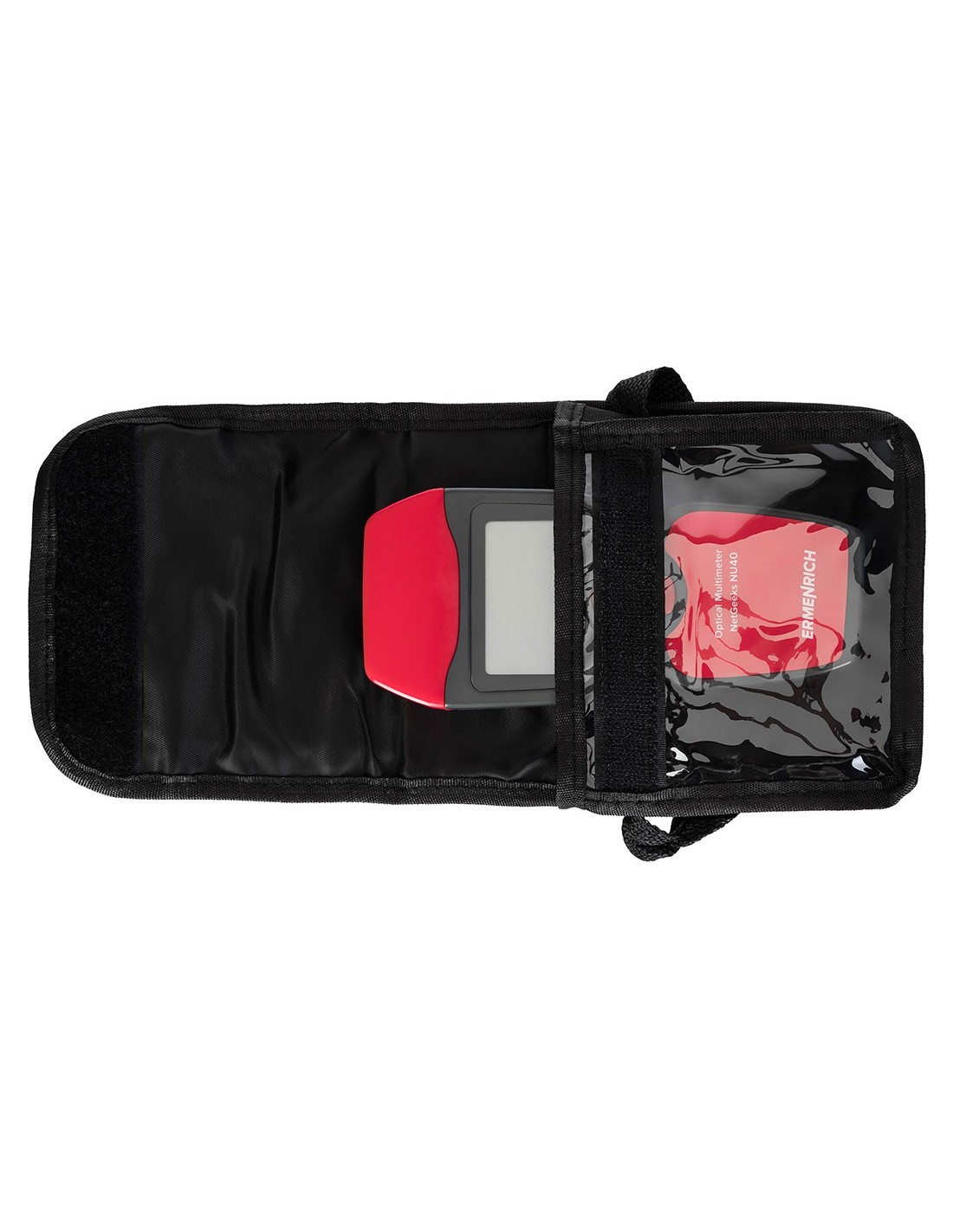

Case

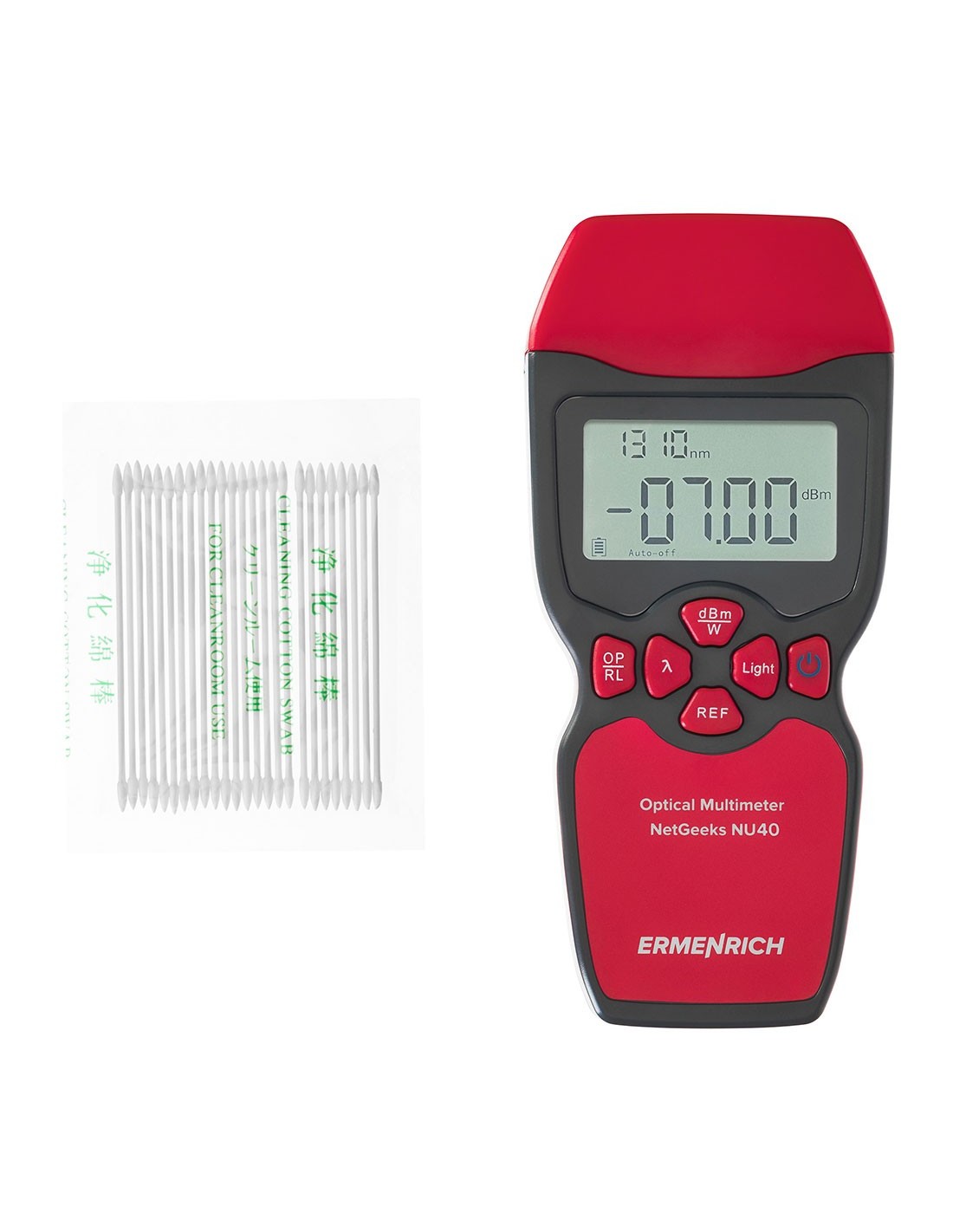

Cotton swabs
User manual and warranty card

Brand	Ermenrich
Warranty	5 лет
EAN	5905555017037
Package size (LxWxH)	19x15x6 cm
Shipping weight	0.36 kg
Type	optical multimeter
Wavelengths optical power meter, nm	850/ 1300/ 1310/ 1490/ 1550/ 1625

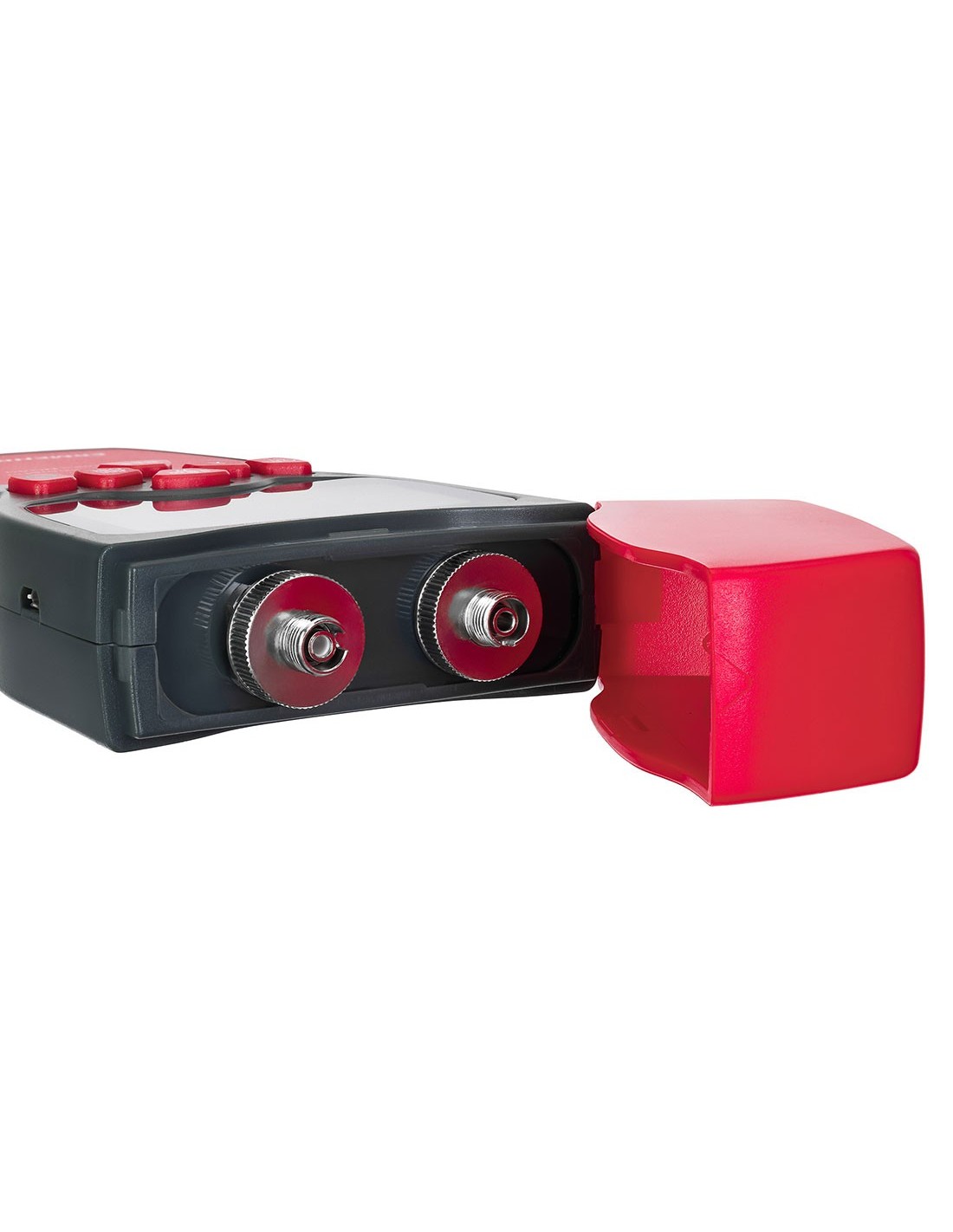

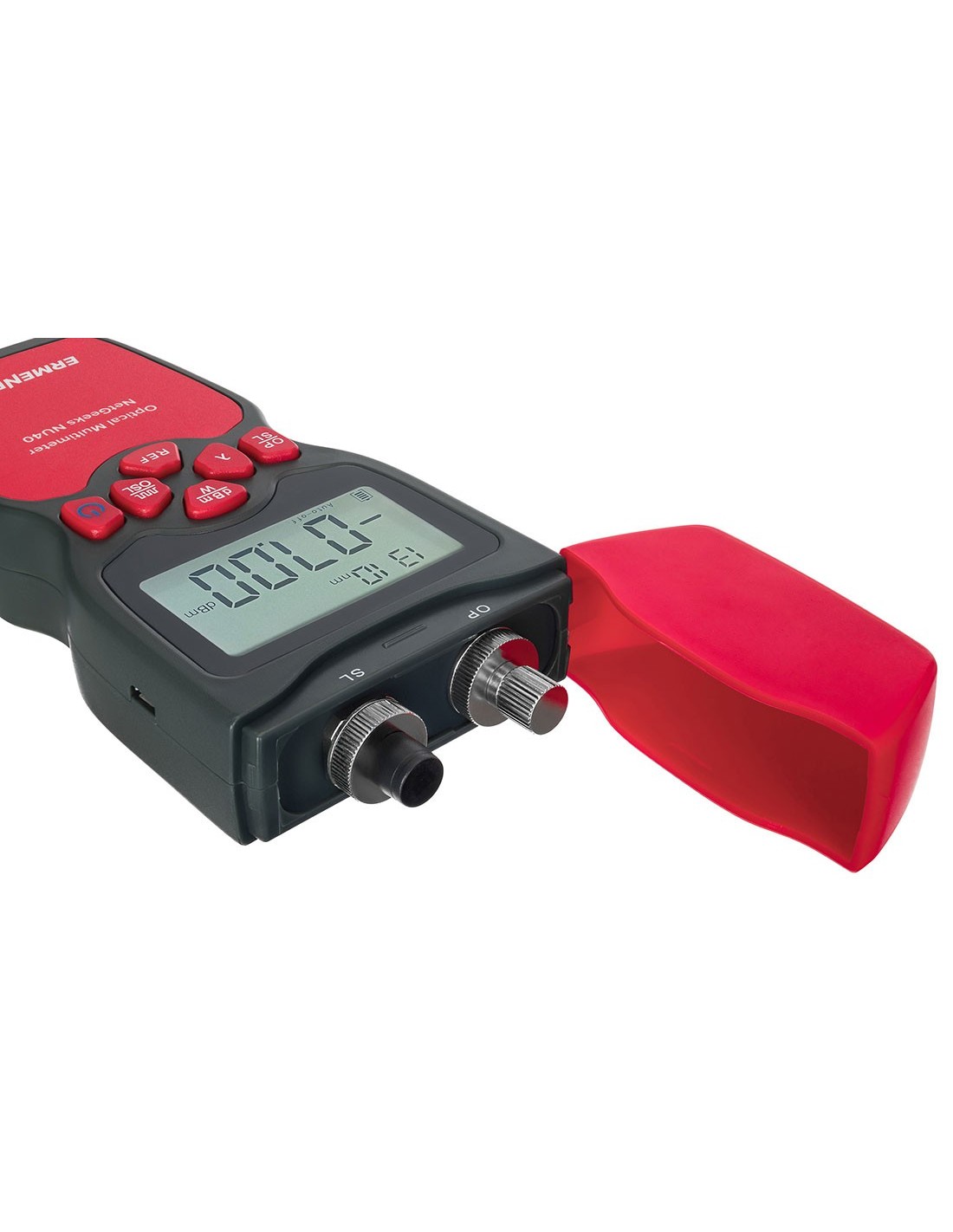

Fiber optic connector type	FC, SC, ST
Type of fiber optic cable	single-mode (SMF) or multi-mode (MMF)
Measurement units	dB, dBm, W
Power detection range, dBm	-50 — 26
A reference level can be set	yes
Display	LCD FSTN
Display backlight	yes

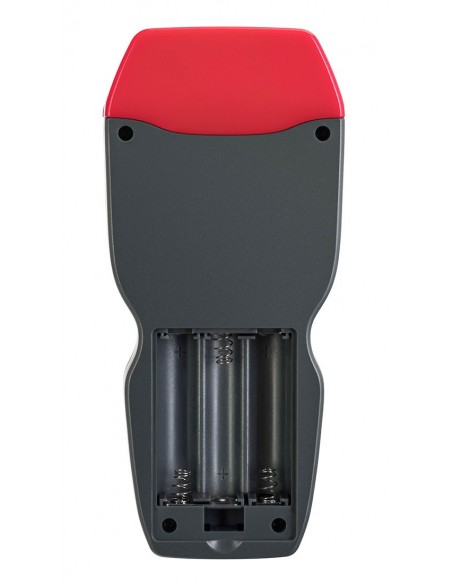

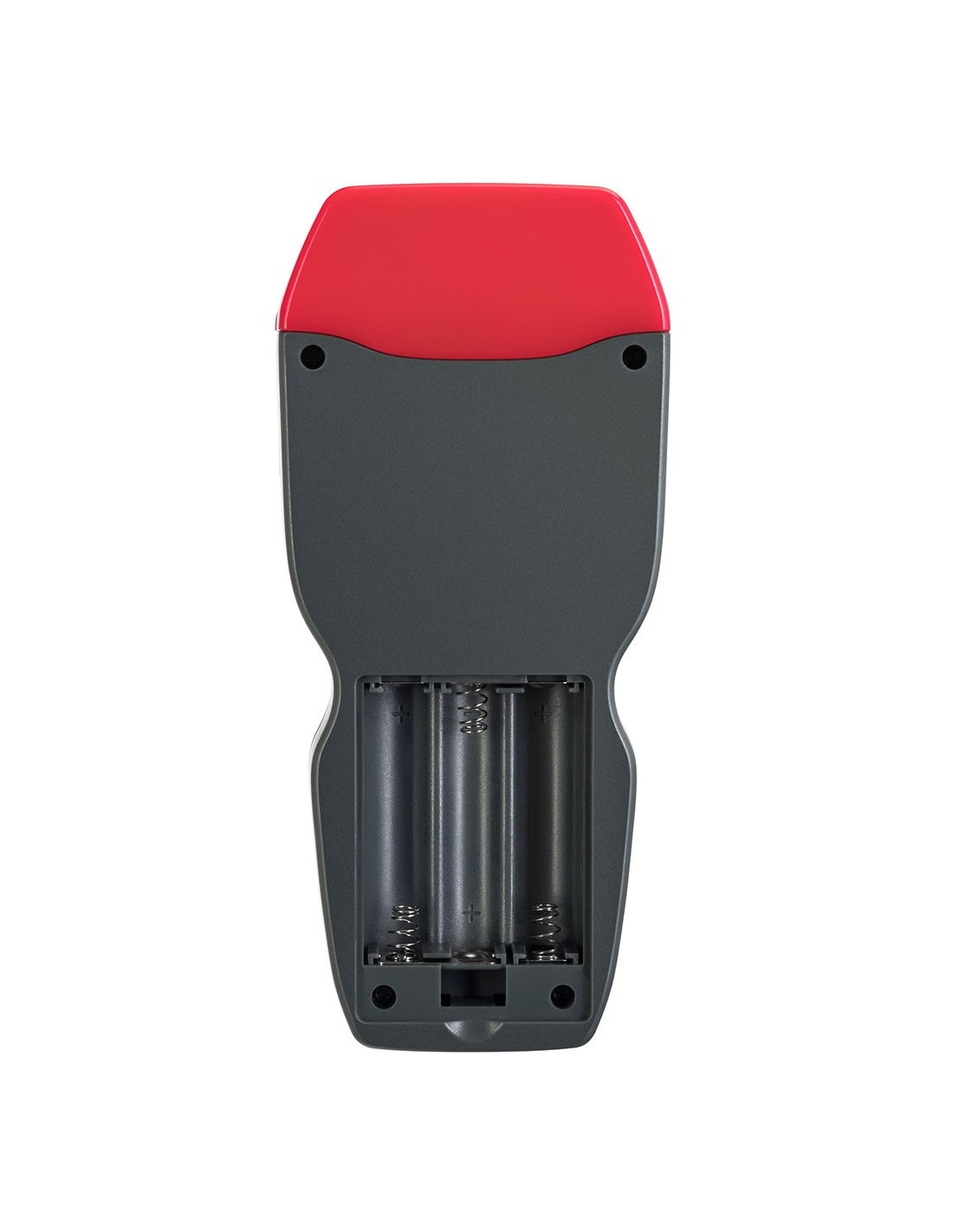

Power	3 AAA batteries (not included) or AC adapter (Micro-USB cable and AC adapter not included)
Low battery indicator	yes
td>
Automatic shutdown	yes
Operating temperature range, °C	-10 — 60
Humidity operating range, %	20 — 70
