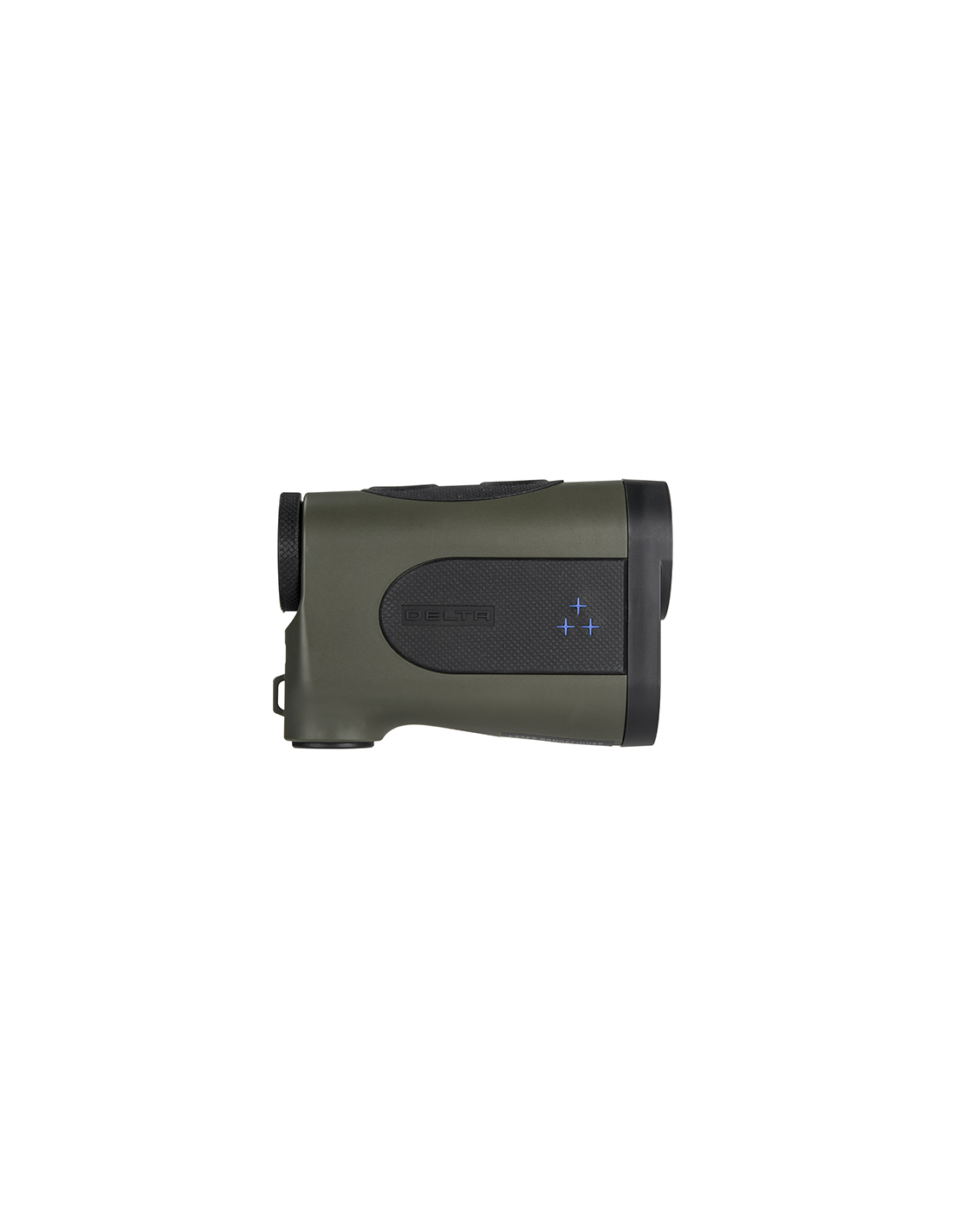

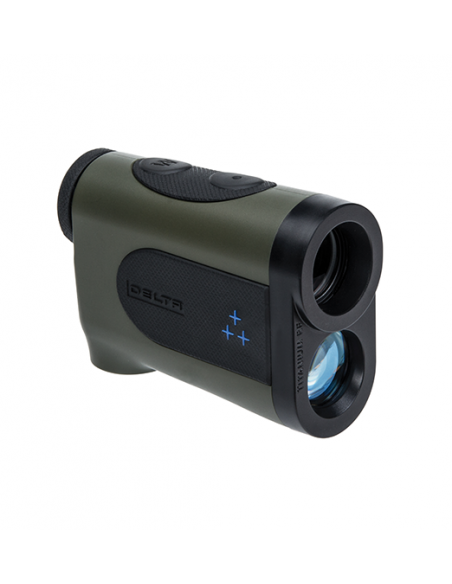

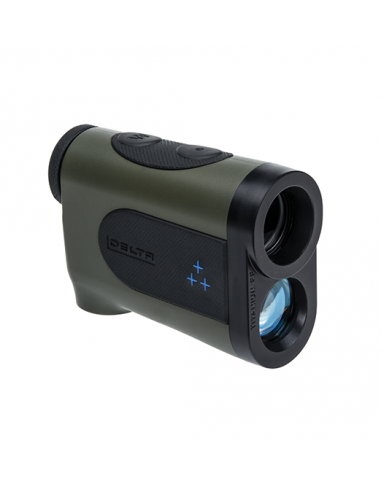

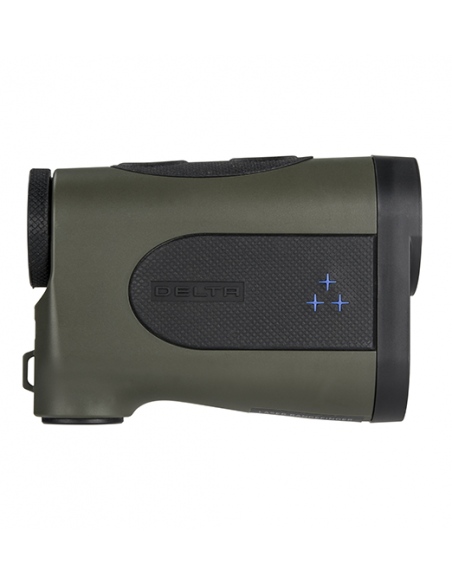

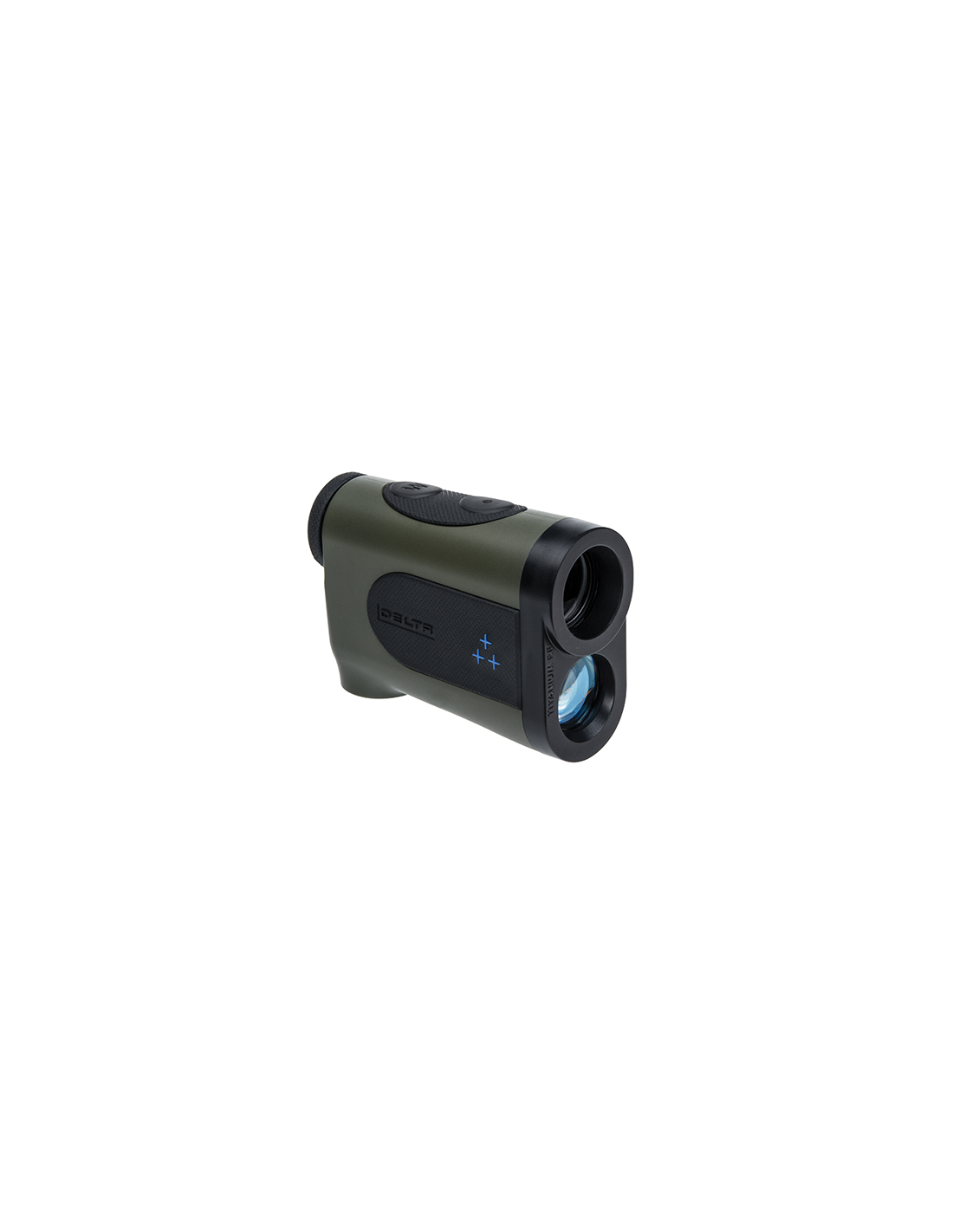

RF-2000 rangefinder - DELTA OPTICAL

Compact and lightweight
Detection > 1000m
Fast reading
Angular measurement and compensation
Automatic horizontal distance calculation. Compact, fast and precise, the new Delta rangefinder is certainly one of the best currently on the market.

Maximum measurement of 1830 m; Accuracy ±0.5 m;

Response speed of 0.3 seconds;

Possibility of single or continuous measurement (up to 8 seconds), wide field of view, front diopter adjustment, IPX4 waterproofing.

Depending on the mode chosen, vertical angle measurement can also be carried out.

Lens diameter: 23 mm

Exit pupil: 17 mm
Display type: LCD
Weight: 190 g
Working temperature: -10 / +50 ° C
Linear field of view for 1000 m: 105 m
Angular field of view: 6 °
Dimensions: 102x70x35 mm
Maximum measuring range: 1,830 m
Magnification: 6 x
Waterproof class: IPX4
Warranty period: 60 months
Measurement speed: 0.3 s
Minimum measuring range: 4.6 m
Diopter adjustment range: +/- 3D
Allowable distance measurement error: +/- 0.5 m
Laser wavelength : 905 nm
Measurement tilt angle range: +/- 89 °
Energy: 1x CR2 (3V)
Laser class: IEC 60825-1: 2014 CLASS 1 LASER PRODUCT
