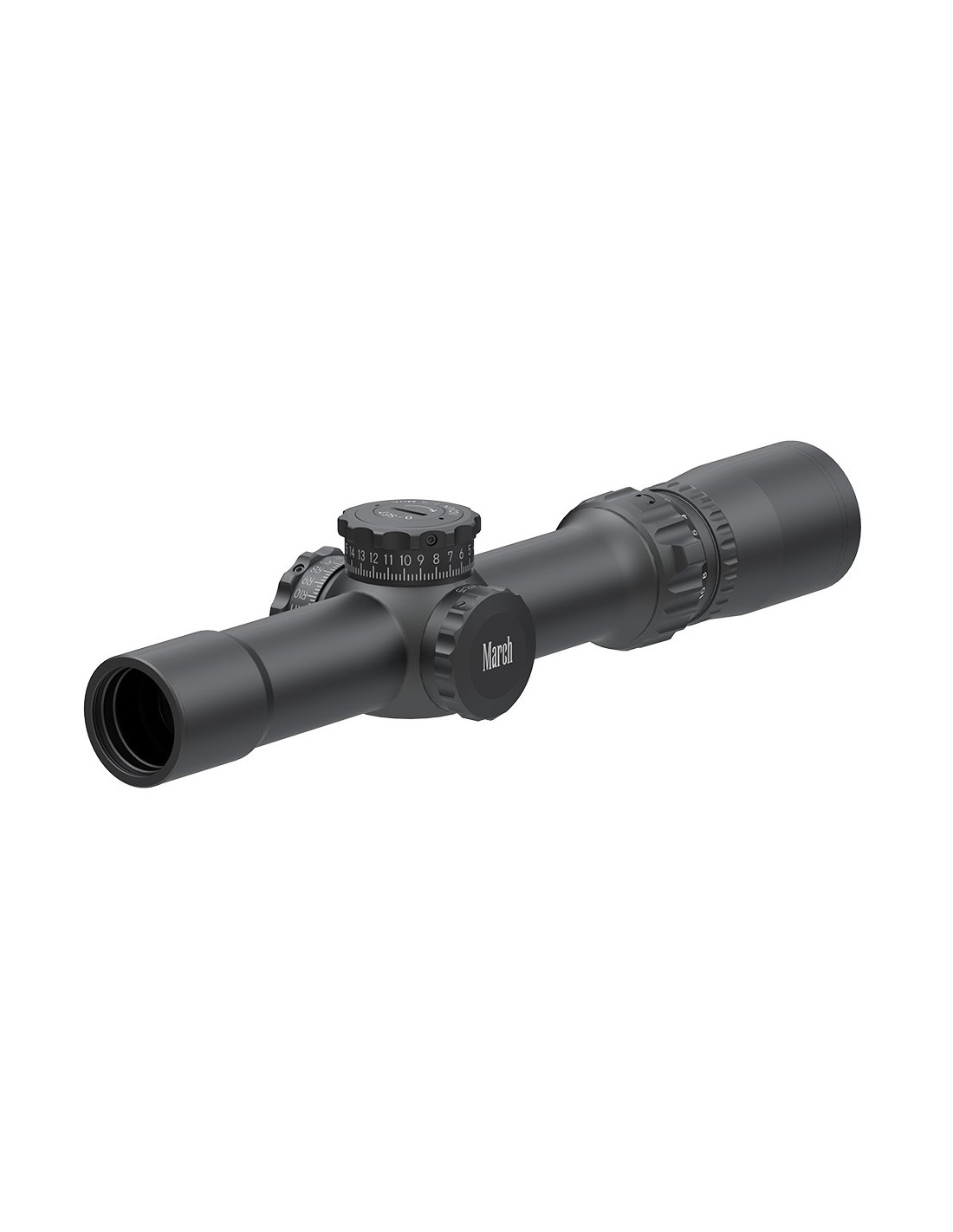

10x24mm Second Focal Plane Reticle Riflescope with MTR-5 Reticle - MARCH

Tactical model (unlit)

Compact gear 1-10x24
The most compact of the March SFP reticle scopes and covers a wide range of hunting and tactical situations.
?Magnify 10X in SFP
?30mm diameter body
?24mm lens
?Side Focus 10 yards - infinity
?Scope body completely machined from an aluminum ingot
?All Japanese metal parts with no plastic parts except the minimal essentials such as an insulator
?Argon gas filled for internal stability. MOA type

One turn of both adjustment knobs is 25 MOA and one click is 1/4 MOA.
The windage and elevation axes each have a total adjustment range of 200 MOA.

1/4MOA Adj.dials with 0-Set

Oversized dials for elevation, windage, and side focus for easy adjustment.
The elevation dial has a 0 setting function. Technical data
Low High
Magnification 1x 10x
Effective diameter of the lens 24mm
Body tube diameter 30mm
Exit pupil -- 2.4mm
(0.09 inch)
Field of view (real) degree 20.0° 2.0°
ft/100yds 105.8ft 10.5ft
m/100m 35.27m 3.49m
Eye Relief 86-98mm
(3.39-3.86inch) 86-96mm
(3.39-3.78 inch)
1 Click 1 / 4MOA Adjustment
Elevation travel 200 MOA
Travel to the wind 200 MOA
Focus distance 10yd - infinity
MTR-1 reticle
MTR-2
MTR-3
MTR-4
MTR-5
In the box Flip Caps (lens and eyepiece)
Lens cloth
Quick leverage
Hex key
Scope size A 264mm (10.39inch)
Size B 135mm (5.31inch)
C 33mm (1.3inch)
D 41mm (1.61inch)
E 35mm (1.38inch)
F 94mm (3.7inch)
G 49mm (1.93inch)
H 48mm (1.89inch)
Weight 505g (17.81oz).
