March Compact 2.5x-25x52mm Second Focal Plane Rifle Scope with MTR-5 Reticle - MARCH

Art. OM-D25V52TI-RET. MTR-5
€3,295.95
These riflescopes have the largest magnification factor ever seen in riflescopes. All models are in
capable of focusing from 10 yards (9.14 m) to infinity with oversized turrets and easy maneuvering for elevation, traverse and focus. These compact optics are able to combine the performance of two or even three scopes
in just one. Expand your world of shooting like never before.


Tactical model (illuminated)

Compact gear 2.5-25x52 mm
Scope with 10x zoom ratio that covers a wide range of hunting and tactical situations.
・10X magnification in SFP
・ED glass
・30mm diameter body
・52mm lens
・Side Focus 10 yards - infinity
・Scope body completely machined from an aluminum ingot
・All Japanese metal parts with no plastic parts except the minimal essentials such as an insulator
・Argon gas filled for internal stability

D25V52TI
D25V52TI
D25V52TI
D25V52TI
Dials
D25V52TI
MOA type

One turn of both adjustment knobs is 25 MOA and one click is 1/4 MOA.
The elevation axis has a total adjustment range of 120 MOA.
Windage axis has a total adjustment range of 60 MOA.

1/4MOA Adj.dials with 0-Set

Oversized dials for elevation, windage, and side focus for easy adjustment.
The elevation dial has a 0 setting function.

lattices






Technical data
Low high
Magnification 2.5x 25x
Effective diameter of the lens 52 mm
Body tube diameter 30 mm
Exit pupil -- 2.08mm
(0.08 inch)
Field of view (real) degrees 8.0° 0.8°
feet/100 yards 42.0 feet 4.2 feet
m/100m 13.99m 1.40m
Pupillary distance 85-100 mm
(3.35-3.94in) 89-96mm
(3.5-3.78 inch)
1 Click 1/4MOA Adjustment
Elevation travel 120 MOA
60MOA windage stroke
Focus distance 10yd - infinity

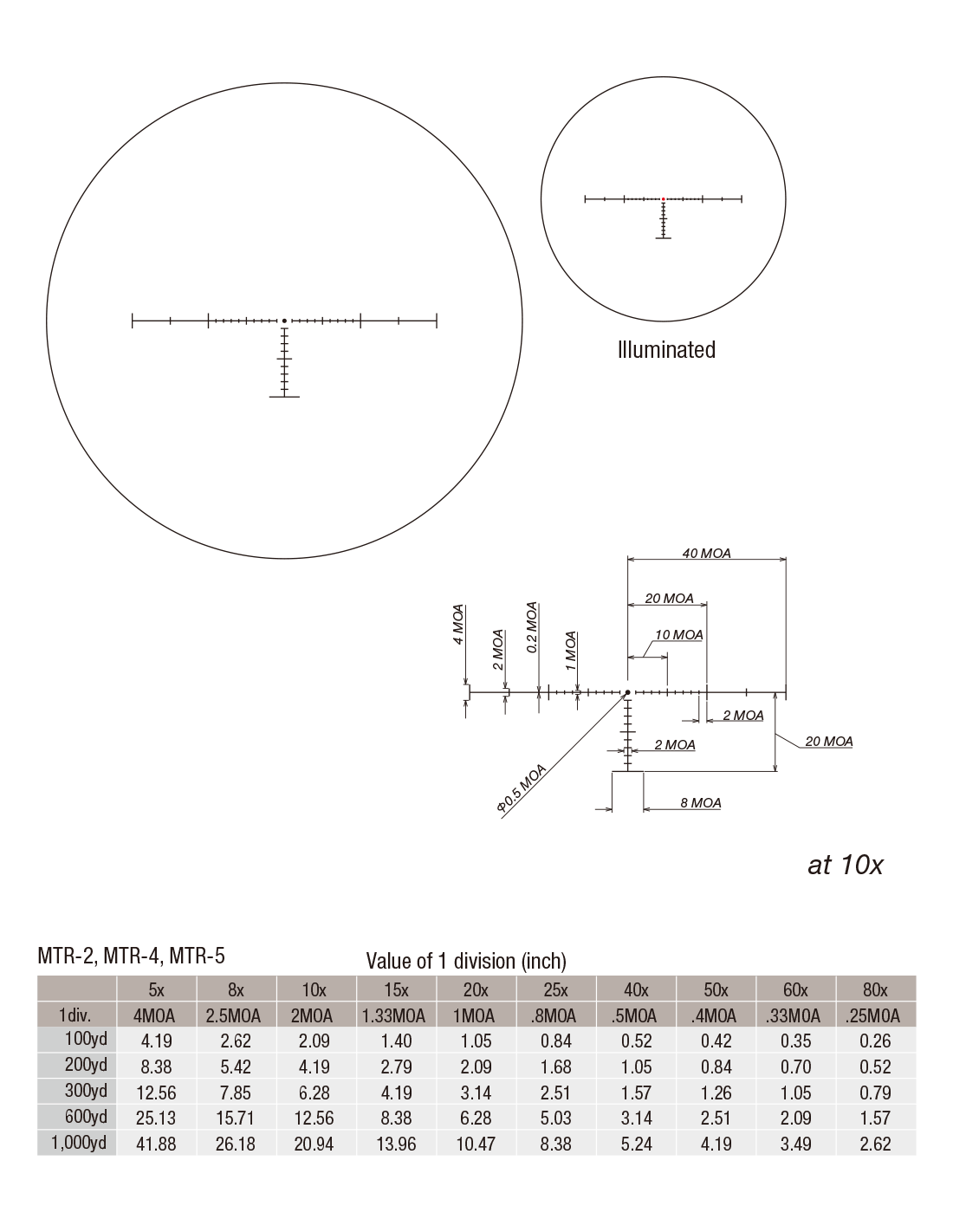

MTR-1 reticle
MTR-2
MTR-3
MTR-4
MTR-5
MTR-FT
MTR-RTM
In the box Flip Caps (Objective and Eyepiece)
Sun visor
Lens cloth
Quick leverage
Hex key
MD disc
Optical dimension A 338 mm (13.31 in)
size B 139 mm (5.47 inch)
C 60 mm (2.36 in)
D 41 mm (1.61 in)
E 105 mm (4.13 in)
F 94 mm (3.7 in)
G 53 mm (2.09 in)
Height 48mm (1.89 inch)
Weight 685 g (24.16 oz)
