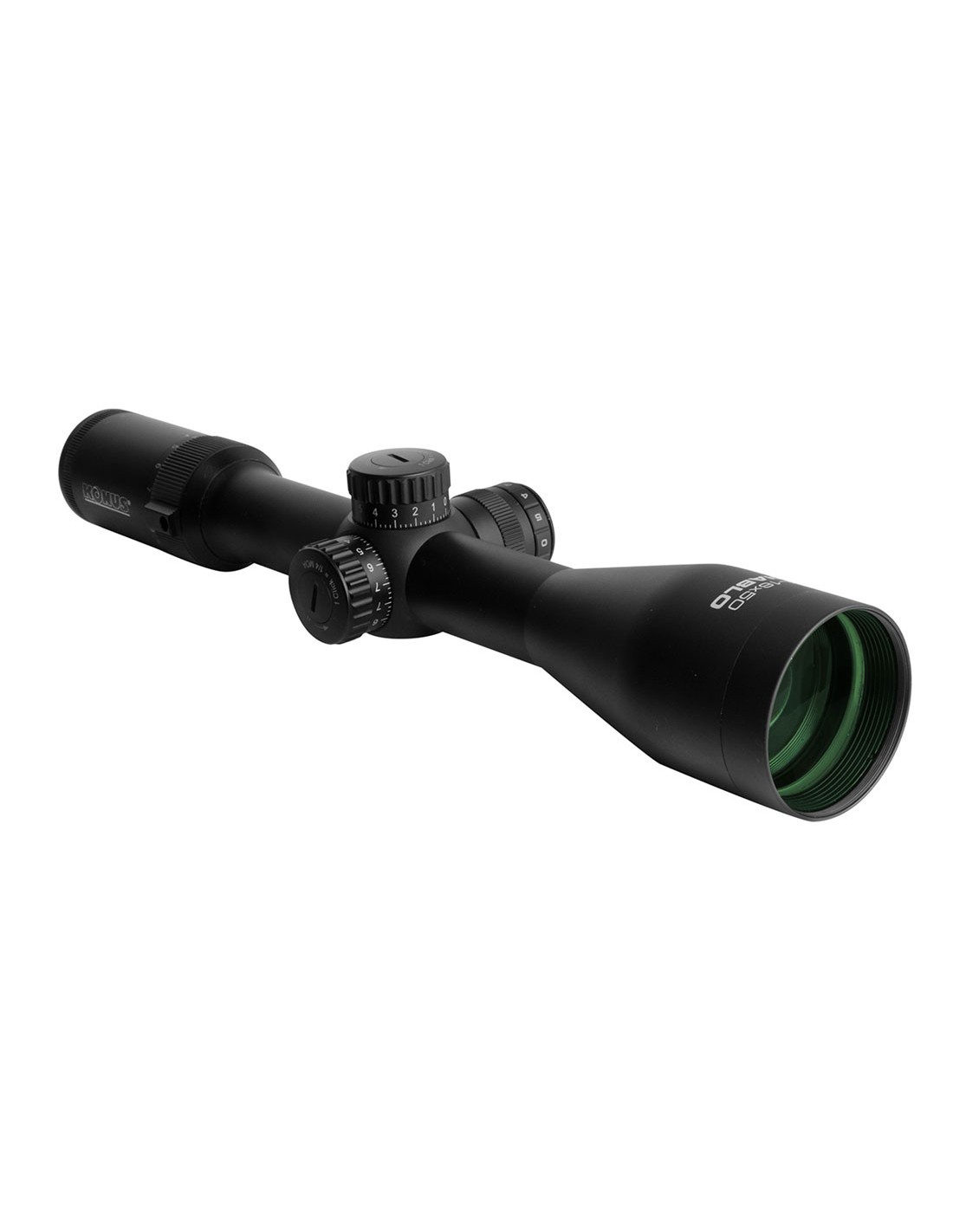

"DIABLO" 6 -24x50 riflescope - engraved/ill. modified half Mil-Dot reticle - KONUS

OPTICS THAT MAXIMIZE PERFORMANCE AND VALUE These optics are designed to have exceptional versatility and be suitable for multiple shooting disciplines, they are also particularly suitable for selected hunting and shooting. Taking into account their fine mechanics and optical brilliance, they are sold at an unprecedented price level and are therefore an ideal solution for all shooters.
SPECIFICATIONS
SPECIFICATIONS
– EXTREMELY WIDE FIELD OF VIEW
– NEW OPTICAL SYSTEM WITH TRULY EXCELLENT PERFORMANCE AND INCREDIBLE IMAGE QUALITY
– THREE-PIECE OBJECTIVE LENS AND EYEPIECE FOR HIGHER RESOLUTION AND LESS IMAGE DISTORTION
– FULLY MULTI COATING AND ULTRA WHITE OPTICS FOR INCREASED LIGHT TRANSMISSION AND GREATER CLARITY
– WATER-REPELLENT LENSES SUITABLE FOR RAINY DAYS
– NEW PRECISION TACTICAL ZERO-SETTING TURRETS QUICK

TECHNICAL DATA #7172 DIABLO 4x-16×50
-Magnification for Ø objective: 4-16×50

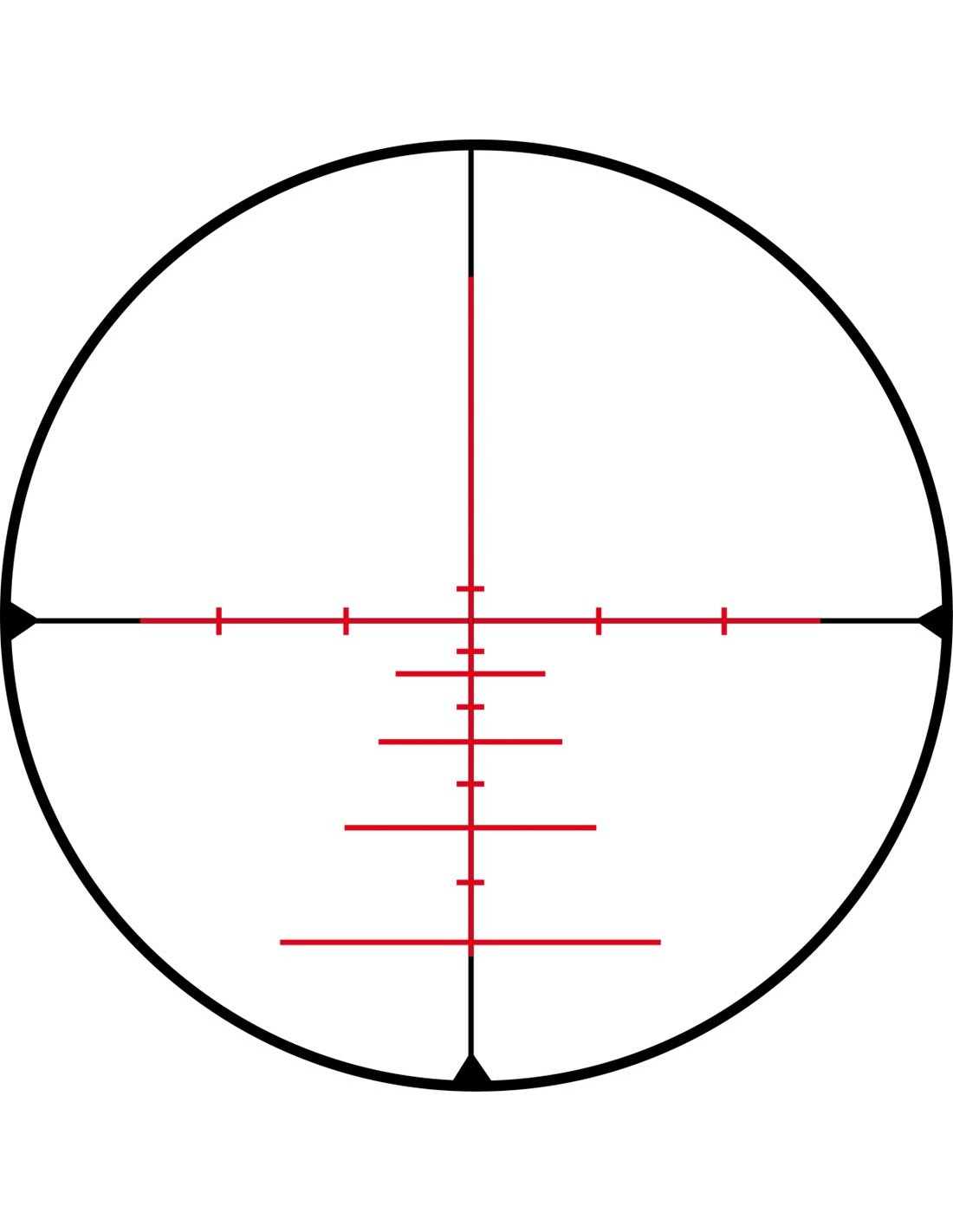

-Reticle: Ballistic 550
-Field of view at 100m: 9.2m at 4x – 2.4m at 16x
-Weight: 680 gr
-Length: 342.9 mm Eye Relief: 81.28mm
-Exit pupil: 9.8mm at 4x – 3mm at 16x
-Click value at 100m: 1/4 MOA (7.25mm)
-Adjustment range at 100m: 1.69m – 65”
-Mounting distance mm: 149mm

DATA TECHNICAL #7173 DIABLO 6x-24×50
-Magnification for Ø objective: 6-24×50

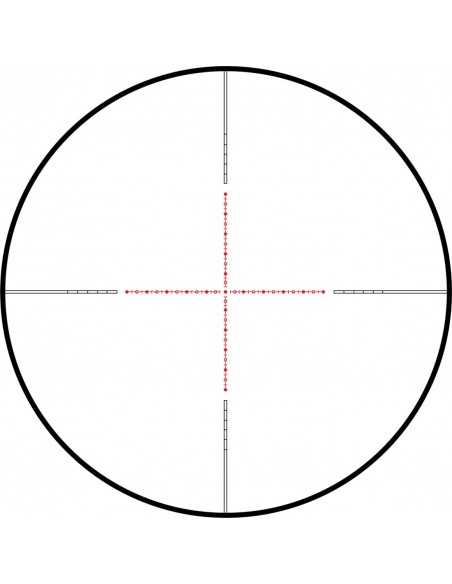

-Reticle: Modified 1/2 Mil dot double illumination
-Field of view at 100m: 6.46m at 6x – 1.74m at 24x
-Weight gr: 726gr
-Length mm: 386.08mm
-Eye relief mm: 81.28mm
-Exit pupil mm:7.3mm at 6x • 2.2mm at 24x
-Click value at 100m: 1/10 MIL
-Adjustment range at 100m:1.35m – 52”
-Mounting distance mm: 173mm
