MED 20x Plan Achromatic Objective - LEVENHUK

Reference Art. OM-76066

€52.95

Tax included

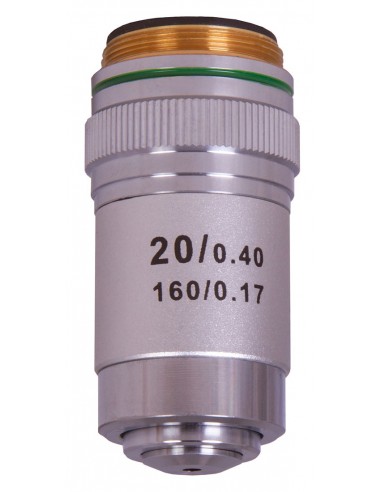

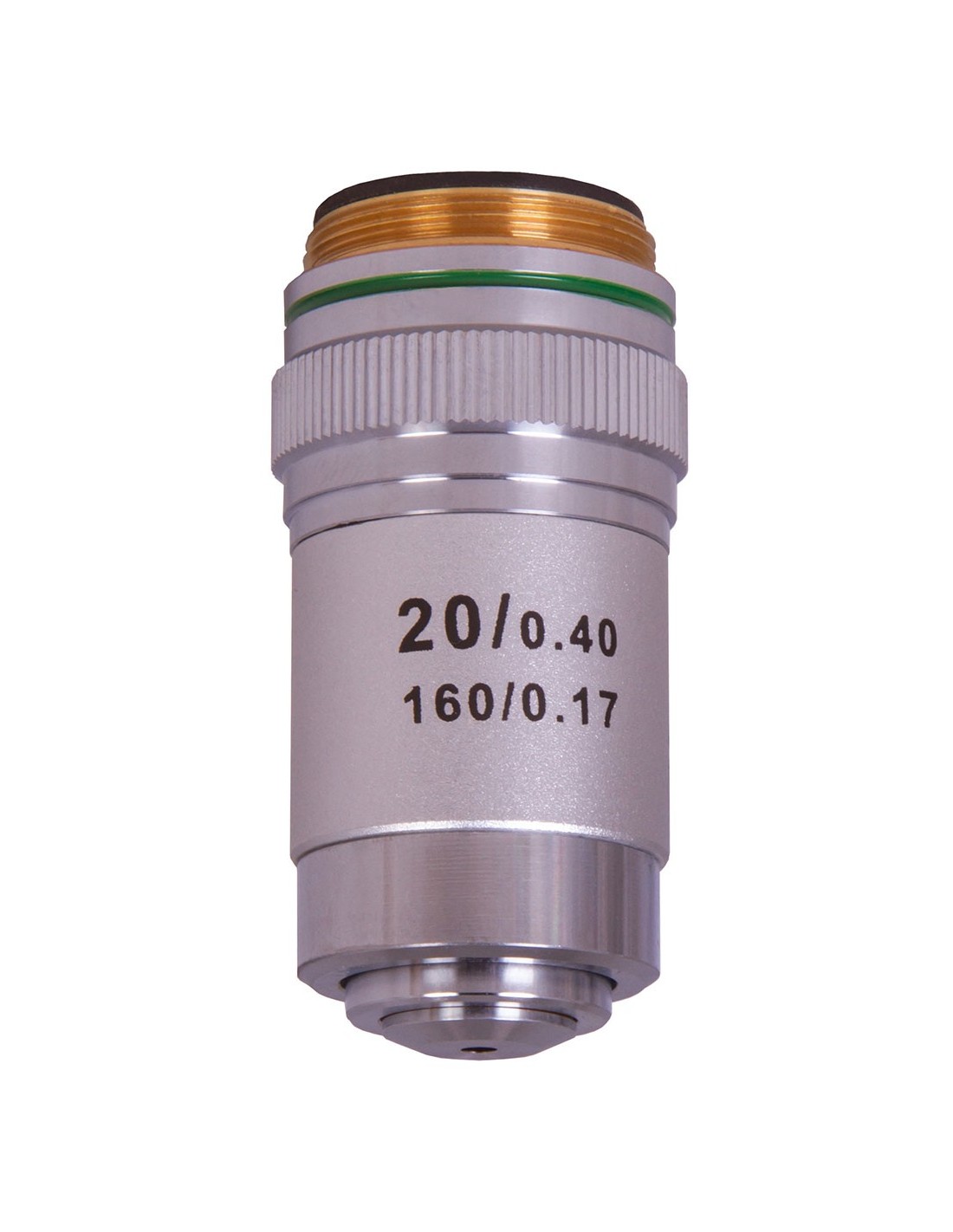

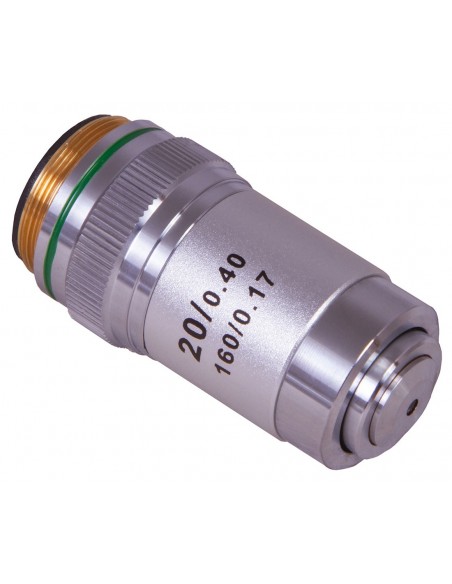

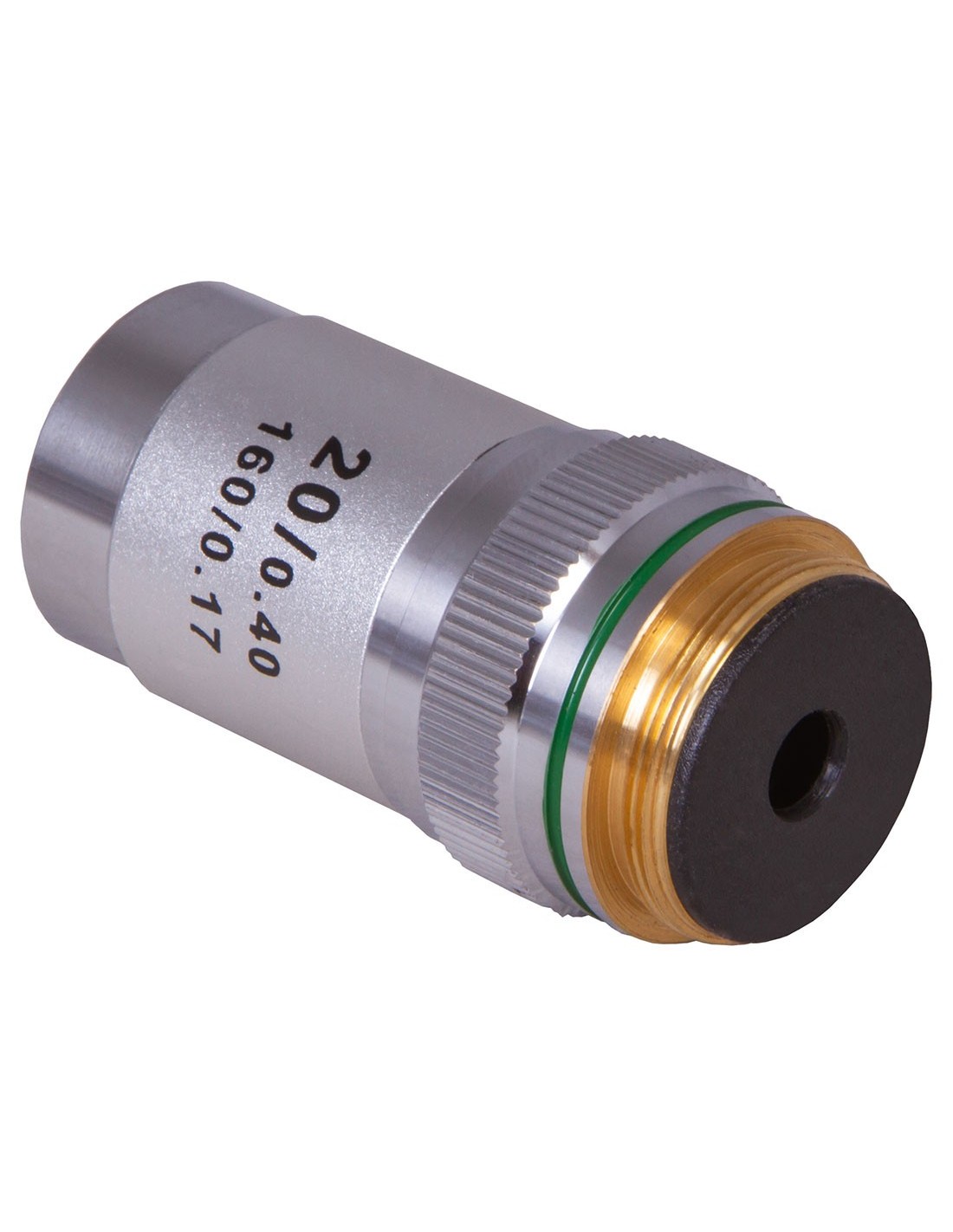

The Levenhuk MED 20x achromatic objective provides clearer and more detailed images than objectives with a classic optical scheme. As a result, it is particularly suitable for laboratory research. It comes with glass optics and has a metal body. Its reliable and durable construction will allow it to be used for many years. The lens offers a magnification of 20x.

Description
Product Details

The Levenhuk MED 20x achromatic objective is an excellent choice for increasing the potential of any professional microscope. It is compatible with microscopes of any brand.

The kit includes:

Objective
Plastic case

Specifications
Lens material	optical glass
Body material	copper
achromatic
Magnification, x	20
Aperture	0.4
Working distance, mm	2.1
Parfocal distance, mm	45
Slide cover thickness, mm	0.17
Compatible tube length, mm	160
Thread type	WJ 4/5 "*1/36"
Spring mechanism	no
Oil immersion	no

Trademark	Levenhuk Inc., USA
Warranty	2 years
EAN	5905555004679
Package size (LxWxH)	3x6x3 cm
Shipping weight	0.082 kg

Brand LEVENHUK
