MED 40x Infinity Plan Achromatic Objective - LEVENHUK

Reference Art. OM-76073

€145.95

Tax included

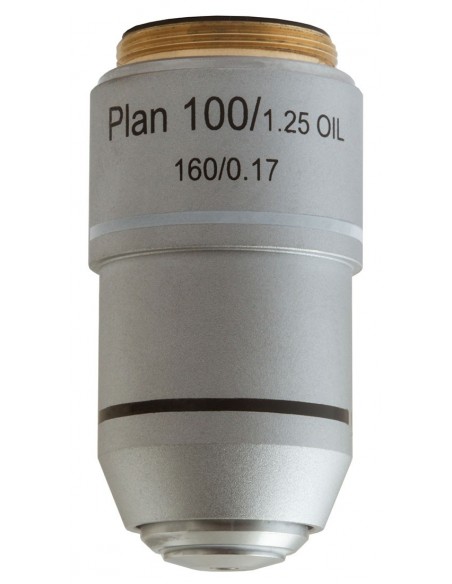

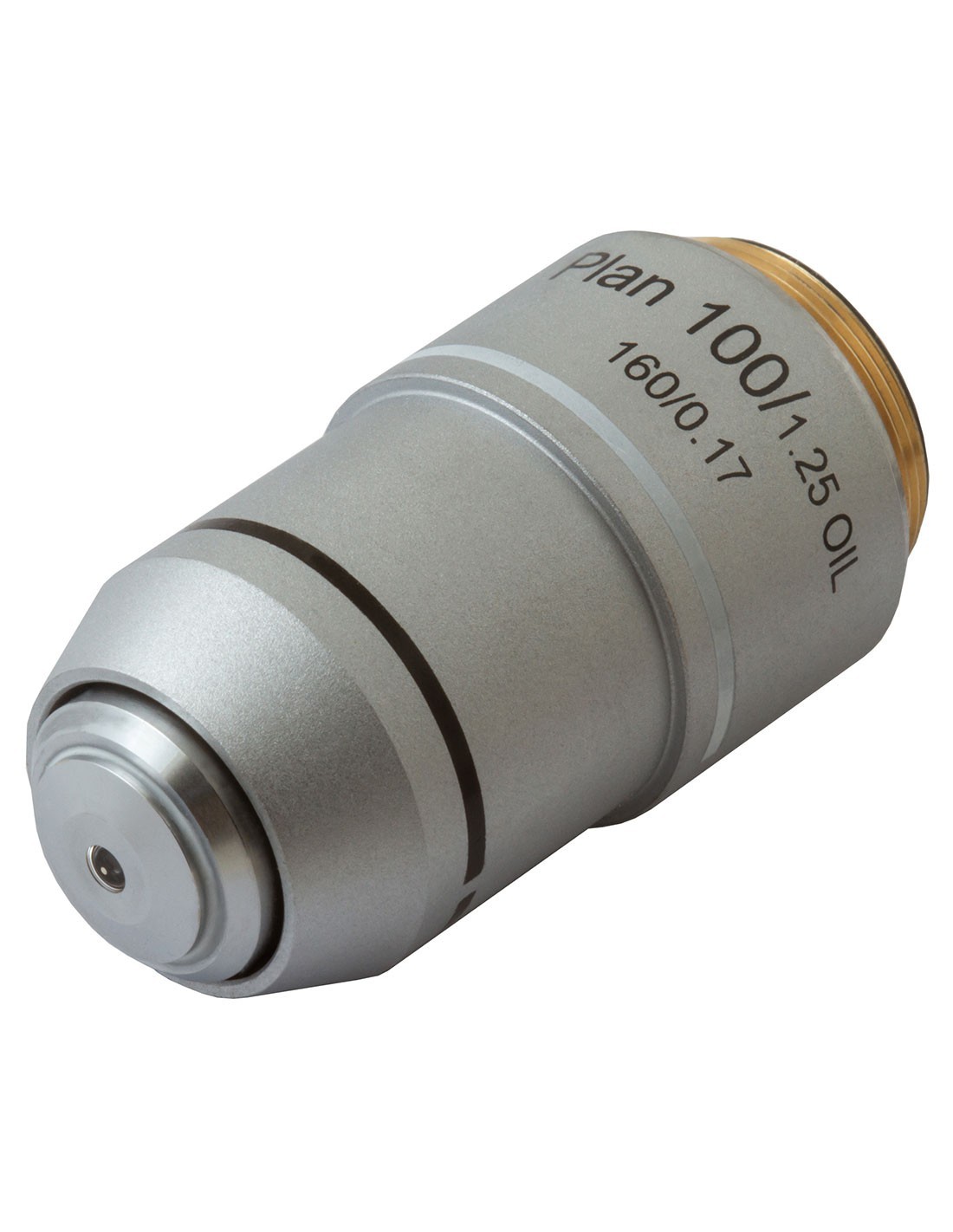

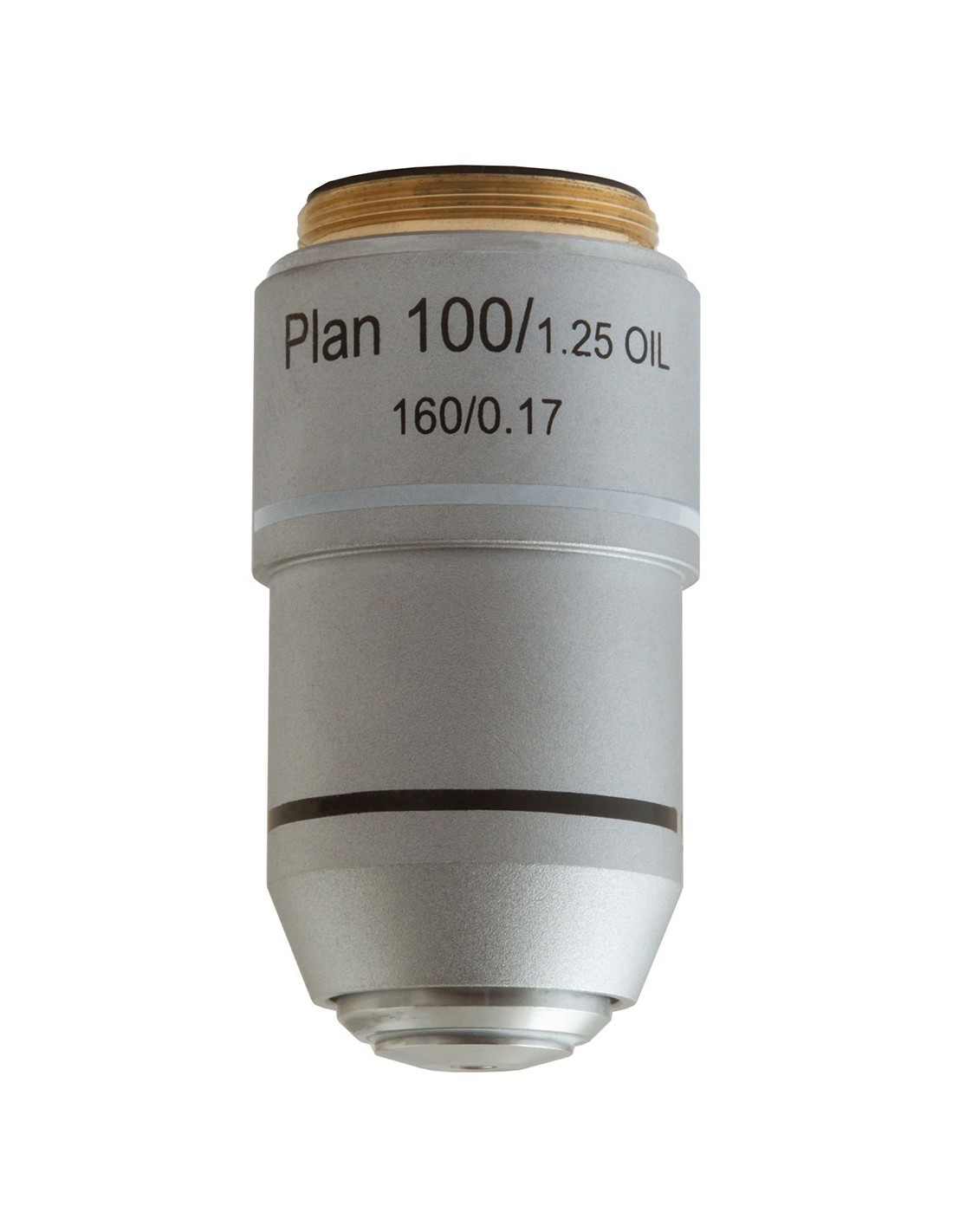

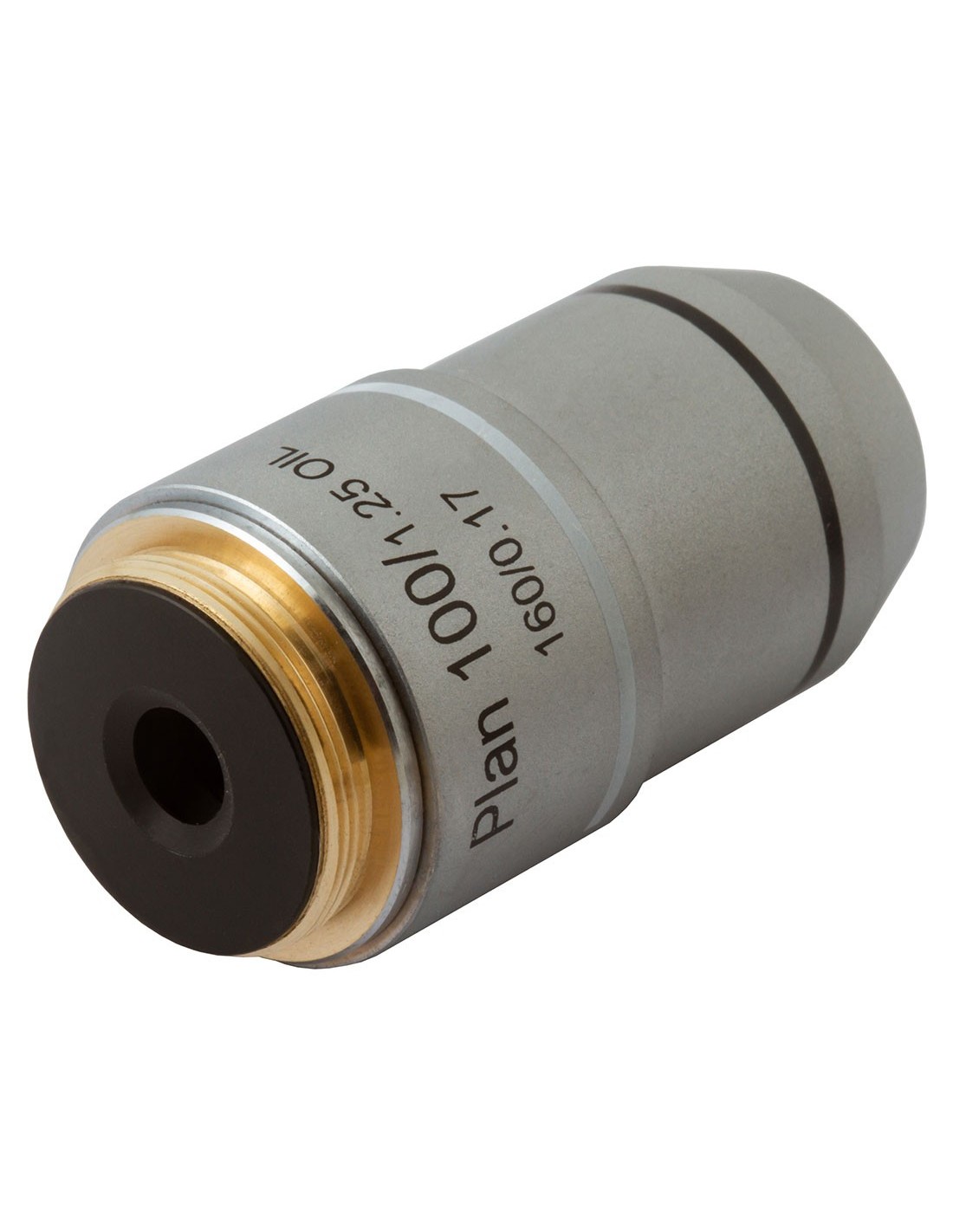

The Levenhuk MED 100x is a plan achromatic objective with 100x magnification. It can be installed on microscopes of any brand. You can use this objective for classic “dry” observations. In addition, it allows observations via oil immersion. The front lens is equipped with a frame with a spring mechanism that protects the optics from accidental damage.

Description
Product Details

The Levenhuk MED 100x is a plan achromatic objective with 100x magnification. It can be installed on microscopes of any brand. You can use this objective for classic “dry” observations. In addition, it allows observations to be made via oil immersion. The front lens is equipped with a frame with a spring mechanism that protects the optics from accidental damage.

A planachromatic objective like this is particularly suitable for studying complex microstructures. It allows you to transmit sharp, quality images without spherical or chromatic aberrations. This lens perfectly corrects field curvature.

The Levenhuk MED 100x plan achromatic lens features glass optics and a metal body.

The kit includes:

Lens
Plastic case

Specifications
Lens material	optical glass
Body material	copper
Optical scheme	planachromatic
Magnification, x	100
Aperture	1.25
Working distance, mm	0.234
Parfocal distance, mm	45
Slide cover thickness, mm	0.17
Compatible tube length, mm	160
Thread type	WJ 4/5"*1/36"
Spring mechanism< /td>	yes
Oil immersion	yes

Brand	Levenhuk Inc., USA
Warranty	2 days
EAN	5905555004747
Package size (WxDxH)	3x6x3 cm
Shipping weight	0.108 kg

Brand LEVENHUK
