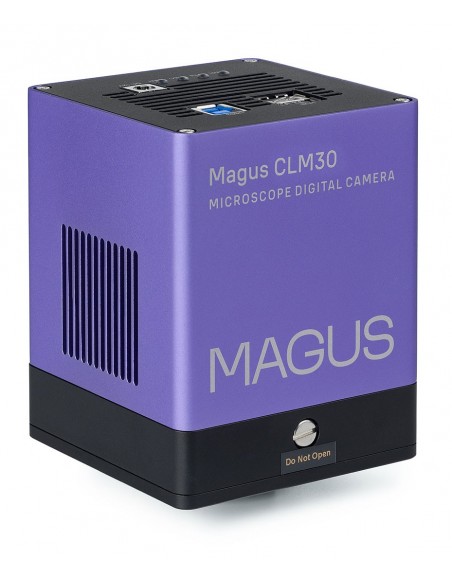

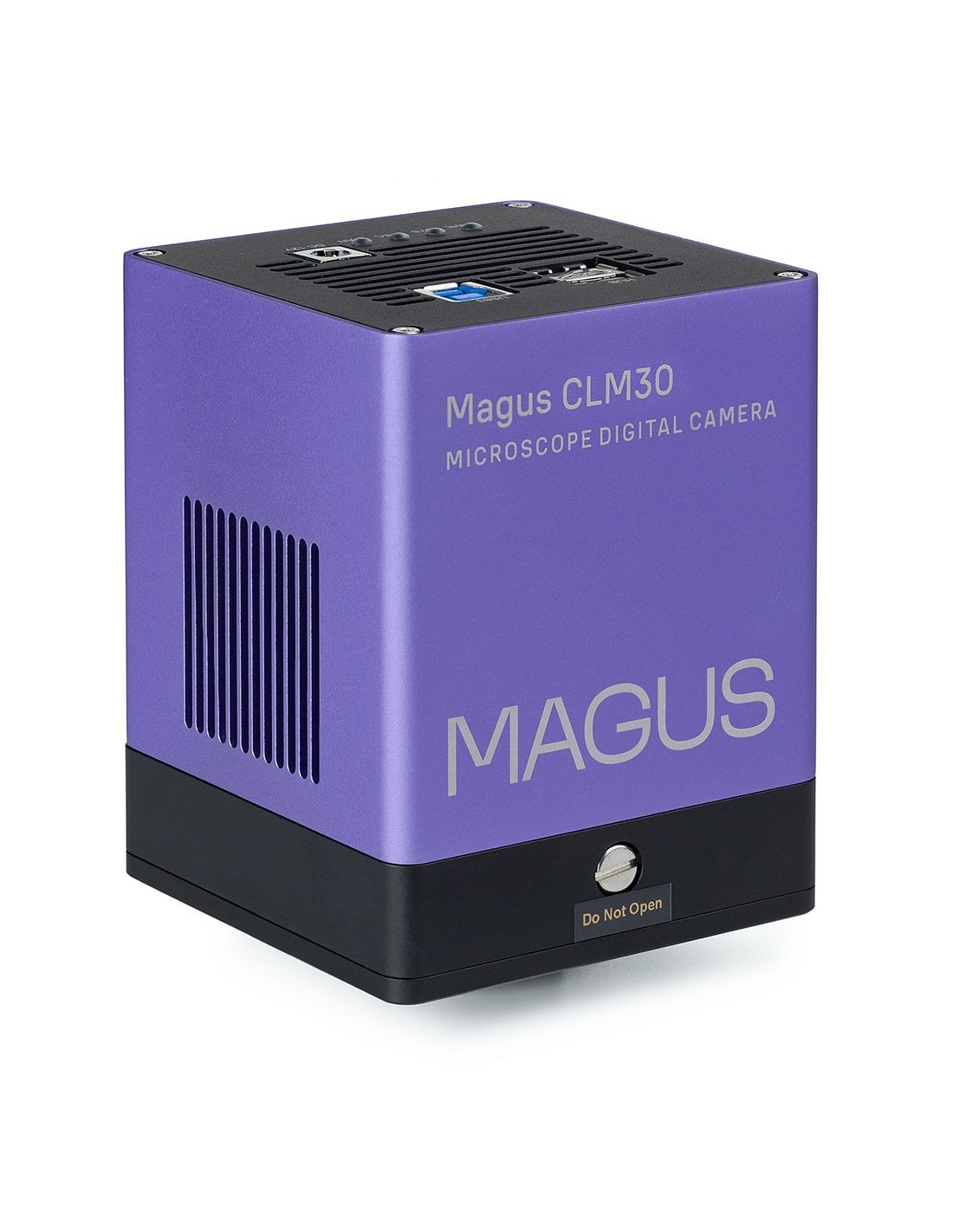

MAGUS CLM microscope cameras are designed for fluorescent light and darkfield imaging. The CLM30 produces a color image with a resolution of 3840x2160 px (at 45 fps) or 1920x1080 px (at 70 fps). As a result, the researcher receives high-quality material: the object is clearly visible, and the transition of frames is smooth. This is important if the object under the lens is moving. The resolution of the 8.3 MP sensor allows you to use this camera on 4x, 10x, 20x and 40x lenses - the device is able to show finer elements in greater detail. The built-in USB 3.0 interface transfers data at high speed when connected to a computer. The high technical characteristics of the device make the camera ideal for professional research work and university-level education.
The camera is equipped with a SONY Exmor color CMOS sensor with a diagonal of 1/1.2''. SONY sensors use backlight technology which makes the camera's light sensitivity of 5970 mV with a shutter speed of 1/30 second. The pixel size in the CLM30 model is 2.9x2.9 μm. A high-quality color image is obtained even when working in fluorescent light with low magnification objectives. The largest field of view without distortion will be achieved with an adapter with 0.75–1x magnification.
Another feature of this model is the integrated Peltier element (thermoelectric module). During prolonged operation, the sensor heats up. This leads to thermal noise and deterioration of image quality. The Peltier element maintains a temperature 42°C lower than room temperature and cools the sensor so it can be used for long periods of time and take slow shutter speeds.
The camera works with the own software that allows you to take photos and record videos, process the results and measure the linear and angular dimensions of the object and its structures. Before measuring, calibrate the device for each target. The ability to display real-time images on an external screen is useful if you need to demonstrate observations to the public.

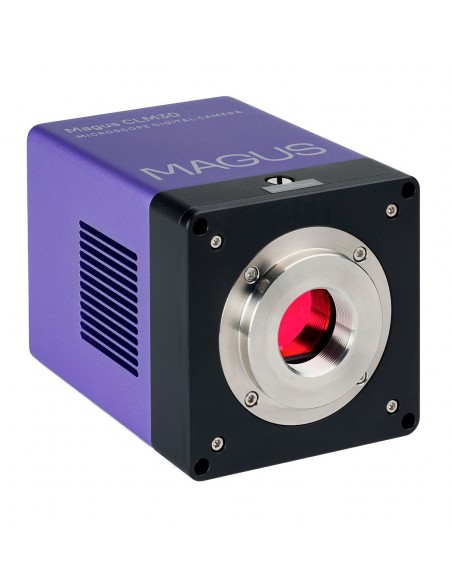

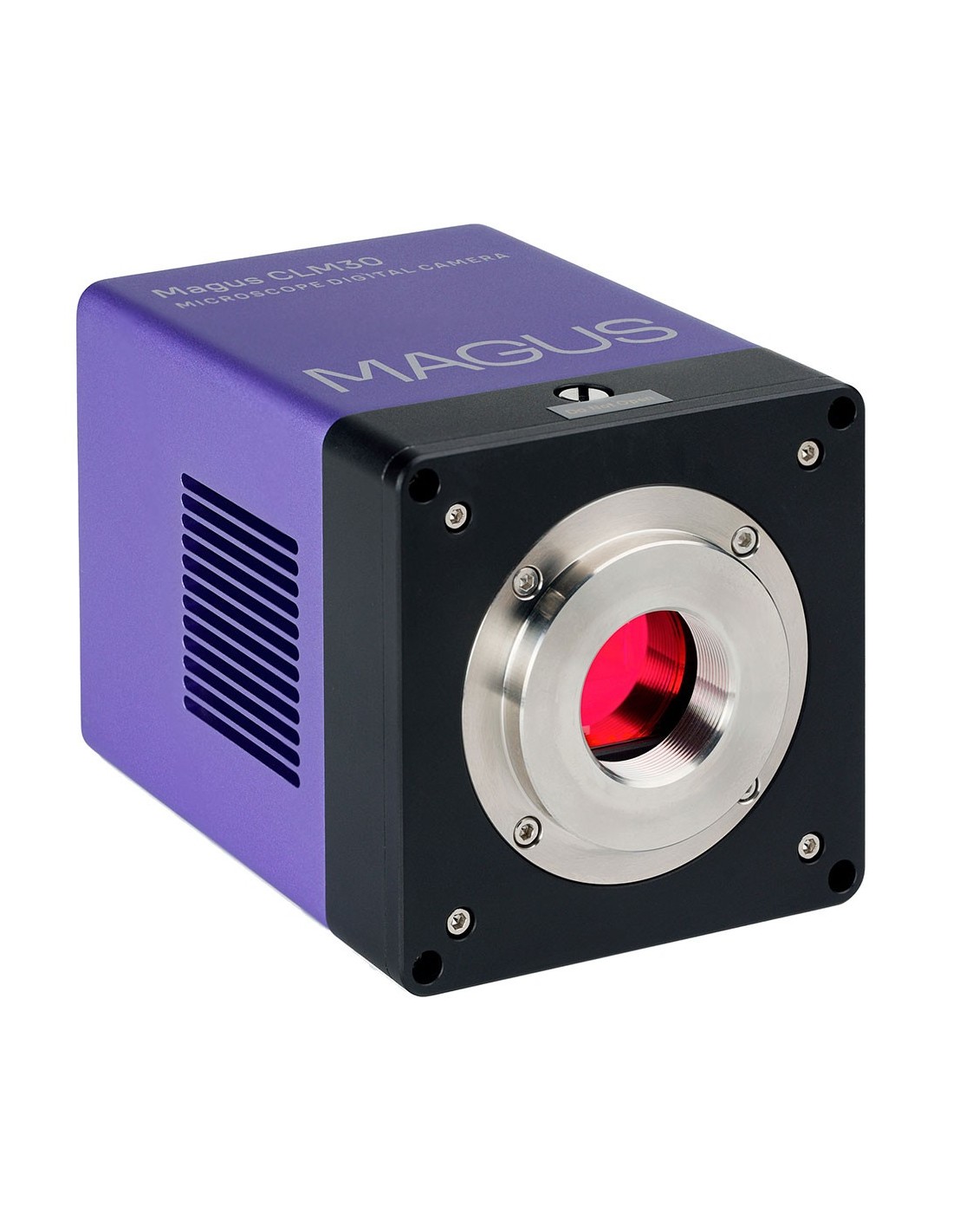

The camera is installed in the trinocular tube of the microscope and connected to it using a C-mount adapter.
Key Features:
- Works in low light conditions, with fluorescent light and dark field method
- The 8.3 MP color sensor generates an image with a resolution of 3840x2160 at 45 fps or 1920x1080 at 70 fps
- Designed to work with 4x, 10x, 20x and 40x lenses
- Equipped with a Peltier element to cool the matrix and generate a high-quality image without deformation and noise during long-term operation
- Equipped with a high-speed USB 3.0 interface, which transfers data without delays or stutters

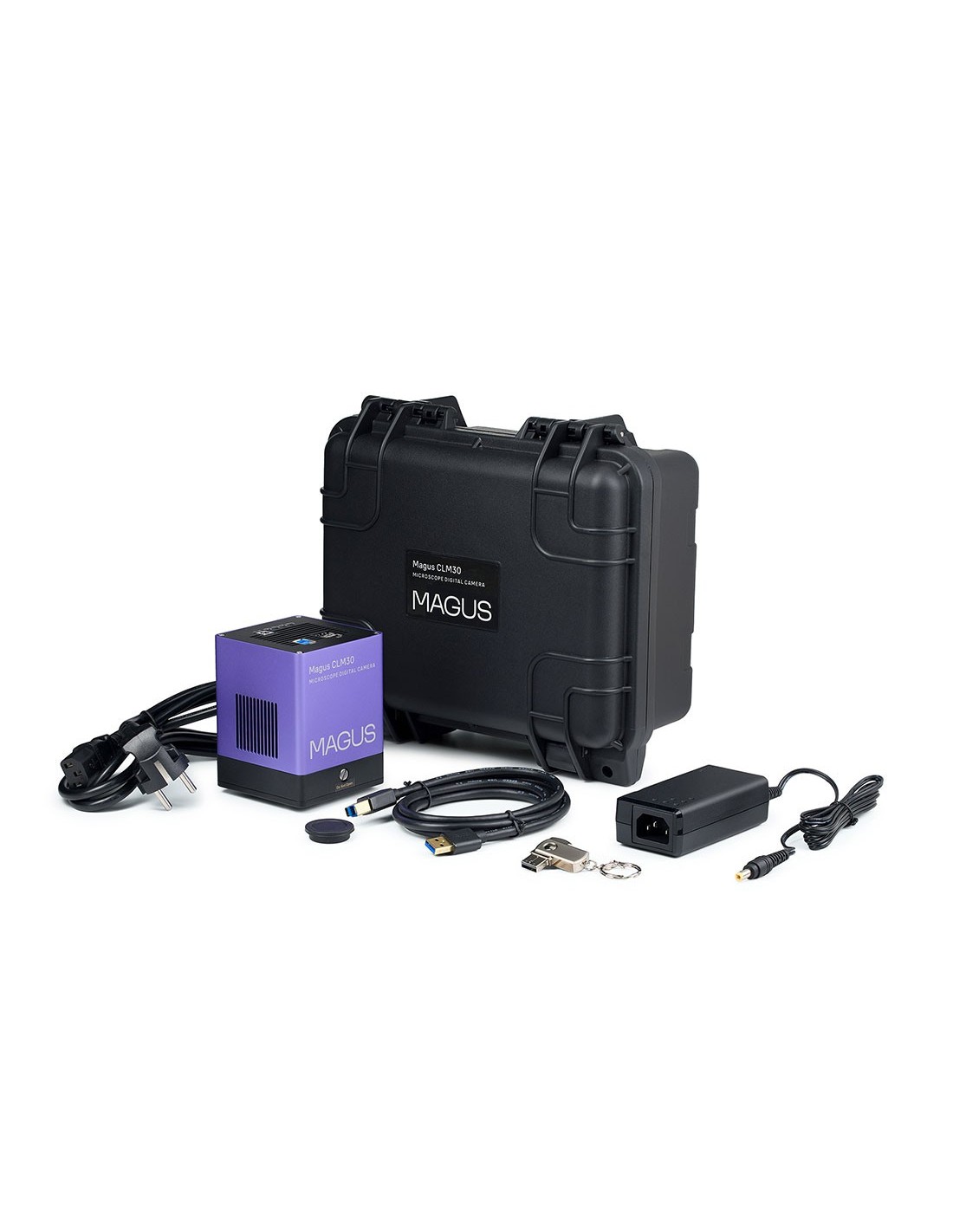

The package contains:
- Digital camera
- USB cable
- 12 V, 3 A adapter
- Case
- Installation CD with drivers and software
- User manual and warranty card
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019284 |
| Package size (WxDxH) | 27x25x12 cm |
| Shipping weight | 2.8 kg |
| Sensor | SONY Exmor CMOS |
| Color/monochrome | Color |
| Megapixel | 8.3 |
| Maximum resolution, px | 3840x2160 |
| Sensor size | 1/1.2'' (11.14x6.26 mm) |
| Pixel size, µm | 2.9x2.9 |
| Two-phase thermoelectric module (Peltier cell) to set the temperature at 42°C below ambient temperature | yes |
| Light sensitivity | 5970 mV with 1/30 s |
| Signal to noise ratio | 0.15 mV at 1/30 s |
| Exposure time | 0.1 ms – 1 h |
| Video recording | yes |
| Frame rate, fps@resolution | 45@3840x2160, 70@1920x1080 |
| ADC digital capacity (bit) | 8/12 (selectable) |
| Installation location | trinocular tube |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 (integrated IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure control |

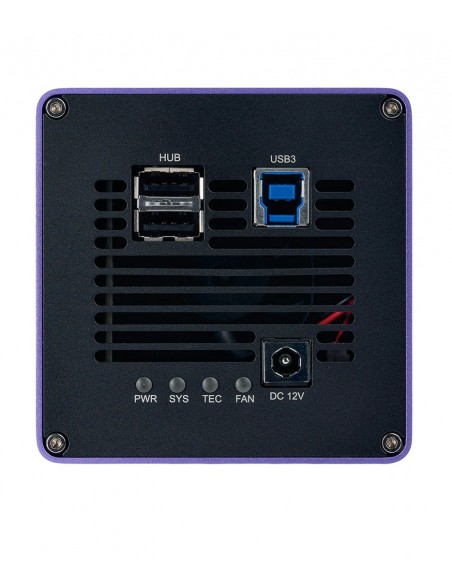

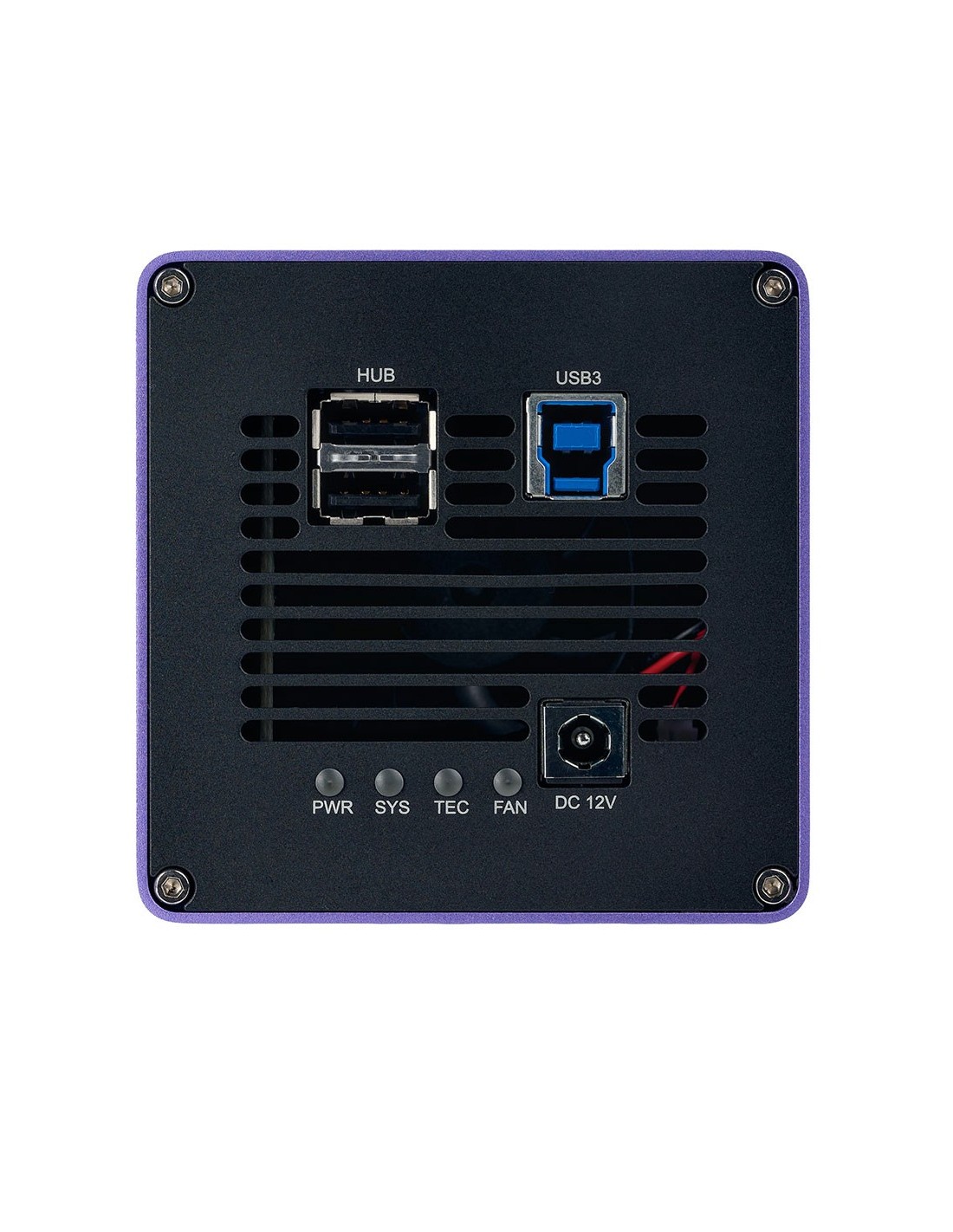

| Output | USB 3.0, 5 Gb/s |
| System requirements | Windows 8/10/ 11 (32-bit and 64-bit), Mac OS |
| Software | MAGUS View |
| Mount type | C mount |
| Body | CNC aluminum alloy |
| Power supply | DC, 5 V, from the computer's USB port; 12 V, 3 A adapter for the Peltier cell |
| Operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
