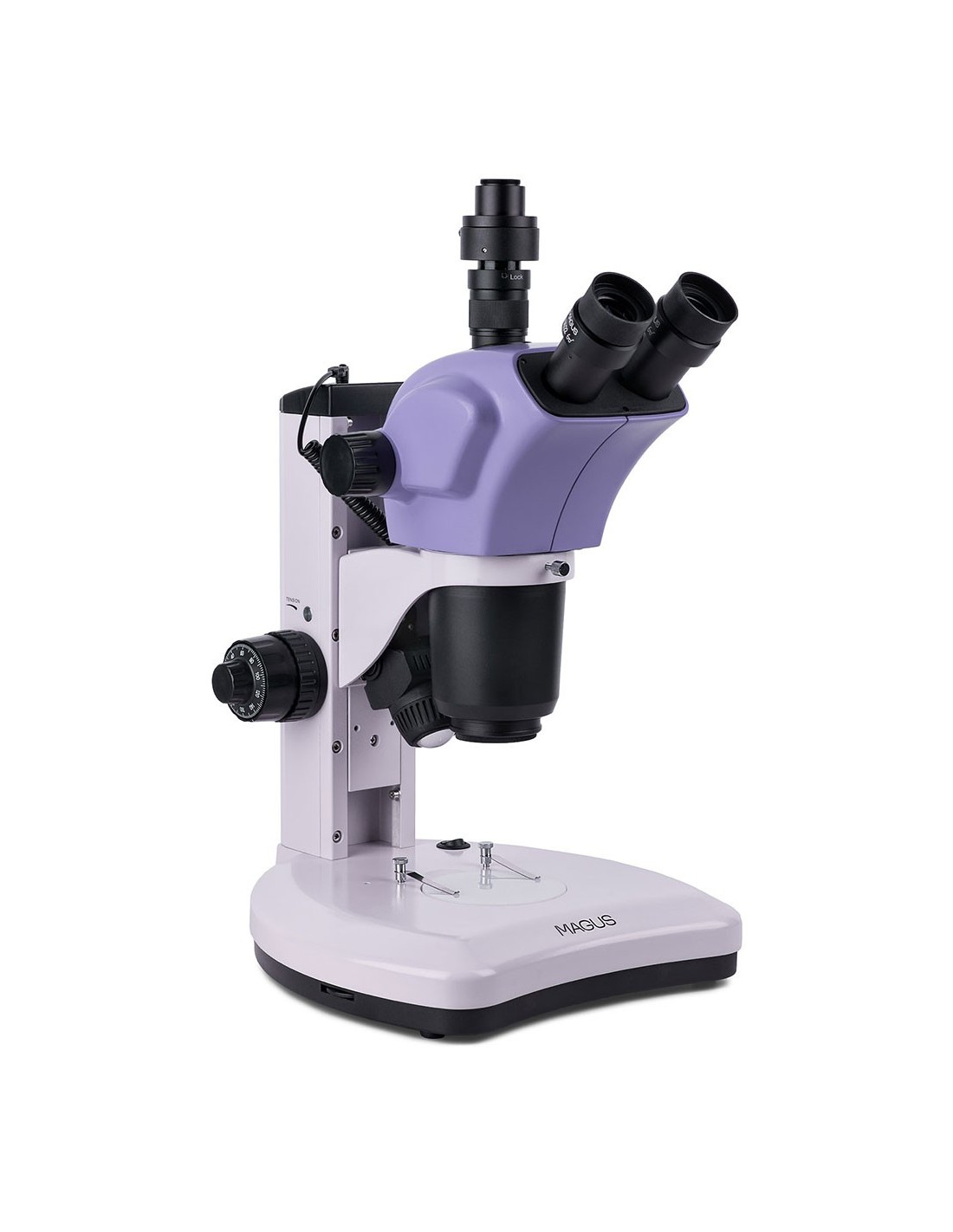

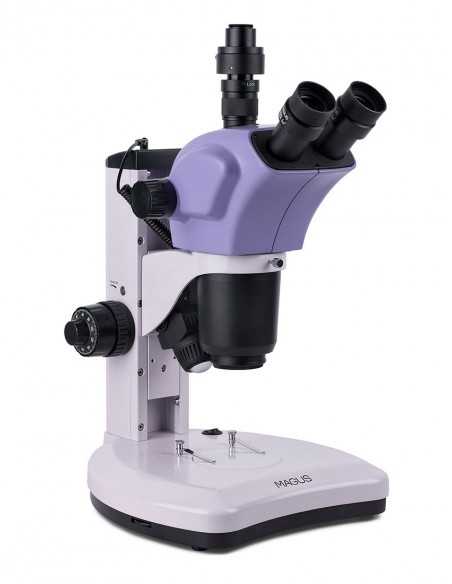

The MAGUS Stereo 9T stereoscopic microscope forms a non-inverted three-dimensional image and has a wide working distance. It is possible to examine the samples but also to experiment with them. The Greenough-type optical scheme produces sharp, three-dimensional images, essential for high-precision observations. The microscope has a zoom and two illuminators (transmitted and reflected light) and can be upgraded with additional accessories. Excellent choice for restoration, welding, model making, machinery repairs and quality control operations.
Digital camera
MAGUS CHD10 is the camera with HDMI interface .
The camera is equipped with a 2 MP sensor and produces realistic Full HD images at a resolution of 1920x1080 pixels.
It is a standalone camera that does not require a connection to the computer or the installation of additional software. You can connect the camera directly to a TV, monitor or projector to display an image.
The HDMI interface allows for fast and stable speed transfer from the camera to the external screen. Video is recorded at 60 fps.
The camera combines high FPS rate and high HDMI bandwidth. The videos therefore appear brilliant without freezing or skipping between frames. At maximum resolution, the image is very detailed, moving objects are visible without errors, and the moving object is displayed without delays.
Monitor
MAGUS MCD monitors work in combination with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.
The connection to the camera is via its HDMI interface. The monitor displays images in real time. Its IPS LCD display has a wide viewing angle, high brightness and good contrast. When looking at the screen even from a wide angle, the image is not distorted. The screen size is 13.3''.
The monitor can be installed on a horizontal surface using a foldable stand or mounted directly on a camera or tripod.
Optics
Optics
strong>

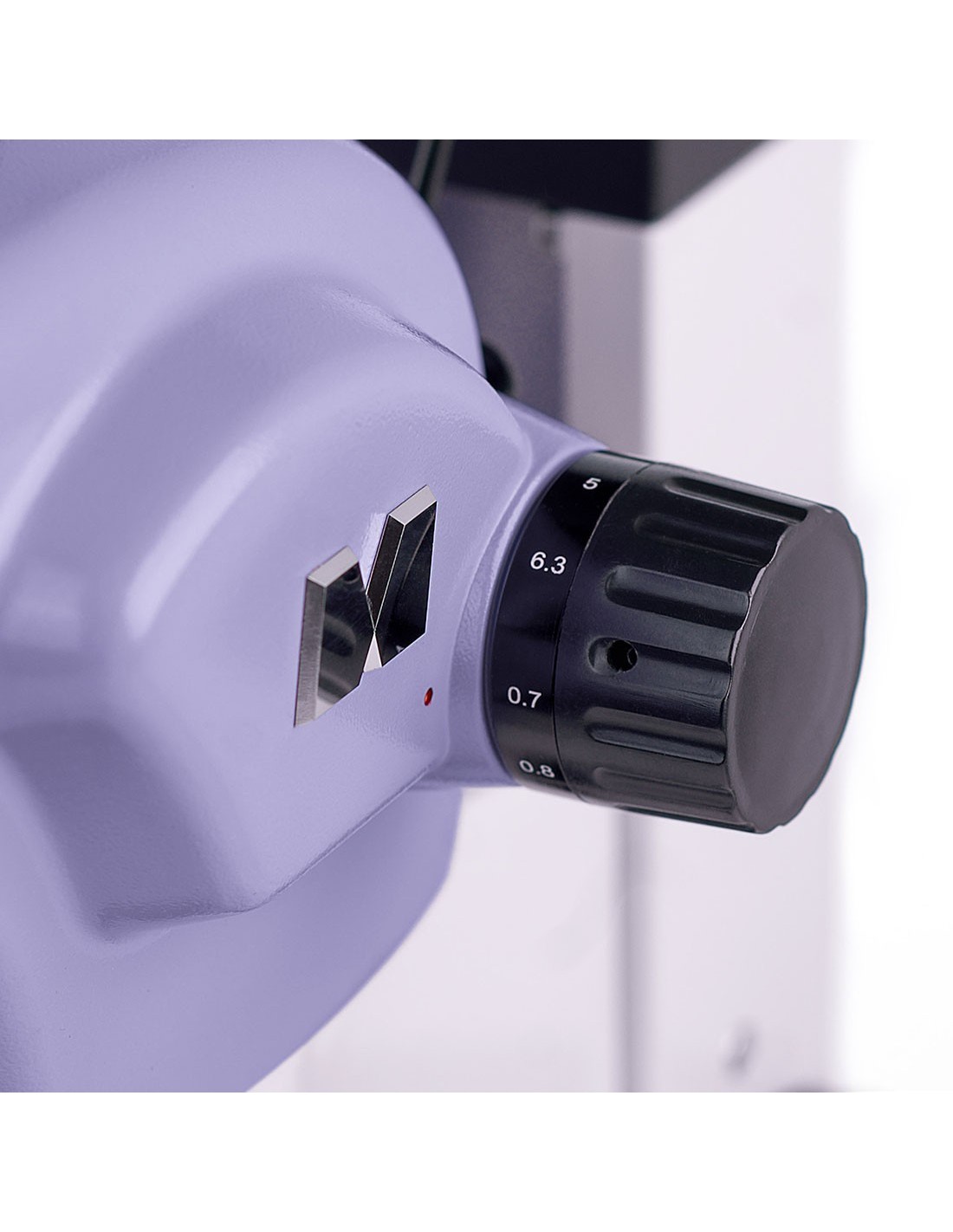

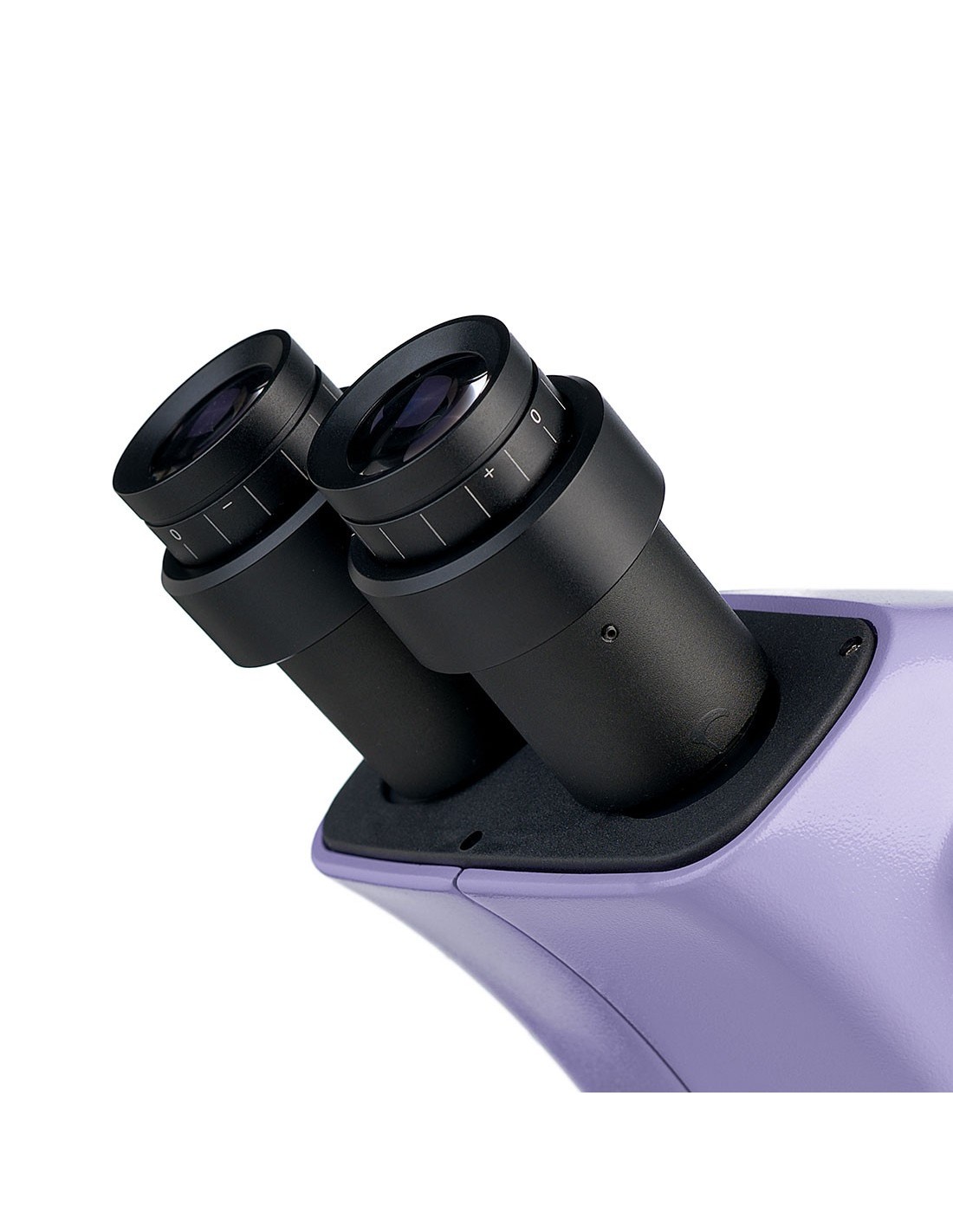

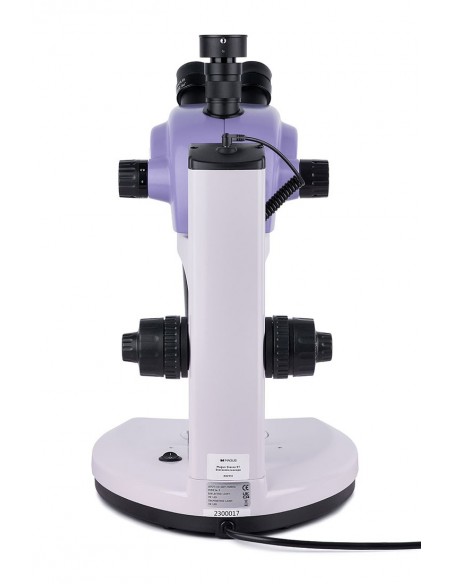

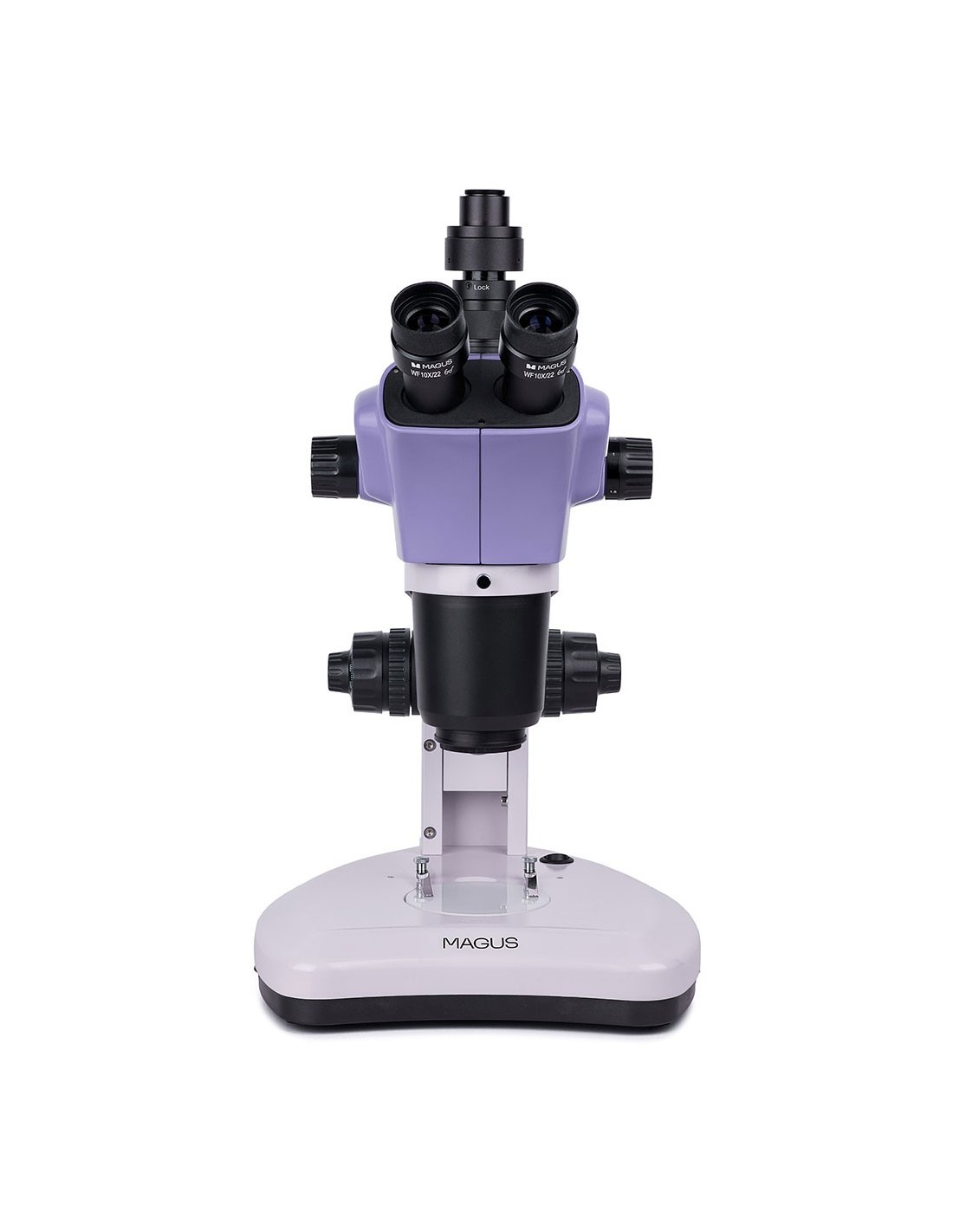

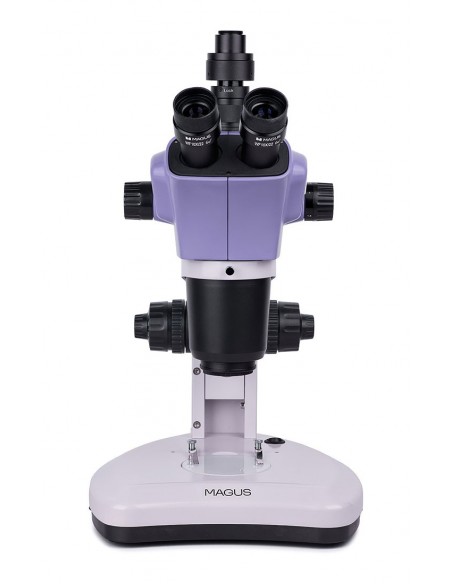

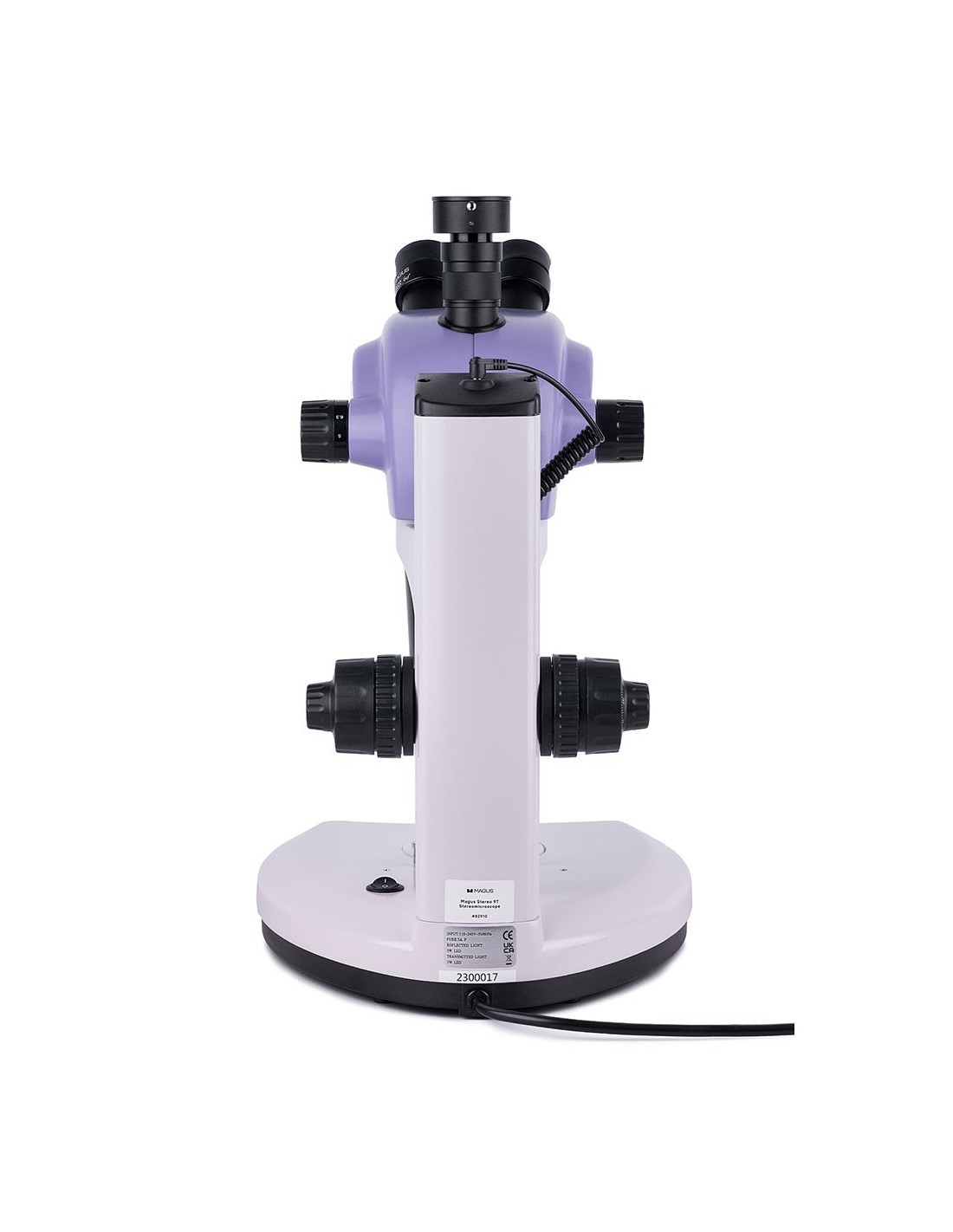

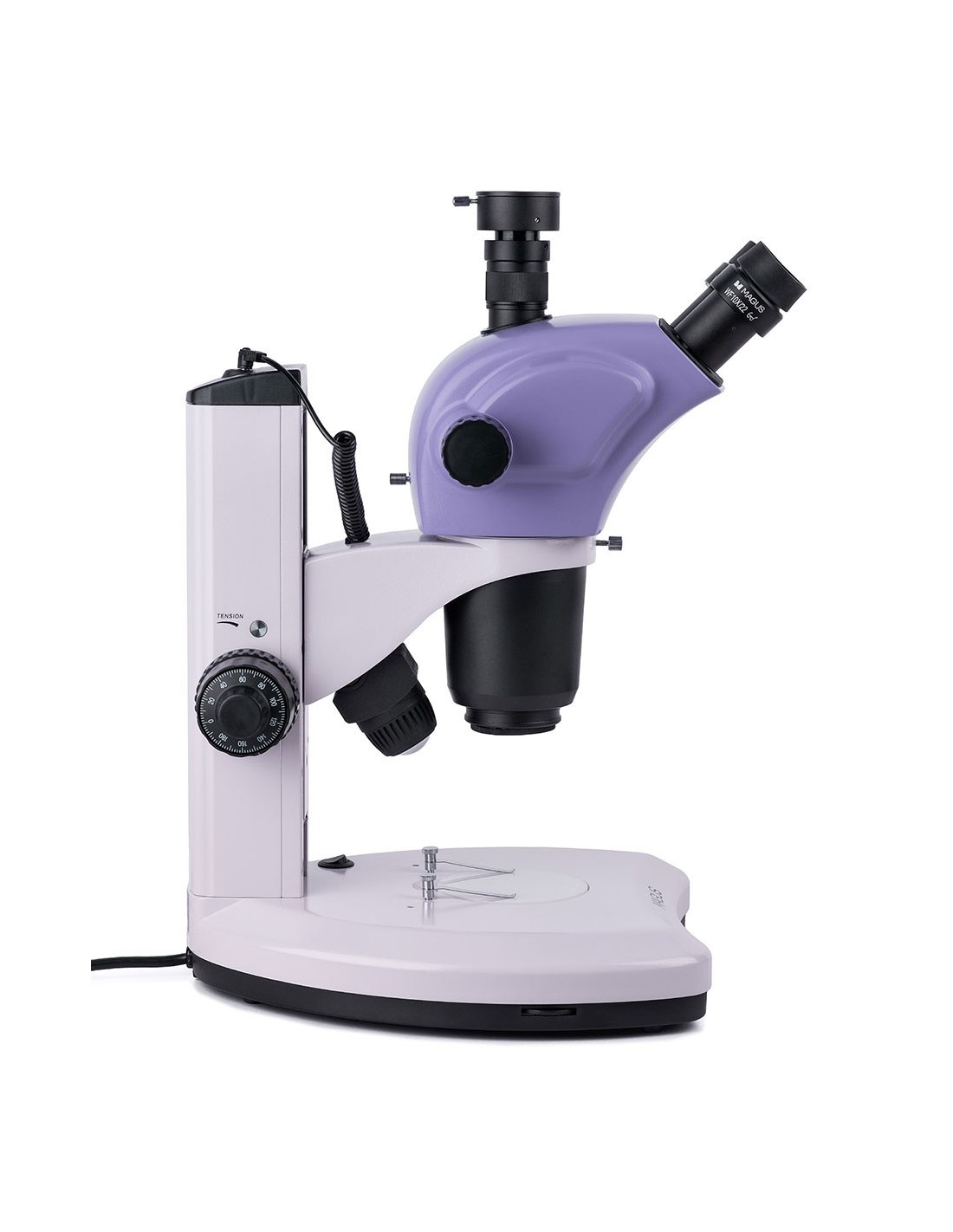

The microscope features a trinocular head with a trinocular tube for mounting a camera. A C-mount adapter is included, however the digital camera must be purchased separately. The trinocular head rotates 360°. The zoom lens used in conjunction with a 10x eyepiece offers 7x to 63x magnification. Thanks to the zoom lens, the magnification changes without reducing the focus. If you use additional objectives (not included), you can change the magnification range, working distance and field of view of the microscope. It is possible to increase the magnification of the microscope up to 315x thanks to optional accessories.
Lighting
The work area is illuminated by two LED illuminators: a 5W transmitted light illuminator and a 3W reflected light (oblique) illuminator. Both illuminators are powered by an AC source, are bright and do not change color temperature when you adjust the brightness. They have a lifespan of 50,000 hours.

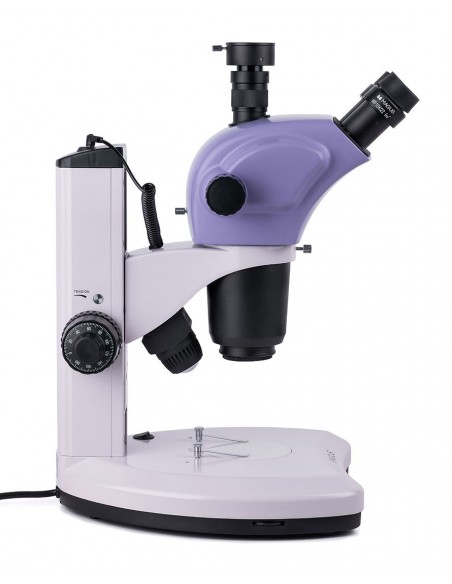

Stage and focusing mechanism
One of the included plates is installed on the stage: white and black on both sides sides, white or transparent. The first plate is used for observations of opaque objects and produces a high-contrast image. Dark colored samples are examined on the white part, while light colored samples are examined on the black part. The white and transparent plates are used for observations of translucent or transparent samples when maximum brightness and uniform illumination of the working area is desired.
The microscope features a mechanism for focusing coarse and fine fire. Fine focus is used at a magnification greater than 40x. The coarse focus features tension adjustment.
Accessories
To increase the capabilities of your microscope, you can use additional accessories, such as eyepieces, auxiliary lenses, calibration slides and digital cameras. It is also possible to install a device for polarized light observations.
Key features of the microscope:
- Zoom objective with a ratio of 9: 1
- 360° rotation of the trinocular head, trinocular tube for capturing photos and videos
- Greenough-type optical scheme, three-dimensional image with a large depth of field
- Transmitted and reflected light (oblique) illumination, two LED illuminators
- Optional accessories to improve the performance of the microscope
Key camera features:
- Standal camera operation without connecting to a PC or installing software
- HDMI interface for stable and fast data transfer
- 1920x1080 resolution pixels, the ideal choice for viewing images on a Full HD monitor
- 60 fps for observing moving samples, video recording and moving the sample without delays or stutters
- The color back-illuminated SONY Starvis CMOS sensor delivers images with low noise and high light sensitivity even in low light conditions. You can get sharper, brighter and more saturated color images
- Software for photo and video recording and editing, external display, linear and angular measurements

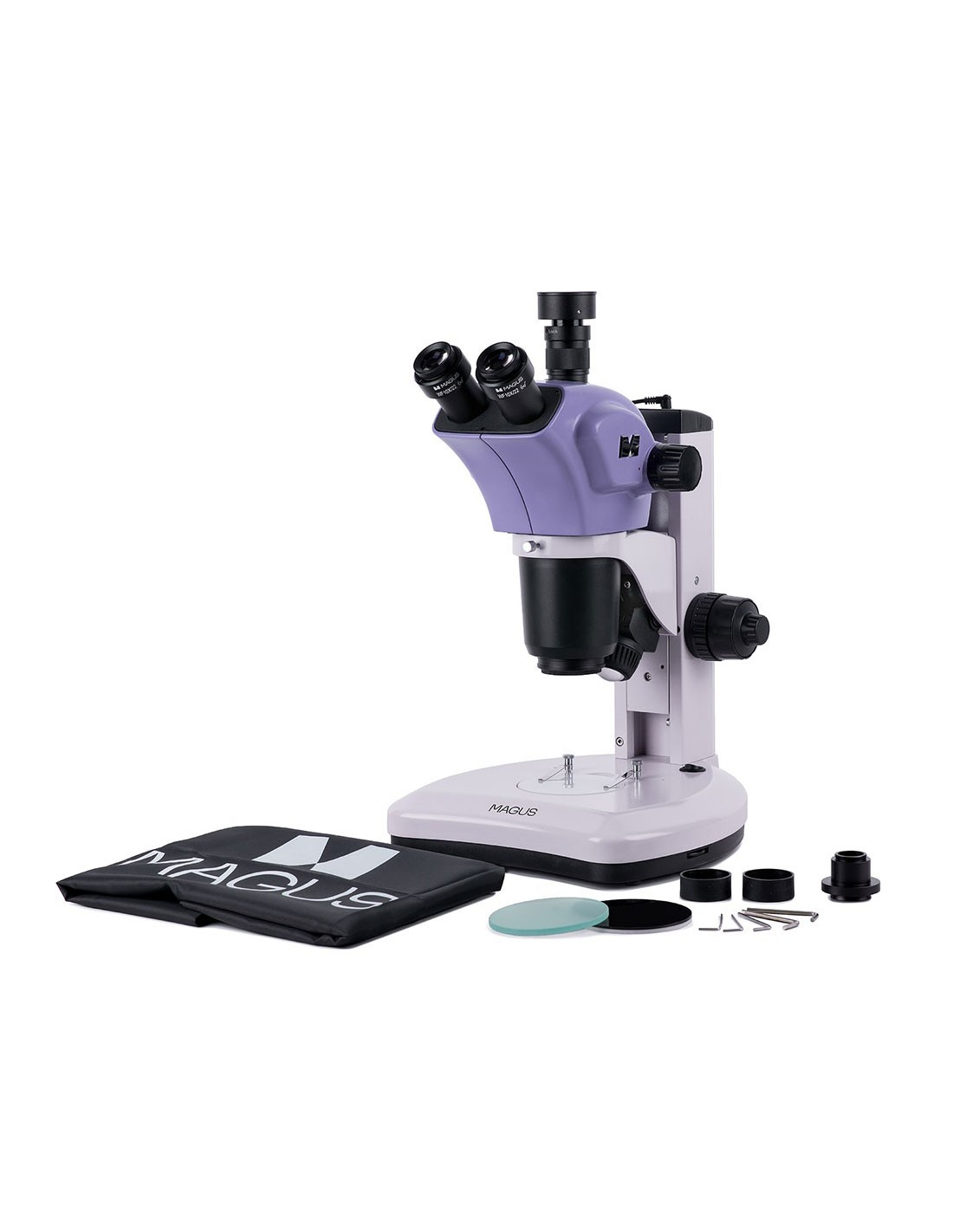

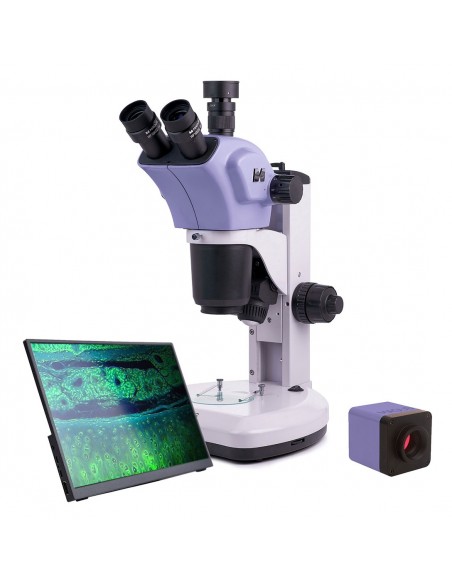

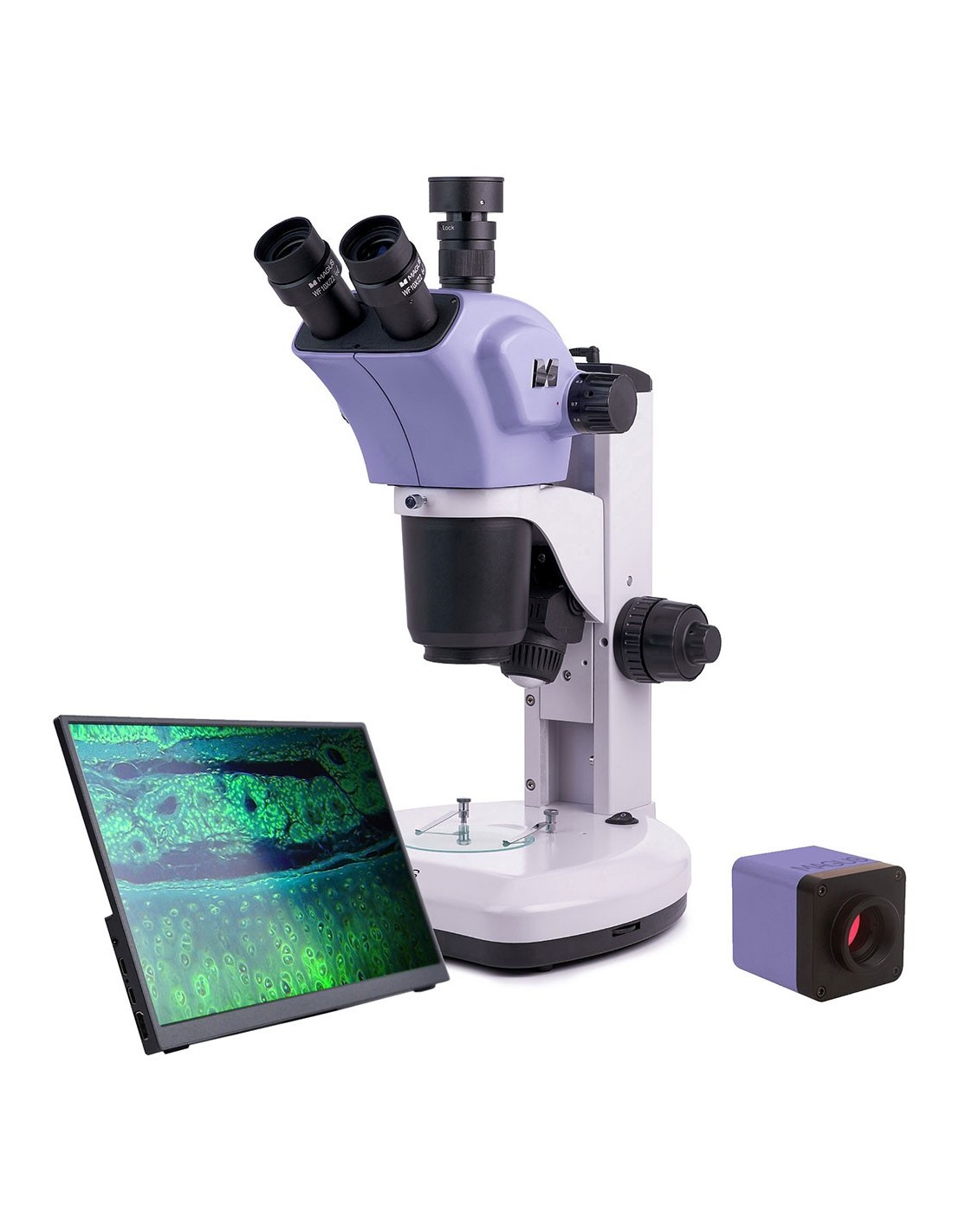

The package contains:
- MAGUS CHD10 digital camera (digital camera, HDMI cable (1.5 m), mouse with USB, 32 GB SD memory card, power adapter AC 12 V/1 A (Euro), user manual and warranty certificate)
- MAGUS MCD20 LCD monitor
- Base with light source for transmitted light observations and power supply
- Support with focusing mechanism
- Trinocular head
- 10x/22 mm eyepiece (2 pcs.)
- White and black stage plate
- White plate
- Transparent plate
- Oblique reflected light illuminator
- C-mount adapter
- Power cable for AC mains
- Dust cover
- User manual and warranty certificate
Available on request:
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 16x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.) )
- Eyepiece 25x/9 mm (2 pcs.)
- Auxiliary objective 0.5x
- Auxiliary objective 2x
- Ring illuminator reflected light
- Polarization tools
- Calibration glass
| Mark | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018584 |
| td> |
| Package size (LxWxH) | 44x42x67 cm |
| Shipping weight | 13.65 kg |
| Delimiter | MAGUS Stereo 9T stereoscopic microscope |
| Type | stereo/instrumental, digital |
| Head | trinocular |
| Vertical tube | 360° rotatable |
| Tilting angle of the head | 45° |
| Magnification, x | 7–63 in the basic configuration (*optional: 3.5–315); 9:1 zoom ratio |
| Magnifying range | up to 200x |
| Eyepiece tube diameter , mm | 30 |
| Eyepieces | 10x/22 mm, long eye relief (*optional: 15x/15 mm, 16x /15 mm, 20x/12 mm, 25x/9 mm) |
| Objectives | 0.7–6.3x (*optional: with auxiliary objective 0.5x: 0.35–3.15x; with auxiliary objective 2x: 1.4–12.6x) |
| Working distance, mm | 110 (with 0.5x auxiliary objective: 188; with 2x auxiliary objective: 40.4) |
| Interpupillary distance, mm | 53 — 75 |
| Field of view, mm | 31.43–3.49 (with 0.5x auxiliary lens: 62.85–6.98; with auxiliary lens 2x: 15.71–1.745), with a 10x eyepiece |
| Stage, mm | Ø90 |
| Stage features | white plate, white/black plate, transparent plate |
| Eyepiece diopter adjustment, diopters | ± 5D on each eyepiece |
| Focus | coaxial, coarse (83 mm, with coarse focus tension adjustment) and fine (0.002 mm) |
| Lighting | LED |
| Brightness adjustment | yes |
| Power supply | 220 V/50 Hz, AC mains |
| Type of light source | reflected light: oblique illuminator – 3 W LED; transmitted light: 5 W LED |
| Possibility to connect additional equipment | polarization instruments |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Optical scheme | Greenough |
| Application | for applied research |
| Lighting position | double |
| Search method | bright field |
| Set with pencil case/case/bag | dust cover |
| Weight, kg | 8 |
| Dimensions, mm | 280x463x335 |
| === Delimiter === | Digital camera |
| Sensor | SONY Starvis CMOS |
| Color/monochrome | color |
| Megapixel | 2 |
| Maximum resolution, px | 1920x1080 |
| Sensor size | 1/2.8" (5.57x3.13mm) |
| Pixel size, µm | 2.9x2.9 |
| Interface connectors | HDMI 1.4 |
| Memory card | SD up to 32 GB |
| Possibility to connect additional equipment | mouse with USB |
| Light sensitivity | 1300 mV at 1/30 s |
| Exposure time | 0.04 ms – 1000 ms |
| Video recording | yes |
| Installation location | tube trinocular, optical tube instead of eyepiece |
| Image format | *.jpg |
| Video format |
| Video format |
| td> | *.h264/*.h265, *.mp4 |
| Spectral range, nm | 380-650 (integrated IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| Software | HDMI: integrated |
| System requirements | does not require a connection to a computer |
| Mount type | C-mount |
| Body | robust aluminum |
| Camera power | AC adapter 12 V, 1 A |
| AC power adapter specifications | input: AC voltage 100– 240 V, 50/60 Hz, output: DC voltage 12 V/1 A |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
| === Delimiter == = | Monitor |
| Matrix type | IPS |
| Display diagonal , inches | 13.3 |
| Display resolution, px | 1920x1080 (Full HD) |
| Format | 16:9 |
| Brightness, cd/m² | 400 |
| Number of colors displayed | 16.7 m |
| Contrast | 1000:1 |
| Horizontal/vertical viewing angle, ° | 178/178 |
| Dimensions of the visible area of the screen ( WxH), mm | 295x165 |
| Pixel pitch (WxH), mm | 0.154x0.154 |
| Optical source frequency, Hz | 60 |
| Matrix type backlight | LED |
| LED backlight life, h | 50000 |
| Interface | HDMI |
| Operating temperature range, °C | -15 — 55 |
| Humidity operating range , % | 10 — 90 |
| Power Supply | AC 110–220 V, DC 5–12 V/1 A (Type C) |
| Energy consumption, W | 12 (max.) |
