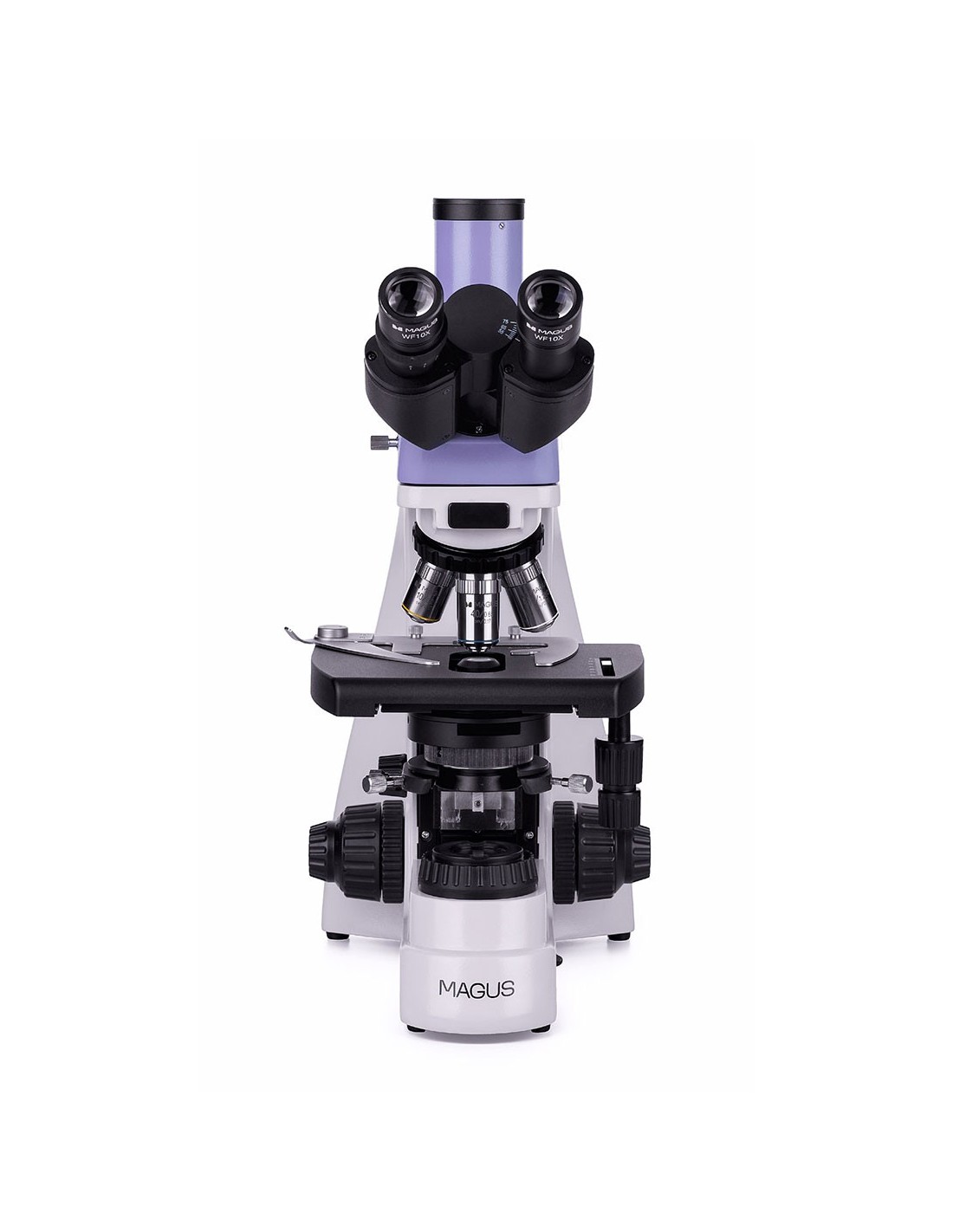

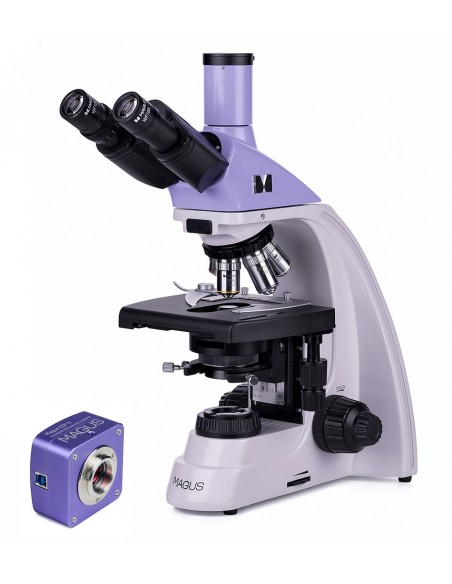

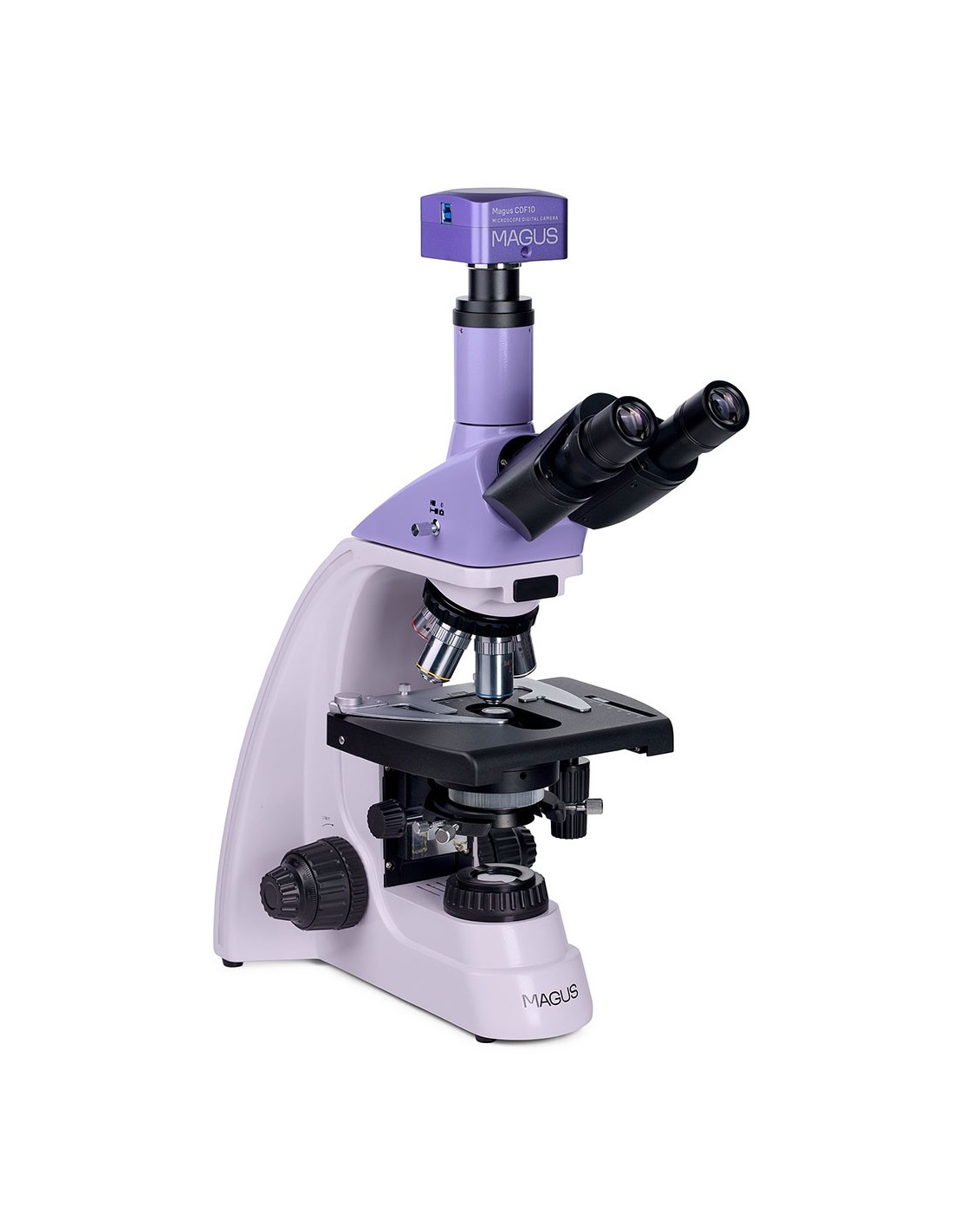

The MAGUS Bio 230TL biological microscope is an essential tool for a healthcare laboratory, diagnostic center or research institute. This microscope is equipped with a trinocular head and light source for transmitted light (LED) observations and is suitable for the analysis of semi-transparent preparations and naturally transparent samples. In its basic configuration, observations are made using the brightfield observation technique. With the use of additional accessories, it will be possible to carry out research with additional microscopy techniques such as dark field, polarized light and phase contrast observations.

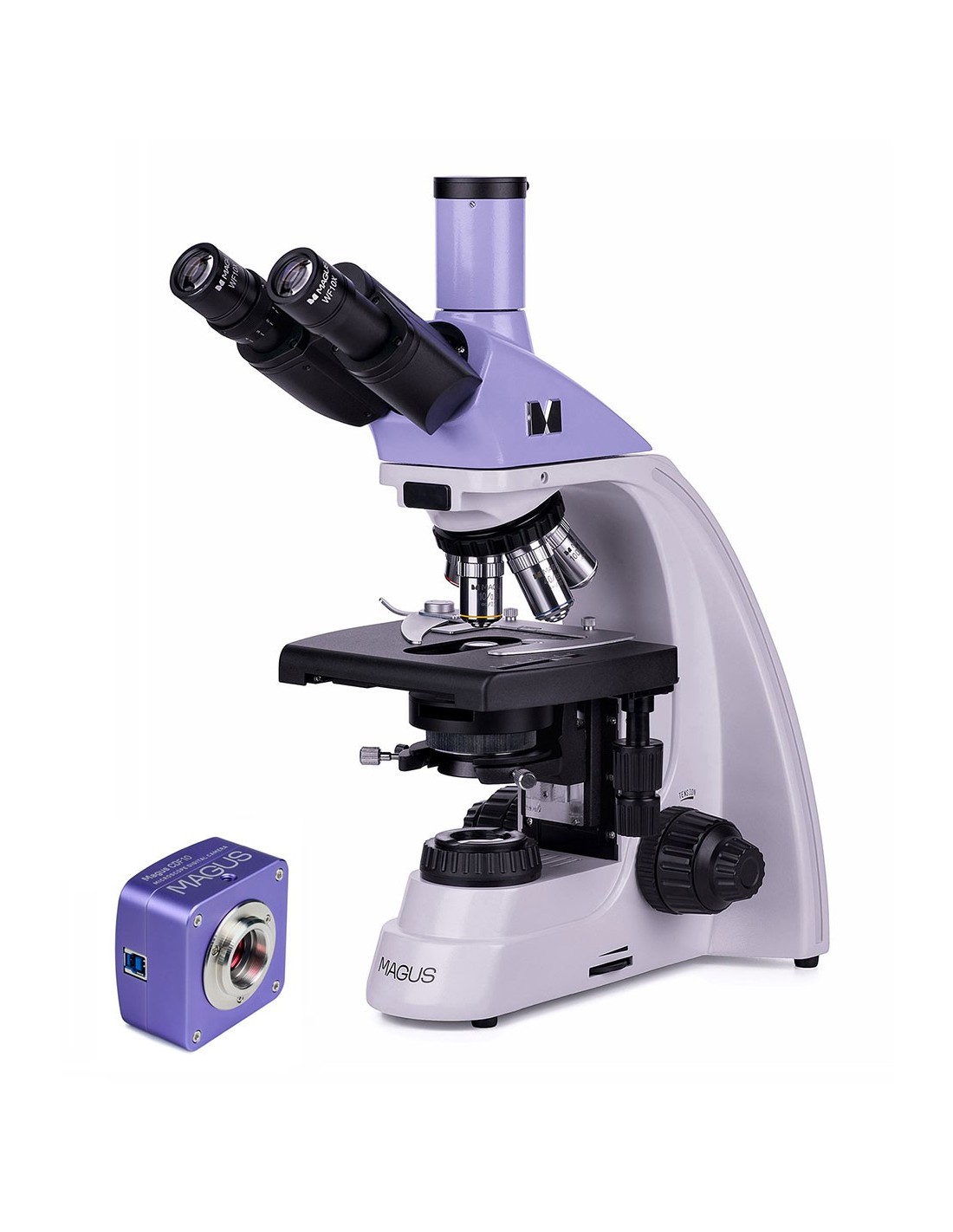

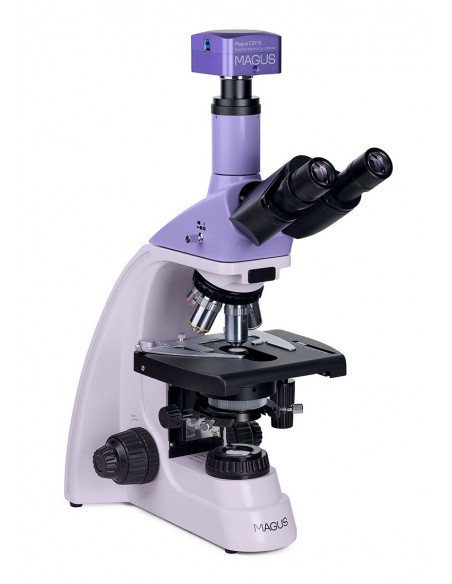

Digital camera
Digital camera with a 2 MP sensor for studying microscopic objects using the dark field or bright field microscopy technique. The camera is equipped with a color back-illuminated SONY Exmor CMOS sensor. This sensor increases light sensitivity (2350 mV at 1/30 s) and improves image quality in low light conditions. The use of lenses with 40x, 60x and 100x magnification allows you to achieve excellent performance.
The MAGUS CDF10 camera allows you to view the image of an object on a computer monitor at Full HD 1920x1080 px resolution , to take photographs and record videos in different formats. Data transfer between camera and computer is performed via a USB 3.0 interface with a data transfer rate of 5 Gbps. At maximum resolution, video is displayed at 125 fps with a smooth transition between frames. The camera is perfect for studying moving objects and can also be used for lectures and presentations.
Optics

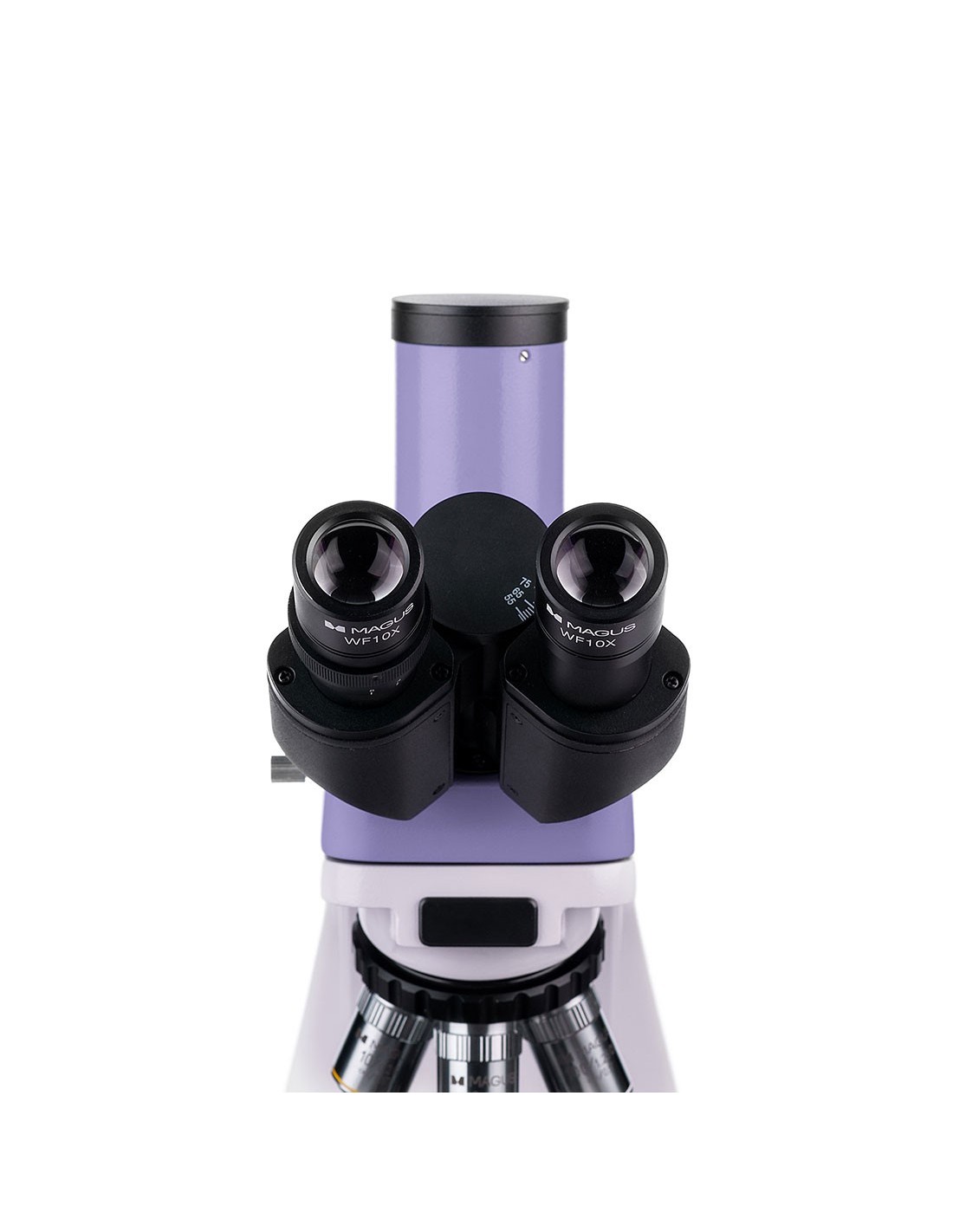

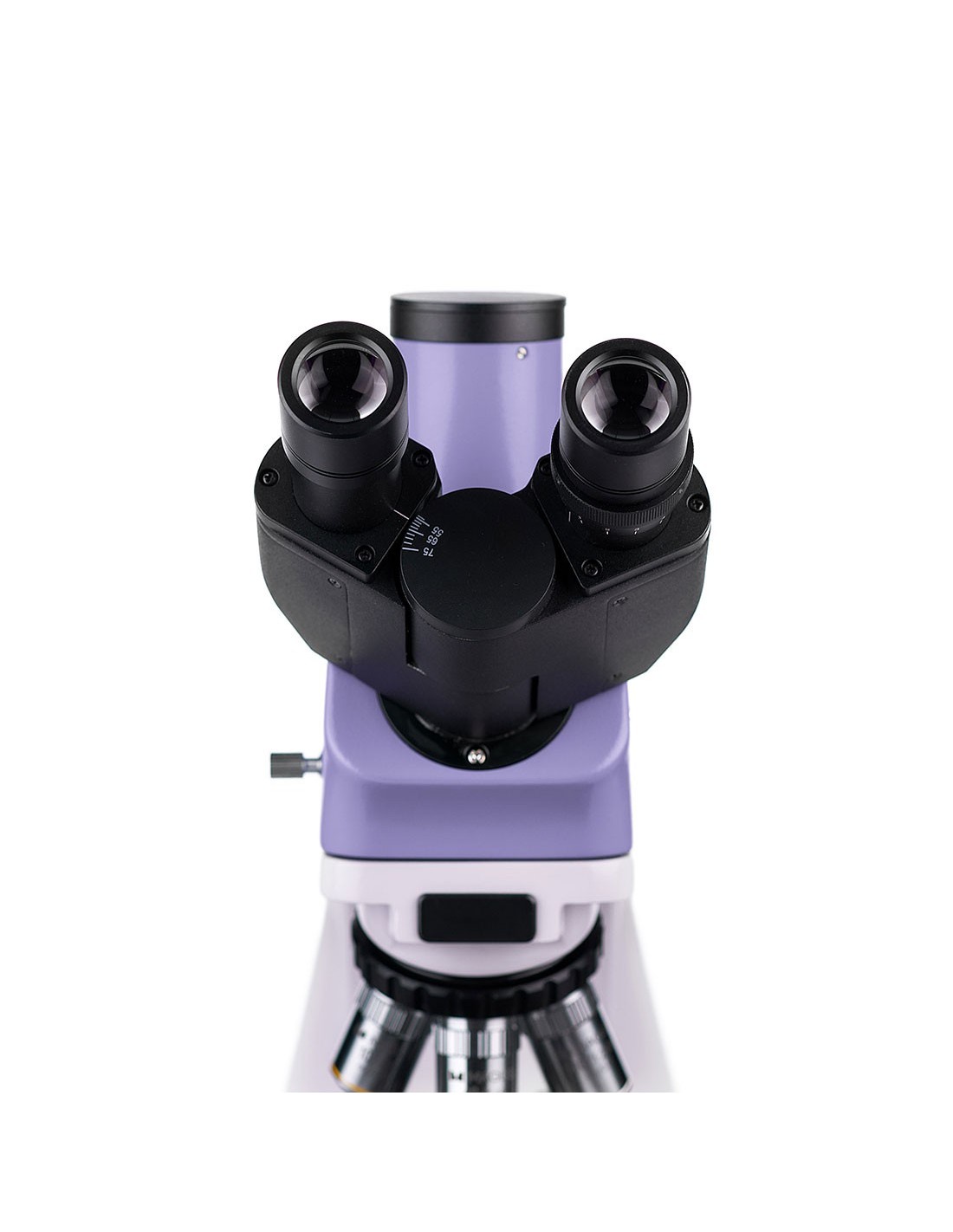

The optical tubes can rotate 360°, which makes it possible to adapt the position of the eyepieces according to the height of the observer. Diopter adjustment is available on the left barrel. There is a vertical tube for accommodating a digital camera (not included).
This microscope uses infinity corrected achromatic objectives and the nosepiece can accommodate up to 5 objectives simultaneously. In the basic configuration, one slot remains free for adding a fifth lens. The nosepiece with its objectives is oriented towards the inside of the instrument: in this way, the user can see which objective is inserted in the optical path. The microscope offers magnification ranging from 40x to 1000x, but the upper limit can be increased up to 1500x, 1600x or 2000x with the use of additional eyepieces.

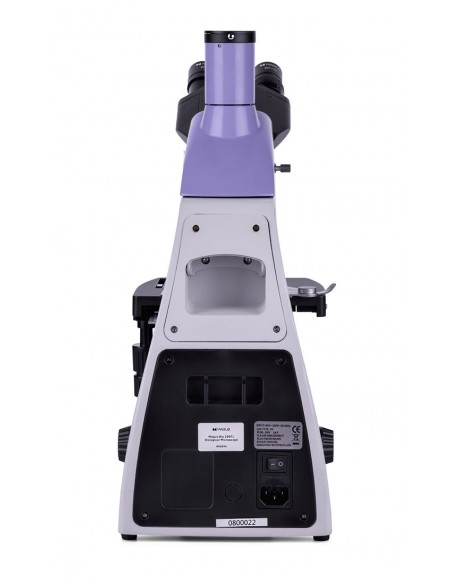

Illumination

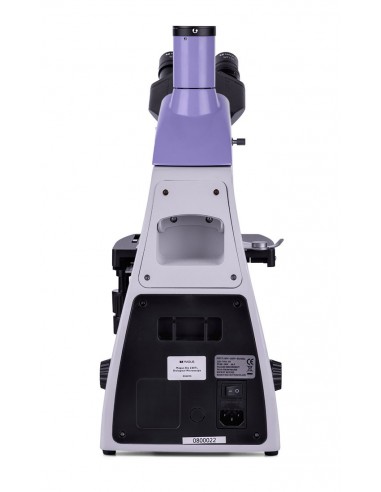

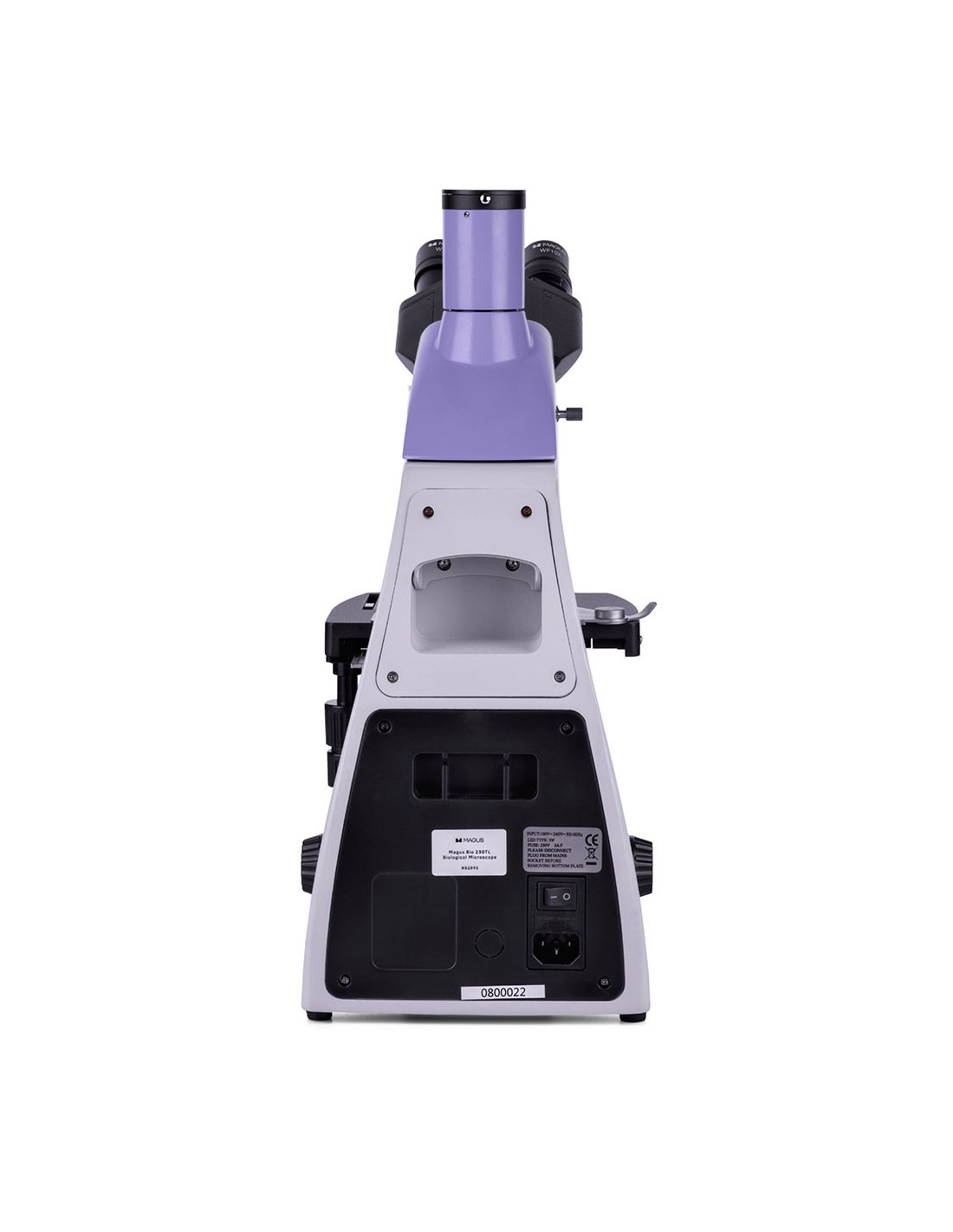

Thanks to the LED lamp, the color temperature does not change when the intensity of the lighting varies. The 3W LED light has a life cycle of 50,000 hours and is AC mains powered.
The Abbe condenser has an available slot for a dark field slider or a contrast slider phase. Thanks to the sliders, switching between the various microscopy techniques is much quicker. The microscope is also equipped with a field diaphragm for setting the Köhler illumination. The condenser is height-adjustable and can be centered.

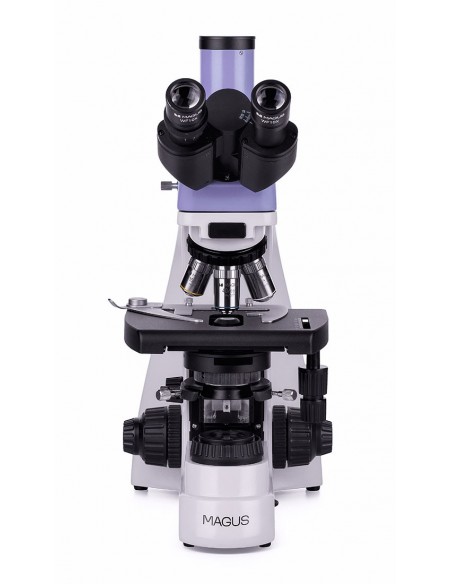

Focusing stage and mechanism
Moving the sample is smooth and accurate. If necessary, the mechanical insert can be removed from the stage (for example, to perform a manual scan of the sample). Furthermore, it is easier to work with a table without a positioning rack.

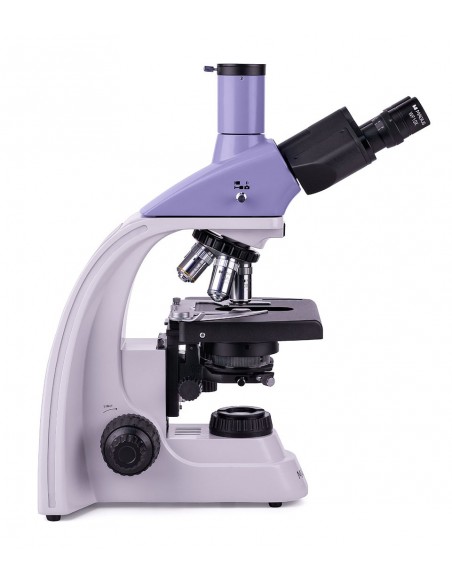

The focus knobs are coaxial and positioned on both sides of the microscope base, which allows the user to freely position his hands on the table. There are knobs for coarse and fine focusing (macro- and fine). Their mechanisms move fluidly, without having to apply any effort. There is a tension adjustment knob for the coarse screw and a coarse focus fixing knob (coarse screw).
Accessories
The accessories additional ones expand the capabilities of the MAGUS Bio 230TL microscope, depending on specific applications. Accessories include eyepieces, objectives, dark field and phase contrast condensers, polarization instruments, digital cameras, calibration slides, etc.
Key Features of the Microscope:
- Trinocular head with vertical camera tube, 360° rotation, diopter adjustment on the left optical tube
- Nosepiece nosepiece for 5 objectives, infinity corrected achromatic objectives
- Observations in transmitted light, light source: 3 W LED with long useful life
- Coaxial knobs for coarse and fine focusing (coarse and fine screw), adjustment knob of the voltage for the coarse screw, fixing knob for coarse screw
- Condenser with a slot for a dark field slider or a phase contrast slider
- Possibility to install additional accessories
Key camera features:
- Back-illuminated SONY Exmor CMOS sensor for sharp images even in low light conditions
- Installation on the trinocular tube or optical tube
- Operation in bright or dark field on high magnification objectives: 40x, 60x and 100x
- Displaying images on a computer screen ; viewing, taking photographs and recording videos at a resolution of 1920x1080 px
- Video frame rate of 125 fps, ideal for studying moving objects in real time without delays
- Driver and necessary software included

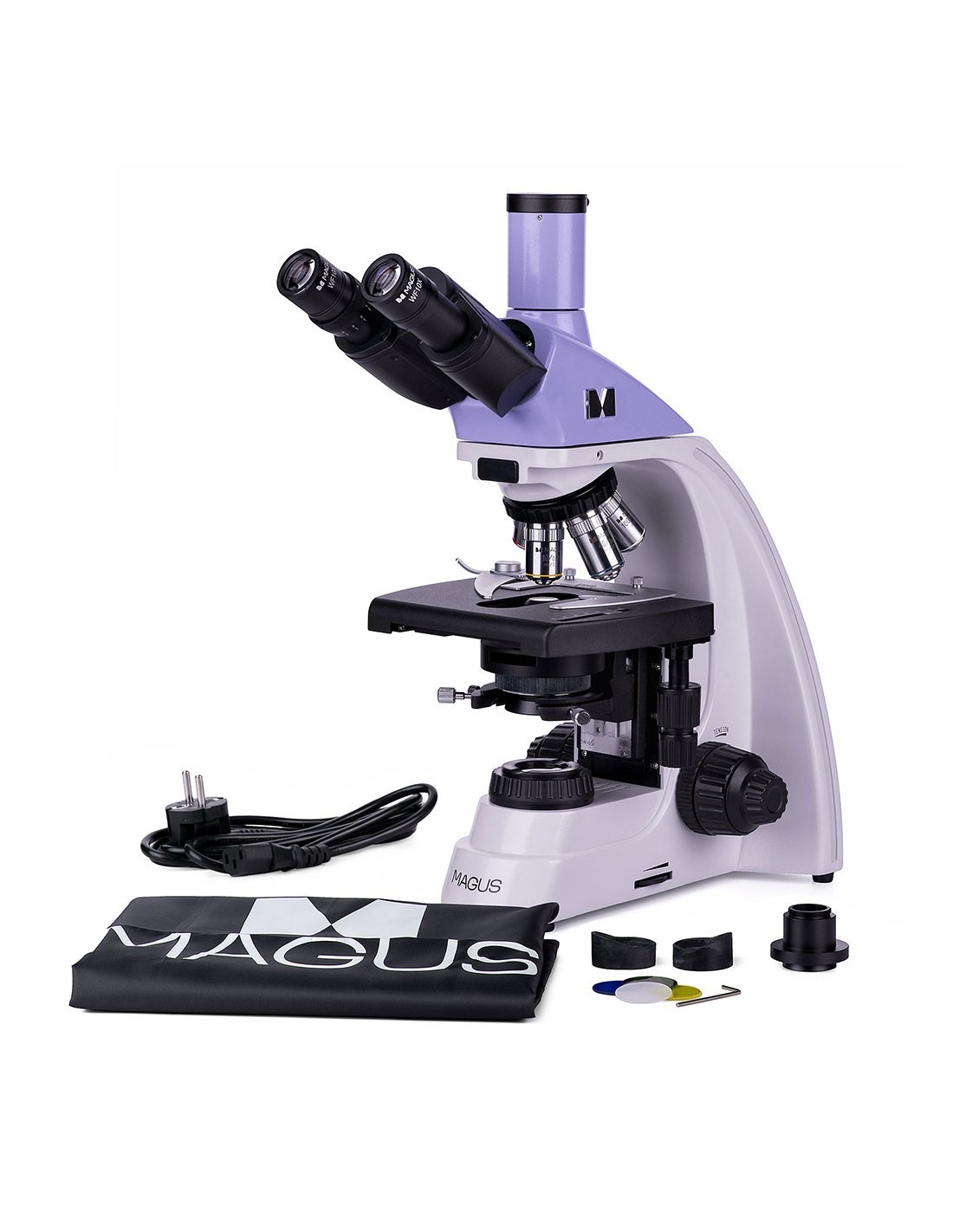

The package contains:
- MAGUS CDF10 digital camera (digital camera, USB cable, installation CD with driver and software, user manual and warranty certificate)
- Base with power input, light source for transmitted light observations, focusing mechanism, stage, condenser attachment and nosepiece
- Abbe condenser
- Trinocular head
- Achromatic objective at infinity: 4x/0.10
- Achromatic objective at infinity: 10x/0.25
- Achromatic objective at infinity: 40x/0.65 (with spring mechanism)
- Achromatic objective at infinity: 100x/1.25 oil (with spring mechanism)
- 10x/18 mm eyepiece with long eye relief (2 pcs.)
- Eyecup (2 pcs.)
- Filter (4 pcs.)
- C-mount adapter
- Vial of immersion oil
- AC power cord
- Dust cover
- Manual user and warranty certificate
Available on request:
- 10x/20 mm eyepiece with graduated scale
- Eyepiece 15x/11 mm (2 pcs.)
- Eyepiece 16x/11 mm (2 pcs.)
- Eyepiece 20x/11 mm (2 pcs.)
- Achromatic objective at infinity: 20x/0.40
- Plan achromatic objective at infinity: 20х/0.40
- Plan achromatic objective at infinity: 60x/0.80 (spring loaded)
- Phase contrast device
- Phase contrast slider
- Dark field condenser with NA 0.9
- Oil-filled dark field condenser with NA 1.36–1.25
- Dark field slider
- Polarization instruments
- Calibration slide li>
- LCD monitor
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555017983 |
| Package size ( WxDxH) | 43x27x63 cm |
| Shipping weight | 11.1 kg |
| Delimiter | MAGUS Bio 230TL biological microscope |
| === Delimiter === | Microscope specifications |
| Type | biological, light/optical, digital |
| Tested | trinocular |
| Vertical tube | Gemel head (Siedentopf type, with 360° rotation) |
| Head inclination angle | 30° |
| Magnification, x | 40–1000 in basic configuration (*optional: 40–1500/1600/2000 ) |
| Magnification range | 800x to 1280x |
| Eyepiece tube diameter, mm |
| td> | 23.2 |
| Eyepieces | 10х/18 mm, eye relief: 10 mm (*optional: 10x/20 mm with scale, 15x /11mm, 16x/11mm; 20x/11 mm) |
| Infinity corrected achromatic objectives: 4x/0.10; 10x/0.25; 40xs/0.65; 100xs/1.25 (oil); parfocal distance 45 mm (*optional: 20x/0.40; 60xs/0.80) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 18.89 (4x); 5.95 (10x); 0.775 (40xs); 0.36 (100xs); 2.61/8.80 (20x); 0.46 (60хs) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 180x150 |
| Range of movement of the stage, mm | 75/50 |
| Stage features | two-axis mechanical translator, without positioning rack |
| Eyepiece diopter adjustment, diopters | ±5 (on left barrel) |
| Condenser | Abbe condenser, NA 1.25, adjustable centering, adjustable height, adjustable aperture diaphragm, with slot for dark field slider and phase contrast slider, dovetail mount |
| Diaphragm | adjustable aperture diaphragm, field diaphragm with adjustable iris |
| Focus | coaxial, coarse focus (21 mm, 39.8 mm/turn, with fixing knob and focus adjustment knob tension of the micrometer screw) and fine focus (0.002 mm micrometer screw) |
| Illumination | LED |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | 3 W LED |
| Optical filters | yes |
| Operating temperature range, °C | 5 — 35 |
| Possibility to connect additional equipment | phase contrast devices (condenser and objectives), dark field condenser (dry or oil immersion), polarization instruments (polarizer and analyzer) |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | laboratory/medical |
| Lighting position | lower |
| Search method | bright field |
| Set with case/case/bag | anti-cover powder |
| Weight, kg | 8 |
| Dimensions, mm | 200x436x400 |
| === Delimiter === | Digital camera |
| Sensor | SONY Exmor CMOS |
| Color/Monochrome | Color |
| Megapixel | 2 |
| Maximum resolution, px | 1920x1080 |
| Sensor size |
| Sensor size |
| td> | 1/2" (7.2x4.05 mm) |
| Pixel size, µm | 3.75x3.75 |
| Sensitivity to light | 2350 mV at 1/30 s |
| Signal to noise ratio |
| Exposure time | 0.1 ms – 15 s |
| Video recording | yes |
| Frame rate, fps@resolution | 125@1920x1080 |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, * .h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 (integrated IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| White balance |
| White balance |
| td> | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure control |
| Software | MAGUS View |
| Output | USB 3.0, 5 Gb/s |
| System requirements | Windows 8/10/11 ( 32-bit and 64-bit), Mac OS tr> |
| Mount type | C-mount |
| Body | robust aluminum |
| Camera power supply | DC, 5 V, from computer USB port; 12 V, 3 A adapter for the Peltier cell |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
