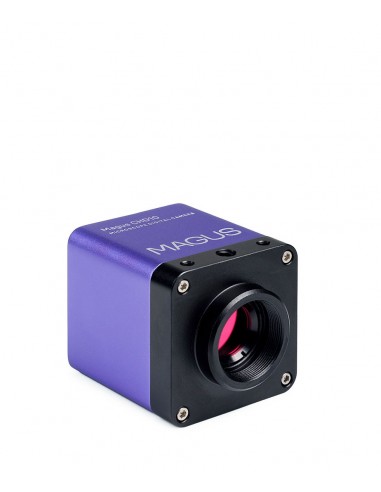

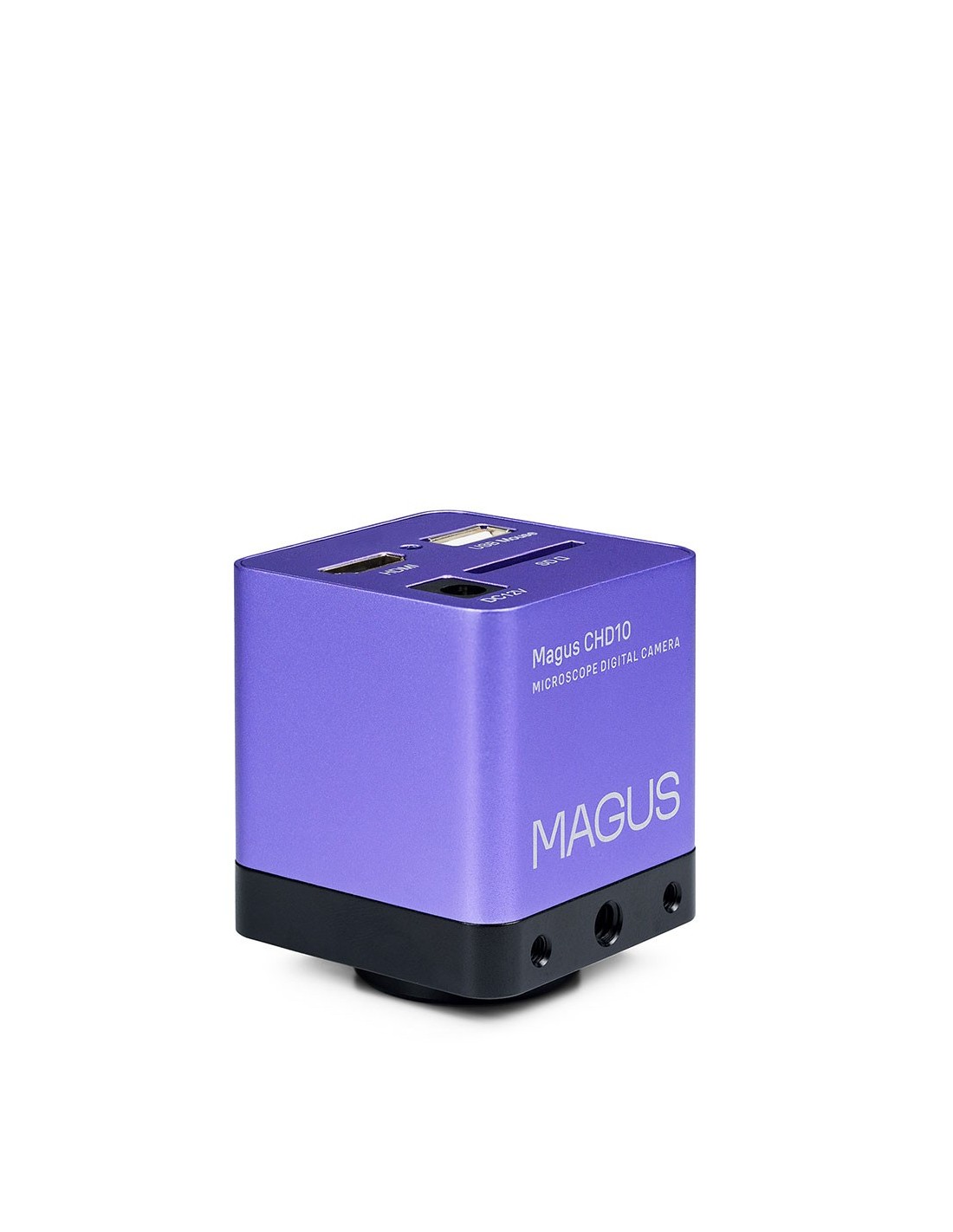

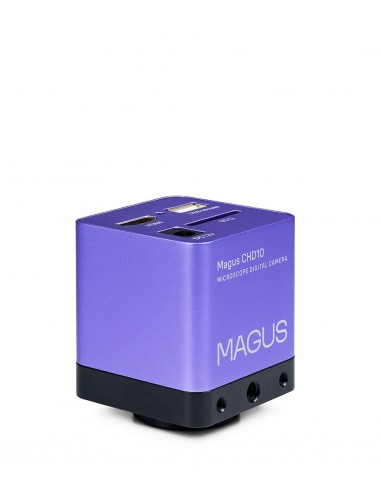

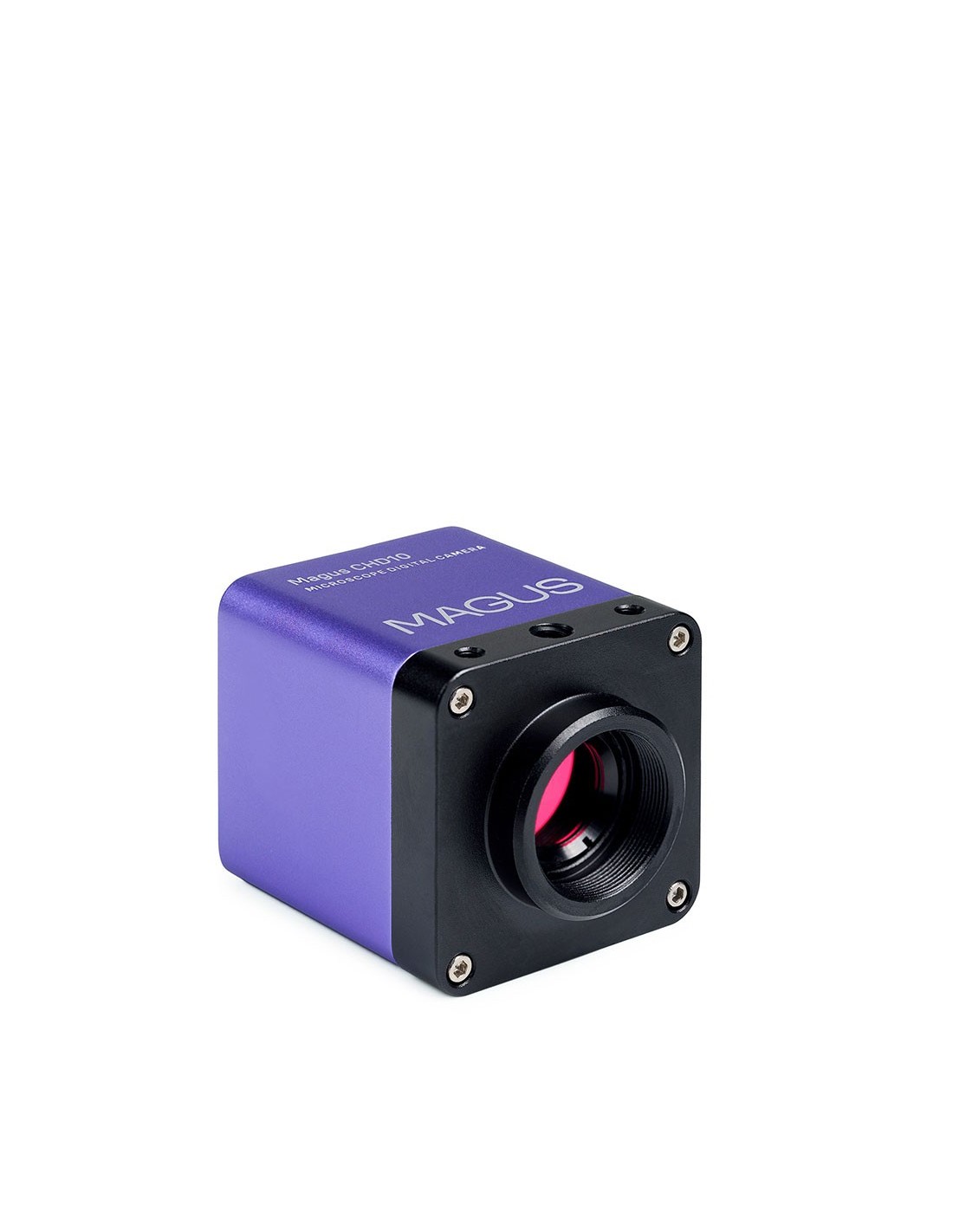

MAGUS CHD10 is the entry-level HDMI camera in the MAGUS camera line. The device is installed on a microscope and helps to take photographs and record videos, process the results and even measure study objects. Video recording is performed at 60 frames per second, which produces a high-quality Full HD image (1920x1080 px) without interference or distortion, even when observing moving objects. The result can be viewed on a screen in real time and saved to an SD card.
The camera is ready for stand-alone operation. At the same time, it is possible to connect additional devices.
Software
The software of the MAGUS CHD10 camera allows you to take photographs and record videos in Full HD ( 1920x1080 px), display the image on a screen, process the image and measure the linear and angular dimensions of objects and their structures. To take measurements, the device software will require calibration on each lens using a calibration slide.
Sensor
The camera uses the color CMOS sensor SONY Starvis. Its size is 1/2.8'' with a pixel size of 2.9x2.9 μm. The camera uses backlight technology and is capable of working in low light conditions. Its light sensitivity is 1300 mV at 1/30 second. For best performance and maximum field of view with minimal distortion, use an adapter with magnification between 0.35x and 0.6x.
Mounting to a microscope
To start using the camera, place the MAGUS CHD10 in the eyepiece tube of the microscope in place of an eyepiece. To connect the devices, you will need a C-pitch adapter and an adapter ring for the diameter of the tube. The camera can also be installed in the trinocular tube using a C-mount adapter.
Additional accessories
Additional devices can be connected to the camera to make work easier convenient and productive:
- You can connect a mouse via the USB port. Controlling the mouse will eliminate vibrations when it is in direct contact with the camera
- The included SD card is used to save photos and videos
- Combine the camera with monitors from the MAGUS line. They can be mounted directly on the camera so that the entire system becomes a convenient and efficient imaging tool for MAGUS microscopes
Key features:
- Autonomous: does not require a connection to a computer, equipped with its own software
- The image can be easily displayed on the screen of a monitor, TV or projector
- High quality Full HD images (1920x1080 px)
- Ability to work in low light conditions thanks to the SONY Starvis CMOS sensor
- Easy integration with MAGUS monitors

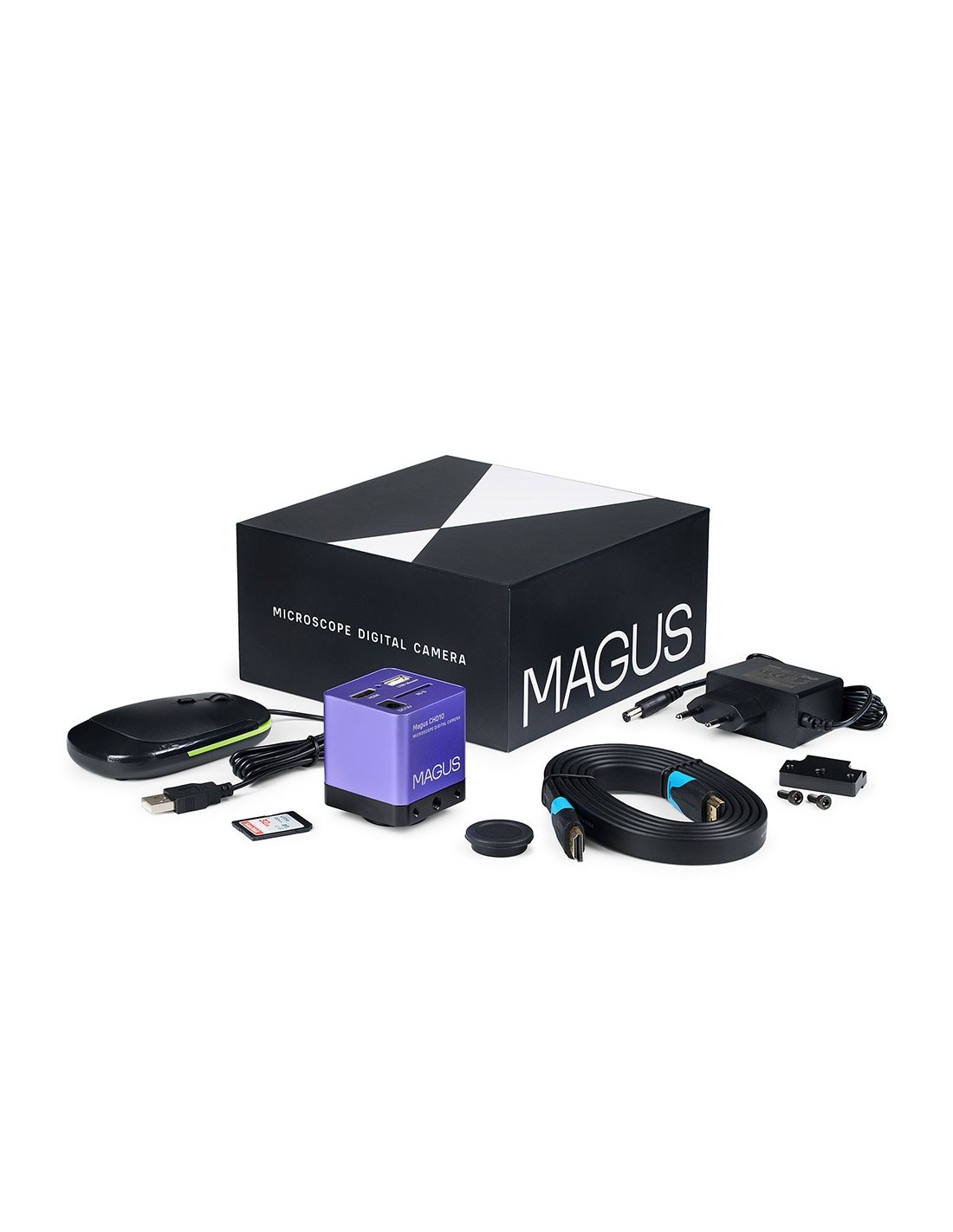

The package contains:
- Digital camera
- HDMI cable (1.5 m)
- Mouse with USB
- 32GB SD memory card
- 12V/1A AC power adapter (Euro)
- User manual and warranty card
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019130 |
| Package size (WxDxH) | 17x17x8 cm |
| Shipping weight | 0.9 kg |
| Sensor | SONY Starvis CMOS |
| Color/monochrome | color |
| Megapixel | 2 |
| Maximum resolution, px | 1920x1080 |
| Sensor size | 1/2.8" (5.57x3.13mm) |
| Pixel size, µm | 2.9x2.9 |

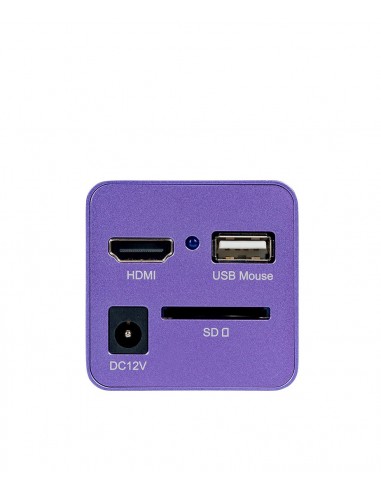

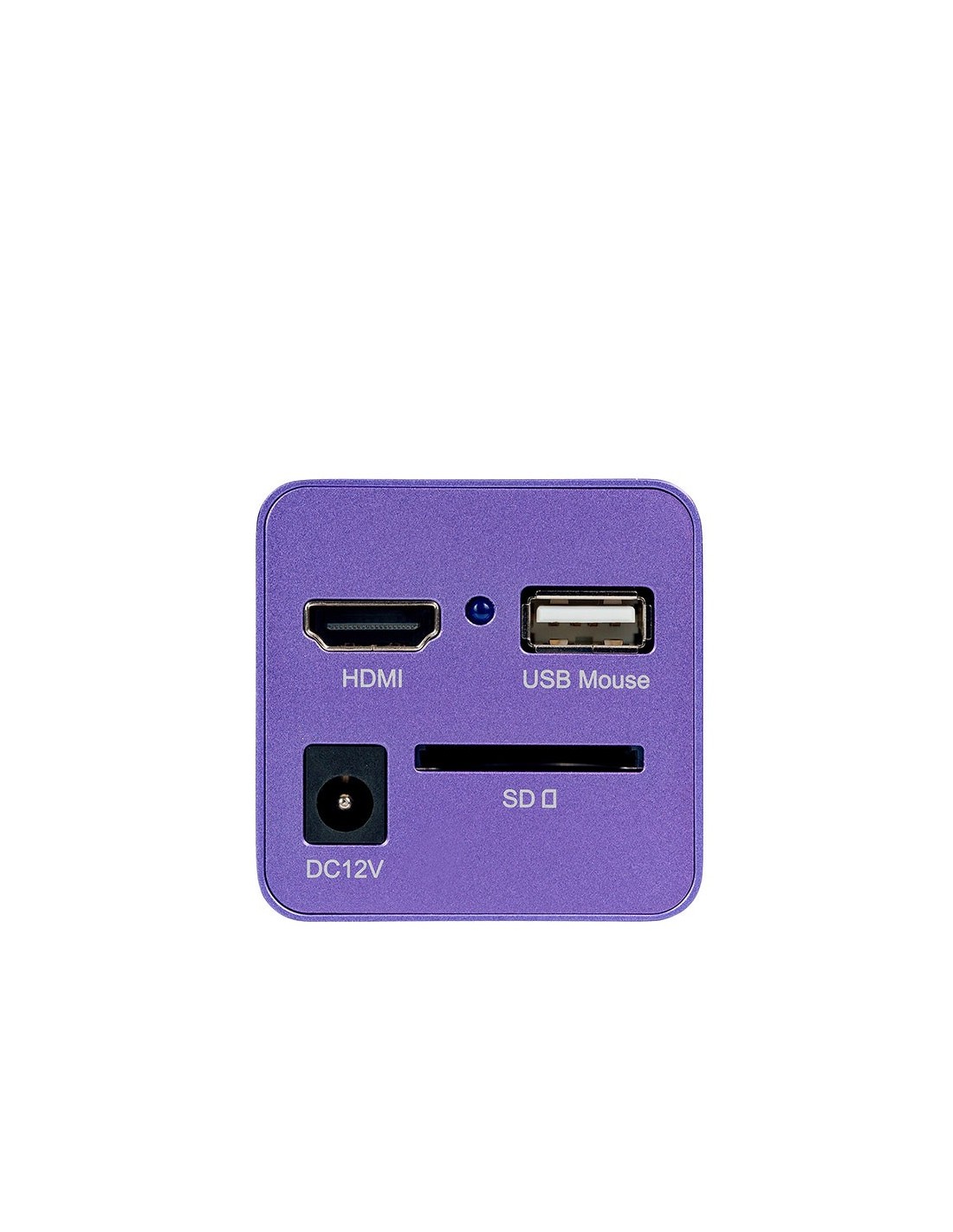

| Interface connectors | HDMI 1.4 |
| Memory card | SD up to 32 GB |
| Possibility to connect additional equipment | mouse with USB |
| Light sensitivity | 1300 mV at 1/30 s |
| Exposure time | 0.04 ms – 1000 ms |
| Video recording | yes |
| Frame rate, fps@resolution | 60@1920x1080 (HDMI) |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg |
| Video format | *.h264, *.mp4 |
| Spectral range, nm | 380-650 (integrated IR filter) |
| Shutter type | ERS (electronic curtain shutter ) |
| System requirements | does not require a computer connection |
| Software | HDMI: integrated |
| Mount type | C-mount |
| Body | rugged aluminum |
| Power | 12 V, 1 A AC adapter |
| Operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
