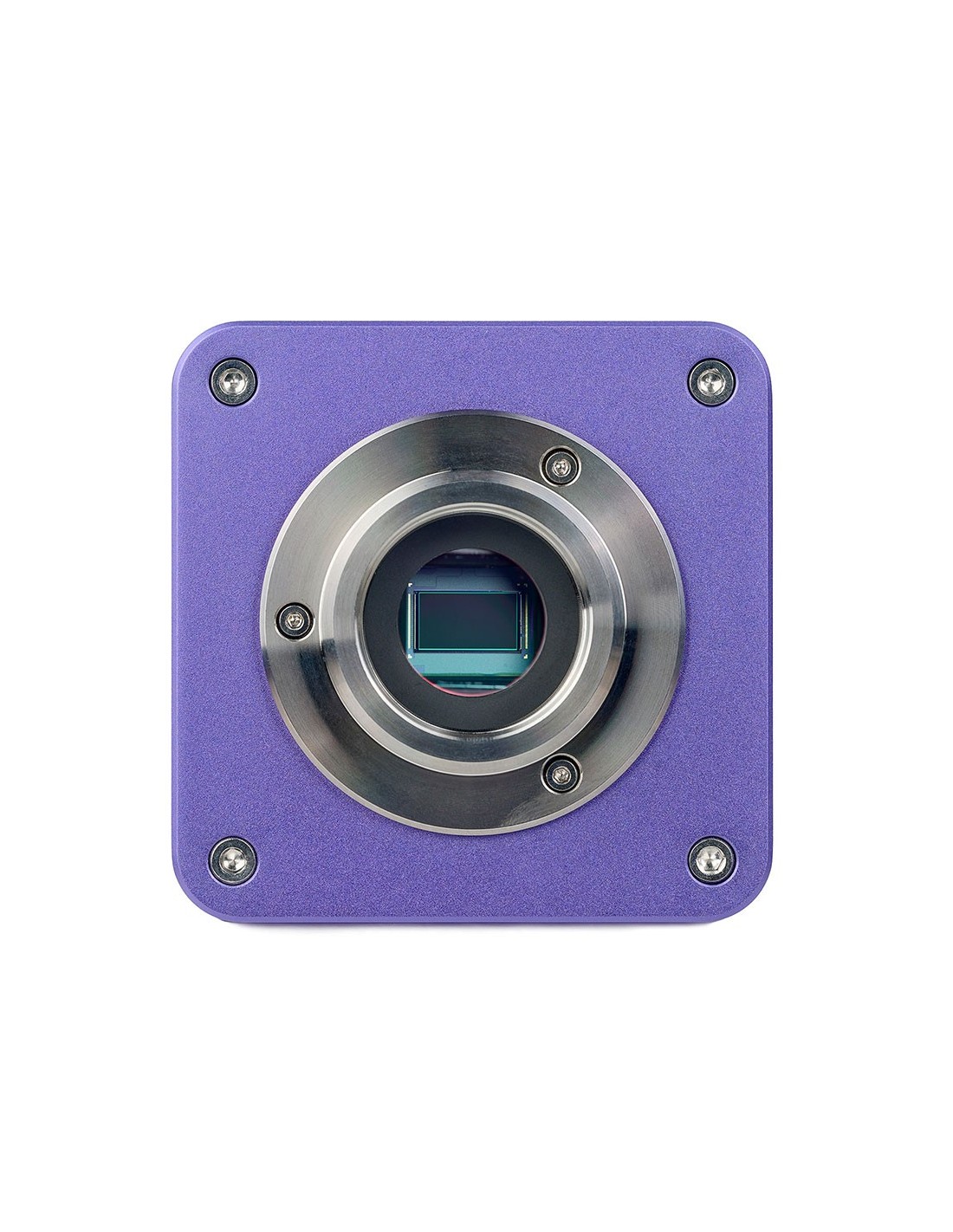

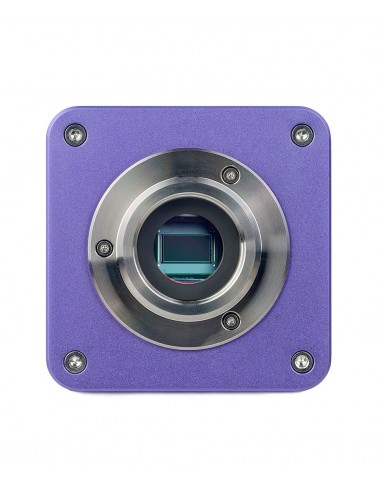

Video optical tube with a SONY Exmor 8.3 MP digital sensor. The sensor uses backlight technology to improve light sensitivity and produce bright, sharp images even in low-light conditions. The camera is used for observation using the bright and dark field microscopy technique on objectives with 4x, 10x and 20x magnification. It can also be used for stereoscopic microscopes. To connect to a computer and display images on the screen, a USB 3.0 port with high data transfer speed (5 Gbps) is used.

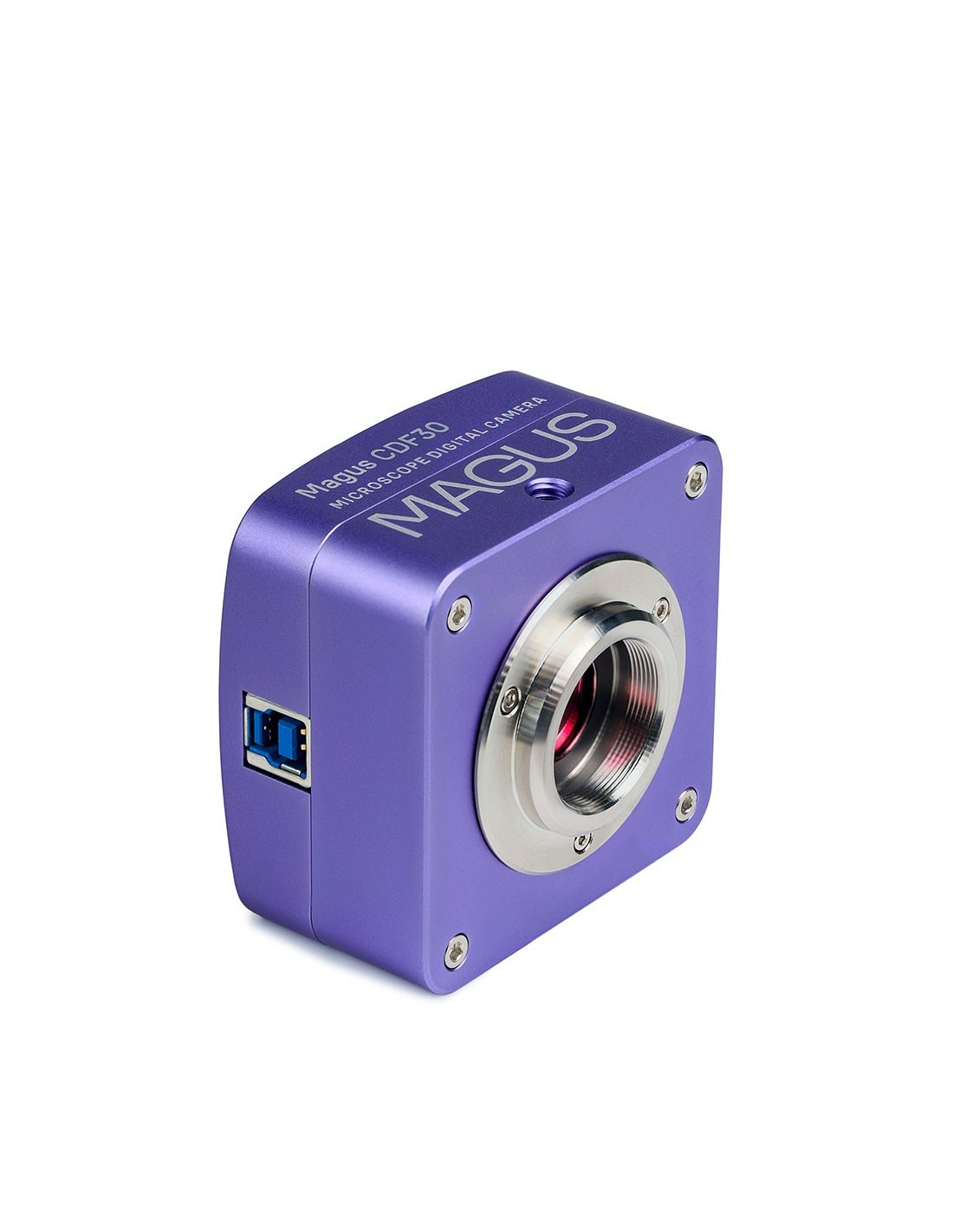

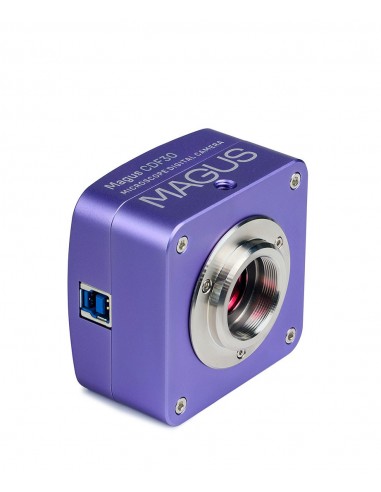

The MAGUS CDF30 camera is installed on the trinocular tube or optical tube of a microscope. The maximum field of view can be achieved without optical defects by using an adapter with magnification from 0.65x to 0.9x. In addition to the adapter, you will need an adapter of the same diameter as the tube to install the camera on the optical tube.
The image is displayed on the computer screen with a maximum resolution of 3840x2160 px. The frame rate is 45 fps. At a lower resolution (1920x1080 px), the frame rate increases up to 70 fps. Transitions between frames are almost imperceptible, without delays, making the camera suitable for studying and presenting moving objects. Photos and videos are recorded and saved in different formats.
Before using the MAGUS CDF30 digital camera, you must install a special program on your computer. The camera comes with a CD with drivers and MAGUS View software. You need to calibrate the software to each lens. To do this you need a calibration slide, not included in the kit.
Key features:
- Color back-illuminated SONY Exmor CMOS sensor, for example high light sensitivity
- Dark and bright field operation via 4x, 10x and 20x objectives

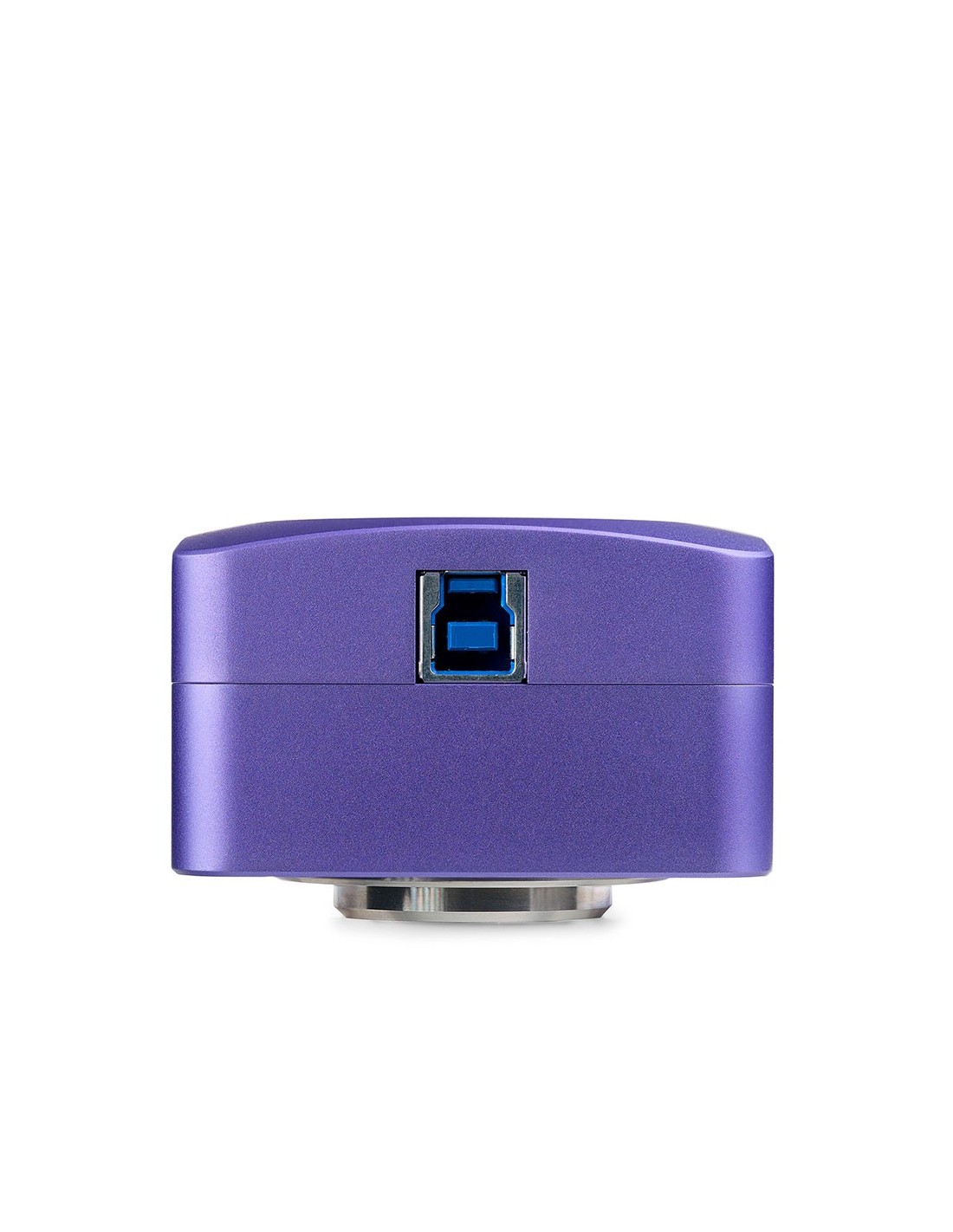

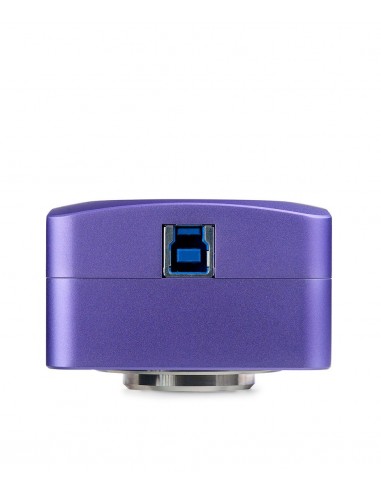

- Connection to computer via a USB 3.0 interface with a data transfer rate of 5 Gbps
- Image reproduced on a monitor at 4K Ultra High resolution 3840x2160 px (45 fps) or Full HD 1920x1080 px (70 fps)
- Drivers and image processing software are included
- Installation on the trinocular tube or optical tube of a microscope
The package contains:
- Camera digital
- USB cable
- Installation CD with drivers and software
- User manual and warranty card
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019192 |
| Package size (WxDxH) | 15x15x10 cm |
| Shipping weight | 0.6 kg |
| Sensor | SONY Exmor CMOS |
| Color/Monochrome | Color |
| Megapixel | 8.3 |
| Maximum resolution, px | 3840x2160 |
| Sensor size | 1/1.2'' (11, 14x6.26 mm) |
| Pixel size, µm | 2.9x2.9 |
| Sensitivity to light | 5970 mV/lux/s |
| Signal to noise ratio | 0.13 mV with 1/30 s | td> |
| Exposure time | 0.02 ms – 15 s |
| Video recording | yes |
| Frame rate, fps@resolution | 45@3840x2160, 70@1920x1080 |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 (integrated IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size , brightness, exposure control |
| Output | USB 3.0, 5 Gb/s |
| System requirements | Windows 8/10/11 (32-bit and 64-bit), Mac OS 3.0, CD-ROM, 17" or larger |
| Software | MAGUS View |
| Type mounting | C pitch |
| Body | robust aluminum |
| Power supply | DC current, 5 V, from PC USB port |
| Operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
