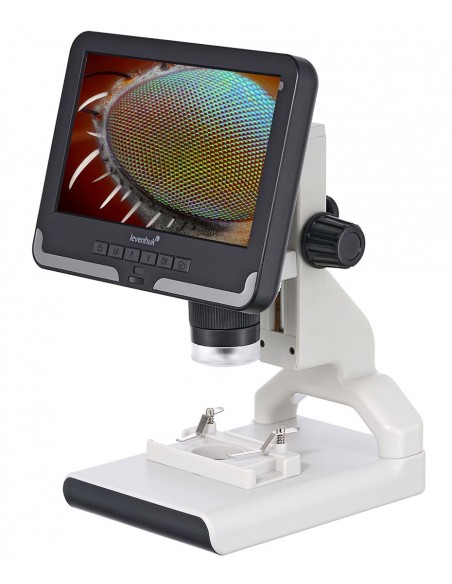

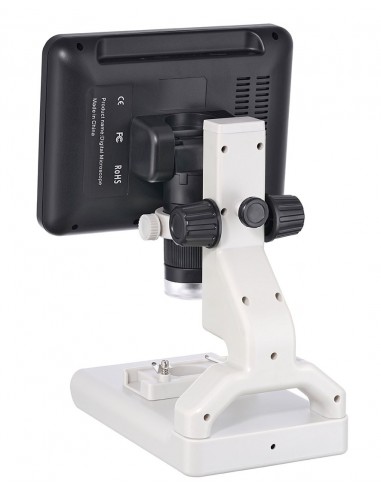

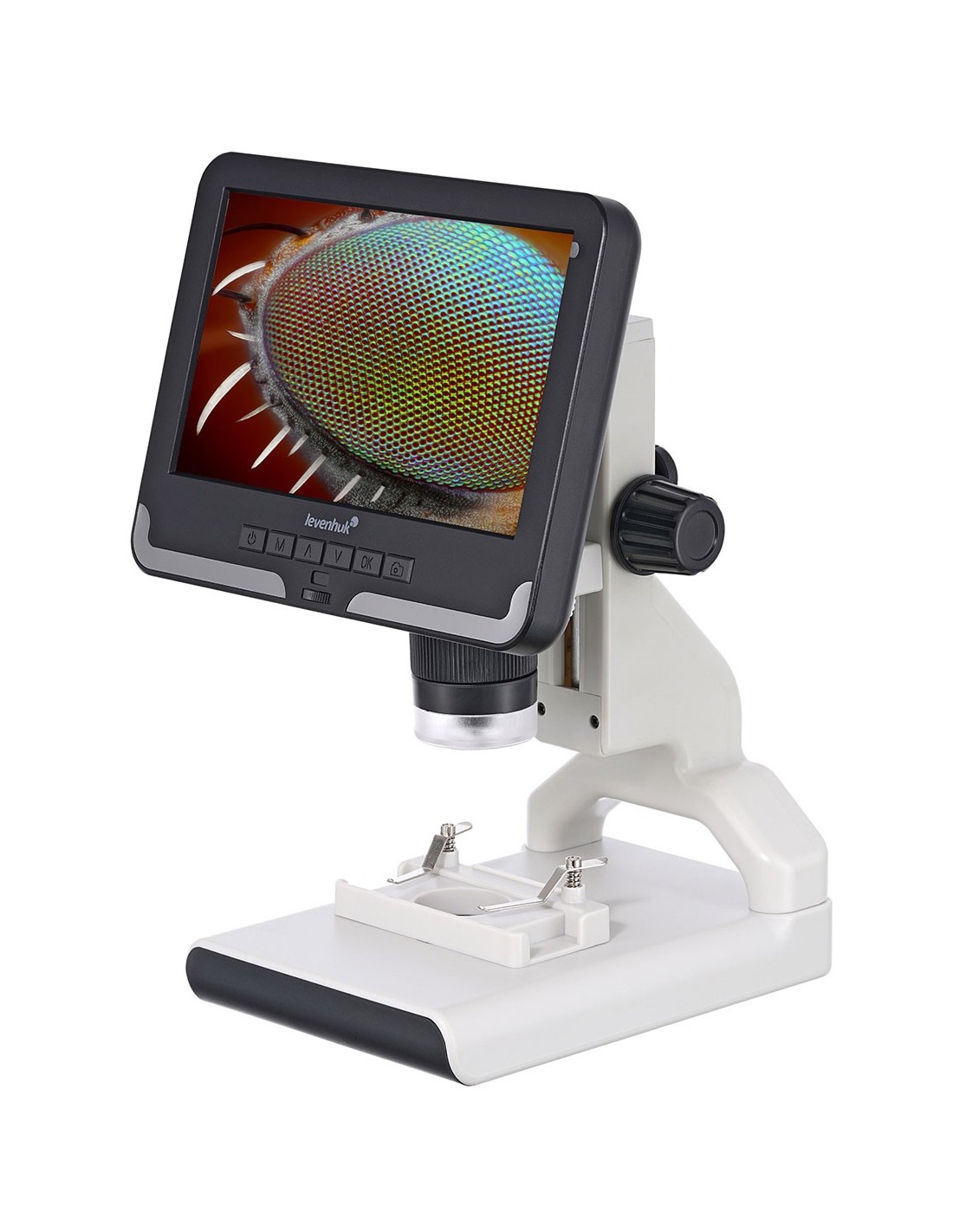

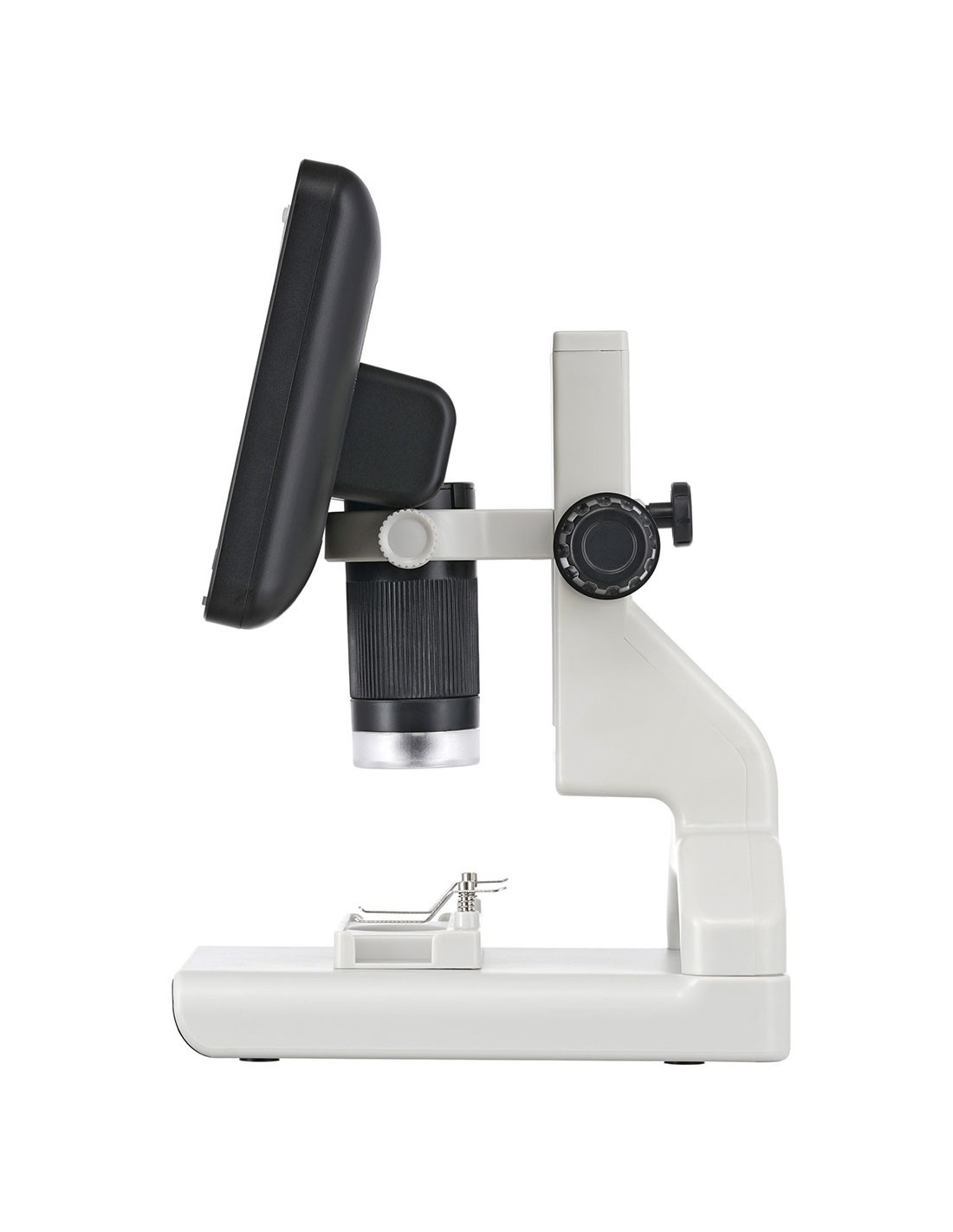

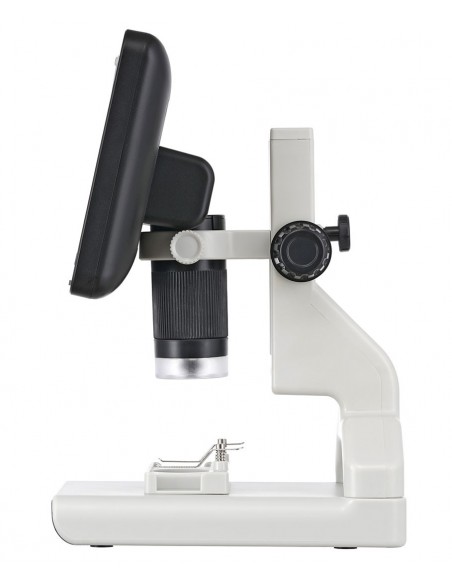

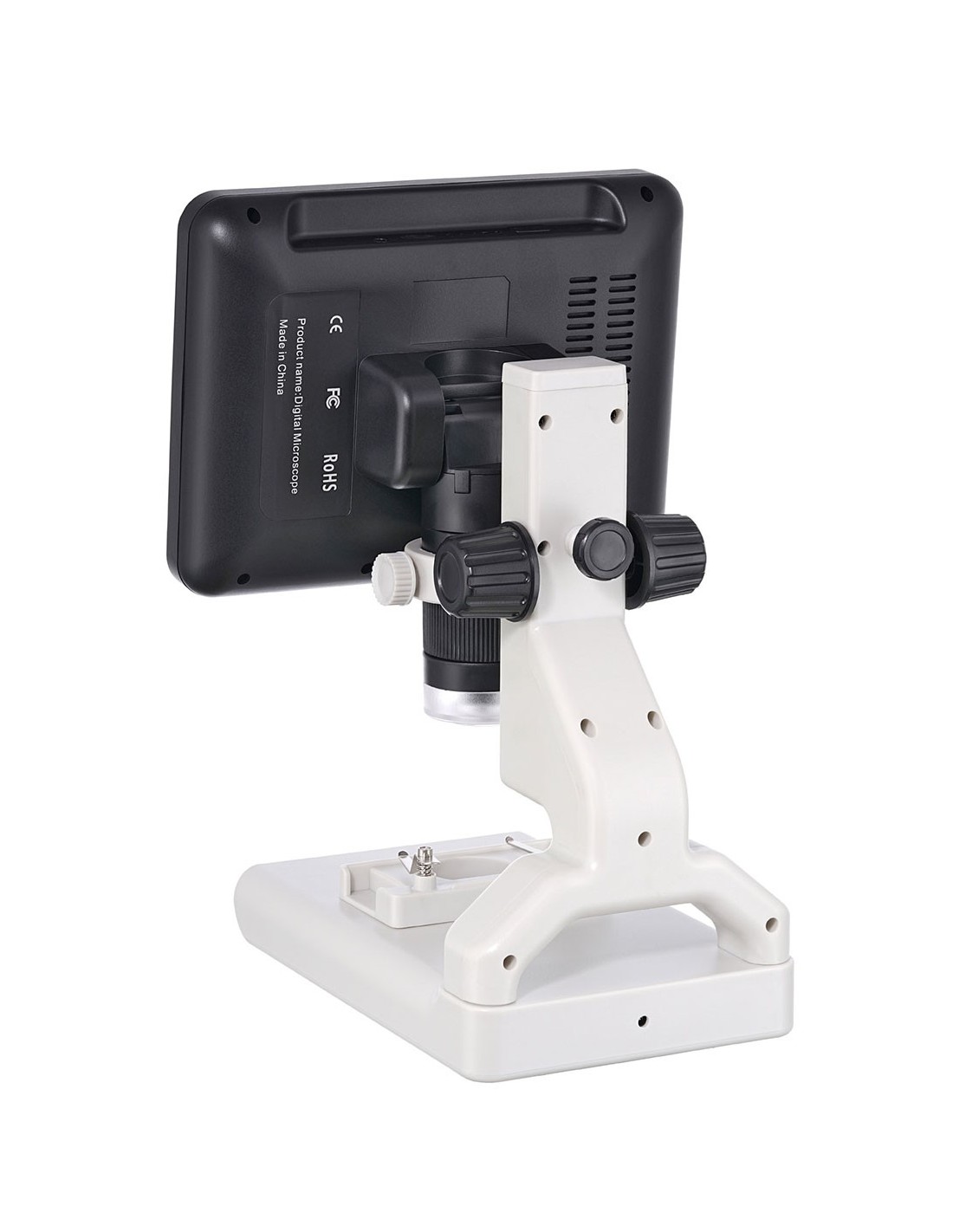

The Levenhuk Rainbow DM700 LCD is a digital microscope with a large LCD screen. This microscope can be used to study fabrics, insects, coins and banknotes, plant samples, as well as mechanical and electronic components. The microscope allows you to record videos and take photos in high resolution, and you can use a wireless remote control to control the device.

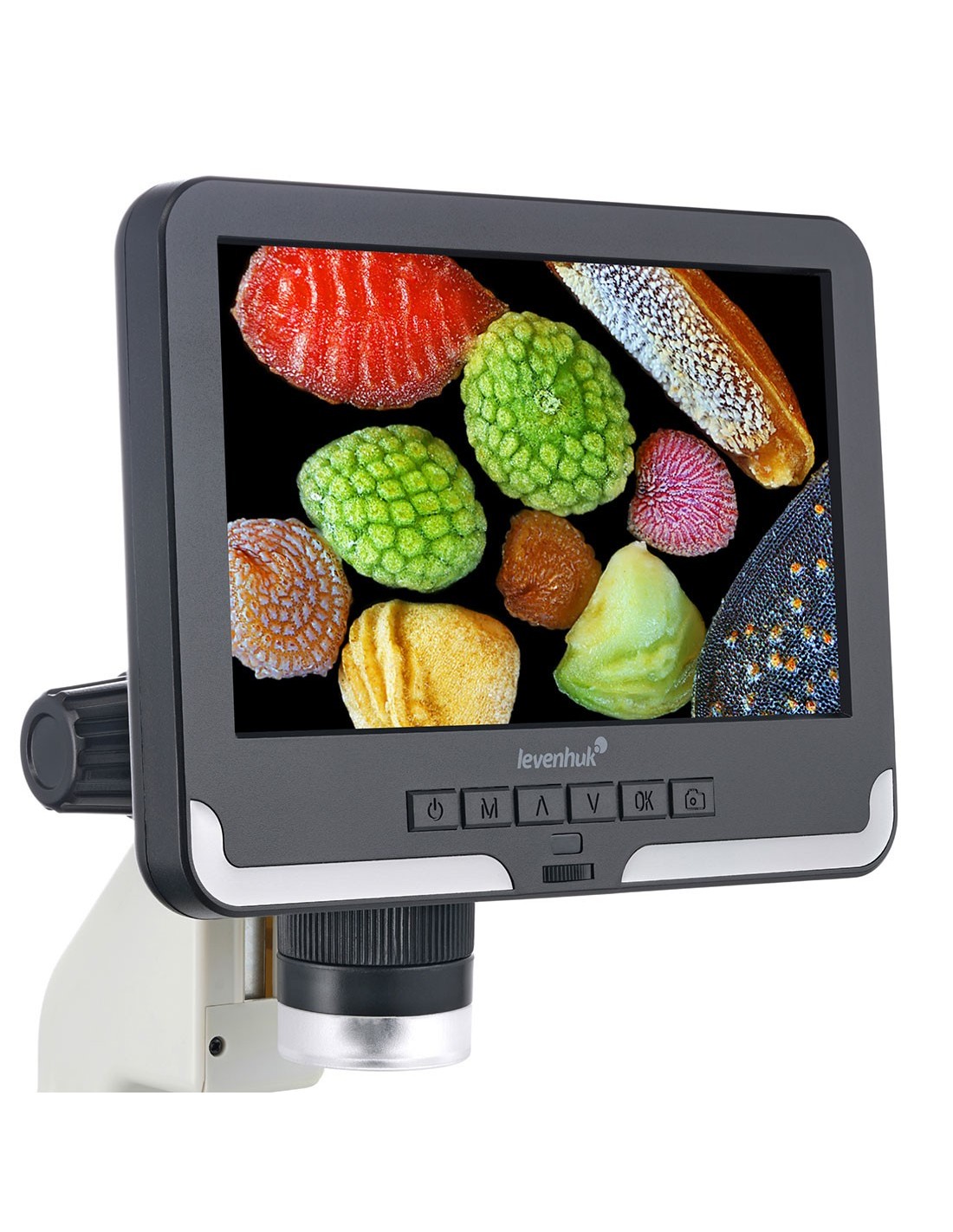

The magnification of the microscope varies between a factor of 10 and 200, with an optical magnification between 10x and 50x. The image collected by the lens is transmitted to a 7-inch color LCD screen. The image is sharp and easy to interpret. Below the screen there are control buttons, the same buttons are also duplicated on the remote control. With the help of the remote control, you can adjust the brightness, choose the magnification suitable for observation, take photos, record videos and much more.

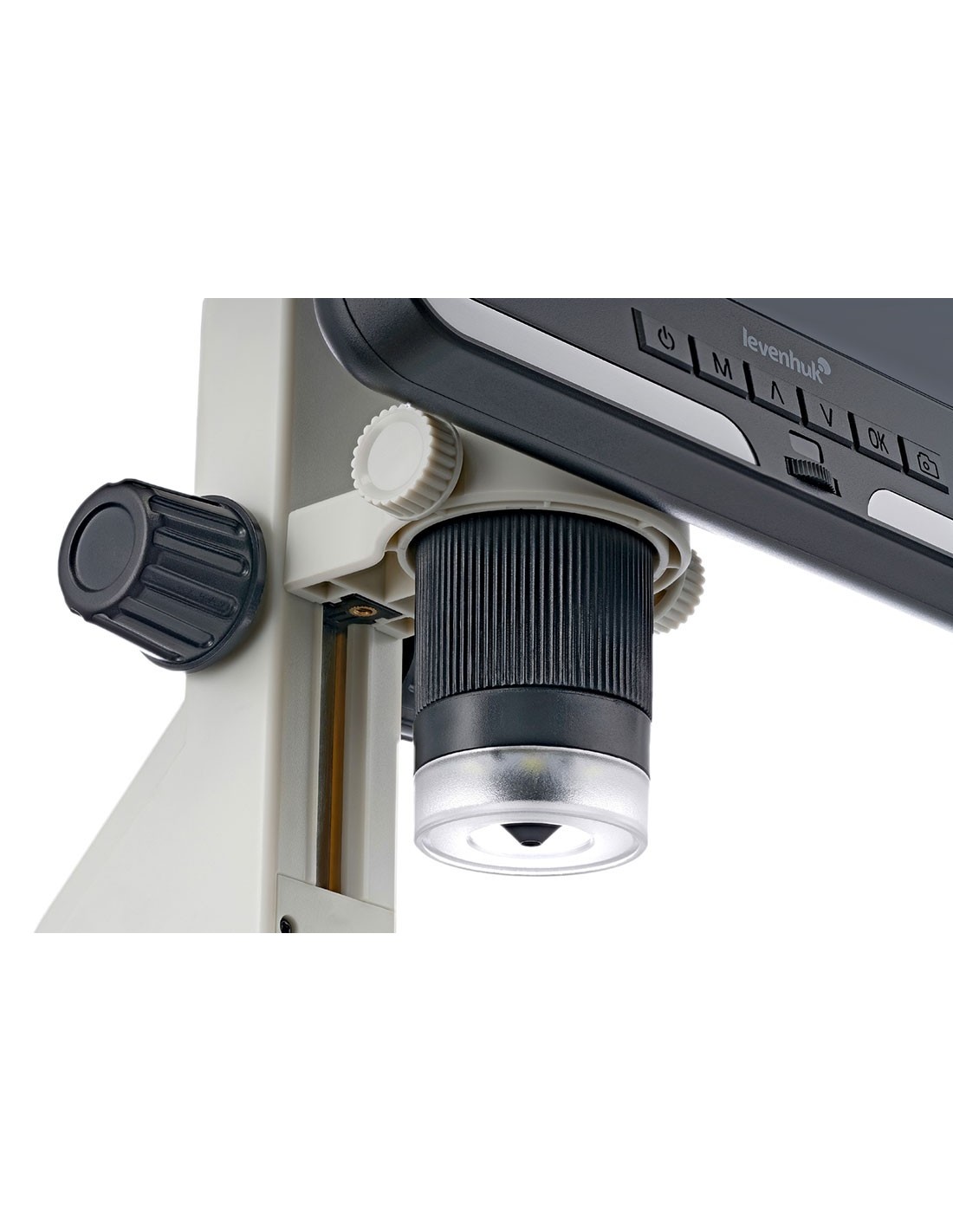

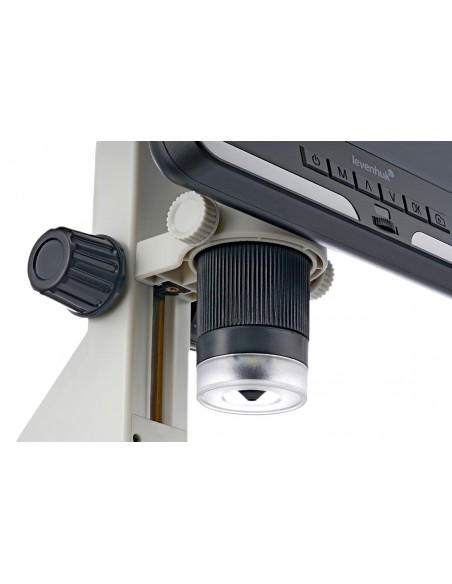

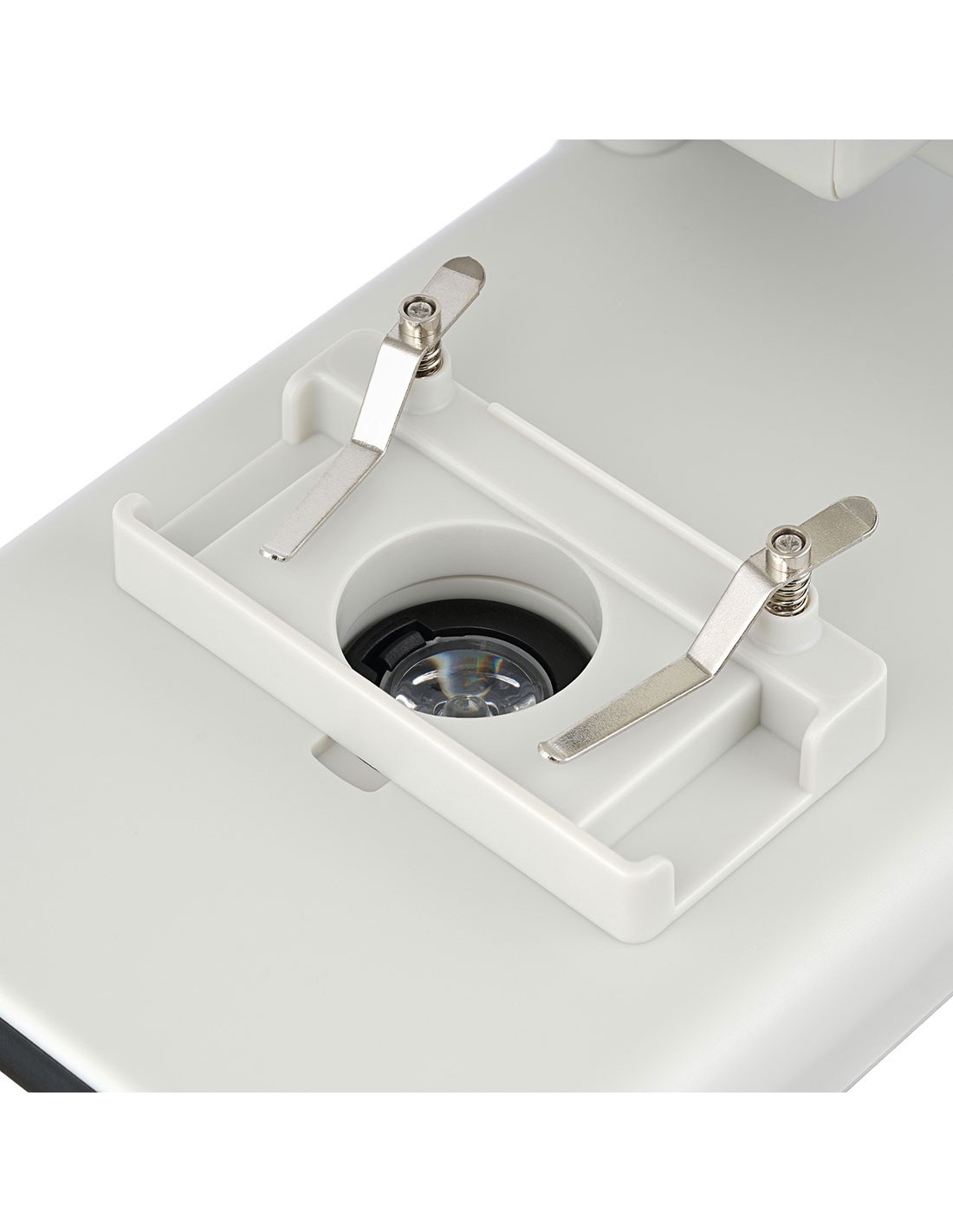

The microscope stage is illuminated both from above and from below. This allows the study of samples of any degree of transparency. The fixing of the slides on the table is done using metal clips. A small set of ready-to-use samples is already included in the kit.
Of particular note are the digital capabilities of the device. You can capture high resolution images and videos: up to 12 Mpx for photos and Full HD for videos. The data is saved on a memory card (to be purchased separately).
Features:
- Large 7" color tilting LCD screen
- Image quality: 12 Mpx, video quality: Full HD
- Double LED lighting with brightness adjustment
- The kit includes ready-to-use microscope slides
- The wireless remote control provides remote access to many of the microscope's options

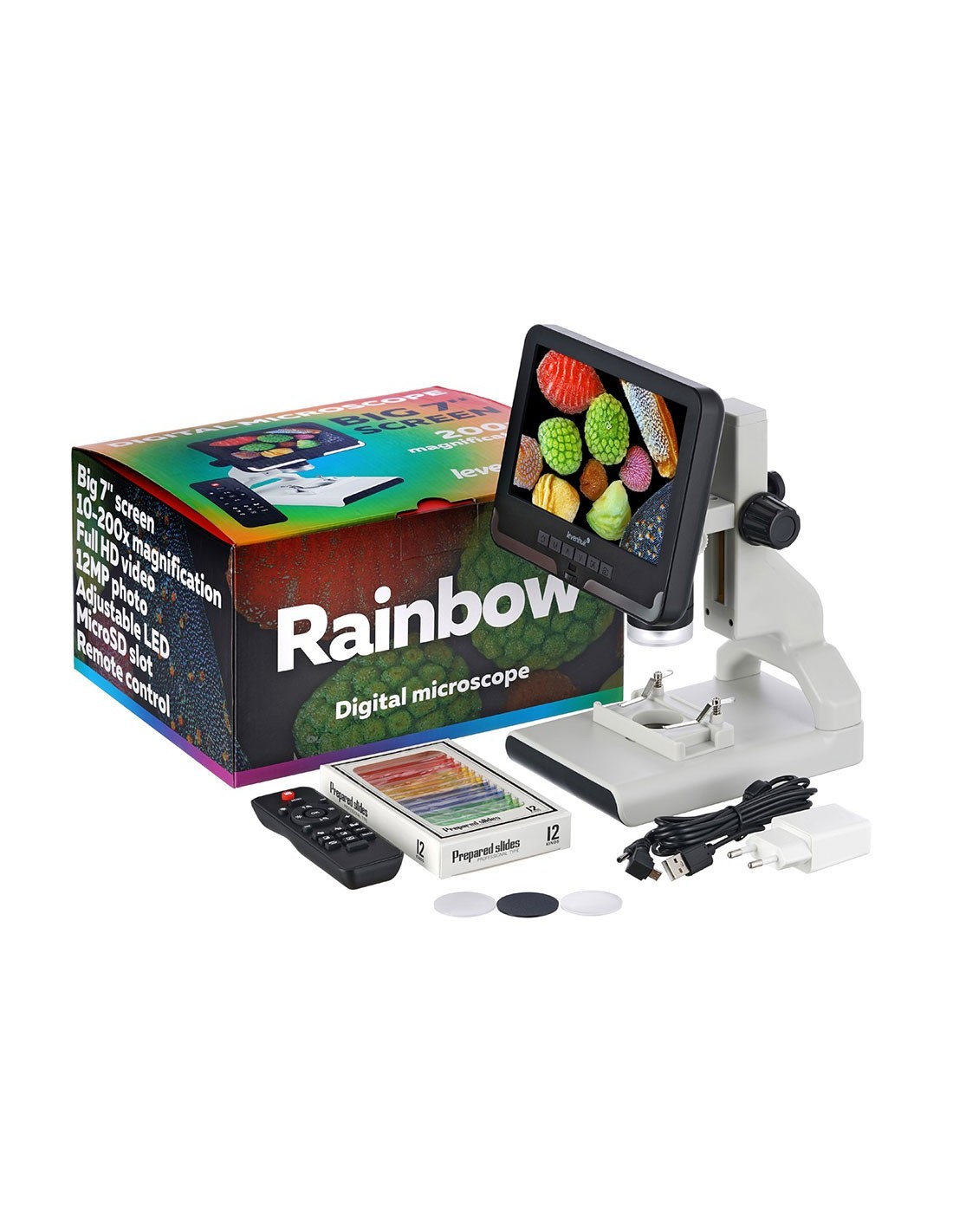

The kit includes:
- Microscope with LCD screen
- Stage with clothespins and empty slides

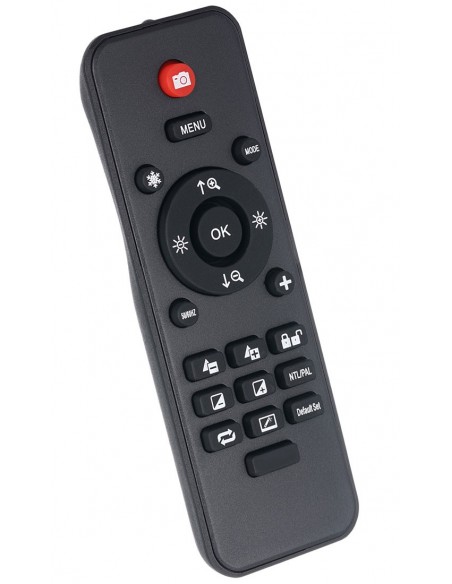

- Infrared remote control
- Ready-to-use microscope slides:
- Ala of locust (Locust wing)
- Honeybee wing (Honeybee wing)
- Honeybee leg (Honeybee leg)
- Nori seaweed (Laver)
- Nori seaweed (Laver)
- li>
- Pine tree stem (Pine tree stem)
- Carnation stem (Carnation stem)
- Canary feather (Canary feather)
- Hair of cow hair (Cow hair)
- Goldfish scale (Goldfish scale)
- Potato starch (Potato starch)
- Corn stem (Corn stem) li>
- Onion epidermis (Onion epidermis)
- Power cord
- Mains adapter
- User manual and lifetime warranty
| Brand | Levenhuk Inc., USA |
| Warranty | Lifetime |
| EAN | 5905555004440 |
| Package size ( WxDxH) | 26x23x15 cm |
| Shipping weight | 1.22 kg |
| Type | digital |
| Tested | digital screen/PC monitor |
| Lens material | optical glass |
| Vertical tube | 7" color tilting LCD screen |
| Magnification, x | 10 — 200 |
| Magnification range | up to 200x |
| Stage, mm | 120x180 |
| Range of movement of the stage, mm | 83/43 |
| Table features | with pegs |
| Fire | coarse (90 mm) |
| Body | plastic |
| Lighting | LED |
| Brightness adjustment | yes |
| Power | lighting and LCD screen: 110–220V; 5V, 1A via USB cable (included); remote control: AAA batteries – 2 pcs. (not included) |
| Operating temperature range, °C | -20 — 70 |
| User level | beginners |
| Assembly and installation level of difficulty | easy |
| for applied research |
| Lighting position | double |
| bright field |
| Experiment kit included | yes |
| Maximum resolution | images: 4032x3024 pixels; video: 1080 FHD 1920x1080 pixels |
| Megapixel | sensor: 2; image: 12 |
| Sensor element | 1/2.9" CMOS |
| Pixel size , µm | 2.8x2.8 |
| Video recording | yes |
| Image format | *.jpg |
| Video format | *.avi |
| Spectral range, nm | 410–1100 |
| White balance | manual |
| Exposure control | manual |
| Sensitivity, V/lux-sec@550 nm | 3.8 |
| Output | mini-USB, microSD card slot |
| System requirements | there is no connection to a computer |
