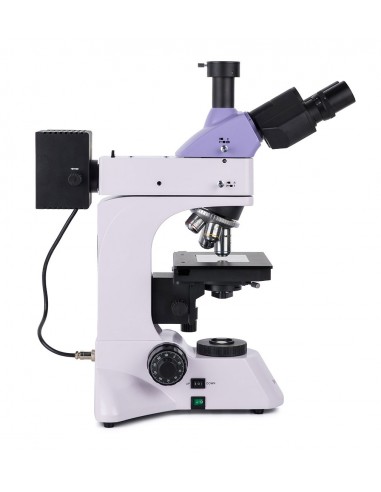

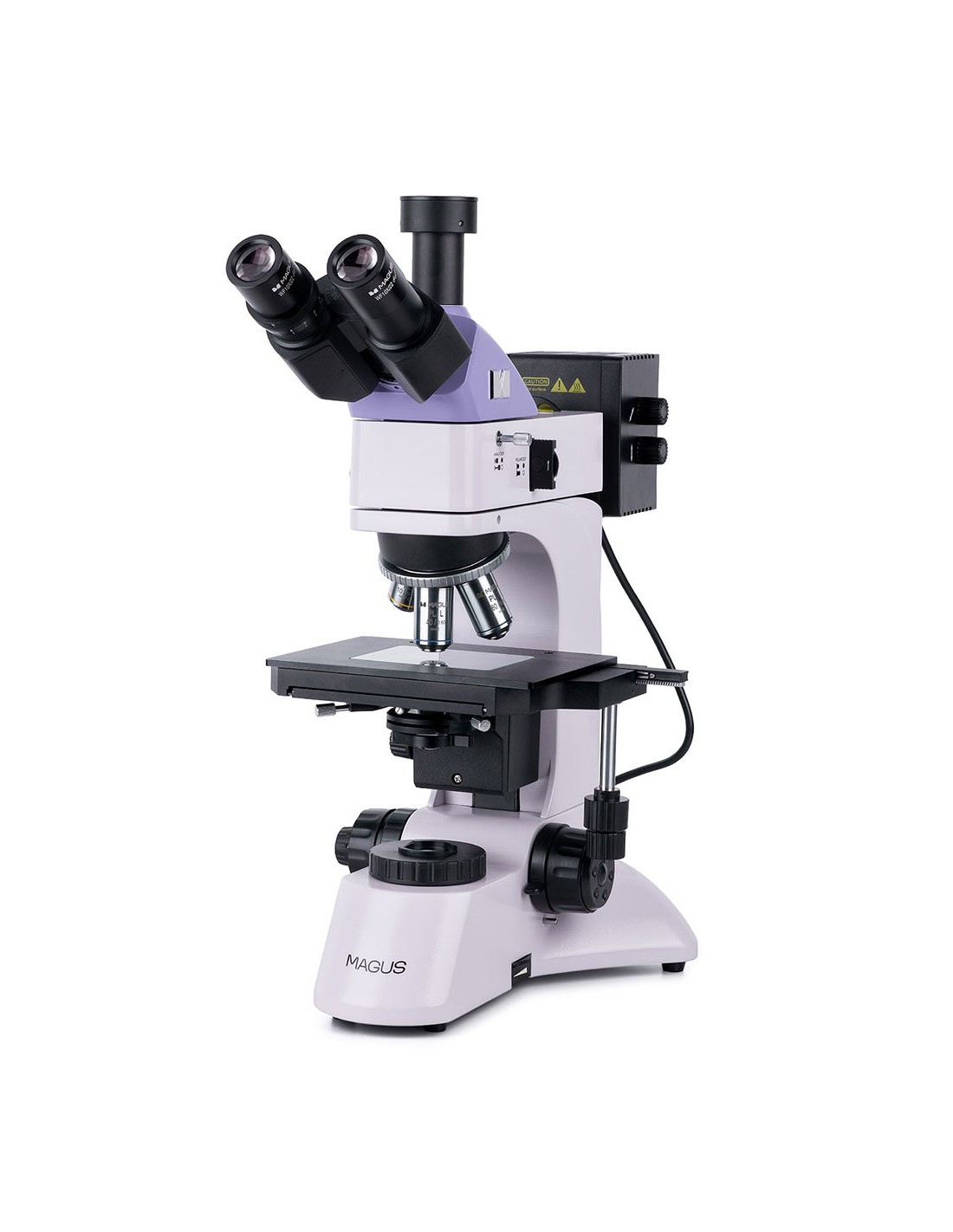

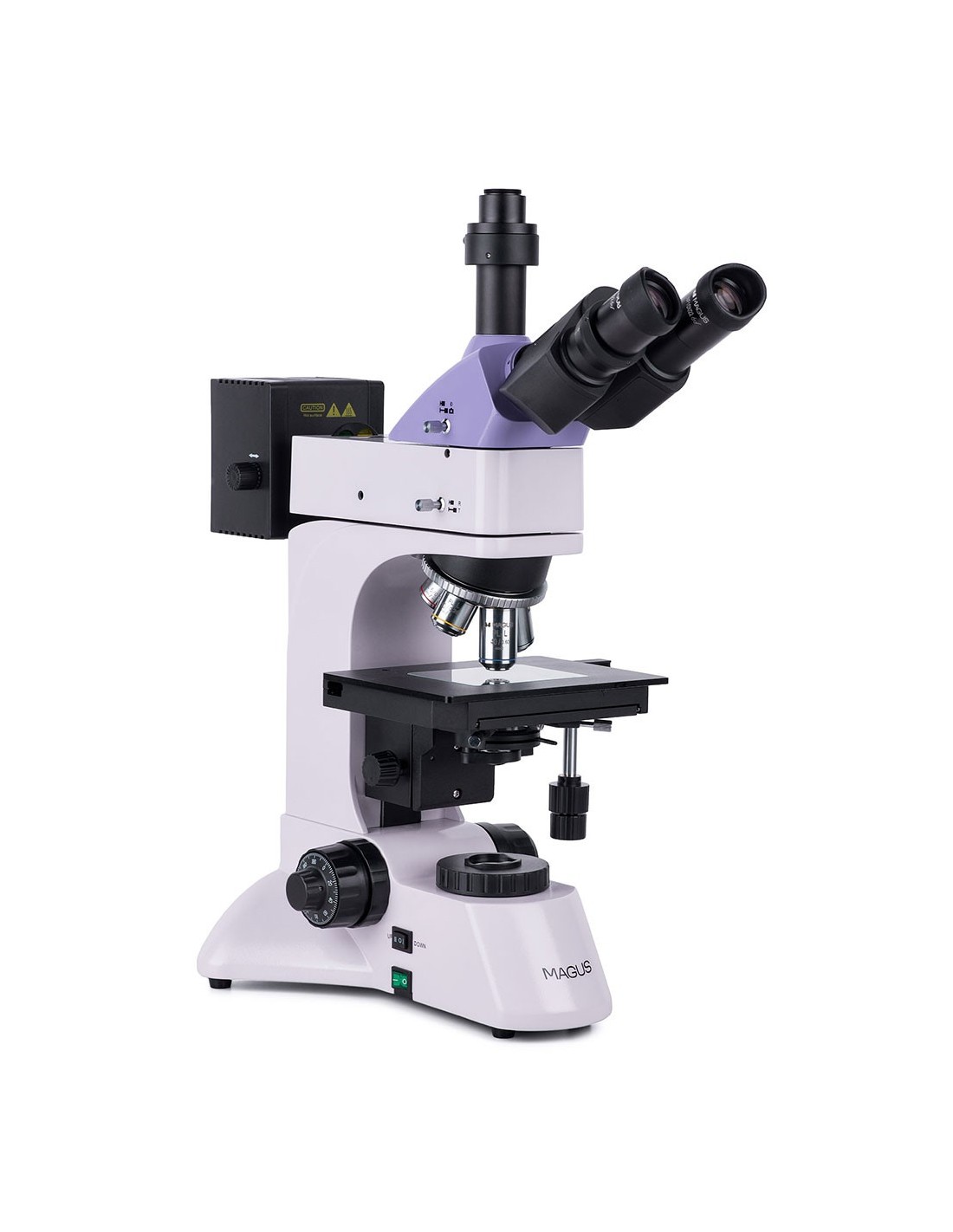

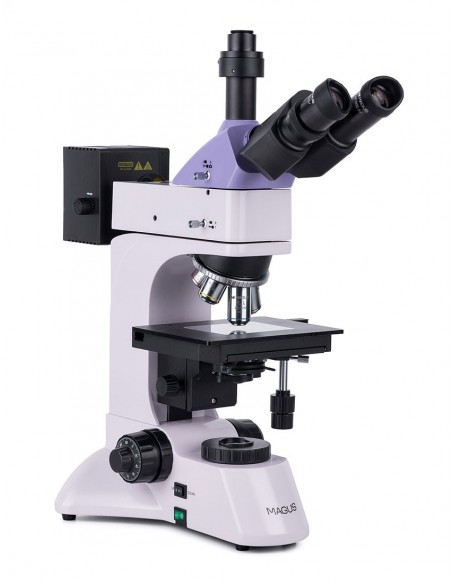

The MAGUS Metal 600 metallographic microscope is designed for the study of opaque samples (metals, alloys, paint coatings, semiconductors and other materials) in reflected light with bright field and polarized light microscopy techniques. It is possible to study the microstructures of polished flat samples. The transmitted light illuminator also allows the examination of particles stuck on filters and translucent materials (such as films) under the microscope. The microscope is suitable for research and analyzes conducted by geologists, metallurgists, engineers, archaeologists and specialists in other scientific fields.
Optics

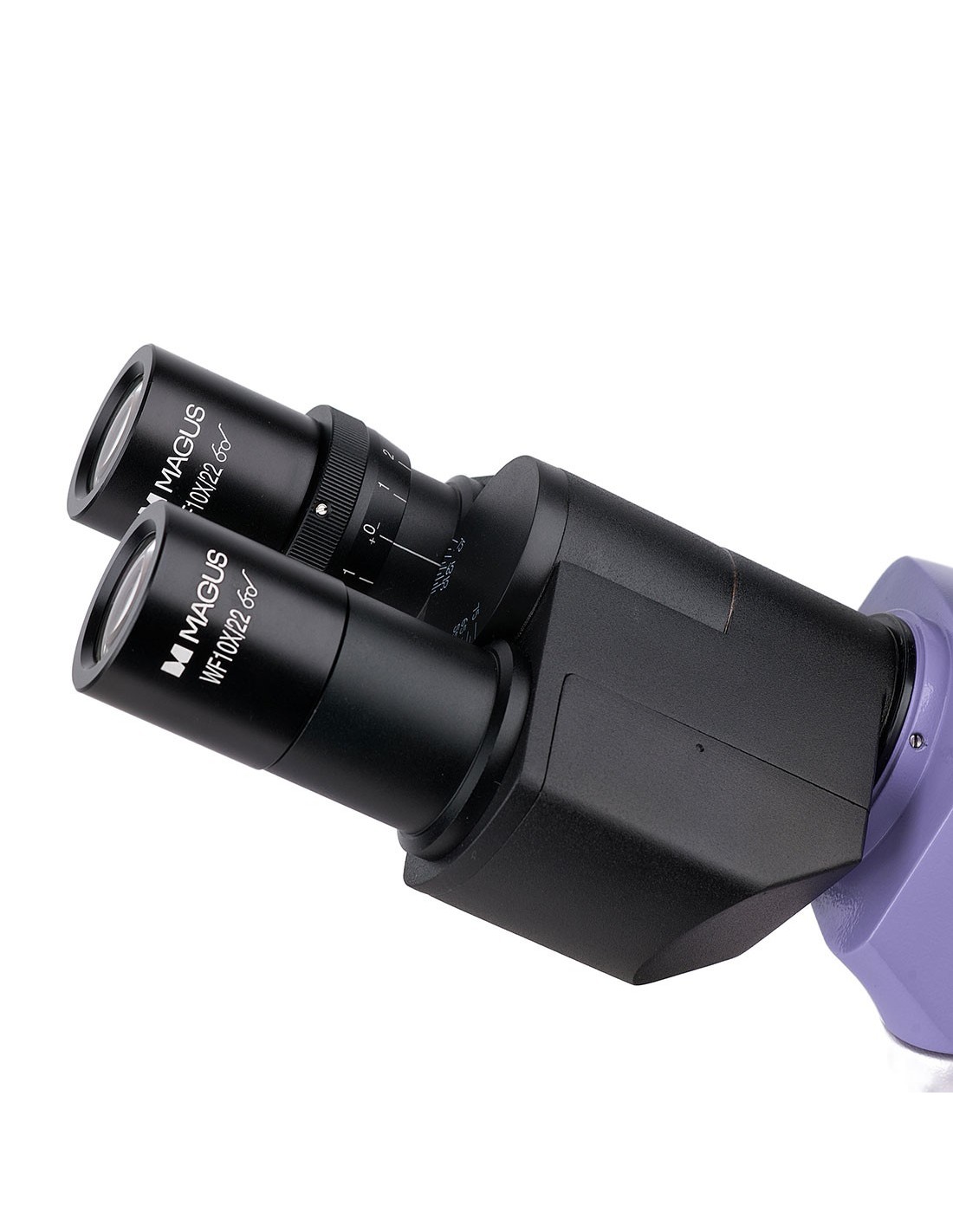

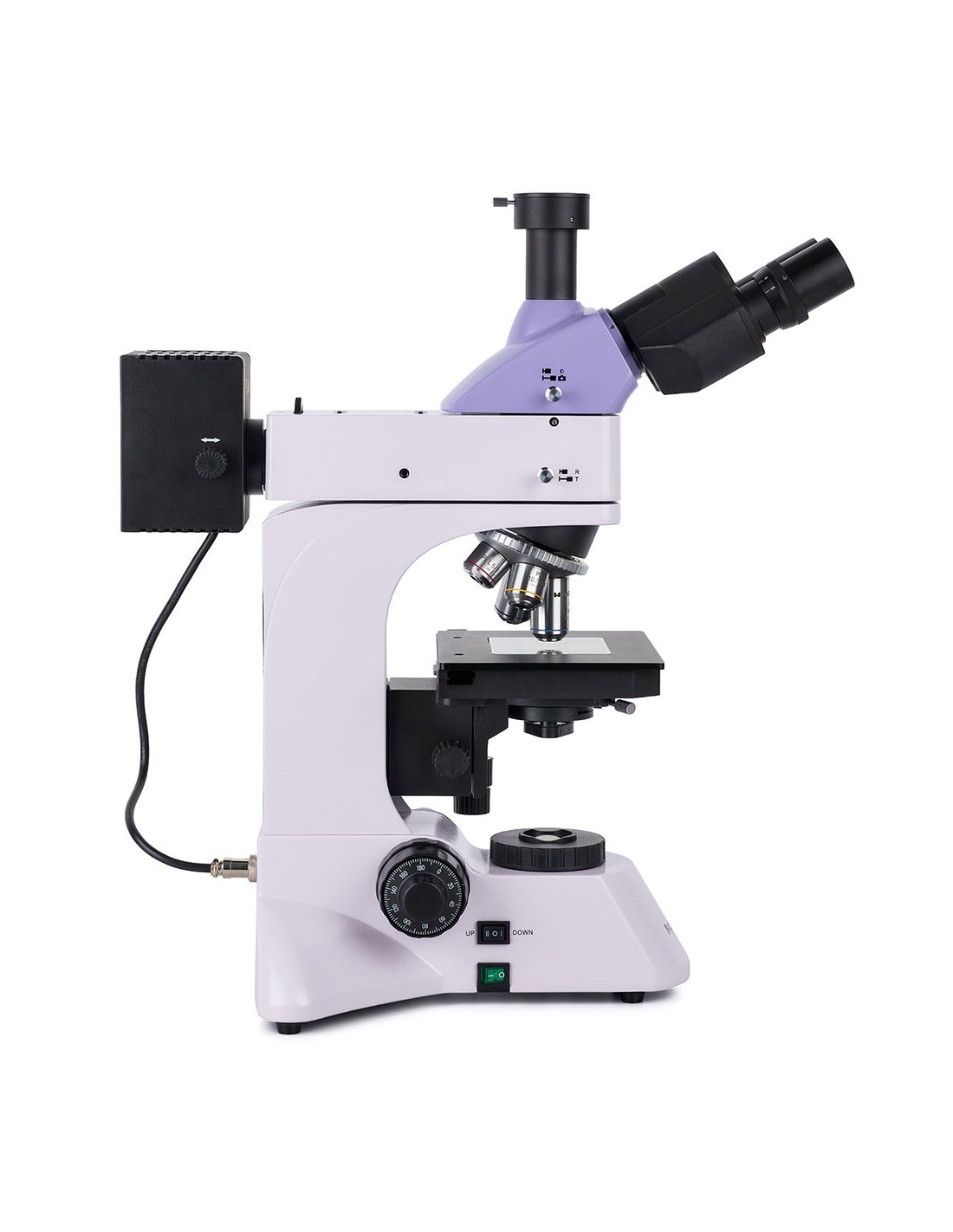

The head Trinocular comes with a trinocular tube for mounting on the camera (not included). The light beam can take two positions: 100:0 or 0:100, i.e. the light beam can be directed onto the digital camera or the eyepiece tube. The trinocular head is inclined by 30°, making it ideal for long-lasting observations. On the left barrel there is a diopter adjustment ring.

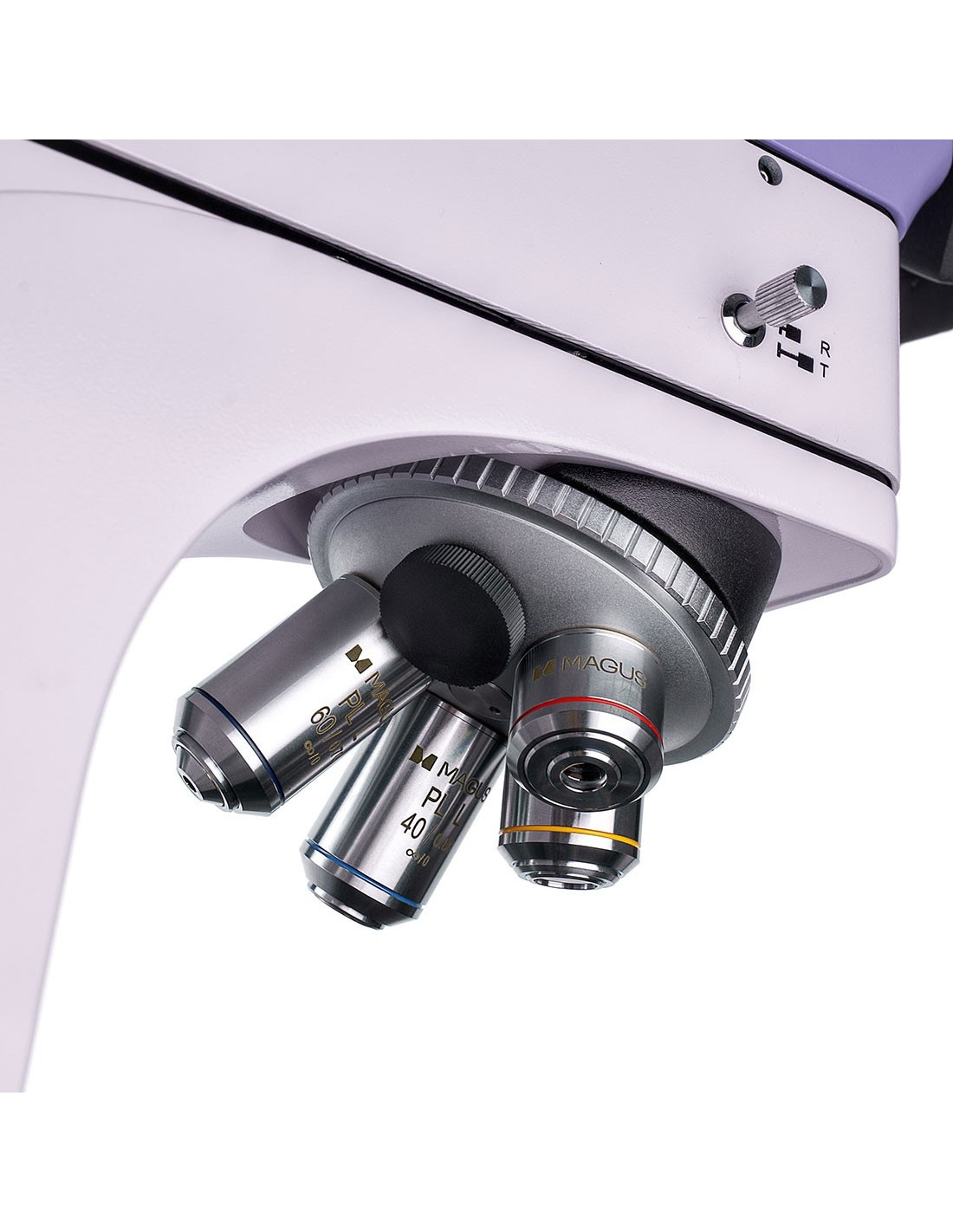

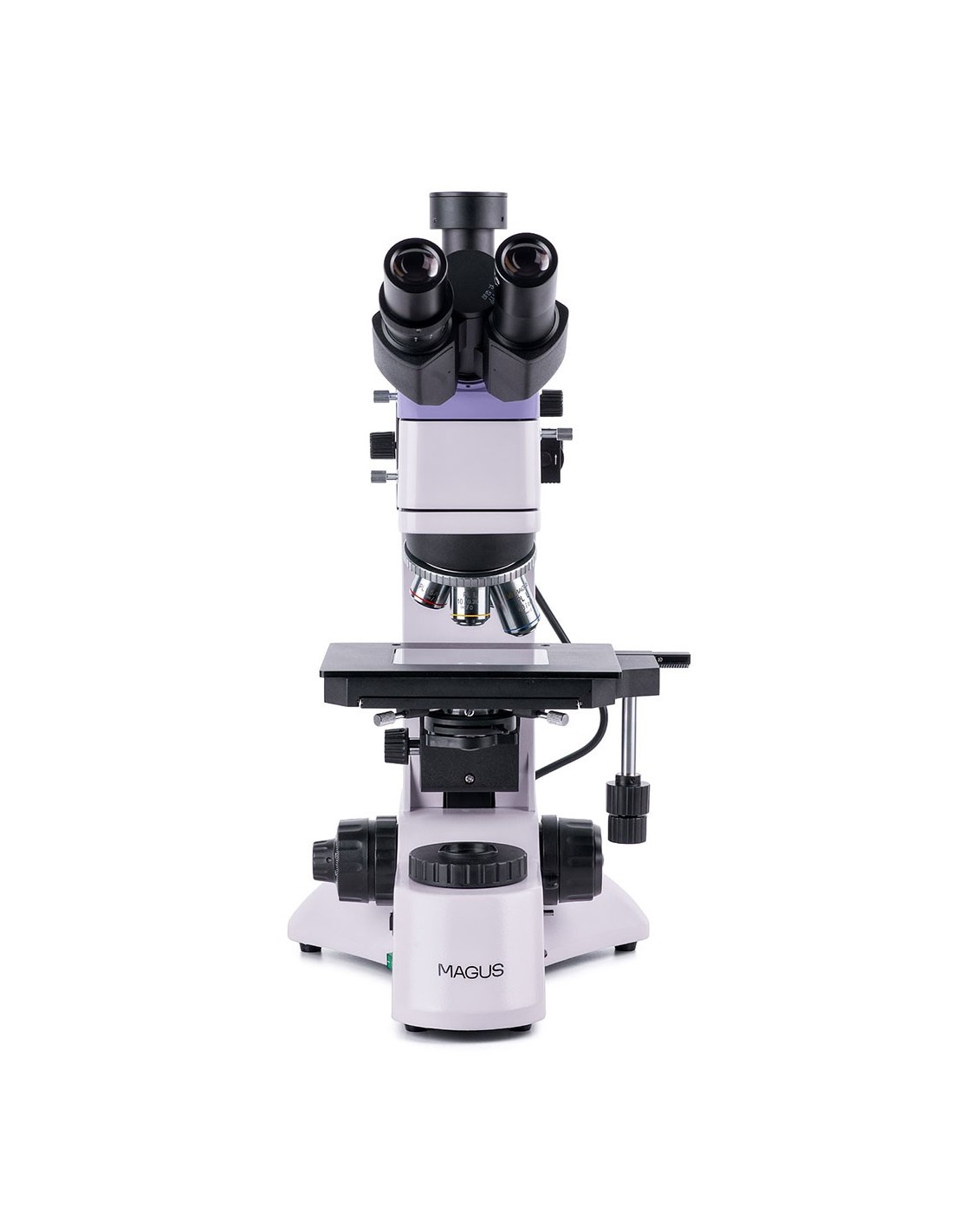

In the basic configuration, the magnification of the microscope varies from 50x to 600x. To increase the maximum magnification limit, additional eyepieces can be mounted. The nosepiece is oriented towards the inside of the instrument. Five lenses can be mounted simultaneously: four are included in the kit and one slot is free for installing an additional lens. The microscope is equipped with plan achromatic objectives with a long working distance suitable for bright field microscopy.
Illumination

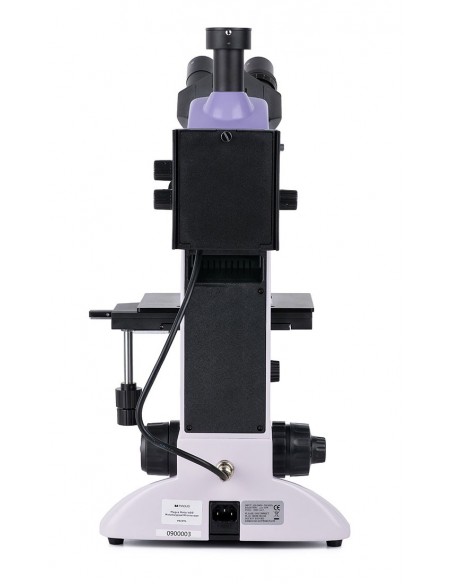

The microscope is equipped with transmitted and reflected light illumination. Both use 30W halogen lamps with adjustable brightness, powered by AC power. Halogen lamps emit light with a color temperature that ensures greater comfort for the eyes.
The microscope is equipped with polarization tools for reflected light observations: an integrated analyzer and a removable polarizer. The aperture and field diaphragms make it possible to set the Köhler illumination. Colored filters are also included in the kit. The apertures and the reflected light light source can be centered.
The transmitted light lighting system uses a traditional Abbe condenser, the position of which can be adjusted in two ways: centered and height-adjusted. It is completed with a folding lens that allows it to be used with low magnification objectives. There are field diaphragms and an aperture, which allow the Köhler illumination method to be used.
Stage and focusing mechanism

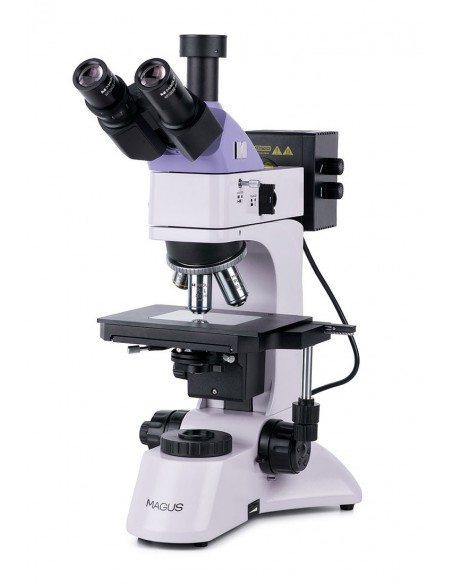

The maximum Height of the sample that can be put on the stage is 20 mm. The sample can be moved by moving the stage along the two axes. It is equipped with a glass slide to be used for the observation of opaque specimens.
Coarse and fine focusing mechanisms are used to adjust the focus. Focusing is smooth and precise. The coarse focus is equipped with a fixing knob and the tension of the coarse screw can be adjusted. The focusing knobs are positioned coaxially on both sides, so you don't have to keep your hands in the air during observation, but comfortably on the table.
Accessories
The MAGUS Metal 600 microscope can be further equipped with additional eyepieces, objectives with a long distance, digital cameras and calibration slides.
Key features:
- Microscope for studying opaque, flat and polished specimens in reflected light and translucent specimens in transmitted light
- Trinocular head with a trinocular tube and beam splitter
- Reflected and transmitted light light source: 30 W halogen lamp
- Köhler illumination method in transmitted and reflected light, polarized reflected light microscopy technique
- Elements (diaphragms and light sources) of the reflected light illumination system that can be centered, filter sets
- Abbe condenser with folding lenses for use with low magnification objectives
- Wide range of eyepieces and additional lenses

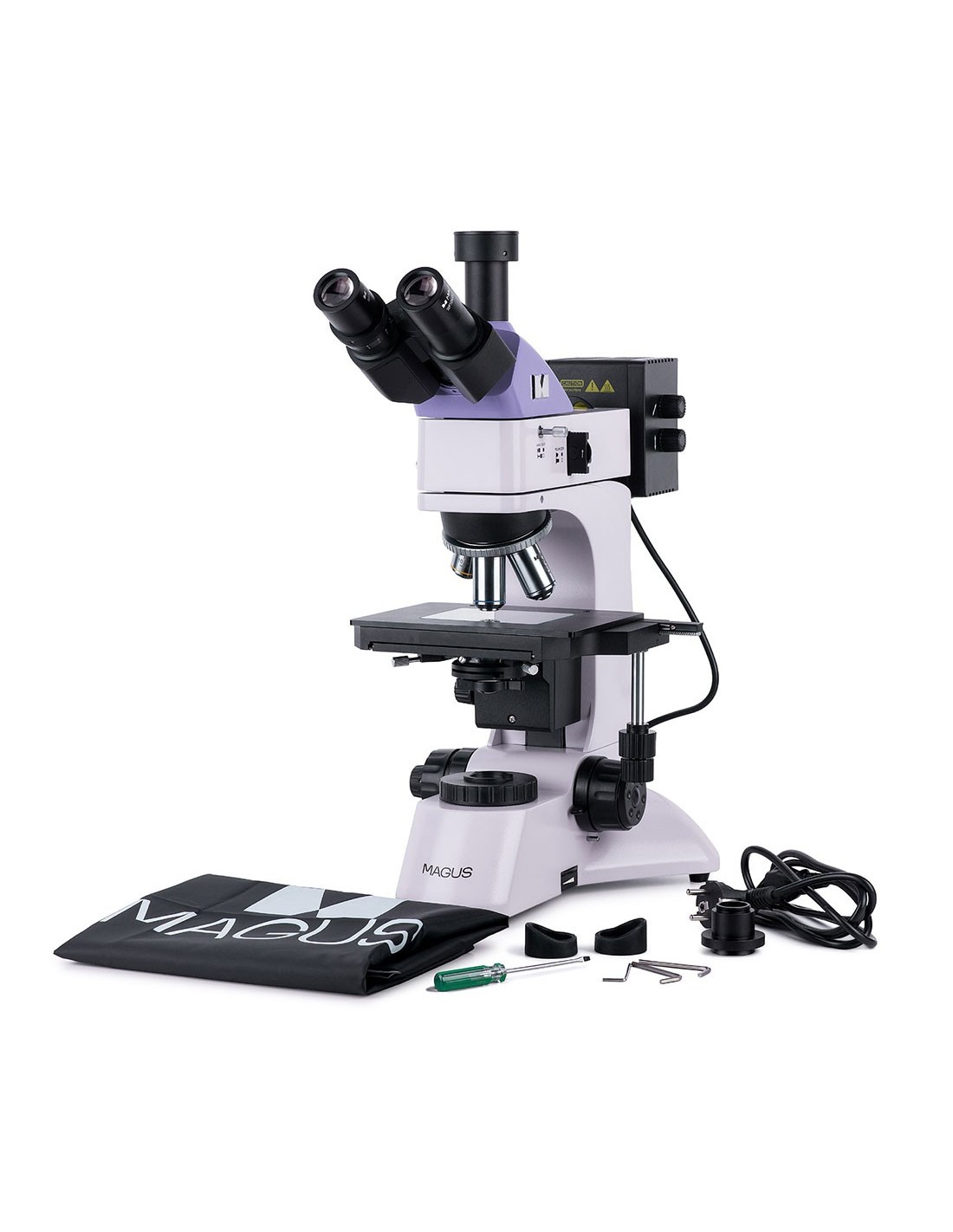

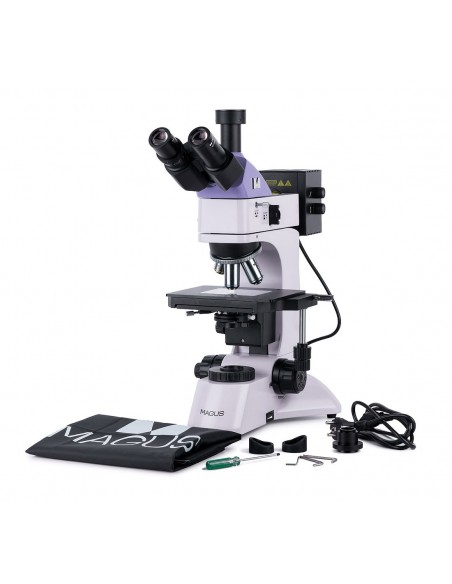

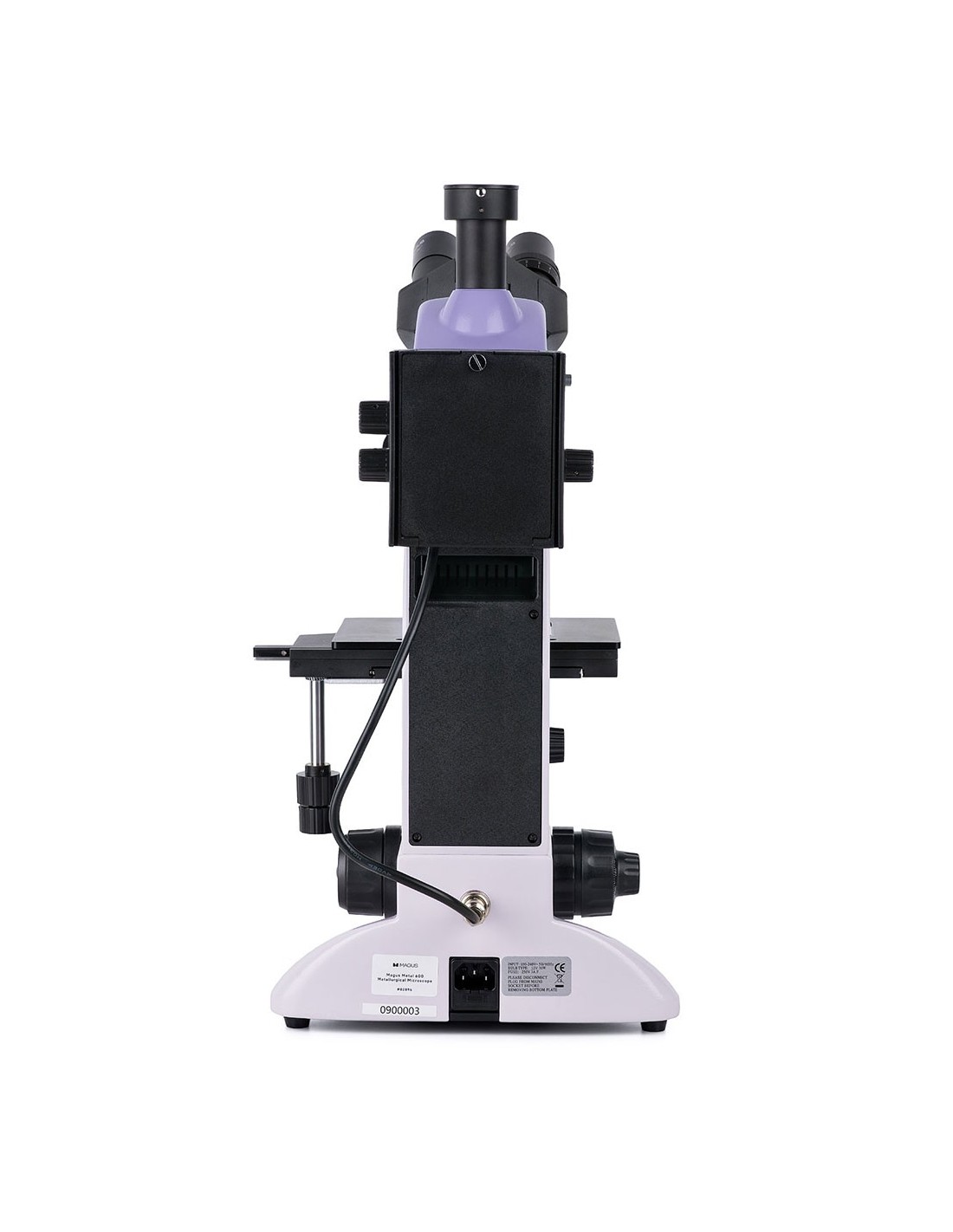

The package contains:
- Base with power input, transmitted light light source and condenser, mechanism focusser, stage and nosepiece
- Illuminator for reflected light observations with bulb housing
- Trinocular head
- Planachromatic infinity objective: PL L5x/ 0.12 WD 26.1 mm
- Infinity plan achromatic objective: PL L10х/0.25 WD 20.2 mm
- Infinity plan achromatic objective: PL L40х/0, 60 WD: 3.98 mm
- Planachromatic infinity objective: PL L60x/0.70 WD: 2.08 mm
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- Glass plate for the table
- 1x C-mount adapter
- Allen key
- Mains power cable AC
- Reflected light illuminator power cord
- Dust cover
- User manual and warranty card
Available on request:
- 10x/22 mm eyepiece with graduated scale
- 12.5x/14 mm eyepiece (2 pcs.)
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Infinity plan achromatic objective: PL L20х/0.40 WD 8.80 mm
- Infinity plan achromatic objective: PL L50х/0.70 WD 3.68 mm
- Infinity plan achromatic objective: PL L80x/0.80 WD: 1.25 mm
- Infinity plan achromatic objective: PL L100x/0.85 (dry) WD 0.40 mm li>
- Digital camera
- Calibration glass
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018263 |
| Package size (LxWxH) | 35x30x75 cm |
| Shipping weight | 14.5 kg |
| Type | light/optical, metallographic |
| Head | trinocular |
| Vertical tube | Siedentopf |
| Head inclination angle | 30° |
| Magnification, x | 50–600 base (*optional: 50–1000/1250/1500/2000/2500) |
| Magnification range | 200x to 800x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with graduated scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Objectives | planachromatic at infinity: PL L5x/0.12, PL L10x/0.25, PL L40x/0, 60, PL L60x/0.70; parfocal distance 45 mm (*optional: PL L20x/0.40, PL L50x/0.70, PL L80x/0.80, PL L100x/0.85 (dry)) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 26.1 (5x); 20.2 (10x); 3.98 (40x); 2.08 (60x); 8.80 (20x); 3.68 (50x); 1.25 (80x); 0.40 (100x) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 210x140 |
| Range of movement of the stage, mm | 75/50 |
| Stage features | two-axis mechanical stage, with a glass slide |
| Eyepiece diopter adjustment, diopters | ±5 (on the left barrel) |
| Condenser | transmitted light: centerable and height-adjustable Abbe condenser, NA 1.25, aperture diaphragm and lenses adjustable flip-ups, with fixing screws |
| Focus | coaxial, coarse focus (25 mm, with fixing knob and tension adjustment knob) and fine focus (0.002 mm) |
| Illumination | halogen |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | reflected and transmitted light: 12 V/30 W |
| Optical filters | green, blue , yellow, satin |
| Operating temperature range, °C | 5 — 35 |
| Elements extra | integrated analyzer and removable polarizer |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | metallographic |
| Illumination position | double |
| Search method | bright field, polarized light |
| Set with pencil case/case/bag | dust cover |
| Weight, kg | 11 |
