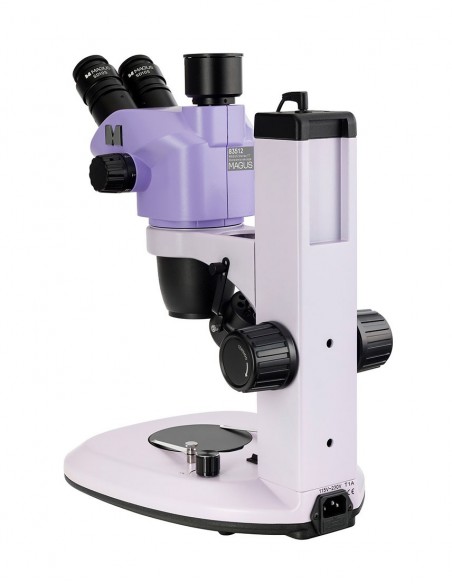

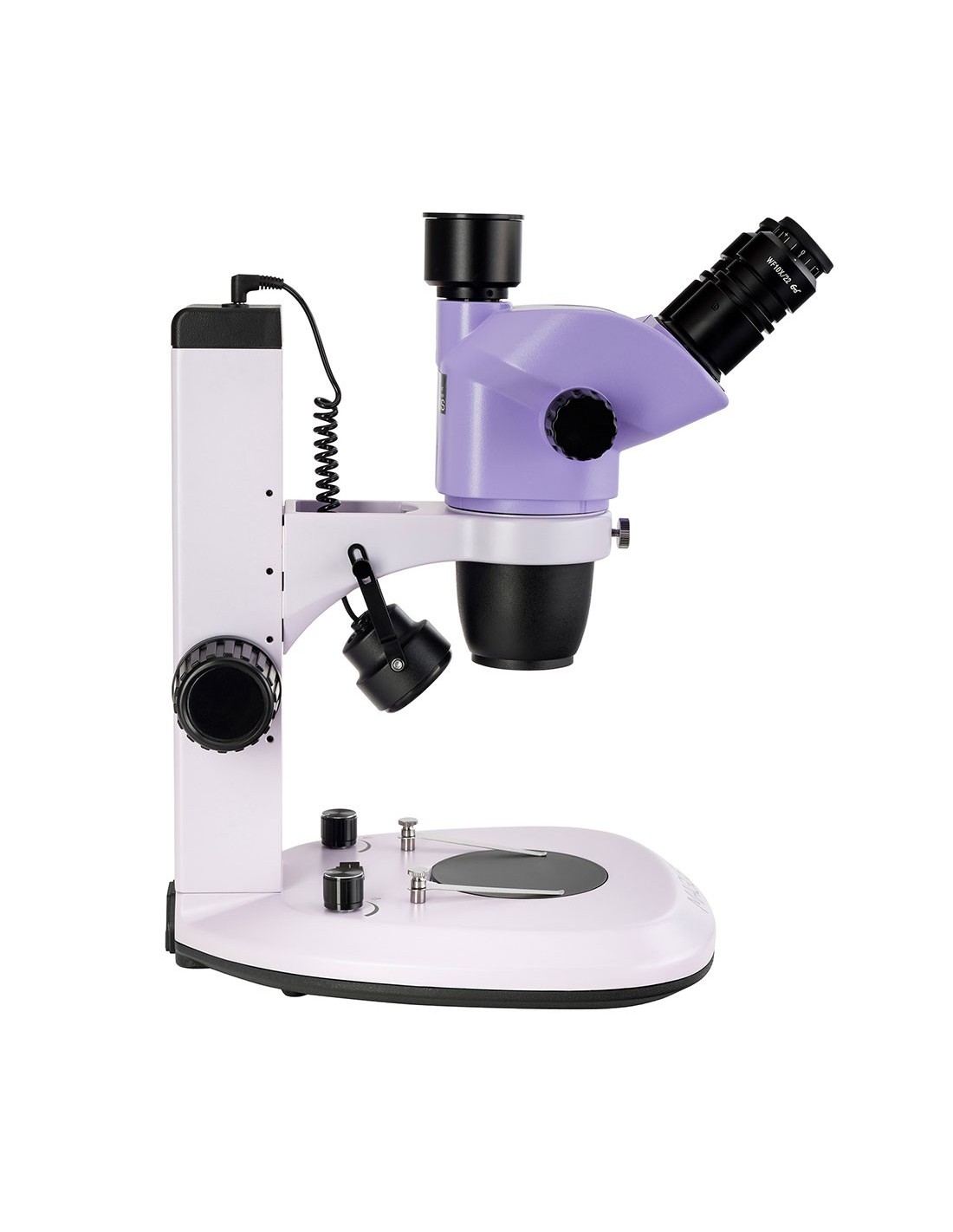

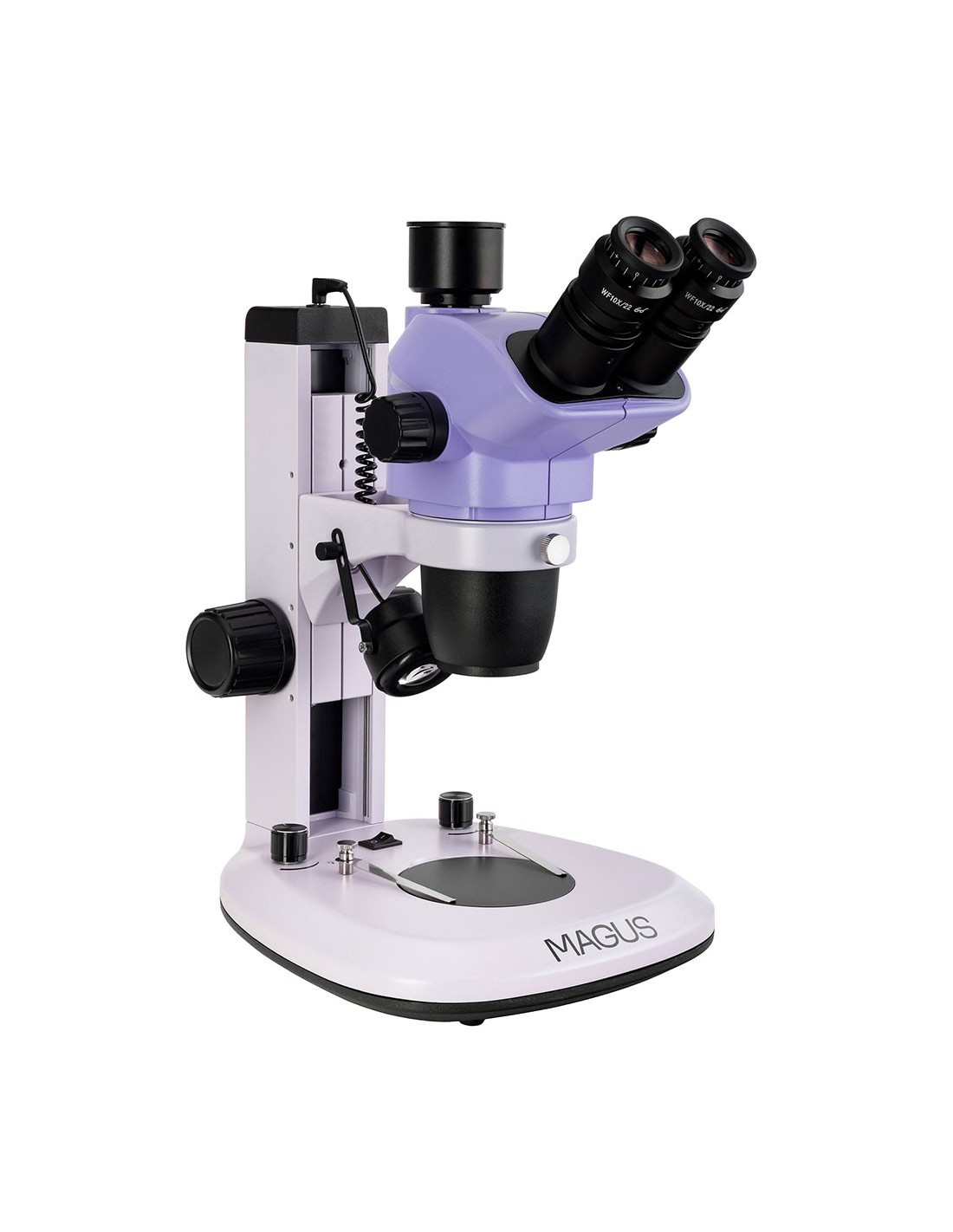

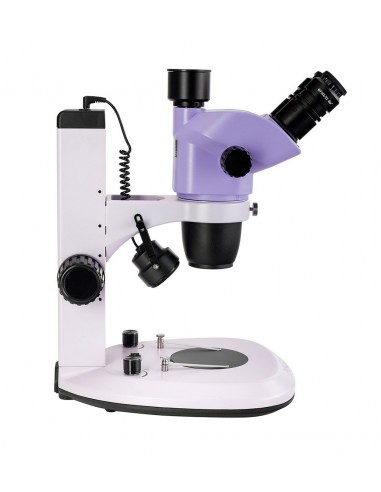

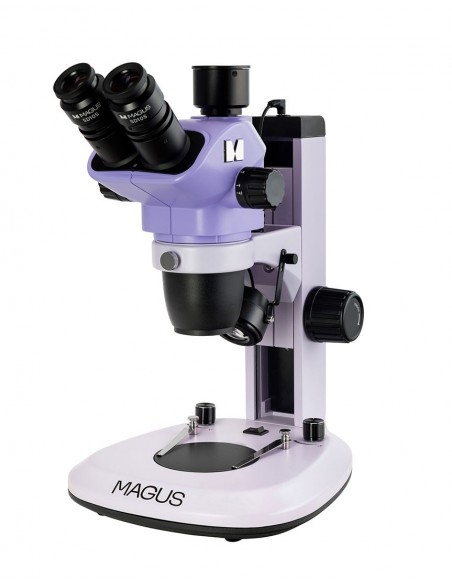

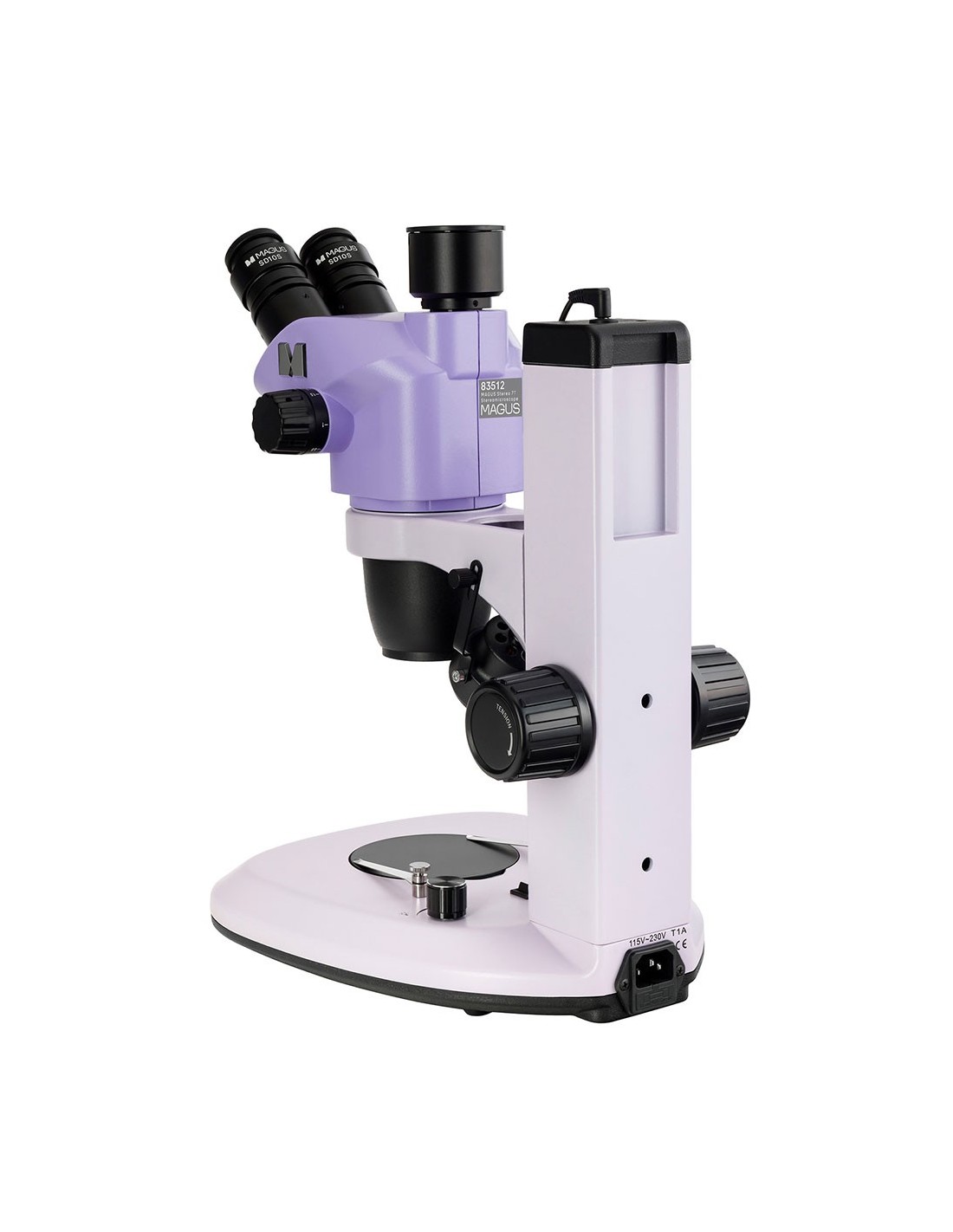

The stereoscopic microscope is designed for the study of three-dimensional objects and their structure. The microscope is equipped with integrated reflected and transmitted light illuminators for observation of opaque and transparent specimens. Polarized light and dark field techniques are available.
The Greenough type optical scheme allows a wide depth of field and allows a three-dimensional image thanks to the convergence angle of 15°. The microscope magnifies the image of the sample without losing spatial orientation. Observing samples placed on the 105–177 mm stage is convenient and makes the microscope suitable for restoration, soldering, assembly, quality control and other similar operations.

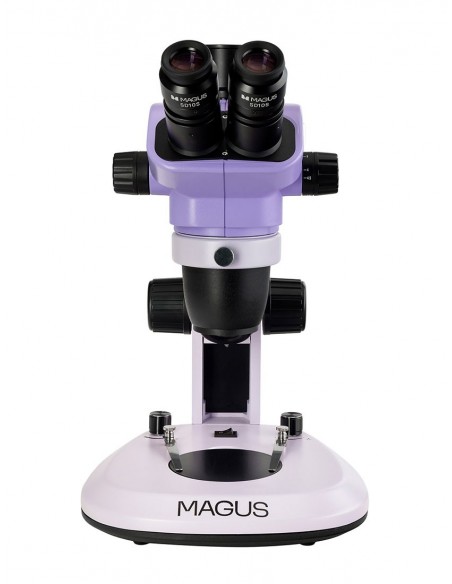

Microscope head
Microscope head
strong>

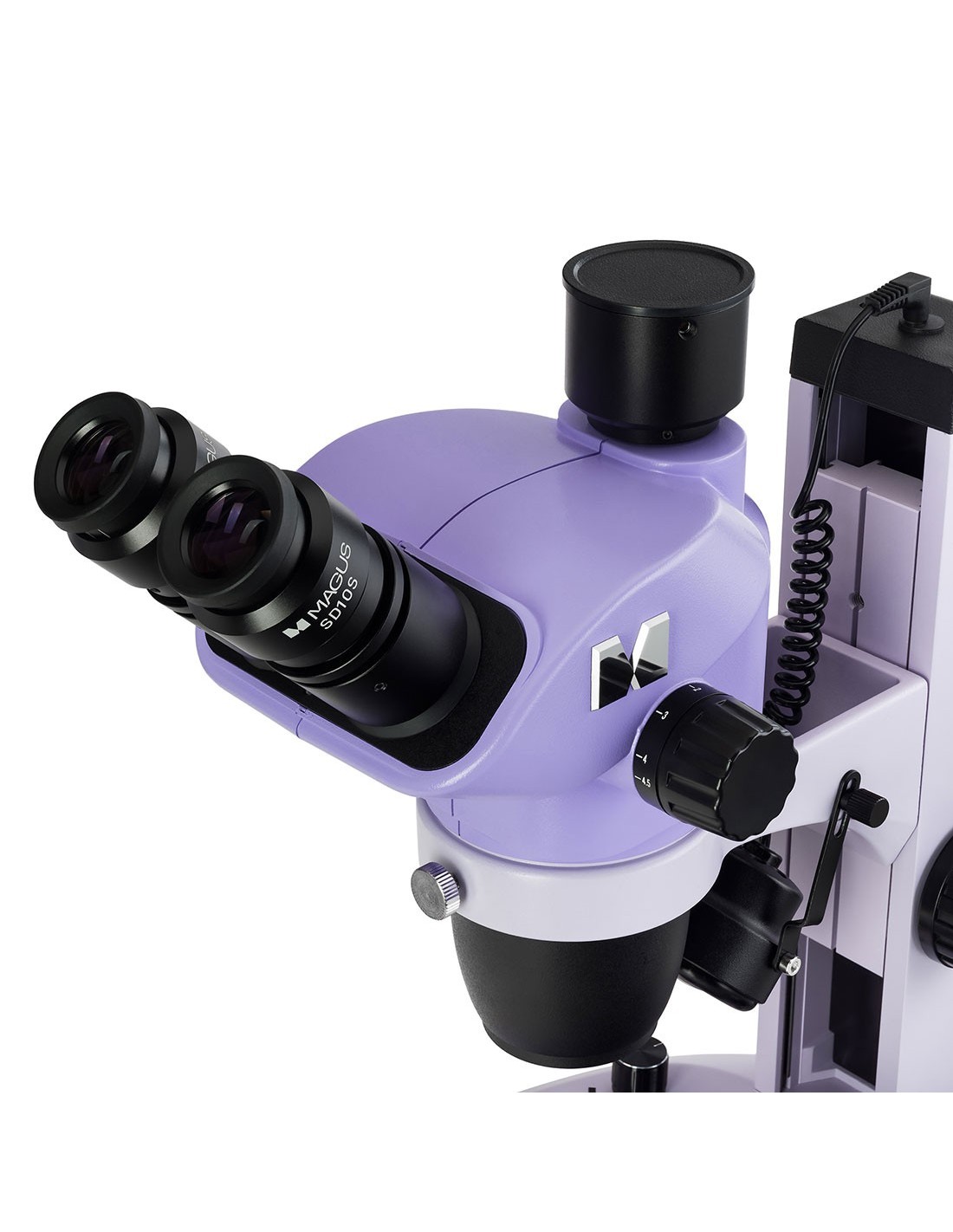

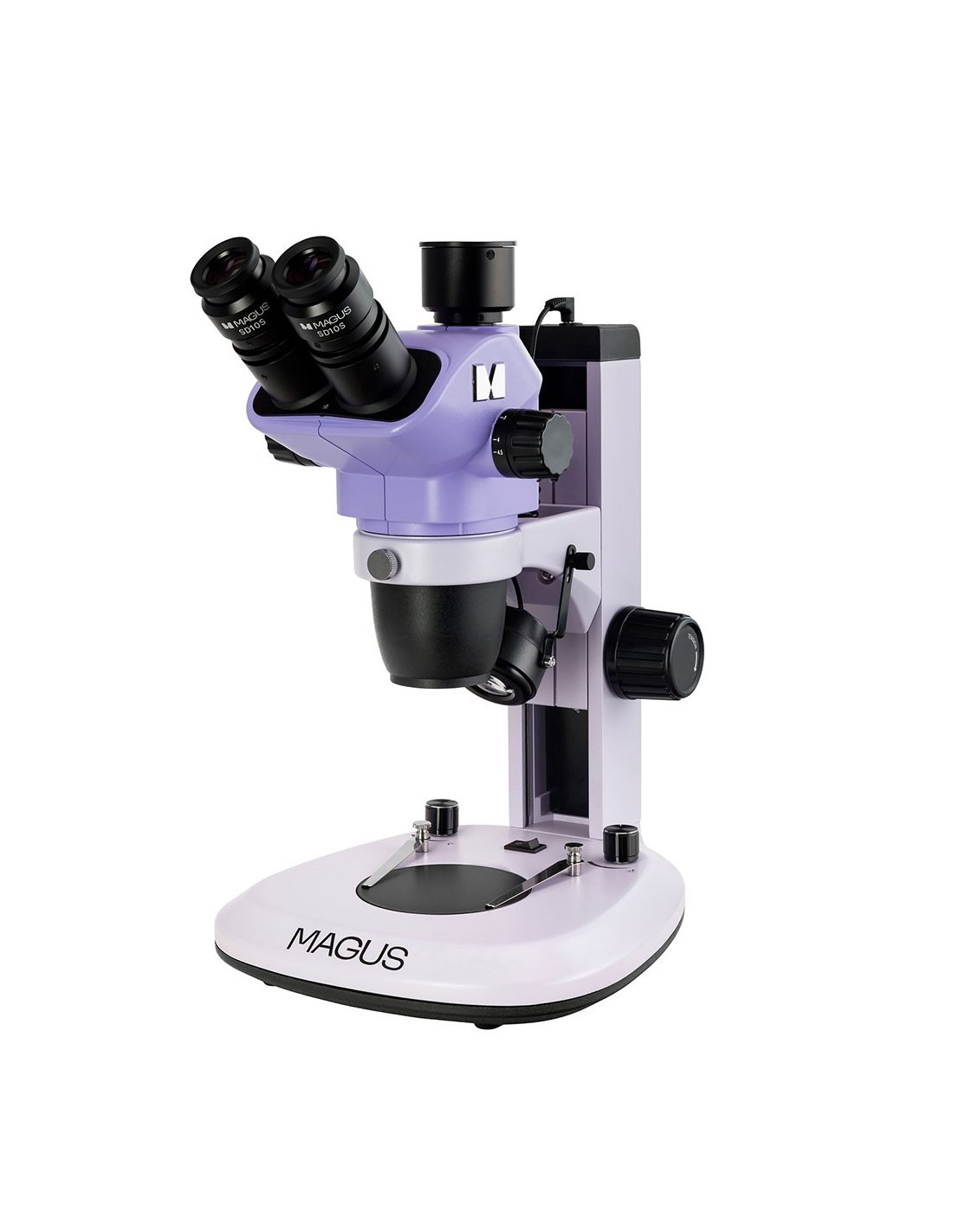

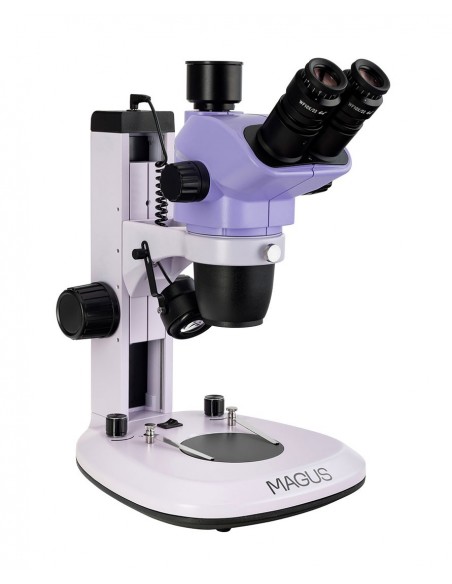

The trinocular head rotates 360° and can be locked in the preferred position. The digital camera is installed on the trinocular tube using a C-mount adapter. Other additional adapters with different magnifications are available.
The basic kit includes 10x/22 mm eyepieces with diopter adjustment and a long eye relief for use with glasses.
Zoom
The lens smoothly increases magnification up to 6.7x without focus reduction. The microscope produces an upright (not inverted) three-dimensional image. Additional auxiliary objectives can increase the magnification range, change the field of view and working distance of the microscope.

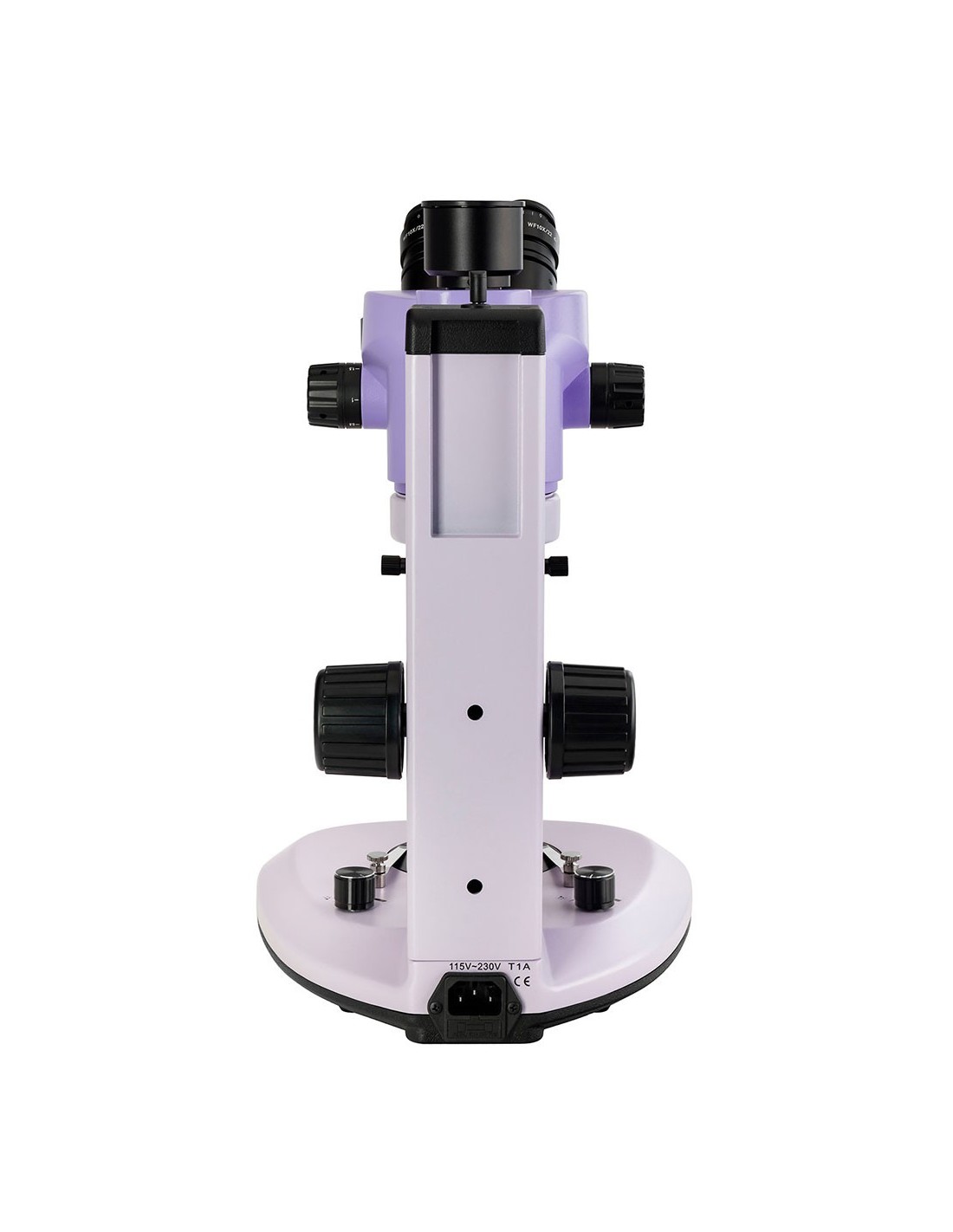

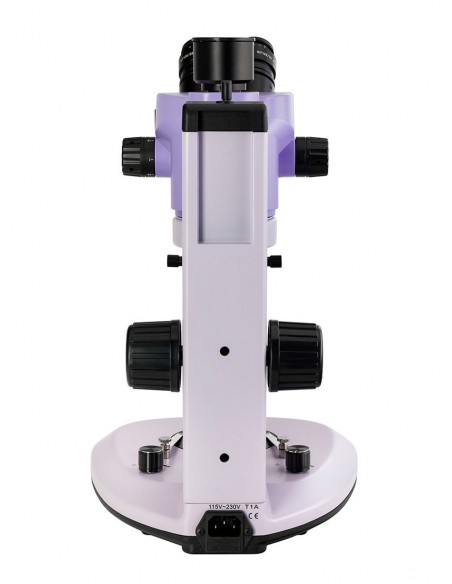

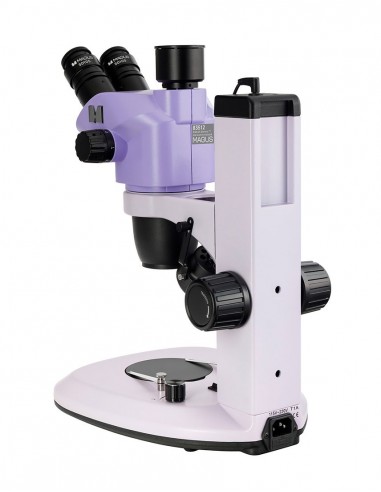

Focusing mechanism
Coarse focus knobs are located on both sides. You can also adjust the coarse focus tension.
Stage plate
According to the observed sample, you can choose a transparent or white plate and black. The transparent plate ensures homogeneous illumination of the sample and optimal light diffusion for observing transparent and translucent samples. The black and white plate is ideal for observing opaque samples against a contrasting background: the black side is for light-colored objects, while the white side is for dark-colored objects.

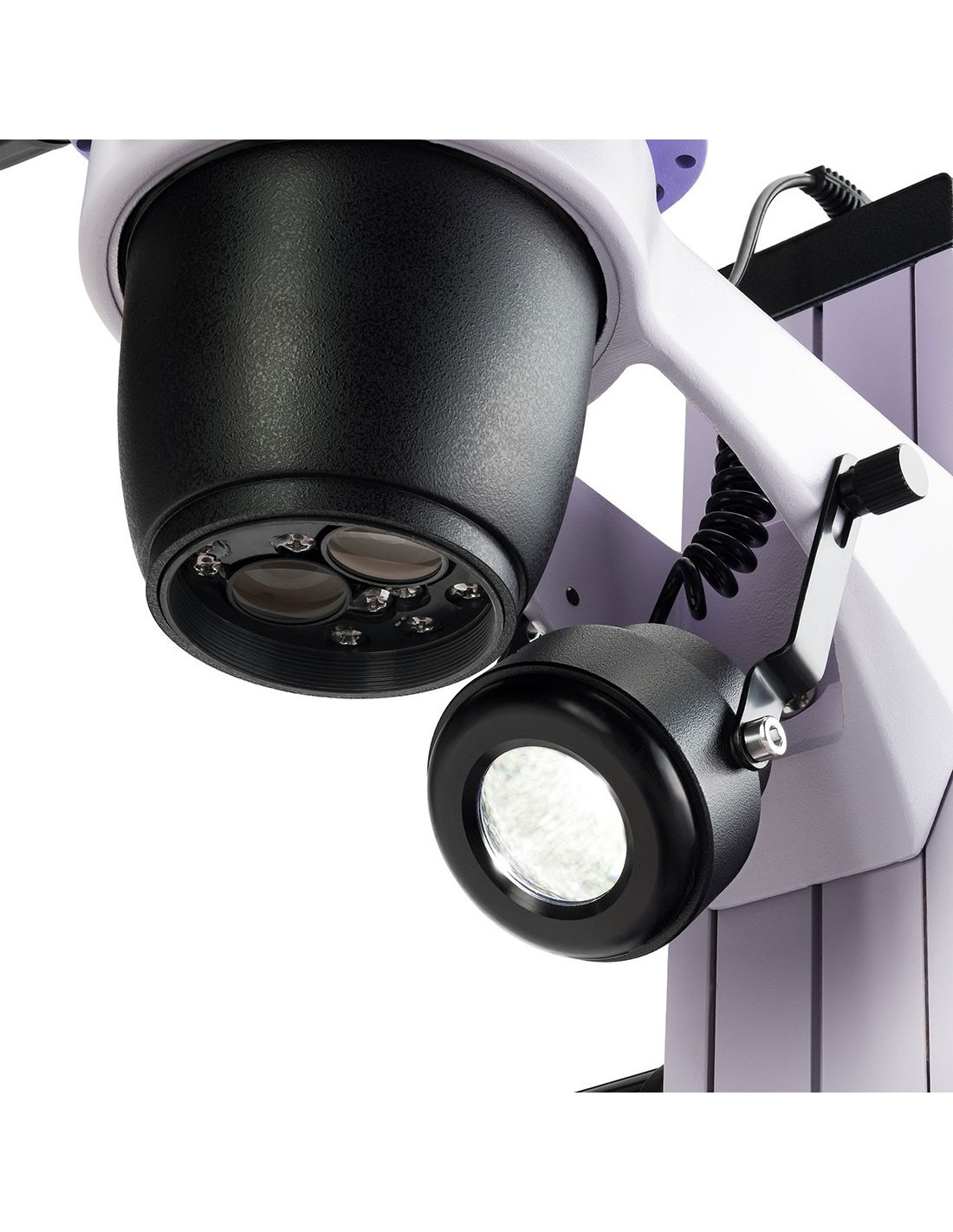

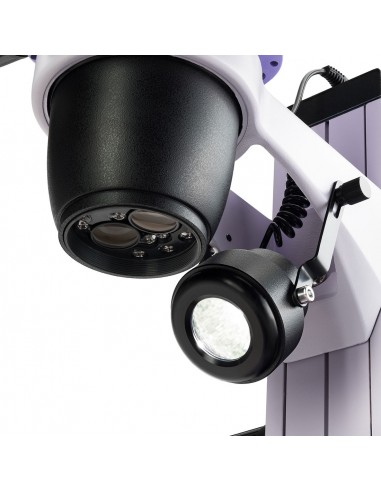

Light source

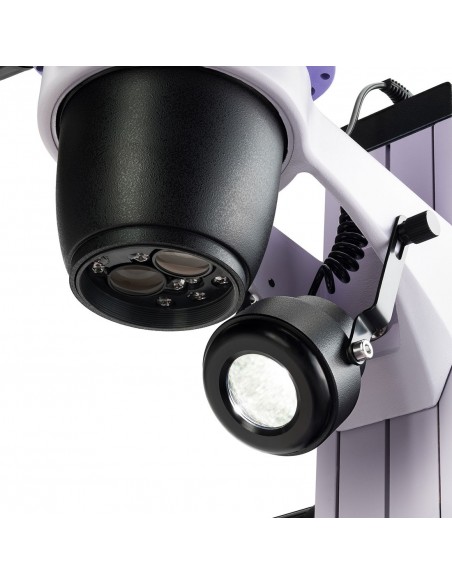

The microscope is equipped with an LED illuminator for transmitted light (3 W) and an illuminator for oblique reflected light (3 W). The life cycle of the LEDs is 50,000 hours.
Accessories
There is a line of accessories designed for this microscope.
Eyepieces and objectives auxiliaries can extend the magnification range of the microscope.
A digital camera transmits the microscope image to a monitor.
C-mount adapters connect the camera to the microscope; the magnification of the adapter is selected based on the size of the camera matrix.
A calibration slide helps to obtain a more precise measurement of the samples. The scale value on the calibration slide of stereoscopic microscopes is 0.1 mm.
The polarization device is used to study anisotropic objects.
A dark field condenser with jewelry tweezers allows you to analyze semi-precious stones.
A ring illuminator with a polarizer removes glare from polished metal surfaces.
The mechanical stage moves objects smoothly and smoothly along two axes and offers additional convenience when observing at magnification above 20x.
A ring illuminator with sector change and flexible neck light is used for fine adjustment of the illumination of the working area. The light is set at the selected angle and creates lights and shadows necessary for the study, keeping the correct part of the specimen illuminated.
Universal holders expand the working area and offer greater freedom of choice of the position of the test head microscope above the work area.
Key features:
- Zoom system for smooth enlargements without focus reduction; 6.7:1 zoom ratio
- 360° rotatable trinocular head and trinocular tube for mounting a digital camera
- Advantages of the Greenough-type optical scheme: large depth of field , dimensionality, compact design and reasonable price
- Transmitted LED light illuminator (3 W) and reflected LED light illuminator (3 W) with long life
- Wide range of compatible optional accessories
The package contains:
- Base with light source for transmitted light observations, integrated power supply and support with a mechanism focusing
- Microscope head – objective with trinocular head
- 10x/22 mm eyepiece with long eye relief and diopter adjustment (2 pcs.)
- Black and white plate
- Transparent plate
- Oblique reflected light illuminator
- Power cord for AC mains
- Dust cover
- User manual and warranty certificate
Available on request:
- 10x/22 mm eyepiece with graduated scale
- Eyepiece 15x/16 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Eyepiece 30x/8 mm (2 pcs.)
- Auxiliary objective lens 0.5x
- Auxiliary objective lens 1.5x
- 2x auxiliary objective lens
- 0.5x C-mount adapter
- 1x C-mount adapter
- Polarizer tool
- Condenser dark field
- Ring illuminator with polarizing filter
- Ring illuminator with sector change
- Flexible neck illuminator
- Mechanical stage
- Universal mount with focusing mechanism
- Gem clip
- Digital camera
- Calibration slide
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019772 |
| Package size (WxDxH) | 52x37x37 cm |
| Shipping weight | 7.4 kg |
| Type | stereo/instrumental |
| Trinocular head | |
| Vertical tube | 360° rotatable, lockable in any position position |
| Head inclination angle | 45° |
| Magnification, x | 6.7–45 in the basic configuration (*optional: 3.4–270), zoom ratio 6.7:1 |
| Magnifying range | up to 200x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10x/22 mm, long eye relief (*optional: 10x/22 mm with graduation, 15x/16, 20x/12, 25x/9, 30x/8) |
| Objectives | 0.67–4.5x (*optional: using additional eyepieces and auxiliary objectives: 3.4–270x) |
| Working distance, mm | 105 ((*optional: with use of additional eyepieces and auxiliary objectives: 177, 47, 26) |
| Interpupillary distance, mm | 54 — 75 |
| Linear field of vision, mm | 32.8 — 4.9 |
| Side table, mm | Ø95 |
| Side table features | white/black plate, transparent plate |
| Eyepiece diopter adjustment, diopters | ±5D on each eyepiece |
| Diopter adjustment of eyepiece | yes |
| Focus | coarse (106 mm, with coarse focus tension adjustment) |
| Lighting | LED |
| Brightness adjustment | yes |
| Power supply | AC mains, 115–230 V, 50/60 Hz |
| Type of light source | reflected light: oblique illuminator – 3 W LED; transmitted light: 3 W LED |
| Operating temperature range, °C | 0 — 40 |
| Possibility to connect additional equipment | polarization instruments, dark field condenser, auxiliary objectives (0.5х, 1.5х, 2х) |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Optical scheme | Greenough stereomicroscope |
| Application | for applied research |
| Lighting position | double |
| Search method | bright field |
| Set with pencil case/case/bag | dust cover |
