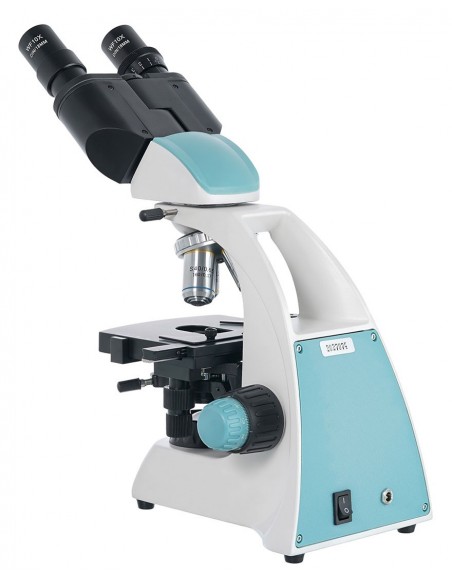

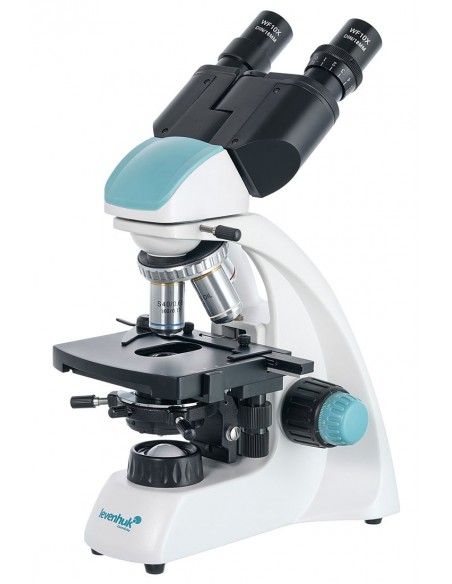

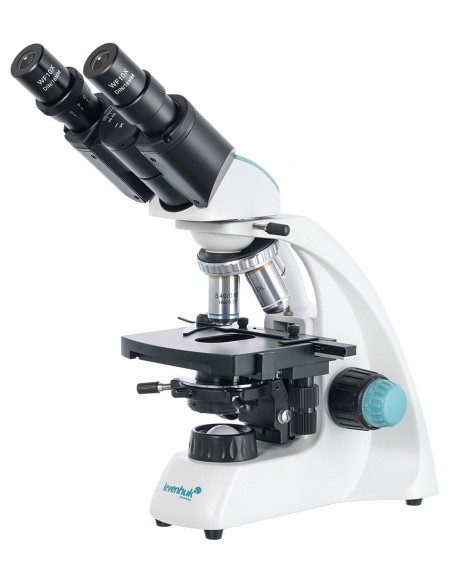

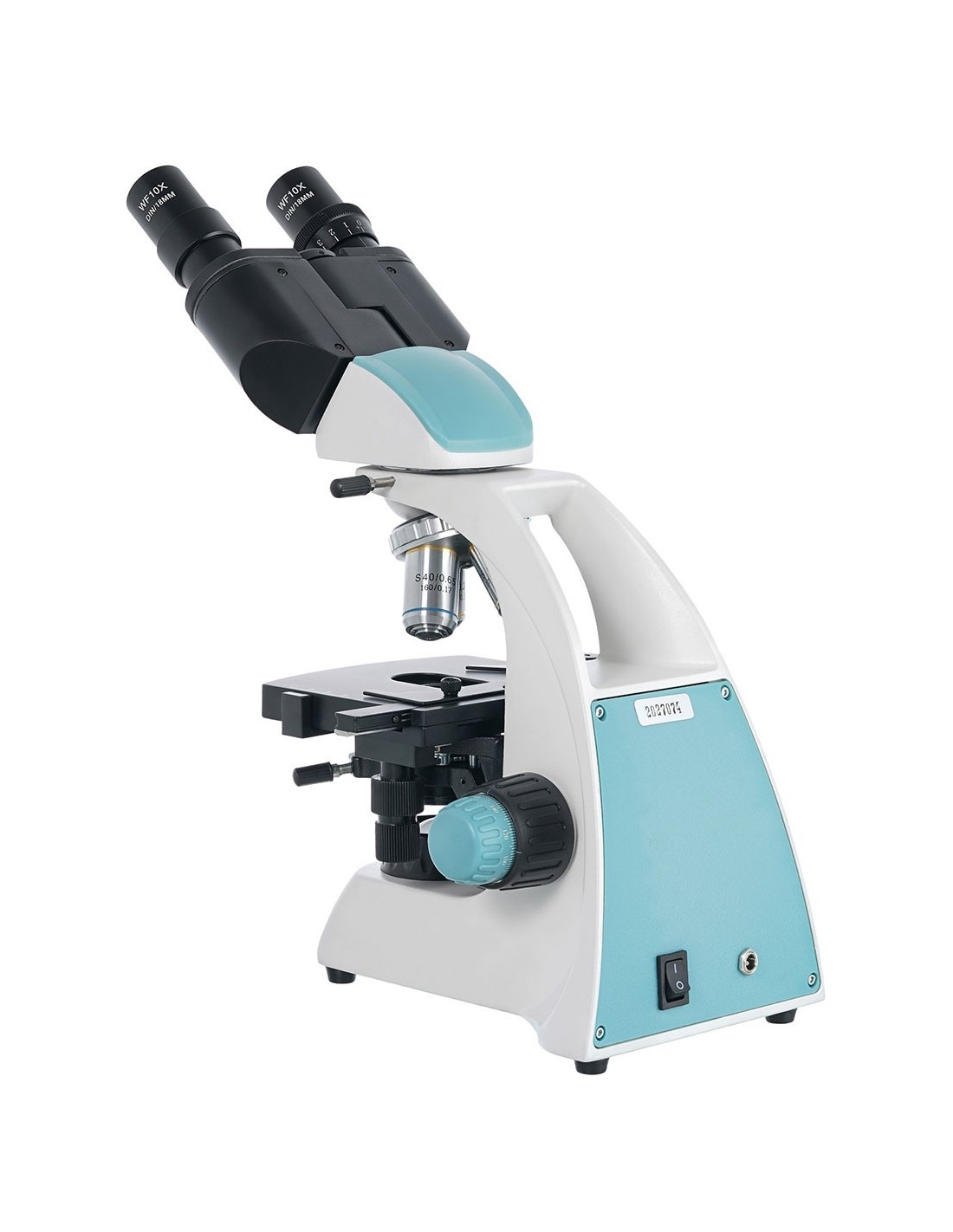

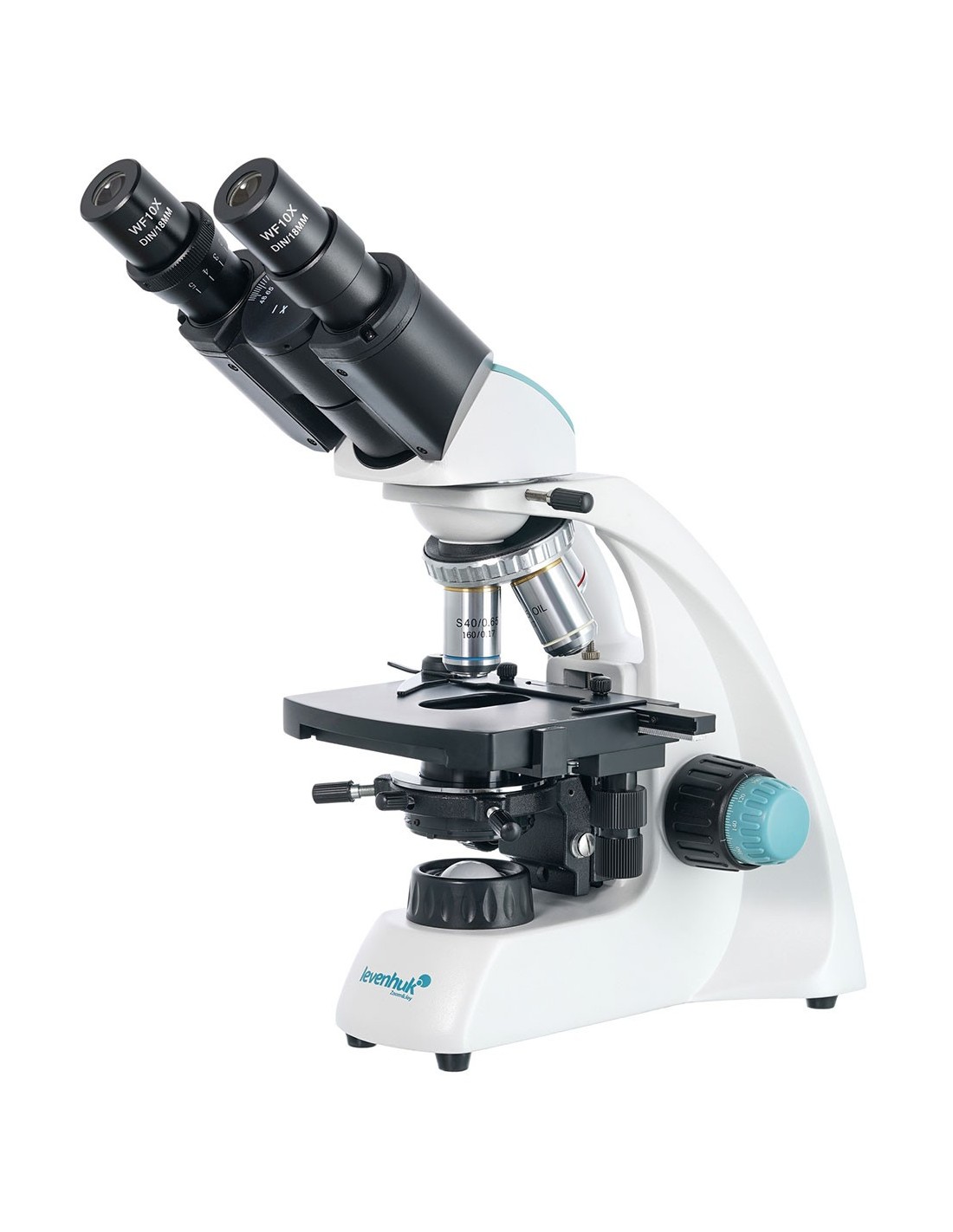

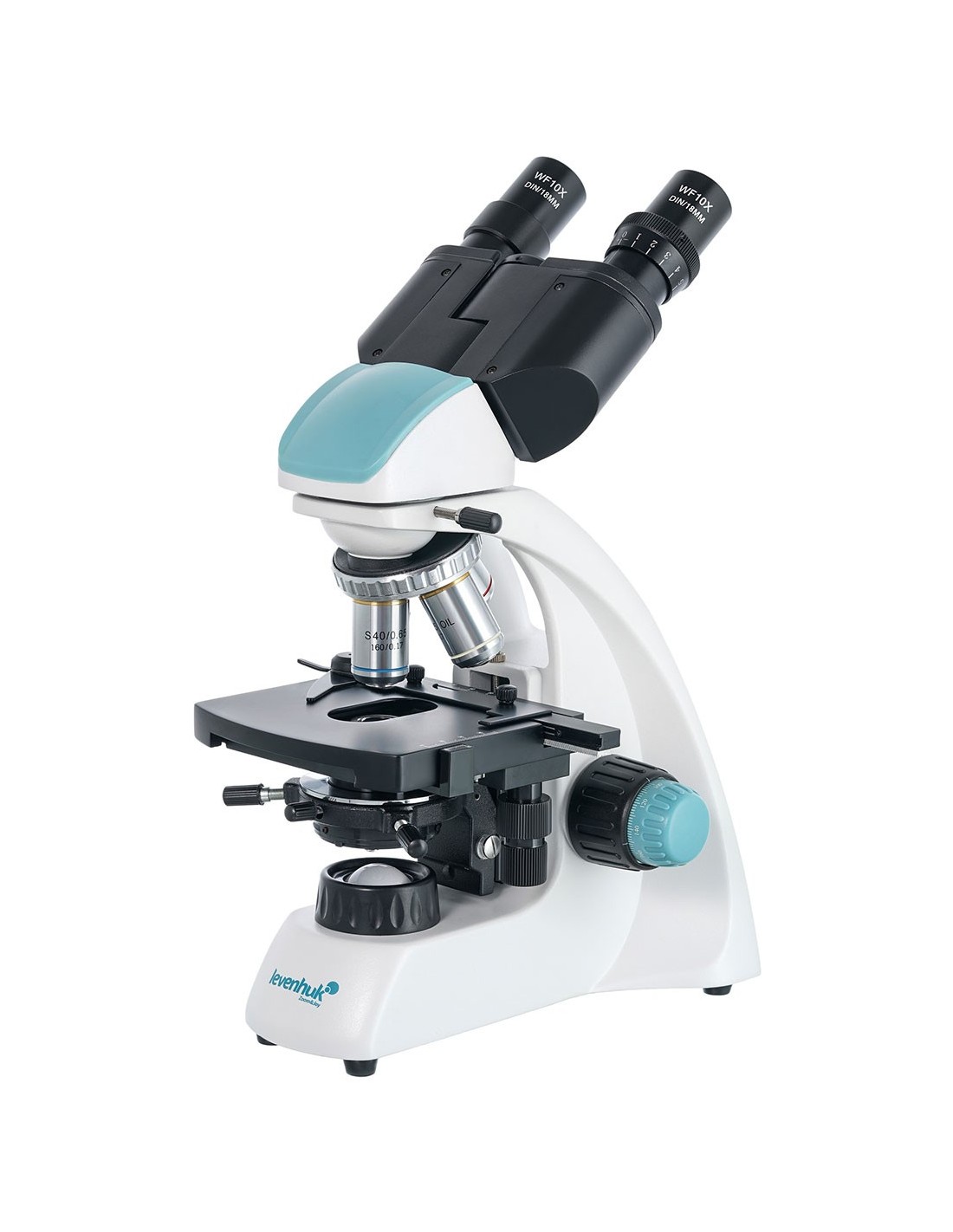

The Levenhuk 400B is a binocular laboratory microscope for professional use, suitable for microbiologists, medical and veterinary biotechnologists, ornithologists, ecologists or biochemists. This universal model can be used for brightfield analyzes and oil immersion observations. The microscope features a durable metal body, high-quality achromatic optics and intense collector LED illumination.

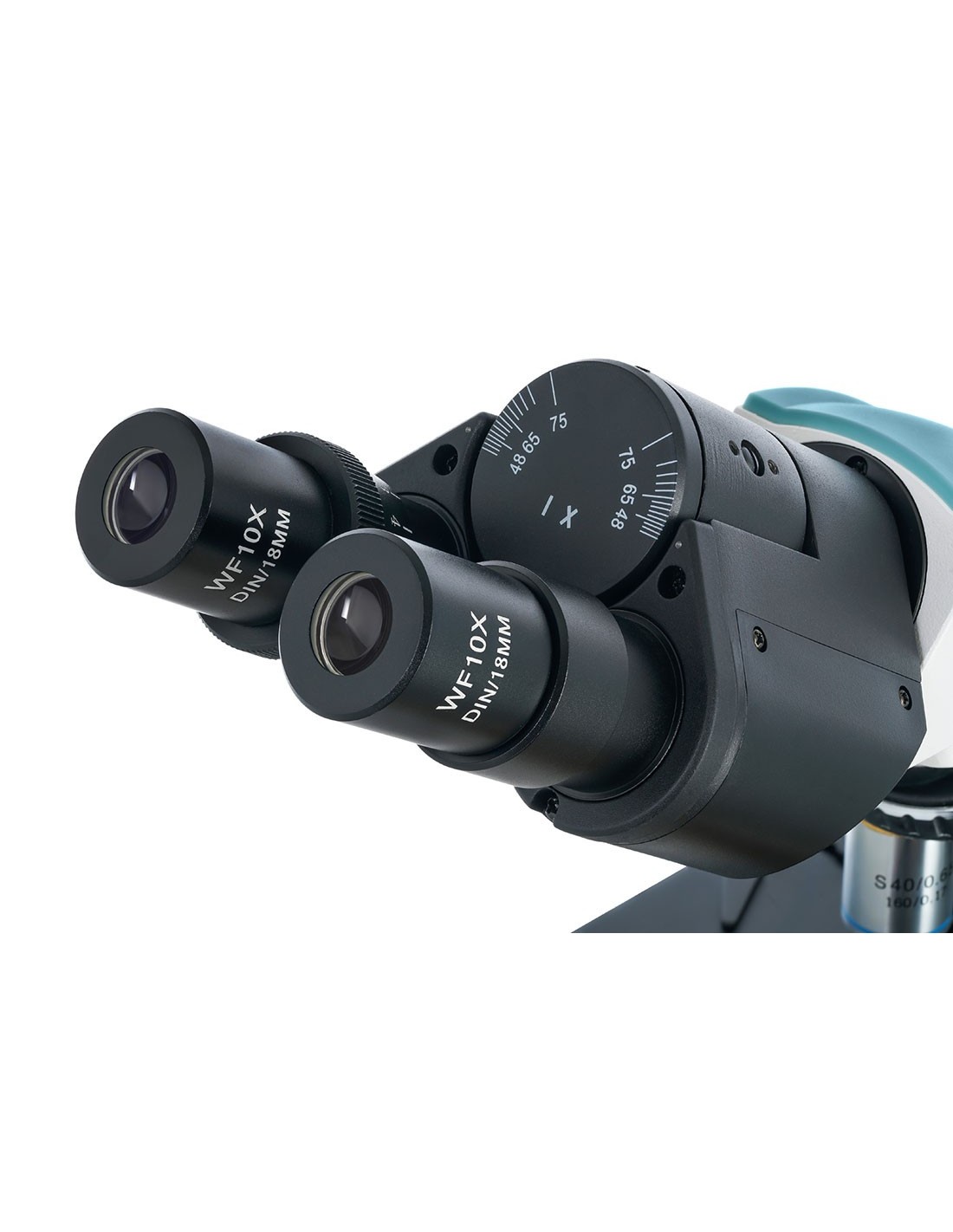

The binocular head is optimal for prolonged observations under the microscope, as it reduces fatigue visual. It can be rotated 360° around its axis; the end part of the optical tube is inclined at 30°. Wide-field eyepieces provide 10x magnification; the achromatic objectives are already installed on a nosepiece and equipped with 4x, 10x, 40x, and 100x magnification. The total magnification of the microscope therefore varies in a range between 40x and 1000x. The 40xs and 100xs lenses are equipped with a retractable spring mechanism to protect the front lens. The 100xs objective can be used for oil immersion.

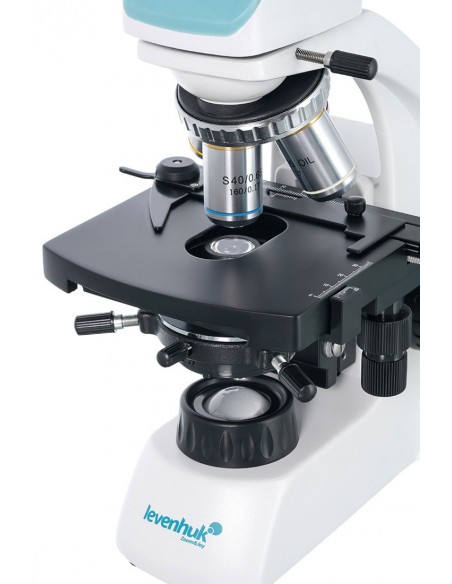

The stage is equipped with a mechanical translator, under the stage there is an Abbe condenser with iris diaphragm and filter holder. Even lower is the lighting unit: an LED light with a collector. The brightness of the light is adjustable. Given the possibility of battery power, it is easy to use the microscope even away from a power outlet.
Features:
- Binocular microscope for laboratory, inclined and rotating head
- Bright field observations with incident light and oil immersion
- Wide field achromatic optics, magnification from 40x to 1000x
- LED light with collector and brightness adjustment
- Metal body, standard diameter of the eyepiece barrel
- The power supply is variable: via batteries or AC mains

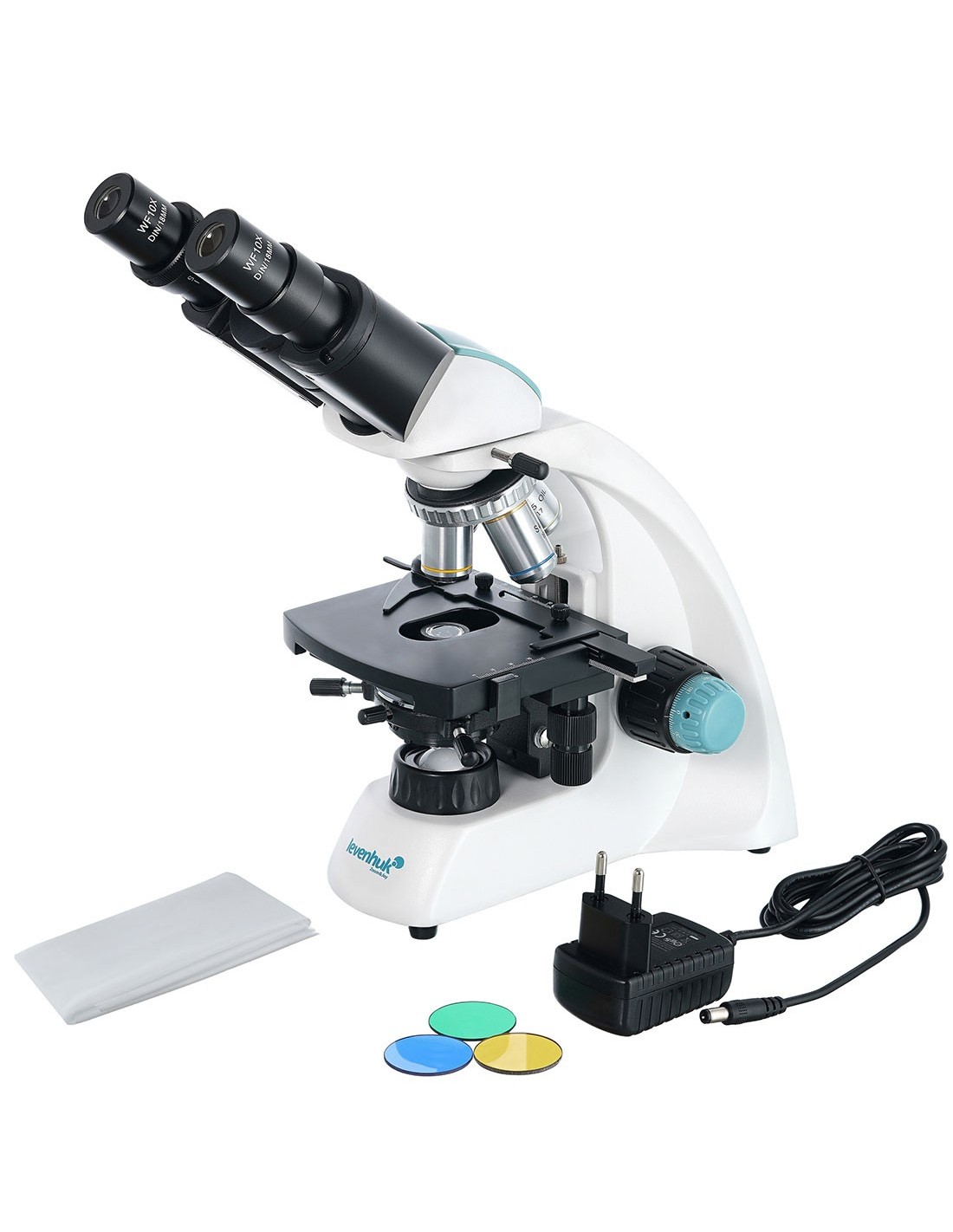

The kit includes:
- Microscope
- Achromatic objectives 4x, 10x, 40xs, 100xs (oil) li>
- WF10x/18 mm eyepieces (2 pcs.)
- Abbe condenser with NA 1.25 iris diaphragm and filter holder
- Power cable for charging
- Power cable for charging li>
- Bottle of immersion oil
- Filters: blue, green, yellow
- Dust cover
- User manual and lifetime warranty
| Brand | Levenhuk Inc., USA |
| Warranty | lifetime |
| EAN | 5905555005256 |
| Package size (WxDxH) |
| Shipping weight | 3.86 kg |
| Type | biological, light/optical |
| Tested | binocular |
| Optics material | optical glass |
| Vertical tube | 360° rotatable |
| Tilt angle of the head | 30° |
| Magnification, x | 40 — 1000 |
| Magnification range | 800x to 1280x |
| Eyepiece tube diameter, mm | 23.2 |
| Eyepieces | WF10x/18 mm (2 pcs.) |
| Achromatic objectives | : 4x, 10x , 40xs, 100xs (oil immersion) |
| Nosepiece nosepiece | for 4 objectives |
| Distance interpupillary, mm | 48 — 75 |
| Stage, mm | 115x110 |
| 55/20 |
| Stage characteristics | double mechanical layer |
| Eyepiece diopter adjustment, diopters | ±5 |
| Condenser | Abbe NA 1 .25 with iris diaphragm and filter holder |
| Diaphragm | iris |

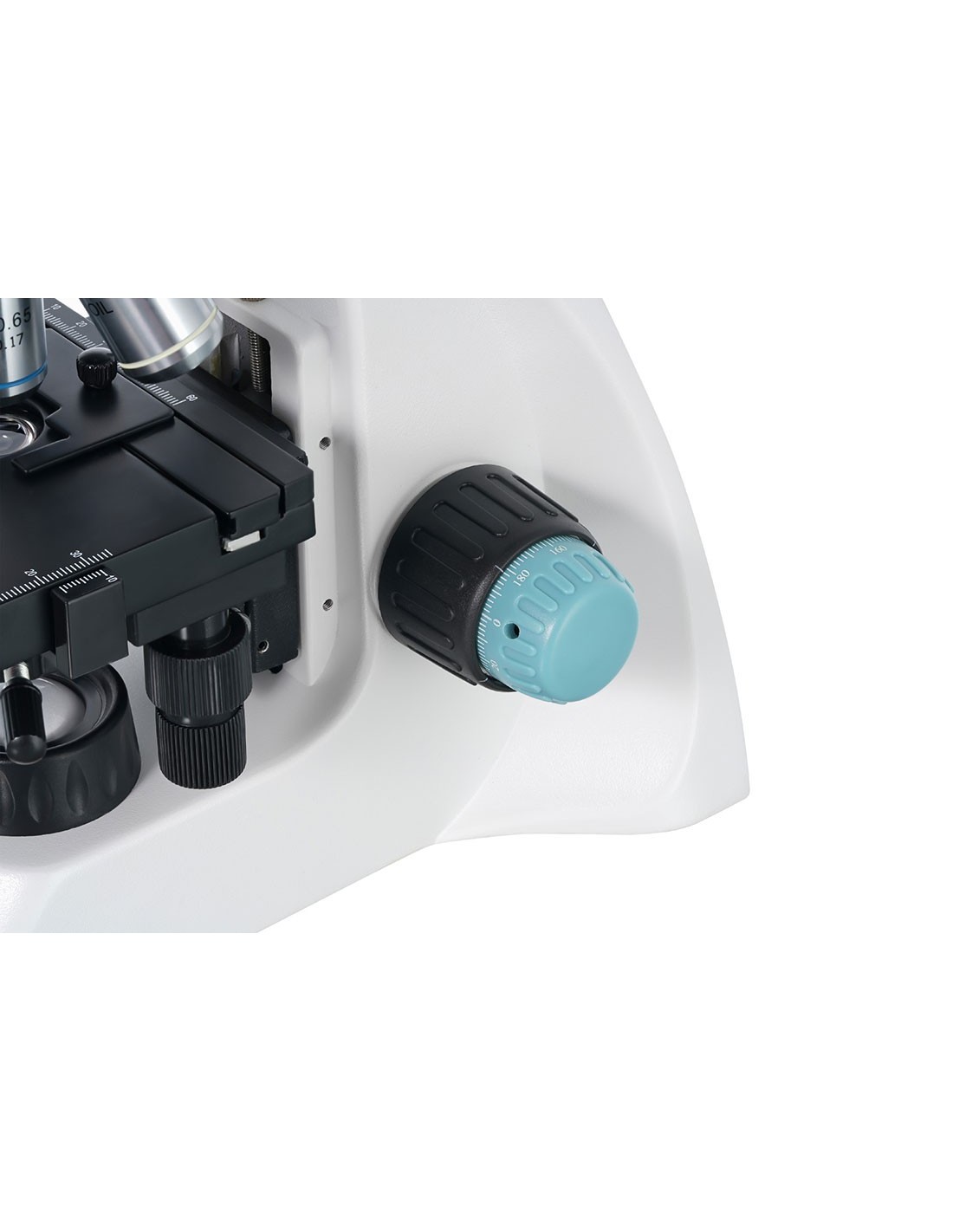

| Focus | coaxial; coarse (12 mm) and fine (0.002 mm) |
| Body | metal |
| Lighting< /td> | LED |
| Brightness adjustment | yes |
| Power | 3 AA batteries (not included), 110–220V, via AC adapter (included) |
| Power: batteries/built-in battery | yes |
| Type of light source | 1 W LED with collector |
| Optical filters |
| Optical filters |
| td> | blue, green, yellow |
| User level | expert users |
| Level difficult to assemble and install | easy |
| Application | laboratory/medical |
| lower |
| Search method | bright field |
| dust cover |
