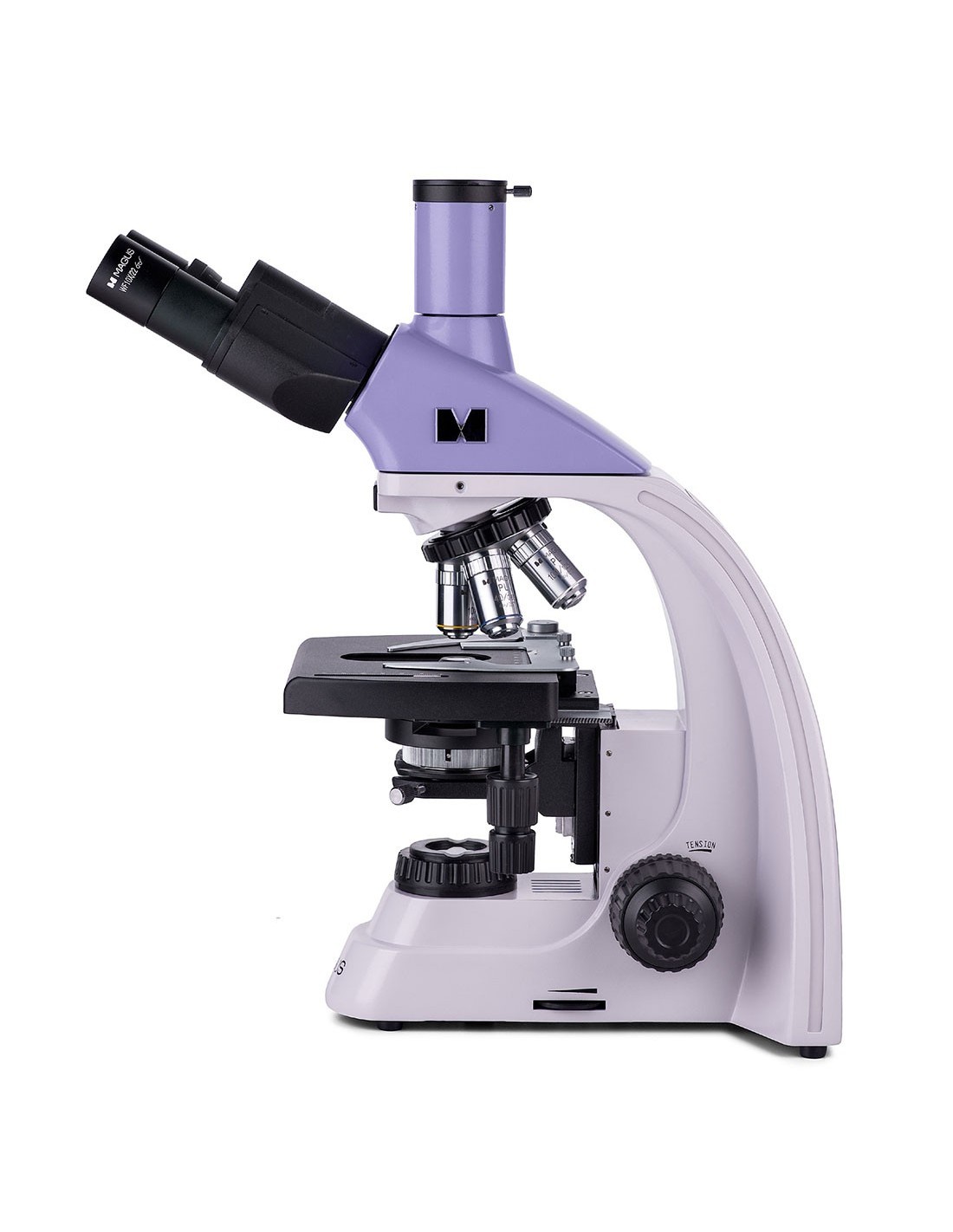

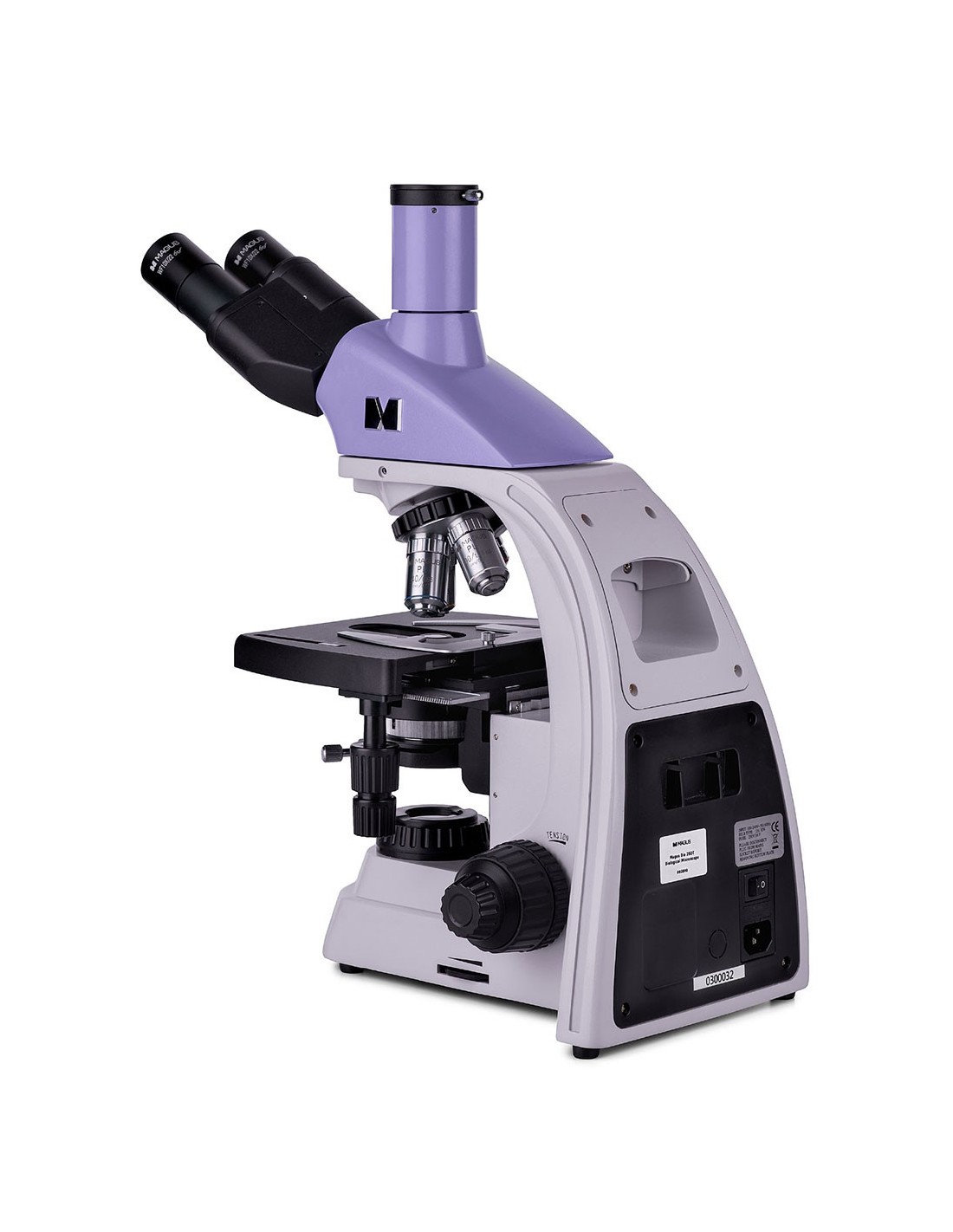

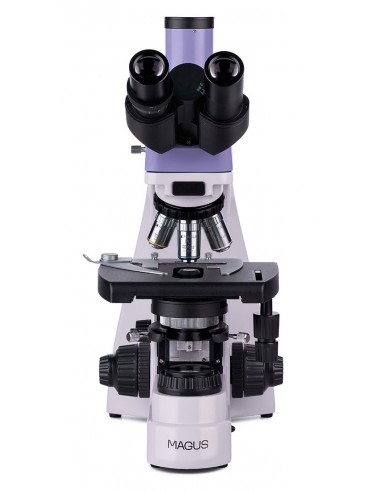

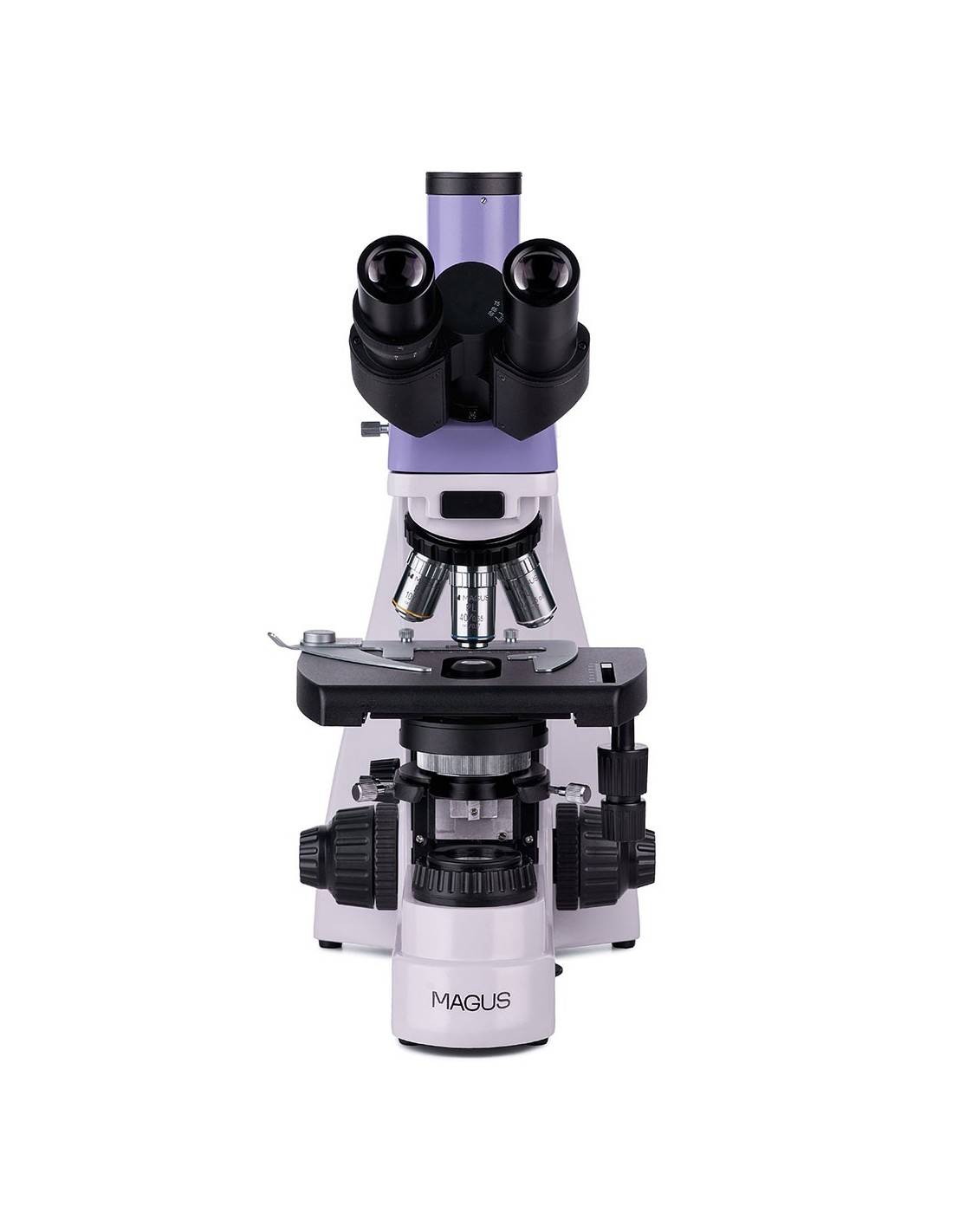

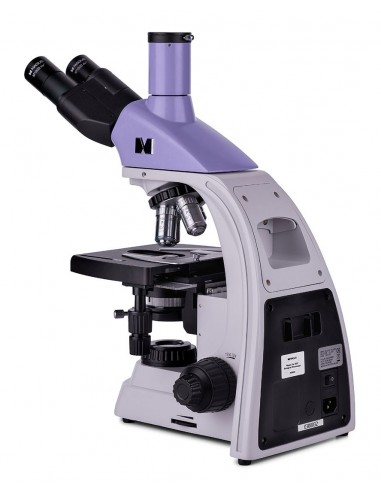

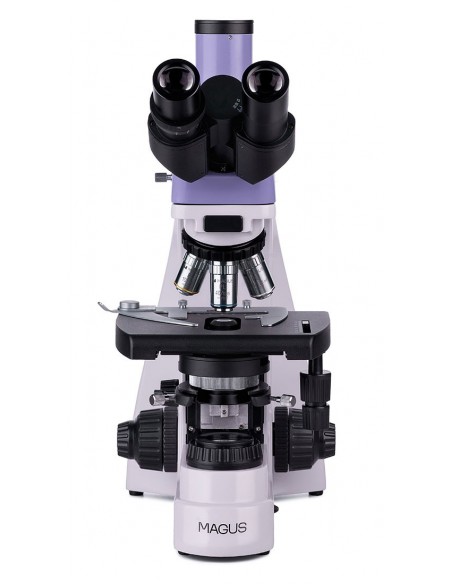

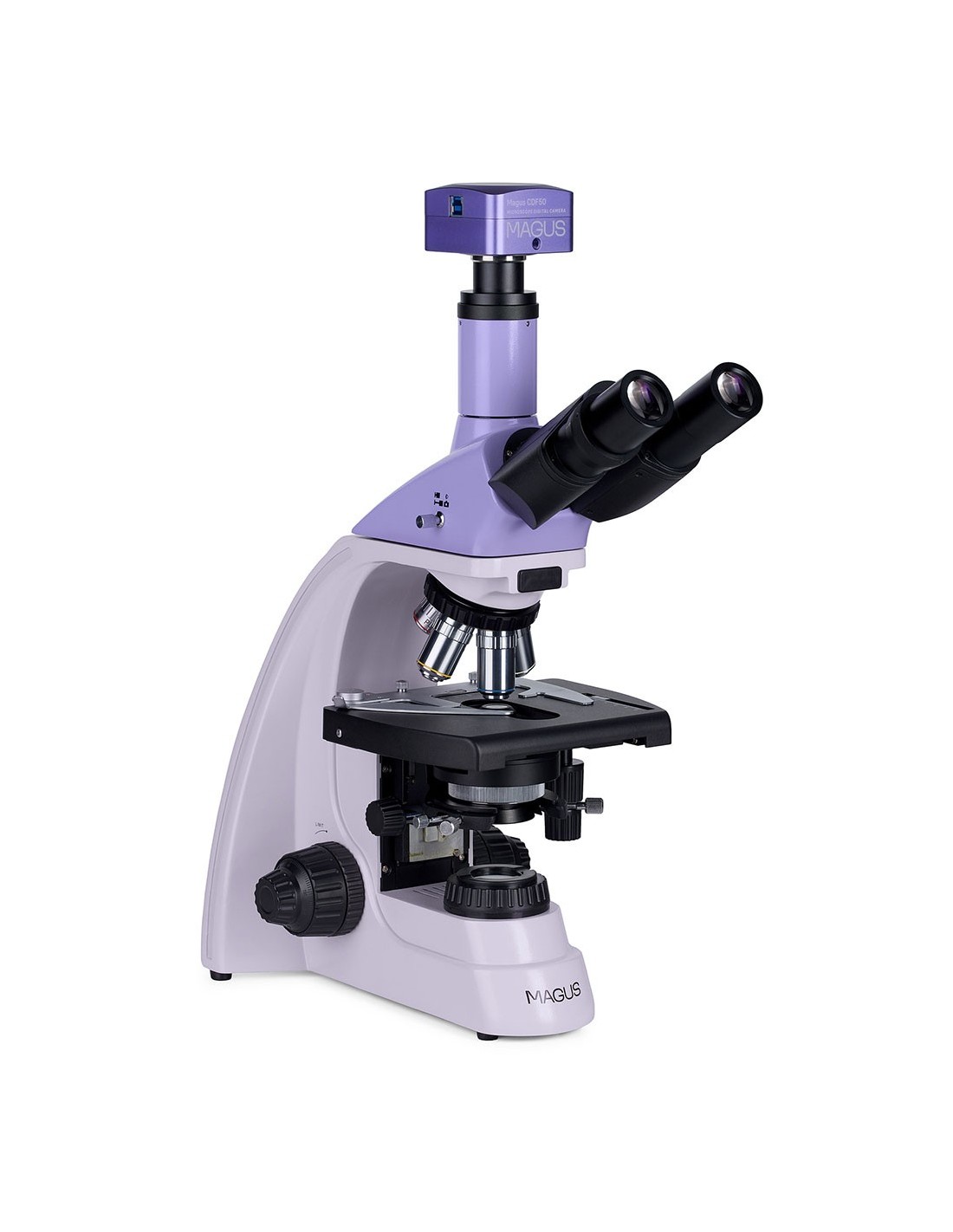

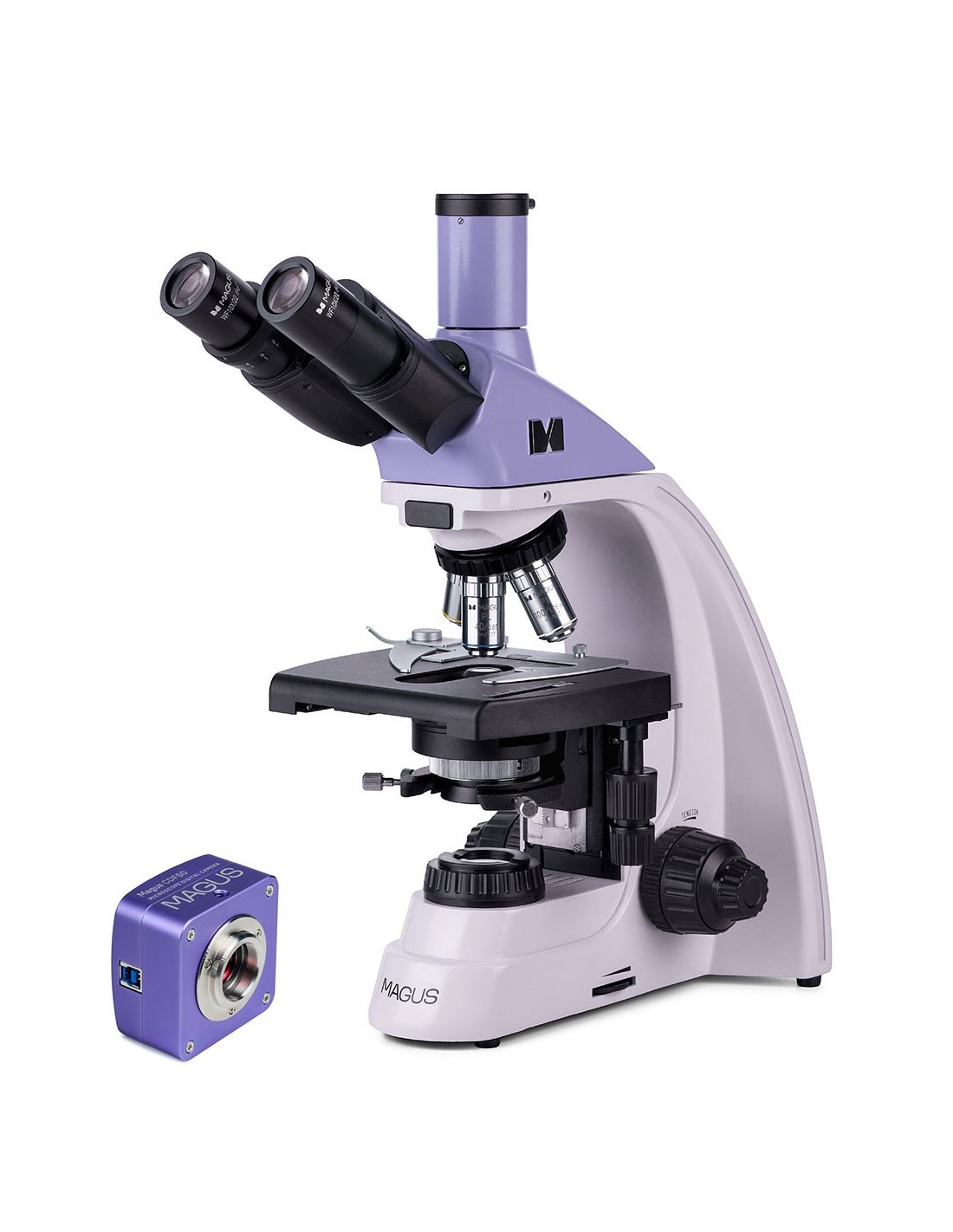

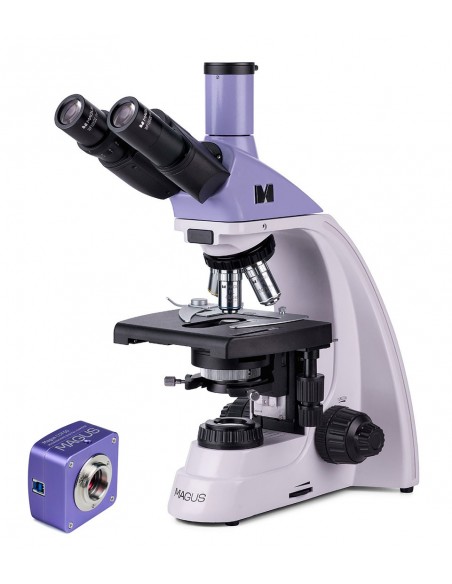

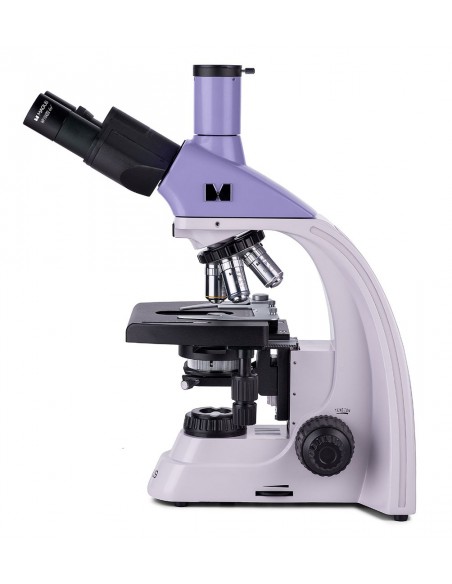

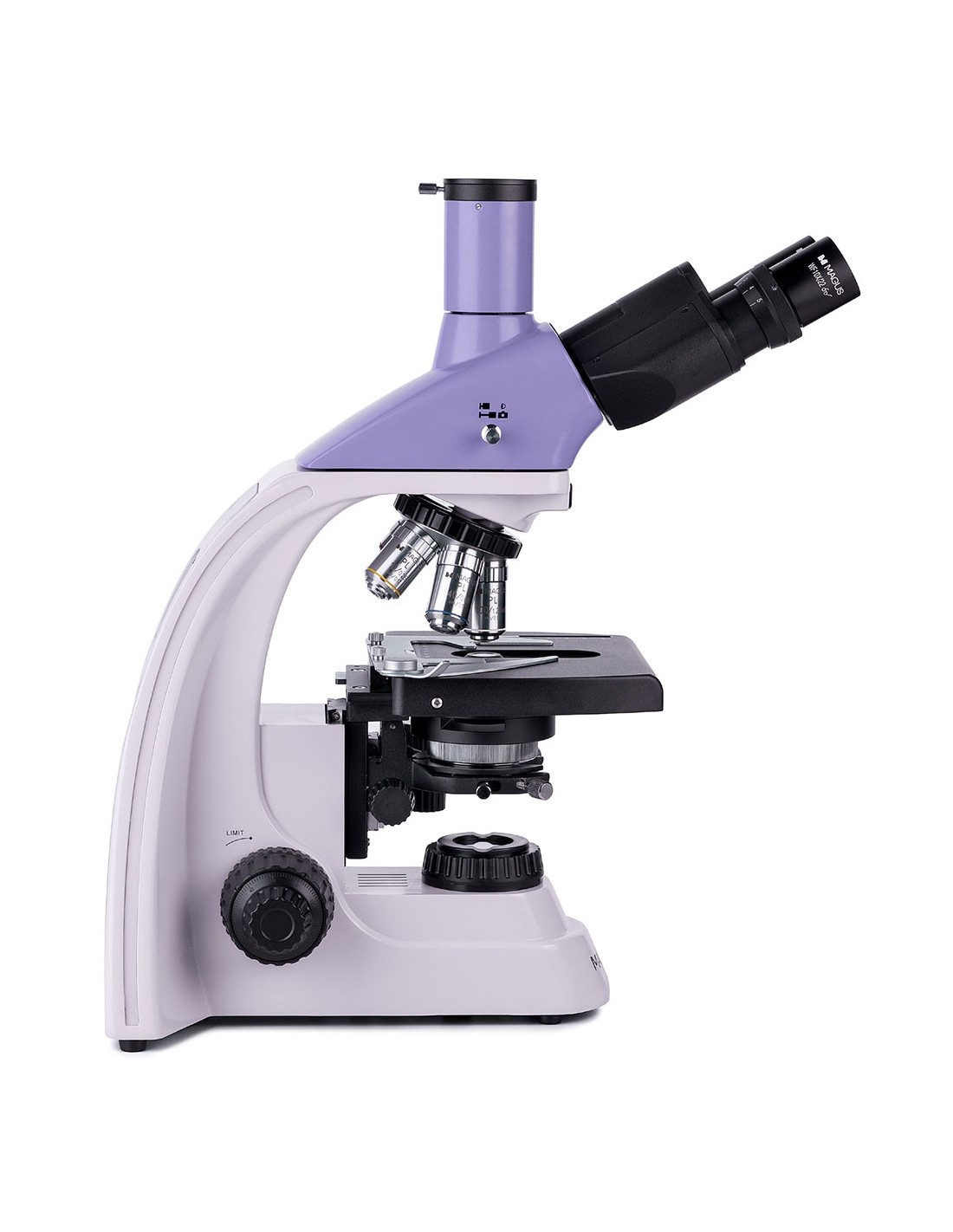

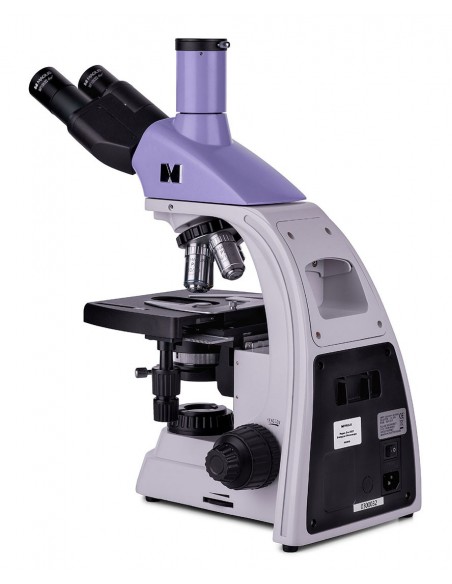

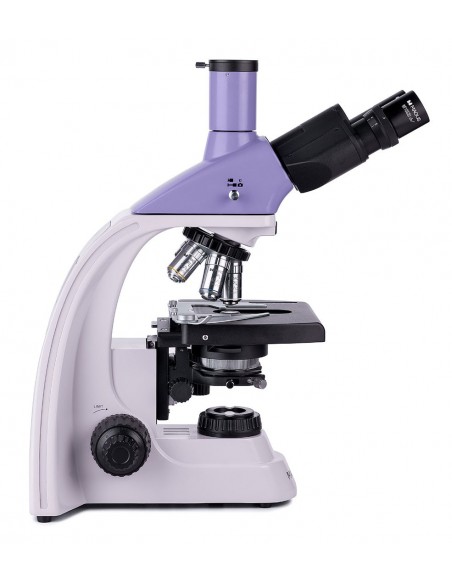

The MAGUS Bio 230B biological microscope is a professional instrument for the observation of biological samples in transmitted light. The main microscopy technique used is bright field (immediately accessible). It is also possible to use observation techniques in dark field, with phase contrast or polarized light, but they require the use of accessories to be added to the microscope. This microscope is perfect for laboratory observations and research in medical, pharmaceutical, forensic, agricultural and various other fields.
Digital camera
Full color camera with SONY Exmor 2.1 MP digital CMOS sensor. The sensor is produced using backlight technology to reduce light diffusion and increase the sensitivity of the matrix (8935 mV at 1/30 s). The camera produces sharp, bright images even in low-light conditions. Designed for bright- and dark-field observations using objectives with 40x, 60x and 100x magnification.

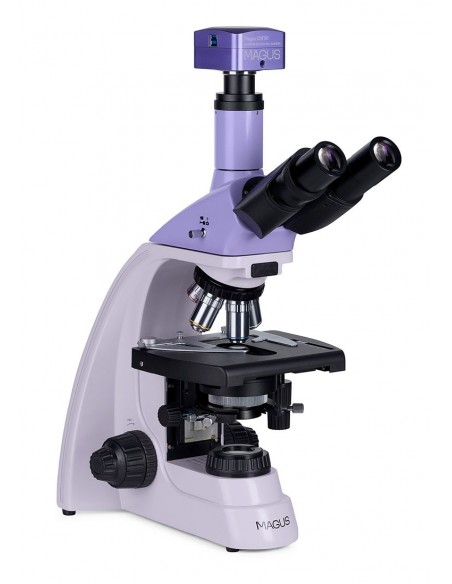

You can mount the camera on a microscope in two different ways: on the trinocular tube via a C-mount adapter or in place of the 'eyepiece on the tube via an adapter and adapter rings. We recommend using a 0.6x to 0.9x magnification adapter with your camera, which will offer the widest possible field of view without distortion. After installation, the camera connects to a computer via a USB 3.0 port with a data transfer speed of 5 Gbps.
Optics
Planachromatic objectives provide clear, contrast-rich and detailed images with minimal aberrations. The magnification, using the lenses and eyepieces included in the package, ranges from 40x to 1000x, but the upper limit can be increased with the use of additional eyepieces. The optics are infinity corrected, which means that various other accessories can be inserted along the optical path.

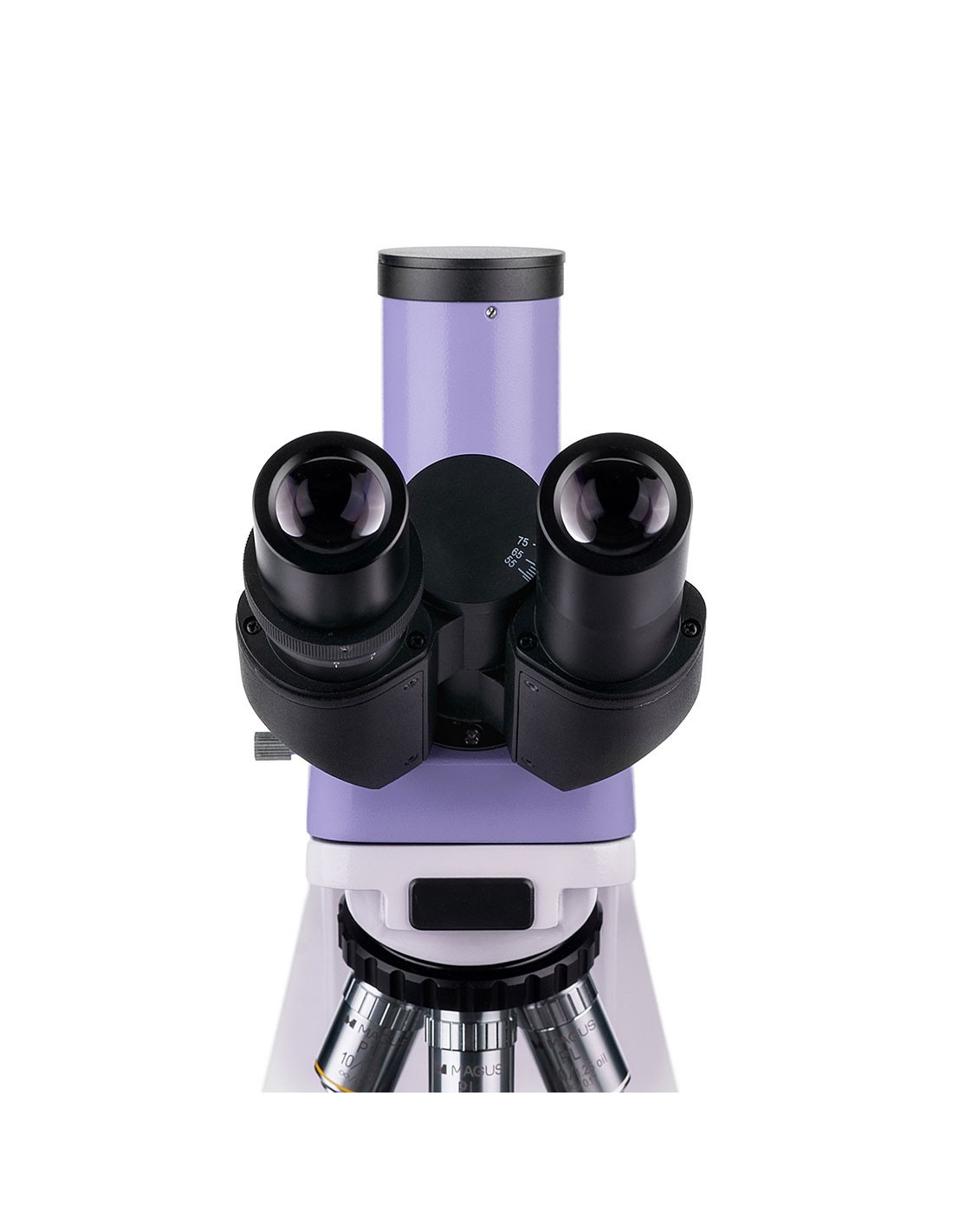

The trinocular head is equipped with a separate vertical tube, for housing a digital camera ( not included). This optical tube is placed vertically. The trinocular head is equipped with 360° rotatable optical tubes and it is possible to adjust the diopters with a ring on the left barrel. The design of the trinocular head allows you to easily adjust the eye relief based on the height of the observer.
The nosepiece, with its objectives, is oriented towards the inside of the instrument and can accommodate 5 objectives simultaneously: 4 are included in the package and the fifth slot remains free. An additional lens can provide an additional magnification factor within the available magnification range.
Illumination
The 30W halogen lamp provides bright illumination and allows you to have a good visibility of the sample structures with any observation technique and any objective. The light has a warm color temperature, which is more comfortable for the eyes during long working hours. There is a brightness regulator. The light is powered by the AC mains electricity supply.
Köhler illumination can be configured, thanks to the centrable and height-adjustable Abbe condenser, aperture diaphragm and field diaphragm. There is a slot on the condenser to insert a dark field slider or a phase contrast slider. The use of a slider allows you to quickly switch between observation techniques, thus improving the performance of the microscope.
Stage and focusing mechanism
The coffee table does not have a positioning rack, which makes it more ergonomic. The mechanical insert moves the sample smoothly and can be removed for manual scanning.
Focusing knobs are located on both sides of the microscope, near the base of the stand. Their position allows you to adjust the sharpness of the image by keeping your hands resting on the table, rather than in mid-air, ensuring greater comfort during prolonged observations. The knobs are coaxial (centered on the same axis). The coarse focus mechanism is equipped with a fixing knob and the tension of the coarse screw can be adjusted. In general, the focusing mechanism operates smoothly, without the need to exert excessive force on the knobs to obtain the desired sharpness.
Accessories
The range of optional accessories includes eyepieces, objectives, polarization instruments, dark field condensers, phase contrast devices, calibration slides and digital cameras. Designed specifically for the MAGUS Bio 250T, these accessories adapt perfectly to the microscope and maximize its potential.
Key features of the microscope:
- Trinocular head with vertical tube for housing a digital camera
- The 360° rotatable optical tubes allow you to adapt the position of the eyepieces based on the user's height
- Adjustment diopter on the left barrel, coarse focus (coarse screw) with fixing knob and tension adjustment knob for the coarse screw, fine focus with fine screw
- Observations in transmitted light, light source: 30 W halogen lamp with adjustable brightness
- The Abbe condenser, with aperture diaphragm and field diaphragm, makes it possible to set up Köhler lighting
- Possibility of inserting one phase contrast slider or a dark field slider (there is a dedicated slot)
- A wide range of optional accessories
Key features of the camera:
- 2.1 inch back-illuminated CMOS sensor, high matrix sensitivity
- Suitable for dark or bright field observations with 40x, 60x objectives and 100x
- Installed on the trinocular tube or on the optical tube of a microscope
- Full HD resolution 1920x1080 px with a frame rate of 96 fps, perfect for studying moving objects
- Connection to PC via USB 3.0 port, data transfer speed of 5 Gbps
- Software and drivers included

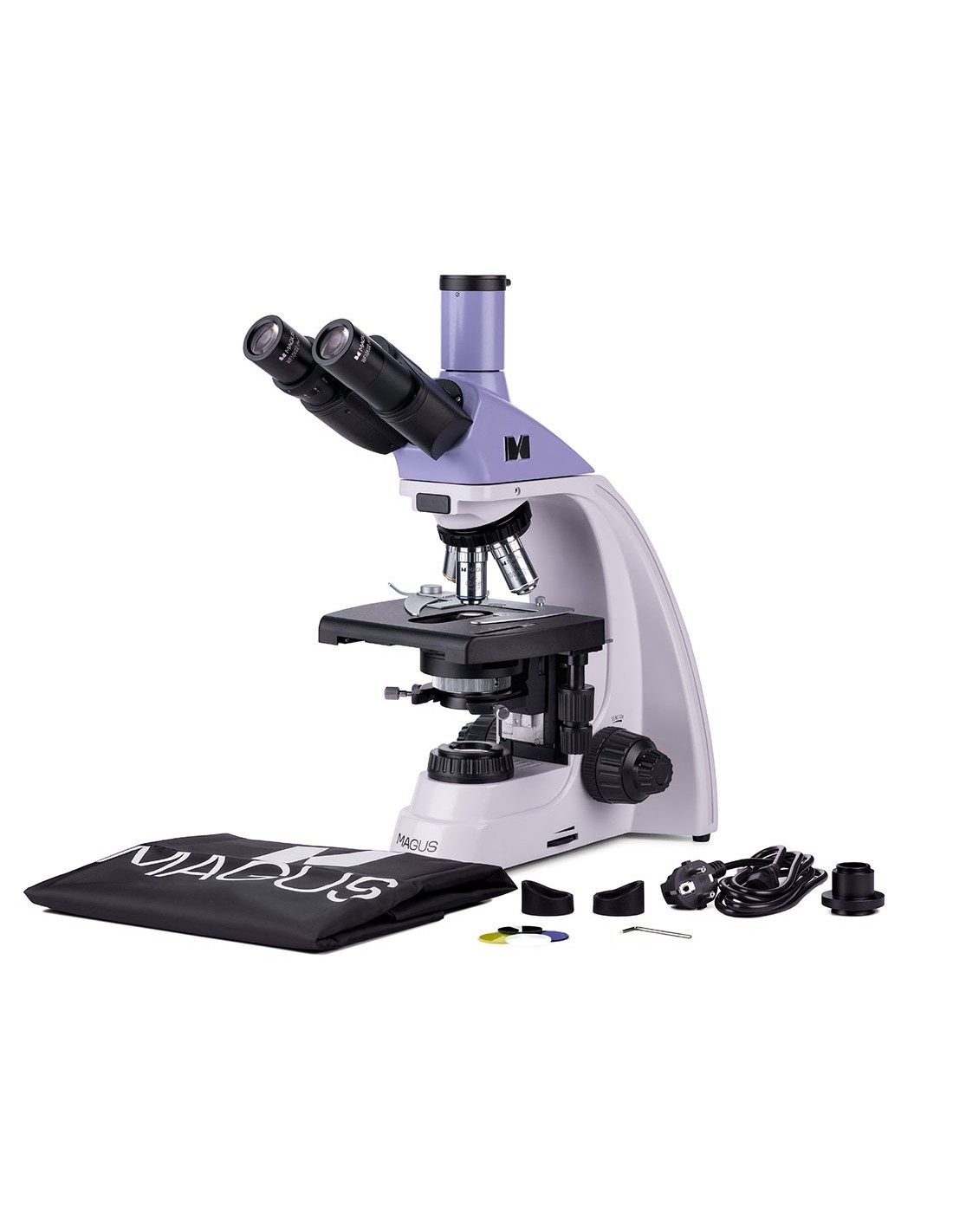

The package contains:
- MAGUS CDF50 digital camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
- Base with power input, light source for transmitted light observations, focusing mechanism, stage, condenser attachment and nosepiece
- Abbe condenser
- Trinocular head
- Plan achromatic objective at infinity: 4x/0.10
- Plan achromatic objective at infinity: 10x/0.25
- Plan achromatic objective at infinity: 40x/0.65 (with spring mechanism)
- Infinity planachromatic objective: 100x/1.25 oil (with spring mechanism)
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- Eyecup (2 pcs.)
- Filter (4 pcs.)
- C-mount adapter
- Vial of immersion oil
- AC power cord
- Dust cover
- User manual and warranty card
Available on request:
- Eyepiece 10x/22 mm with graduated scale
- Eyepiece 12.5x/14 mm (2 pcs.)
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Infinity plan achromatic objective: 20x/0.40
- Infinity plan achromatic objective: 60x/0.80 (with spring mechanism)
- Phase contrast device
- Phase contrast slider
- Dark field condenser with NA 0.9
- Oil dark field condenser with NA 1.36–1.25
- Dark field slider
- Polarization tools
- Calibration slide
- LCD monitor
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018027 |
| Package size (WxDxH) | 43x27x63 cm |
| Shipping weight | 11.1 kg |
| Delimiter | MAGUS Bio 250T biological microscope |
| === Delimiter === | Microscope specifications |
| Type | biological, light/optical, digital |
| Head | trinocular |
| Vertical tube | Gemel head (Siedentopf type, with 360° rotation) |
| Head inclination angle | 30° |
| Magnification, x | 40–1000 in basic configuration (*optional: 40–1200/1250/1500/1600/2000/2500) |
| Magnification range | 800x to 1280x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with graduated scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Infinity planachromatic | objectives: 4x/0.10; 10x/0.25; 40xs/0.65; 100xs/1.25 (oil); parfocal distance: 45 mm (*optional: 20x/0.40; 60хs/0.80) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 21 (4x); 5 (10x); 0.66 (40xs); 0.36 (100xs); 8.8 (20x); 0.465 (60xs) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm< /td> | 180x150 |
| Range of movement of the table, mm | 75/50 |
| two-axis mechanical translator, without positioning rack |
| Eyepiece diopter adjustment, diopters | ± 5 (on left barrel) |
| Condenser | Abbe condenser, NA 1.25, adjustable centering, adjustable height, adjustable aperture diaphragm, with slot for dark field slider and phase contrast slider, dovetail mount |
| Diaphragm | adjustable aperture diaphragm, field diaphragm with adjustable iris |
| Focus | coaxial, coarse focus (21 mm, 39.8 mm/turn, with fixing knob and tension adjustment knob micrometer screw) and fine focus (0.002 mm micrometer screw) |
| Halogen |
| illumination td>Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | halogen lamp 12 V/30 W, G4 socket |
| Optical filters | yes |
| Operating temperature range, °C | 5 — 35 |
| Possibility to connect additional equipment | phase contrast devices (condenser and objectives), dark field condenser (dry or oil immersion), polarization instruments (polarizer and analyzer) |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated< /td> |
| Application | laboratory/medical |
| Lighting position | lower |
| td> |
| Search method | bright field |
| Set with case/case/bag |
| Weight, kg | 8 |
| Dimensions, mm | 200x436x400 |
| === Delimiter === | Digital camera |
| Sensor | SONY Exmor CMOS |
| Sensor size | 1/1.2'' (11.14x6.26 mm) | td> |
| Color/Monochrome | Color |
| Megapixel | 2.1 |
| Maximum resolution | 1920x1080 |
| Pixel size, µm | 5.8x5. 8 |
| Light sensitivity | 8935mV with 1/30s |
| Signal-to-noise ratio |
| Signal-to-noise ratio |
| td> | 0.6mV with 1/30s |
| Exposure time | 0.014 ms – 15 s |
| Video recording | yes |
| Frame rate, fps@resolution | 96@1920x1080 |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *. h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Shutter type | ERS (electronic curtain shutter) |
| Spectral range, nm | 380-650 (integrated IR filter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features< /td> | image size, brightness, exposure control |
| Output | USB 3.0, 5 Gb/s |
| System Requirements | Windows 8/10/11 (32-bit and 64-bit), Mac OS minimum 2 GB RAM, USB 3.0 port, CD-ROM, 17" or larger |
| Body | CNC aluminum alloy |
| Software | MAGUS View |
| Camera power supply | DC, 5 V, port Computer USB; 12 V, 3 A adapter for the Peltier cell |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
