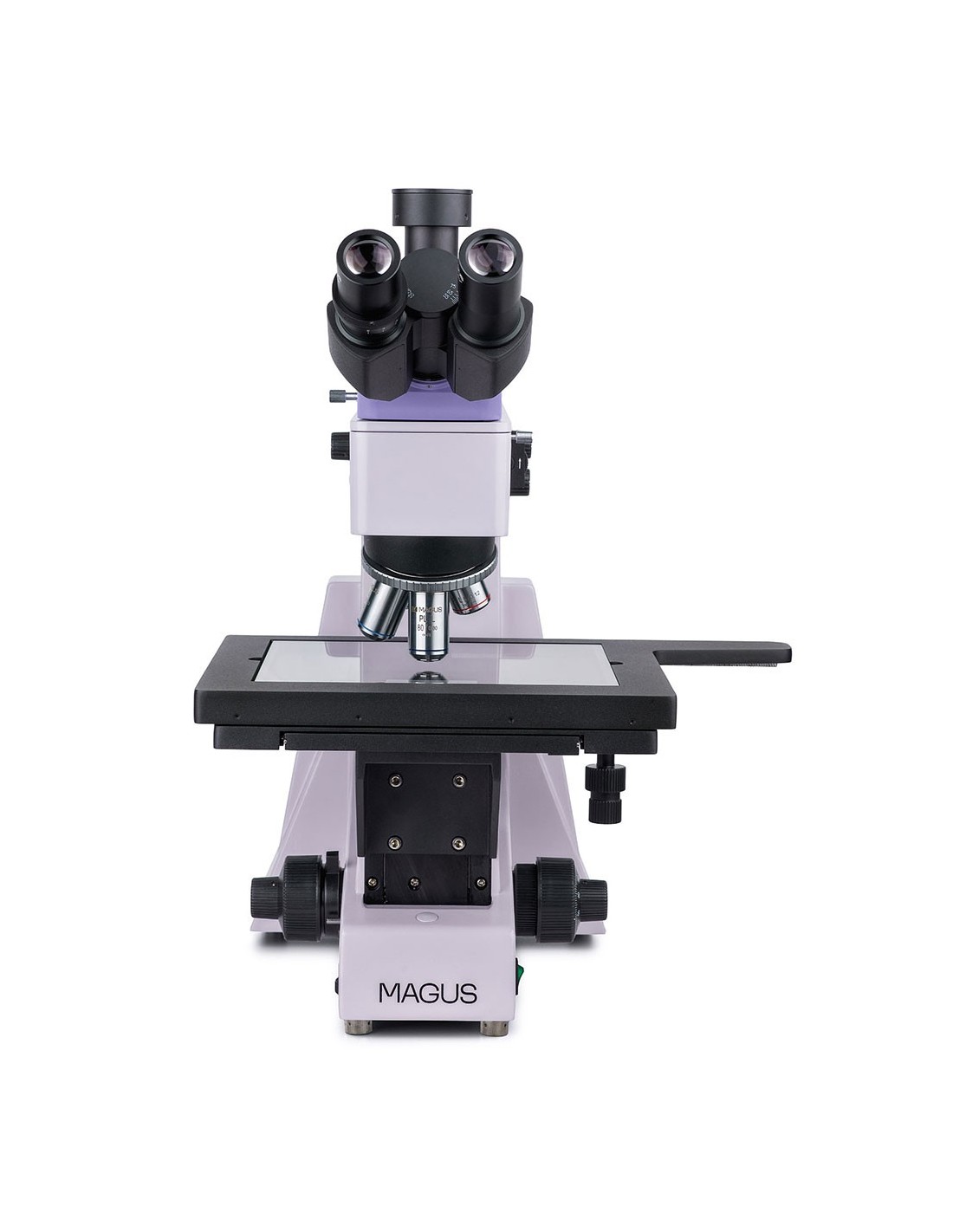

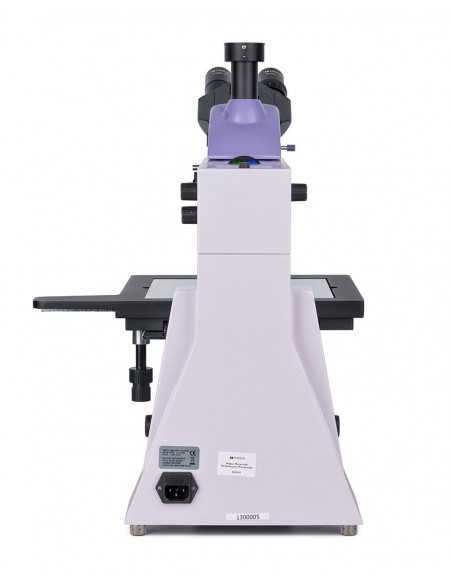

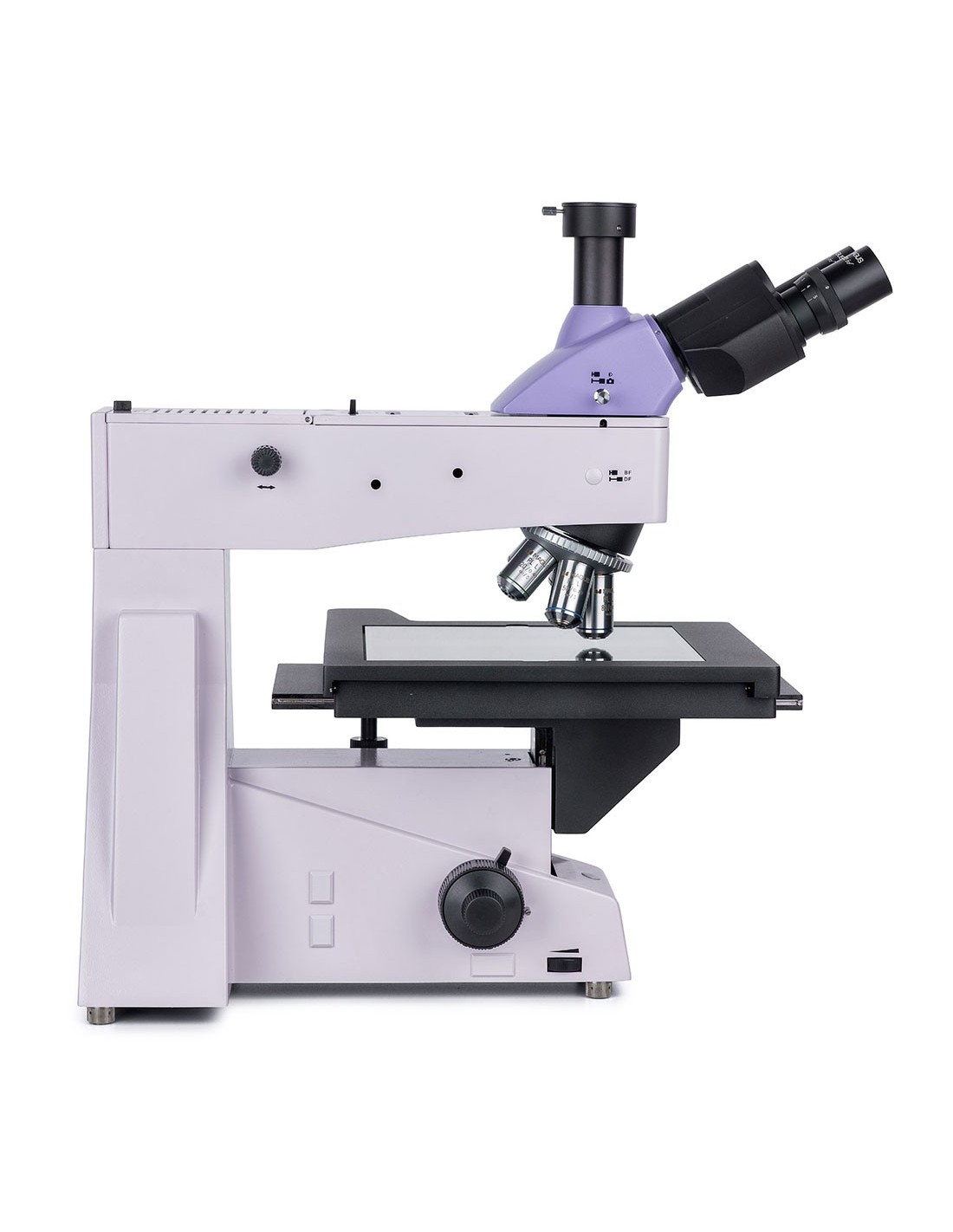

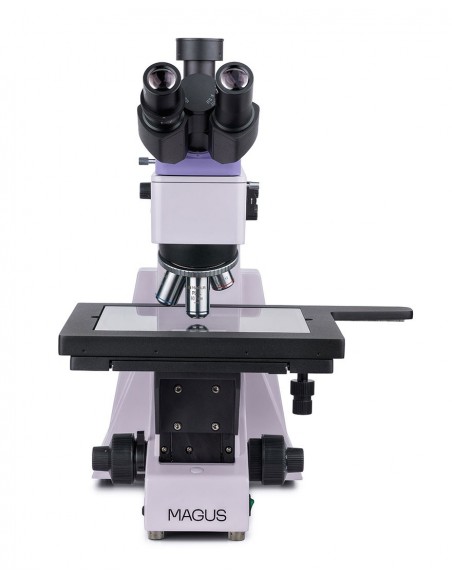

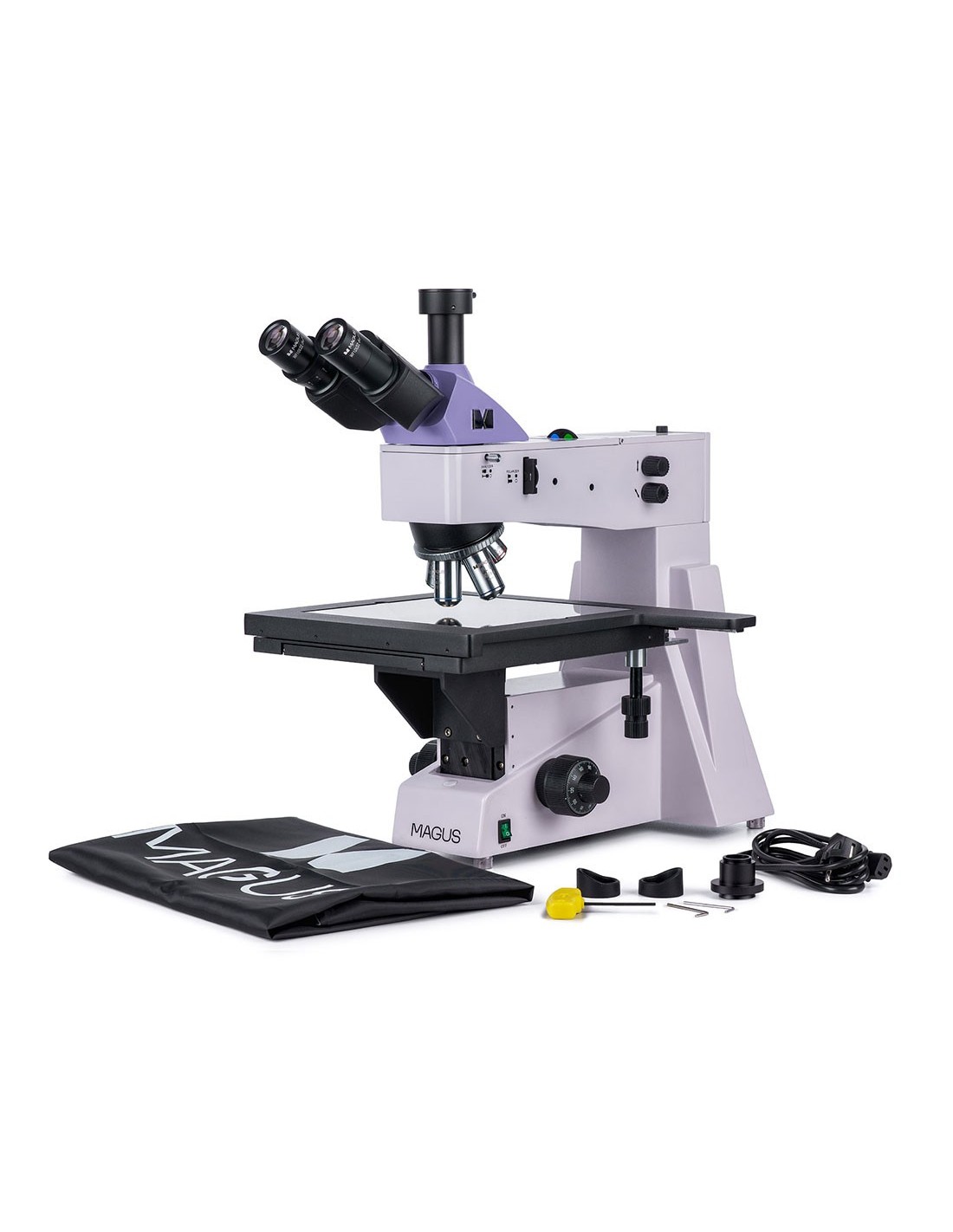

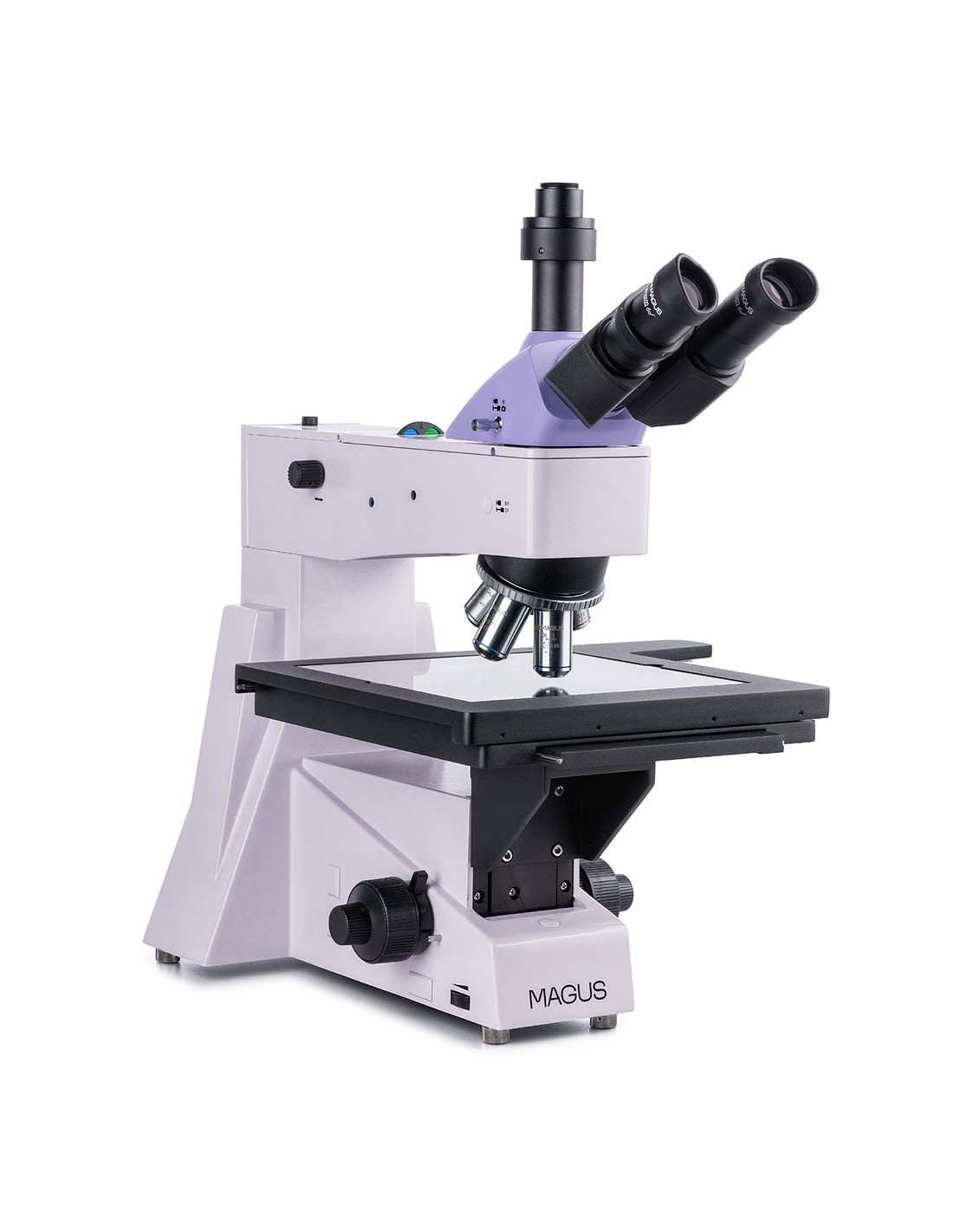

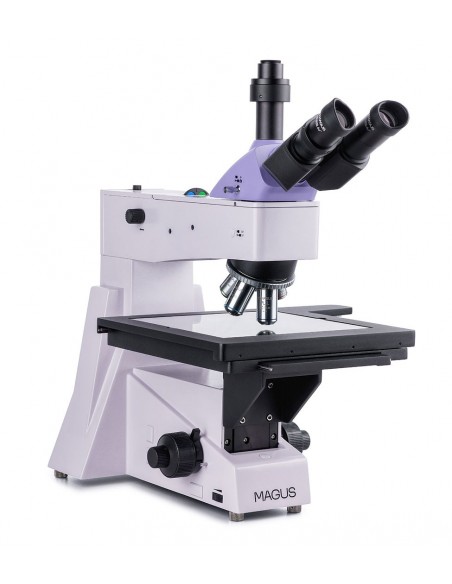

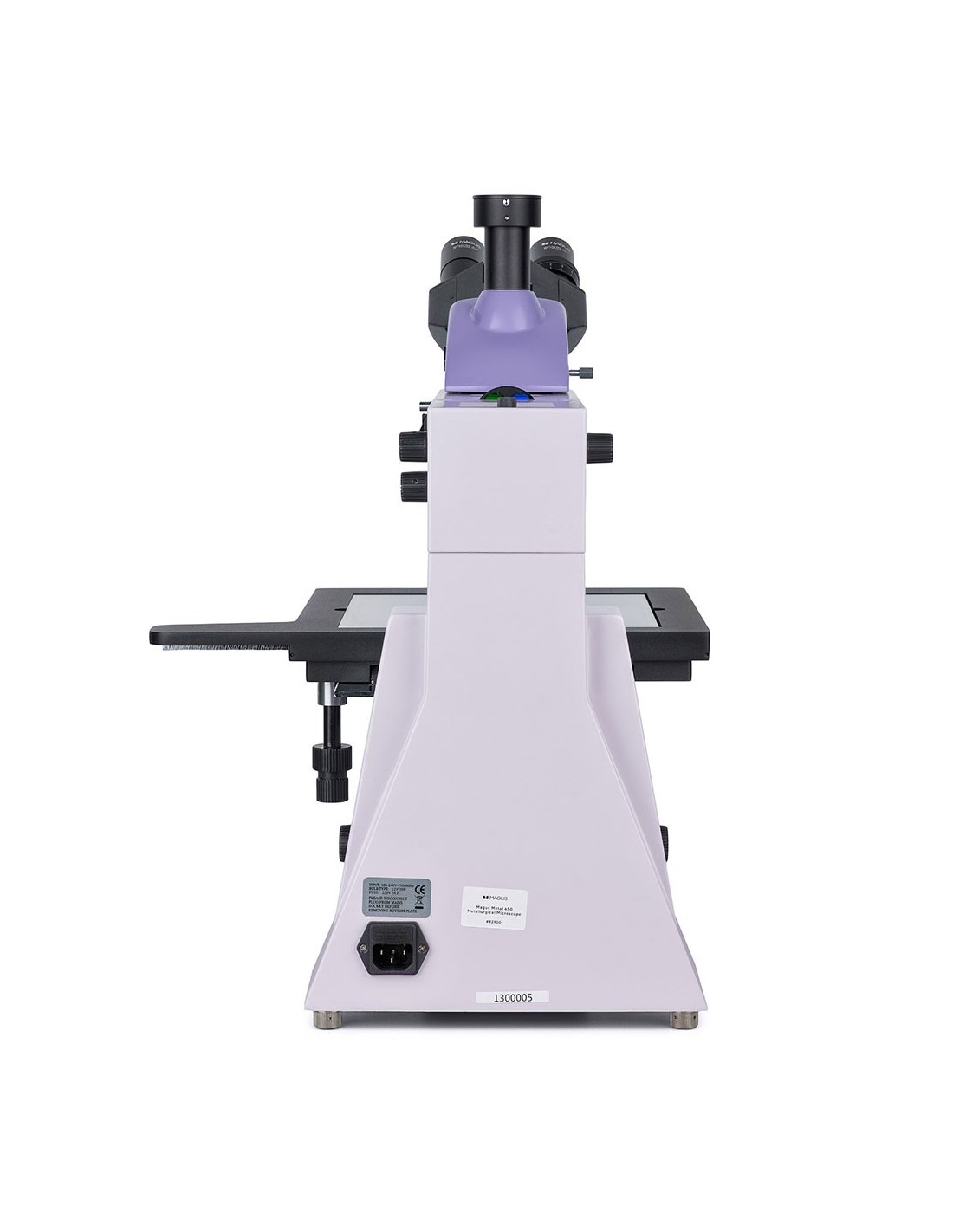

MAGUS Metal D650 LCD digital metallographic microscope - MAGUS

The MAGUS Metal D650 LCD metallographic microscope is equipped with a large stage where you can place photomasks, printed circuit boards, integrated circuits and other long and wide samples to be examined in reflected light. Observations in bright field and polarized light are possible. The microscope provides high precision focusing. The fine focus value of 0.7 µm facilitates examination at high magnification. It is used to conduct research at industrial facilities and to train engineering students.

Digital camera

The MAGUS CHD20 digital camera is equipped with a 2 MP sensor and produces realistic Full HD images at a resolution of 1920x1080 px. The camera has high light sensitivity suitable for observations with fluorescent light. Using R, G, B primary color mosaic filters produces sharp, low dark current images.
The camera uses an HDMI interface to connect directly to a TV monitor or projector. In this way, the camera operates independently without a PC. The HDMI interface enables fast and stable speed transfer from the camera to the external screen. An additional USB 2.0 interface is available for connecting the camera to a PC.
Video is recorded at 60 fps or 50 fps depending on the video output interface.
The camera combines high FPS speed and high HDMI bandwidth, so videos look brilliant without stuttering or skipping between frames. At maximum resolution, the image is very detailed, moving objects are visible without errors, and the moving object is displayed without delays.

Monitor

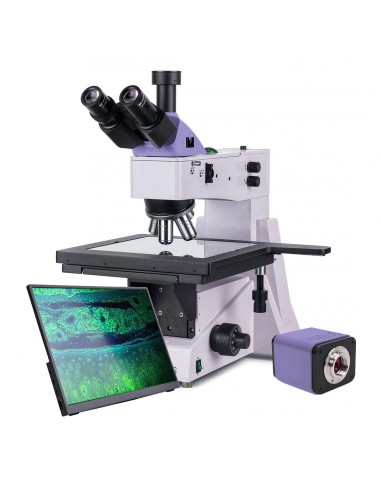

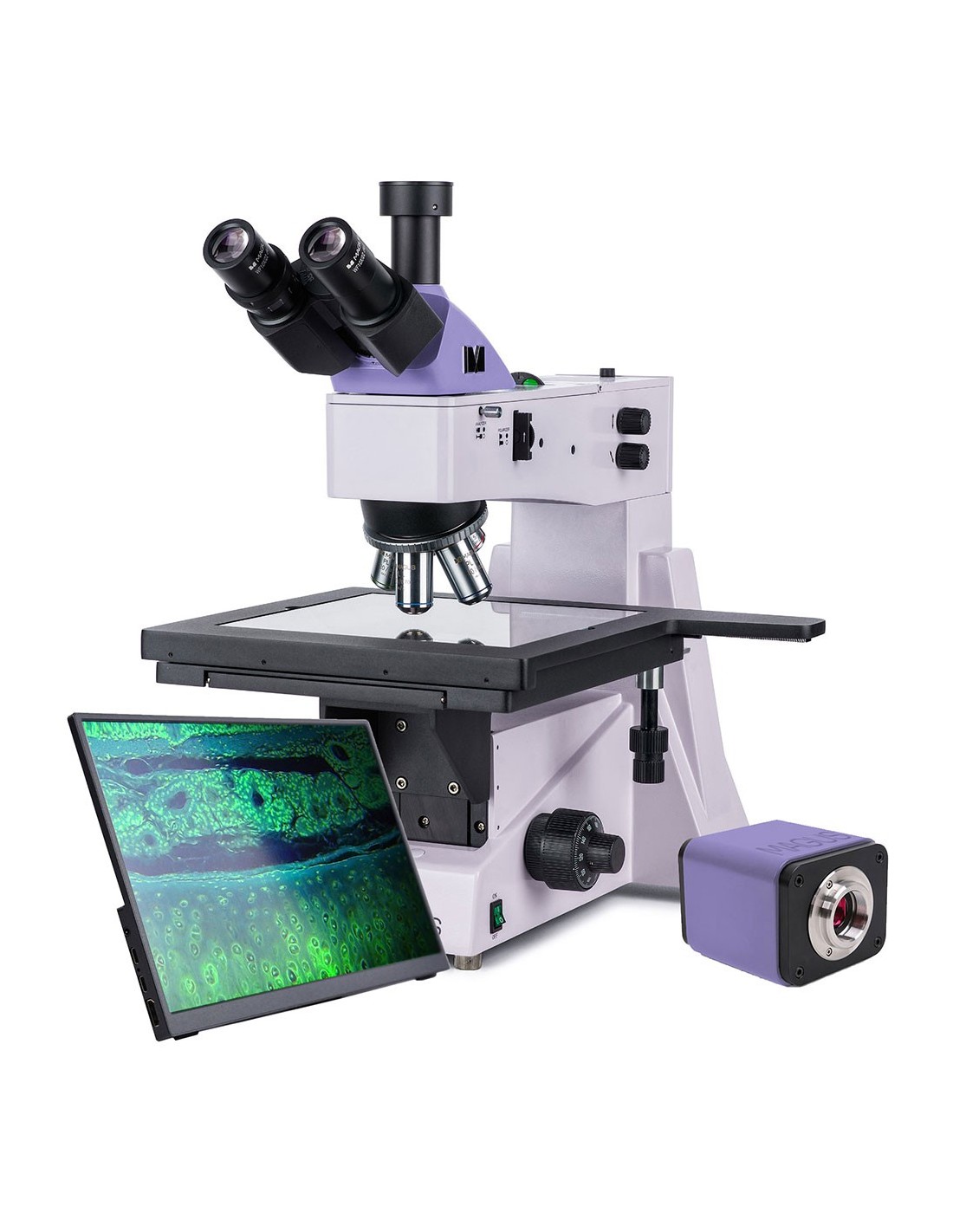

MAGUS MCD monitors work in combination with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.
The connection to the camera is via its HDMI interface. The monitor displays images in real time. Its IPS LCD display has a wide viewing angle, high brightness and good contrast. When looking at the screen even from a wide angle, the image is not distorted. The screen size is 13.3''.
The monitor can be installed on a horizontal surface using a foldable stand or mounted directly on a camera or tripod.

Optics

Optics

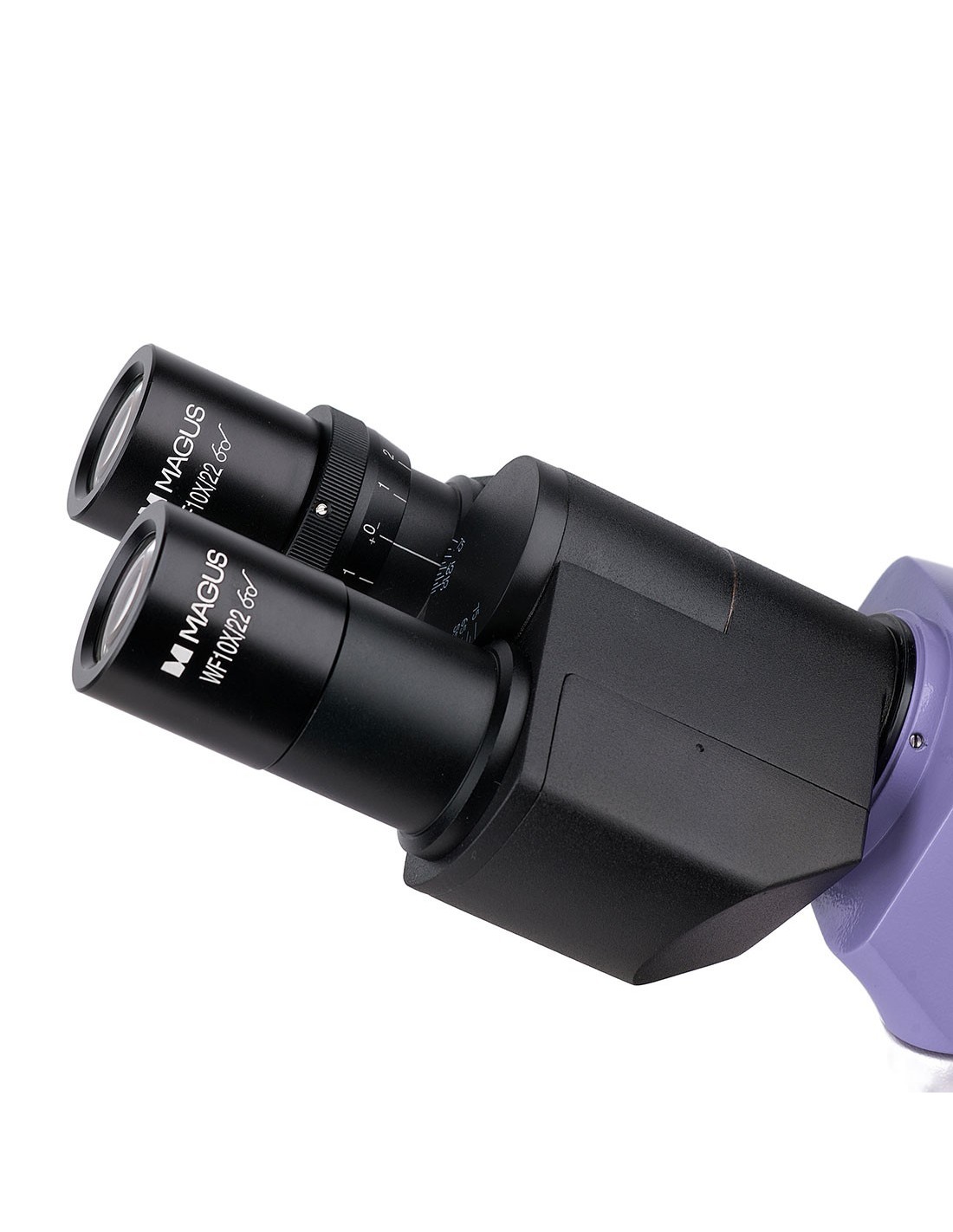

The infinity planachromatic optics allow for sharp and well-detailed images. The microscope head is trinocular, inclined 30° and features a trinocular tube for mounting a digital camera. The camera (not included) captures photos and videos of the examined specimen and displays the microscope image on an external screen. There is a two-position beam splitter: 100:0 and 0:100. The light beam is aimed at the eyepiece or camera. On the left barrel there is a diopter adjustment ring.

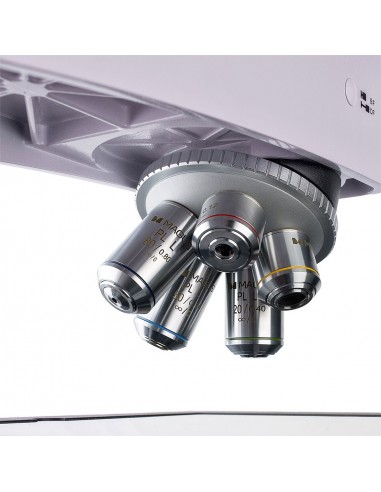

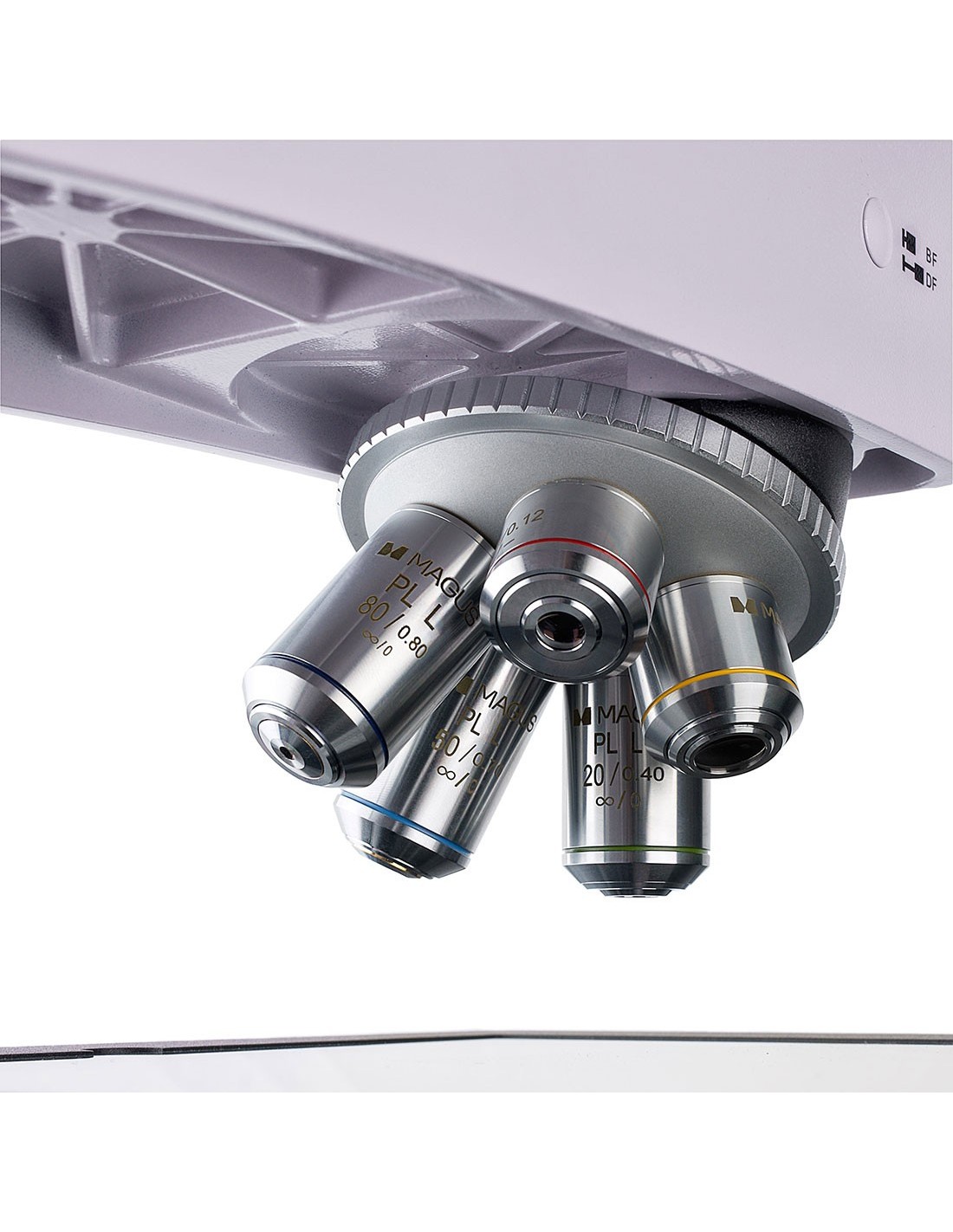

It is possible to install the 5 objectives on the nosepiece, all included in the kit. To achieve greater magnification, optional lenses can be installed instead of the supplied ones. In the basic configuration, the microscope provides a magnification of 50 to 800x. The nosepiece is oriented towards the inside of the instrument, so that the user can see which objective is inserted in the optical path.

Illumination

The reflected light illumination system combines three centering elements: light source, field diaphragm and aperture. The 30W halogen illuminator emits a warm tone light that is easy on the eyes when used for long periods of time. You can adjust the brightness and you can set the Köhler lighting. The reflected light illumination system also features a polarization device: a built-in analyzer and a removable rotating polarizer. There is a set of colored filters.

Stage and focusing mechanism

The most interesting design element of the microscope is the 280x270 mm stage which can be moved along two axes up to 204 mm. This allows the observation of large samples and easy examination of their surfaces. The coarse and fine focus knobs are coaxial and positioned on both sides of the microscope, and feature a lock knob and a coarse tension adjustment knob. The handle is near the base of the microscope. You can freely place your hands on the table and have a comfortable position during observation.

Accessories

Accessories compatible with the MAGUS Metal 650 microscope include eyepieces, objectives with a long working distance, digital cameras and calibration slides. Accessories can be used to expand the capabilities of the microscope.

Key features of the microscope:

• Large stage with a wide range of movement to observe long and wide specimens
• Fine focus value of 0.7 µm to facilitate focusing at high magnification. Coarse focusing by means of a locking knob and a voltage adjustment knob
• Trinocular head with a trinocular tube and beam splitter
• Reflected light illuminator: powerful halogen lamp from 30 W with brightness adjustment and AC power supply
• Polarization device, centrable reflected light illuminator elements, Köhler illumination, color filters
• Wide range of options and compatible accessories
• Wide range of options and compatible accessories
• li>

Key features of the camera:

• The camera works independently without a connection to a PC via HDMI interface. It is possible to connect to a PC via USB 2.0 interface
• The camera has a resolution of 1920x1080 pixels, the ideal choice for viewing images on a Full HD monitor
• 60 fps or 50 fps based on the video output interface for observing moving objects, recording videos and specimen movements without lag or jerkiness
• The color back-illuminated SONY Starvis CMOS sensor offers images with low noise and high light sensitivity even in low light conditions. You can get sharper, brighter and more saturated color images.
• Software for recording and editing photos and videos, external display functions, linear and angular measurements

The package contains:

• MAGUS CHD20 digital camera (digital camera, HDMI cable (1.5 m), USB 2.0 cable (2 m), mouse with USB, 32 GB SD memory card, 12 V/1 A AC power adapter (Euro), installation CD with drivers and software, user manual and warranty card)
• MAGUS MCD20 LCD monitor
• MAGUS MCD20 LCD monitor li>
• Base with power input, light source for reflected light observations, focusing mechanism, stage and nosepiece
• Trinocular head
• Infinity planachromatic objective : PL L5x/0.12 WD 26.1 mm
• Infinity plan achromatic objective: PL L10х/0.25 WD 20.2 mm
• Infinity plan achromatic objective: PL L20х/0.40 WD 8.80 mm
• Plan achromatic infinity objective: PL L50х/0.70 WD 3.68 mm
• Plan achromatic infinity objective: PL L80x/ 0.80 WD 1.25 mm
• 10x/22 mm eyepiece with long eye relief (2 pcs.)
• 1x C-mount adapter
• A key Allen key
• AC power cord
• Dust cover
• User manual and warranty certificate

Available on request:

• 10x/22 mm eyepiece with graduated scale
• 12.5x/14 mm eyepiece (2 pcs.)
• Eyepiece 15x/15 mm (2 pcs.)
• Eyepiece 20x/12 mm (2 pcs.)
• Eyepiece 25x/9 mm (2 pcs.)
• Infinity plan achromatic objective: PL L40х/0.60 WD 3.98 mm
• Infinity plan achromatic objective: PL L60x/0.70 WD 2.08 mm
• Infinity plan achromatic objective: PL L100x/0.85 (dry) WD 0.40 mm
• Calibration slide
