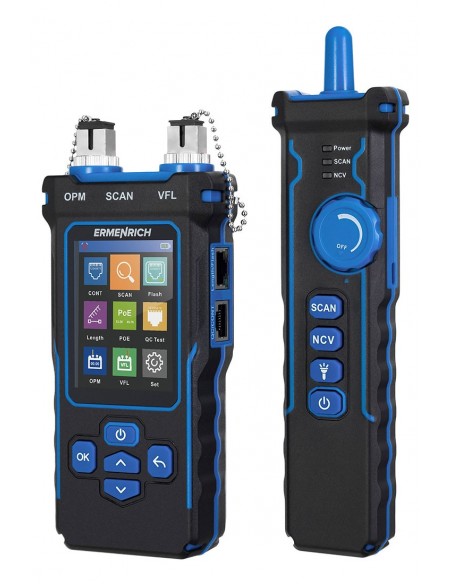

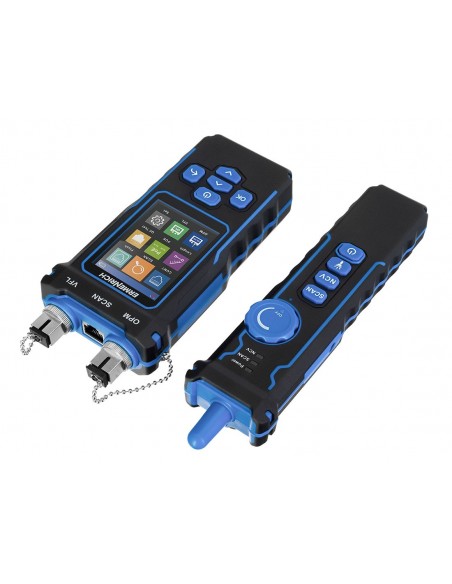

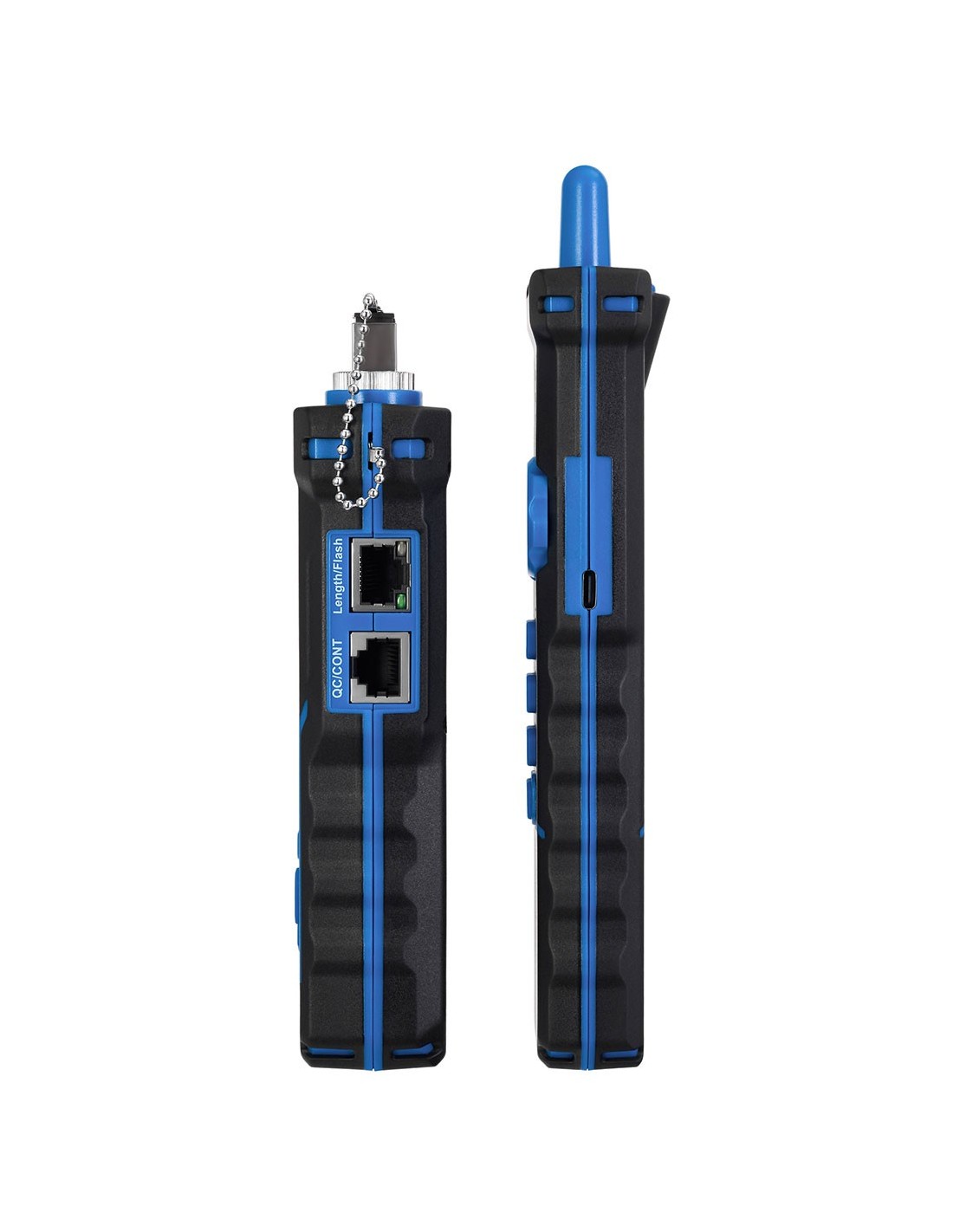

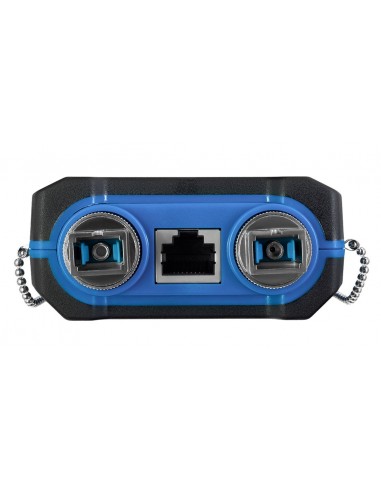

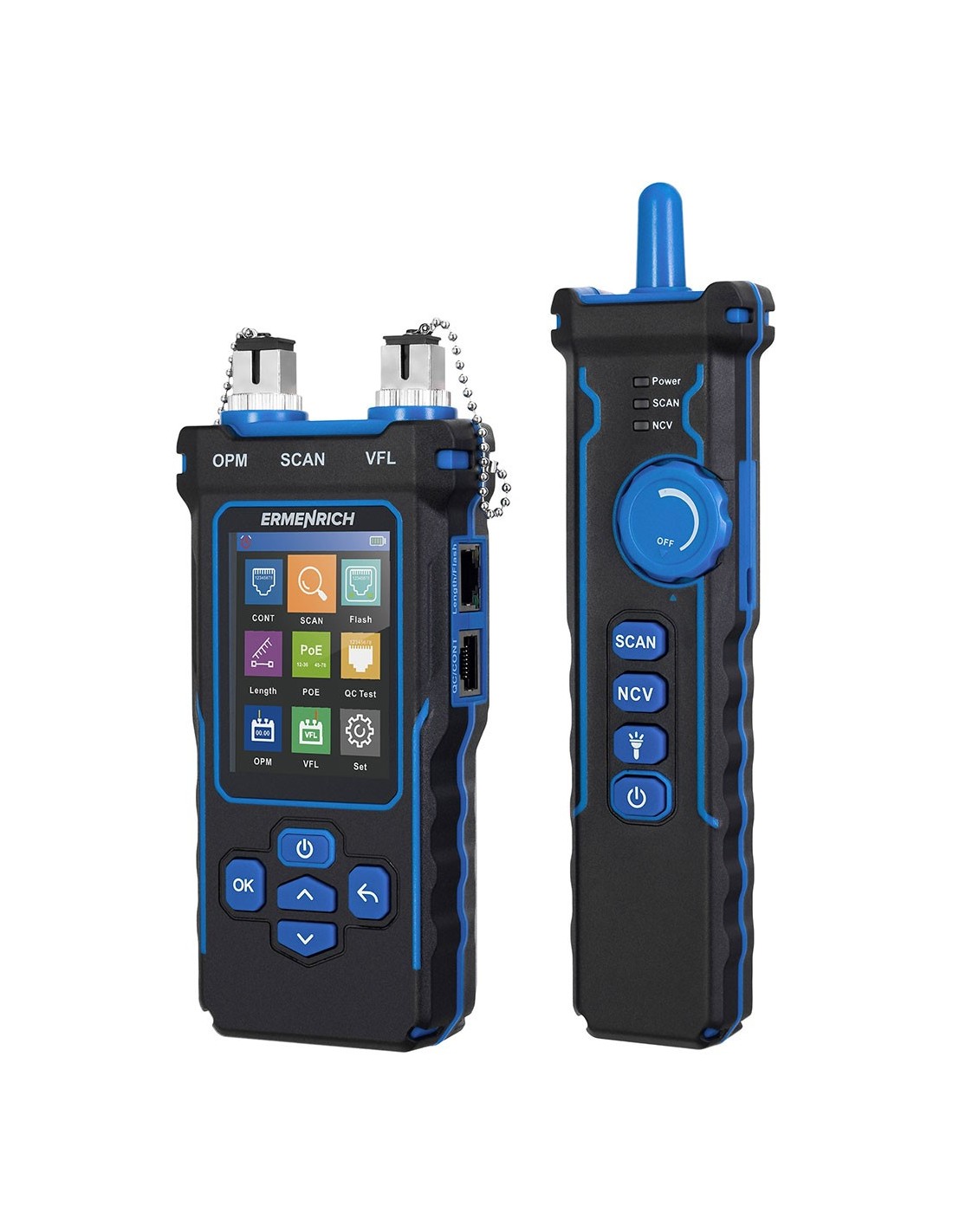

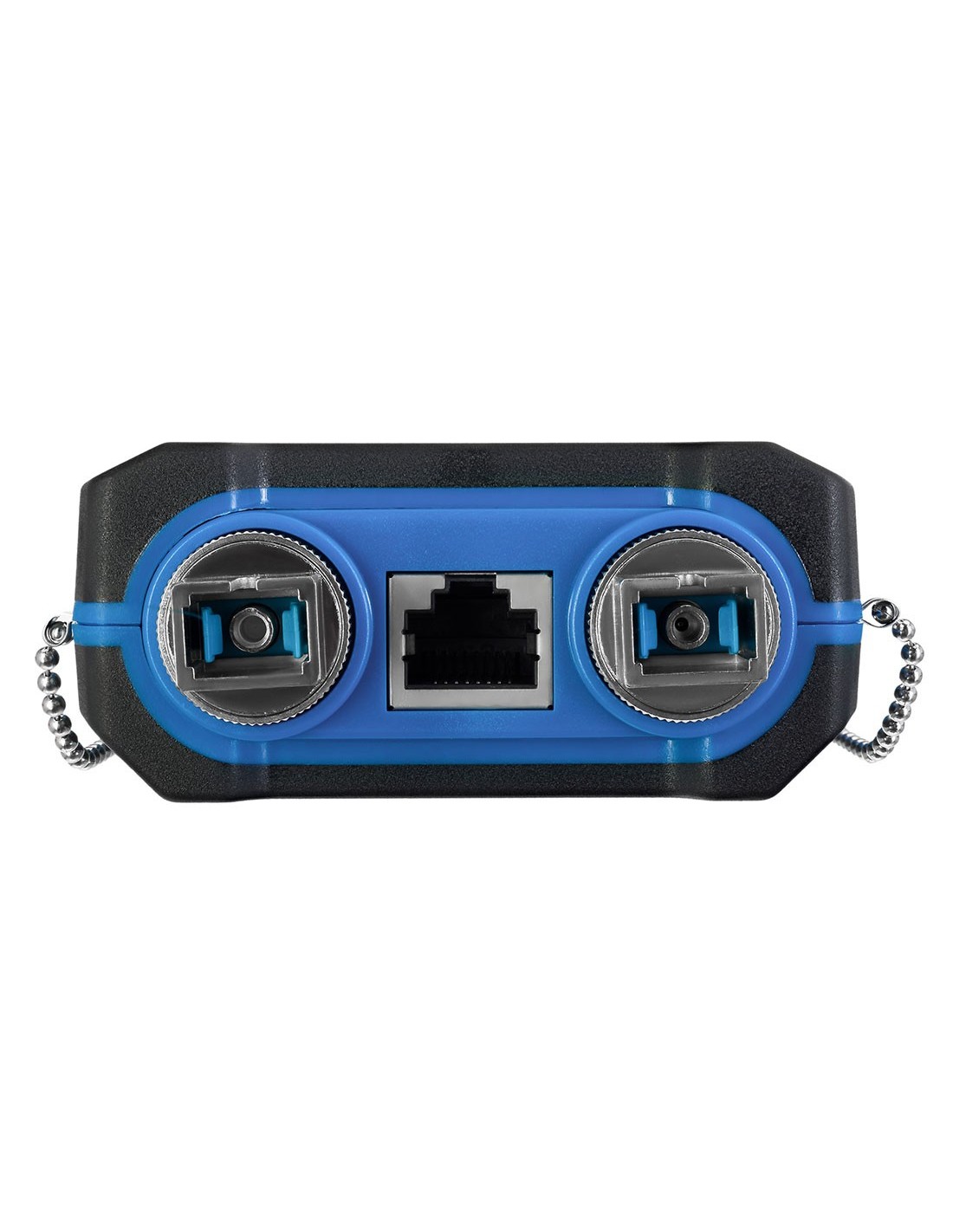

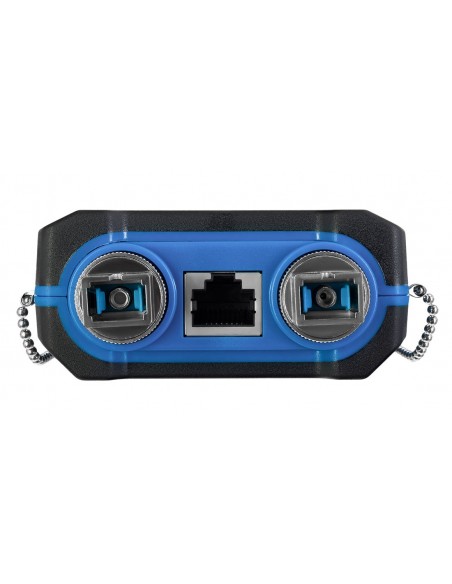

The Ermenrich NetGeeks NP60 combines the functionality of a cable tester, a cable length meter and an optical multimeter, making it a great choice for installing, testing and maintaining network networks. twisted pair cables, including those used for high-speed Internet connections. It is a perfect tool for home use and is also highly sought after by professionals.
In its basic test mode, the tool is capable of checking the conditions of a wired network. The test will quickly indicate the presence of open circuits, twisted pairs or shorts. If necessary, you can test the quality of the twisted pair cable Ethernet connectors. The PoE test not only measures voltage, but also identifies the type of PSE and detects the midspan/endspan connection. The flashing port function allows you to precisely locate the port of the network switch or router to which the cable under test is connected.
In optical potentiometer mode, the tester supports 6 wavelengths and is capable of capable of measuring both relative and absolute optical power. The ability to set a reference level for power simplifies the measurement procedure. Furthermore, there is the VFL function, which allows you to locate faults along the optical fiber. In length meter mode, cables up to 200 meters long can be measured.
The receiver can be used as a non-contact high voltage detector (NCV function) and is equipped with a flashlight to illuminate areas darker. The transmitter and receiver are powered by a rechargeable battery.
Key Features:
- 3 in 1: Cable Tester, Power Tester optical, cable length meter
- Cable test, quality control (QC) of ethernet connectors, PoE test, port flash function
- Cable length measurement up to 200 meters, selectable measurement unit
- Optical multimeter with VFL function and adjustable power reference level
- Powered by a rechargeable battery

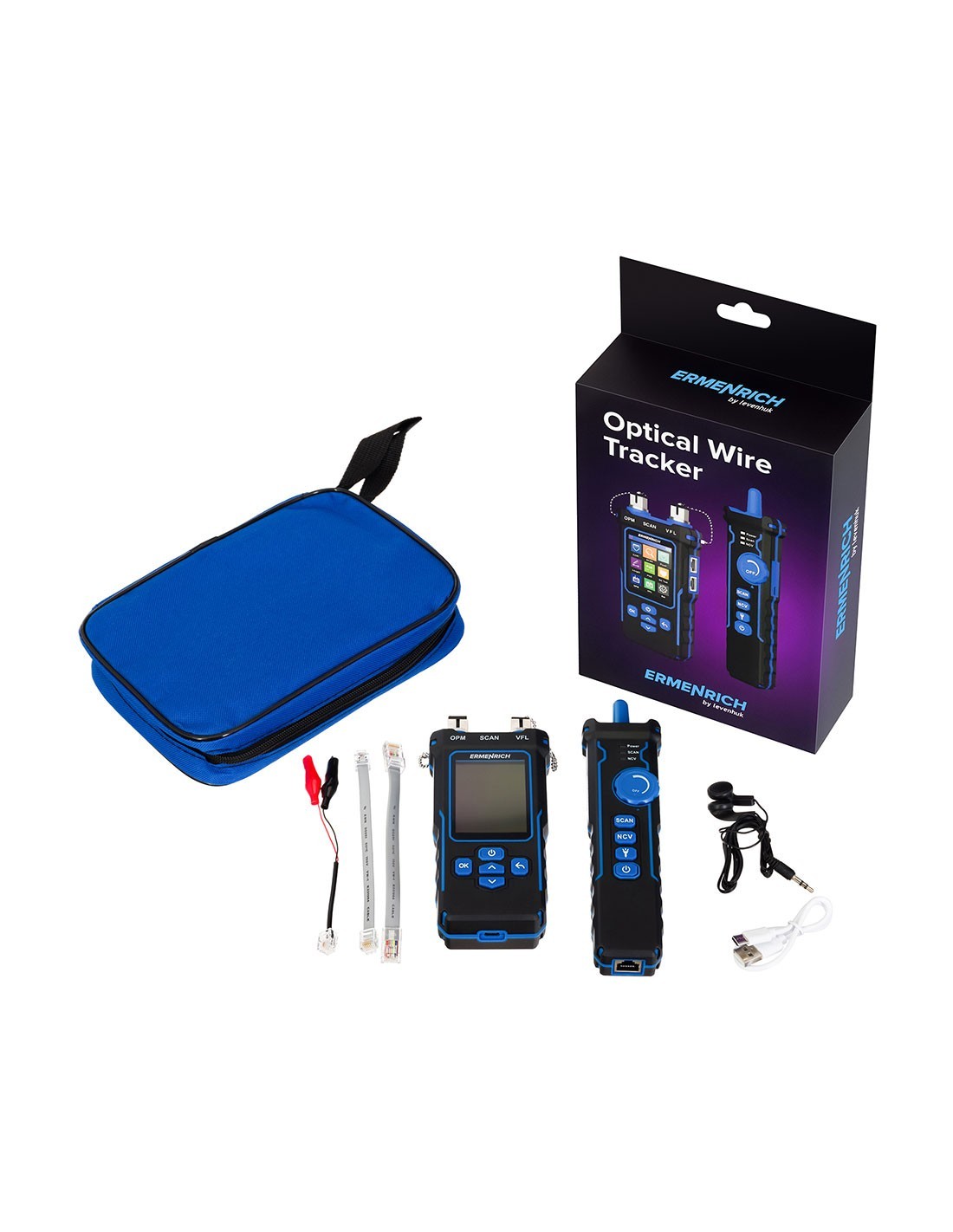

The package contains:
- Transmitter
- Receiver
- RJ11 patch cable
- RJ45 patch cable
- Alligator clip
- DC cable
- Earphones
- USB Type-C cable

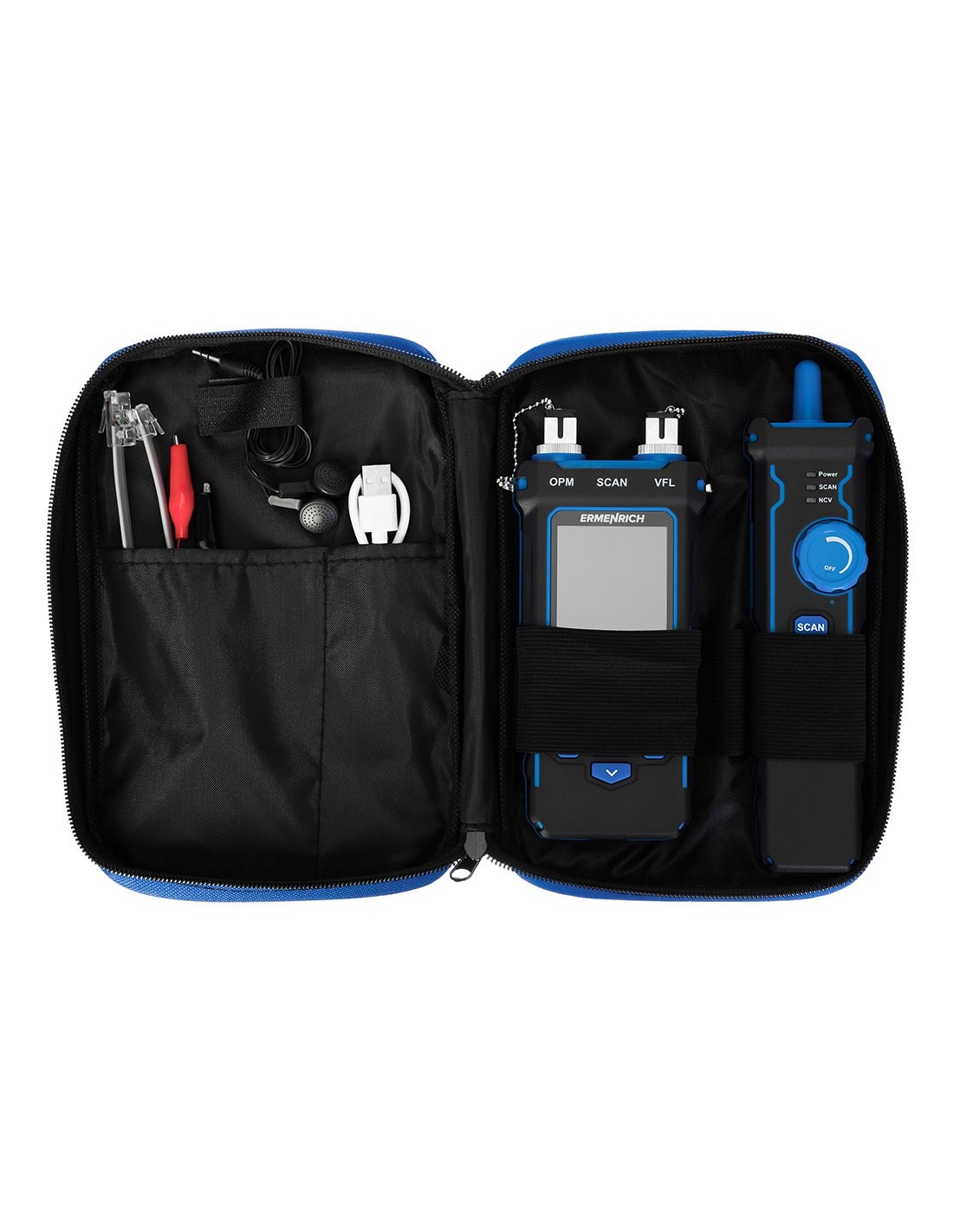

- Carrying bag
- User manual and warranty certificate
| Brand | Ermenrich |
| Warranty | 5 лет |
| EAN | 5905555016962 |
| Size packaging (WxDxH) | 24x16x5 cm |
| Shipping weight | 0.6 kg |
| === Delimiter === | Transmitter |
| Ports | USB 2.0 (Type C), PoE, QC, Scan, Length/Flash, Cont, OPM, VFL |
| Cable types tested | STP/UTP network cables (CAT5, CAT6) |
| Maximum tested cable length, m | 600 |
| Cable length measurement | yes |
| Cable test | + |
| Flashing port function | +, (full duplex/half duplex, auto/non-auto negotiation, 10/100/1000Mbit/s) |
| Quality control (QC) of ethernet connectors | yes |
| Cable detection | yes |
| Protection against crosstalk | yes |
| PoE test | yes |
| Polarity detection of voltage | yes |
| Optical power measurement (OPM) | yes |
| === Delimiter === | Measurement of cable length |
| Unit of measurement | meters/yards, feet |
| Measurement range, m | 2.5 — 200 |
| === Delimiter == = | PoE test |
| PoE power type test (PSE) | standard (IEEE 802.3at/af) / not -standard |
| Identification of midspan/endspan | yes |
| Operating voltage (DC), V | 5 — 60 |
| === Delimiter === | Optical Power Measurement (OPM) |
| Optical power meter wavelengths, nm | 850/ 1300/ 1310/ 1490/ 1550/ 1625 |
| Units of measurement | dB, dBm, W |
| A reference level can be set | yes |
| Visual Fault Locator (VFL) | yes |
| === Delimiter === | Key Features |
| Stand by current, mA | ≤25 (cable tracing/scanning/QC testing), ≤150 (flashing port) |
| Protection | input voltage: 48 V, current: 5 mA |
| Display |
| td> | LCD |
| Display diagonal, inches | 2.8 |
| Display resolution, px | 320x240 |
| Display backlight | yes |

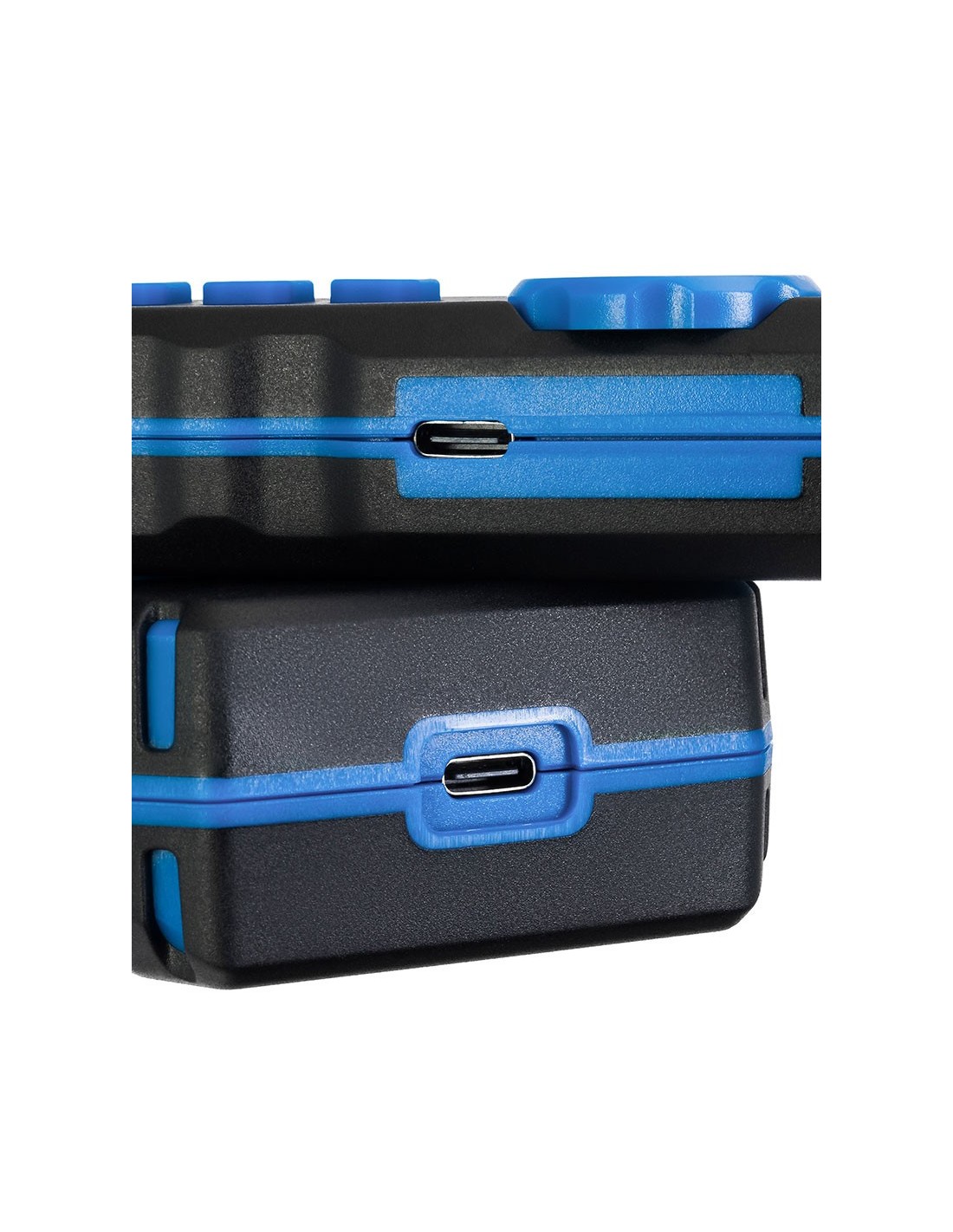

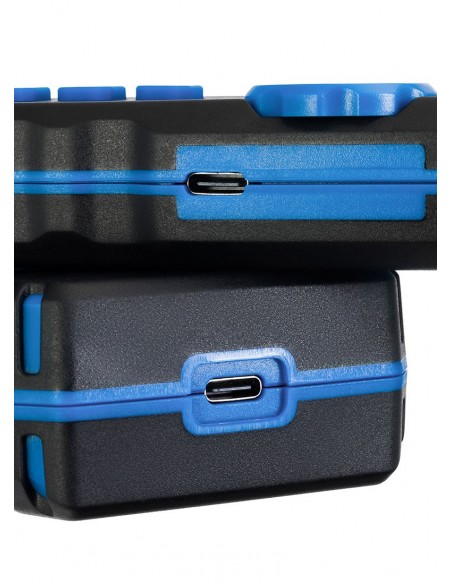

| Power | rechargeable via USB Type-C cable (included), 1500 mAh lithium polymer battery, 3.7 V |
| Low battery indicator | yes |
| Automatic shutdown | 15 min, 60 min, 120 min, 30 min |
| Operating temperature range, °C | −10… +60 |
| Operating humidity range, % | 20 …70 |
| === Delimiter === | Receiver/Remote Unit |
| Ports | USB 2.0 (Type C), RJ45, earphones |
| Adjustable sensitivity | yes |
| Non-contact voltage tester (NCV) | yes |
| Flashing light | yes |
| Maximum operating current, mA | ≤300 |
| Power supply | rechargeable via USB Type-C cable ( included), 1500 mAh lithium polymer battery, 3.7 V |
| Operating temperature range, °C | −10… +60 |
| Operating humidity range, % | 20…70 |
