Modern technologies that have entered the optical instrumentation market have significantly increased our possibilities. With the Levenhuk Rainbow D50L PLUS 2M digital microscope, Moonstone it is not only possible to observe plant and animal cells or microorganisms, but also to save the result of your studies by taking photos and videos of the observed samples. The kit includes everything you need to perform interesting experiments with the microscope. You can share your research by posting the images and videos obtained on Facebook, Instagram and other social networks.
Quality optics

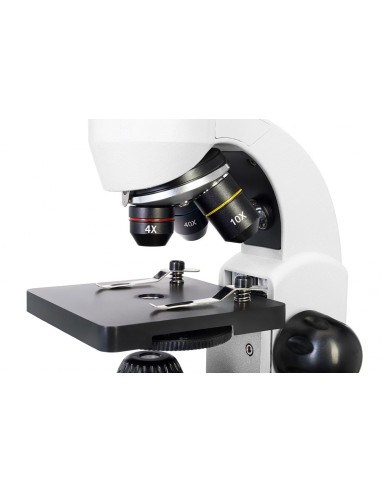

The kit includes three objective lenses: 4x, 10x and 40xs. The most powerful lens has a special spring mechanism that protects the optics from accidental damage. In the event of an error during focusing, even if the objective drops to touch the specimen, the spring mechanism behind the lens will cause it to retract, preventing damage to the objective or specimen. The 2x Barlow lens doubles the magnification of any lens used. The maximum magnification factor for this microscope is even 1280x!
The lenses are made of quality optical glass treated with a multi-layer anti-reflective coating for better light transmission. The image produced will always have good contrast and excellent details.
Digital camera

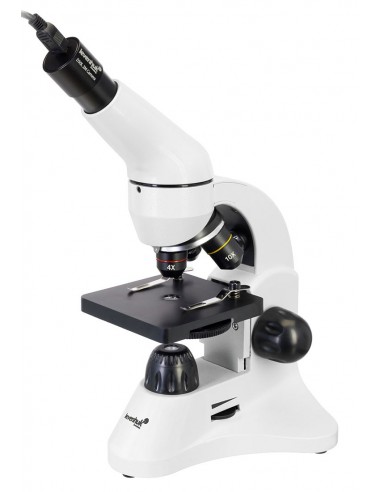

The microscope is equipped with a modern 2 Mpx digital camera. The camera must be installed in place of an eyepiece and then connected to the computer. The enlarged images will then appear on the screen. This way a kid can show interesting samples to parents and friends. A teacher can show all the phases of an experiment to his students. Also, of course, the camera allows you to capture beautiful images and videos of the observed objects.
Combined illumination
The microscope is equipped with two LED lighting sources. Bottom light is used for observing transparent specimens such as thin sections of animal or plant tissue, or a drop of fresh water. Opaque objects, such as paper cloth, should be viewed using overhead lighting. Studying semi-transparent objects requires lighting from both directions. You can also adjust the brightness to best view each specific sample.
Resistant and practical body
The body of the microscope is made of metal, which is why it is a particularly reliable microscope suitable for frequent use. For user convenience the head is tilted at an angle of 45 degrees and rotates 360 degrees around its axis. This feature is particularly useful when working in a group: it will no longer be necessary to move the microscope, just rotate the head.
The microscope is powered by AC mains or standard batteries. The camera is powered via the USB cable.
Caution: Refer to the specification table for the correct mains voltage and never attempt to connect a 110V device into a 220V socket and vice versa, without using a converter. Remember that the mains voltage in the United States and Canada is 110 V and 220–240 V in most European countries.
Experiment kit
The K50 experiment kit will be particularly useful for those who are taking their first steps into the wonderful world of the microcosm. The kit includes prepared and ready-to-use slides, special tools for creating your own samples and a very useful guide with tips, tips and descriptions of experiments.
Protective case
The plastic case included in the package allows you to keep the microscope and all its accessories in one place, without losing anything. Furthermore, it protects the instrument during transport.
Features:
- Digital microscope with 64–1280x magnification
- 2 Mpx digital camera included
- 2x Barlow lens included
- Strong and durable metal body
- Top and bottom LED lighting system
- Experiment kit included
- Supplied with a practical plastic case
The kit includes:
- Microscope
- Objectives: 4x, 10x and 40xs
- Eyepiece: WF16x
- 2x Barlow lens
- Specimen stage with clip
- Rotating diaphragm li>
- Capacitor
- Integrated top and bottom LED lighting
- AC adapter
- Plastic case
- Levenhuk K50 experiment kit
- 2 Mpx digital camera
- Levenhuk software for Windows, Mac OS, Linux
- USB cable
- User manual and lifetime warranty
The Levenhuk K50 Experiment Kit includes:
- User Manual “Fascinating microscope. Scrutinize the microcosm”
- Tweezers
- Incubator for Artemia (freshwater shrimp or saline artemia)
- Microtome
- Bottle with yeast
- Bottle with pitch
- Bottle with sea salt
- Bottle with freshwater prawns
- 5 preparations
- 5 empty slides
- Dropper
- Dust-proof case
Some things you can observe under the microscope: p>
The Levenhuk Rainbow D50L PLUS microscope is also compatible with other Levenhuk digital cameras (additional cameras to purchase separately). Levenhuk cameras are installed in the eyepiece tube, in place of an eyepiece.
Microscopes Comparison Table
Objectives 4x, 10x, 40x 4x, 10x, 40xs 4x, 10x, 40x
Barlow lens no 2x no
MAX magnification, x 400 1280 1600
Specimen stage, mm 90x90, with clips 90x90, with clips 90x95, stage translator with coordinates and clips
Range of movement of the stage, mm from 0 to 15 0 to 11 0 to 10
Brightness adjustment yes td> yes yes
Dust-proof case yes yes yes
Top lighting fixed fixed fixed
Lower lighting fixed fixed< /td> fixed
Lighting power supply AC adapter, batteries AC adapter , batteries AC adapter, batteries
Camera power USB cableUSB cable
Body plastic metal metal
Eyepiece tube metal metal td> plastic (LCD display)
Megapixel 0.3 2 2
Video recording yes yes yes
Maximum resolution 640x480 1600x1200 1600x1200
Levenhuk K50 Experiment Kit yes yes yes
| Brand | Levenhuk Inc ., USA |
| Lifetime Warranty |
| EAN | 5905555010731 |
| Package size (LxWxH) | 18x40x27 cm |
| Shipping weight | 3.36 kg |
| Type | biological, light/optical, digital |
| Tested | monocular |
| Optics material | optical glass |
| Vertical tube | 360° rotatable |
| Head inclination angle | 45° |
| Magnification, x | 64 — 1280 |
| Magnification range | 800x to 1280x |
| Eyepieces | WF16x |
| Nosepiece revolver | for 3 objectives< /td> |
| Stage, mm | 90x90 |
| Range of movement of the stage, mm |
| Table features | with clips |
| Condenser | NA 0.65 |
| Diaphragm | disc diaphragm (6 apertures) |
| Fire | coarse |
| Body | metal |
| Lighting |
| Lighting |
| td> | LED |
| Brightness adjustment | yes |
| Power | 2 AA batteries (not included), 220V/50Hz |
| Power supply: batteries/built-in battery | yes |
| Light source type | 3-3.2V LED (top and bottom light source) |
| User level< /td> | beginners |
| Assembly and installation level of difficulty | easy |
| Application | scholastic/educational |
| Lighting position | double |
| Method of search | bright field |
| Experiment kit included | yes |
| Digital camera included | yes |
| Barlow lens | 2x |
| Set with case/case/bag | dust cover, case |
| Set with case/bag/backpack | yes |
| Megapixel | 2 |
| Video recording | yes |
| Image format | *.jpg, *.bmp, *.png, *.tif, etc. |
| Video format | recording: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Position of use | eyepiece tube (replaces an eyepiece) |
| Exposure method | ERS (electronic shutter dropdown) |
| Software, drivers | LevenhukLite |
| Programmable options | image size, brightness, exposure control |
| Output | USB 2.0 |
| System requirements |
| td> | Windows 8/10/11 (32-bit and 64-bit), Mac OS |
| Camera power supply | via USB cable |
