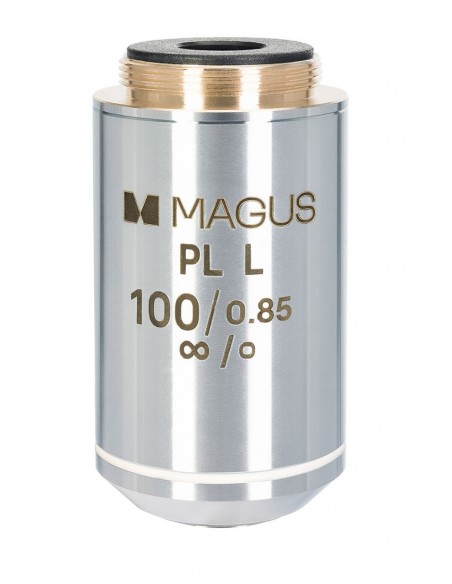

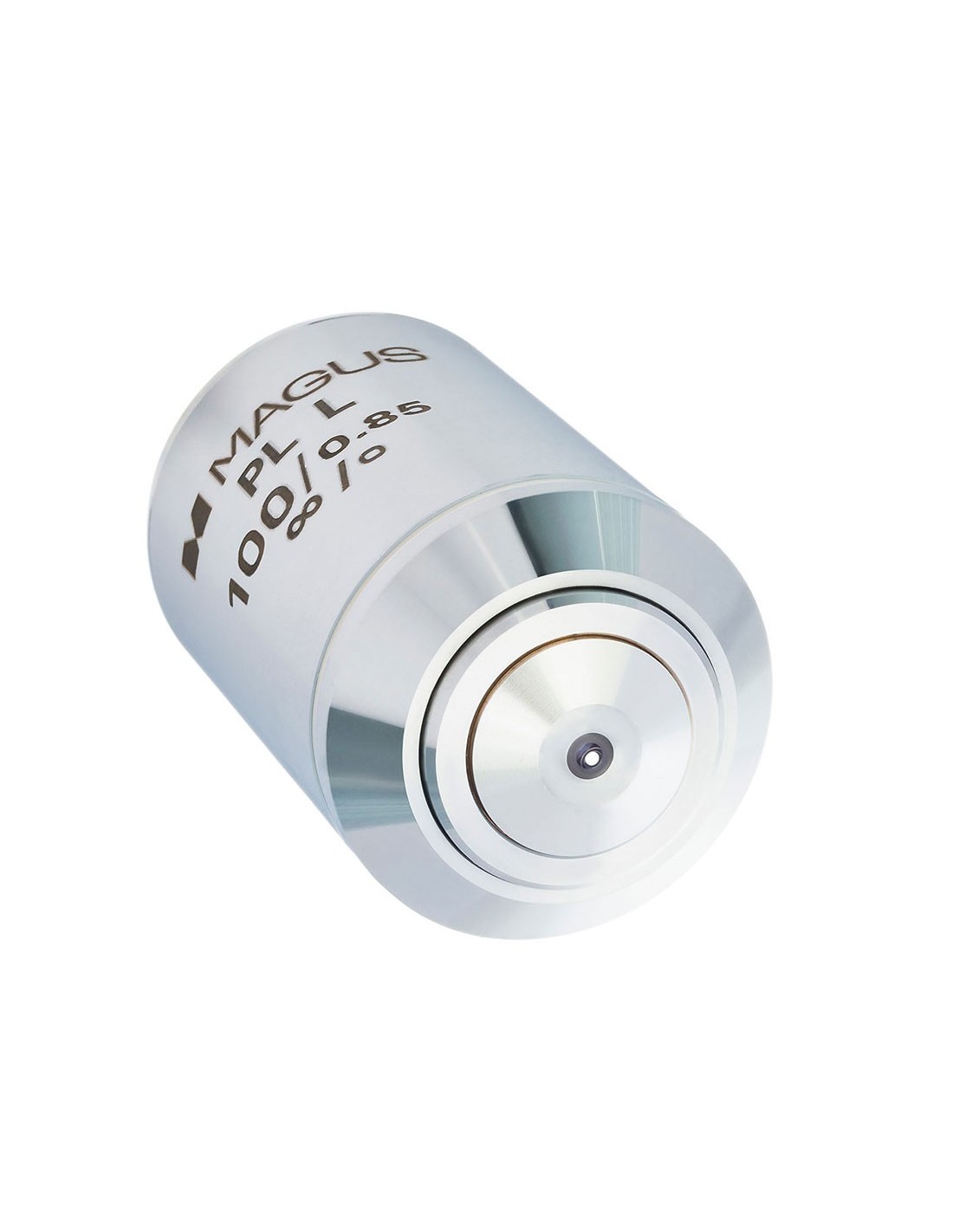

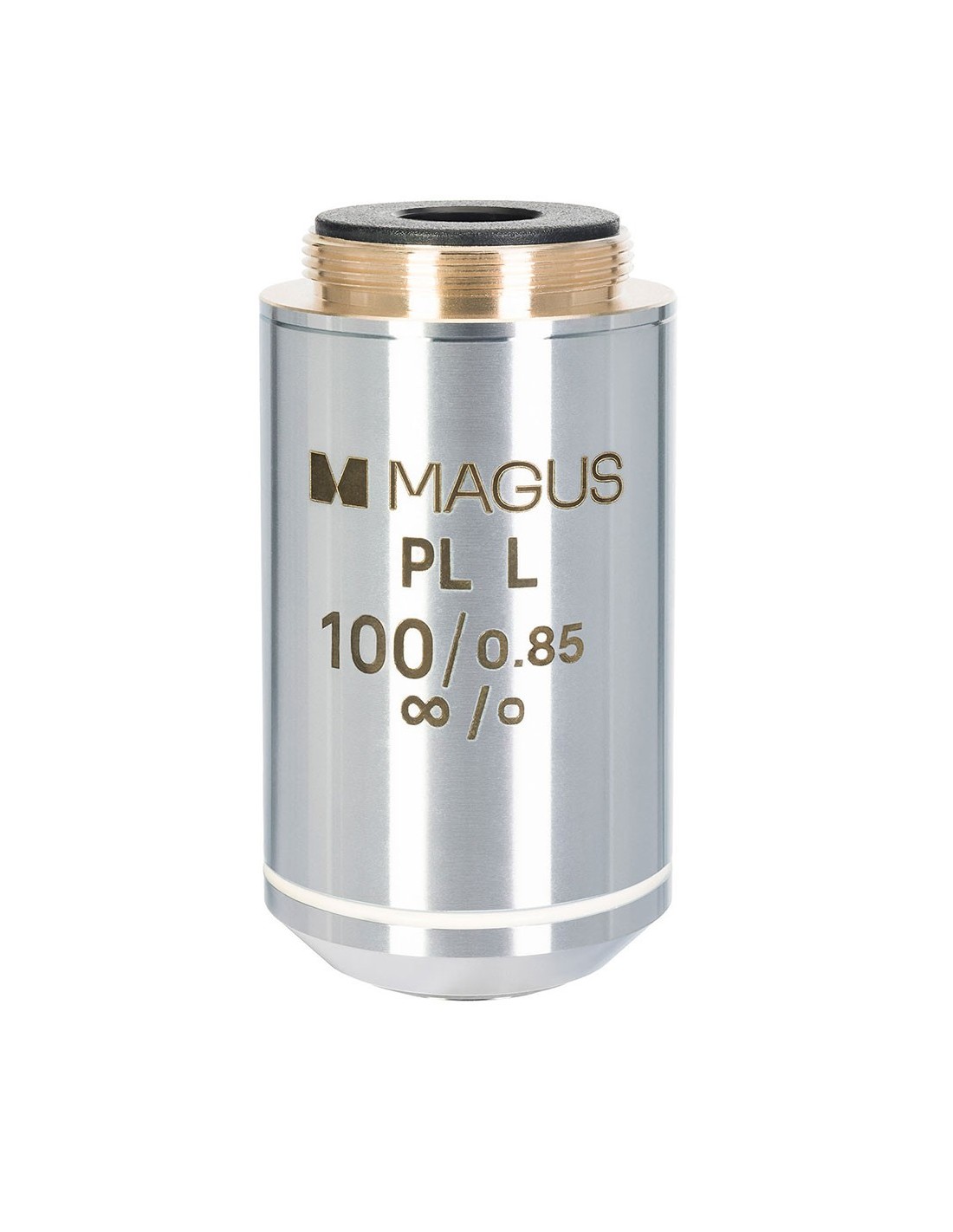

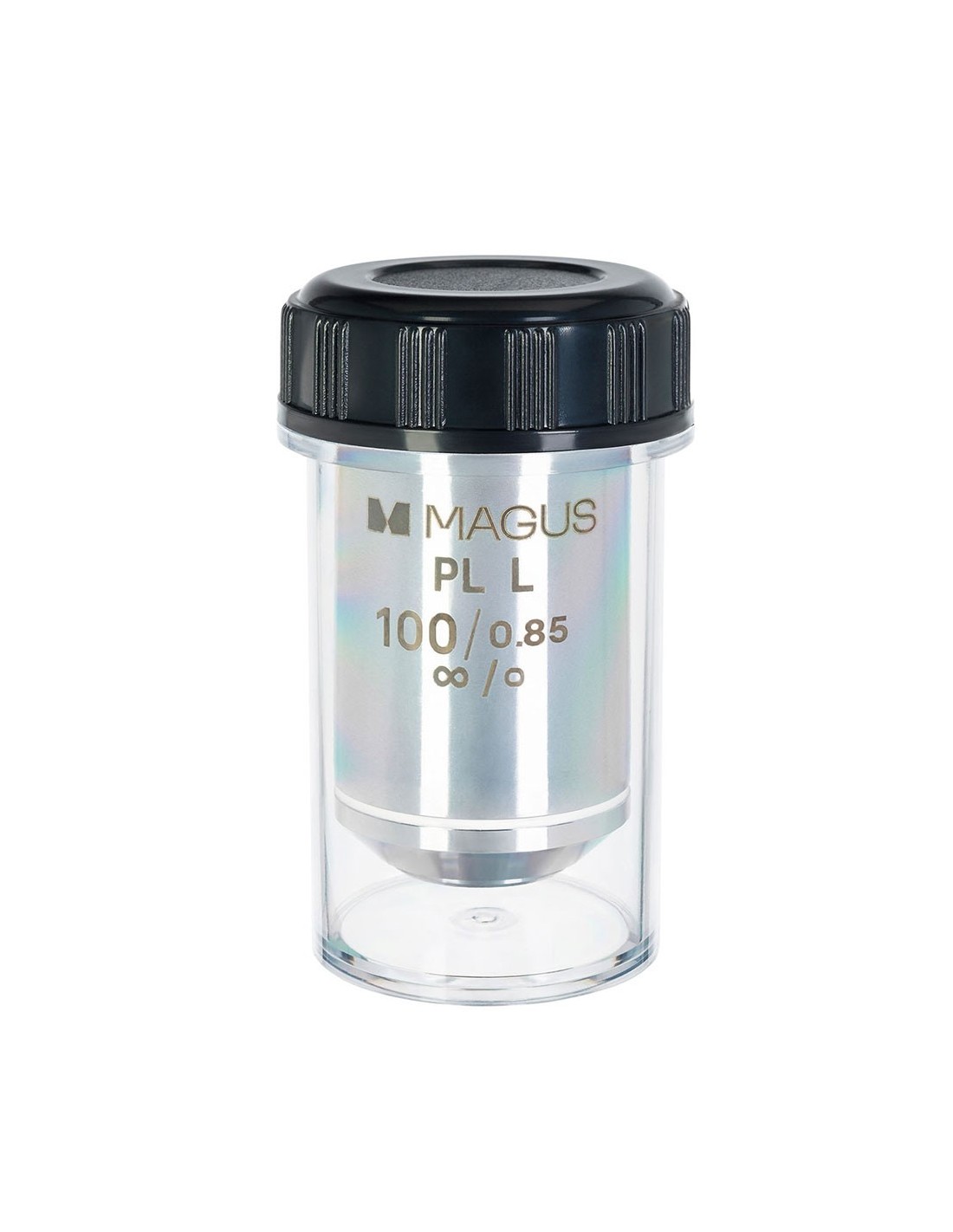

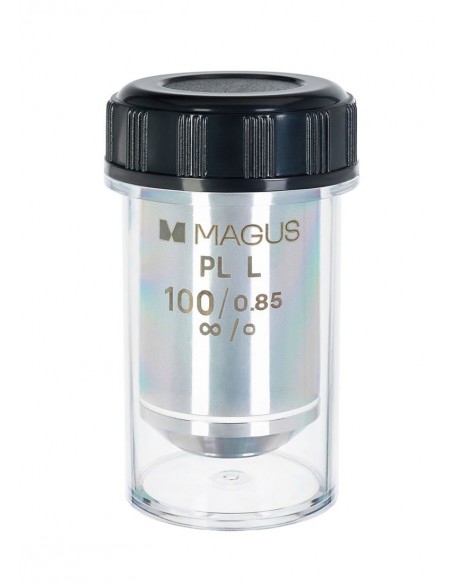

MAGUS SFR100 DRY 100х/0.85 Plan L Pol ∞/0 objective - MAGUS

The polarizing lens is equipped with special anti-distortion lenses. They do not interfere with the passage of light and do not affect the results of the study. The objective is suitable for observations in transmitted and reflected polarized light.

A 100x objective together with a 5x to 10x eyepiece creates a possible microscope magnification of 425x to 850x. Eyepieces with a lower magnification will not allow you to observe the specimen in detail, and eyepieces with a magnification greater than 10x will not provide new information about the specimen.

The planachromatic objective corrects geometric aberration to the 90 % of the diameter of the visual field. The image is sharp and clear both in the center and on the sides. These conditions are ideal for using a digital camera or creating an optical system with a wide-field eyepiece. A 10x/22mm eyepiece will provide a 0.22mm field of view. Chromatic distortion is corrected for red and blue colors, while spherical distortion is corrected for green.

The objective is designed to be mounted on microscopes with an infinity corrected optical system. The parfocal distance is 45 mm. The resolution limit is 0.33 µm.

Compatibility:

• MAGUS Pol 850 polarizing microscope
