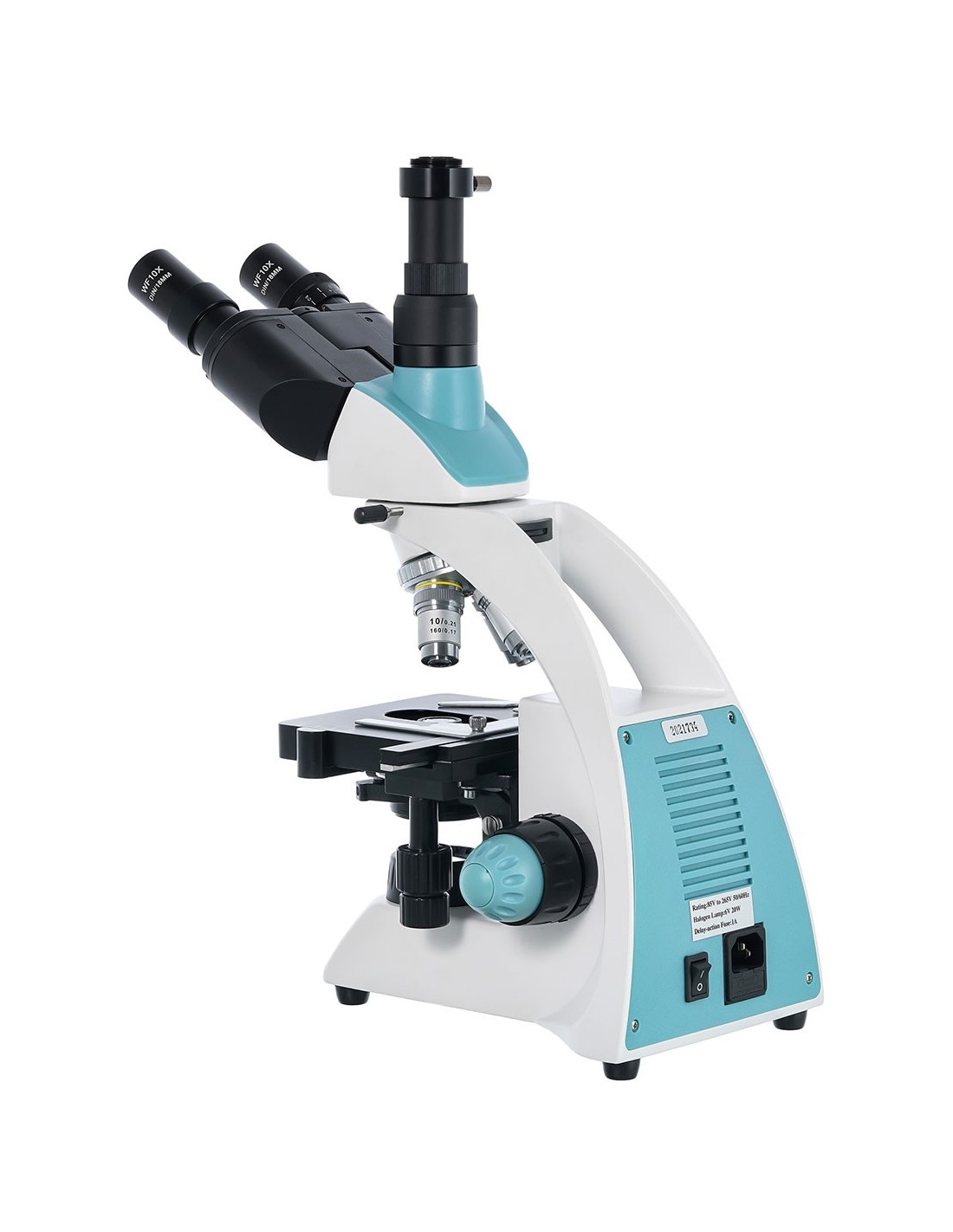

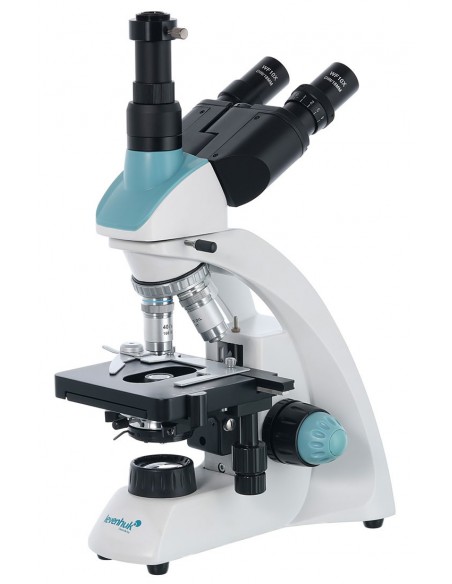

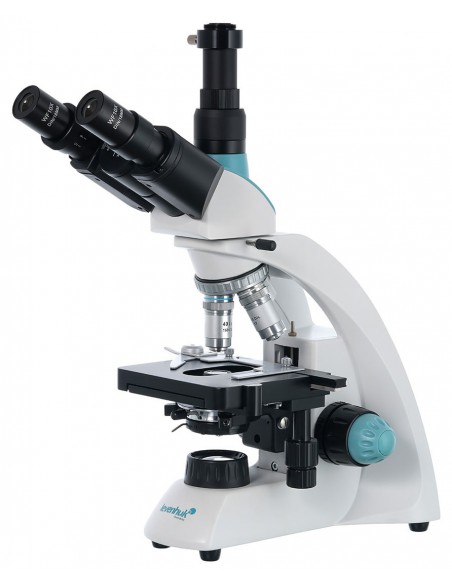

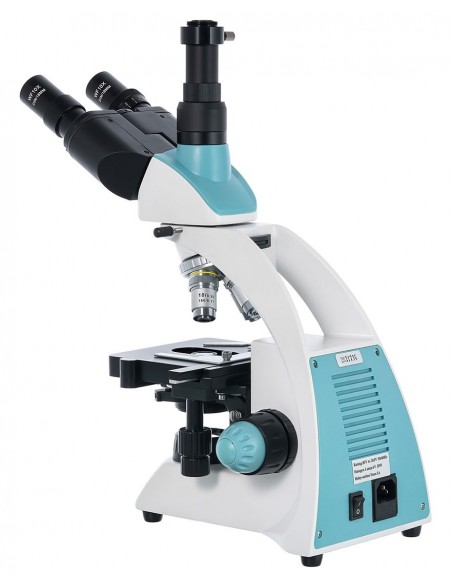

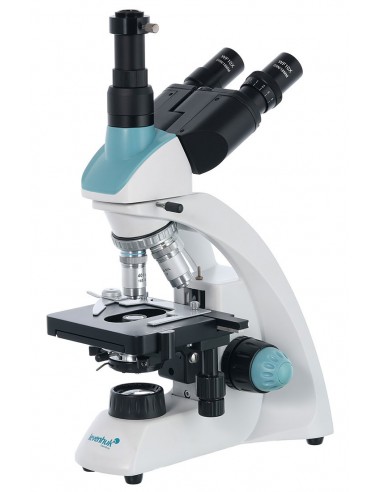

The Levenhuk 500T is a laboratory microscope with variable magnification between 40x and 1000x. It is equipped with wide-field achromatic optics, which produce clear and sharp images. Due to the use of halogen light to illuminate the specimen, the image is realistic and all colors and details of the specimen are crystal clear. This microscope is a real jewel for work in research laboratories, medical centers or veterinary practices.

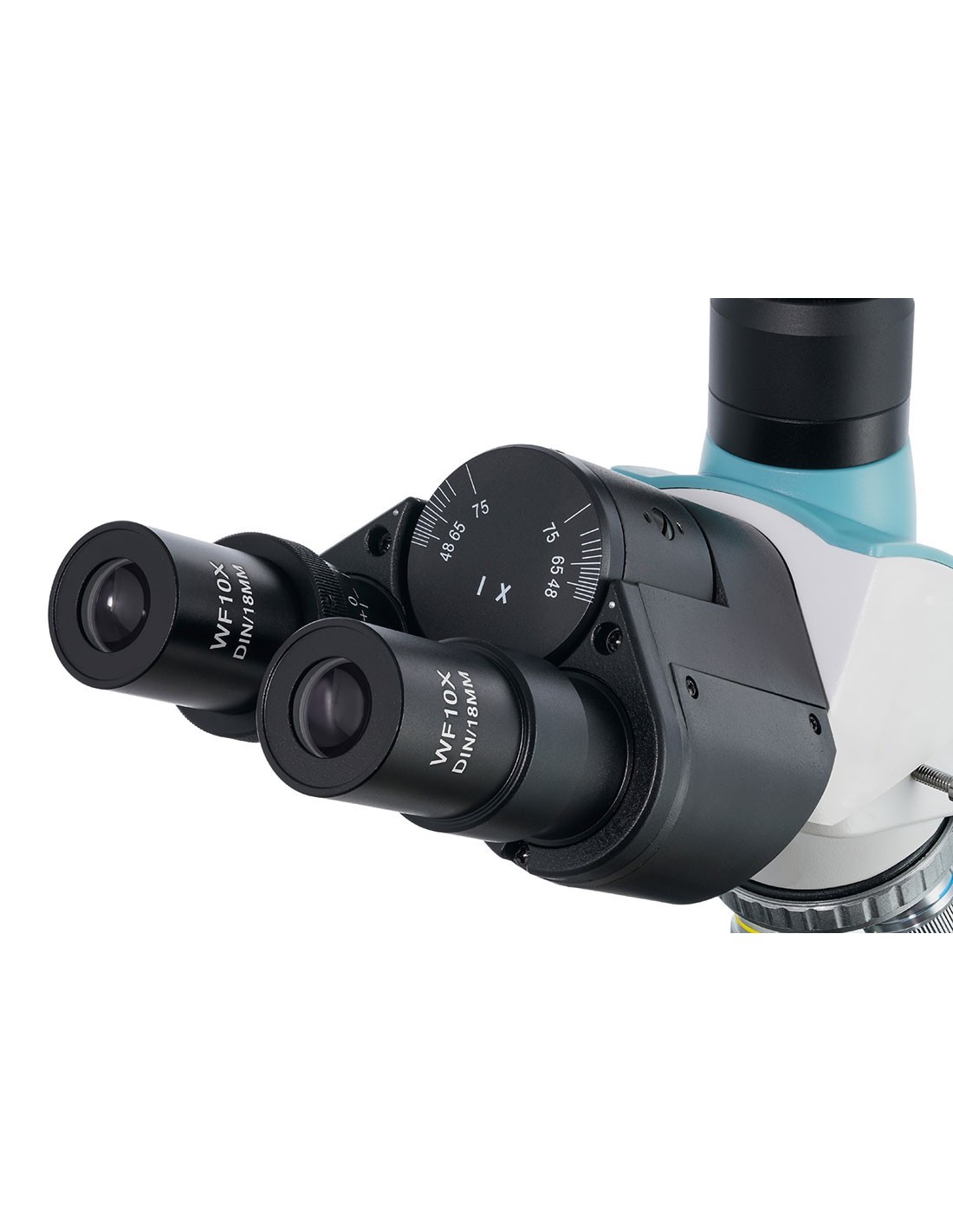

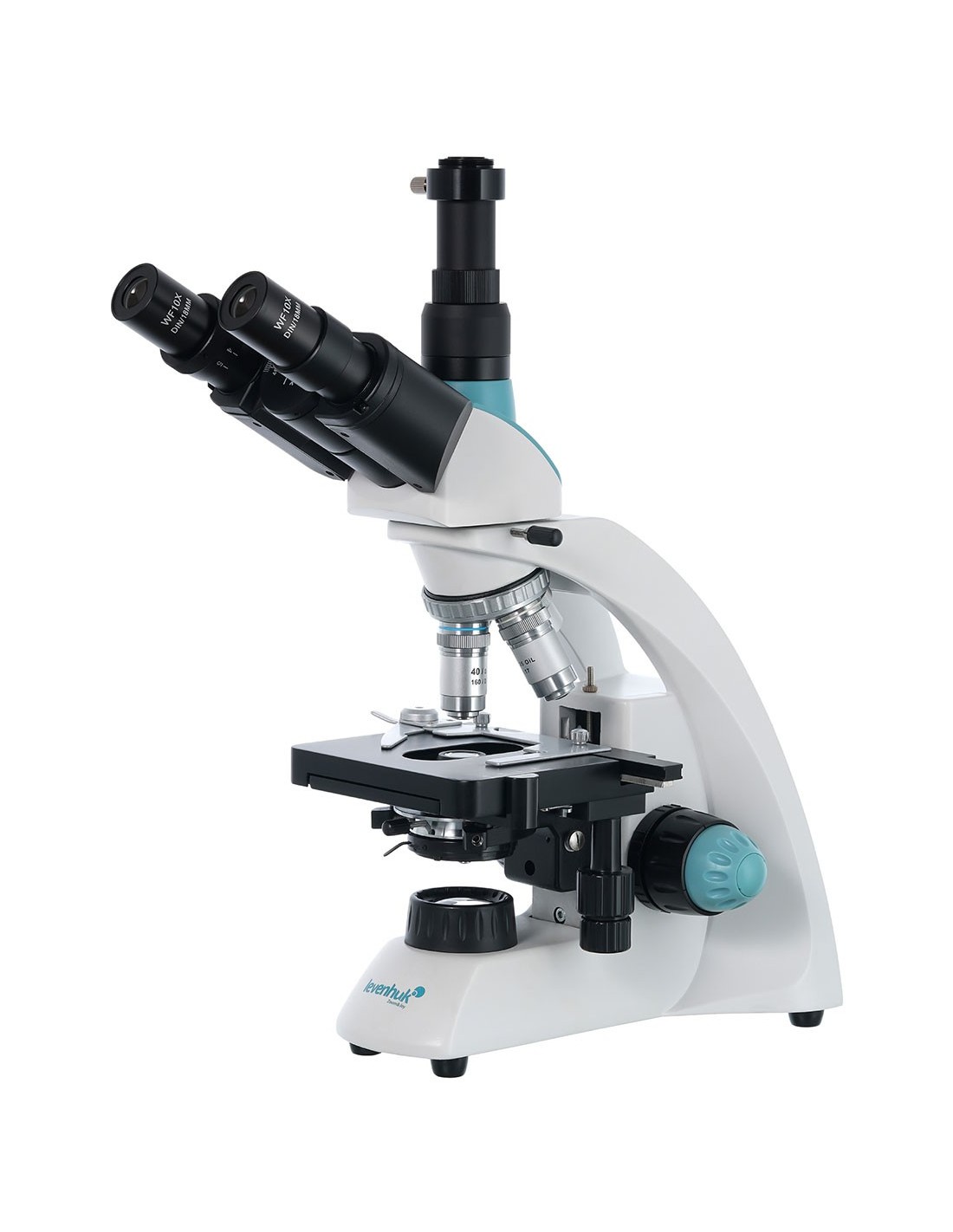

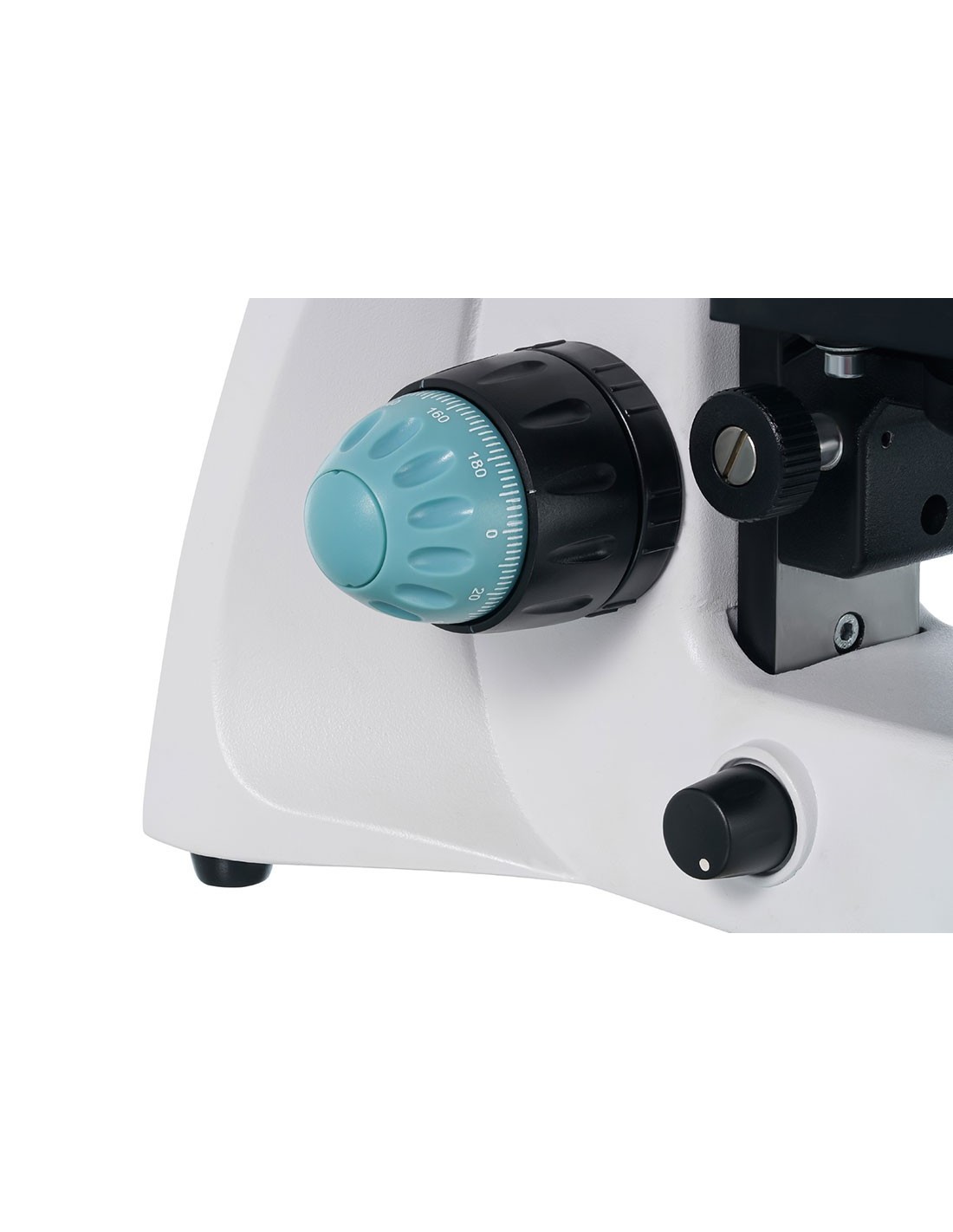

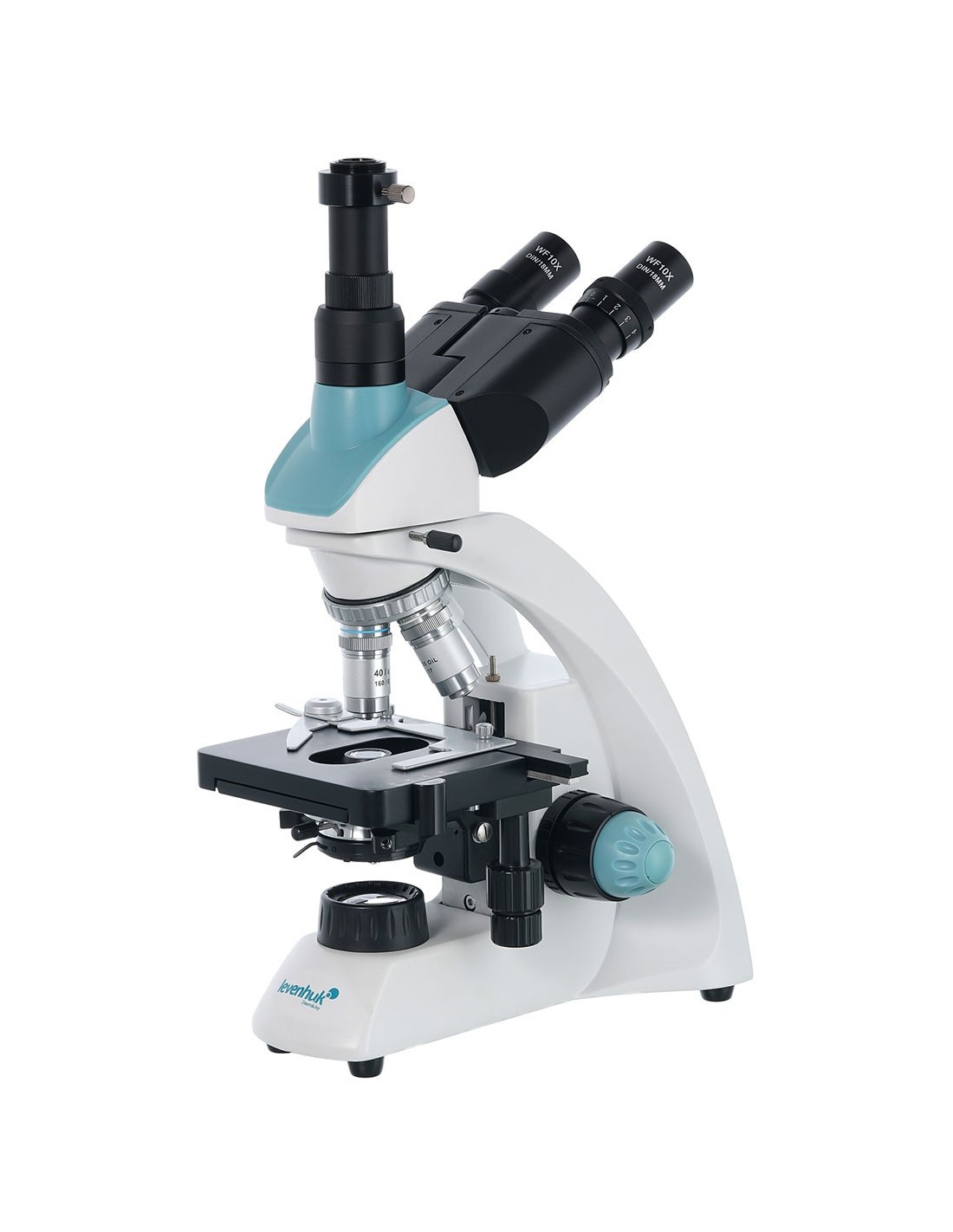

The trinocular head consists of a viewer and a vertical tube for installing a digital camera (not included). It is possible to rotate the head 360°. The kit includes a wide-field eyepiece and four achromatic objectives with different magnifications. The sharpness of the optics is adjustable via the fine and coarse focus knobs located on the base of the microscope. This microscope is designed for brightfield observations. The 100x objective can be used for oil immersion observations. To protect the front lens, the 40x and 100x objectives are equipped with a spring mechanism.

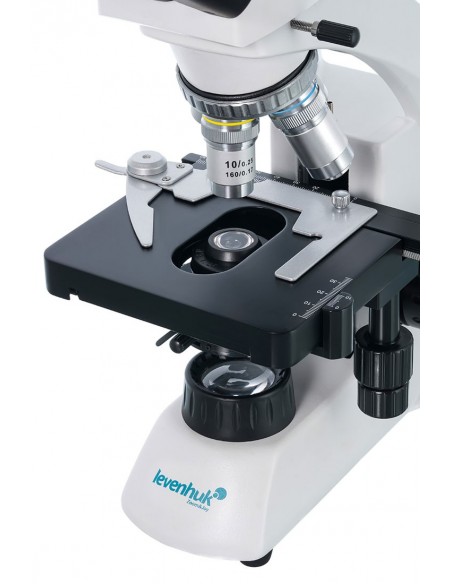

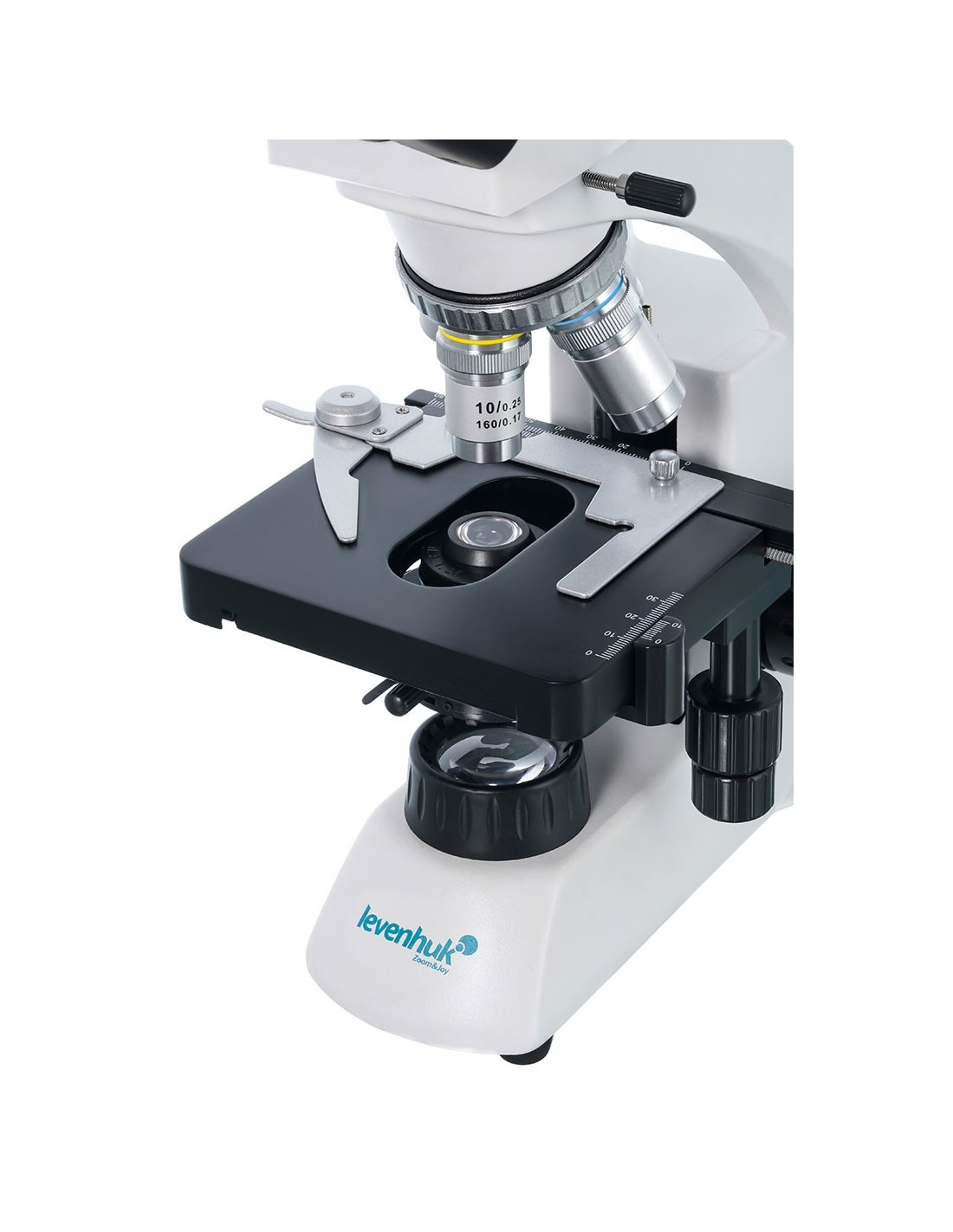

A mechanical translator is installed on the stage which helps to quickly position the sample exactly under the objective. Under the table, there is an Abbe condenser for bright field with adjustable height. Such a condenser has an iris diaphragm and a filter holder. The lighting system consists of a halogen bulb with a collector. The powerful bulb provides uniform and bright illumination of the work area. The brightness of the light is adjustable. The microscope is powered by an AC mains electricity supply.
Features:
- Trinocular and rotatable head, with tube for installing a digital camera
- Wide-field achromatic optics with variable magnification 40x–1000x
- Halogen light with collector, brightness adjustment and powered by the AC mains electricity supply
- Condenser with diaphragm iris and height adjustable
- Coarse and fine focus, metal body
- Slot for installing an analyzer filter (the analyzer is not included)

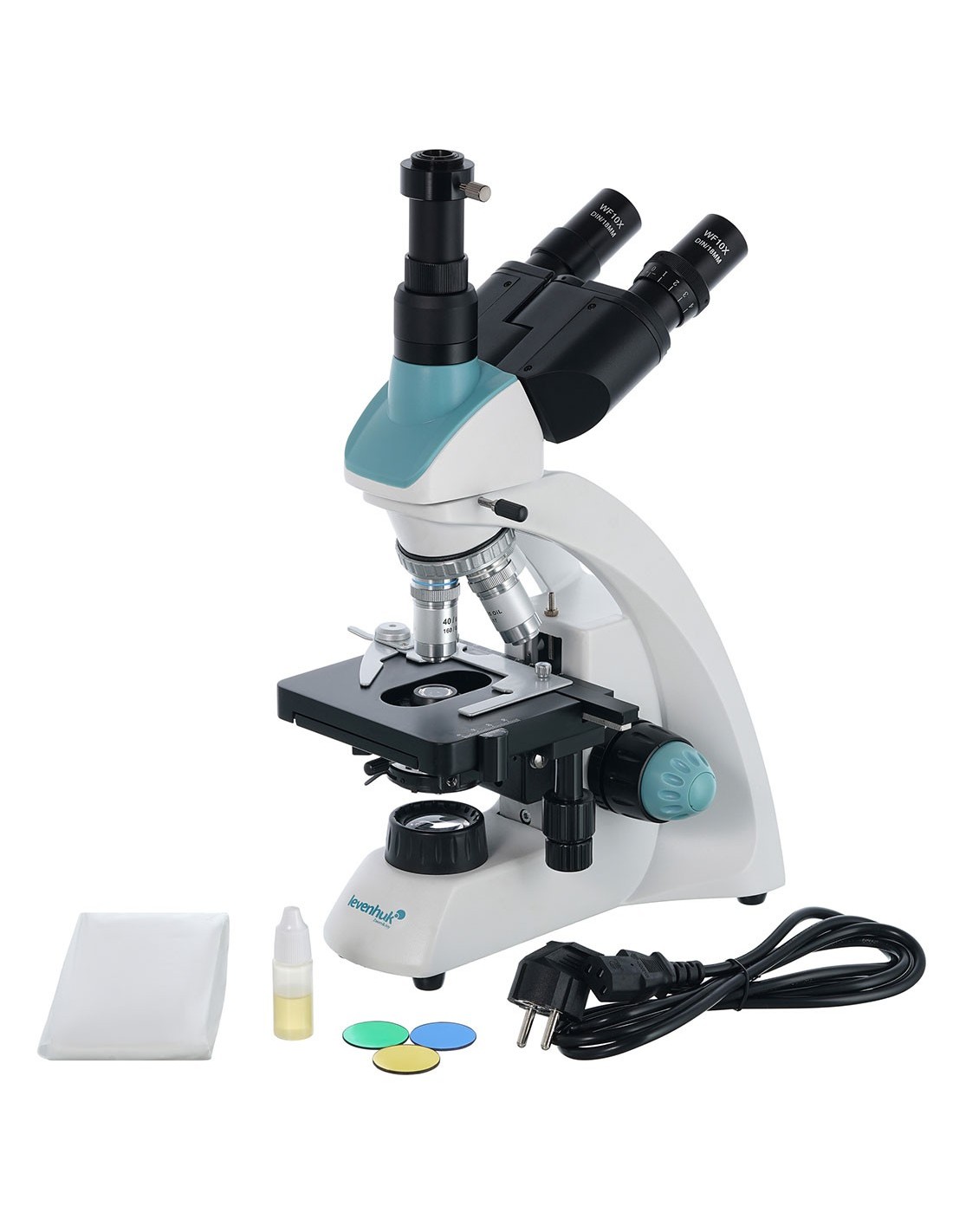

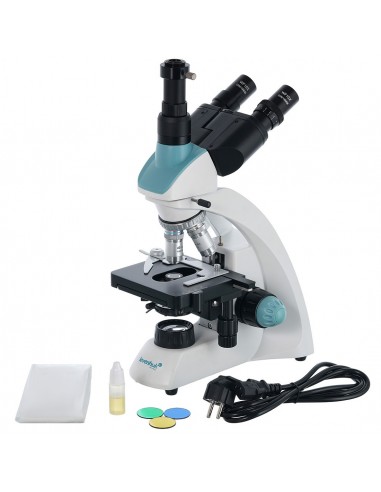

The kit includes:
- Microscope
- Achromatic objectives 4x, 10x, 40xs, 100xs (oil)
- WF10x/18 mm eyepieces (2 pcs.)
- Abbe condenser with NA 1.25 iris diaphragm and filter holder
- Filters: blue, green, yellow li>
- Fuse
- C-mount
- Bottle of immersion oil
- Power cord
- Dust cover
- User manual and lifetime warranty
| Brand | Levenhuk Inc., USA |
| Lifetime guarantee | |
| EAN | 5905555005317 |
| Package size (LxWxH) | 41x32x26 cm |
| Shipping weight | 5.12 kg |
| Type | biological, light/optical |
| Tested | trinocular |
| Optics material | optical glass |
| Vertical tube | 360° rotatable |
| Tilting angle of the head | 30° |
| Magnification, x | 40 — 1000 |
| Magnification range | 800x to 1280x |
| Eyepiece tube diameter, mm | 23.2 |
| Eyepieces | WF10x/18 mm (2 pcs.) |
| Achromatic | objectives: 4x, 10x, 40xs, 100xs (oil immersion) |
| Nosepiece nosepiece | for 4 objectives |
| td> |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 115x125 |
| Range of movement of the table, mm | 70/30 |
| Table features |
| Table features |
| td> | mechanical double layer |
| Eyepiece diopter adjustment, diopters | ±5 |
| Abbe condenser with NA 1.25 with iris diaphragm and filter holder, adjustable height |
| Diaphragm | iris |
| Focus | coaxial; coarse (16 mm) and fine (0.002 mm) |
| Body | metal |
| Lighting< /td> | halogen |
| Brightness adjustment | yes |
| Power supply | 110–220 V |
| Light source type | 12 V/20 W halogen lamp, with collector |
| Optical filters | blue, green, yellow |
| Possibility to connect additional equipment | one slot for installing an analyzer filter (analyzer is not included) |
| User level | expert users |
| Assembly and installation level of difficulty | easy |
| Application | laboratory/medical |
| Lighting position | lower |
| Search method | bright field |
| Set with pencil case/case/bag | dust cover |
