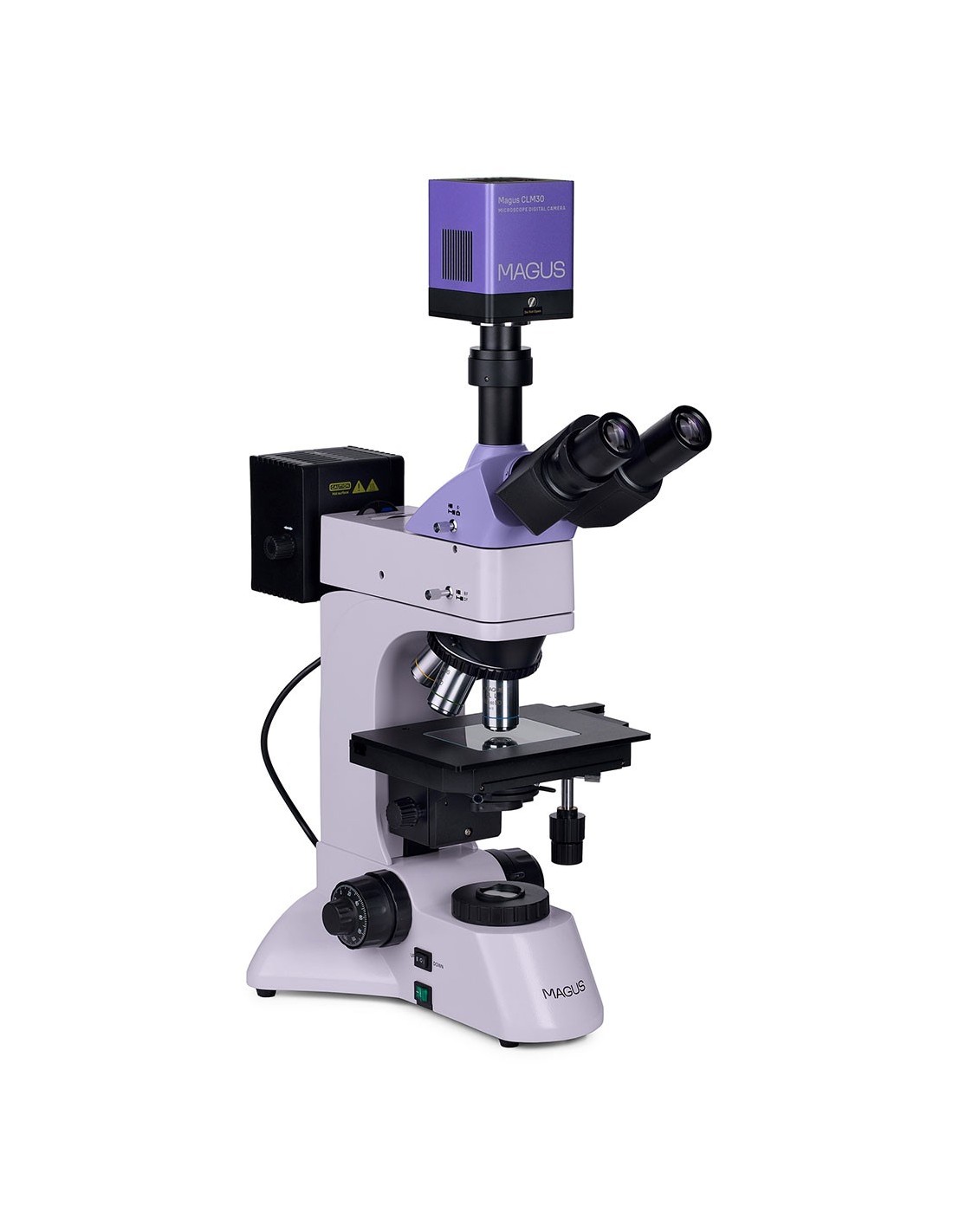

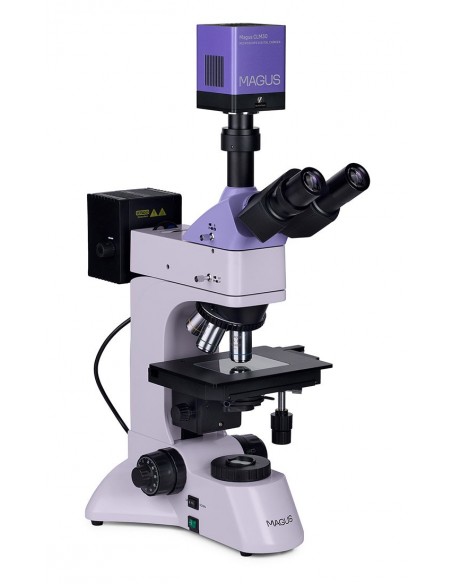

The MAGUS Metal D600 BD metallographic digital microscope is designed for the study of objects in reflected light using bright field, dark field and polarization microscopy techniques. The microscope is used to examine metal and semiconductor samples, as well as other highly reflective polished and flat samples. The transmitted light technique allows the examination of translucent samples such as thin films and particles stuck on filters. The microscope can be used in mechanical and metallurgical engineering, in engineering and quality control laboratories and in polytechnics.

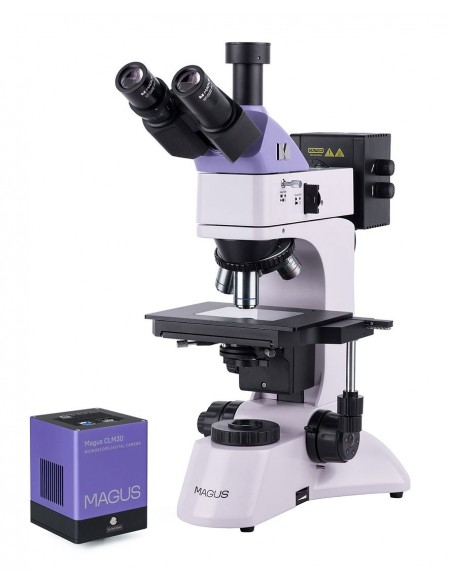

Digital camera
The camera digital MAGUS CLM30 is designed for the dark field and fluorescence microscopy technique. The camera is equipped with an 8.3 MP sensor and produces realistic images at a resolution of 3840x2160 px. It is recommended to use the camera with 4x, 10x, 20x and 40x lenses. When using low magnification lenses, the camera allows the user to see sharper details.
Videos are recorded at 45 fps or 70 fps depending on the resolution - videos flow smoothly with smooth and delicate transactions between frames. The movement of the sample is shown in real time, without delays. The camera facilitates the observation of moving objects and is suitable for academic demonstrations.
The camera is equipped with a USB 3.0 interface. The data transfer speed is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories, research or university education.
Optics
The trinocular head is equipped with a trinocular tube for viewing housing a digital camera. The beam splitter directs the light onto the camera, at two positions: 100:0 and 0:100. The light beam reaches the eyepiece or trinocular tube. Diopter adjustment ring on the left eyepiece.

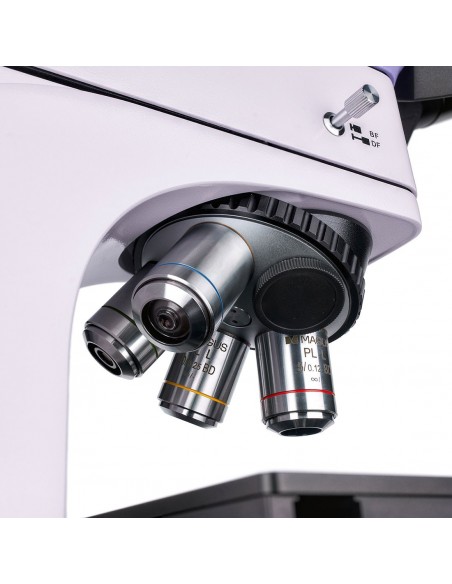

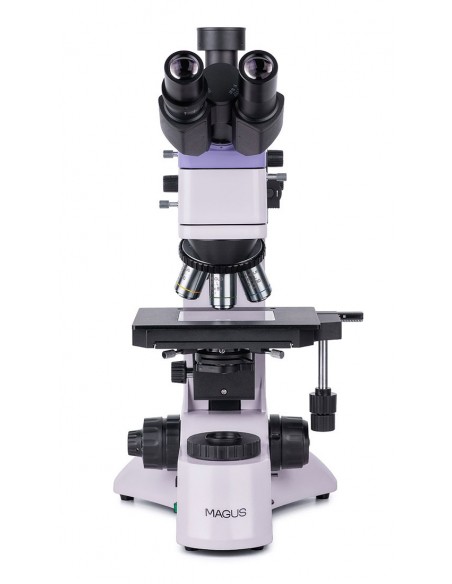

The magnification of the microscope in the basic configuration is 50–400x. Any additional objectives and eyepieces will increase the magnification range. The microscope uses planachromatic objectives with a long working distance suitable for bright- and dark-field microscopy techniques. There are five slots in the nosepiece nosepiece to mount objectives. Four lenses are included and one is optional. The nosepiece is oriented towards the inside of the instrument, so that the user can see which objective is inserted in the optical path.
Illumination
The lighting uses warm light halogen lamps that do not tire the eye during long-lasting observations. The transmitted light illuminator has a power of 30 W and the reflected light illuminator of 50 W, which guarantees comfortable observation via dark field microscopy.
The reflected light illumination system contains: a dark field device, polarization device, centerable field and aperture diaphragms for the Köhler illumination method and color filters. It is also possible to center the light source.
The transmitted light illumination system includes: a condenser with a folding lens for low magnification objectives, an aperture and a field diaphragm for the Köhler method.

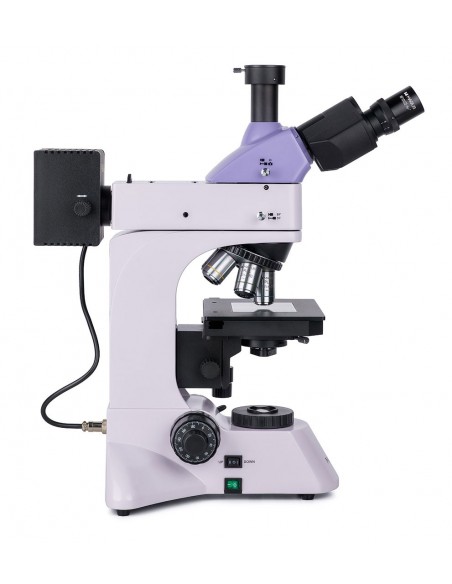

Stage and focusing mechanism
The sample moves together with the stage along the two axes. The height of the examined sample must not exceed 20 mm. The stage features a transparent glass slide for observation of translucent specimens.
Focus is adjusted by means of coarse and fine focus knobs located on both sides at the bottom of the microscope , thus allowing the observer to freely place his hands on the table rather than holding them in the air. The coarse focus mechanism features a lock knob on the right and a tension adjustment knob on the left.
Accessories
The range of compatible accessories with the MAGUS Metal 600 BD microscope includes: objectives with a long distance for dark and bright field observations, eyepieces, calibration slides and digital cameras.
Key features of the microscope:
- Observations of opaque and polished flat specimens up to 20 mm in reflected light using dark-field, bright-field and polarization microscopy techniques
- Observations of translucent specimens in transmitted light
- Trinocular tube for mounting a digital camera and a beam splitter with two positions (100:0 and 0:100)
- Planachromatic objectives with a long working distance. The acronym BD means that it is suitable for dark and bright field techniques
- Transmitted light illuminator with 30 W halogen lamp and reflected light illuminator with 50 W halogen lamp which allow convenient observation under the microscope in dark field
- Köhler illumination (reflected light) with the option of centering the light source, aperture and field diaphragms, color filters
- Köhler illumination (transmitted light) with condenser Centerable and height-adjustable Abbe, flip-up condenser lenses for low magnification objectives
- Wide range of fully compatible eyepieces and lenses
Key camera features:
- For darkfield and fluorescence microscopy with 4x, 10x, 20x and 40x objectives
- 8.3 MP resolution: when performing observations with low magnification, the camera allows the user to see sharper details
- 45 fps and 70 fps, at 3840x2160 pixels and 1920x1080 pixels resolution respectively, for observing samples with moving elements, for recording of video and for moving the specimen without jerks or delays
- The Peltier cell lowers the temperature of the sensor during prolonged operation and eliminates thermal noise, thus allowing the use of a long shutter speed when take photographs.
- The color back-illuminated SONY Exmor CMOS sensor offers images with low noise and high light sensitivity even in low light conditions. You can get sharper, brighter and more saturated color images.
- USB 3.0 interface for fast and smooth data transfer
- Software for recording and editing photos and videos, recording functions external display, linear and angular measurements
The package contains:
- The MAGUS CLM30 digital camera (digital camera, USB cable , 12 V, 3 A adapter, case, installation CD with drivers and software, user manual and warranty card)
- Base with power input, transmitted light light source and condenser, grounding mechanism focus, stage and nosepiece
- Illuminator for reflected light observations with bulb housing
- Trinocular head
- Infinity planachromatic objective: PL L5x/0, 12 BD WD 9.7 mm
- Plan achromatic infinity objective: PL L10x/0.25 BD WD 9.3 mm
- Plan achromatic infinity objective: PL L20x/0, 40 BD WD 7.2 mm
- Planachromatic infinity objective: PL L40x/0.60 BD WD 3.0 mm
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- Transparent stage plate
- 1x C-mount adapter
- Allen key
- AC mains power cable
- Reflected light illuminator power cord
- Dust cover
- User manual and warranty card
Available on request:
- Eyepiece 10x/22 mm with graduated scale
- Eyepiece 12.5x/14 mm (2 pcs.)
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Infinity plan achromatic objective: PL L50х/0.70 BD WD 2.5 mm
- Infinity plan achromatic objective: PL L60x/0.70 BD WD: 1.9 mm
- Infinity plan achromatic objective: PL L80x/0.80 BD WD: 0.8 mm
- Infinity plan achromatic objective: PL L100х/0.85 (dry) BD WD: 0. 4 mm
- Calibration glass
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018300 |
| Package size (LxWxH) | 35x30x75 cm |
| Shipping weight | 17.3 kg |
| Delimiter | MAGUS Metal 600 BD metallographic microscope |
| Type | light/optical, metallographic |
| Head | trinocular |
| Vertical tube | Siedentopf |
| Head tilt angle | 30° |
| Magnification, x | 50–400 base ( *optional: 50–1000/1250/1500/2000/2500) |
| Magnification range | 200x to 800x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Objectives | planachromatic at infinity: PL L5x/0.12 BD, PL L10x/0.25 BD, PL L20x/ 0.40 BD, PL L40x/0.60 BD; parfocal height 45 mm (*optional: PL L50x/0.70 BD, PL L60x/0.70 BD, PL L80x/0.80 BD, PL L100x/0.85 BD (dry)) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 9.7 ( 5x); 9.3 (10x); 7.2 (20x); 2.5 (50x); 3.0 (40x); 1.9 (60x); 0.80 (80x); 0.40 (100x) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 210x140 |
| Range of movement of the stage, mm | 75/50 |
| Stage features | two-axis mechanical stage, with a glass slide |
| Eyepiece diopter adjustment, diopters | ±5 (on the left barrel) |
| Condenser | transmitted light: centerable and height-adjustable Abbe condenser, NA 1.25, aperture diaphragm and lenses adjustable folding, with fixing screws |
| Diaphragm | transmitted and reflected light: integrated aperture and field diaphragms |
| Focus | coaxial, coarse focus (25 mm, with fixing knob and tension adjustment knob) and fine focus (0.002 mm) |
| Lighting | halogen |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Optical filters | green, blue, yellow , satin |
| Operating temperature range, °C | 5 — 35 |
| Extra elements< /td> | integrated analyzer and removable polarizer, dark field device |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | metallographic |
| Illumination position | double |
| Search method | bright field, dark field, polarized light |
| Set with pencil case/case/bag | dust cover |
| Weight, kg |
| td> | 11 |
| === Delimiter === | Digital camera |
| Sensor | SONY Exmor CMOS |
| Color/monochrome | color |
| Megapixel | 8.3 |
| Maximum resolution, px | 3840x2160 |
| Sensor size | 1/1.2'' (11.14x6.26 mm) |
| Pixel size, µm | 2.9x2.9 |
| Two-phase thermoelectric module (Peltier cell) to set the temperature at 42°C below room temperature | yes |
| Light sensitivity | 5970 mV with 1/30 s |
| Signal to noise ratio< /td> | 0.15 mV at 1/30 s |
| Exposure time | 0.1 ms – 1 h |
| Video recording | yes |
| Frame rate, fps@resolution | 45@ 3840x2160, 70@1920x1080 |
| ADC digital capacity (bit) | 8/12 (selectable) |
| Installation location | trinocular tube |
| Image format | *.jpg, *.bmp, *.png, * .tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 (integrated IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, color control display |
| Software | MAGUS View |
| Output | USB 3.0 , 5 Gb/s |
| System requirements | Windows 8/10/11 (32 bit and 64 bit), Mac OS at 2.8 GHz Intel Core 2 or later, minimum 2 GB RAM, USB 3.0 port, CD-ROM, 17" or larger |
| Mount type | C-mount |
| Body | CNC aluminum alloy |
| Camera power supply< /td> | DC, 5 V, from computer USB port; 12 V, 3 A adapter for the Peltier cell |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
