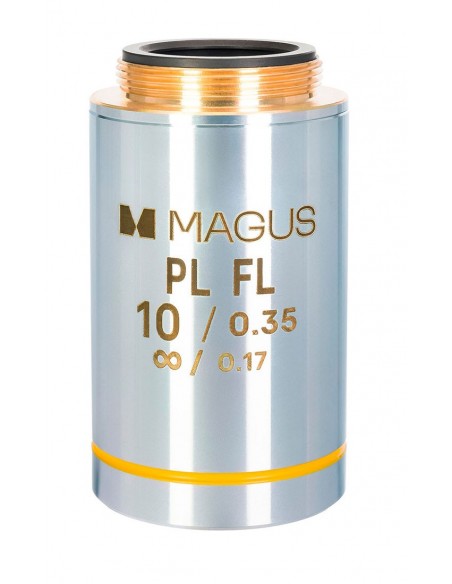

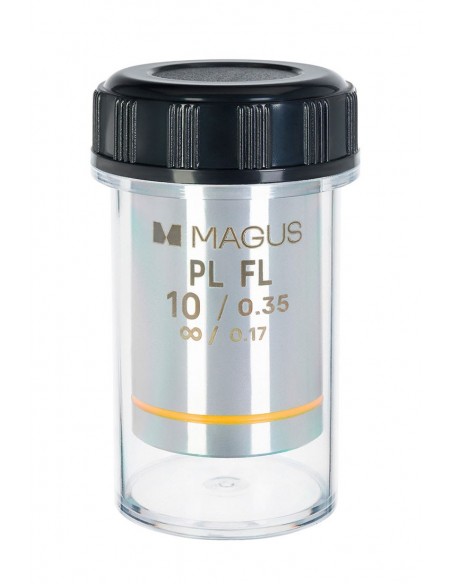

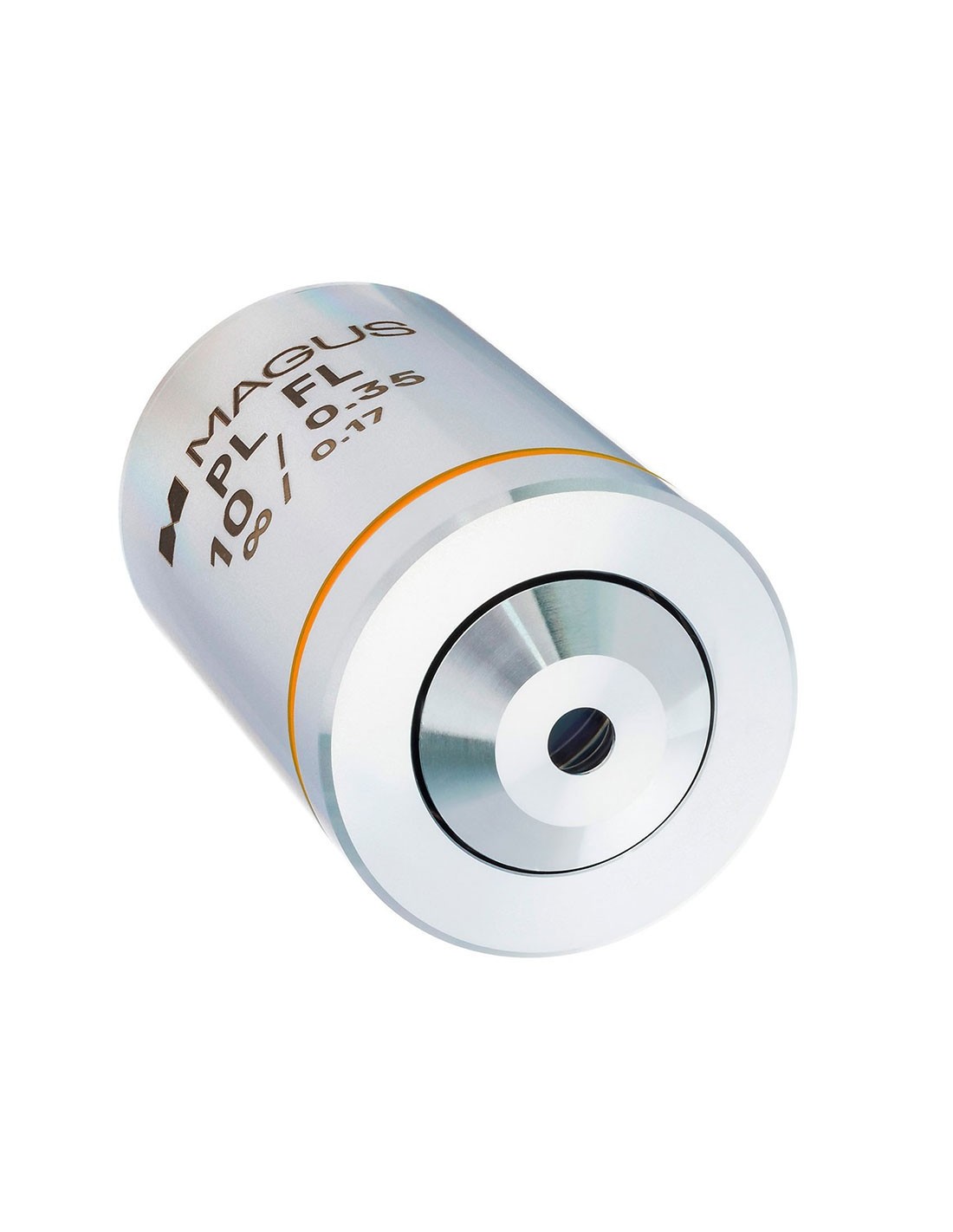

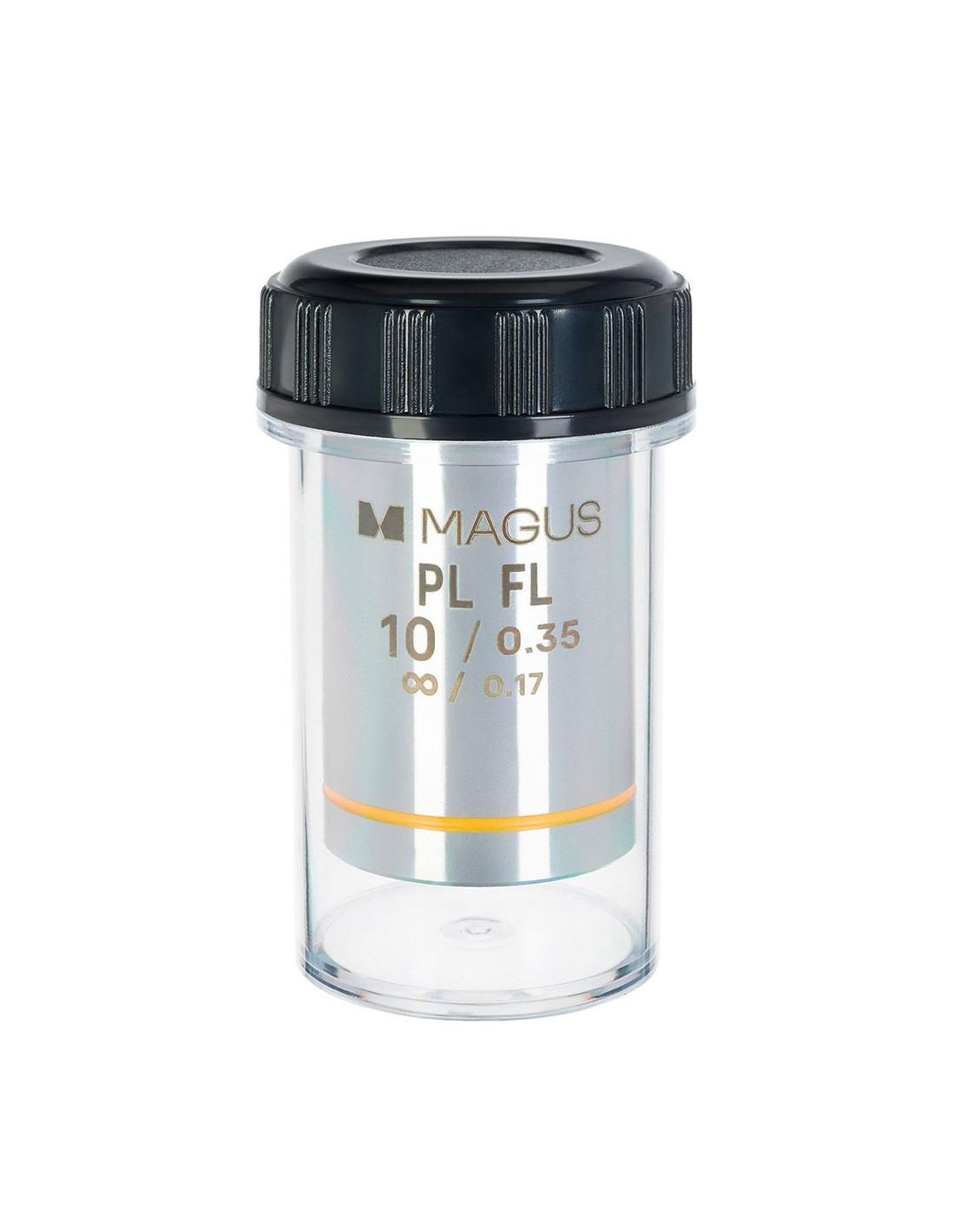

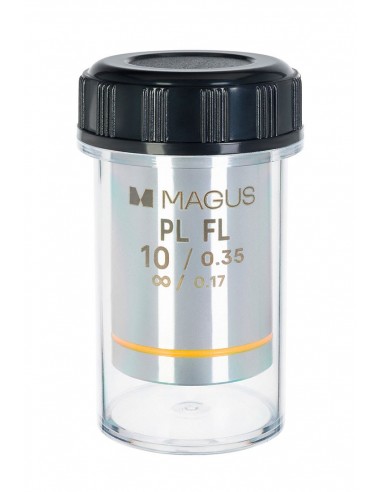

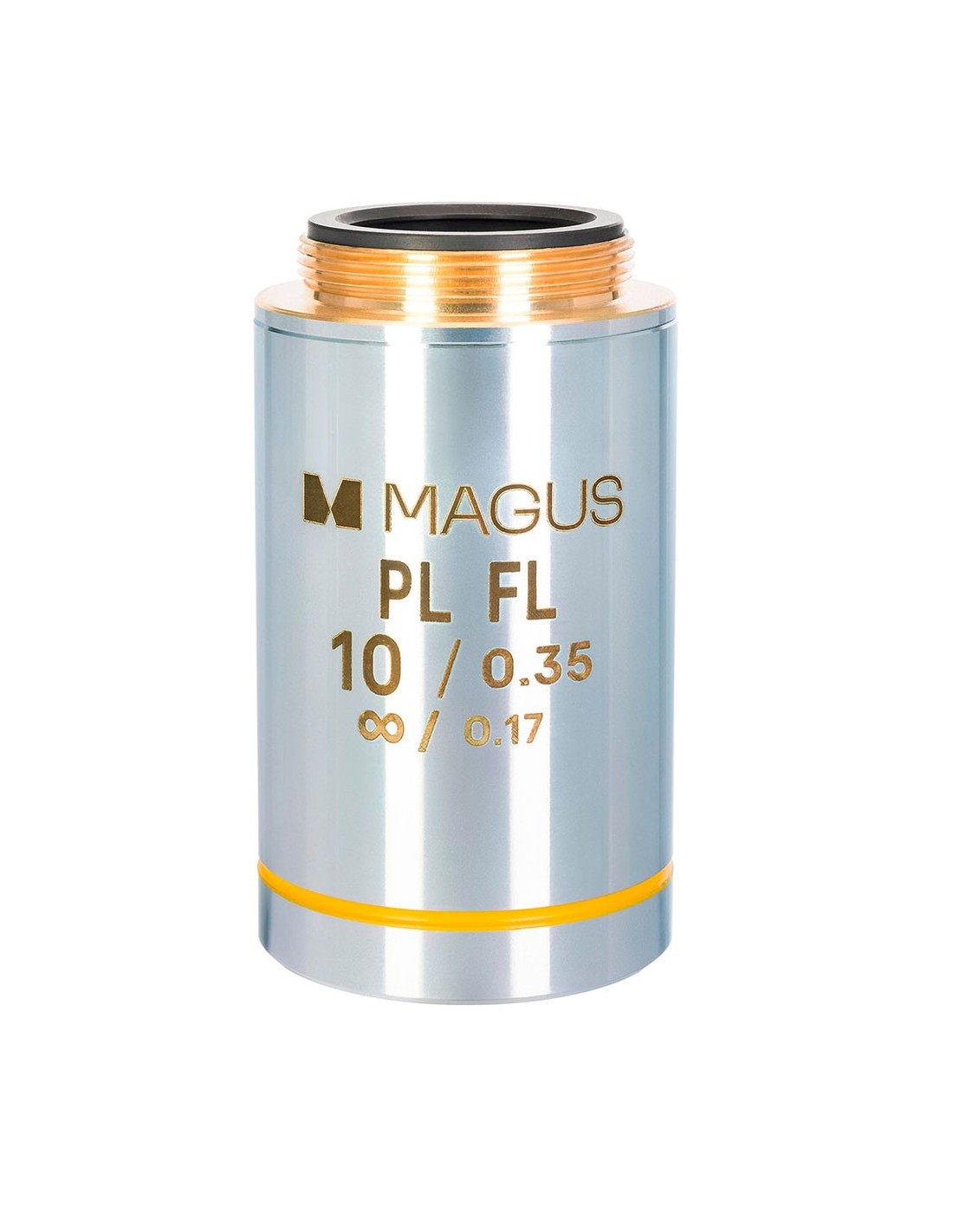

MAGUS 10PLFL 10х/0.35 Plan FL ∞/0.17 objective - MAGUS

The 10PLFL objective is designed for observations in fluorescent light. The special optics do not produce their own fluorescent light or exhibit birefringence. The lens, with its high NA, produces a high-resolution image: observations or image acquisition with a digital camera are more detailed, clear and expressive than with a standard lens.

The wide, flat field of the objective produces a wide field of images and works well with wide-field eyepieces or a digital camera. For example, with a 10x eyepiece and a 22mm field of view, the total system field of view will be 2.2mm. For working with the lens in fluorescent light, we recommend using the CLM90 7.1 MP, 1.1'' digital camera.

The 10PLFL lens provides 10x magnification. When mounted on a microscope, the total usable magnification of the system will be between 175x and 350x. To achieve these parameters, use the appropriate eyepieces. Lower magnification eyepieces are not recommended for the system, as they will not allow you to examine the object in detail. Excessive eyepiece magnification will not provide new information about a specimen. The 10PLFL objective has a resolution limit of 0.78 µm.

The model is designed for installation in an infinity corrected tube. The parfocal distance is 45 mm. Cover the sample with a 0.17 mm thick cover glass.

Compatibility:

• MAGUS Lum 400 Fluorescence Microscope
• MAGUS Lum 400L fluorescence microscope
