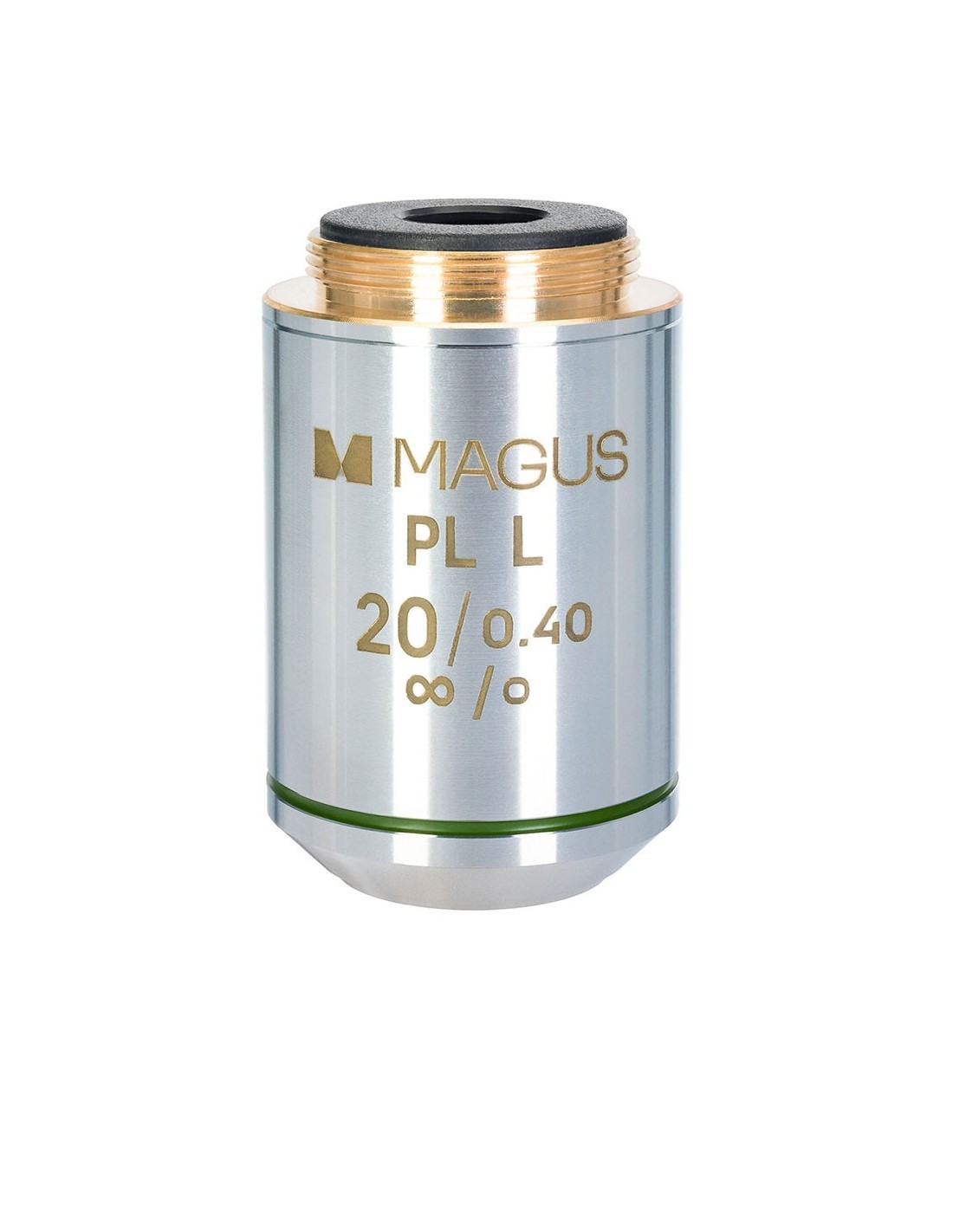

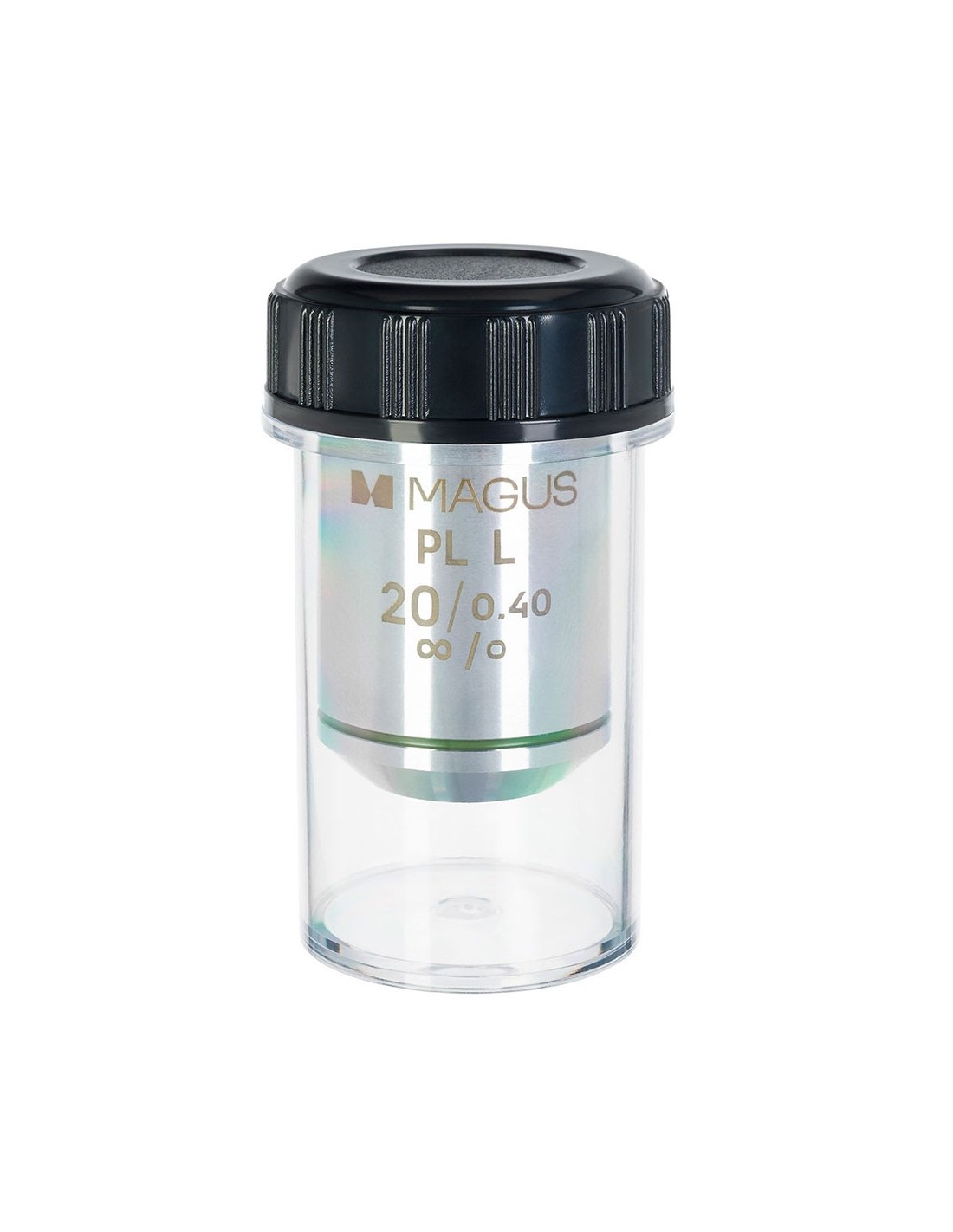

MAGUS 20PLL 20х/0.40 Plan L WD 8.80 mm objective - MAGUS

Art. OM-83461
€259.95
Tax included

Objective with 20x magnification for a metallurgical microscope. It is optimal for working with eyepieces having magnifications from 10x to 20x. The useful magnification of a microscope with this objective is in the range of 200–400x; its maximum resolution is 0.69 µm.



Objective with 20x magnification for a metallurgical microscope. It is optimal for working with eyepieces having magnifications from 10x to 20x. The useful magnification of a microscope with this objective is in the range of 200–400x; its maximum resolution is 0.69 µm.

The planachromatic optics corrects field curvature by 90% and produces a clear, undistorted image over almost the entire field of view. It is recommended to combine the objective with eyepieces having a large field of view: 22 mm. Combining with a 10x/22mm eyepiece will produce a 1.1mm diameter field of view. Chromatic aberration has been corrected for red and blue, and spherical aberration has been corrected for green.

A metallurgical lens requires operation with a cover glass. The object of study may have a consistency with large differences in height and with a standard objective position, there is a risk of damaging this or the sample. Therefore, the objective of the MAGUS 20 PLL metallurgical microscope has a larger working distance than the standard one, at 8.8 mm.

The objective is compatible with infinity corrected microscopes. Its parfocality is 45 mm.

Compatibility:

  • MAGUS Metal 600 metallographic microscope
  • MAGUS Metal 630 metallographic microscope
  • MAGUS Metal 650 metallographic microscope
  • MAGUS Metal V700 inverted metallographic microscope
Specifications
Lens material optical glass
Class of lenses by degree of aberration correction planachromatic
Focal length of the tube corrected to infinity (∞)
Contrast technique bright field
Magnification, x 20
Aperture 0.40
Working distance , mm 8.80
Parfocal distance, mm 45
Coverglass thickness, mm without a coverslip
Spring mechanism −
Immersion −
Body material copper
BrandMAGUS
Warranty 2 orders
EAN5905555021089
Package size (LxWxH)7x4x4 cm
Shipping weight0.11 kg
MAGUS
