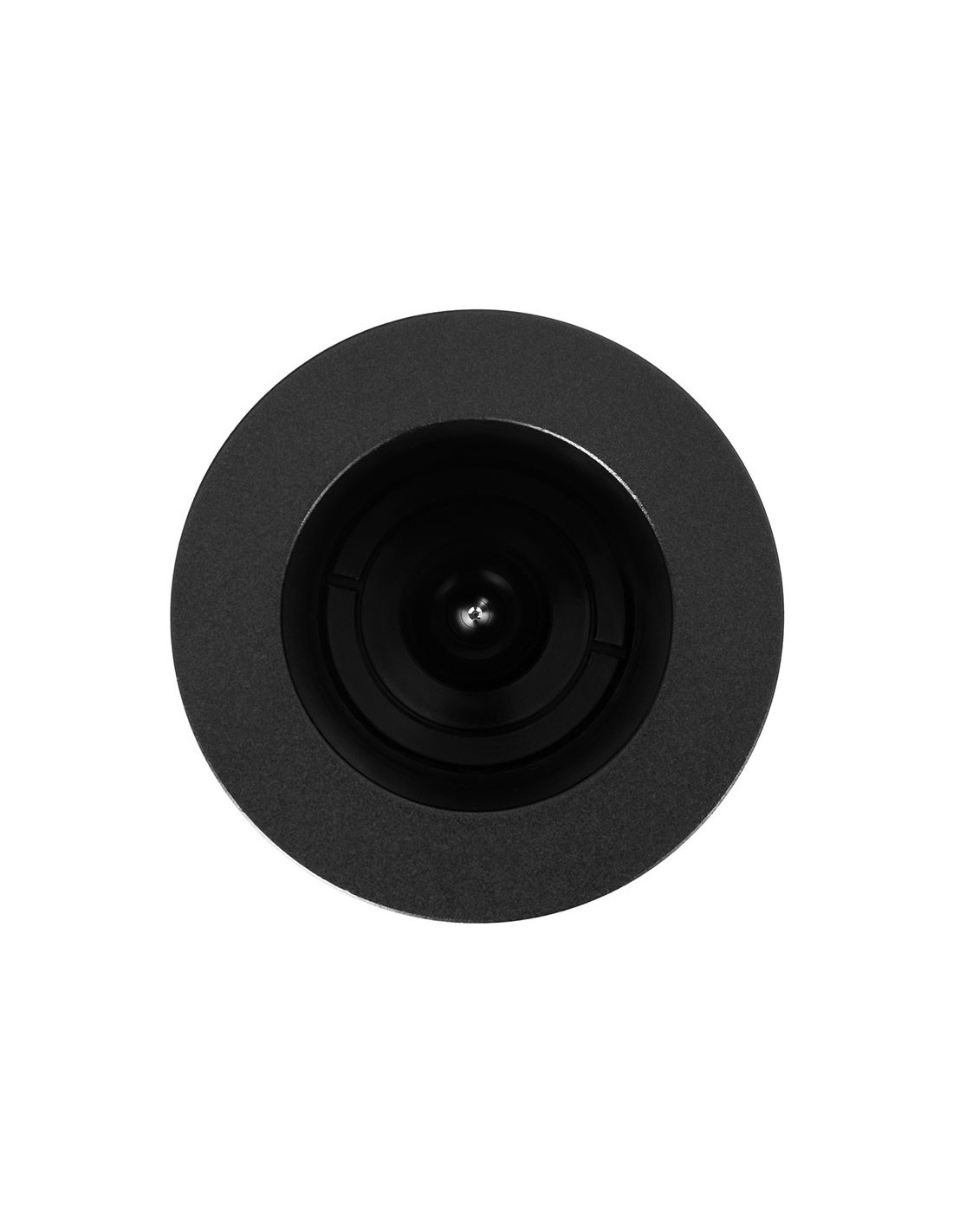

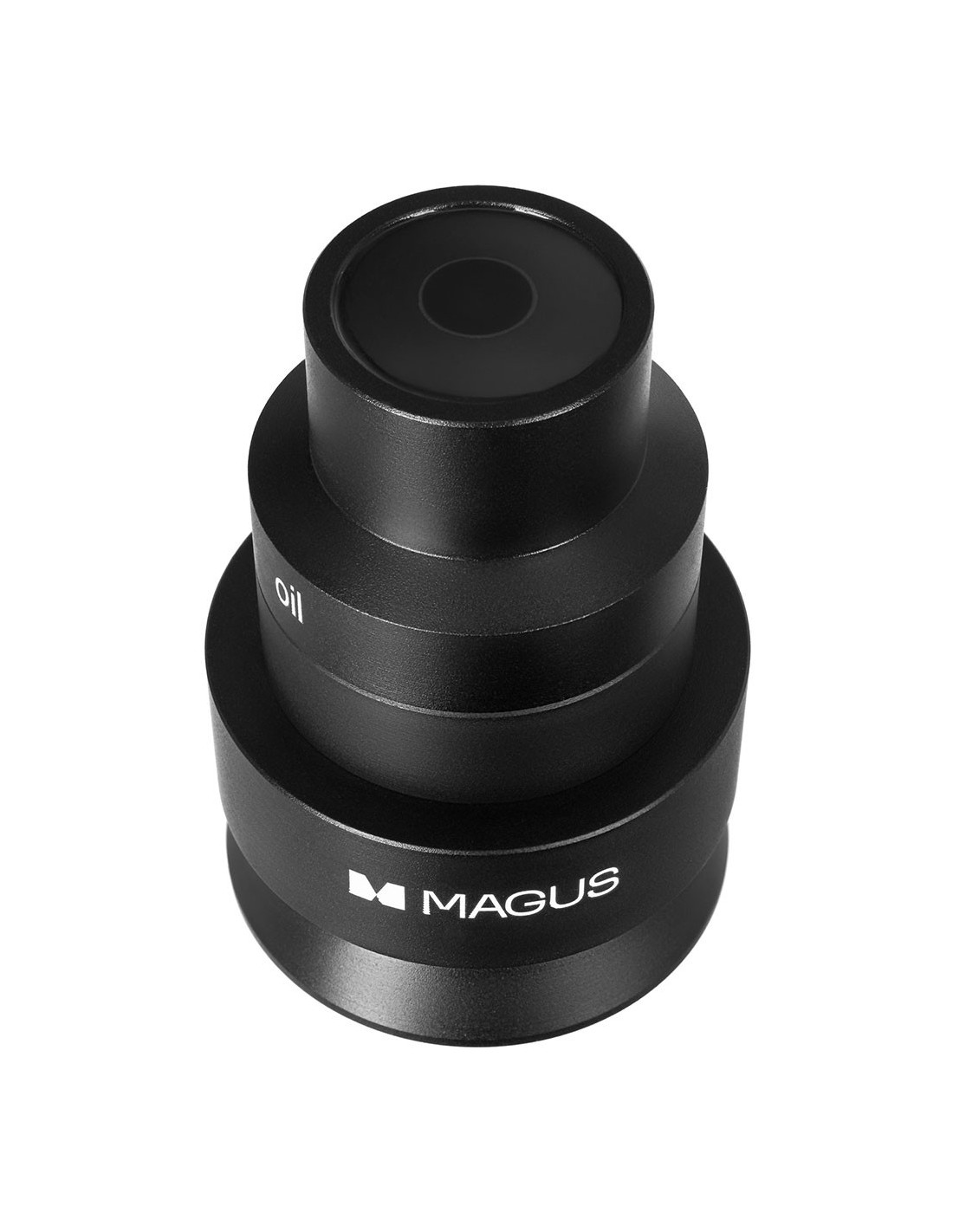

MAGUS DF2 A 1.36–1.25 Oil Darkfield Condenser - MAGUS

Art. OM-82923
€339.95
Tax included

This dark field condenser has a numerical aperture (NA) of 1.36–1.25. Its main use is to obtain contrasted images for transparent, non-dye-treated samples, which cannot be observed with bright-field microscopy techniques. It is used in combination with objectives over 20x magnification, including objectives suitable for oil immersion.



This dark field condenser has a numerical aperture (NA) of 1.36–1.25. Its main use is to obtain contrasted images for transparent, non-dye-treated samples, which cannot be observed with bright-field microscopy techniques. It is used in combination with objectives over 20x magnification, including objectives suitable for oil immersion.

Immersion oil on the condenser is necessary for both dry and oil objectives, otherwise the light will not be able to reach the sample. The MAGUS DF2 A condenser must be housed in the microscope frame in place of the Abbe condenser and centered by turning two screws. The image will have maximum contrast with the use of 0.17 mm thick coverslips and 1–1.2 mm thick coverslips.

Compatibility:

  • MAGUS Bio 230B biological microscope
  • MAGUS Bio 230BL biological microscope
  • MAGUS Bio 230T biological microscope
  • MAGUS Bio biological microscope 230TL
  • MAGUS Bio 250B biological microscope
  • MAGUS Bio 250BL biological microscope
  • MAGUS Bio 250T biological microscope
  • MAGUS Bio 250TL biological microscope /li>
  • MAGUS Lum 400 Fluorescence Microscope
  • MAGUS Lum 400L Fluorescence Microscope
Specifications
NA 1.36 –1.25
Immersion medium oil
Applicable objectives 20х, 40х, 60х, 100х (oil)
Brand MAGUS
Warranty2 days
EAN5905555019086
td>
Package size (LxWxH)5x8x5 cm
Shipping weight0.12 kg
