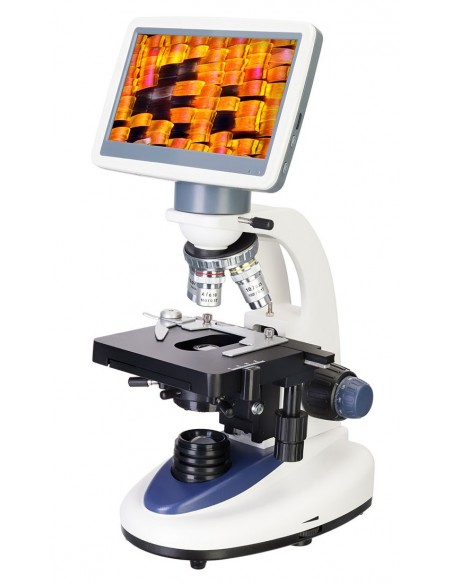

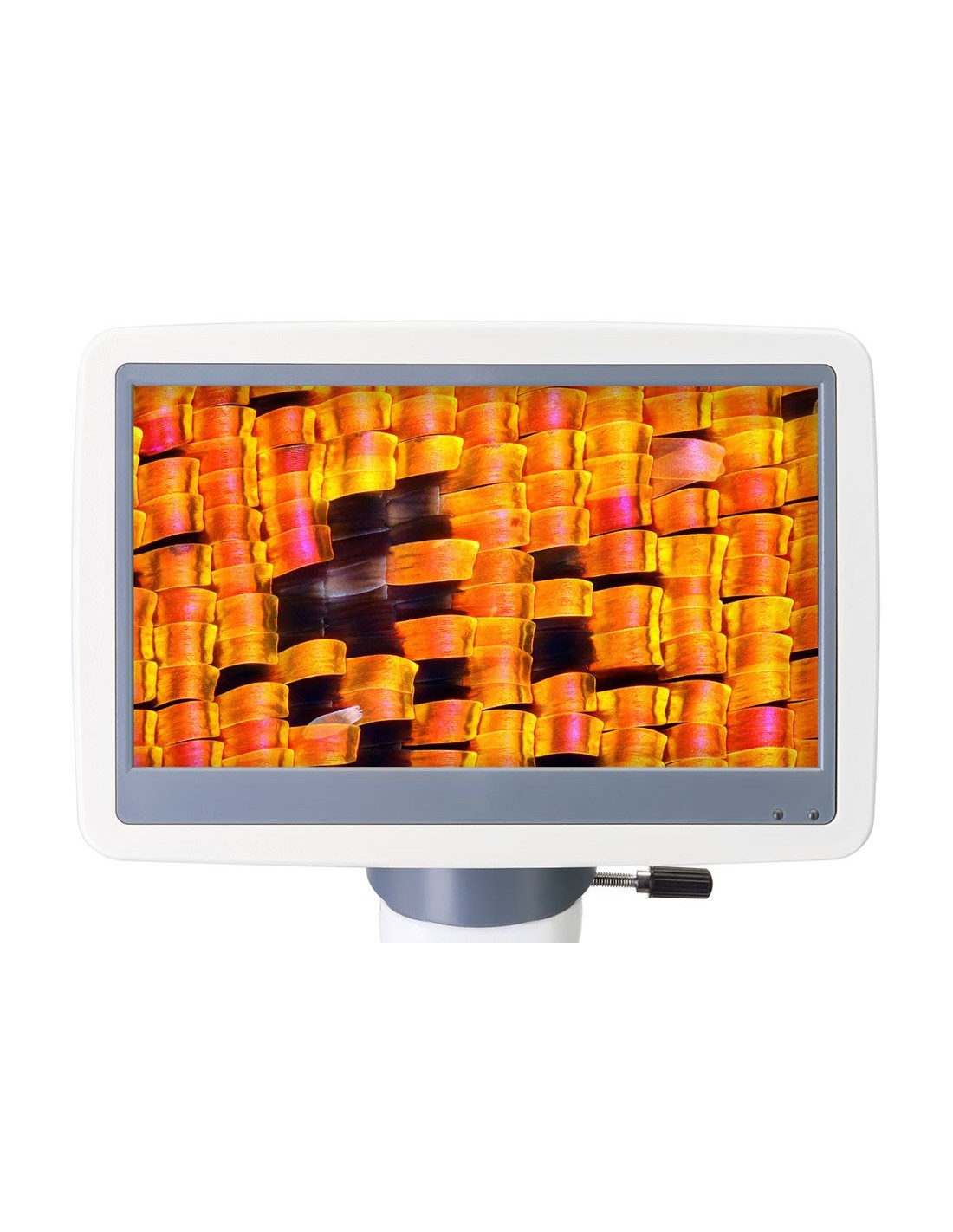

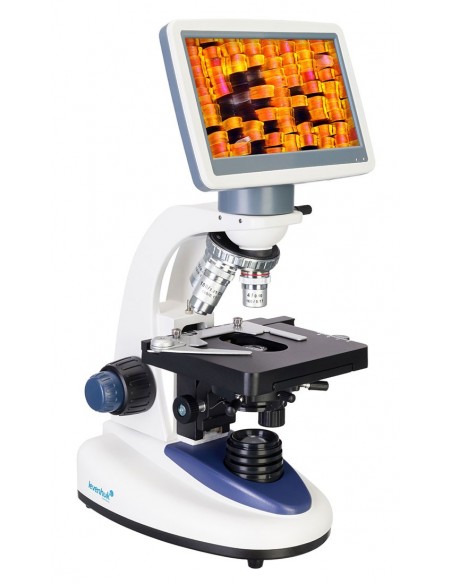

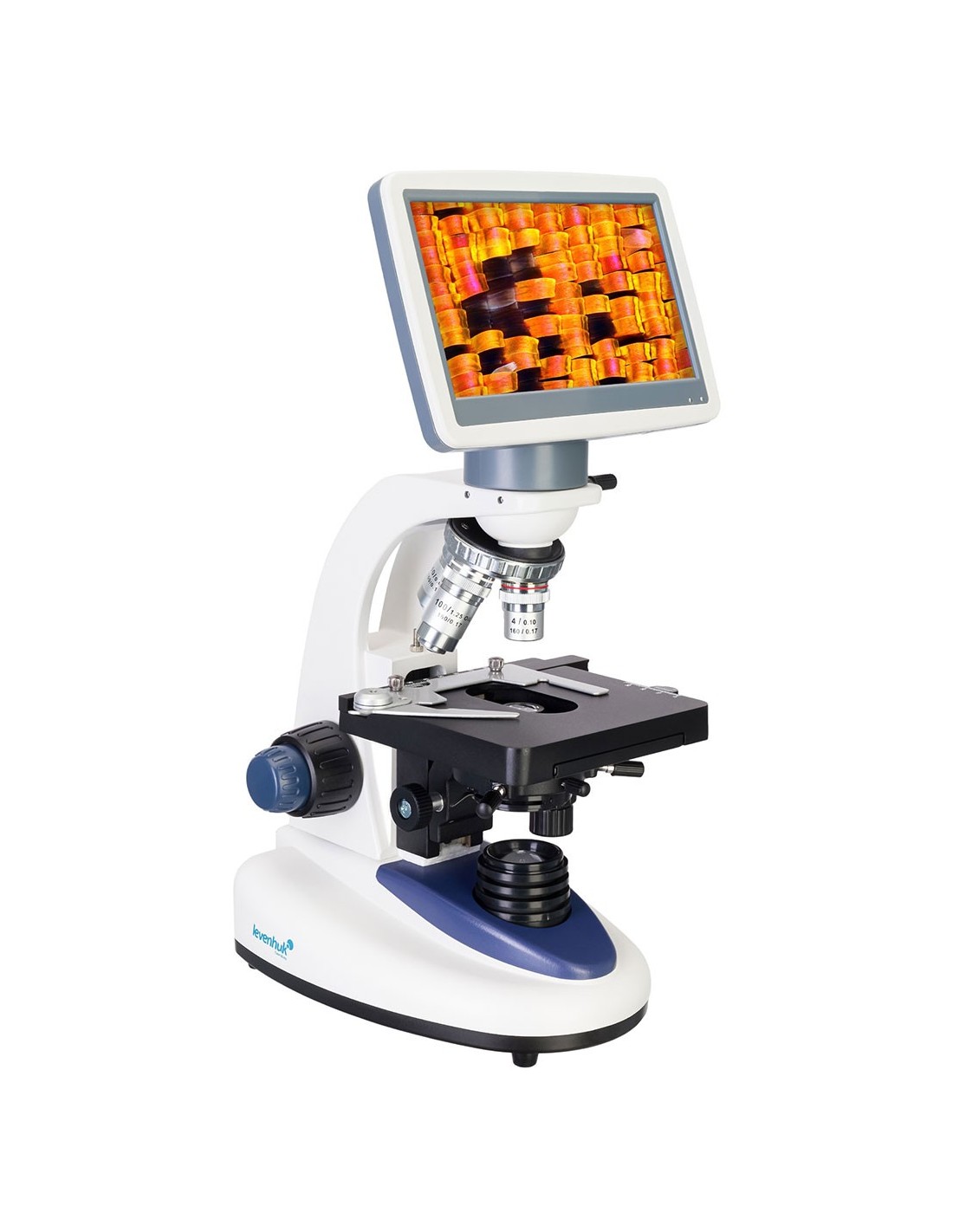

The Levenhuk D95L LCD is a digital microscope for studying transparent samples. Thanks to its digital camera, the microscope can be used for both visual observations and photo and video capture. Furthermore, instead of a classic head, it is equipped with a 7" LCD screen which significantly increases the comfort of use for prolonged observations. The microscope is aimed at enthusiasts and professional researchers.
The achromatic lenses reproduce a sharp and clear image throughout the field of view. The 100x objective suitable for oil immersion. The image is shown in real time. Two types of magnification can be used for observations: optical magnification varies between 40x and 1000x, the digital one reaches up to 2000x. The focus is also available in two modes: macrometric and micrometric.

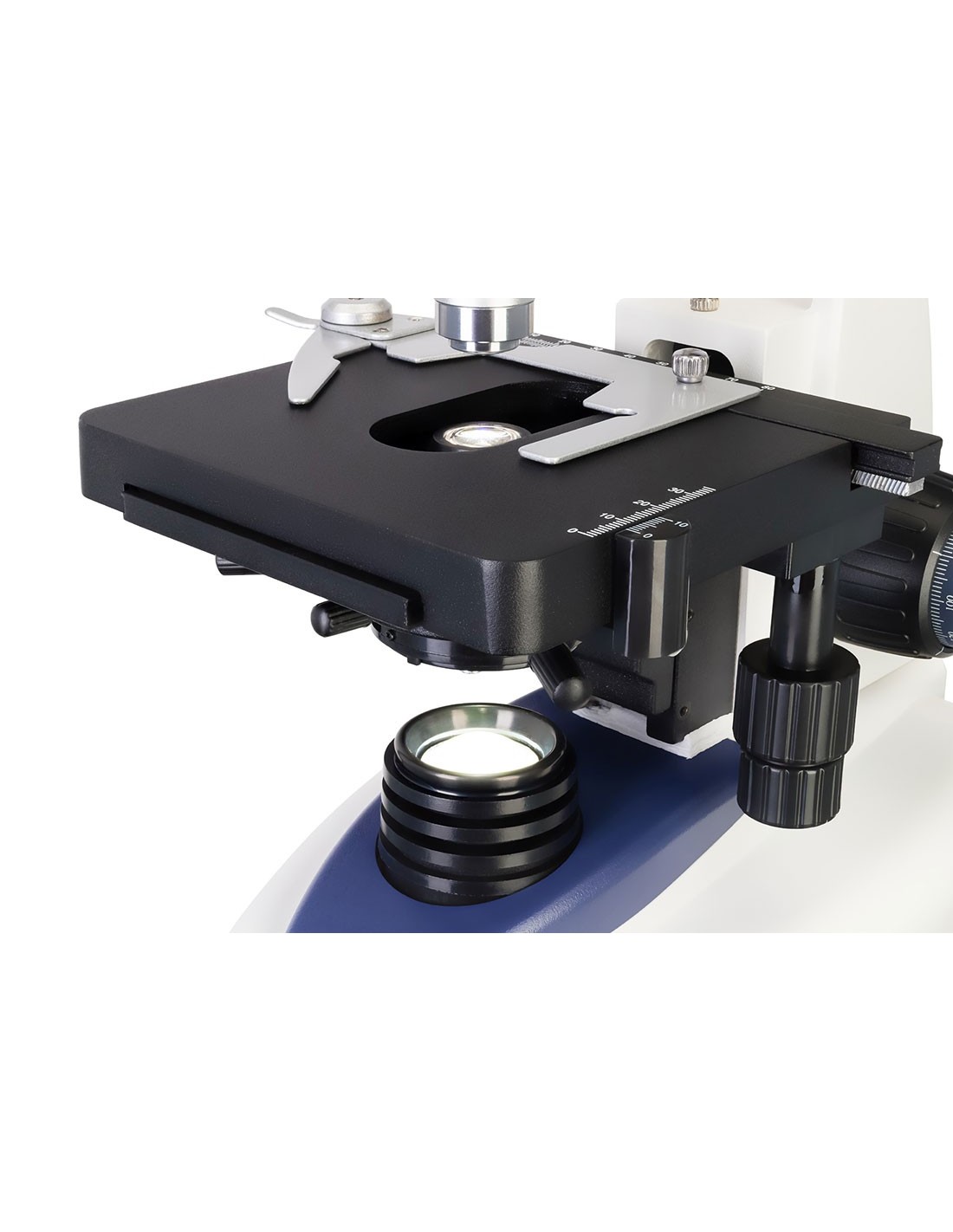

The stage is equipped with a mechanical shifter underneath it an Abbe condenser with iris diaphragm and filter holder is positioned. It is composed of LEDs with adjustable intensity and requires power supply via AC mains.

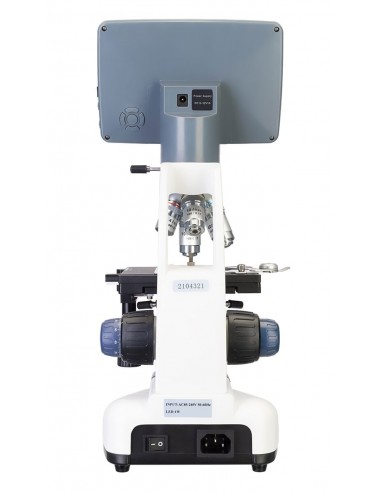

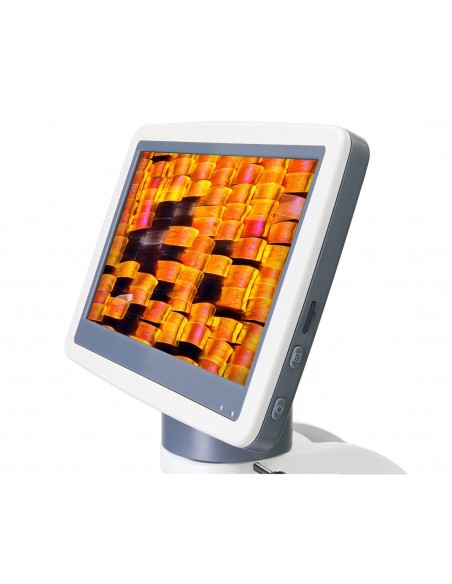

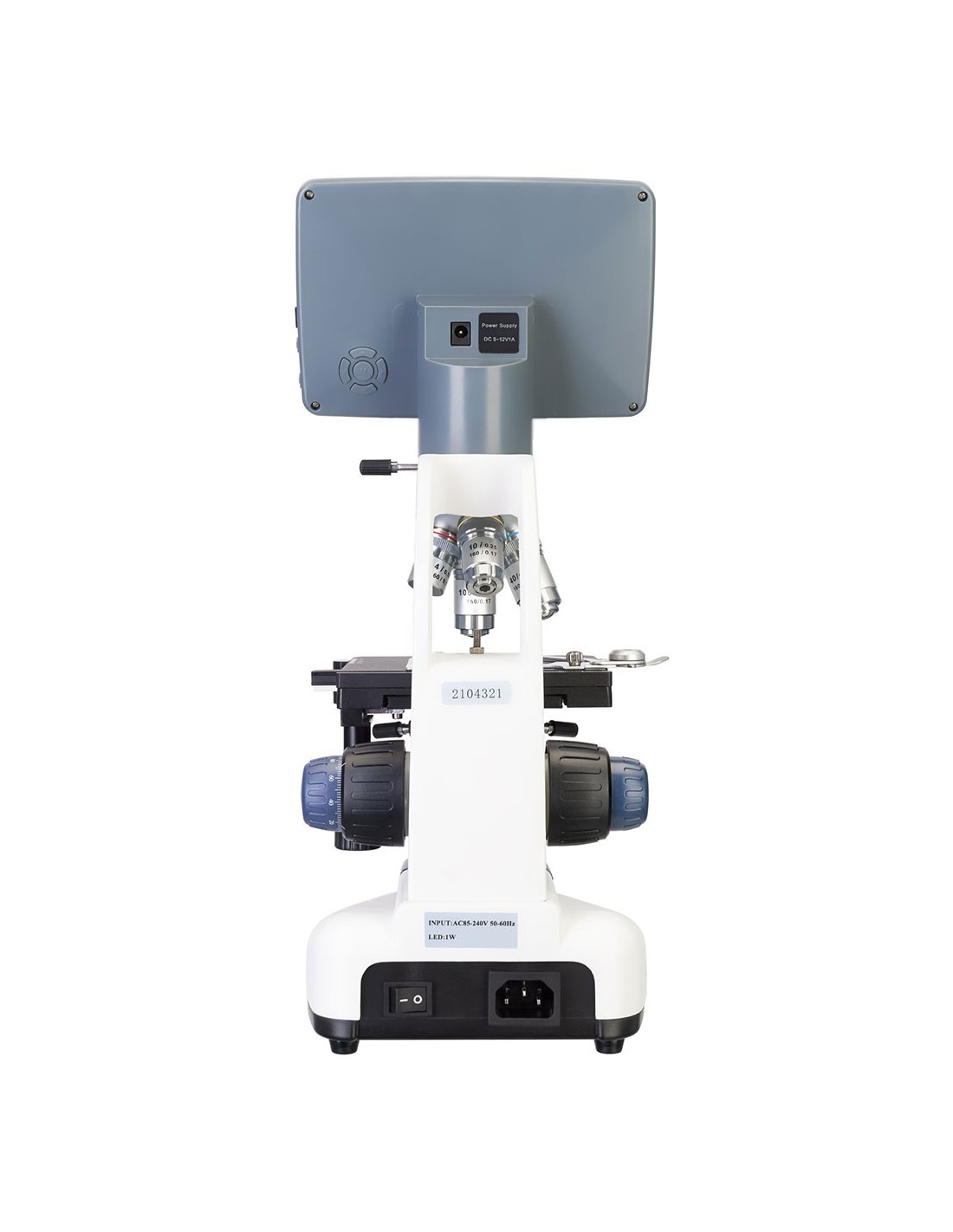

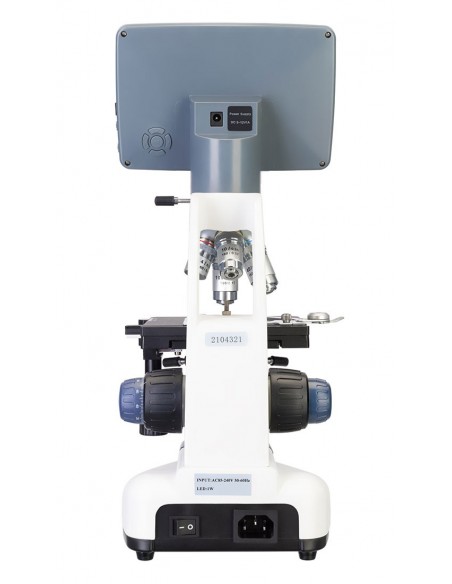

The control buttons for the digital functions are. located on the side panel and back of the screen. The body of the microscope is made of metal; the optics are made of glass.
Key features:
- 2 MP digital camera; 7" LCD screen
- Optical (40x–1000x) and digital (up to 2000x) magnification
- Achromatic objectives, adjustable bottom illumination
- Brightfield observations and possibility of immersion in oil
- AC powered

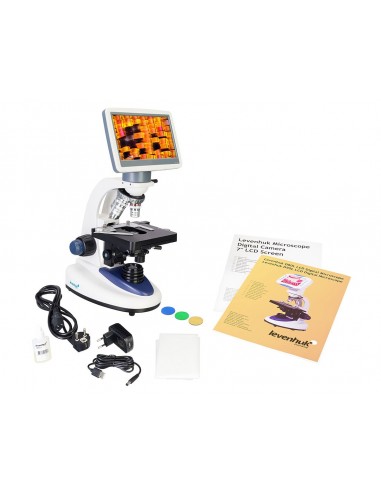

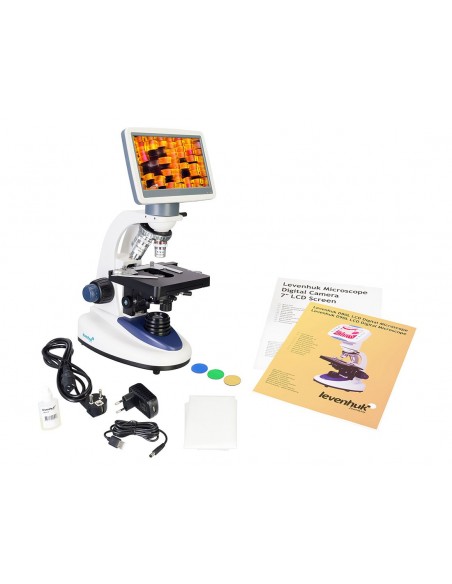

The kit includes:
- Microscope with camera 2 MP digital and LCD screen

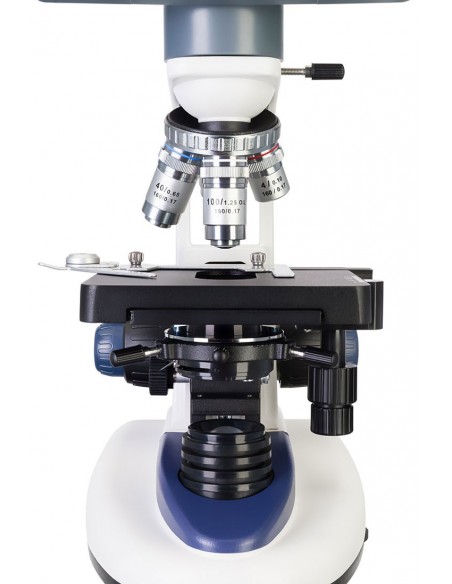

- Achromatic objective lenses: 4x, 10x, 40x and 100x (oil immersion)
- Abbe condenser with NA 1.25 with iris diaphragm and filter holder
- Bottle of immersion oil
- Filters: blue, green, yellow
- Microscope fuse
- Power cord
- Microscope fuse
- Power cord li>
- 16GB SD memory card
- Adapter and power cable for the camera
- Dust cover
- User manual and warranty card
| Brand | Levenhuk Inc., USA |
| Warranty | lifetime |
| EAN | 5905555005423 |
| Package size (LxWxH) |
| td> | 61x34x25 cm |
| Shipping weight | 4.99 kg |
| Type | biological, light/optical, digital |
| Tested | digital screen/PC monitor |
| Optics material | optical glass |
| Vertical tube | 7" rotatable color LCD screen |
| Magnification, x | 40 — 2000 |
| Magnification range | 1280x and above |
| Achromatic objectives | : 4x, 10x, 40xs, 100xs (oil immersion) |
| Nosepiece revolver | for 4 objectives |
| Stage, mm | 110x126 |
| Range of movement of the stage, mm | 70/30 |
| Stage characteristics | double mechanical layer |
| Condenser | Abbe NA 1.25 with iris diaphragm and filter holder |
| Diaphragm | iris |
| Focus | coaxial; coarse (15 mm) and fine (0.002 mm) |
| Body | metal |
| Lighting | LED |
| Brightness adjustment | yes |
| Power | 100–240V |
| Light source type | 1W LED with collector |
| Optical filters | blue, green, yellow |
| Possibility to connect additional equipment | does not support connection to an external screen or to a PC |
| User level | beginners, expert users |
| Assembly and installation difficulty level | easy |
| Application | scholastic/educational, laboratory/medical |
| Lighting position | lower |
| Search method | bright field |
| Set with case/case/bag | anti-dust cover |
| Maximum resolution | 1920x1080 |
| Megapixel | 2 |
| Sensor element | 1/2.8" |
| Pixel size, µm | 2.9x2.9 |
| Video recording | yes |
| Image format | *.jpg |
| Video format | *.mp4 |
| Spectral range, nm | 380–700 |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Sensitivity, V/lux- sec@550 nm | 2 |
| Frame rate | 30 frames per second |
| Position of use | microscope stand |
| Software, driver | included |
| Output | SD card slot, power slot |
| Camera power supply | 5 V, 1 A via AC adapter (included) |
