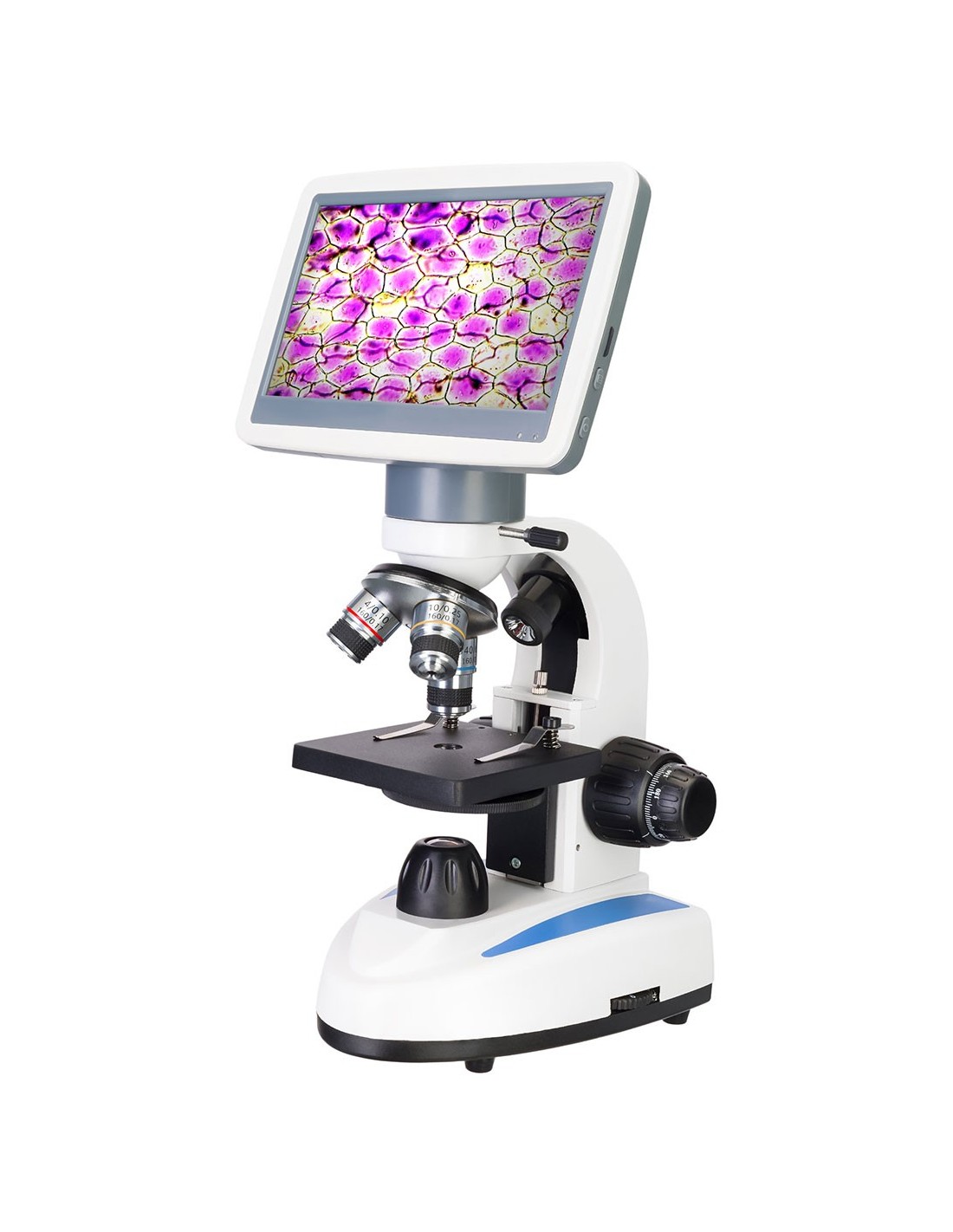

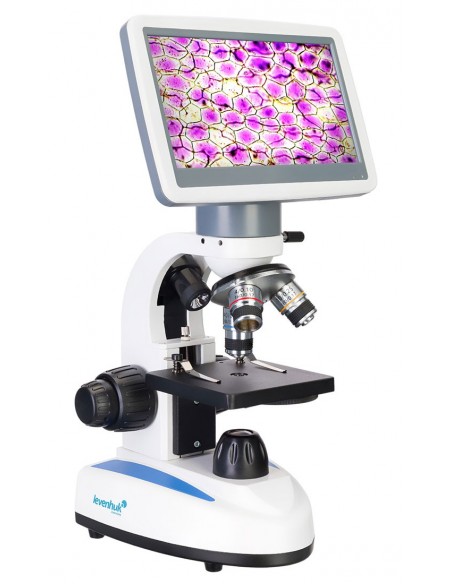

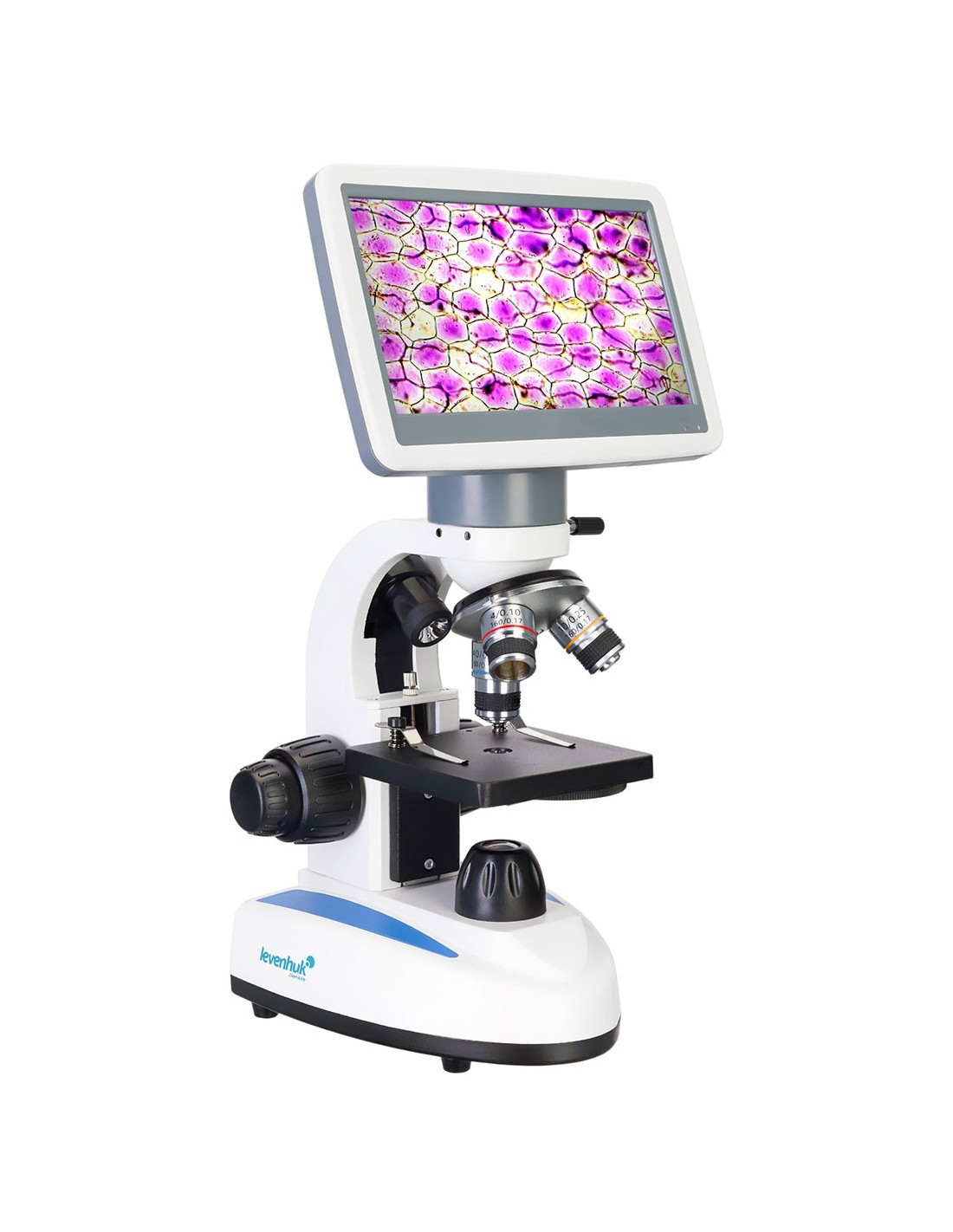

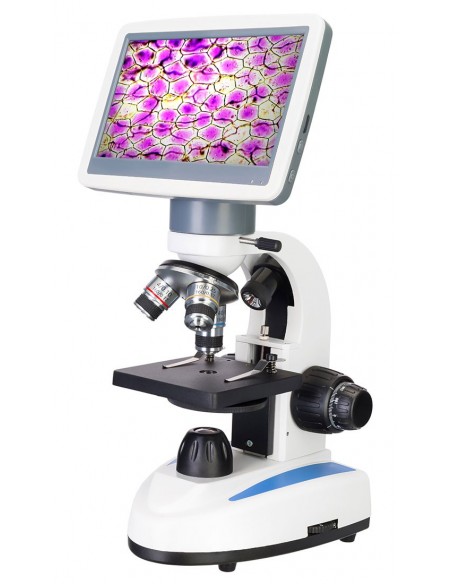

The Levenhuk D85L LCD microscope is designed to examine slides with varying degrees of sample transparency at 40x–1600x magnification. This microscope also comes with a 2MP camera that can take photos of your samples and record videos of your research. The data is stored on the memory card. Another specific feature of this model is its large 7" LCD screen, perfect for detailed and comprehensive examination of samples.
The optical system includes achromatic objective lenses with different magnification factors. The total magnification of the optics varies from 40x to 400x; the digital magnification goes up to 1600x. The image is shown on the screen in real time and in high resolution, allowing you to identify any microstructure and on the back allow the instrument to have a simple and linear look. The focus adjustment is both macrometric and micrometric.

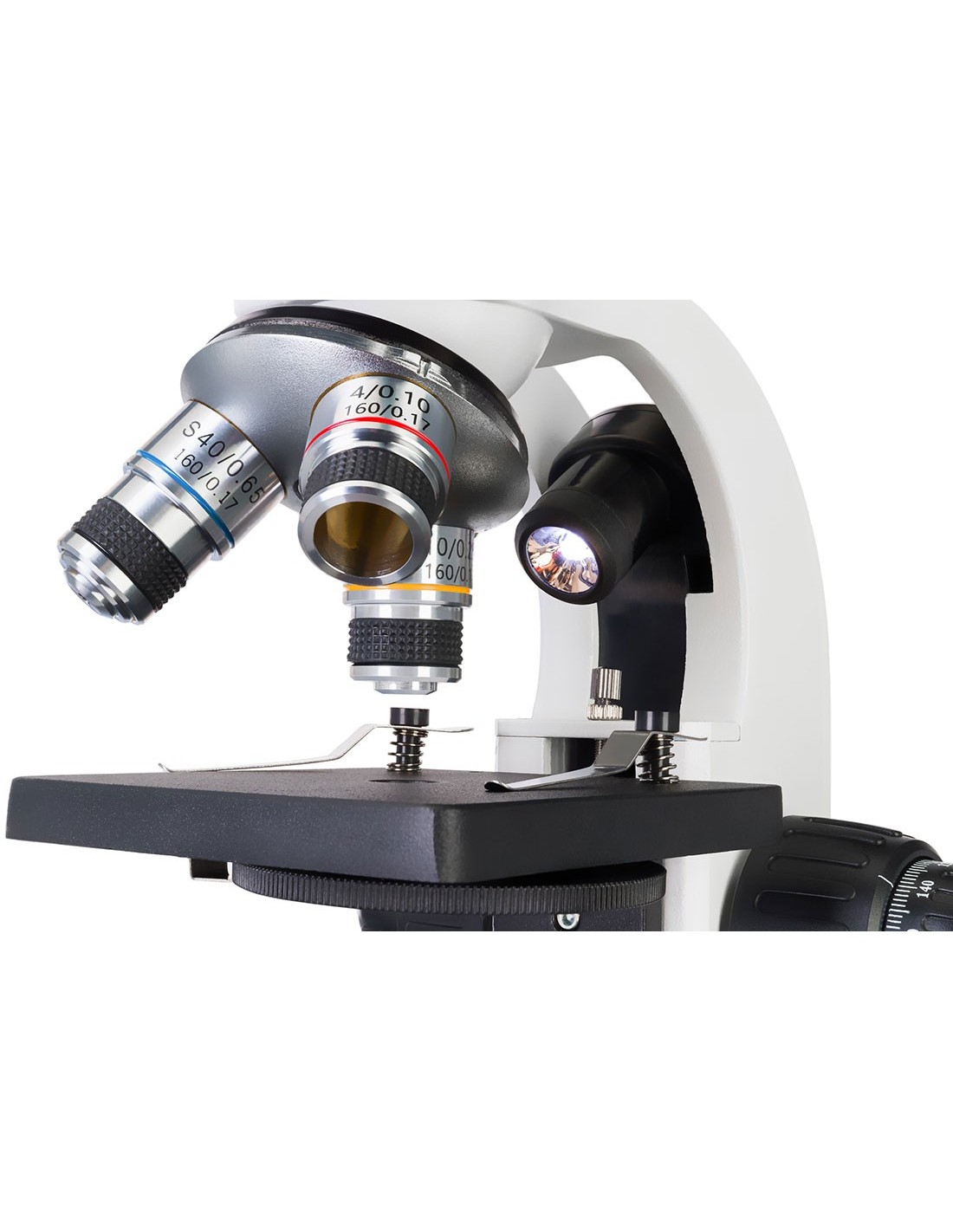

The samples are fixed to the stage thanks to a sample holder and an L disc diaphragm The lighting is double: there are LEDs positioned on both sides of the stage. There is a brightness adjustment function. The lighting can be powered by the AC mains or via batteries.
The body of the microscope it is made of metal; the optics are made of glass.
Key features:
- For visual observations and for capturing photos and videos
- Optical (40x–400x) and digital (up to 1600x) magnification

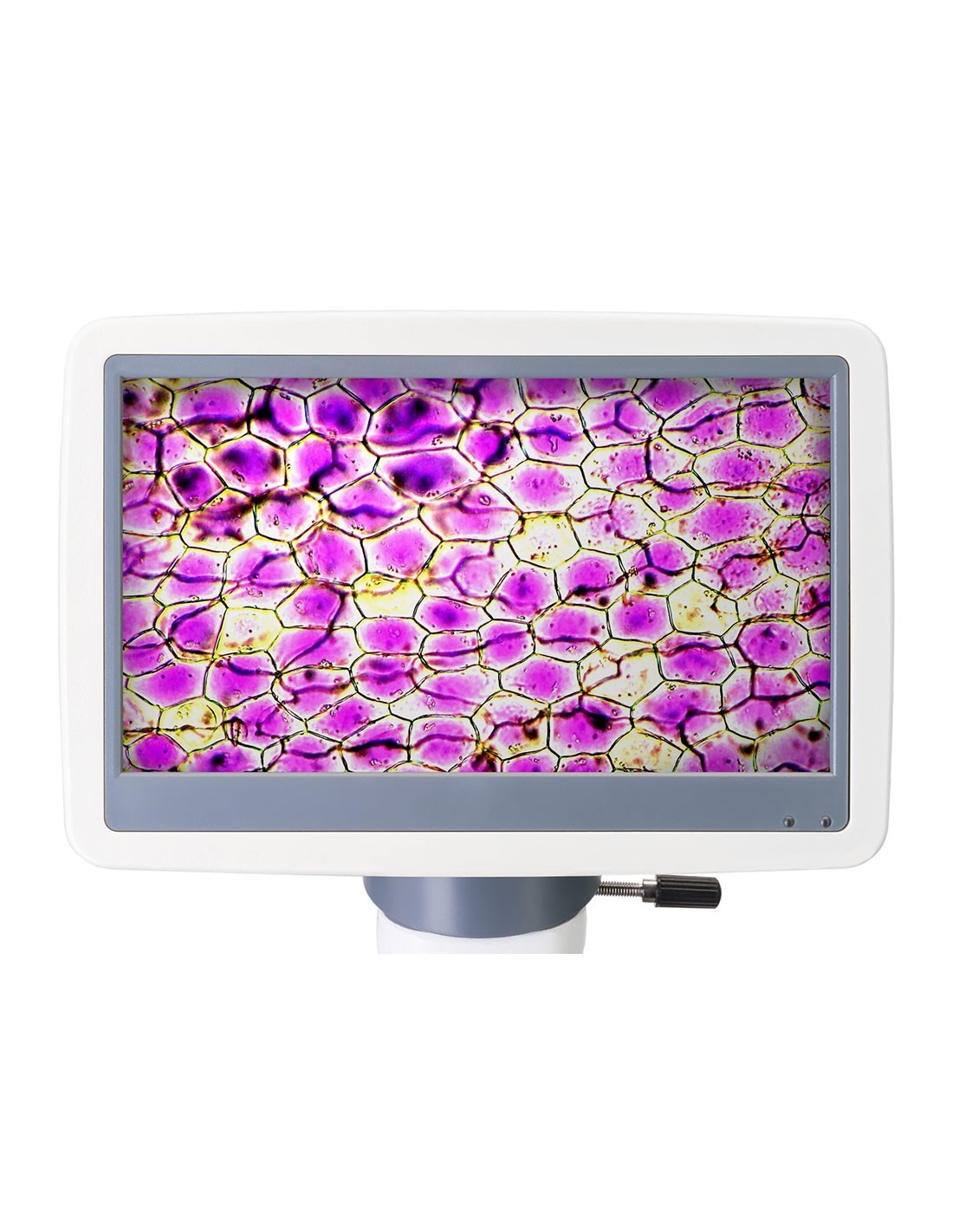

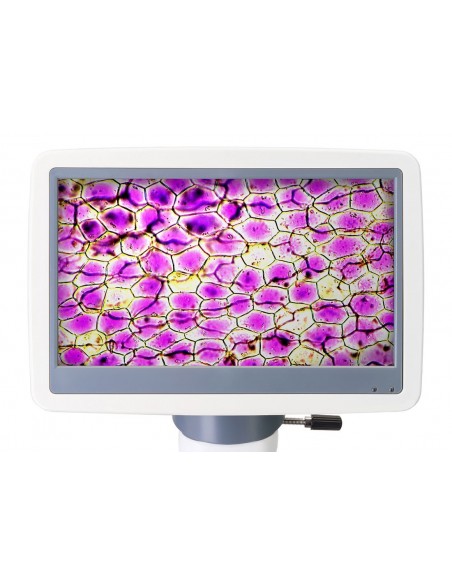

- The head tube ends in a 7" diagonal LCD screen
- Achromatic optics; combined illumination and adjustable
- For observing samples in bright field

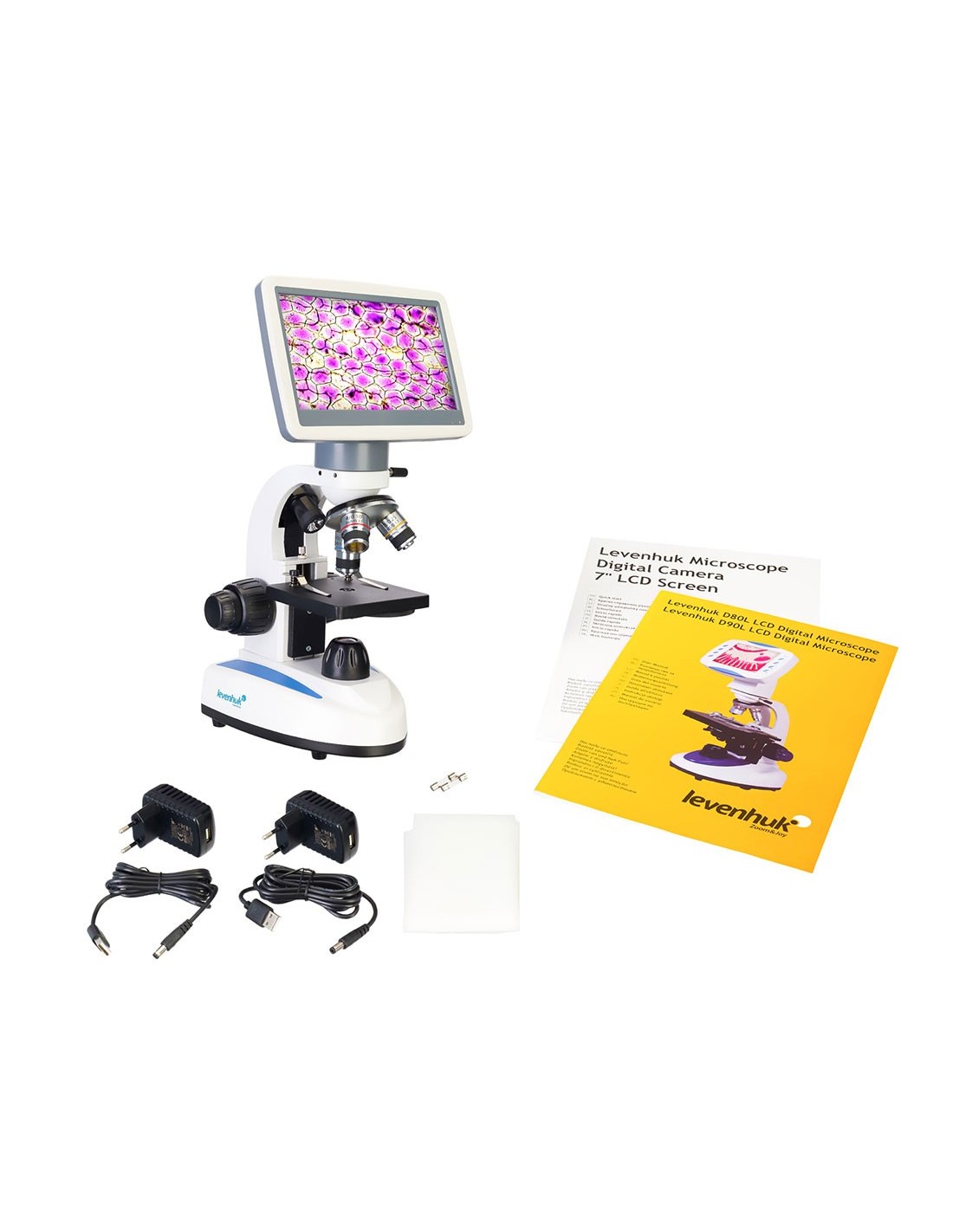

The kit includes:
- Microscope with 2 MP digital camera and LCD screen

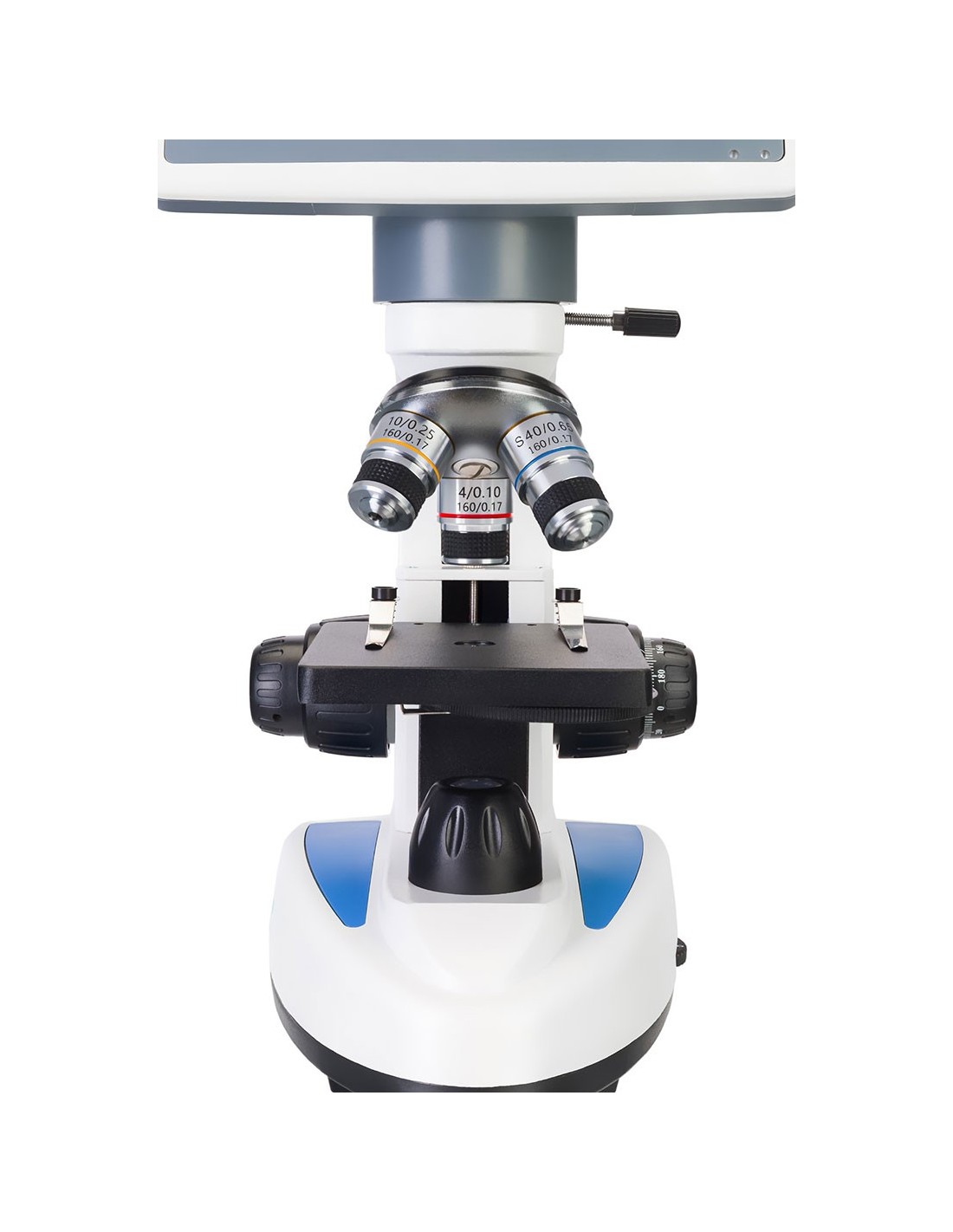

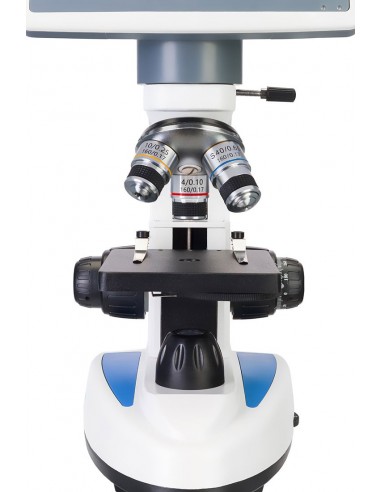

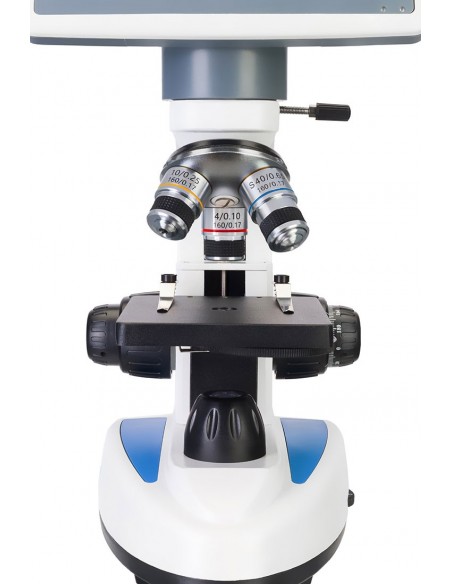

- 4x, 10x, 40x achromatic objective lenses
- Condenser with NA 0.65 and disk diaphragm
- Cable power supply
- 16 GB SD memory card
- Adapter and power cable for the camera
- Dust cover
- User manual and warranty certificate
| Brand | Levenhuk Inc., USA |
| Warranty | Lifetime |
| EAN | 5905555005416 |
| Package size ( WxDxH) | 38x33x27 cm |
| Shipping weight | 3.23 kg |
| Type | biological, light/optical, digital |
| Tested | digital screen/PC monitor |
| Optics material | optical glass |

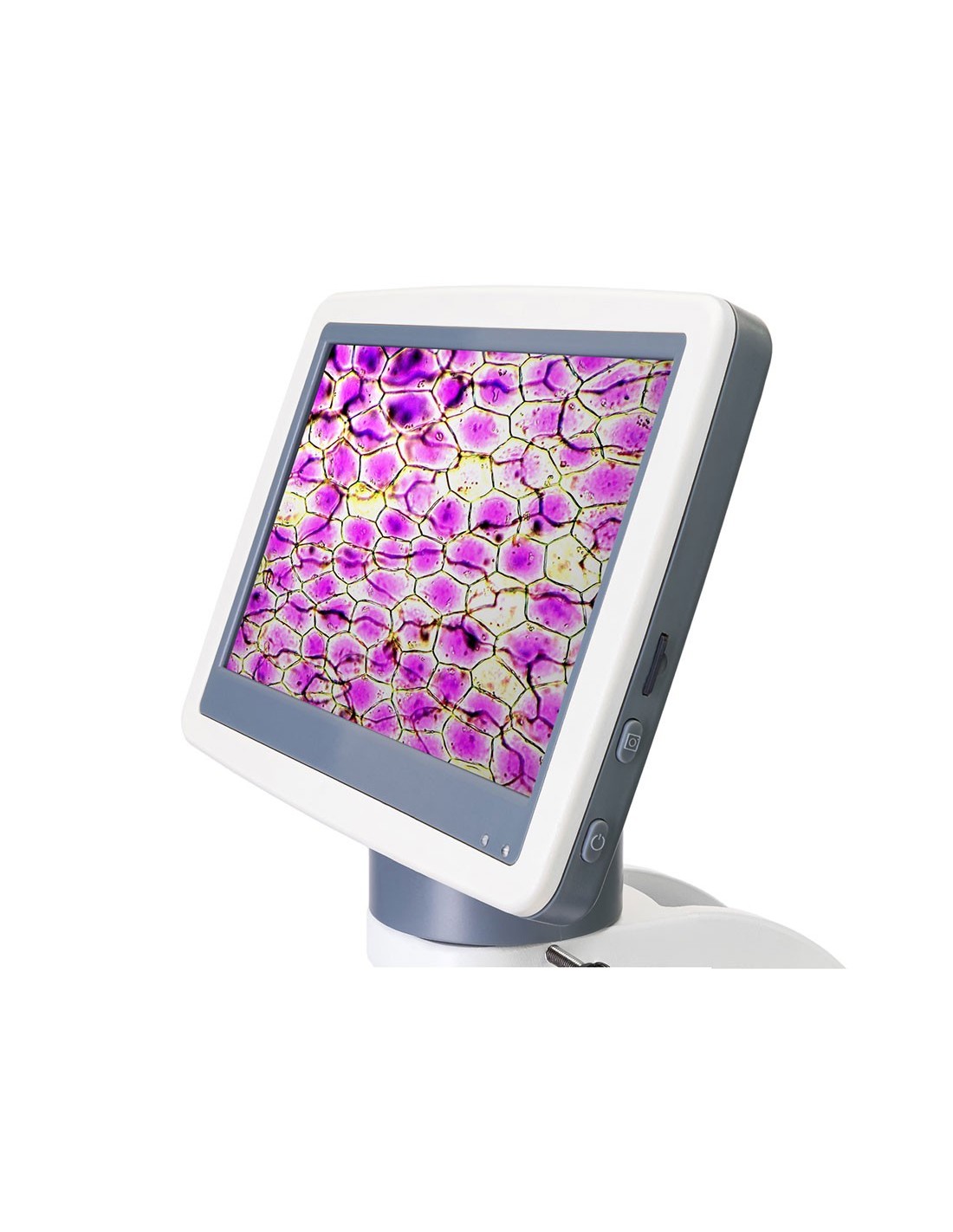

| Vertical tube | 7" rotatable color LCD screen |
| Magnification, x | 40 — 1600 |
| Magnification range | from 1280x and above |
| Achromatic objectives | : 4x, 10x, 40xs (spring) |
| Nosepiece revolver | for 3 objectives |
| Stage, mm | 90x90 |
| Range of movement of the table, mm | 70/30 |
| Table features | with clips |
| Condenser | NA 0.65 |
| Diaphragm | disc diaphragm (6 apertures) |
| Focus | coaxial; coarse (15 mm) and fine (0.002 mm) |
| Body | metal |
| Lighting | LED |
| Brightness adjustment | yes |
| Power | 3 AA batteries (not included) or 110–240V via AC adapter (included) |
| Power: batteries/built-in battery | yes |
| Type of light source | 0.2 W LED with collector |
| Possibility of connecting additional equipment | does not support connection to an external display or PC |
| User level | beginners, advanced users |
| Assembly and installation level of difficulty | easy |
| Application | scholastic/educational |
| Lighting position | double |
| Search method | bright field |
| Set with pencil case/case/bag | dust cover |
| Maximum resolution | 1920x1080 |
| Megapixel | 2 |
| Sensor element | 1/2.8" |
| Pixel size, µm | 2.9x2.9 |
| Video recording | yes |
| Image format | *.jpg |
| Video format | *.mp4 |
| Spectral range, nm | 380–700 |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Sensitivity, V/lux-sec@550 nm | 2 |
| Frame rate | 30 frames per second |
| Position of use | microscope stand |
| Software, drivers | included |

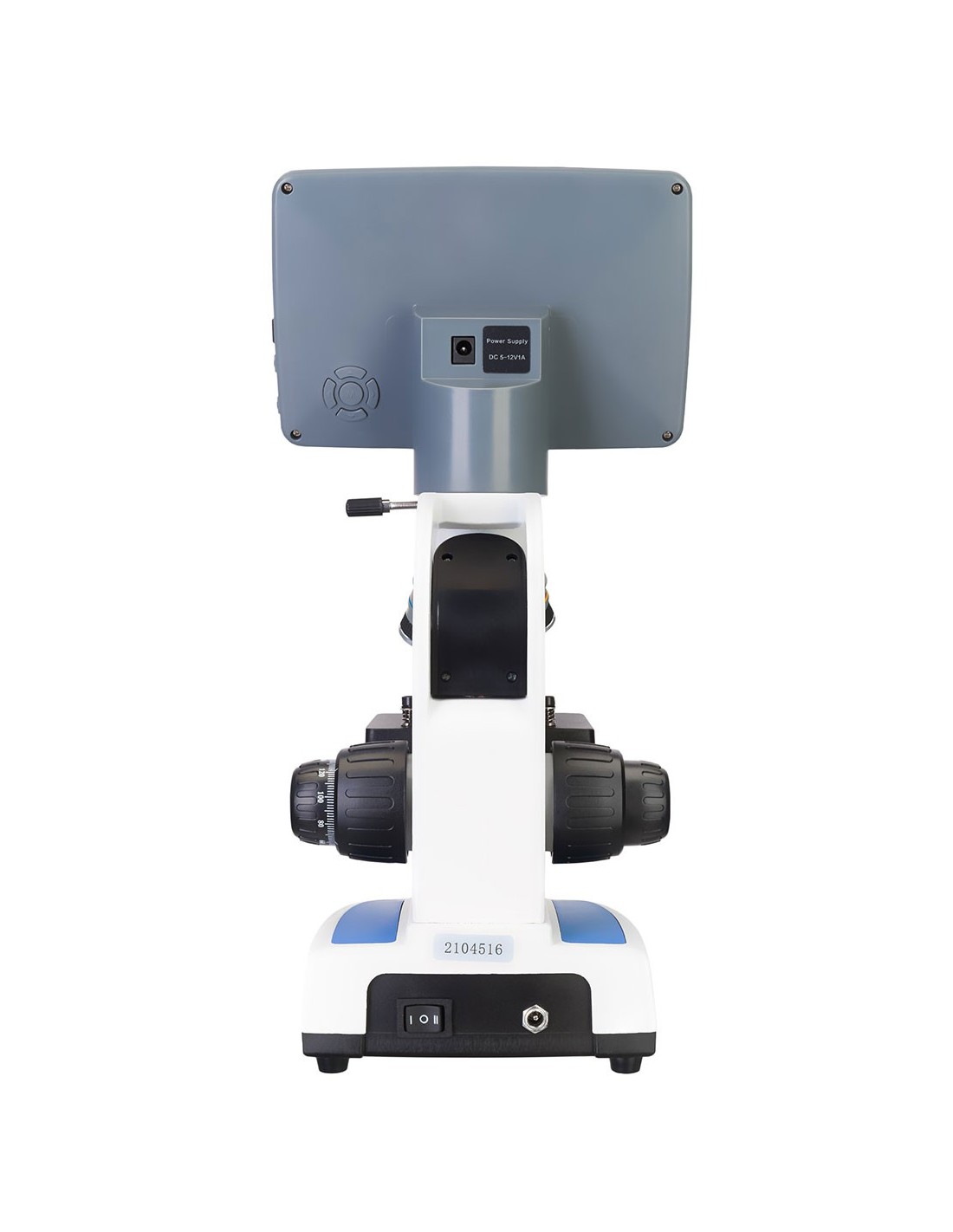

| Output | SD card slot, power slot |
| Camera power | 5 V, 1 A with mains adapter |
