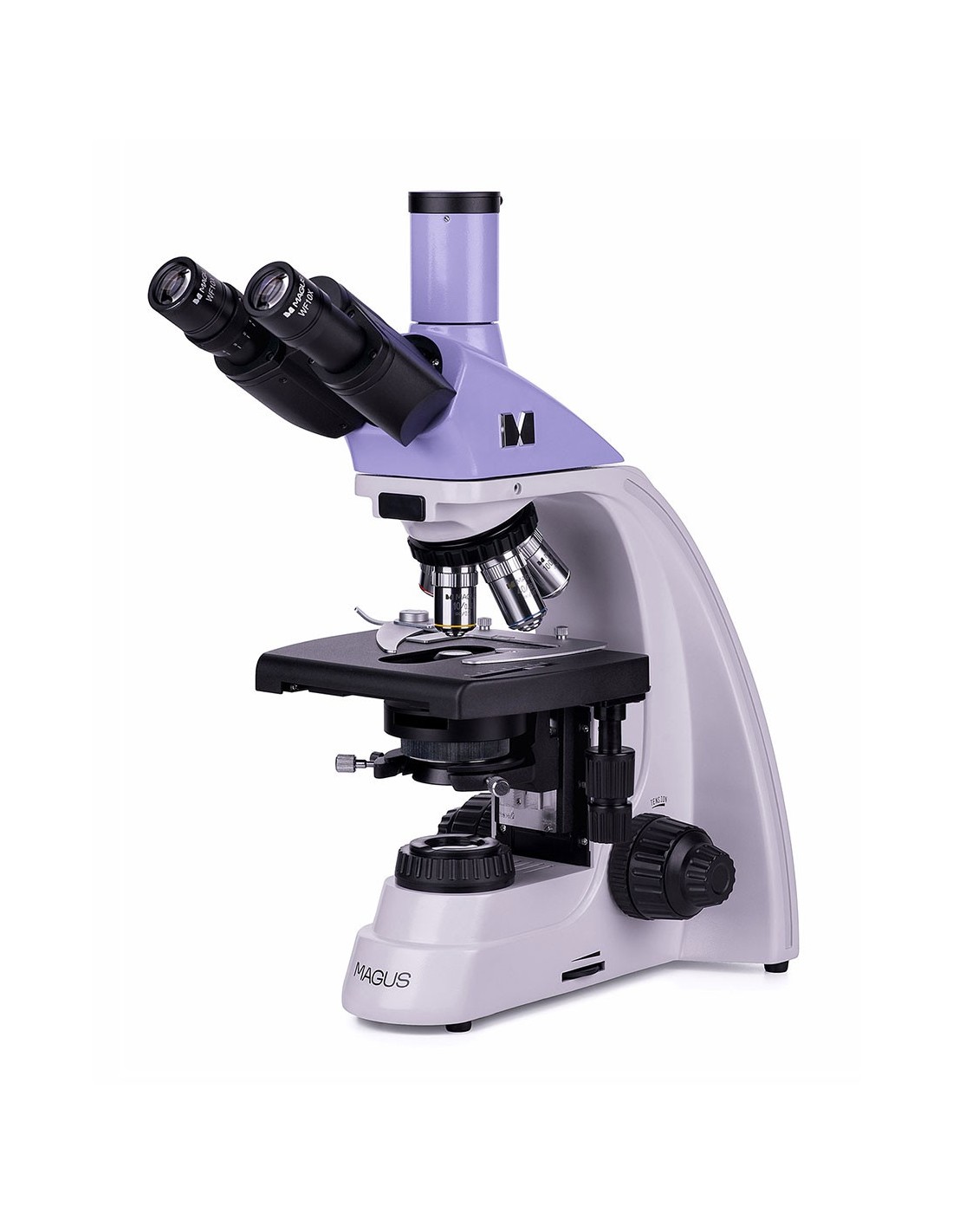

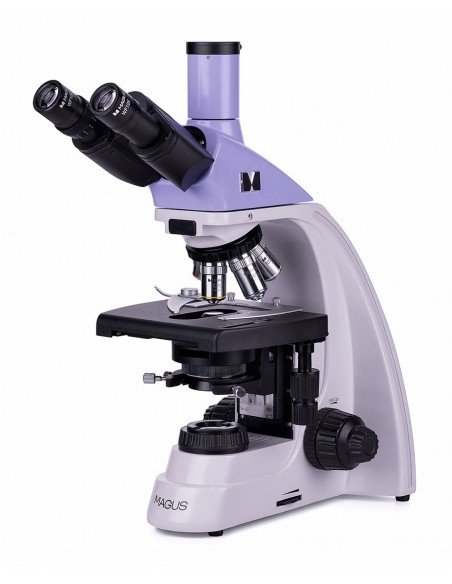

MAGUS Bio 230TL biological microscope - MAGUS

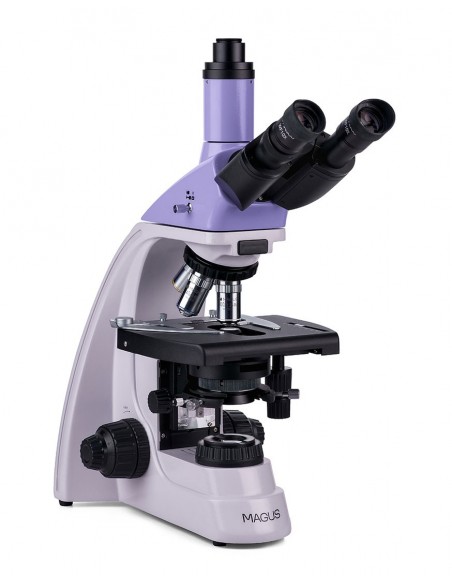

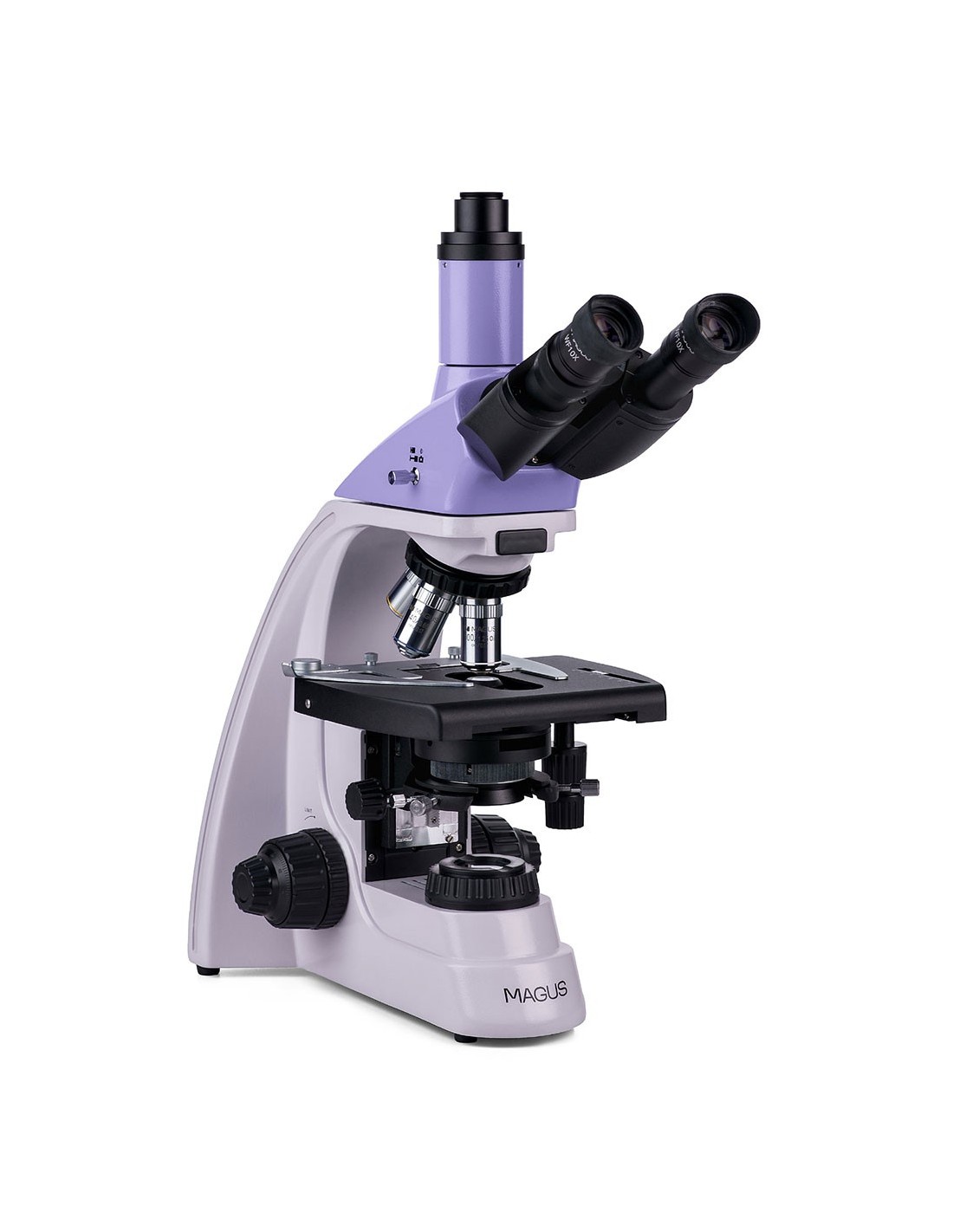

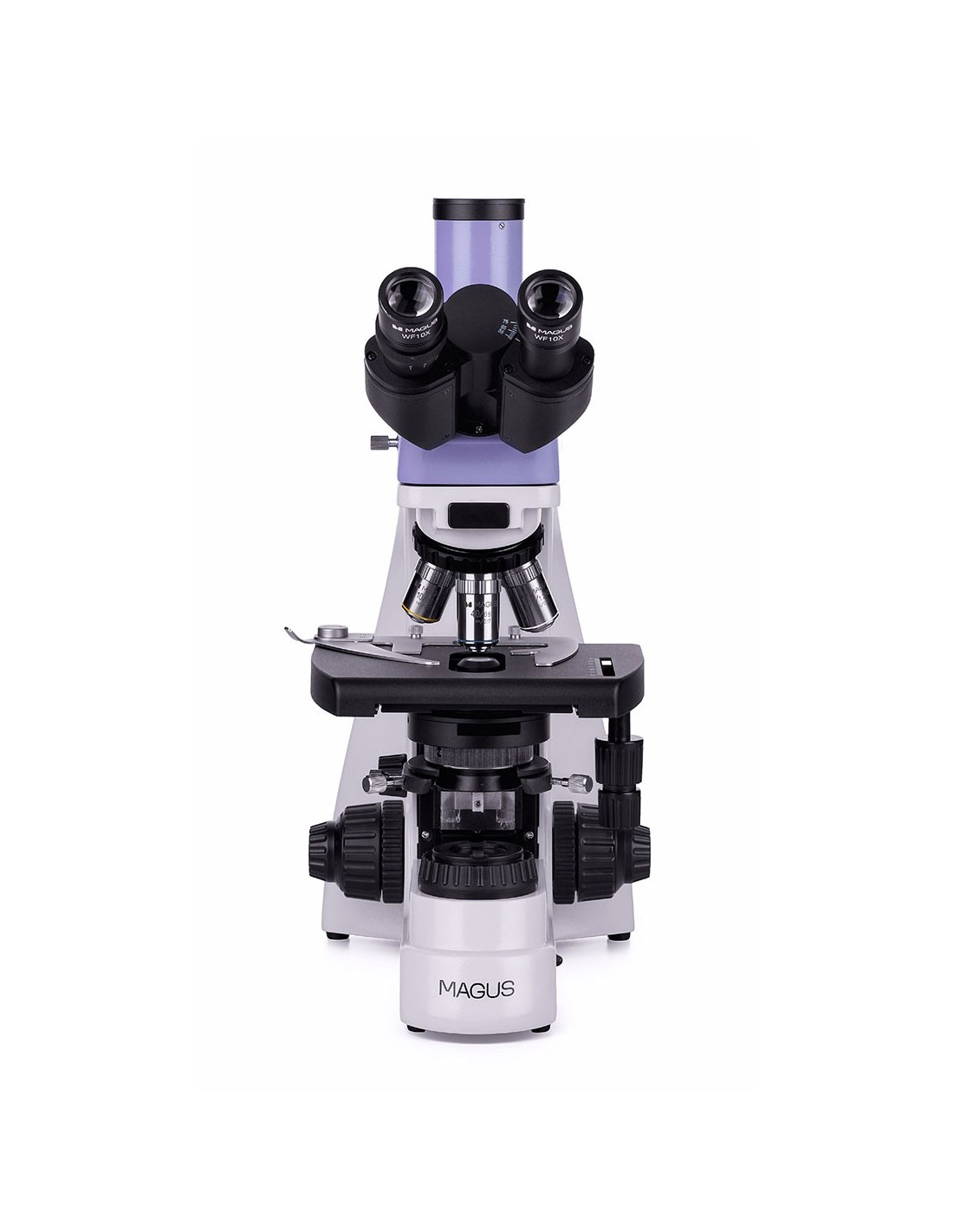

The MAGUS Bio 230TL biological microscope is an essential tool for a healthcare laboratory, diagnostic center or research institute. This microscope is equipped with a trinocular head and light source for transmitted light (LED) observations and is suitable for the analysis of semi-transparent preparations and naturally transparent samples. In its basic configuration, observations are made using the brightfield observation technique. With the use of additional accessories, it will be possible to carry out research with additional microscopy techniques such as dark field, polarized light and phase contrast observations.

Optics

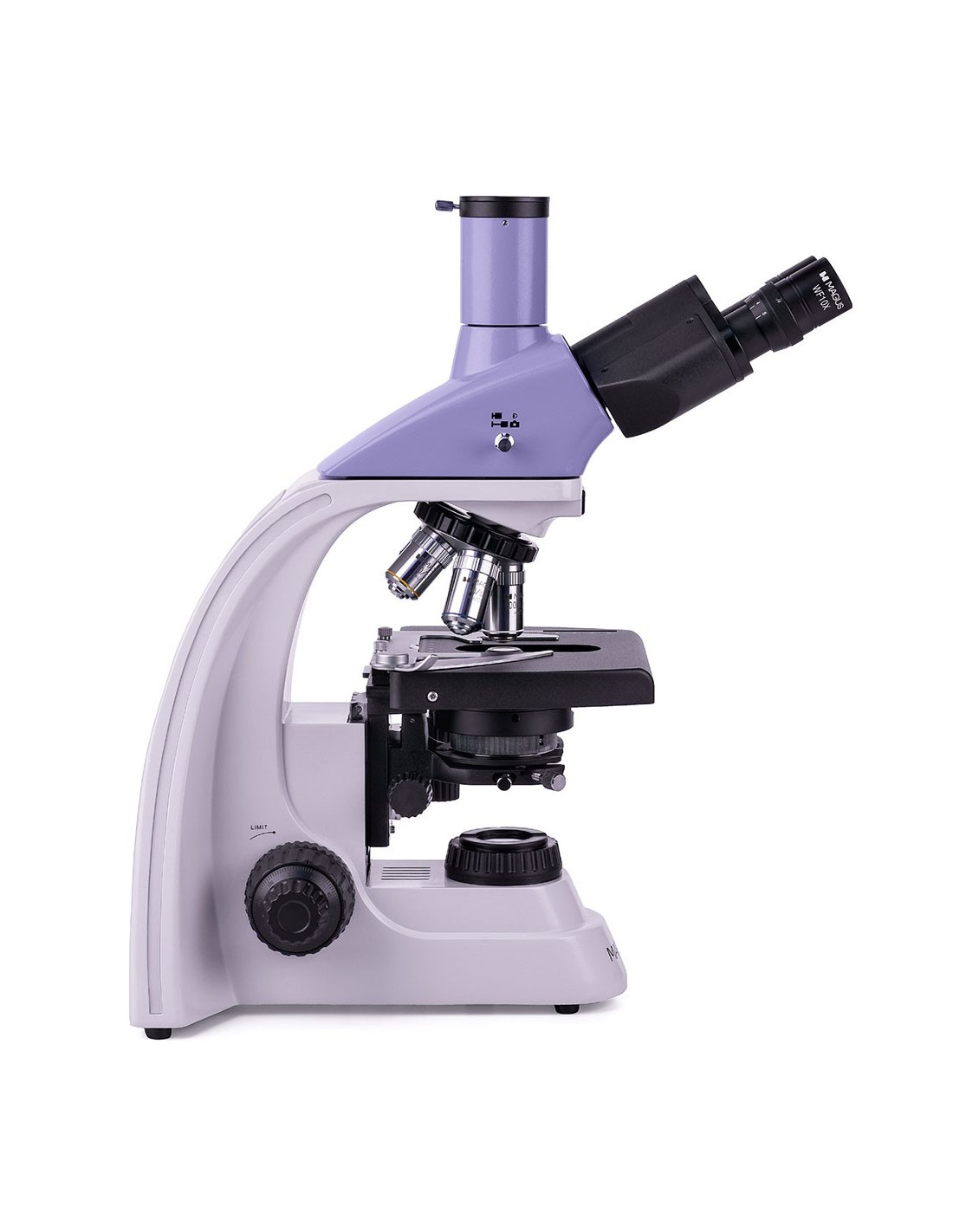

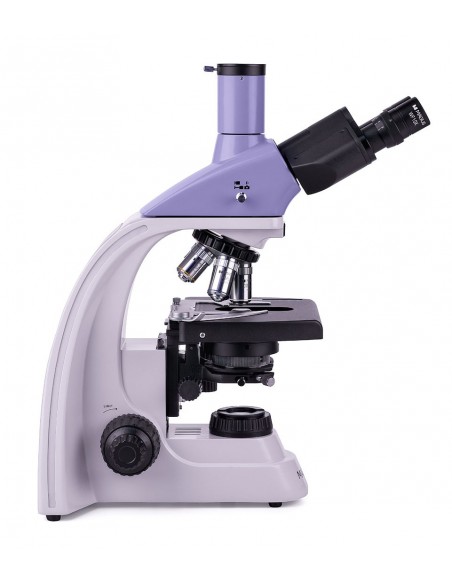

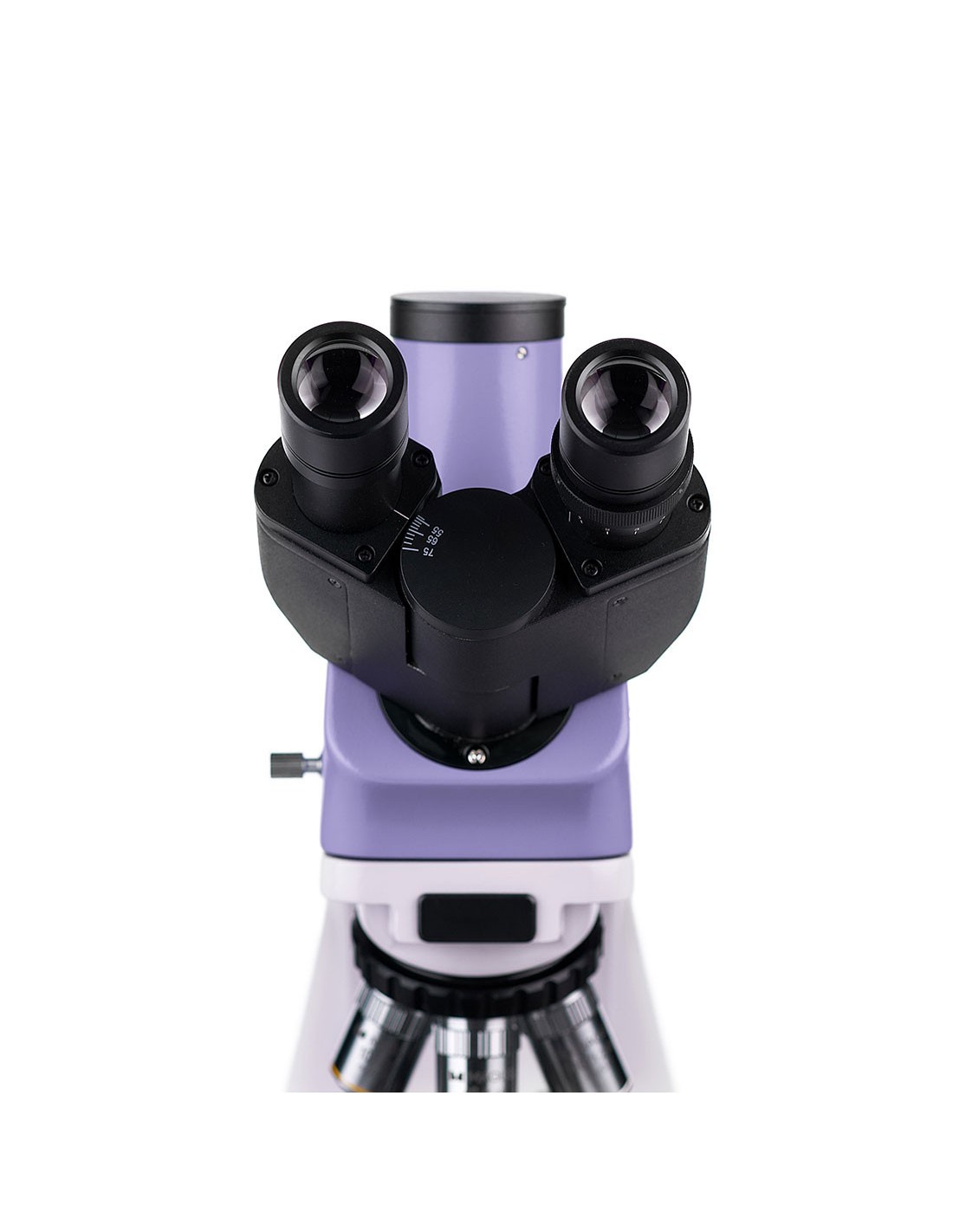

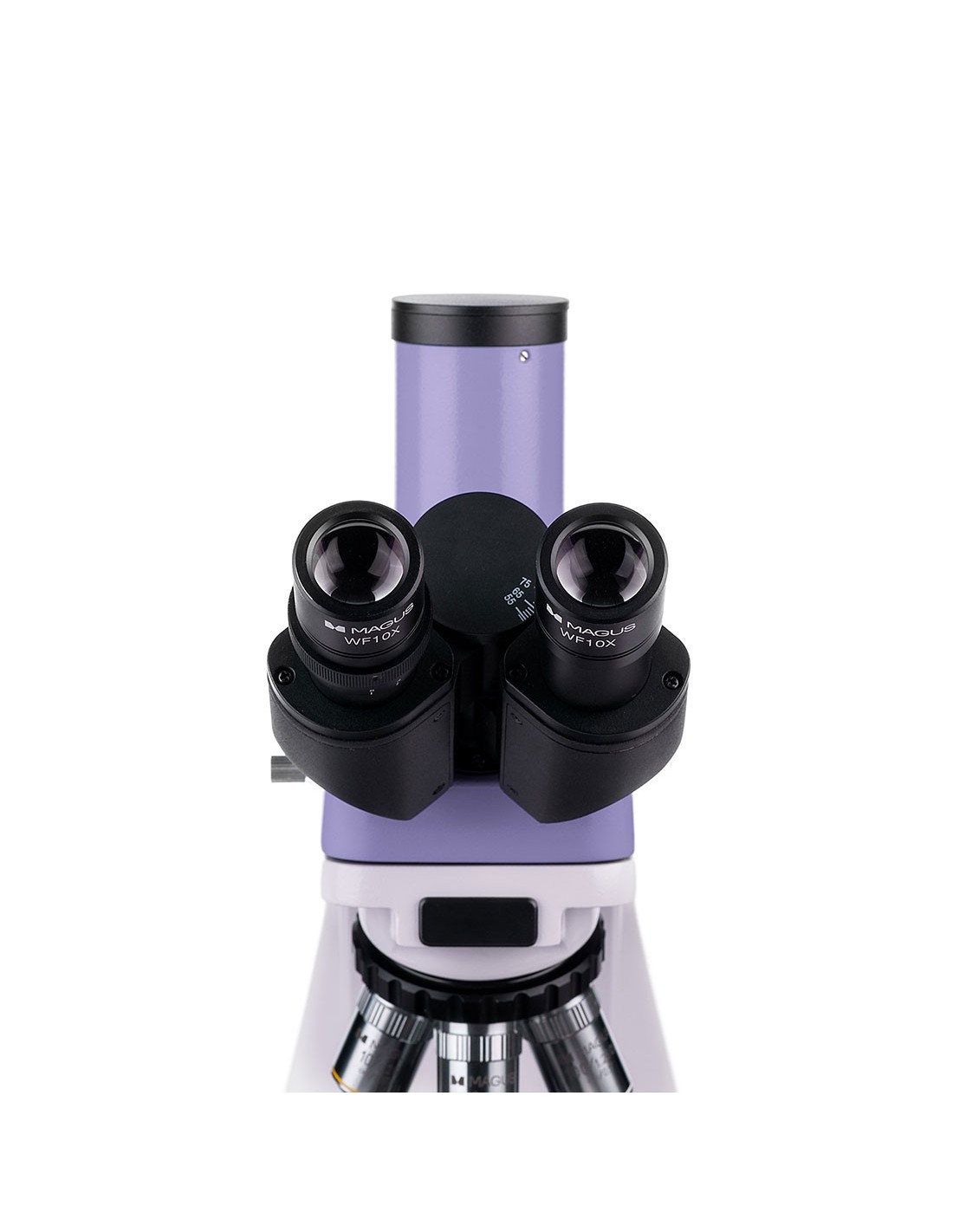

The optical tubes can rotate 360°, which makes it possible to adapt the position of the eyepieces according to the height of the observer. Diopter adjustment is available on the left barrel. There is a vertical tube for accommodating a digital camera (not included).

This microscope uses infinity corrected achromatic objectives and the nosepiece can accommodate up to 5 objectives simultaneously. In the basic configuration, one slot remains free for adding a fifth lens. The nosepiece with its objectives is oriented towards the inside of the instrument: in this way, the user can see which objective is inserted in the optical path. The microscope offers magnification ranging from 40x to 1000x, but the upper limit can be increased up to 1500x, 1600x or 2000x with the use of additional eyepieces.

Illumination

Thanks to the LED lamp, the color temperature does not change when the intensity of the lighting varies. The 3W LED light has a life cycle of 50,000 hours and is AC mains powered.

The Abbe condenser has an available slot for a dark field slider or a contrast slider phase. Thanks to the sliders, switching between the various microscopy techniques is much quicker. The microscope is also equipped with a field diaphragm for setting the Köhler illumination. The condenser is height-adjustable and can be centered.

Focusing stage and mechanism

Moving the sample is smooth and accurate. If necessary, the mechanical insert can be removed from the stage (for example, to perform a manual scan of the sample). Furthermore, it is easier to work with a table without a positioning rack.

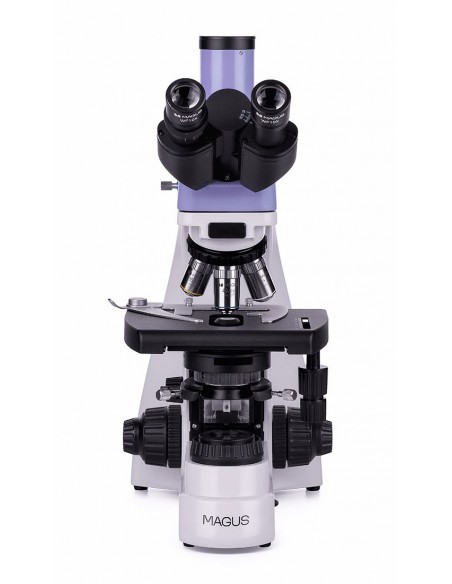

The focus knobs are coaxial and positioned on both sides of the microscope base, which allows the user to freely position his hands on the table. There are knobs for coarse and fine focusing (macro- and fine). Their mechanisms move fluidly, without having to apply any effort. There is a tension adjustment knob for the coarse screw and a coarse focus fixing knob (coarse screw).

Accessories

The accessories additional ones expand the capabilities of the MAGUS Bio 230TL microscope, depending on specific applications. Accessories include eyepieces, objectives, dark field and phase contrast condensers, polarization instruments, digital cameras, calibration slides, etc.

Key Features:

• Trinocular head with vertical camera tube, 360° rotation, diopter adjustment on the left optical tube
• Nosepiece nosepiece for 5 objectives, infinity corrected achromatic objectives
• Transmitted light observations, light source: 3 W LED with long useful life
• Coaxial knobs for coarse and fine focusing (coarse and fine screw), voltage adjustment knob for the coarse screw, fixing knob for coarse screw
• Condenser with a slot for a dark field slider or a phase contrast slider
• Possibility to install additional accessories

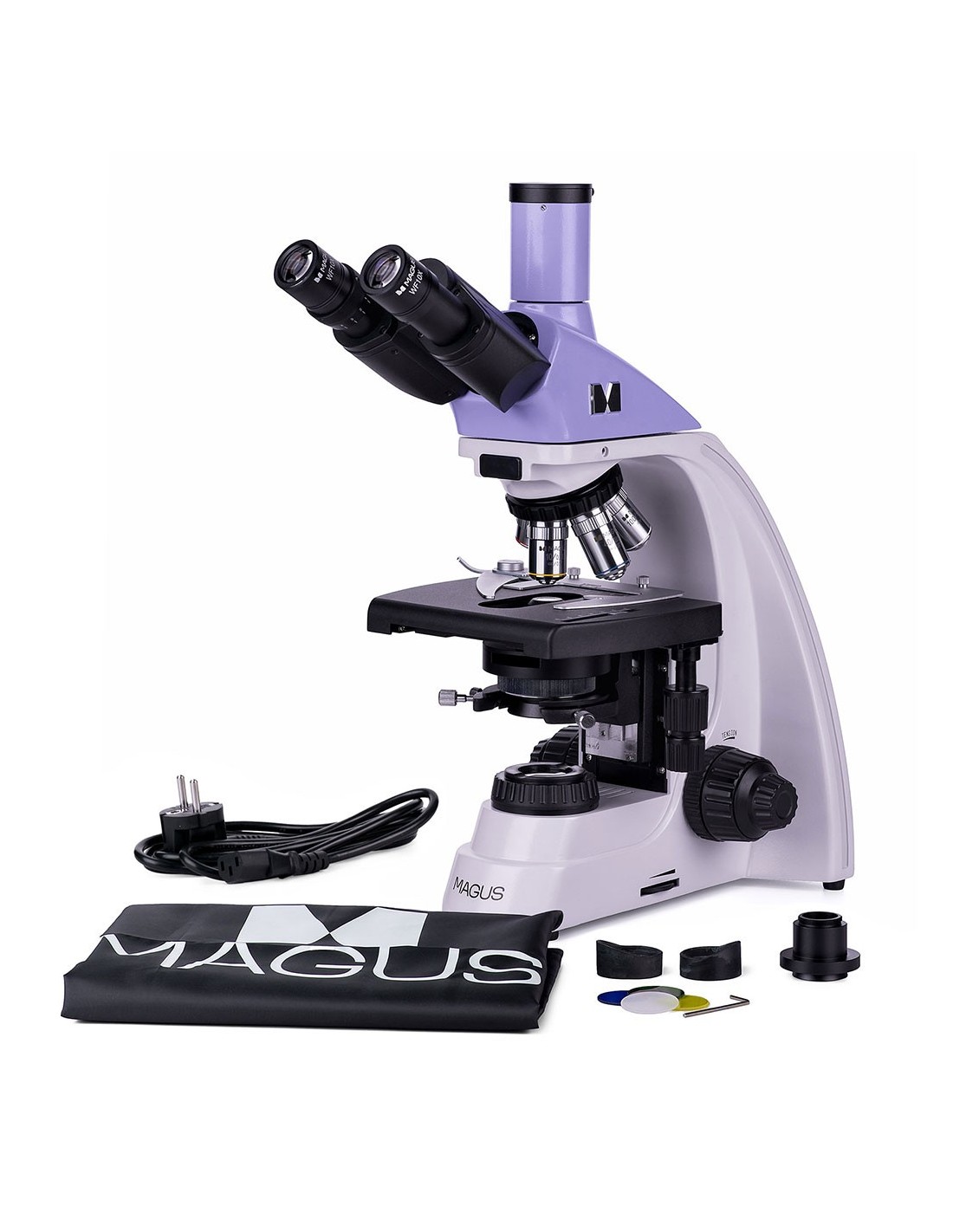

The package contains:

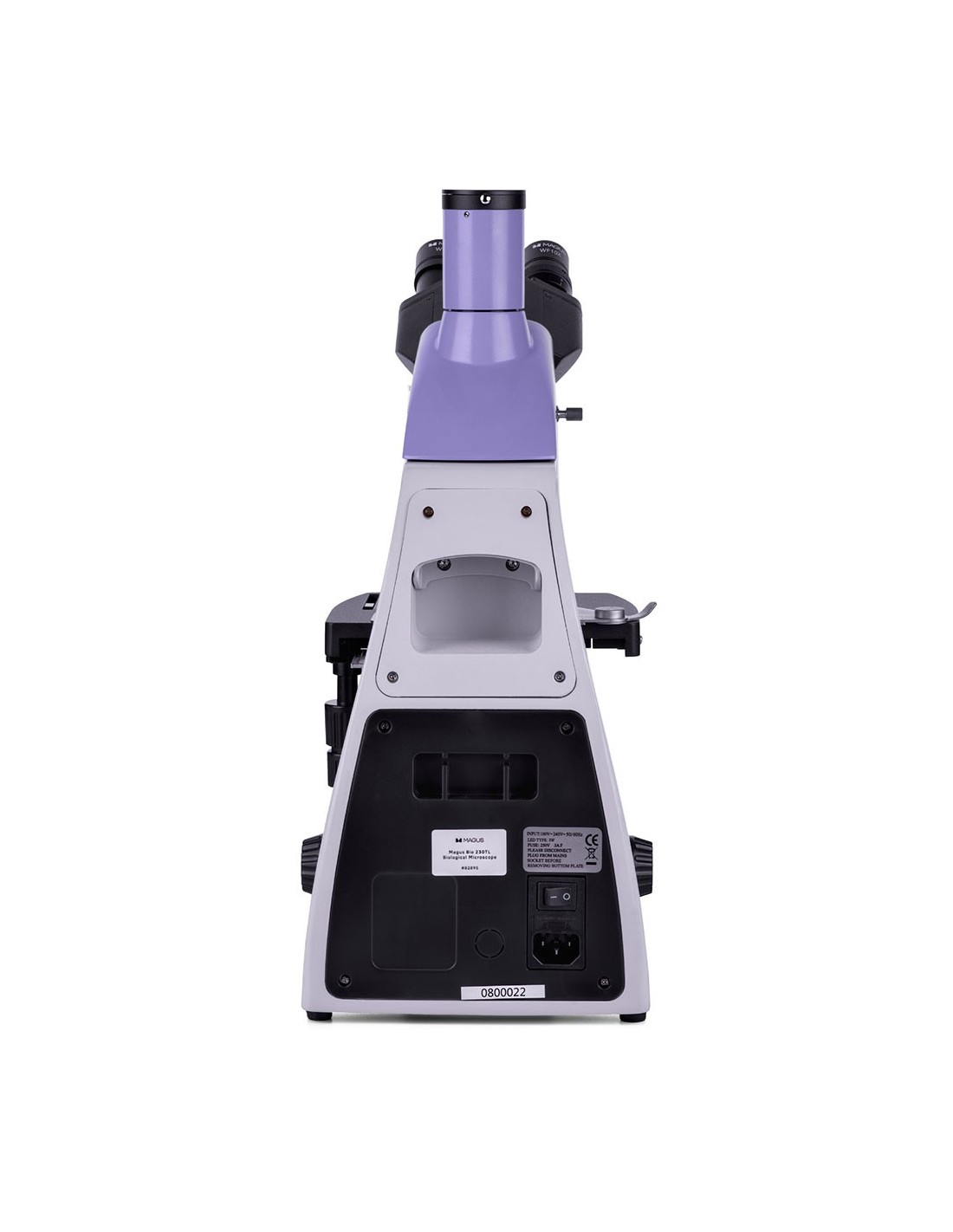

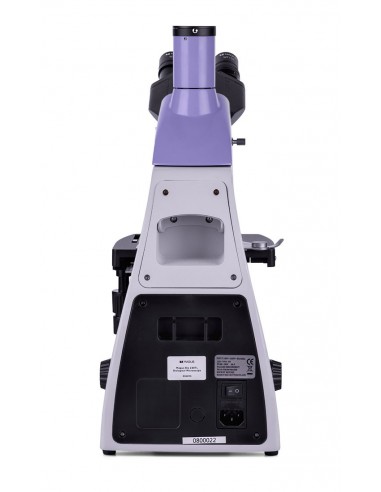

• Base with power input, light source for transmitted light observations, focusing mechanism, stage, condenser attachment and nosepiece revolver
• Abbe condenser
• Trinocular head
• Achromatic objective at infinity: 4x/0.10
• Objective achromatic objective at infinity: 10x/0.25
• Achromatic objective at infinity: 40x/0.65 (with spring mechanism)
• Achromatic objective at infinity: 100x/1 .25 oil (with spring mechanism)
• 10x/18 mm eyepiece with long eye relief (2 pcs.)
• Eyecup (2 pcs.)
• Filter (4 pcs.)
• C-mount adapter
• Vial of immersion oil
• AC power cord
• Dust cover
• User manual and warranty card

Available upon request:

• 10x eyepiece/ 20 mm with graduated scale
• Eyepiece 15x/11 mm (2 pcs.)
• Eyepiece 16x/11 mm (2 pcs.)
• Eyepiece 20x/11 mm (2 pcs.)
• Achromatic objective at infinity: 20x/0.40
• Planachromatic objective at infinity: 20х/0.40
• Objective infinite planachromatic: 60x/0.80 (spring loaded)
• Phase contrast device
• Phase contrast slider
• Dark field condenser with NA 0.9
• Oil-filled dark field condenser with NA 1.36–1.25
• Dark field slider
• Polarization instruments li>
• Digital camera
• Calibration glass
• LCD monitor
