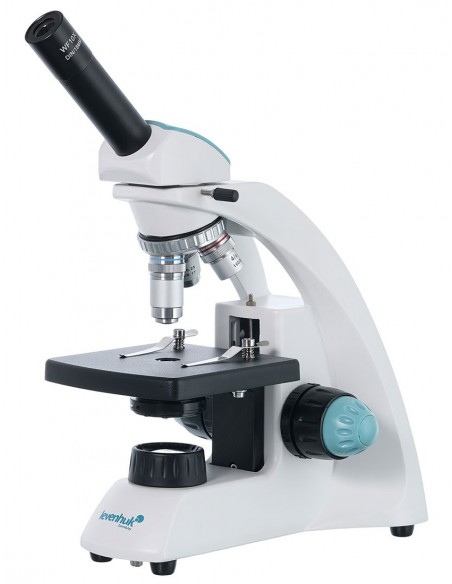

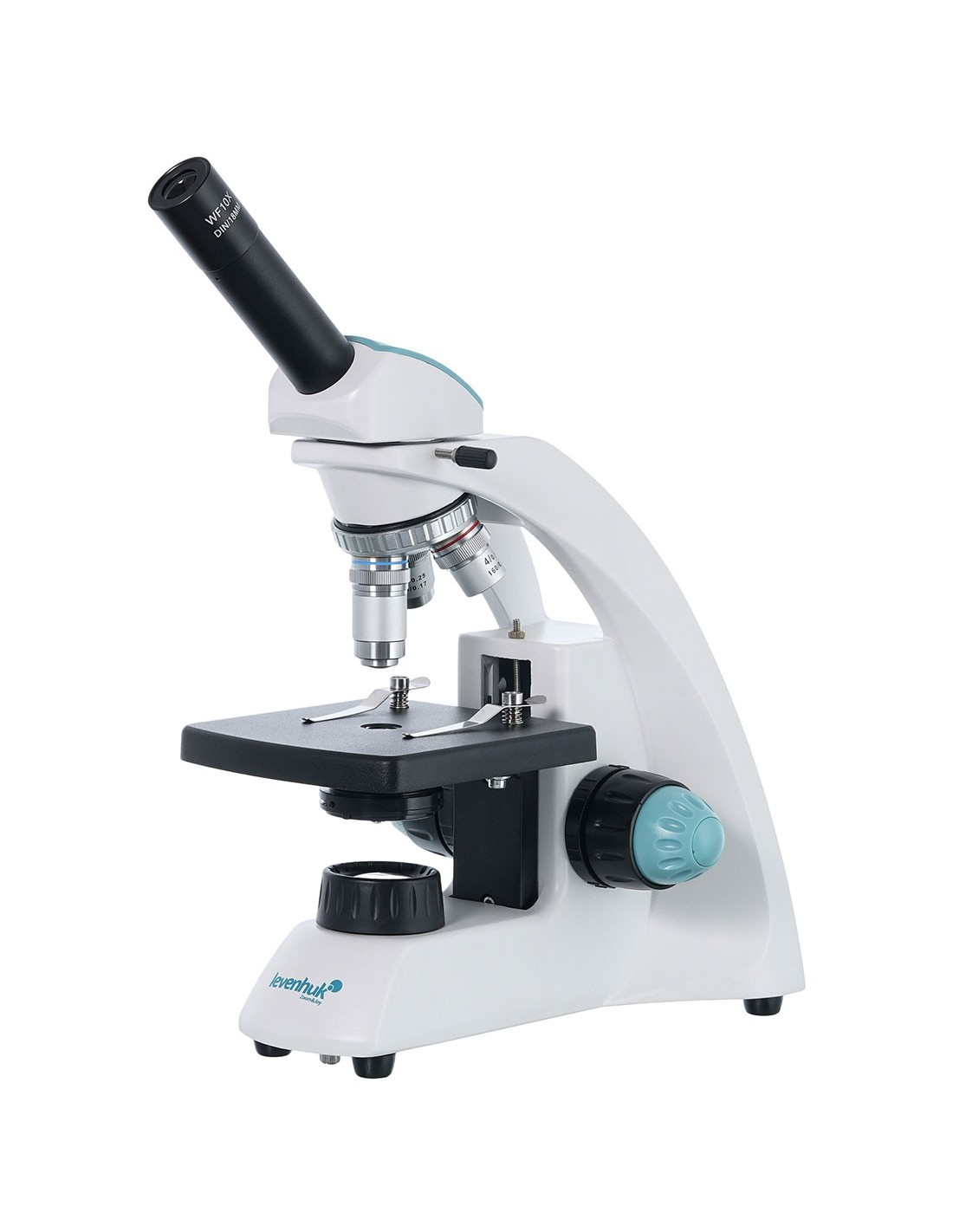

The Levenhuk 500M laboratory microscope is the perfect choice for work in the field of histology or any microscopic study requiring staining of specimens. Thanks to the halogen lighting, the images of the slides observed with this have vivid colors and excellent contrast. This model is excellent for any microbiological observation in bright field with incident light.

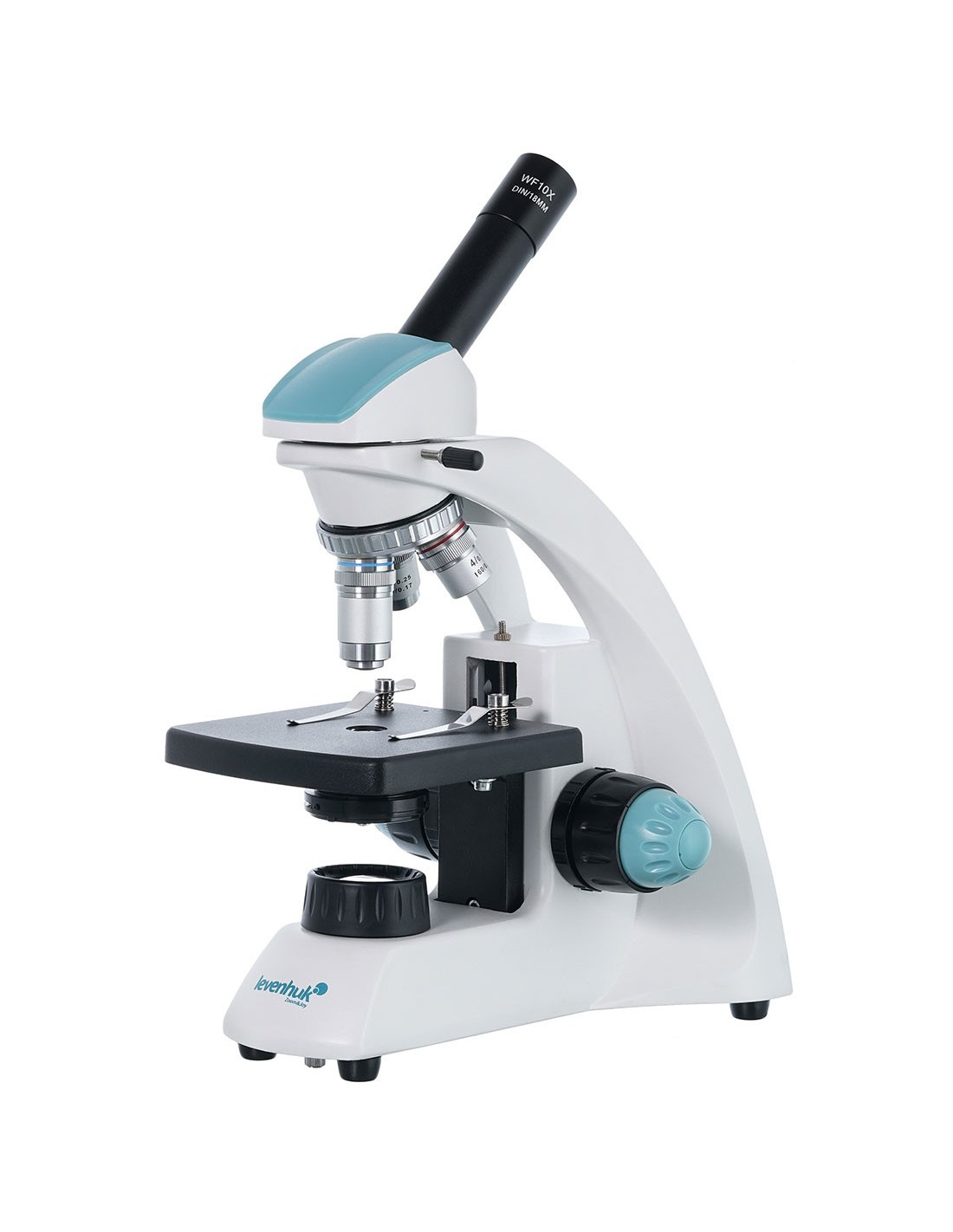

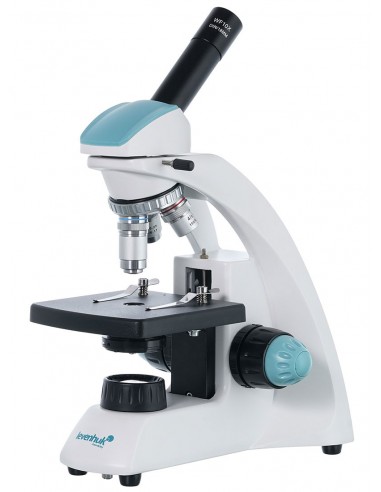

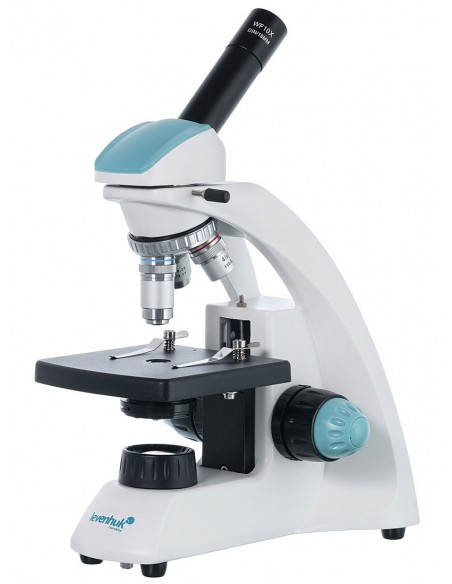

For greater convenience, the monocular head is inclined at 45° and rotates 360°. The wide-field eyepiece with 10x magnification provides a good view. Achromatic objectives have magnification factors of 4, 10 or 40. Furthermore, the 40x objective is equipped with a retractable spring mechanism to protect the front lens. The magnification factor of the microscope varies between 40 and 400, an optimal range for the study of large and medium-sized structures.

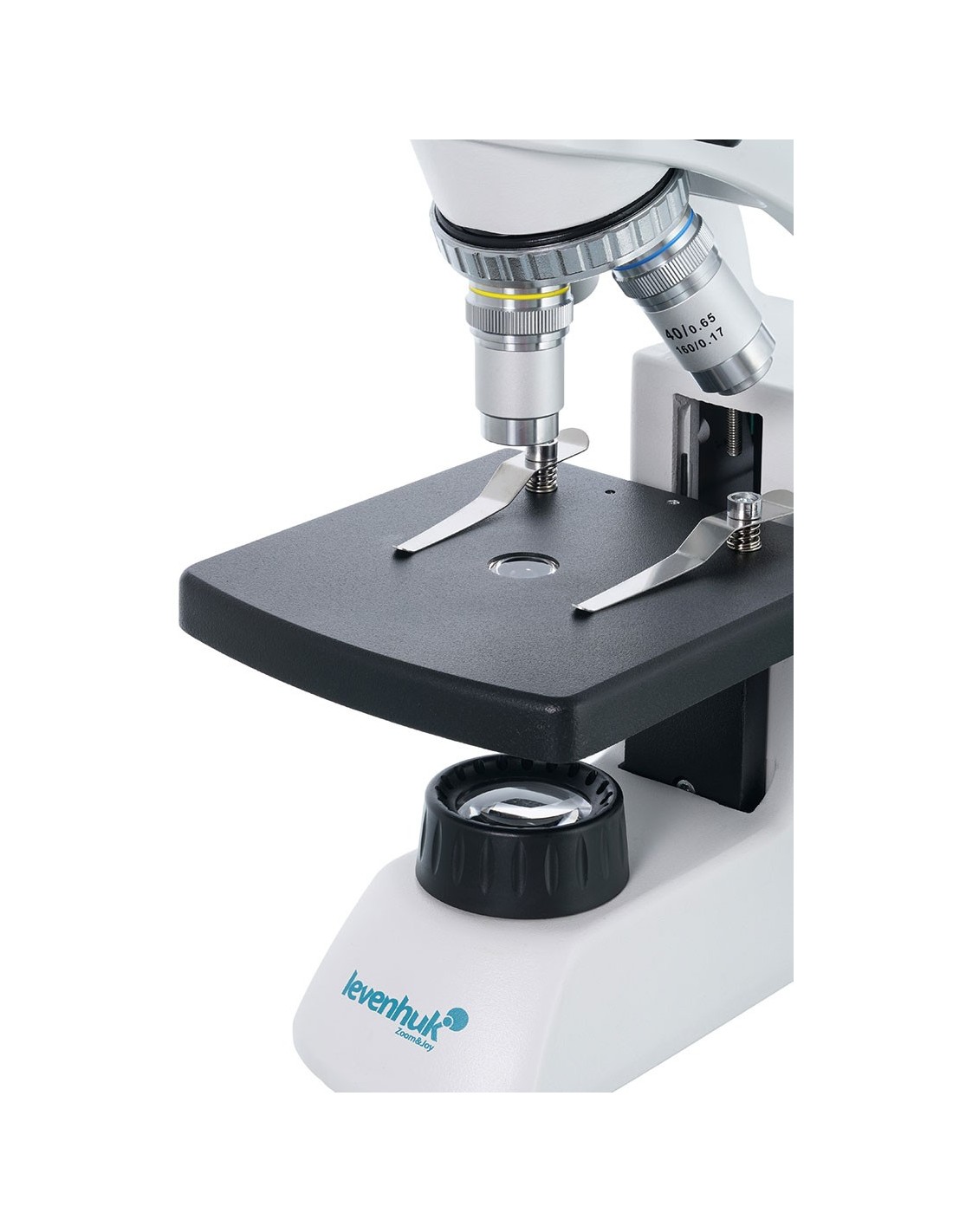

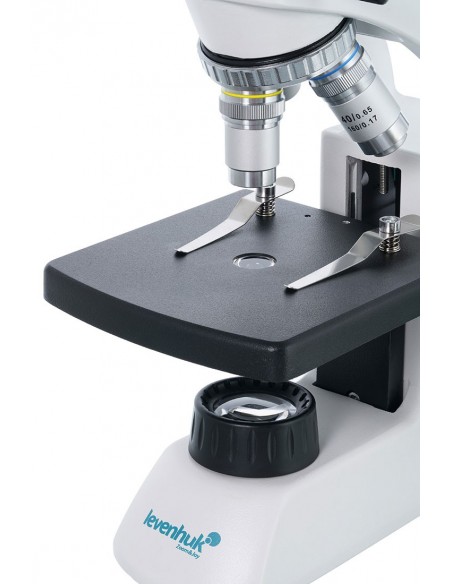

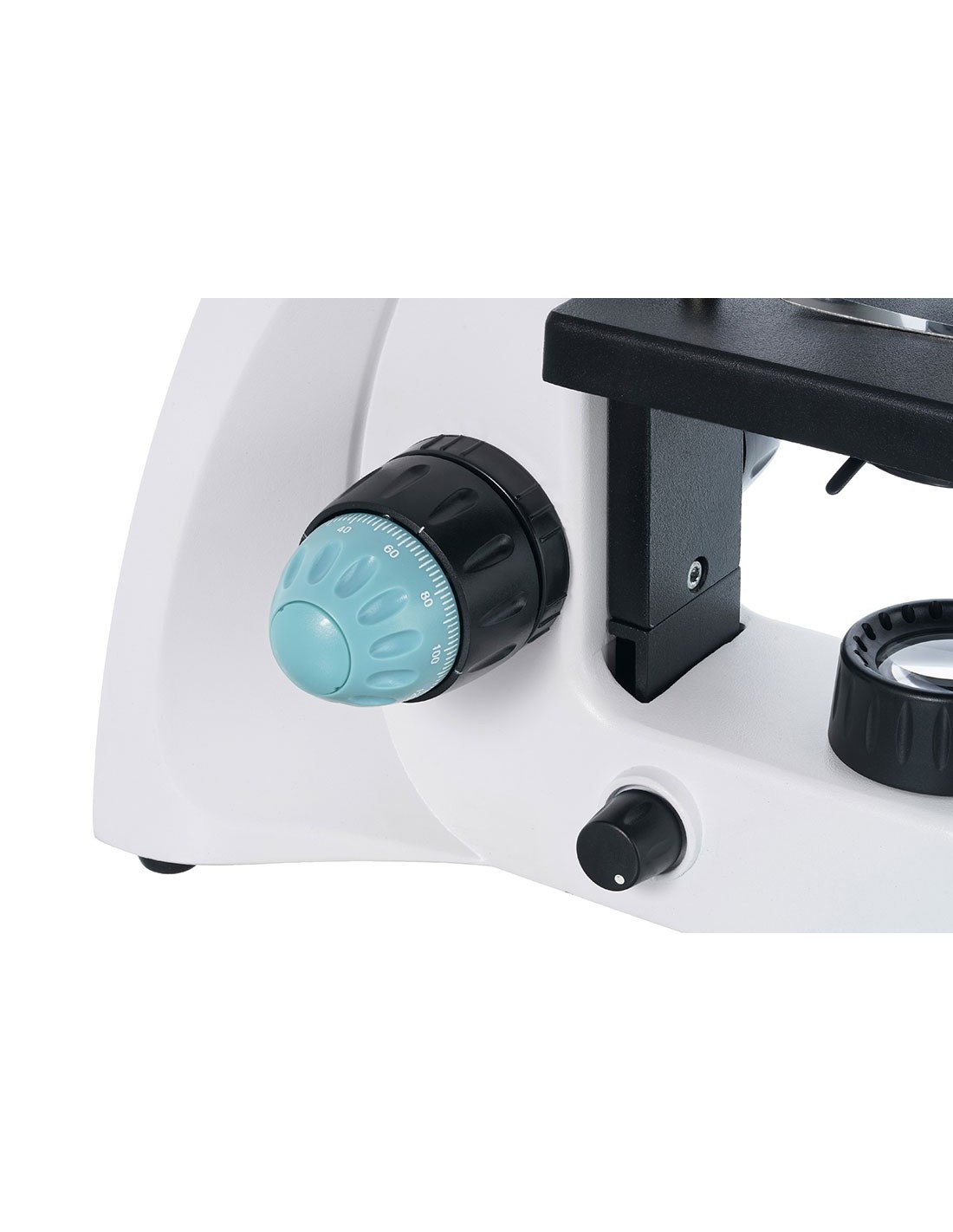

The stage is equipped with the classic clips. Next to the table, you will find the coarse and fine focus knobs. The illumination unit is located in the lower portion of the microscope, immediately below the brightfield condenser with iris diaphragm and filter holder. Lighting is provided by a halogen bulb with collector; the brightness is adjustable. The light is powered by the AC mains.
Features:
- Monocular head rotatable and inclined at 45°
- Wide-field achromatic optics with 40x–400x magnification
- Bottom halogen light with collector and brightness adjustment
- AC power supply
- Durable metal body
- Slot for installing an analyzer filter (the analyzer is not included)

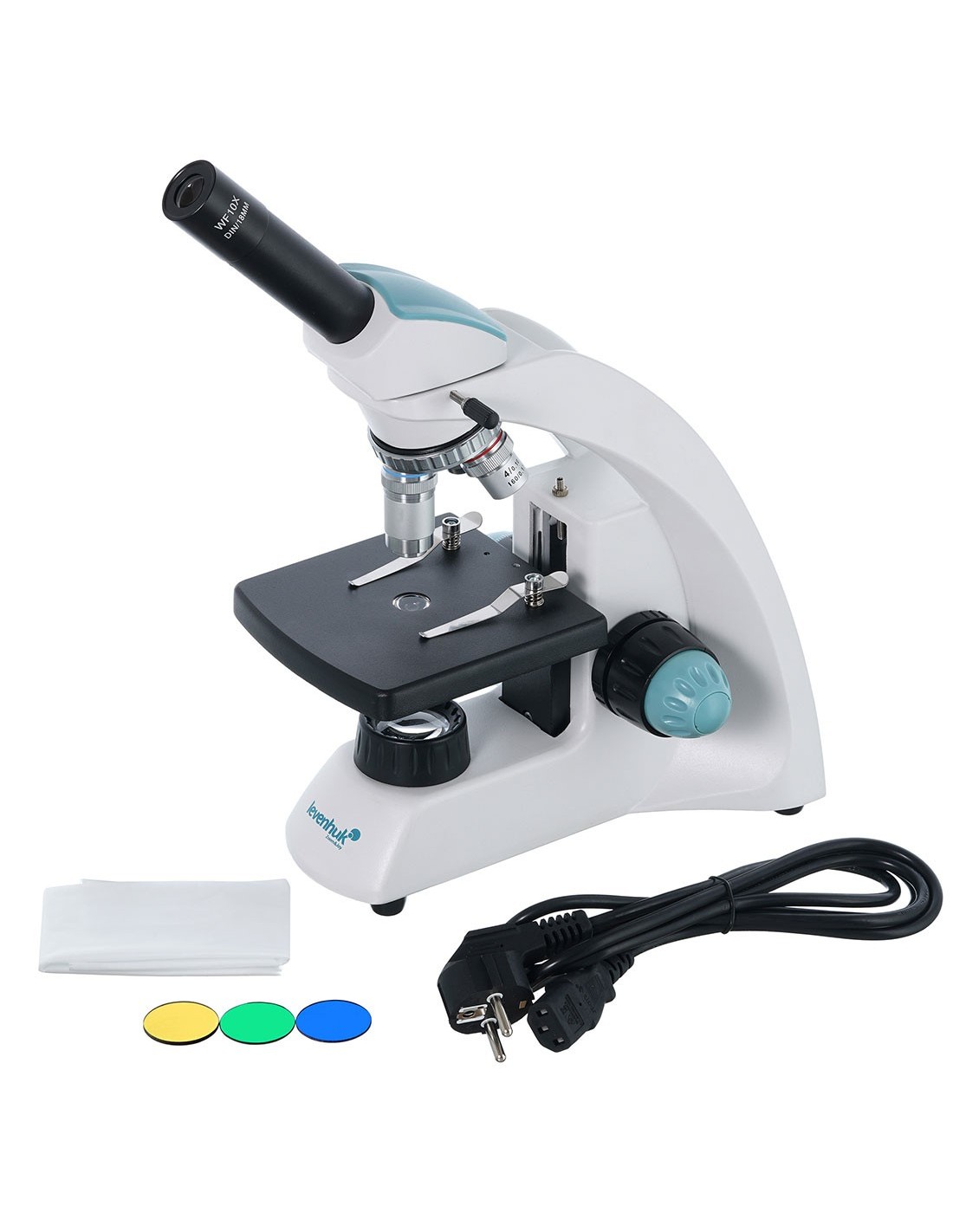

The kit includes:
- Microscope
- 4x, 10x, 40xs achromatic objectives

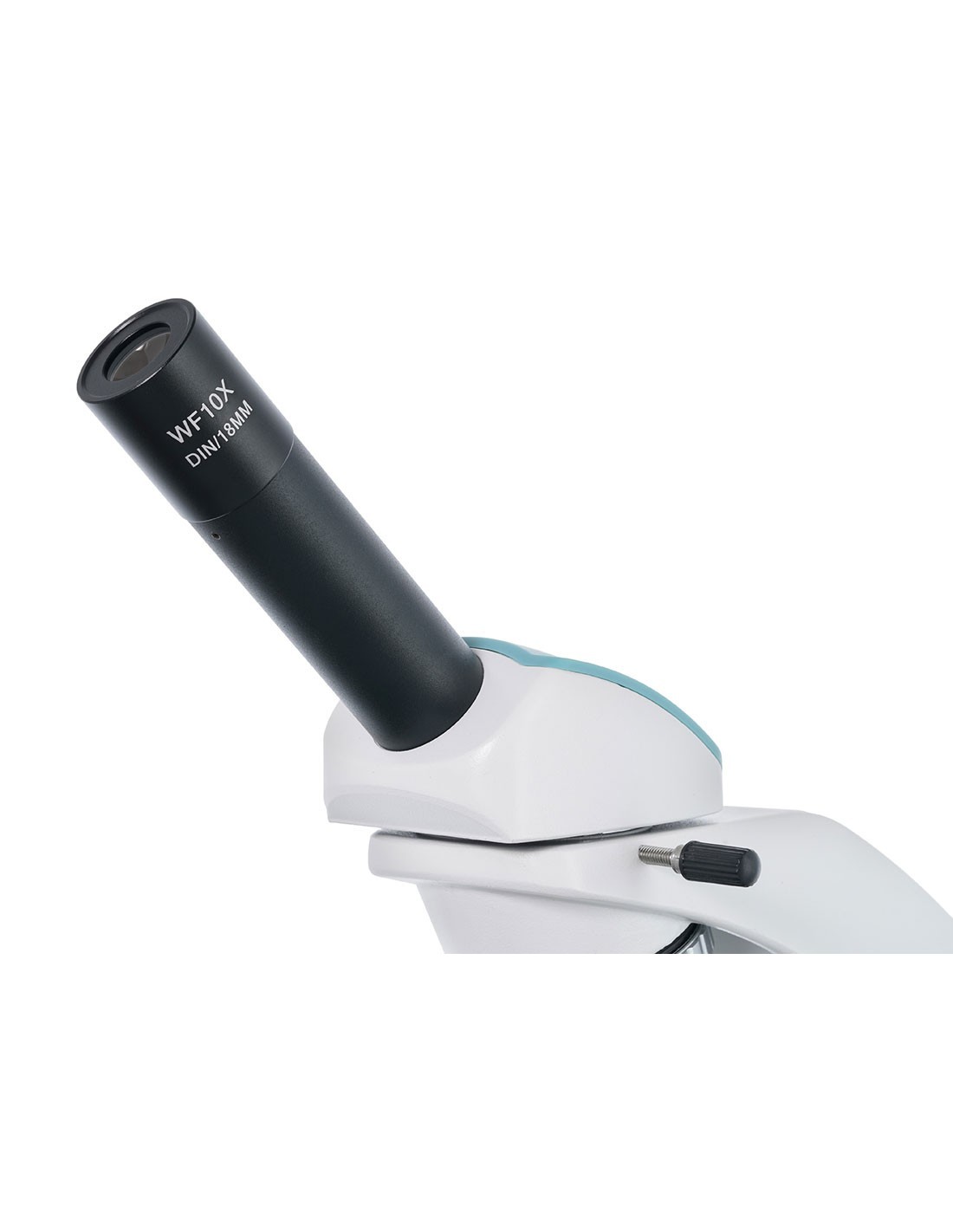

- WF10x/18 mm eyepiece (1 pc.) with pointer
- Condenser with NA 0.65 iris diaphragm and filter holder
- Filters: blue, green, yellow
- Fuse
- Power cord
- Dust cover
- User manual and lifetime warranty
| Brand | Levenhuk Inc., USA |
| Lifetime guarantee | |
| EAN | 5905555005294 |
| Package size (LxWxH) | 42x26x33 cm |
| Shipping weight | 3.9 kg |
| Type | light/optical, biological |
| Tested | monocular |
| Optics material | optical glass |
| Vertical tube | 360° rotatable |
| Head inclination angle | 45° |
| Magnification, x | 40 — 400 |
| Magnification range | 200x to 800x |
| Eyepiece tube diameter, mm | 23.2 |
| Eyepieces | WF10x/18 mm |
| Objectives | achromatic: 4x, 10x, 40xs (spring) |
| Nosepiece revolver | for 3 objectives |
| Stage, mm | 110x110 |
| Range of movement of the stage, mm | fixed |
| Stage features | with clips |
| Condenser | condenser with NA 0.65 iris diaphragm and filter holder |
| Diaphragm | iris |
| Focus | coaxial, coarse ( 30 mm) and fine (0.002 mm) |
| Body | metal |
| Lighting | halogen |
| Brightness adjustment | yes |
| Power supply |
| Type of light source | 6 V/20 W halogen lamp, with collector |
| Optical filters | blue, green, yellow |
| Possibility to connect additional equipment | a slot for installing an analyzer filter (the analyzer is not included) |
| User level | expert users |
| Assembly and installation level of difficulty | easy |
| Application | laboratory/medical |
| Lighting position | lower |
| Search method | bright field |
| Set with pencil case/case/bag | dust cover |
