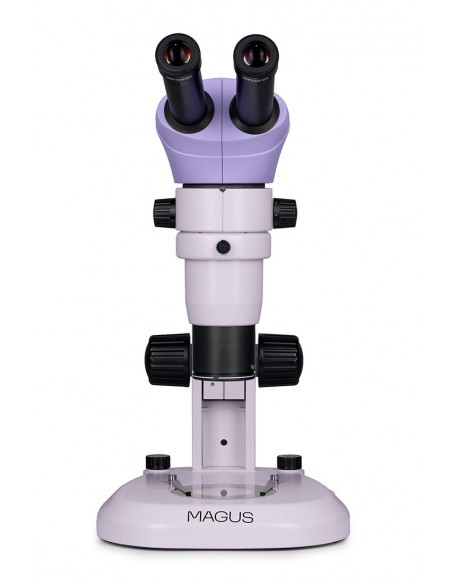

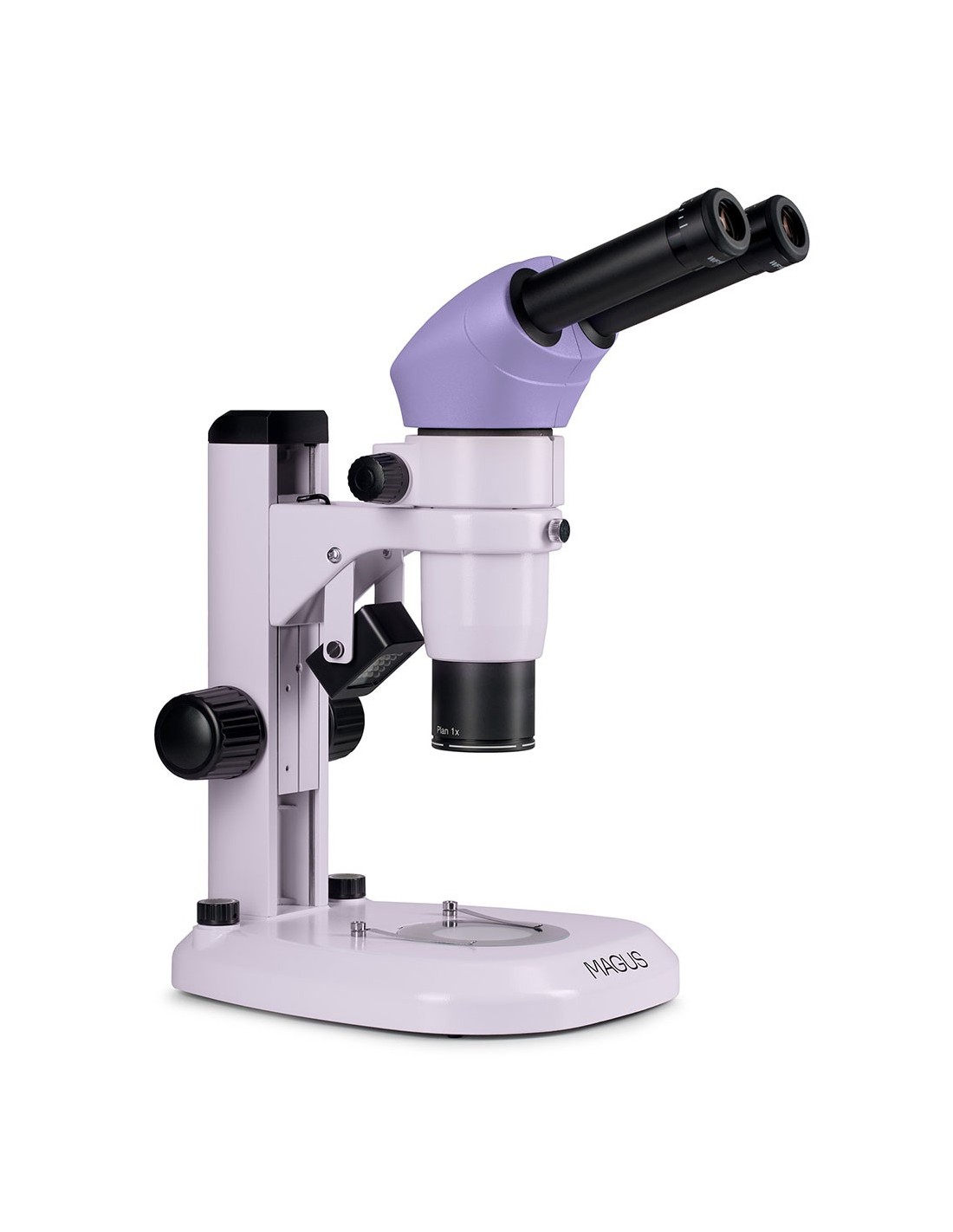

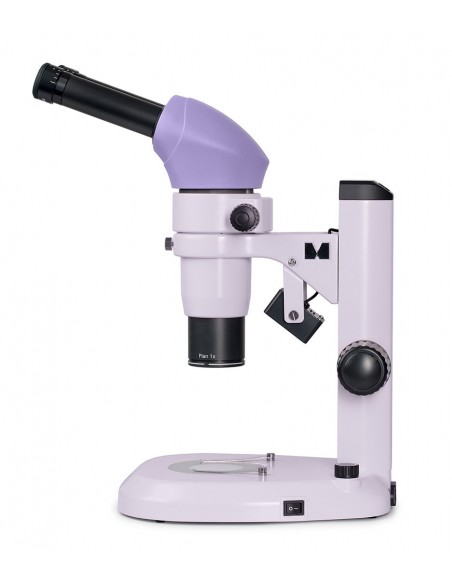

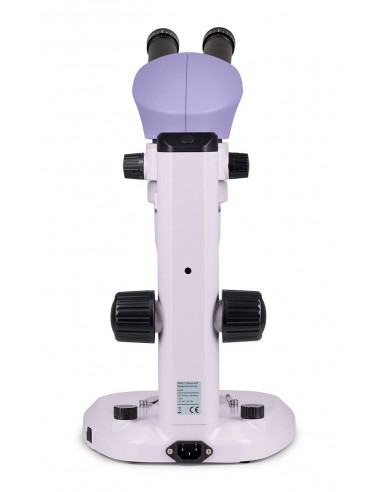

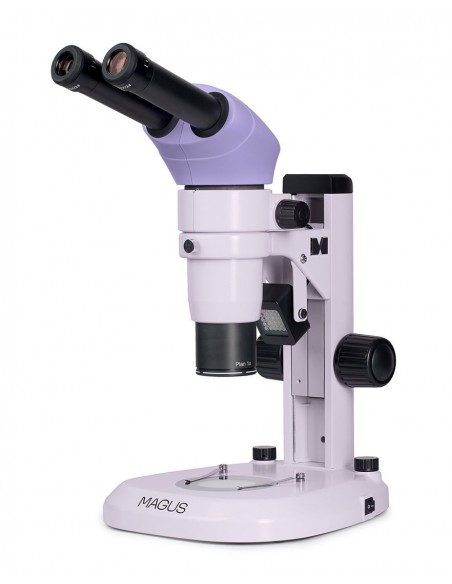

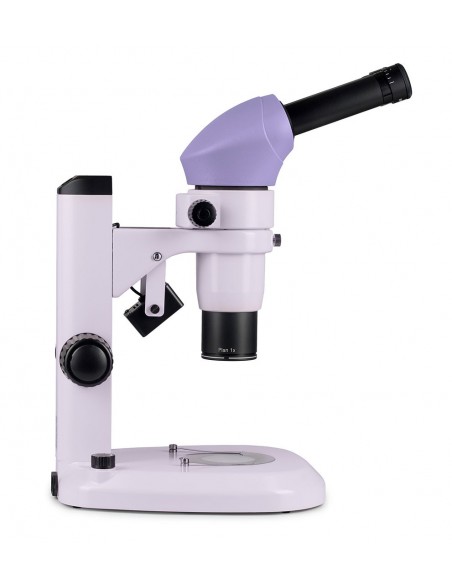

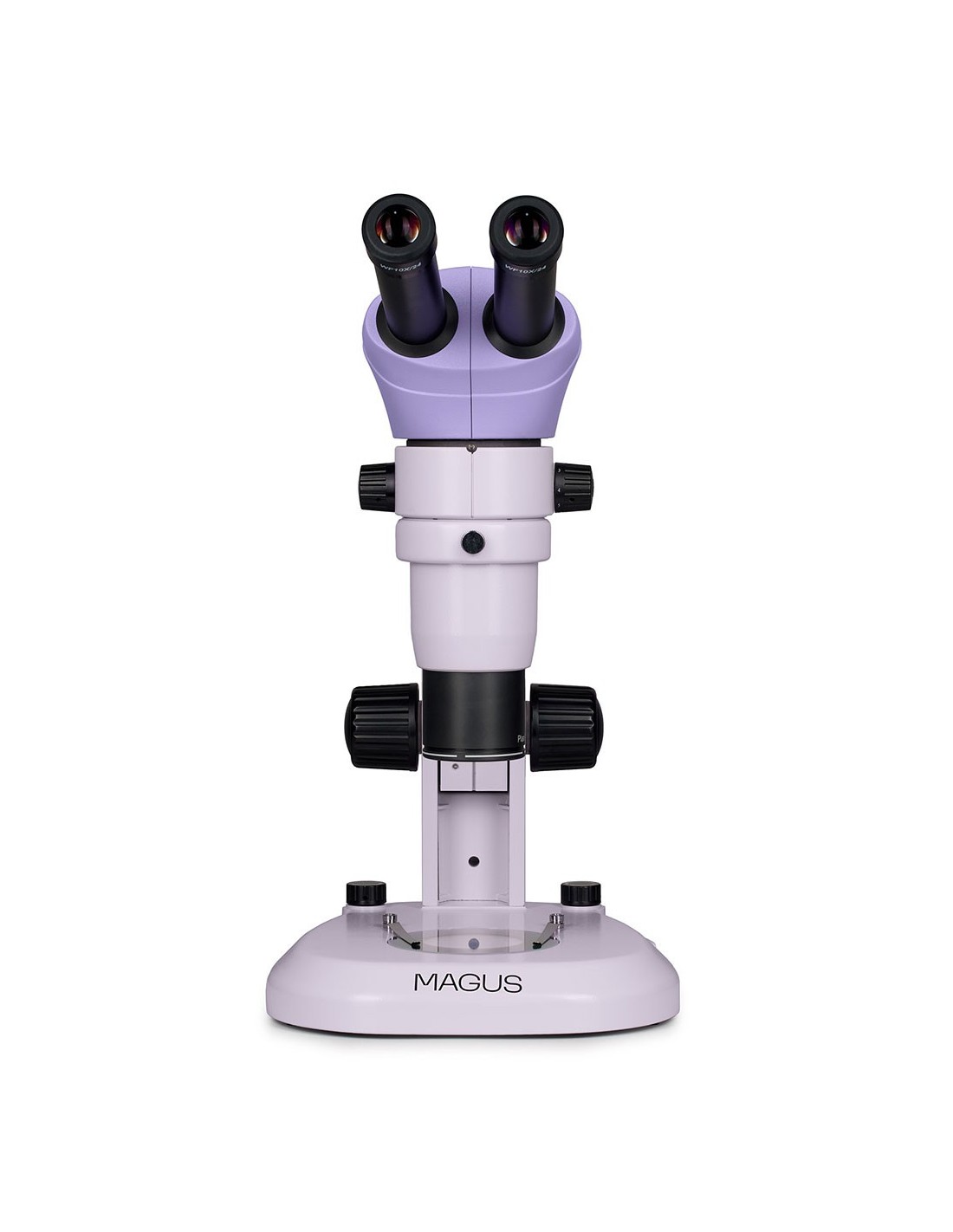

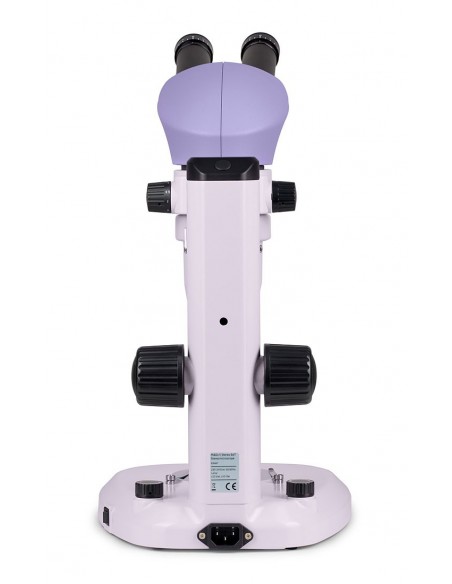

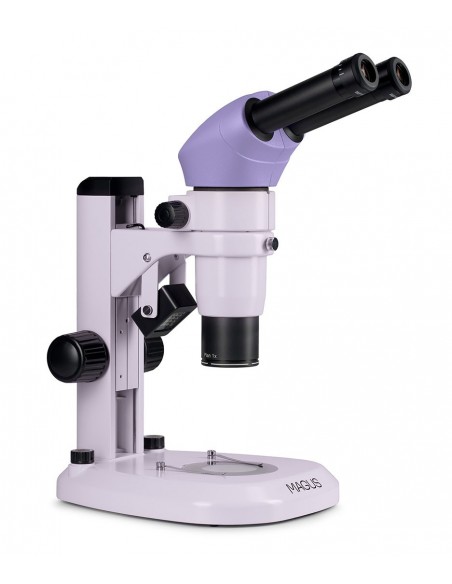

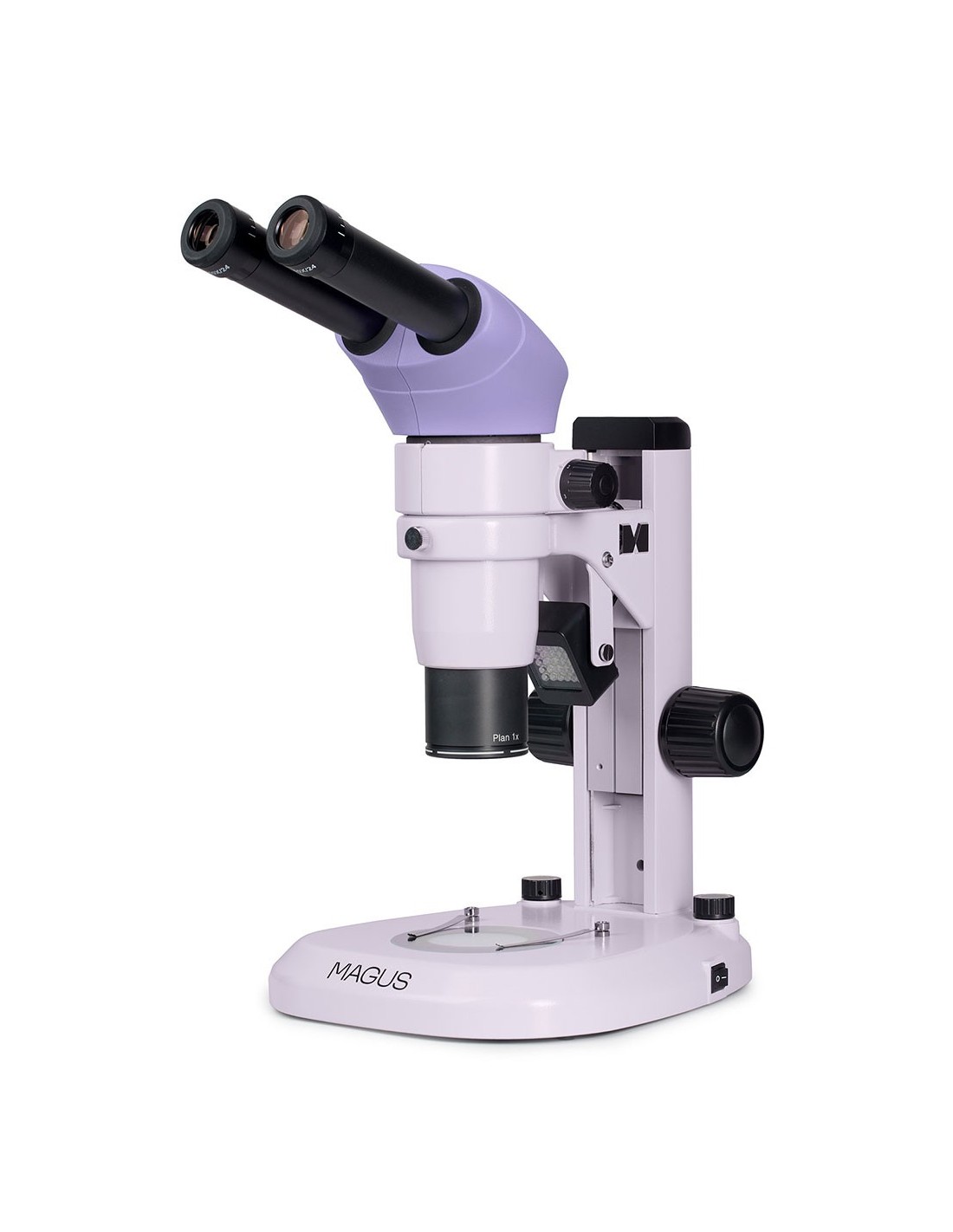

The MAGUS Stereo A6 stereoscopic microscope allows you to see objects in three dimensions. Thanks to the CMO (Common Main Objective) system, this device is suitable for research and can be used in various scientific and production fields. It combines perfectly with a digital camera and allows you to produce high-quality videos and photographs without distortion. The microscope can be used for the observation of opaque and transparent samples and allows detailed examination of surface characteristics.

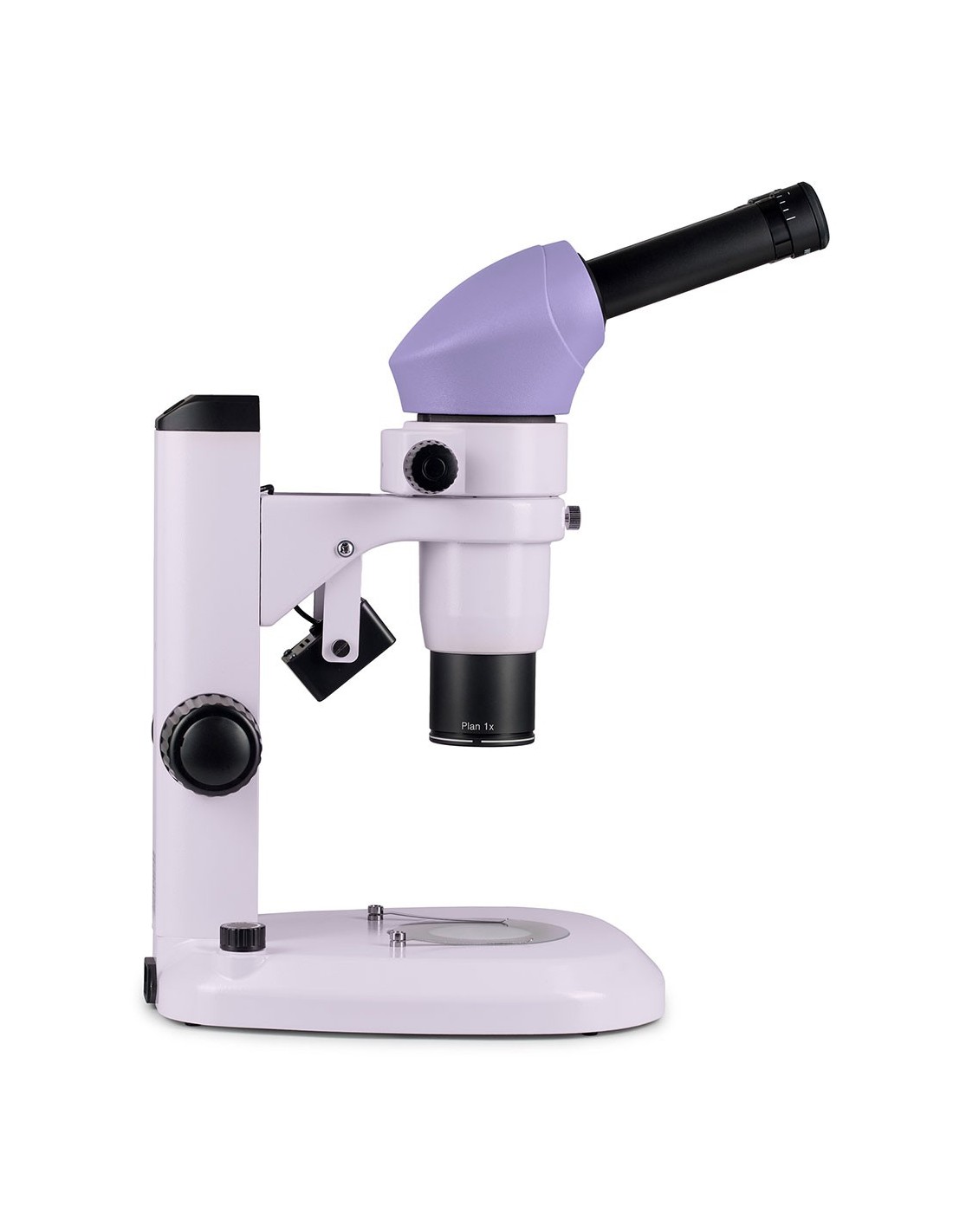

The Stereo A6 model has a binocular head. The pipes are installed at an angle of 20° to the horizontal plane. It allows researchers to assume a comfortable position during observations. A digital camera can be installed on the microscope head, which allows you to conduct research or reports with images generated in real time. To mount the camera on the microscope, you need an intermediate accessory with photo output and a C-mount adapter.
In microscopes with the CMO system, the two optical paths of the eyepieces merge into the common main objective. It is located at a 90° angle to the sample surface, so the researcher is able to see the object without geometric distortion. A planachromatic objective with large lens elements provides a stereoscopic angle of 11°, produces a wide field of view and creates an image with minimal aberrations. The stereoscopic microscope has a wide working distance of 78 mm which allows you to study large specimens.
The zoom lens simultaneously changes the focal length and magnification. The zoom ratio is 6:1. The image in the lens is initially straight and does not need to be flipped by a prism system.
The focus is adjusted via knobs located on the stand. User can adjust coarse focus. You can also adjust the path voltage to suit the user's needs.

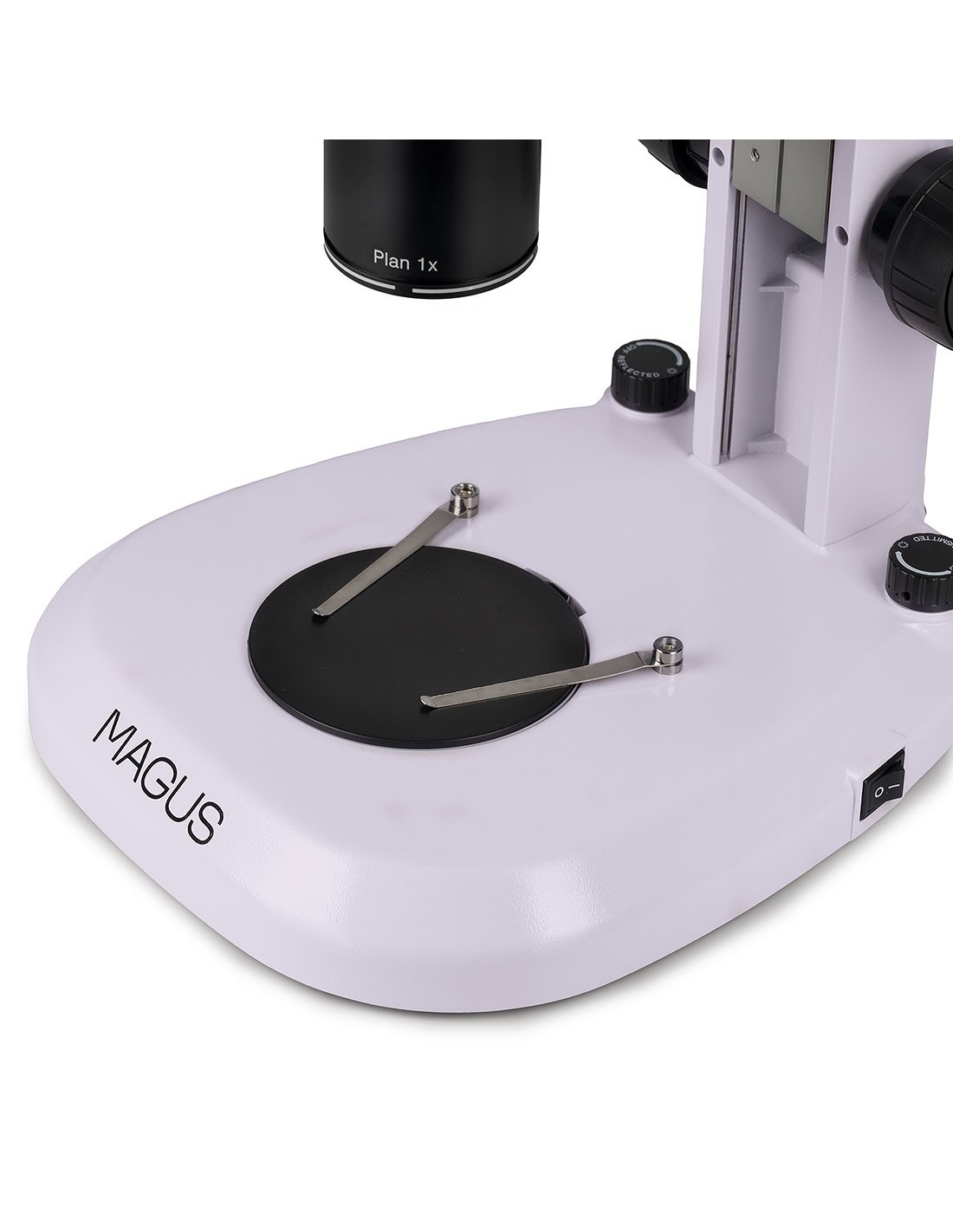

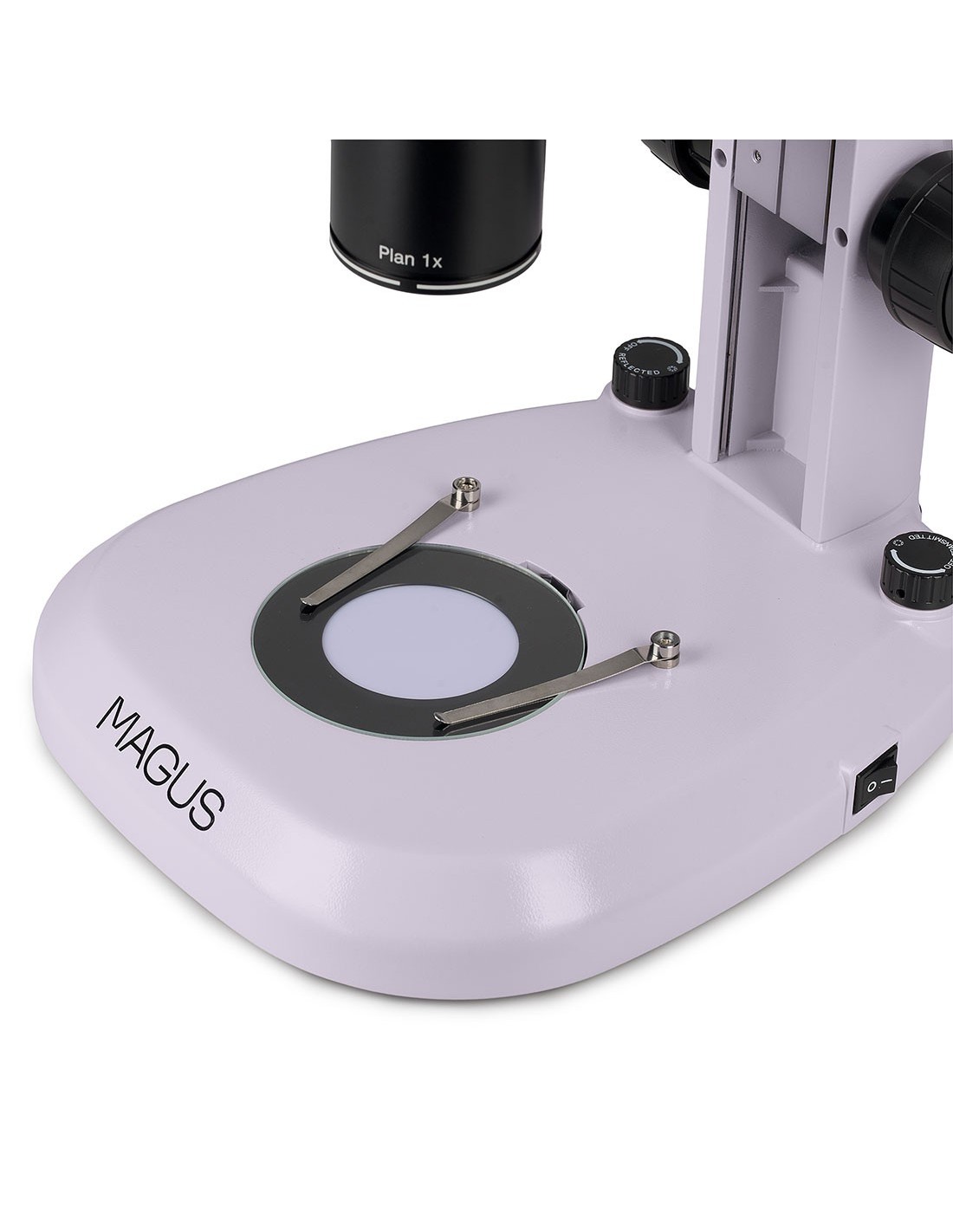

The microscope operates in transmitted and reflected light, so the stage is equipped with two types of plates. The transparent plate is used for the study of translucent and transparent samples. It allows you to achieve uniform illumination of the object, diffusing the light well. The double-sided plate, black and white, is necessary for observing objects impenetrable by light: the white surface serves as a background for dark objects, while the black surface serves for light objects.
The search object It is illuminated by LEDs with a lifespan of 50,000 hours. The device is equipped with a 6 W transmitted light illuminator and a 3 W reflected light illuminator that operates using the oblique illumination method.
You can replace the microscope elements to obtain further magnifications or to integrate the functionality of the device. Eyepieces of different magnification change the final magnification of the microscope. The main objective affects the width of the field of view and the magnification of the microscope. It also determines the working distance. If you need to measure an object, you can use calibration slides in 0.1mm increments.
Key Features:
- Operation with three-dimensional objects and generation of a 3D image
- The CMO (Common Main Objective) system produces high-quality and precise images in eyepieces and a digital camera
- Equipped with illumination systems transmitted and reflected light
- Binocular microscope head adapted for use with a digital camera
- The tubes are installed at an angle of 20 degrees, ensuring comfortable observation for the researcher
- The main objective has a 1x magnification and a working distance of 78 mm, 6:1 zoom
- Planachromatic optics minimize distortion and create a wide field of view
The package contains:
- Base with integrated transmitted light source and power supply
- Support with focusing mechanism
- Microscope head – objective with visual attachment
- 1x plan achromatic main objective
- 10x/22 mm eyepiece with diopter adjustment (2 pcs.)
- 10x/24 mm eyepiece with diopter adjustment (2 pcs.)
- Black and white plate
- Transparent plate
- Oblique reflected light illuminator
- AC power cord
- Dust cover
- User manual and warranty card
Available on request:
- Eyepiece 15x/16 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- 0.3x achromatic main objective
- 0.5x plan achromatic main objective
- 2x plan achromatic main objective
- Calibration slide
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019536 |
| Package size (WxDxH) | 46x43x60 cm |
| Shipping weight | 9.1 kg |
| Type | stereo/instrumental |
| Tested | binocular |
| Magnification, x | 8–50 in basic configuration (*optional : 2.4–200), zoom ratio 6:1 |
| Magnifying range | up to 200x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10x/22 mm, 10x/24 mm ( *optional: 15x/16 mm, 20х/12 mm) |
| Objectives | main objective: 1x plan achromatic (*optional: 0.3x achromatic, plan achromatic 0.5x, planachromatic 2x); zoom lens: 0.8–5х |
| Working distance, mm | 78 |
| Distance interpupillary, mm | 55 — 75 |
| Linear visual field, mm | 9.17 — 4.4 |
| Stage Features | white/black plate, glass plate |
| Eyepiece diopter adjustment, diopters | ±5D on each eyepiece |
| Eyepiece diopter adjustment | yes |
| Focus |
| Focus |
| td> | coaxial, coarse (105 mm, with coarse focus voltage adjustment) |
| Illumination | LED |
| Brightness adjustment | yes |
| Power supply | 220 V/50 Hz, AC mains , via 5 V, 2 A power adapter |
| Type of light source | reflected light: oblique illuminator – 3 W LED; transmitted light: 6 W LED |
| Operating temperature range, °C | 5 — 35 |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Optical scheme | CMO |
| Application | laboratory/medical, for applied research | td> |
| Lighting position | double |
| Search method | bright field |
| td> |
| Set with pencil case/case/bag | dust cover |
