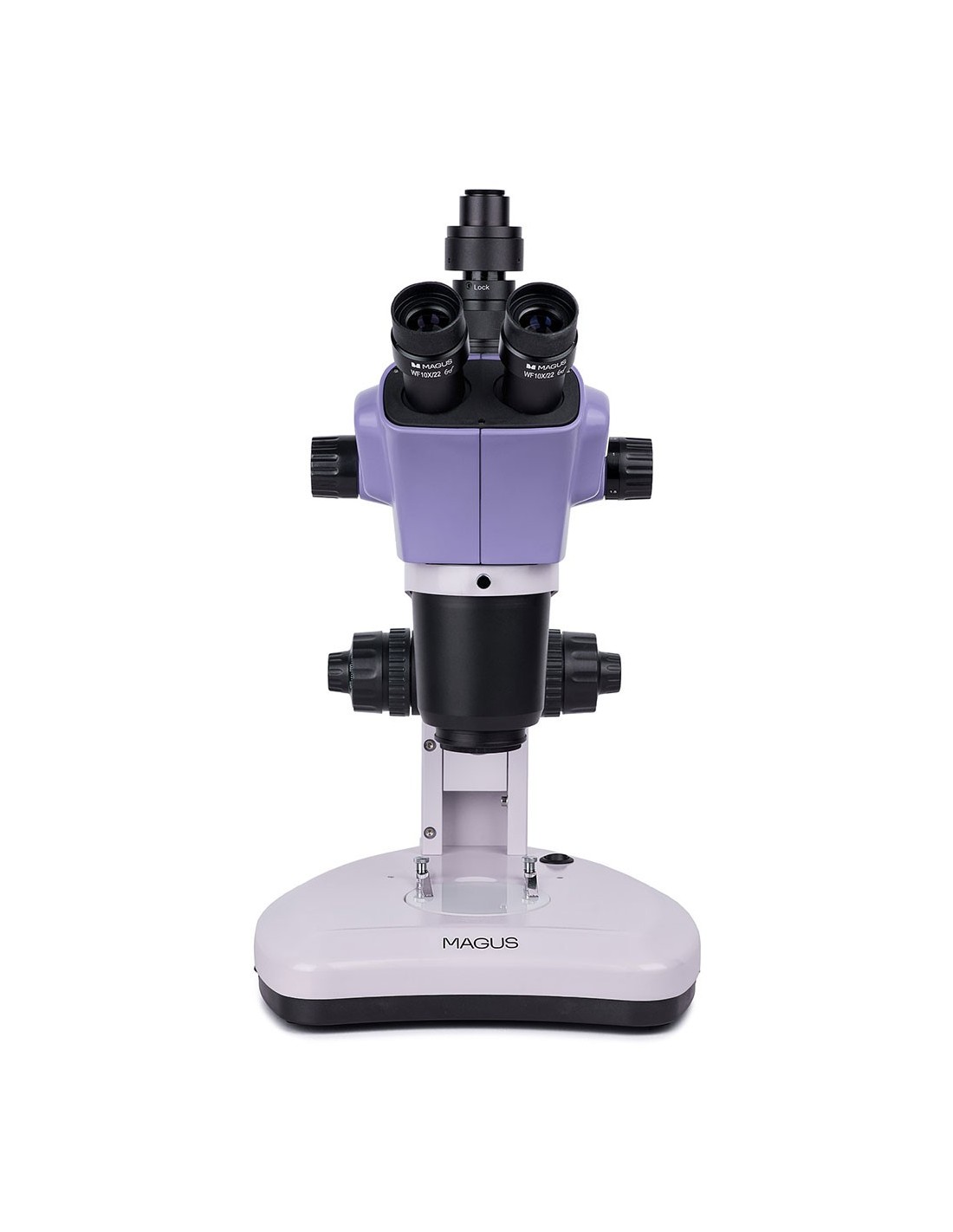

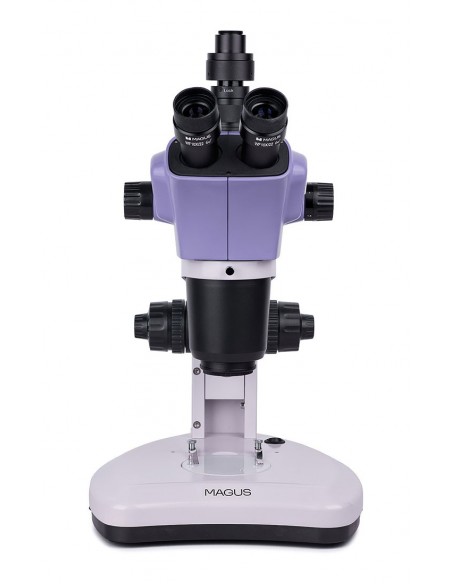

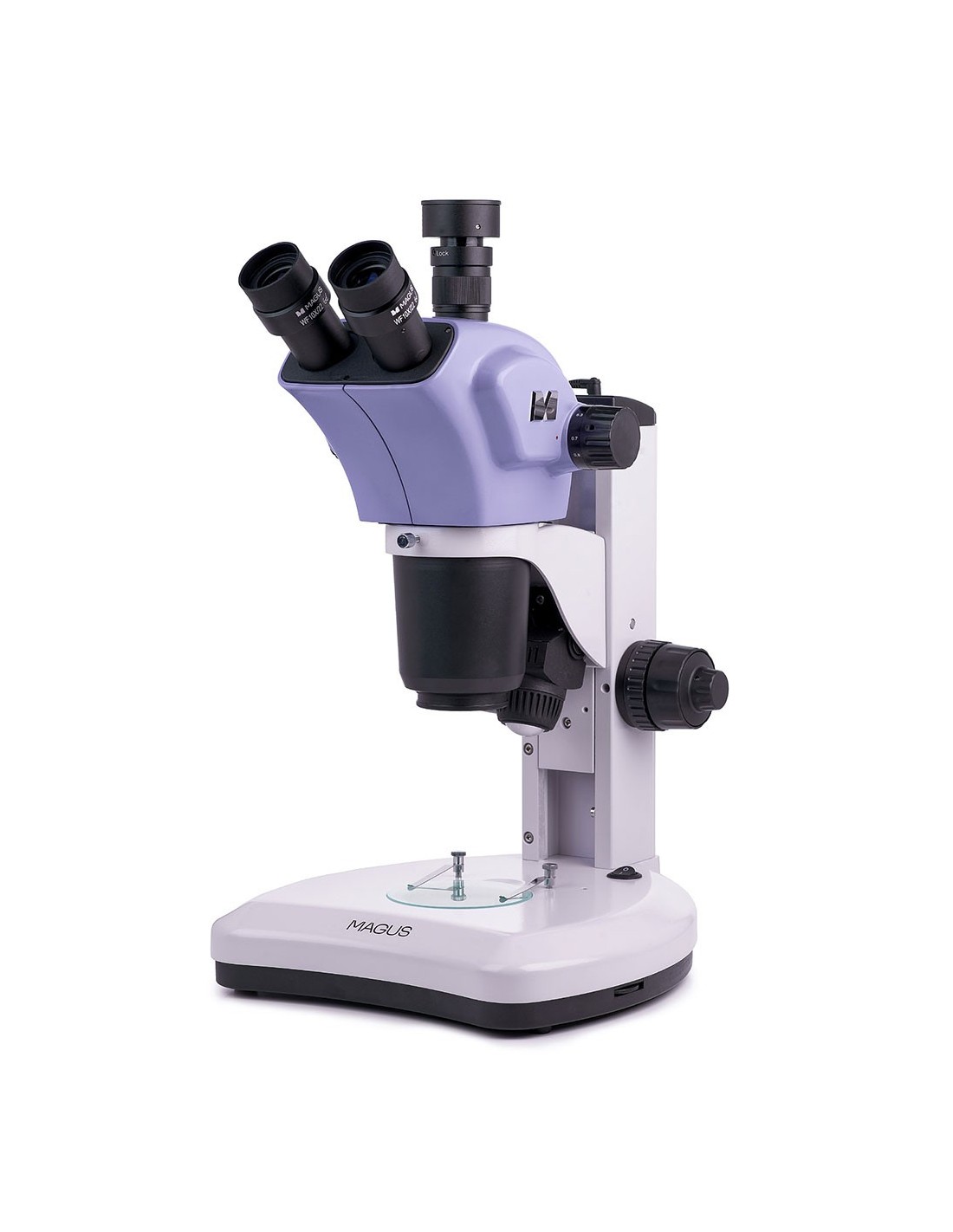

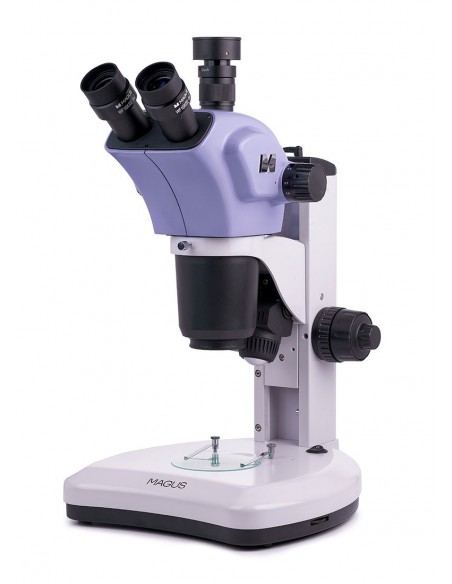

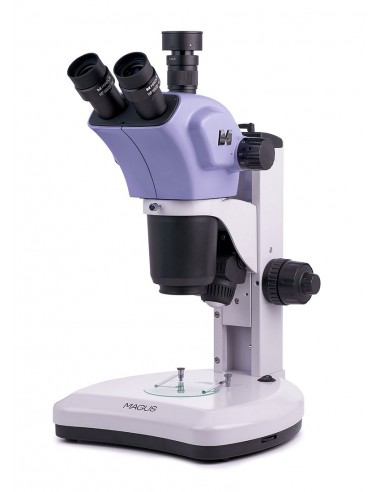

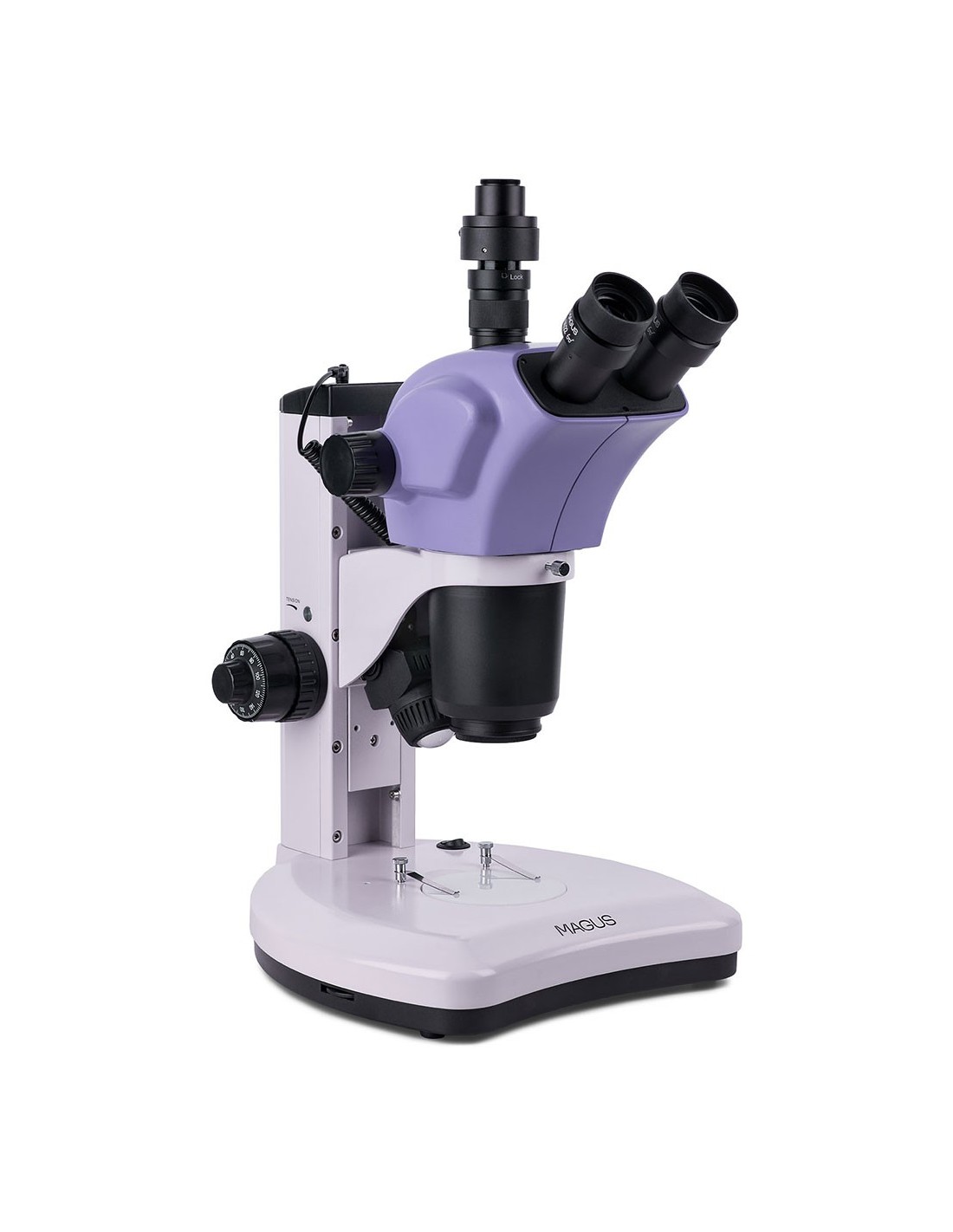

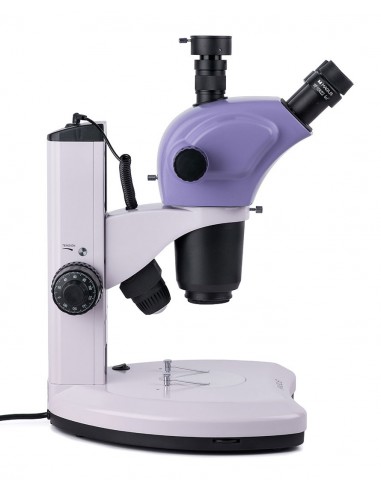

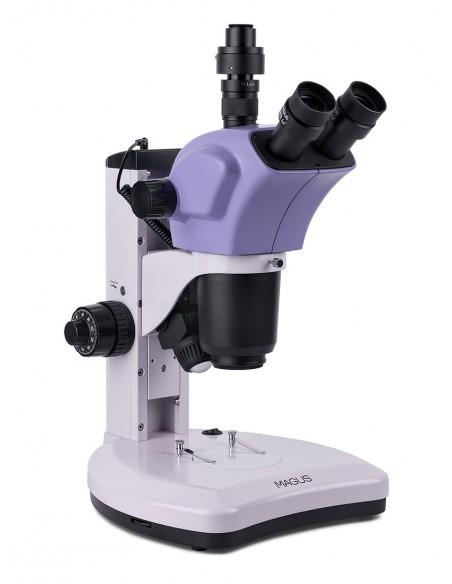

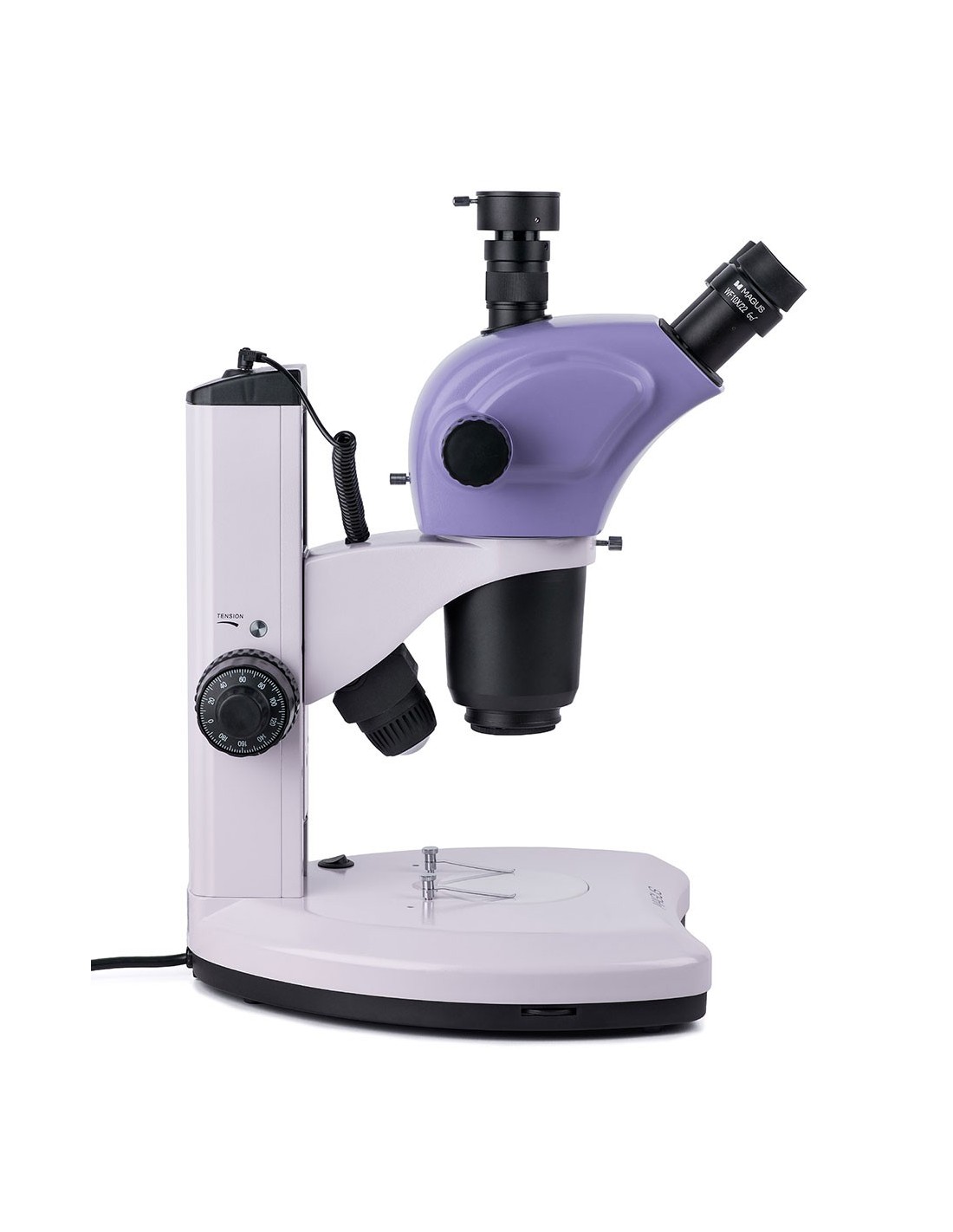

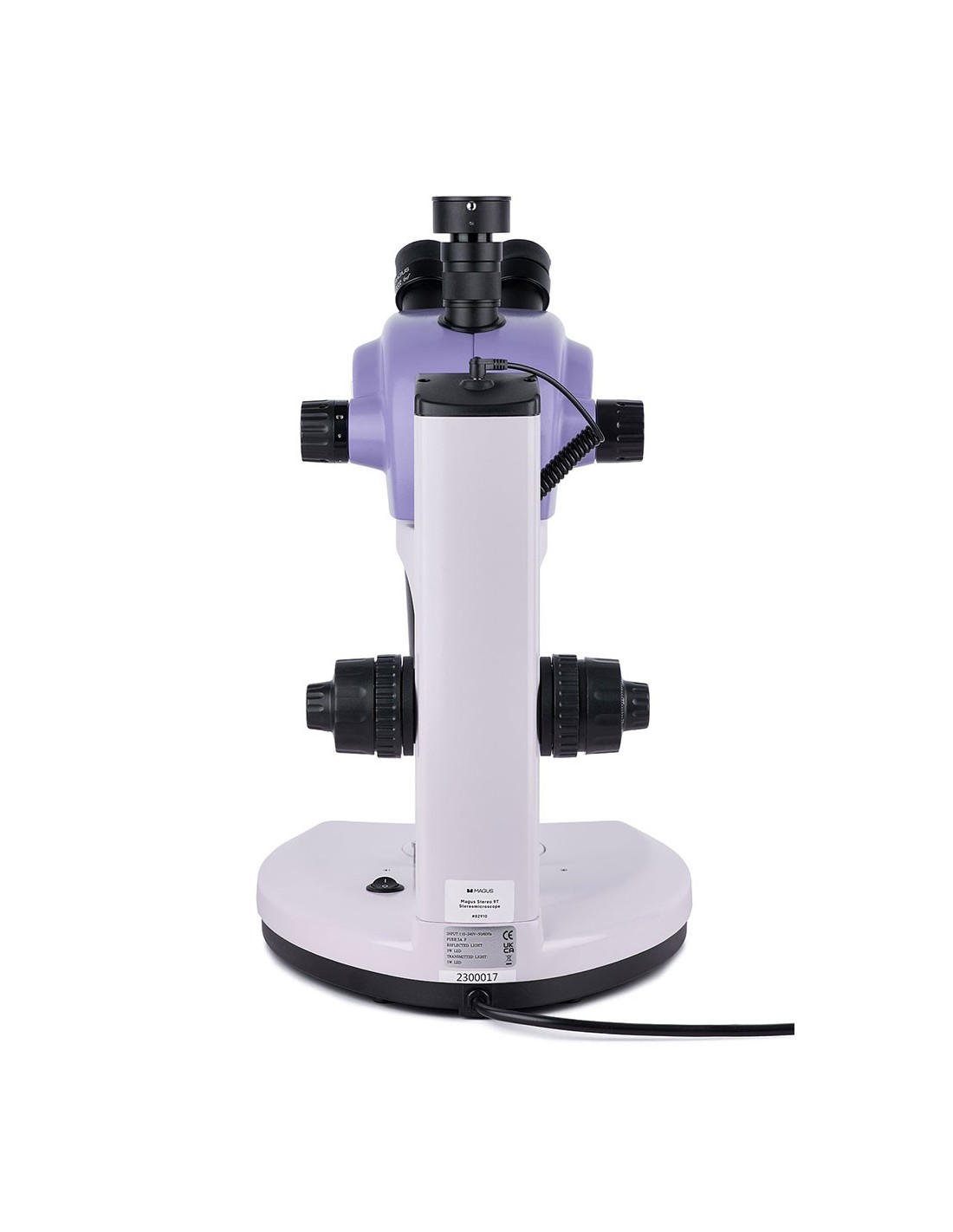

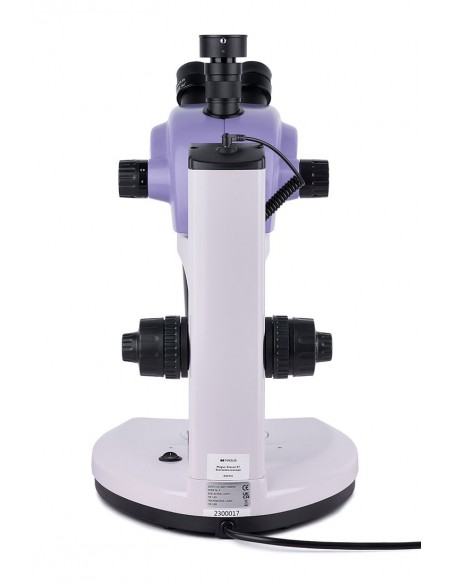

The MAGUS Stereo 9T stereoscopic microscope forms a non-inverted three-dimensional image and has a wide working distance. It is possible to examine the samples but also to experiment with them. The Greenough-type optical scheme produces sharp, three-dimensional images, essential for high-precision observations. The microscope has a zoom and two illuminators (transmitted and reflected light) and can be upgraded with additional accessories. Excellent choice for restoration, welding, model making, machinery repairs and quality control.
Optics

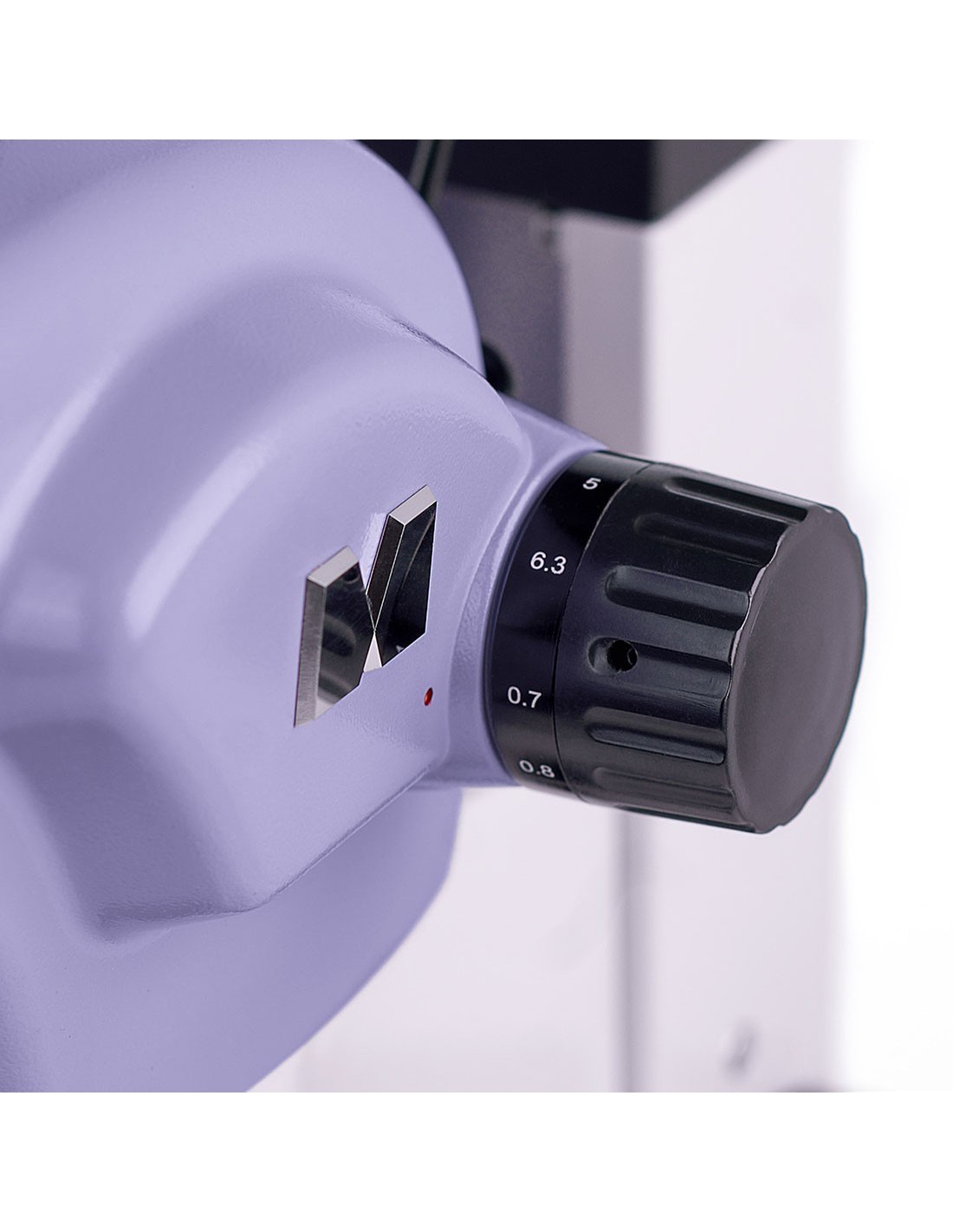

The microscope features a trinocular head with a tube trinocular for mounting a camera. A C-mount adapter is included, however the digital camera must be purchased separately. The trinocular head rotates 360°. The zoom lens used in conjunction with a 10x eyepiece offers 7x to 63x magnification. Thanks to the zoom lens, the magnification changes without reducing the focus. If you use additional objectives (not included), you can change the magnification range, working distance and field of view of the microscope. It is possible to increase the magnification of the microscope up to 315x thanks to optional accessories.
Lighting
The work area is illuminated by two LED illuminators: a 5W transmitted light illuminator and a 3W reflected light (oblique) illuminator. Both illuminators are powered by an AC source, are bright and do not change color temperature when you adjust the brightness. They have a lifespan of 50,000 hours.
Stage and focusing mechanism
One of the included plates is installed on the stage: white and black on both sides sides, white or transparent. The first plate is used for observations of opaque objects and produces a high-contrast image. Dark colored samples are examined on the white part, while light colored samples are examined on the black part. The white and transparent plates are used for observations of translucent or transparent samples when maximum brightness and uniform illumination of the working area is desired.
The microscope features a mechanism for focusing coarse and fine fire. Fine focus is used at a magnification greater than 40x. The coarse focus features tension adjustment.
Accessories
To increase the capabilities of your microscope, you can use additional accessories, such as eyepieces, auxiliary lenses, calibration slides and digital cameras. It is also possible to install a device for polarized light observations.
Key features:
- Zoom lens with a ratio of 9:1
- 360° rotation of the trinocular head, trinocular tube for capturing photos and videos
- Greenough-type optical scheme, three-dimensional image with a large depth of field
- Illumination (oblique) with transmitted and reflected light, two LED illuminators
- Optional accessories to improve the performance of the microscope

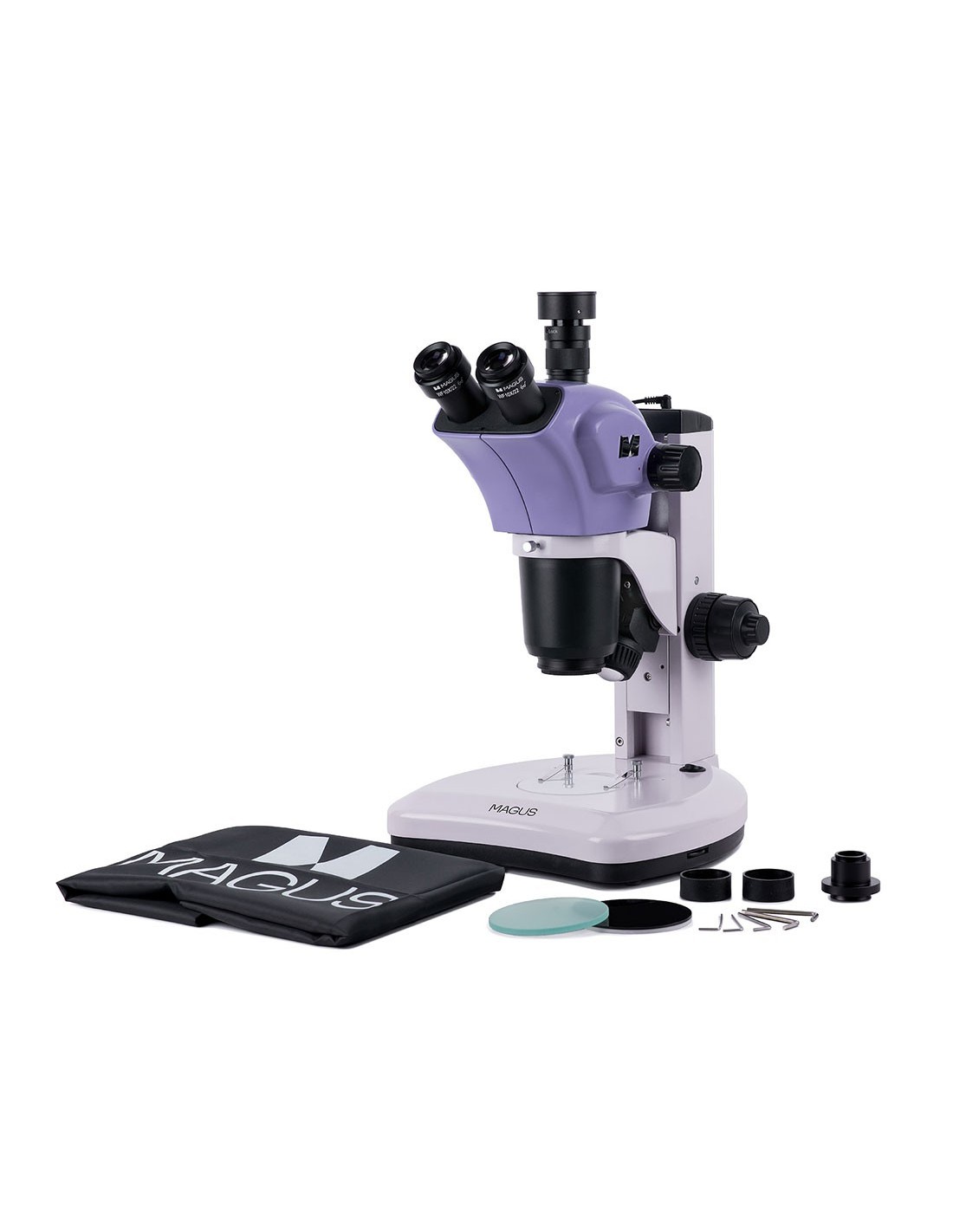

The package contains:
- Base with light source for transmitted light observations and power supply
- Support with focusing mechanism
- Trinocular head

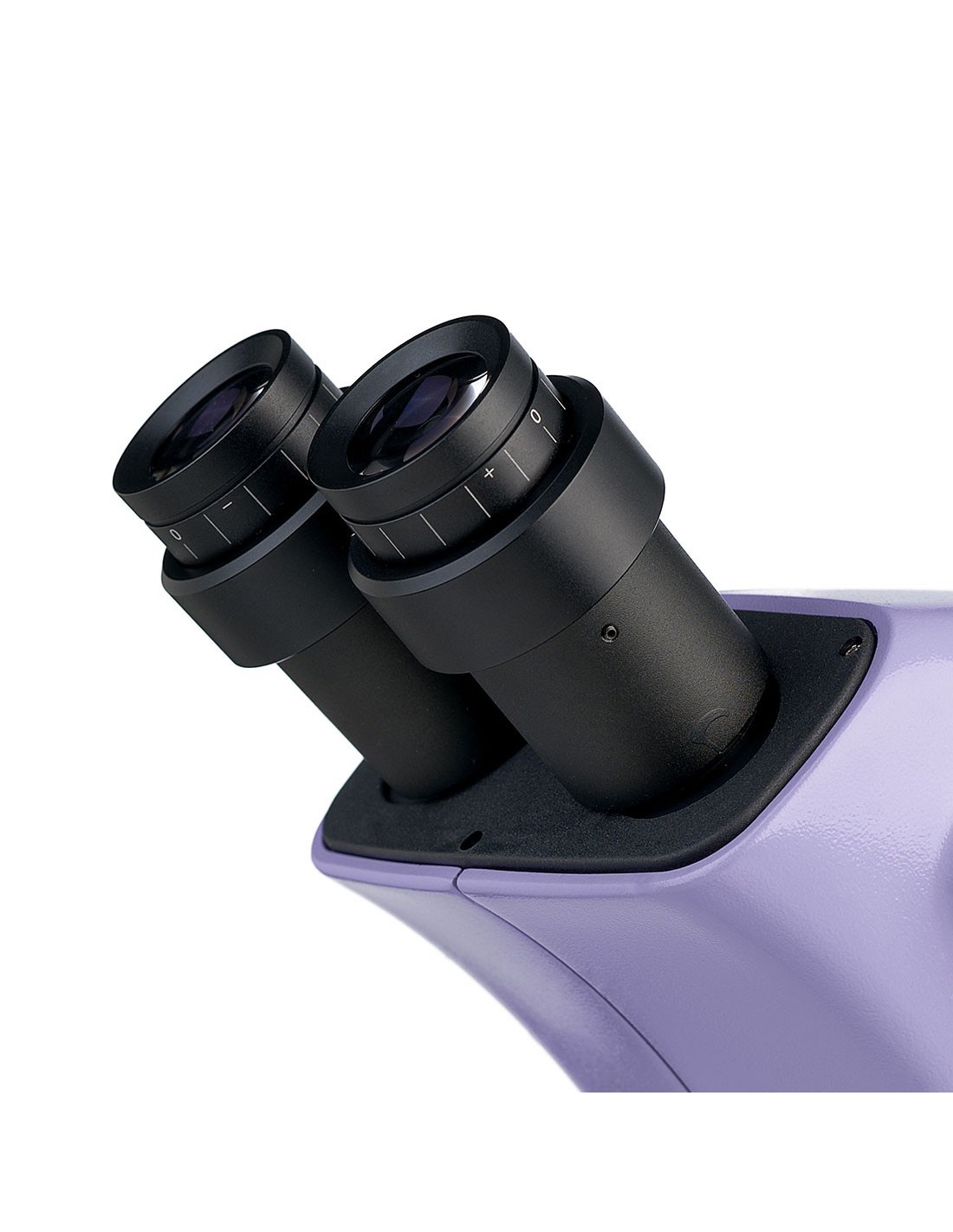

- 10x/22 mm eyepiece (2 pcs.)
- White and black stage plate
- White plate
- Transparent plate
- Illuminator oblique with reflected light
- C-mount adapter
- Power cable for AC mains
- Dust cover
- User manual and warranty certificate
Available on request:
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 16x /15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Objective 0.5x auxiliary objective
- 2x auxiliary objective
- Reflected light ring illuminator
- Polarization tools
- Digital camera
- Calibration glass
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018560 |
| Package size (WxDxH) | 44x42x67 cm |
| Shipping weight | 11.5 kg |
| Type | stereo/instrumental |
| Head | trinocular |
| Vertical tube | 360° rotatable |
| Head inclination angle | 45° |
| Magnification, x | 7–63 in basic configuration (*optional: 3.5–315); 9:1 zoom ratio |
| Magnifying range | up to 200x |
| Eyepiece tube diameter , mm | 30 |
| Eyepieces | 10x/22 mm, long eye relief (*optional: 15x/15 mm, 16x /15 mm, 20x/12 mm, 25x/9 mm) |
| Objectives | 0.7–6.3x (*optional: with auxiliary objective 0.5x: 0.35–3.15x; with auxiliary objective 2x: 1.4–12.6x) |
| Working distance, mm | 110 (with 0.5x auxiliary objective: 188; with 2x auxiliary objective: 40.4) |
| Interpupillary distance, mm | 53 — 75 |
| Field of view, mm | 31.43–3.49 (with 0.5x auxiliary lens: 62.85–6.98; with auxiliary lens 2x: 15.71–1.745), with a 10x eyepiece |
| Stage, mm | Ø90 |
| Stage features | white plate, white/black plate, transparent plate |
| Eyepiece diopter adjustment, diopters | ± 5D on each eyepiece |
| Focus | coaxial, coarse (83 mm, with coarse focus tension adjustment) and fine (0.002 mm) |
| Lighting | LED |
| Brightness adjustment | yes |
| Power supply | 220 V/50 Hz, AC mains |
| Type of light source | reflected light: oblique illuminator – 3 W LED; transmitted light: 5 W LED |
| Possibility to connect additional equipment | polarization instruments |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Optical scheme | Greenough |
| Application | for applied research |
| Lighting position | double |
| Search method | bright field |
| Set with pencil case/case/bag | dust cover |
| Weight, kg | 8 |
| Dimensions, mm | 280x463x335 |
