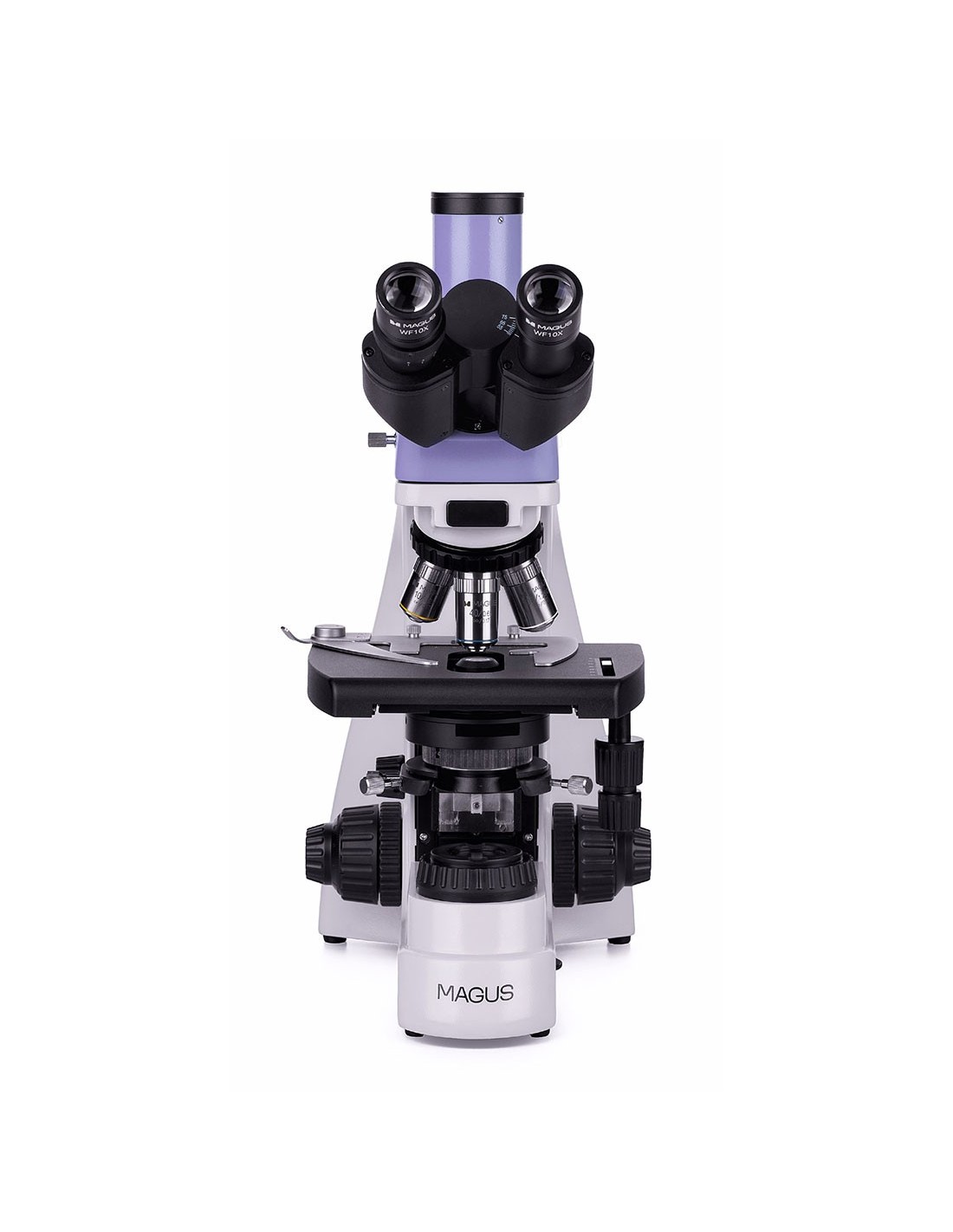

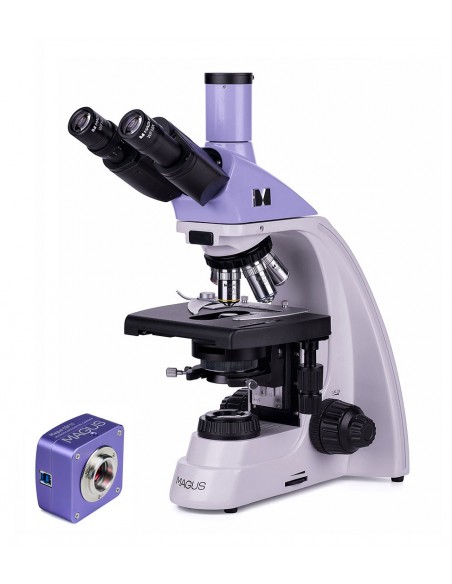

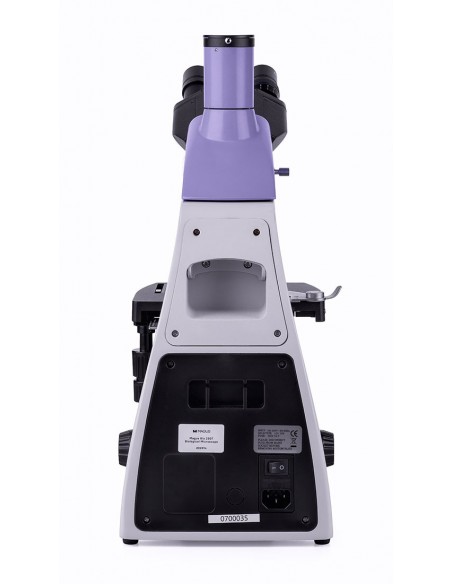

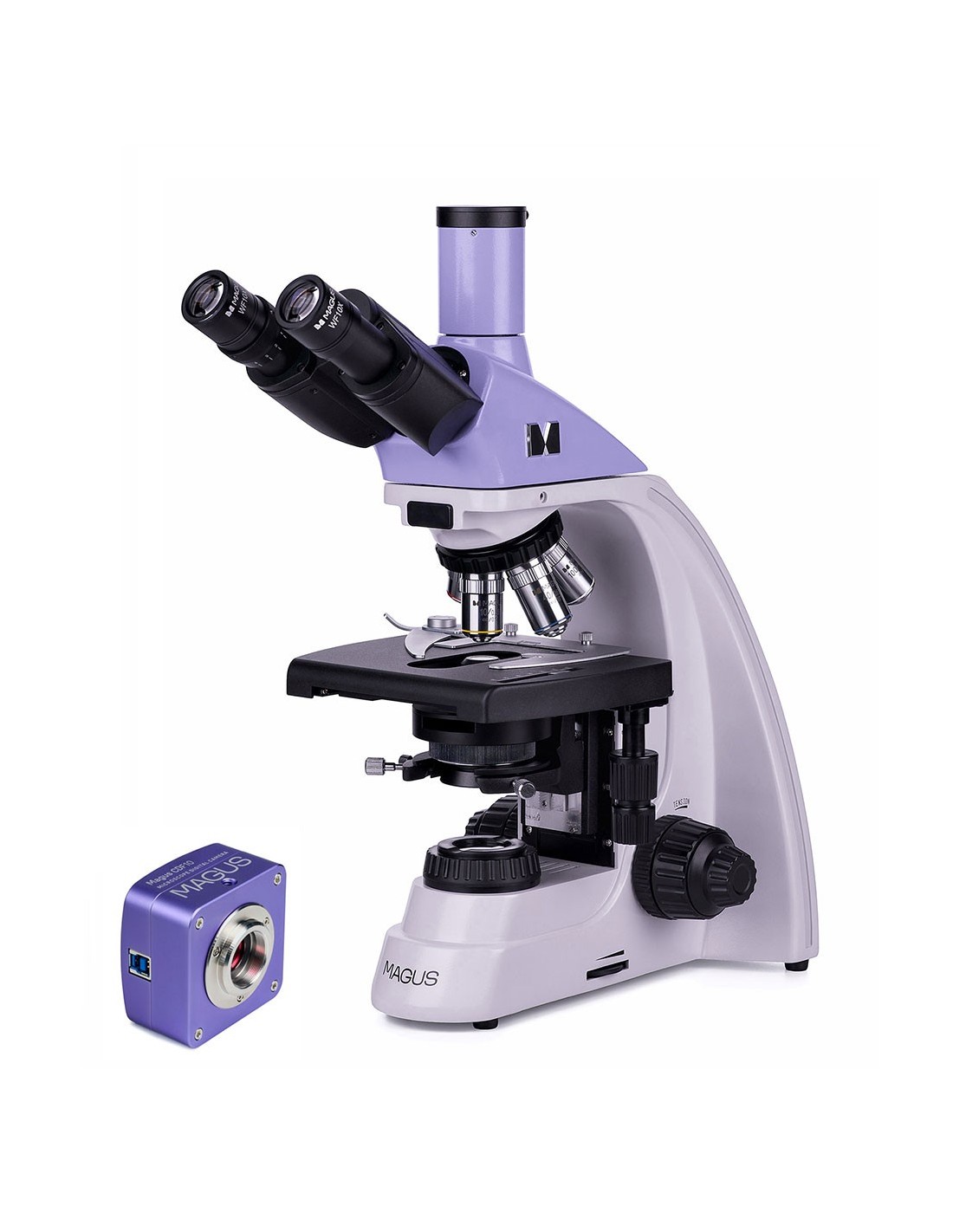

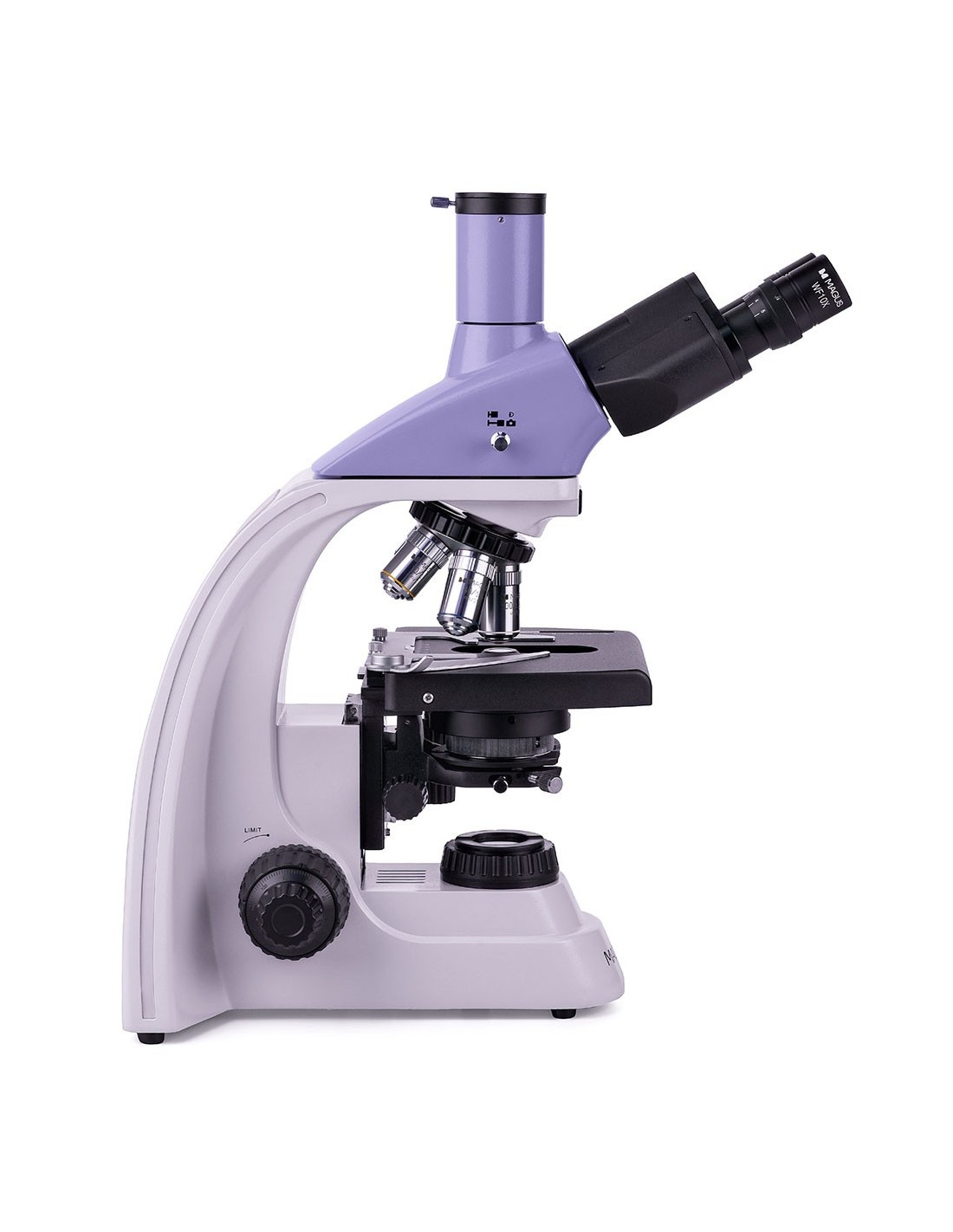

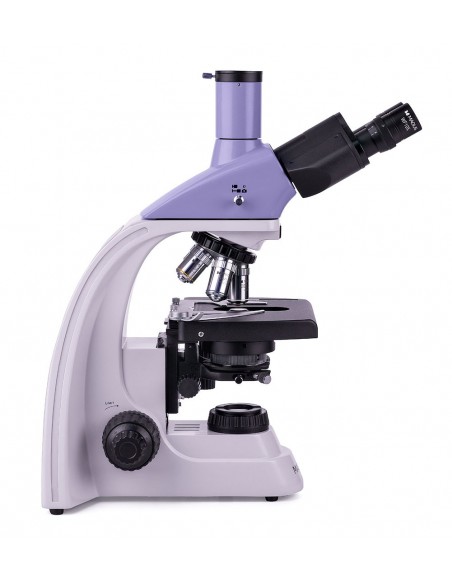

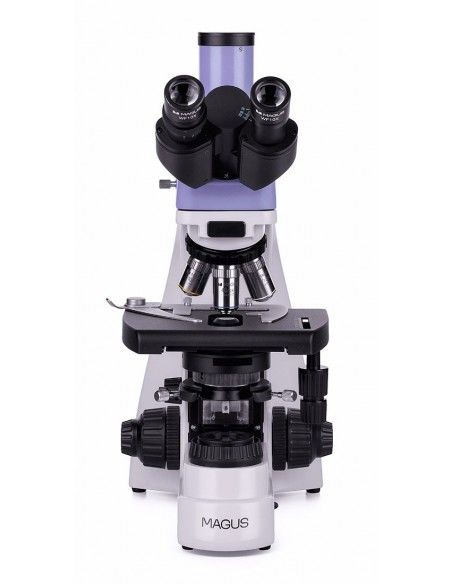

MAGUS Bio 230T is a trinocular biological microscope for professional observations in laboratories and research centers in the medical, pharmaceutical, forensic, biotechnological fields, etc. It is suitable for the observation of semi-transparent biological preparations and naturally transparent samples: thin sections and smears. With the use of achromatic objectives and a halogen lamp, the analysis of the samples is carried out using a transmitted light (bright field) microscopy technique. The design of the microscope offers the possibility of installing additional accessories that allow you to use other microscopy techniques: dark field, phase contrast and polarized light.
Digital camera
Digital camera with a 2 MP sensor for studying microscopic objects using the dark field or bright field microscopy technique. The camera is equipped with a color back-illuminated SONY Exmor CMOS sensor. This sensor increases light sensitivity (2350 mV at 1/30 s) and improves image quality in low light conditions. The use of lenses with 40x, 60x and 100x magnification allows you to achieve excellent performance.

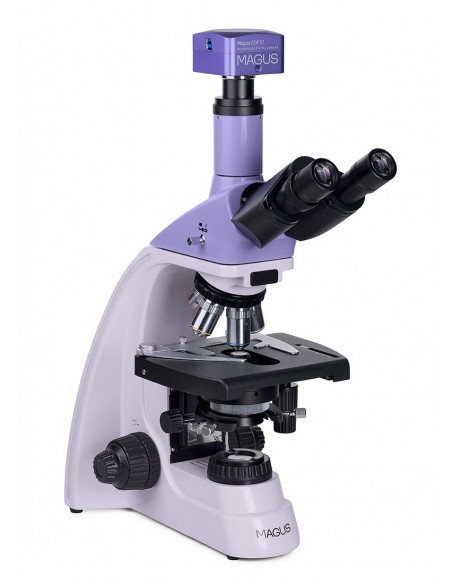

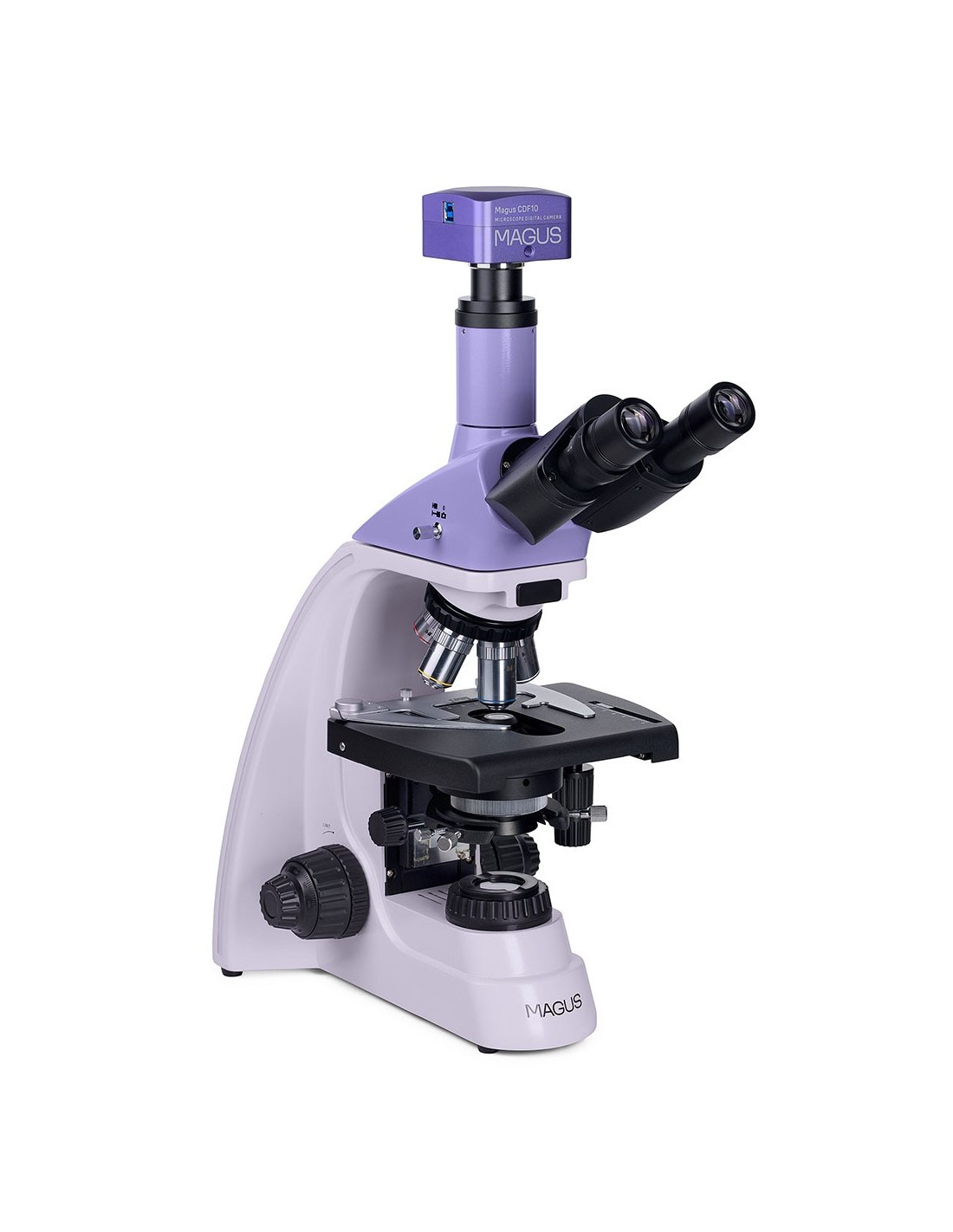

The MAGUS CDF10 camera allows you to view the image of an object on a computer monitor at Full HD 1920x1080 px resolution , to take photographs and record videos in different formats. Data transfer between camera and computer is performed via a USB 3.0 interface with a data transfer rate of 5 Gbps. At maximum resolution, video is displayed at 125 fps with a smooth transition between frames. The camera is perfect for studying moving objects and can also be used for lectures and presentations.
Optics

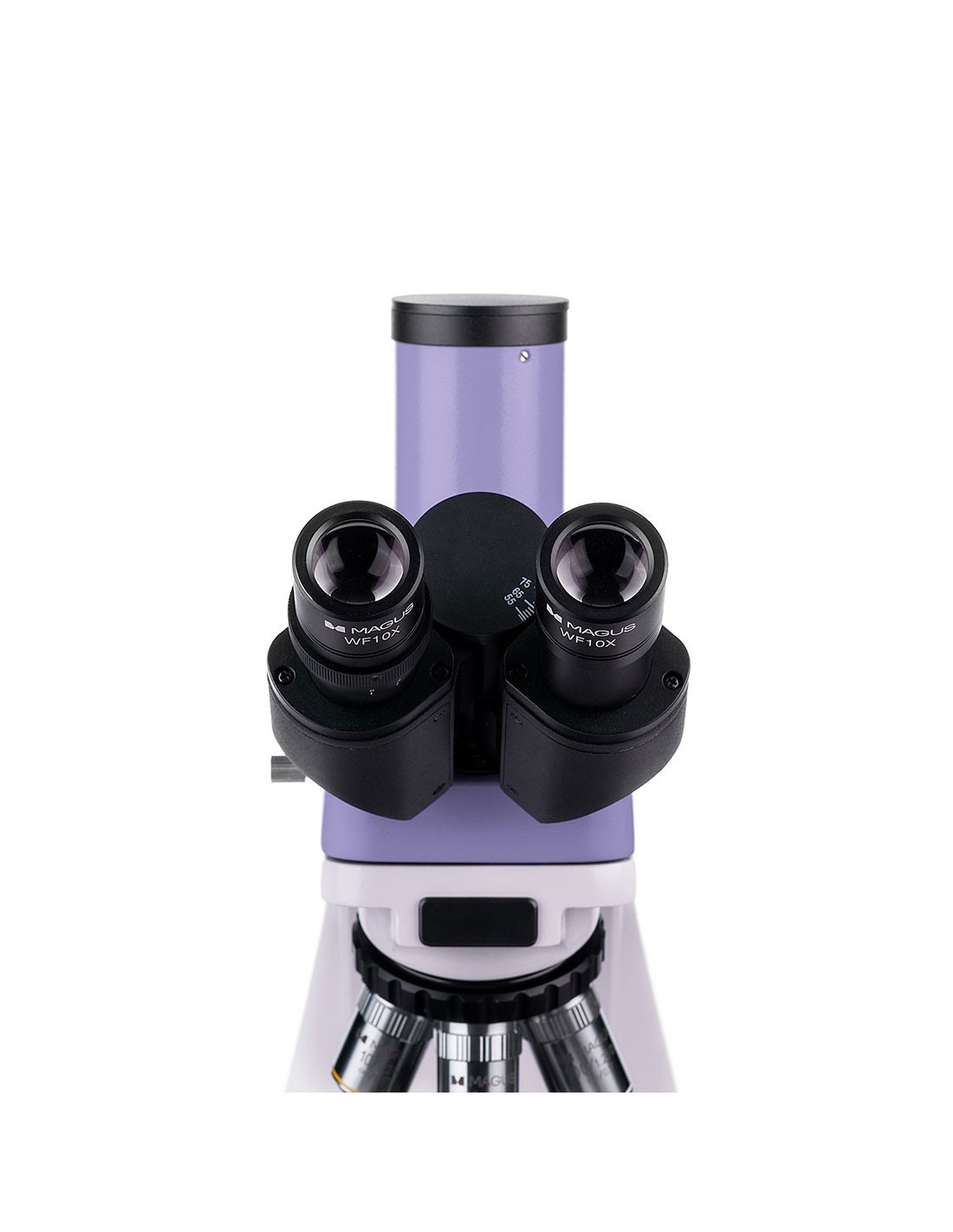

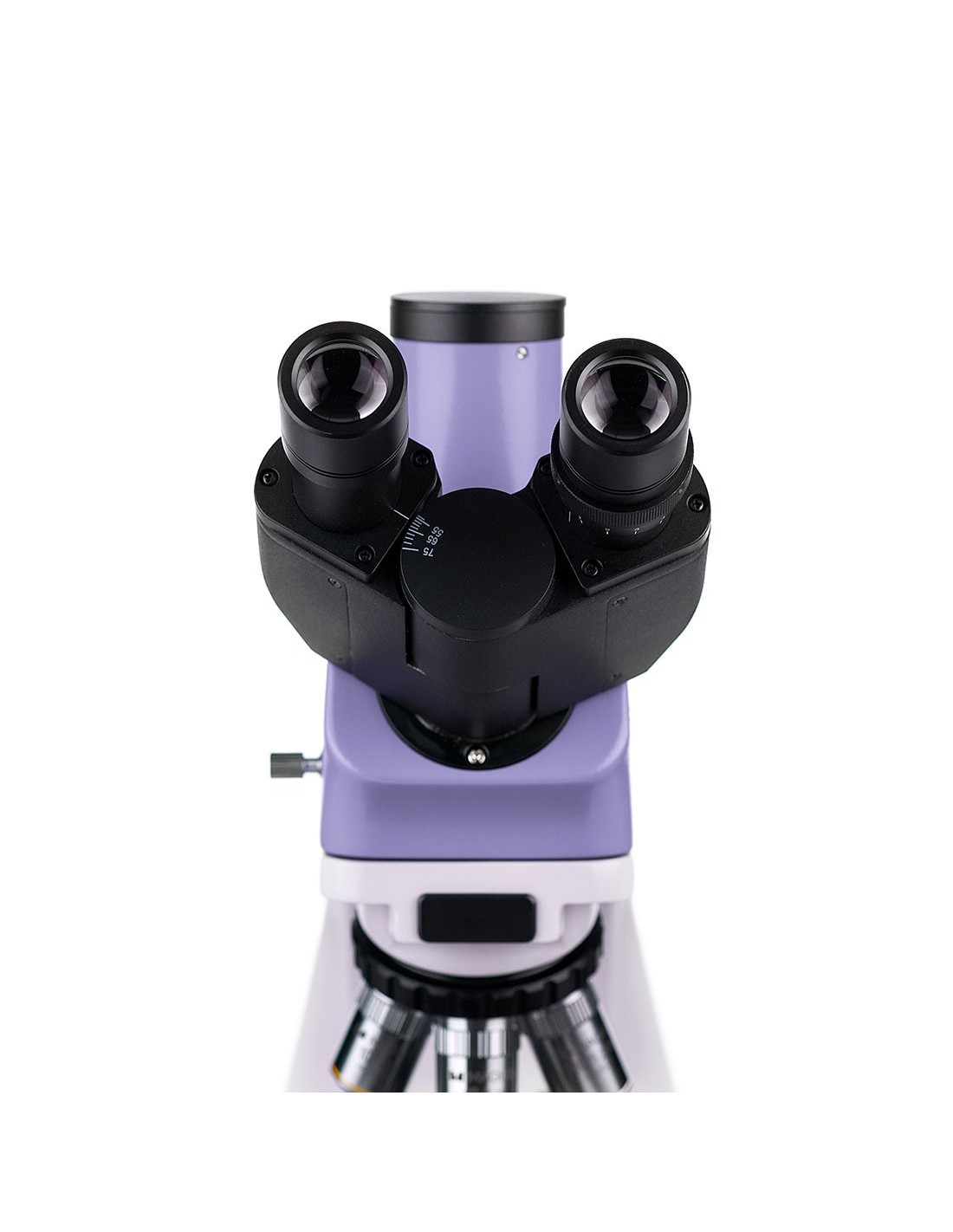

The trinocular head is equipped with a vertical tube for housing a digital camera. The camera (not included) is an excellent solution for creating a digital archive of your observations and can be used to transmit images to an external monitor. To adapt the optical tubes to the observer's height, they can be rotated 360°. The left tube is equipped with a diopter adjustment ring.
The nosepiece is oriented towards the inside of the instrument, therefore, the space above the stage remains free. Five lenses can be mounted on the nosepiece at the same time (4 are included in the package and a fifth slot is left empty for an additional lens). In their basic configuration, infinity-corrected objectives provide magnification from 40x to 1000x. With the use of additional eyepieces, the magnification can be increased up to 1500x, 1600x or 2000x.
Illumination
The halogen lamp produces a warm colored lighting, which has less impact on eye strain and is ideal for those who work long hours at the microscope. The lamp is 30 W, therefore the brightness and contrast of the transmitted image are high with any type of objective or observation technique.
The Abbe condenser is adjustable in height and can be centered. Illumination is controlled by adjusting the field diaphragm and iris diaphragm; Furthermore, Köhler illumination can be set up for improved image clarity. The condenser features a slot to accommodate a dark field or phase contrast slider, making switching between various microscopy techniques quicker and easier.
Stage and mechanism of focus
There is no positioning rack for the stage. This is an advantage in the design of the mechanical stage shifter, as it makes it easier to operate the microscope. The sample can be moved smoothly across the stage. The mechanical insert is removable (it can be removed to perform a manual scan).
It is possible to adjust the coarse and fine focus (coarse and fine screw); The movement of the focus knob is smooth, simple, and requires no effort. The coarse focus mechanism is equipped with a fixing knob and the tension of the coarse screw can be adjusted. The focus knobs are coaxial and positioned to ensure maximum comfort during long hours of observation: they are, in fact, located on the base of the microscope, so that the observer can comfortably rest his hands on the table.
Accessories
To maximize the capabilities of the MAGUS Bio 230T microscope, it is possible to enhance it with some accessories. These may include eyepieces and objectives, digital cameras and calibration slides, dark field condensers, polarizers, and instruments for phase contrast observations.
Key Microscope Features:
Key Features of the Microscope:
strong>
- Trinocular head with vertical tube for housing a digital camera
- The 360° rotation allows the instrument to be adapted to the height of the observer
- li>
- Infinity corrected achromatic objectives, nosepiece nosepiece for 5 objectives
- Diopter adjustment ring on the left optical tube
- 30 W halogen lamp powered by AC mains, Abbe condenser with slot for dark field slider or for phase contrast, field diaphragm
- Coaxial knobs for coarse and fine focusing (macro- and micrometric screw), fixing knob and adjustment knob tension adjustment for the coarse screw
- Optional accessories to improve the performance of the microscope
Key camera features:
- Back-illuminated SONY Exmor CMOS sensor for sharp images even in low light conditions
- Installation on the trinocular tube or optical tube
- Operation in bright or dark field on high-speed objectives high magnification: 40x, 60x and 100x
- Viewing images on a computer screen; viewing, taking photographs and recording videos at a resolution of 1920x1080 px
- Video frame rate of 125 fps, ideal for studying moving objects in real time without delays
- Driver and necessary software included

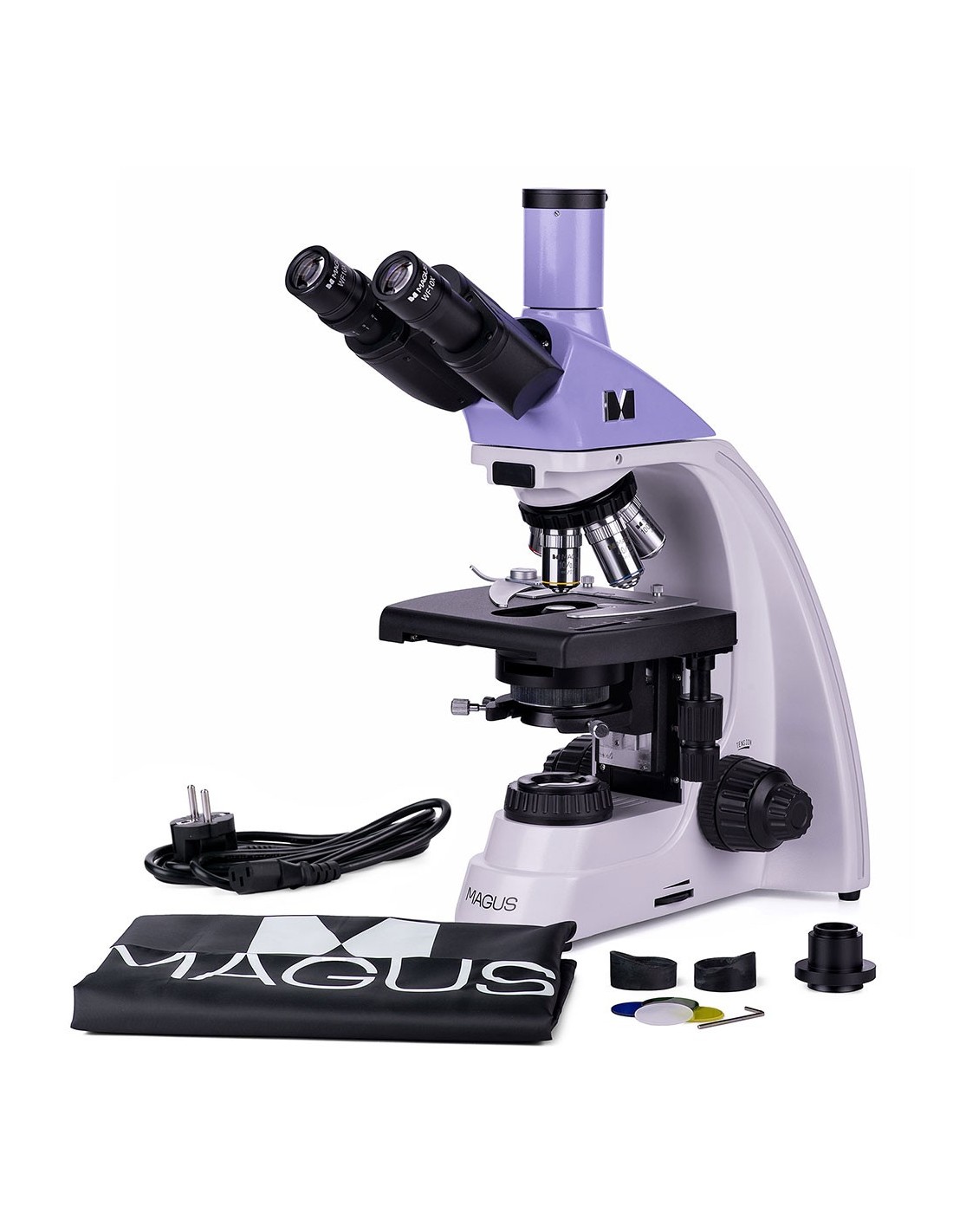

The package contains:
- MAGUS CDF10 digital camera (digital camera, USB cable, installation CD with driver and software, user manual and warranty certificate)
- Base with power input, light source for transmitted light observations, focusing mechanism, stage, condenser attachment and nosepiece
- Abbe condenser
- Trinocular head
- Achromatic objective at infinity: 4x/0.10
- Achromatic objective at infinity: 10x/0.25
- Achromatic objective at infinity: 40x/0.65 (with spring mechanism)
- Achromatic objective at infinity: 100x/1.25 oil (with spring mechanism)
- 10x/18 mm eyepiece with long eye relief (2 pcs.)
- Eyecup (2 pcs.)
- Filter (4 pcs.)
- C-mount adapter
- Vial of immersion oil
- AC power cord
- Dust cover
- Manual user and warranty certificate
Available on request:
- 10x/20 mm eyepiece with graduated scale
- Eyepiece 15x/11 mm (2 pcs.)
- Eyepiece 16x/11 mm (2 pcs.)
- Eyepiece 20x/11 mm (2 pcs.)
- Achromatic objective at infinity: 20x/0.40
- Plan achromatic objective at infinity: 20х/0.40
- Plan achromatic objective at infinity: 60x/0.80 (spring loaded)
- Phase contrast device
- Phase contrast slider
- Dark field condenser with NA 0.9
- Oil-filled dark field condenser with NA 1.36–1.25
- Dark field slider
- Polarization instruments
- Calibration slide li>
- LCD monitor
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555017945 |
| Package size ( WxDxH) | 43x27x63 cm |
| Shipping weight | 11.1 kg |
| Delimiter | MAGUS Bio 230T biological microscope |
| === Delimiter === | Microscope specifications |
| Type | biological, light/optical, digital |
| Tested | trinocular |
| Vertical tube | Gemel head (Siedentopf type, with 360° rotation) |
| Head inclination angle | 30° |
| Magnification, x | 40–1000 in basic configuration (*optional: 40–1500/1600/2000 ) |
| Magnification range | 800x to 1280x |
| Eyepiece tube diameter, mm |
| td> | 23.2 |
| Eyepieces | 10х/18 mm, eye relief: 10 mm (*optional: 10x/20 mm with scale, 15x /11mm, 16x/11mm; 20x/11 mm) |
| Infinity corrected achromatic objectives: 4x/0.10; 10x/0.25; 40xs/0.65; 100xs/1.25 (oil); parfocal distance 45 mm (*optional: 20x/0.40; 60xs/0.80) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 18.89 (4x); 5.95 (10x); 0.775 (40xs); 0.36 (100xs); 2.61/8.80 (20x); 0.46 (60хs) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 180x150 |
| Range of movement of the stage, mm | 75/50 |
| Stage features | two-axis mechanical translator, without positioning rack |
| Eyepiece diopter adjustment, diopters | ±5 (on left barrel) |
| Condenser | Abbe condenser, NA 1.25, adjustable centering, adjustable height, adjustable aperture diaphragm, with slot for dark field slider and phase contrast slider, dovetail mount |
| Diaphragm | adjustable aperture diaphragm, field diaphragm with adjustable iris |
| Focus | coaxial, coarse focus (21 mm, 39.8 mm/turn, with fixing knob and focus adjustment knob tension of the micrometer screw) and fine focus (0.002 mm micrometer screw) |
| Halogen |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | 12 V/30 W halogen lamp, G4 socket |
| Optical filters |
| Optical filters | yes |
| Operating temperature range, °C | 5 — 35 |
| Possibility to connect additional equipment | phase contrast devices (condenser and objectives), dark field condenser (dry or oil immersion), polarization instruments (polarizer and analyzer) |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | laboratory/medical |
| Lighting position | lower |
| Search method | bright field |
| Set with pencil case/case/bag | dust cover |
| Weight, kg | 8 |
| Dimensions, mm< /td> | 200x436x400 |
| === Delimiter === | Digital camera |
| Sensor | SONY Exmor CMOS |
| Color/monochrome | color |
| Megapixel | 2 |
| Maximum resolution, px | 1920x1080 |
| 1/2" (7.2x4.05 mm) |
| Pixel size, µm | 3.75x3 .75 |
| Light sensitivity | 2350 mV at 1/30 s |
| Signal ratio/ noise | 0.15 mV at 1/30 s |
| Exposure time | 0.1 ms – 15 s |
| Video recording | yes |
| Frame rate, fps@resolution | 125@1920x1080 |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv , *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380- 650 (built-in IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure control |
| Software | MAGUS View |
| Output | USB 3.0, 5 Gb/s |
| System requirements | Windows 8/10/11 (32-bit and 64-bit), Mac OS |
| Mounting type | C-mount |
| Body | robust aluminum |
| Camera power supply | DC, 5 V, from computer USB port; 12 V, 3 A adapter for the Peltier cell |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
