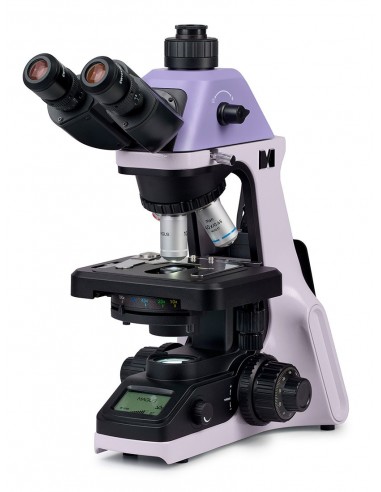

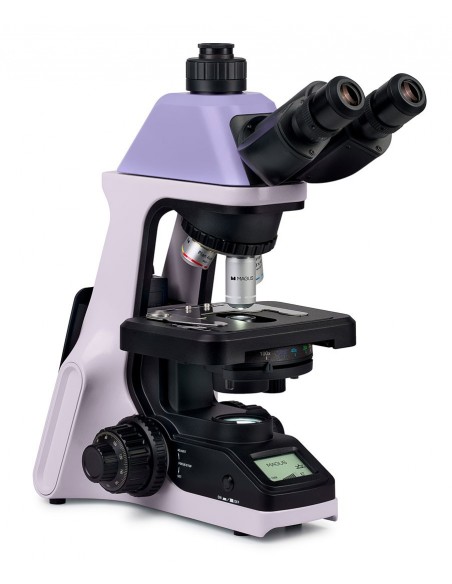

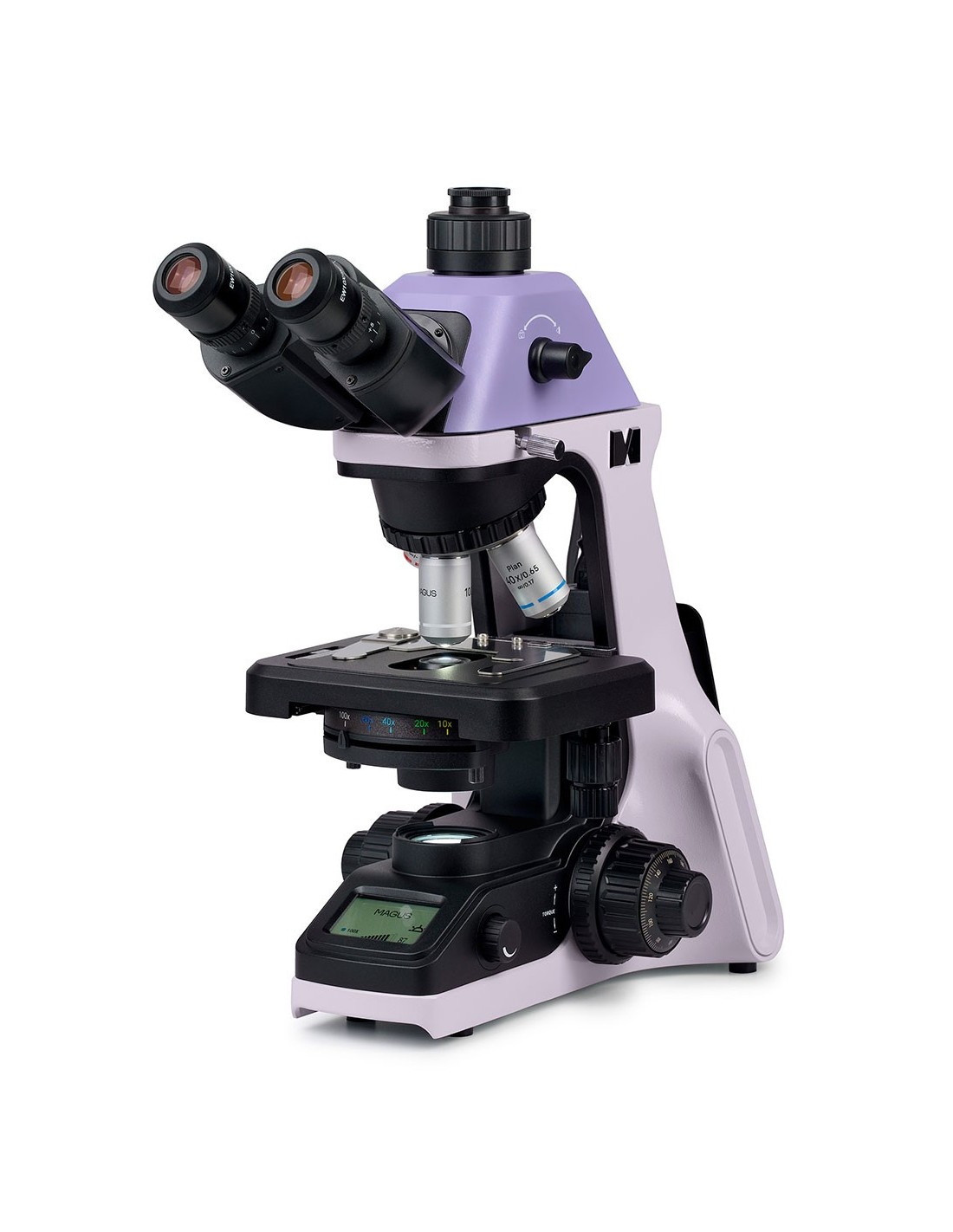

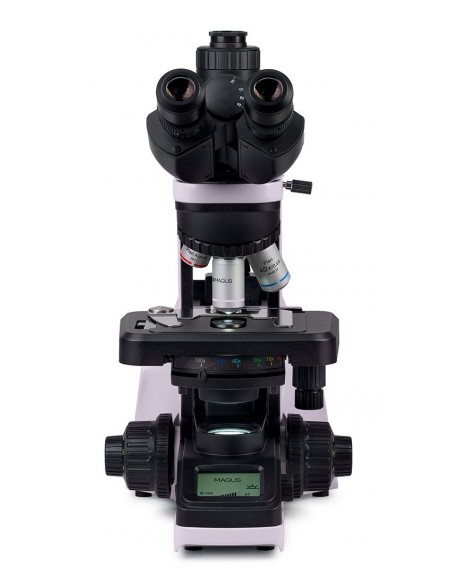

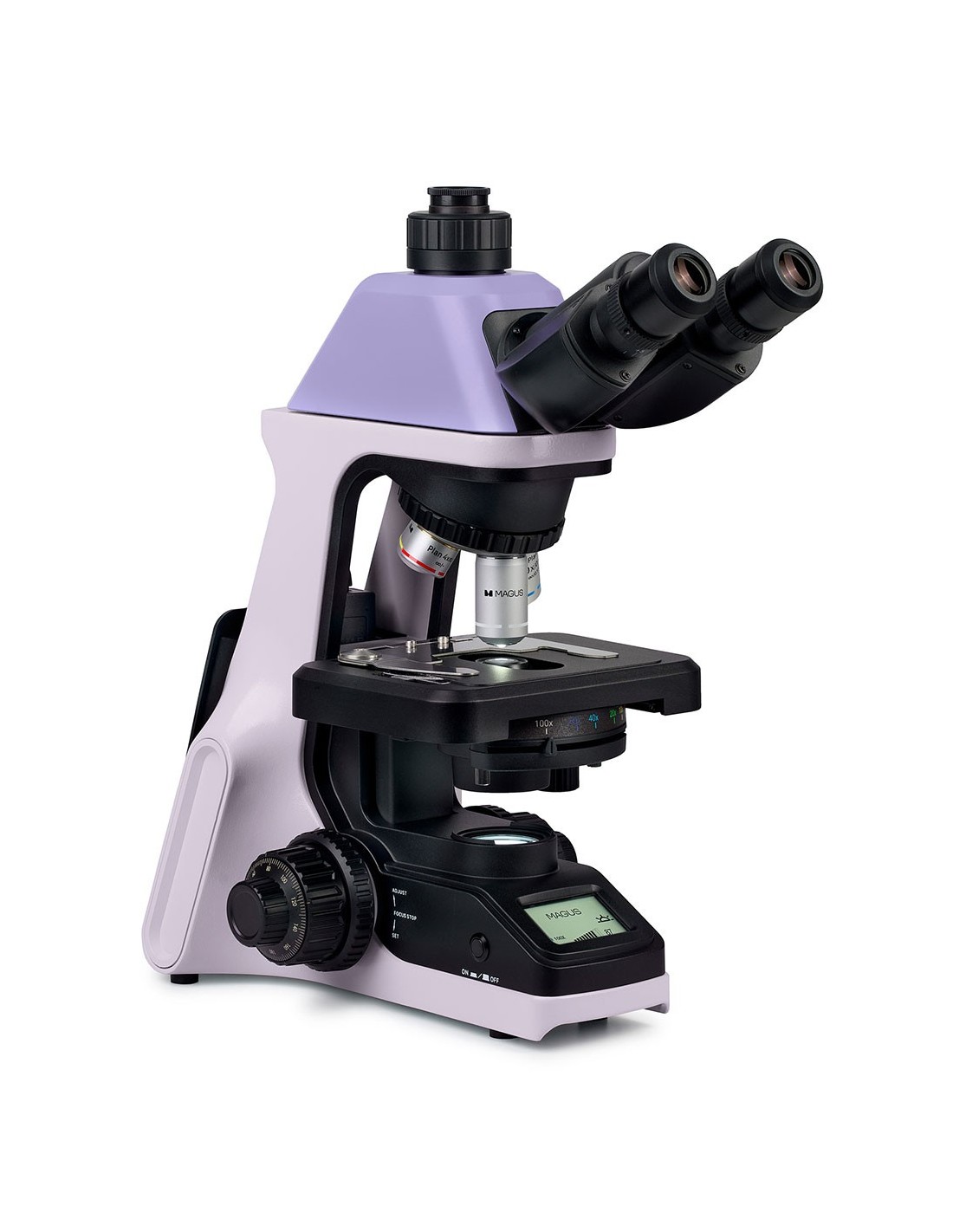

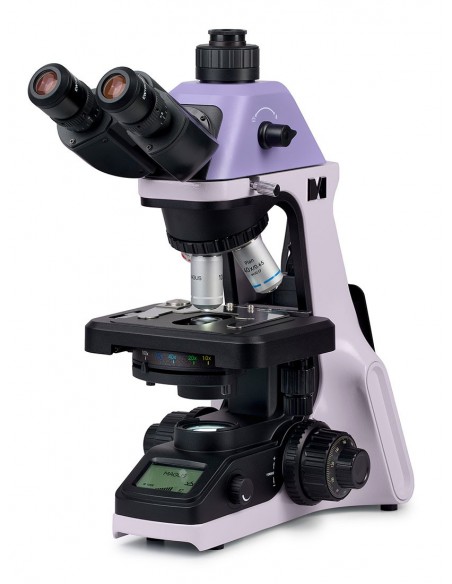

MAGUS Bio 240T is a small biological microscope for training and research. Designed to observe transparent and translucent samples of biological origin via the brightfield method. The microscope features a coded nosepiece, which maintains the light intensity selected for each objective, and an LCD screen that displays operating parameters.

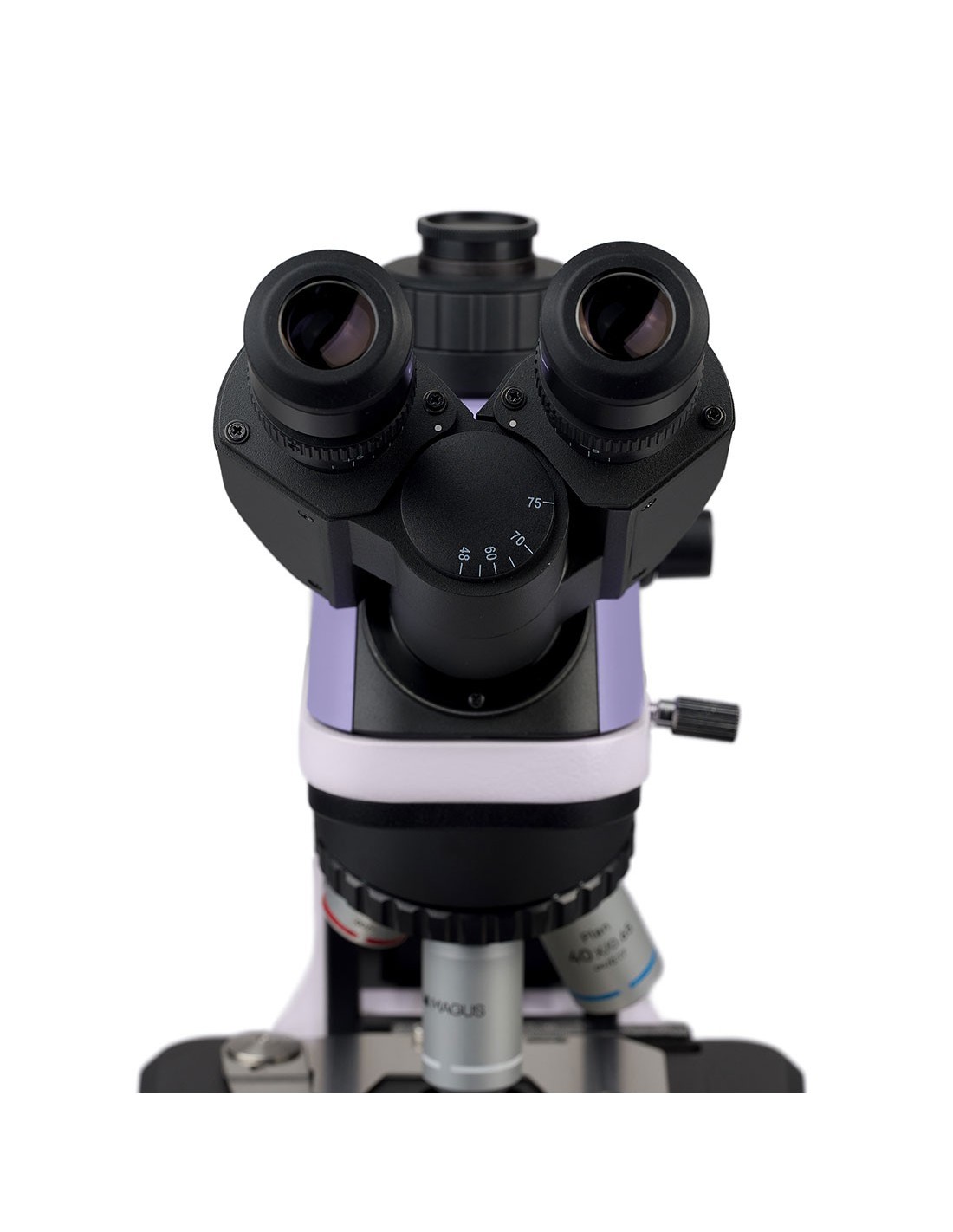

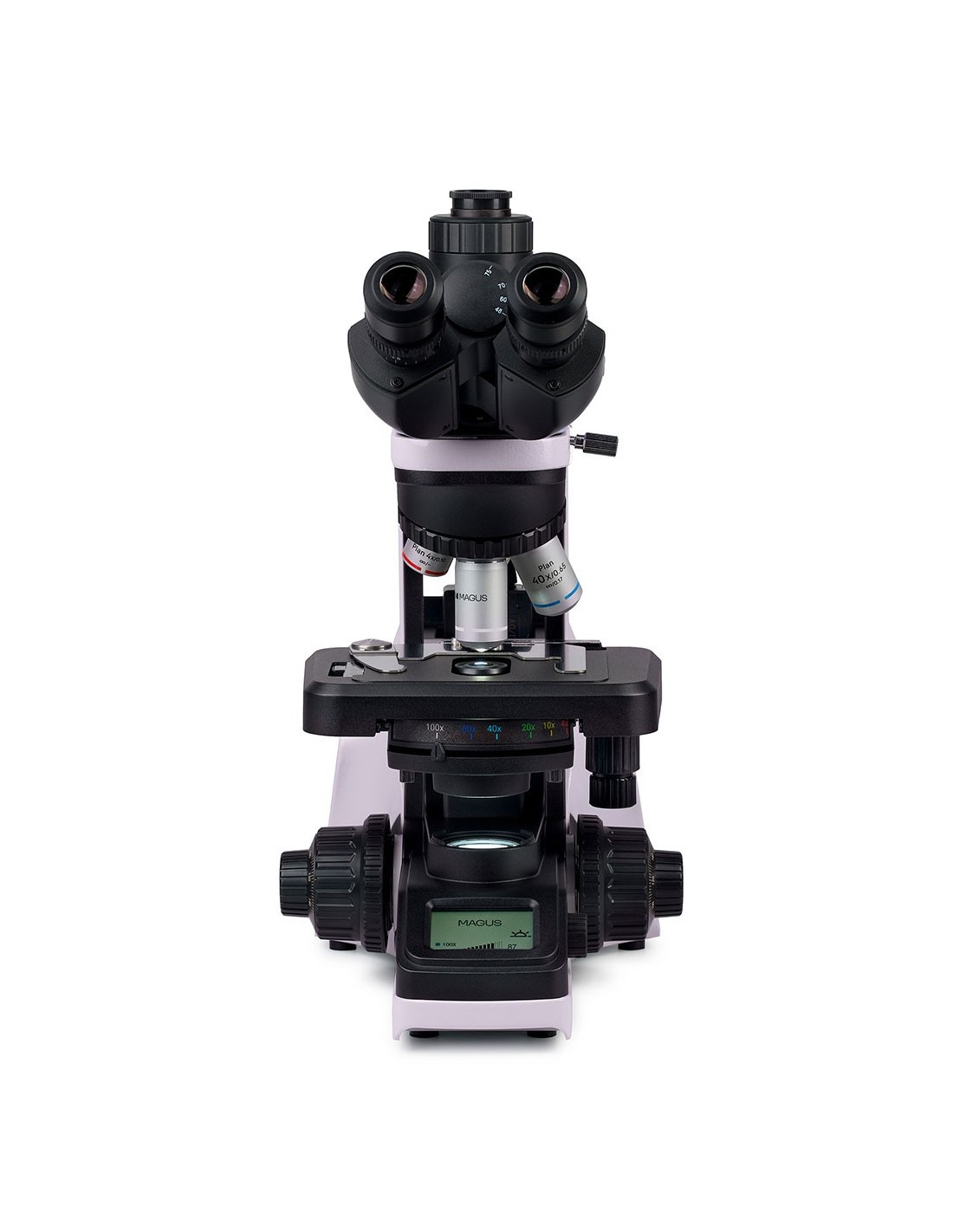

The Bio 240T model features a trinocular head with a vertical tube for mounting a digital video camera. Beam splitter 0/100 and 100/0. The optics of the microscope head are corrected to infinity. The tubes rotate 360 degrees. The user is able to adjust the eye relief and set it to the desired height. The two eyepiece tubes are equipped with diopter adjustment rings, which allow the user to adjust the image sharpness to suit their vision. The microscope features 2 standard 10x/20mm eyepieces. They are equipped with rubber eyecups, which are practical for those who wear glasses as they prevent any damage to the glasses.
The nosepiece revolver is designed for 4 objectives. The nosepiece is away from the user, keeping the area on the stage clear. Intelligent lighting remembers the light intensity settings of each lens, so when you change lenses, the desired brightness is automatically turned on. Consequently, there is no drastic difference in light between the different lenses and the eyes do not get tired. Additionally, you save time adjusting the light, especially when you need to change the magnification often.
The microscope features coaxially positioned fine and coarse focus knobs. The handles are positioned at the base of the microscope: The user can rest his hands on the table and assume a comfortable pose. The coarse focus fixing knob is located on the left. It is used for adjustment after changing lenses. The ring on the right side adjusts the tension of the coarse focus screw.

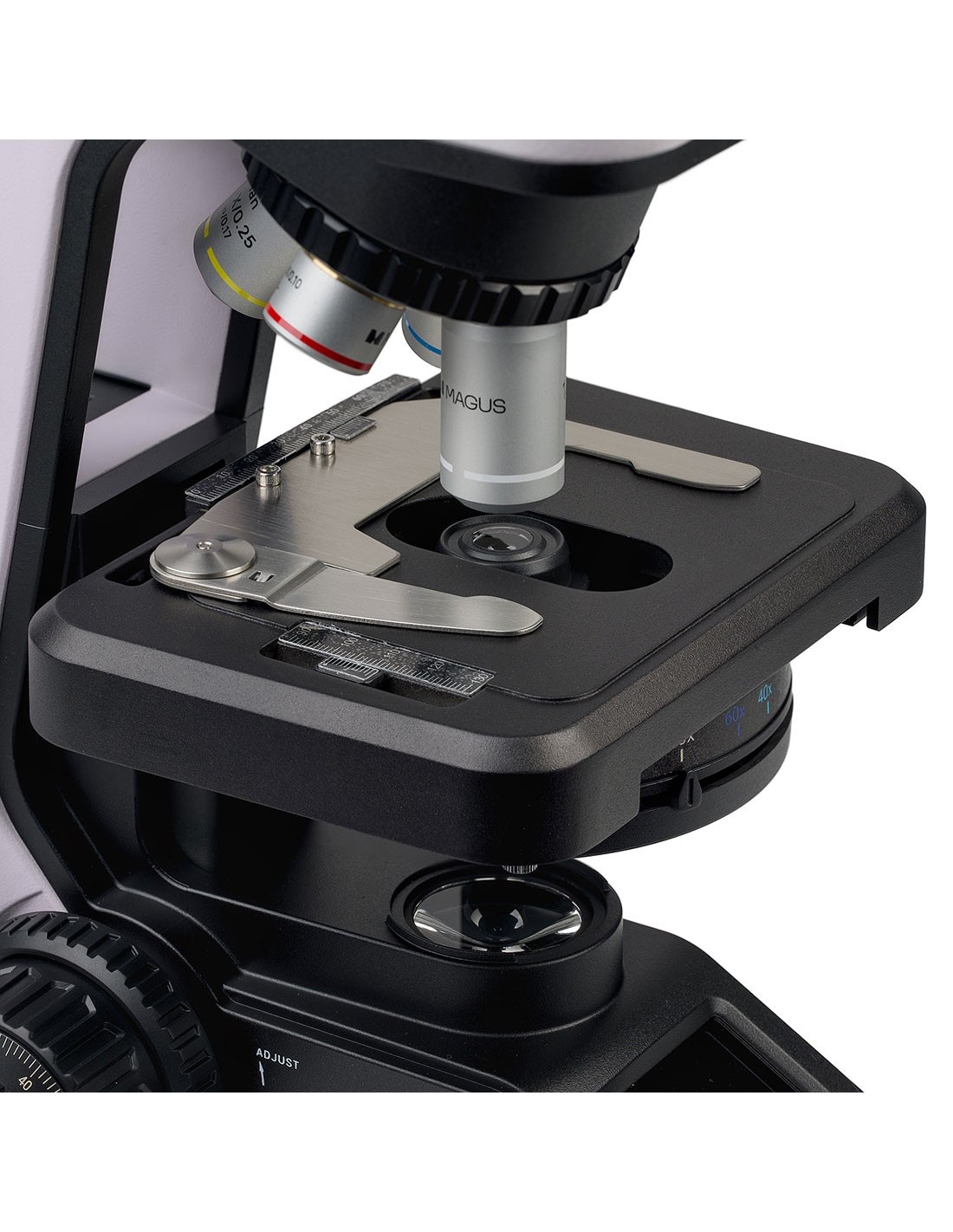

The specimen viewing stage features a belt mechanism that gently moves the specimen on the stage. The slide holder is mounted using two screws, or can be removed completely if necessary.

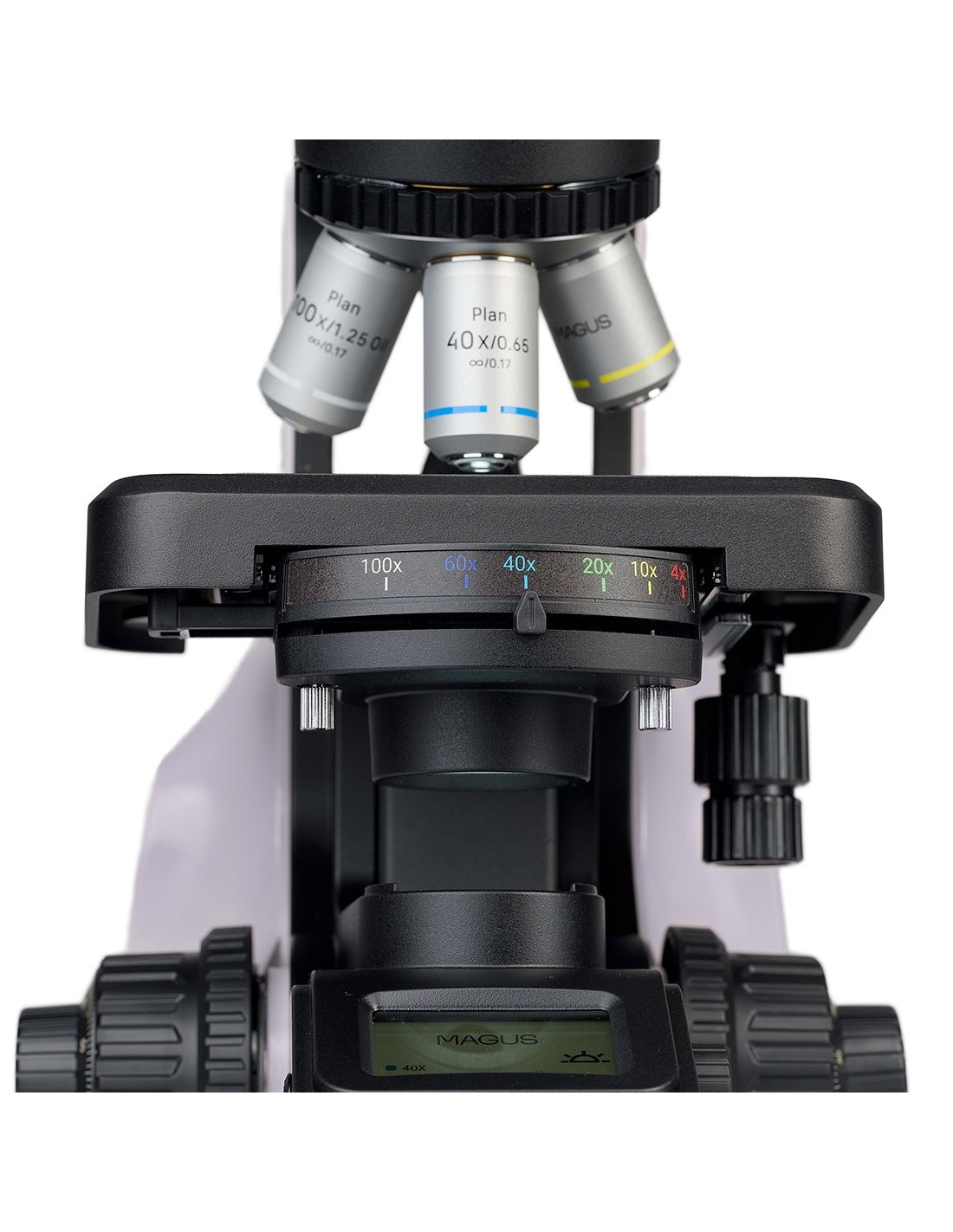

Another feature of the microscope is the Abbe condenser fixed and centered on the optical axis. Since it is fixed, it is not possible to move the capacitor by mistake. This feature is very important for teaching microscopes.
The condenser has a numerical aperture of 1.25. The body features the magnification values of the lens. The iris diaphragm is adjusted by means of a knob, set to a certain level depending on the selected lens. The image thus presents excellent contrast and the sample is more visible.
The light source of the microscope is a 3W LED light featuring a lifespan of 50,000 hours. The illuminator allows you to change the color temperature between 3000 and 7000K. The user is able to set the desired value, based on the desired study parameters.
All selected settings, such as magnification of the lens in use, light characteristics and operating mode, are displayed on the LCD screen. You can adjust the light, set the standby mode and automatic shutdown via the two knobs.

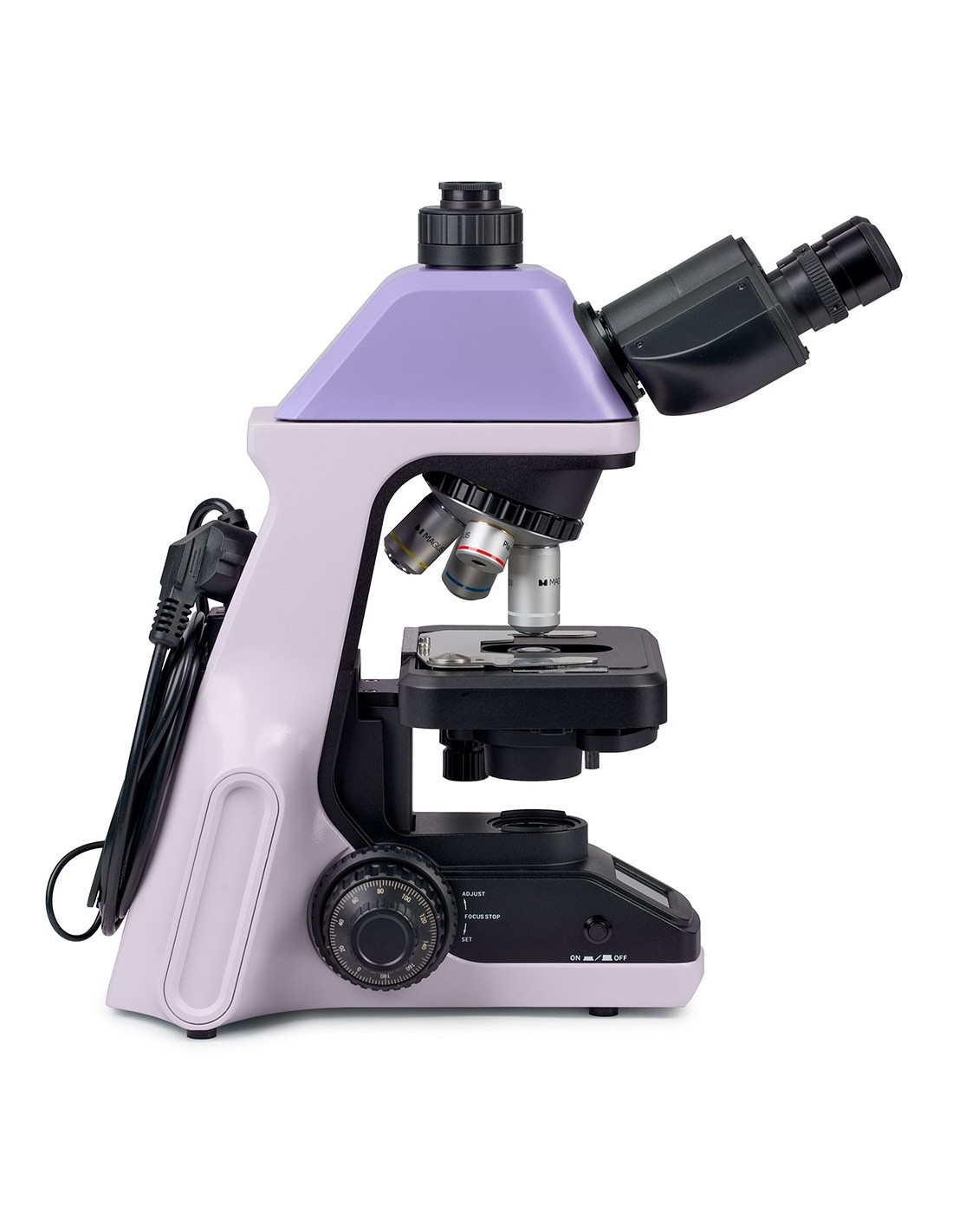

The microscope has a practical functional design. After installing the microscope on the work area, the power supply and power cord are hidden from the user's view, and the side openings in the stand act as handles for carrying and moving the microscope.
Key Features:
- Biological microscope with automatic light control and pre-configured condenser for education and research
- Observation of transparent and translucent biological samples using the bright field method
- Coded nosepiece that maintains brightness when changing objectives
- The microscope is equipped with an LCD screen to display the parameters operational
- Trinocular microscope head with vertical tube for mounting a digital video camera; the rotation of the head adjusts the height of the eye relief
- Eye tubes equipped with diopter adjustment rings
The package contains:
- Support with transmitted light source, focusing mechanism, stage, condenser mount and nosepiece
- Abbe condenser
- Trinocular head li>
- Plan achromatic objective at infinity: 4x/0.10
- Plan achromatic objective at infinity: 10x/0.25
- Plan achromatic objective at infinity: 40x/0 .65 (with spring mechanism)
- Infinity plan achromatic objective: 100x/1.25 oil (with spring mechanism)
- 10x/20 mm eyepiece with long eye relief ( 2 pcs.)
- Eyecup (2 pcs.)
- C-mount adapter
- Optical filter
- Bottle of immersion oil
- Microscope adapter and power cord
- Dust cover
- User manual and warranty card
Available on request:
- Digital camera
- Calibration glass
- Monitor
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019437 |
| Package size (WxDxH) | 45x30x65 cm |
| Shipping weight | 9.8 kg |
| Type | biological, light/optical |
| Trinocular head |
| Head tilt angle | 30° |
| Magnification, x | 40–1000 in basic configuration |
| Magnification range | 800x to 1280x |
| Eyepiece tube diameter, mm | 23.2 |
| Eyepieces | 10x/20 mm , long eye relief |
| Infinity planachromatic | objectives: 4x/0.10; 10x/0.25; 40xs/0.65; 100xs/1.25 oil; parfocal distance: 45 mm |
| Nosepiece nosepiece | 4 objectives, coded |
| Interpupillary distance, mm | 47 — 75 |
| Coffee table, mm | 180x130 |
| Range of movement of the stage, mm | 74/30 |
| Stage characteristics | two-axis mechanical translator, without positioning rack |
| Eyepiece diopter adjustment, diopters | ±5D on both tubes |
| Diopter adjustment 'eyepiece | yes |
| Condenser | Abbe condenser NA 1.25 with adjustable aperture diaphragm and coded objective magnification color |
| Diaphragm | adjustable aperture |
| Focus | coaxial, coarse (17 mm, 37.7 mm/rev, with fixing knob and micrometer screw tension adjustment knob) and fine (0.002 mm micrometer screw, 0.2 mm/rev) |
| Lighting | LED |
| Brightness adjustment | yes |
| Power supply | 100–240 V, 50/60 Hz, AC mains, the AC/DC adapter is located in a special cavity on the back of the stand |
| Type of light source | LED 3 W, with color temperature adjustment (3000–7000 K) |
| Optical filters |
| Optical filters | yes |
| Extras | automatic brightness adjustment when changing lenses, status display on LCD screen, standby mode, eco mode |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | laboratory/medical |
| Lighting position | lower |
| Search method | bright field |
| Set with case/case/ bag | dust cover |
