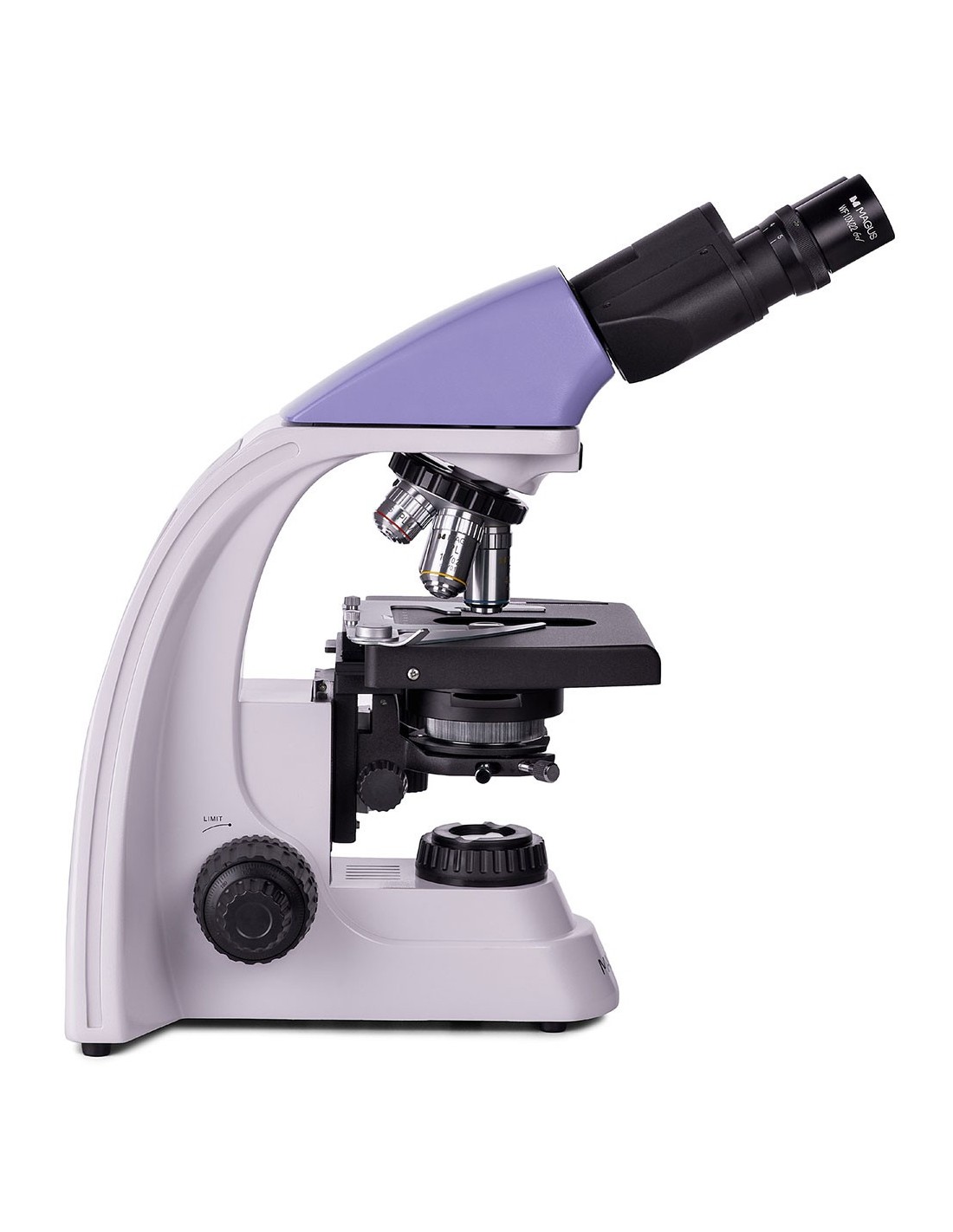

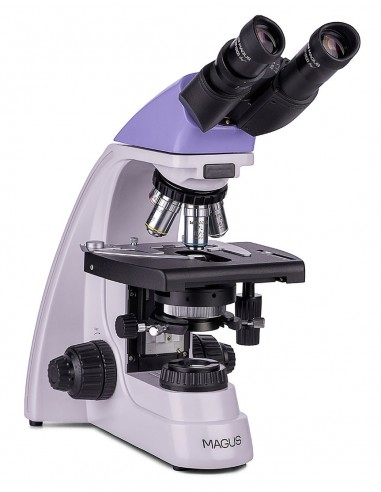

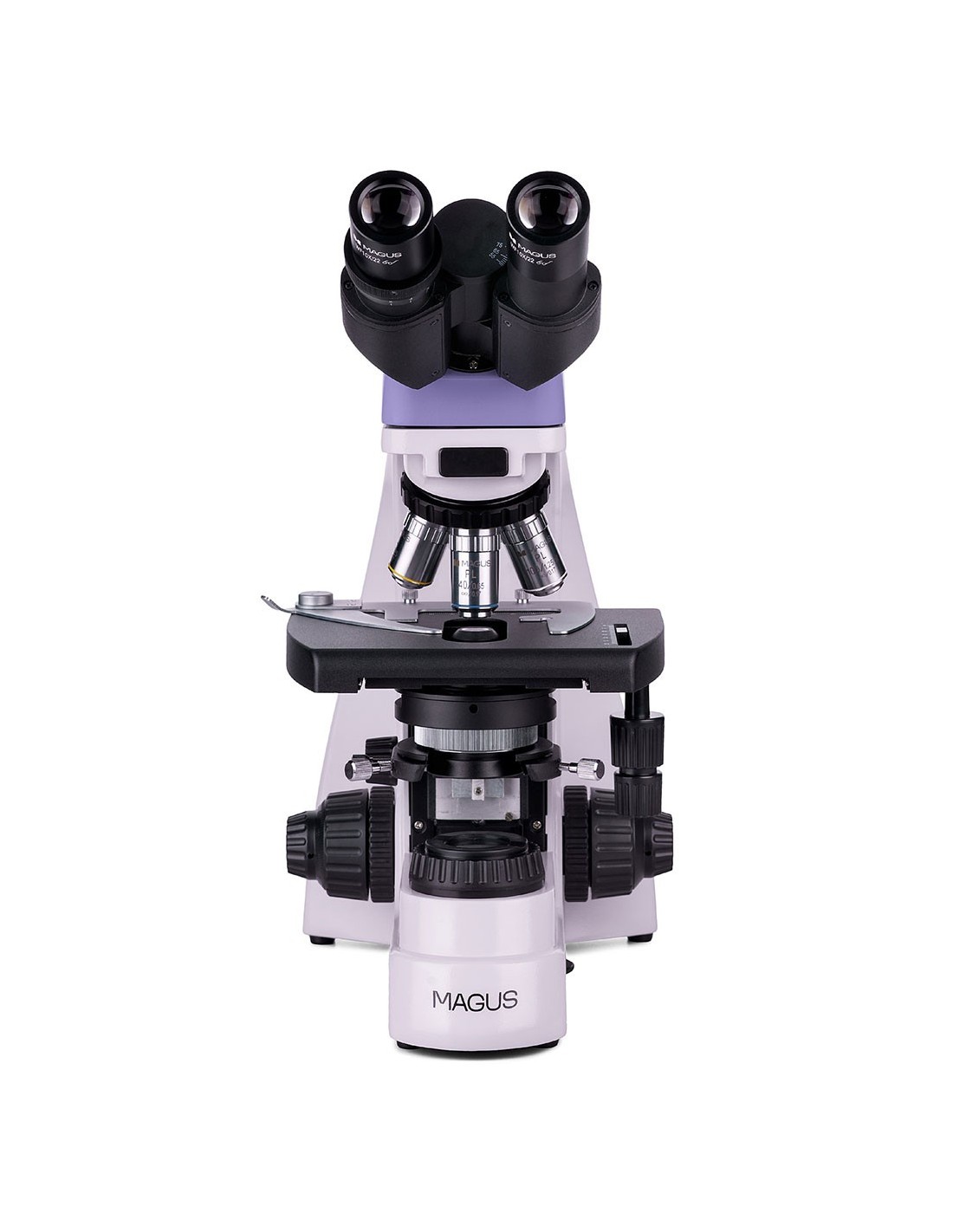

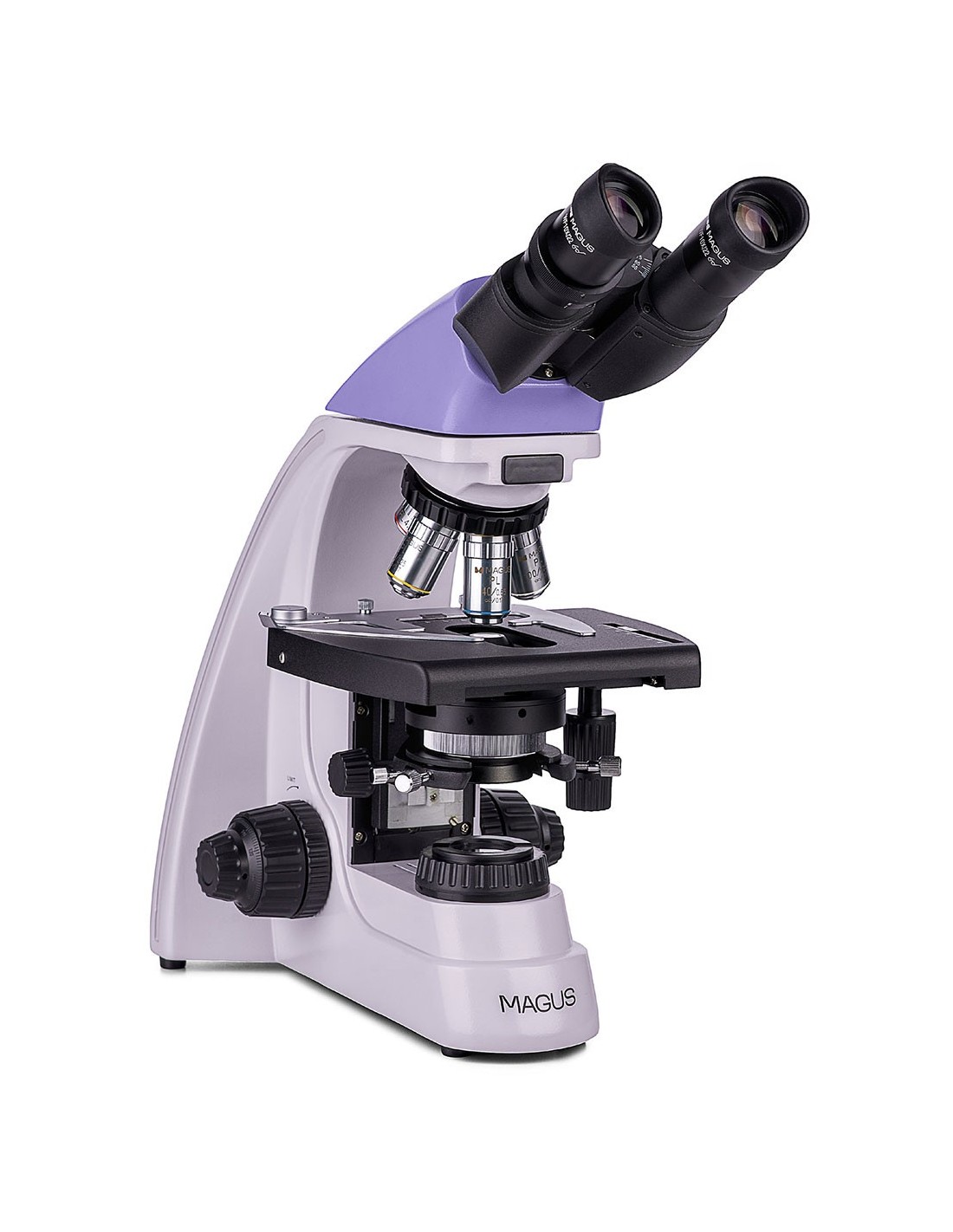

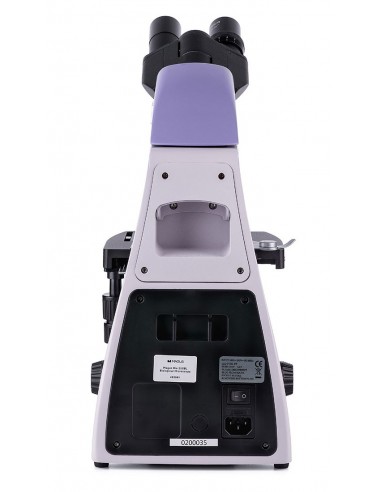

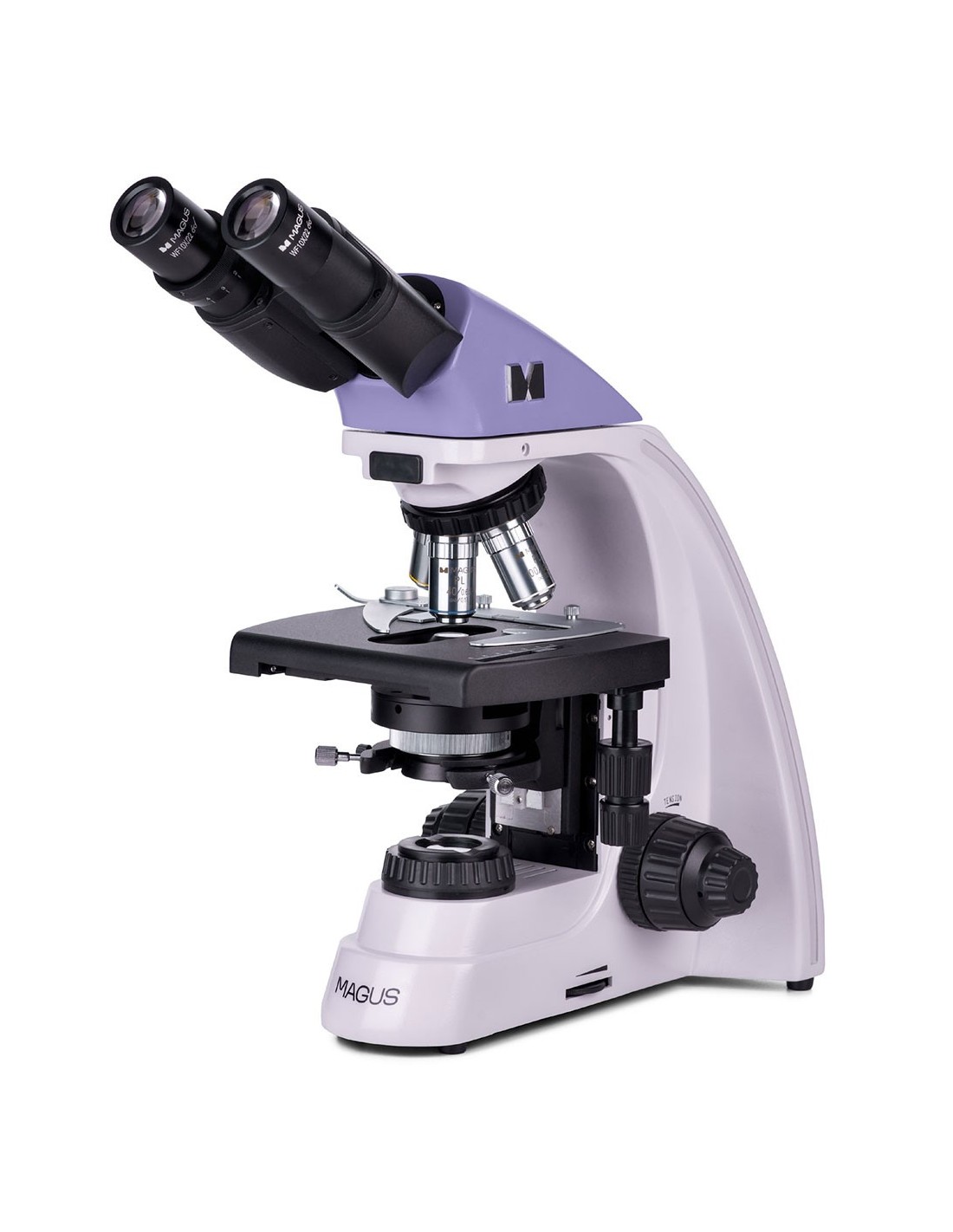

The MAGUS Bio 250BL microscope can be used for laboratory activities, scientific research and teaching. It is designed to observe thin-sectioned samples and smears of biological materials in transmitted light. The main observation method is bright field microscopy, but it is also possible to use dark field, phase contrast or polarized light observation techniques (with the use of additional accessories).
Optics
The microscope is sold accompanied by 4 infinity planachromatic objectives, which reproduce images rich in detail and with minimal aberrations. The objectives are housed on a nosepiece nosepiece, designed to accommodate up to 5 objectives simultaneously. One of the slots on the revolver remains free. This allows you to install a fifth objective lens to obtain an additional magnification factor within the available magnification range. The nosepiece is oriented towards the inside of the instrument.

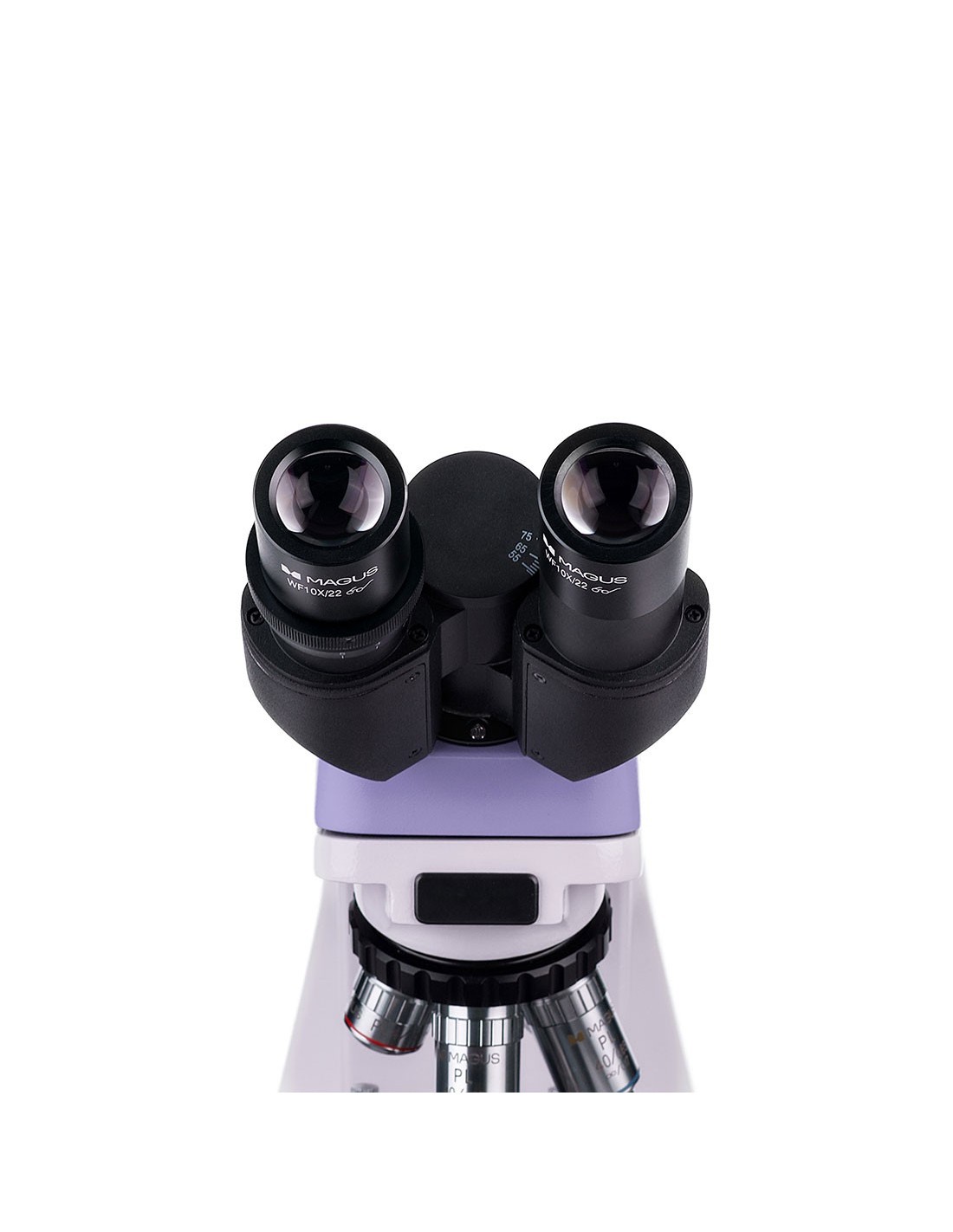

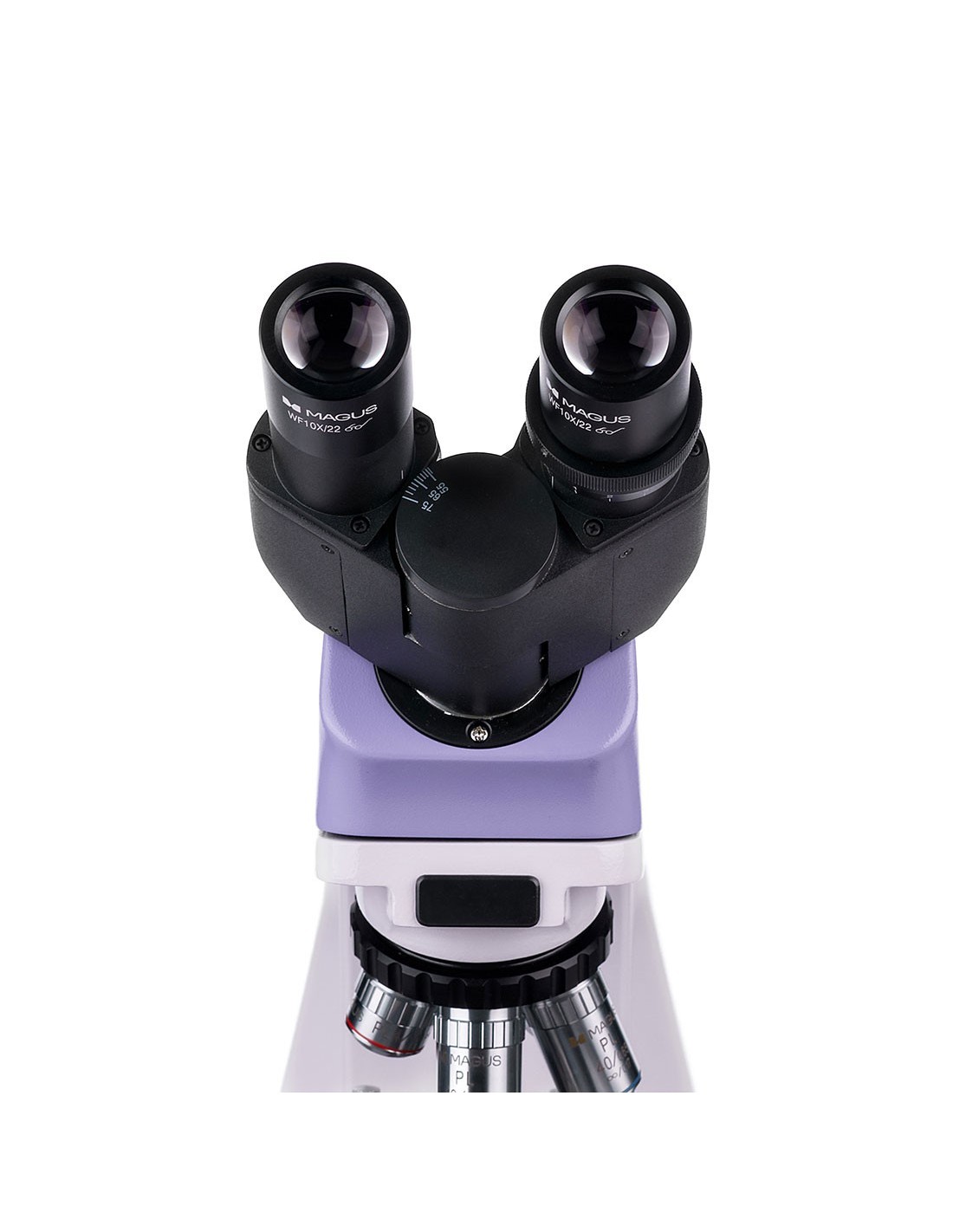

The position of the microscope head is comfortable even for prolonged work sessions. The height of the eyepieces can be adjusted by rotating the optical tubes 360°. On the left optical tube there is a diopter adjustment ring and it is possible to house a digital camera (not included).
The magnification range of this microscope goes from 40x to 1000x. The upper limit can be raised by adding additional eyepieces.
Illumination
LED lights allow you to vary the brightness without changing the color temperature. The LED bulbs have a life cycle of 50,000 hours and a power of 3 W. The lighting requires a 220 V power supply.
The lighting system also includes an Abbe condenser with a diaphragm of opening and a slider slot. In this slot it is possible to insert a dark field slider or a phase contrast slider. This way, you can switch more quickly from one observation method to another. The microscope is also equipped with a field diaphragm. Therefore, it is possible to configure the Köhler illumination.
Stage and focusing mechanism
The main mechanical feature of the microscope is the rackless stage of positioning. This table is easy to use and its movement mechanism is not cumbersome. The sample is moved through the use of a removable mechanical insert.
The focusing knobs are positioned at the base of the microscope, where they are most comfortable to use. In fact, it will not be necessary to keep your arms in mid-air to adjust the sharpness and it will therefore be possible to assume a more relaxed position during observations. The coarse focus mechanism is equipped with a fixing knob and the tension of the coarse screw can be adjusted. There is also a fine focus knob. The knobs are coaxial and positioned on both sides of the microscope base.
Accessories
If the maximum magnification factor of the microscope in its basic configuration is insufficient, it can be increased by installing additional accessories. Various options are available for the MAGUS Bio 250BL microscope, including eyepieces and objectives, equipment for observations in dark field, with phase contrast or polarized light, as well as digital cameras and calibration slides.
Key Features:
- Binocular microscope, digital camera can be inserted into an optical tube with diopter adjustment
- You can adapt the position of the eyepieces to the height of the observer by rotating the optical tubes 360°
- Observations in transmitted light; Illumination is provided by a durable 3W LED
- Köhler illumination is configurable, thanks to a field diaphragm and a centrable, height-adjustable Abbe condenser with aperture diaphragm
- Possibility to insert dark field slider or phase contrast slider in a special slot on the condenser
- Optional accessories to improve the performance of the microscope

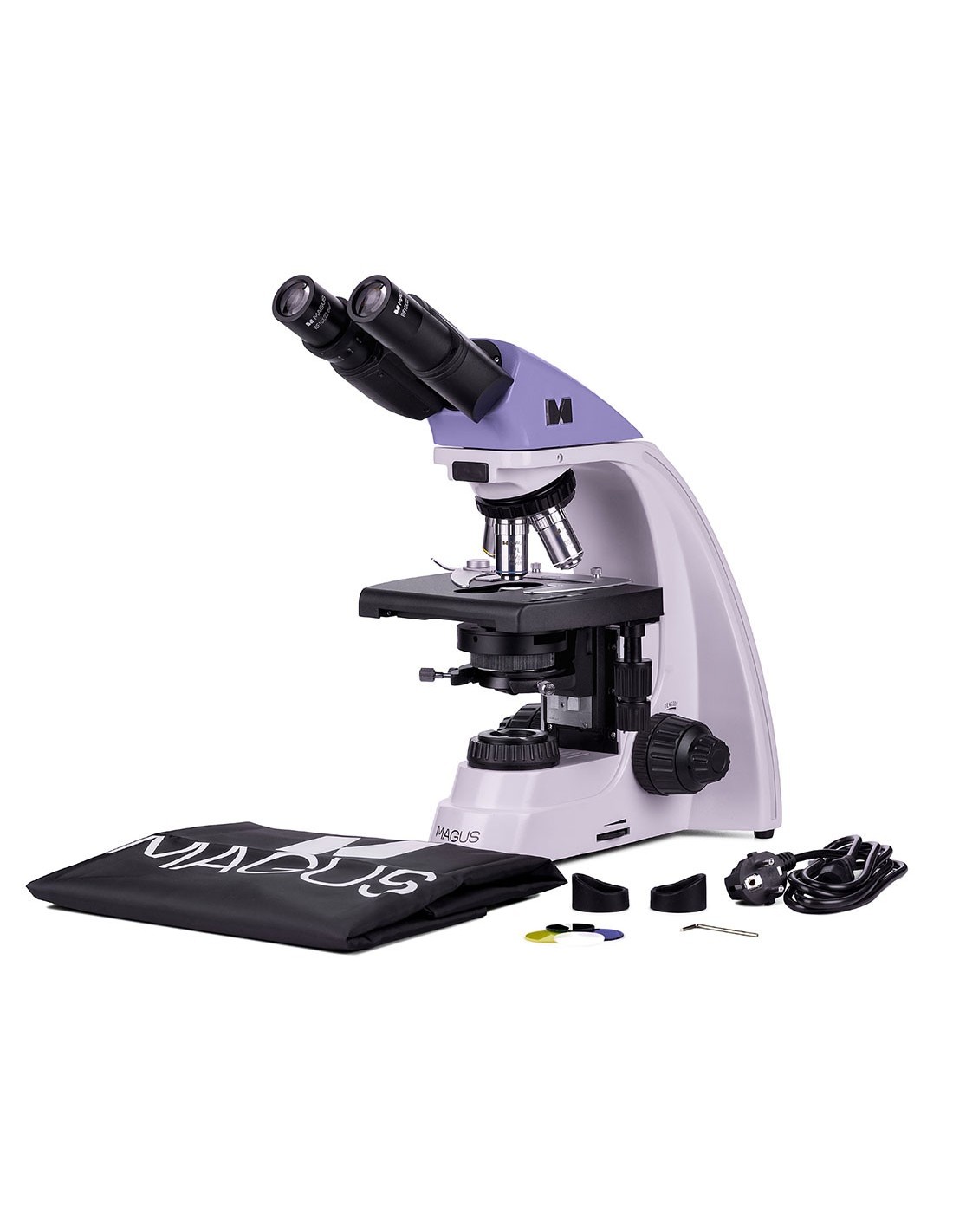

The package contains:
- Base with power input, light source for transmitted light observations, focusing mechanism, stage, condenser attachment and nosepiece revolver
- Abbe condenser
- Binocular head
- Infinity planachromatic objective: 4x/0.10
- Infinity planachromatic objective: 10x/0. 25
- Infinity plan achromatic objective: 40x/0.65 (with spring mechanism)
- Infinity plan achromatic objective: 100x/1.25 oil (with spring mechanism)
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- Eyecup (2 pcs.)
- Filter (4 pcs.) li>
- Vial of immersion oil
- AC power cord
- Dust cover
- User manual and warranty card
Available on request:
- 10x/22 mm eyepiece with graduated scale
- 12.5x/14 mm eyepiece ( 2 pcs.)
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Infinity plan achromatic objective: 20x/0.40
- Infinity plan achromatic objective: 60x/0.80 (with spring mechanism)
- Phase contrast device
- Phase contrast slider
- Dark field condenser with NA 0.9
- Oil dark field condenser with NA 1.36–1.25
- Dark field slider
- Polarization instruments
- Digital camera
- Calibration slide
- C-mount adapter
- Adapter ring
- LCD monitor
| Brand td> | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018041 |
| Package size (LxWxH) | 43x27x63 cm |
| Shipping weight | 10 kg |
| Type | biological, light/optical |
| Tested | binocular |
| Vertical tube | Gemel head (Siedentopf type, with 360° rotation) |
| Tilting angle of the head | 30° |
| Magnification, x | 40–1000 in the basic configuration ( *optional: 40–1200/1250/1500/1600/2000/2500) |
| Magnification range | 800x to 1280x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, extraction pupil: 10 mm (*optional: 10x/22 mm with graduated scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Infinity planachromatic | objectives: 4x/0.10; 10x/0.25; 40xs/0.65; 100xs/1.25 (oil); parfocal distance: 45 mm (*optional: 20x/0.40; 60хs/0.80) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 21 (4x); 5 (10x); 0.66 (40xs); 0.36 (100xs); 8.8 (20x); 0.465 (60xs) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 180x150 |
| Range of movement of the table, mm | 75/50 |
| Stage features | two-axis mechanical translator, without positioning rack |
| Eyepiece diopter adjustment, diopters | ± 5 (on left barrel) |
| Condenser | Abbe condenser, NA 1.25, adjustable centering, adjustable height, adjustable aperture diaphragm, with slot for dark field slider and phase contrast slider, dovetail mount |
| Diaphragm | adjustable aperture diaphragm, field diaphragm with adjustable iris |
| Focus | coaxial, coarse focus (21 mm, 39.8 mm/turn, with fixing knob and tension adjustment knob micrometer screw) and fine focus (0.002 mm micrometer screw) |
| Illumination | LED |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | 3 W LED |
| Optical filters | yes |
| Operating temperature range, °C | 5 — 35 |
| Possibility to connect additional equipment |
| td> | phase contrast devices (condenser and objectives), dark field condenser (dry or oil immersion), polarization instruments (polarizer and analyzer) |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | laboratory/medical |
| Lighting position | lower |
| Search method | bright field |
| Set with pencil case/case/bag | dust cover |
| Weight, kg | 8 |
| Dimensions, mm | 200x436x400 |
