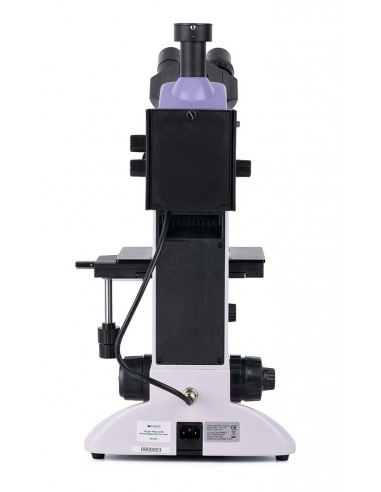

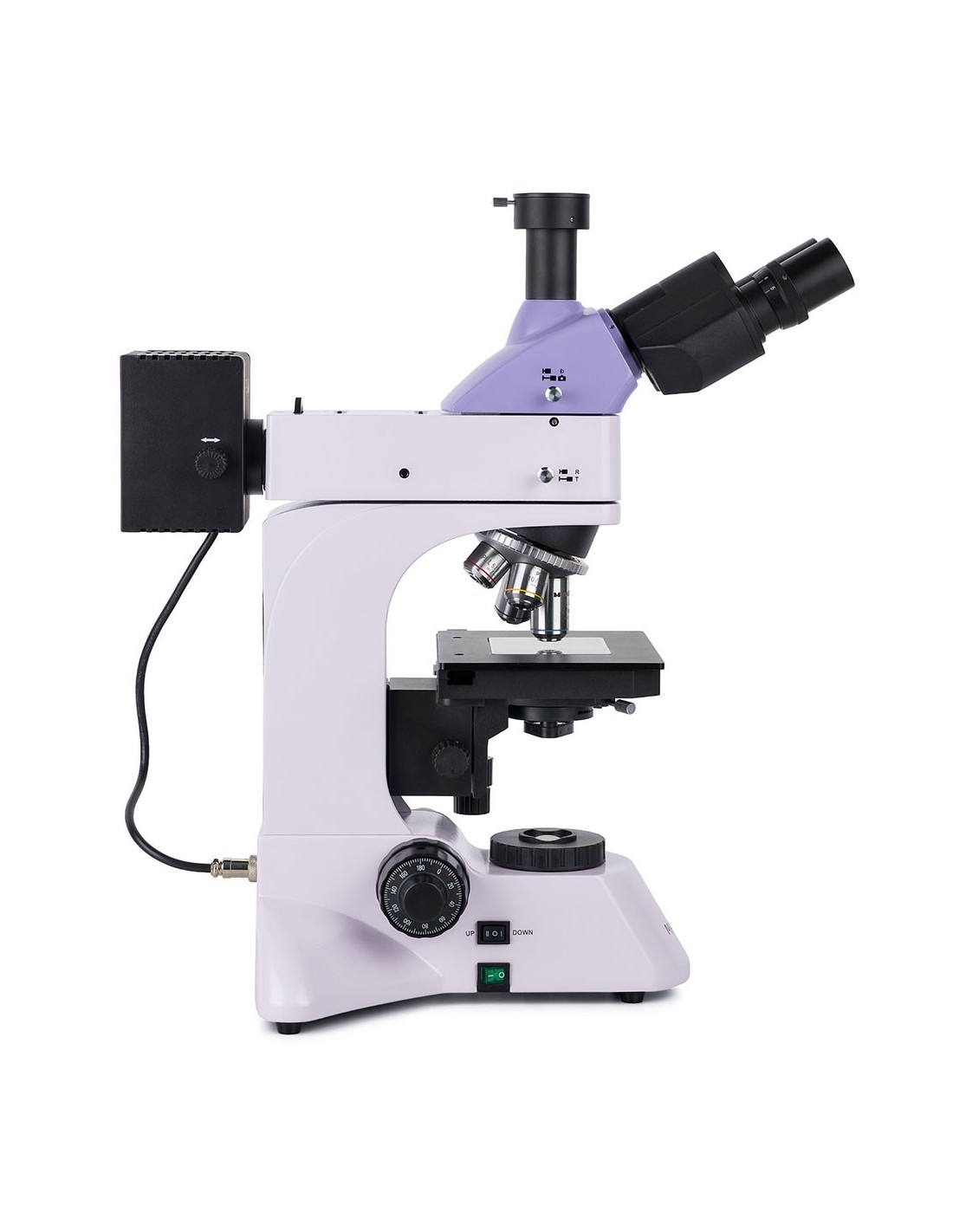

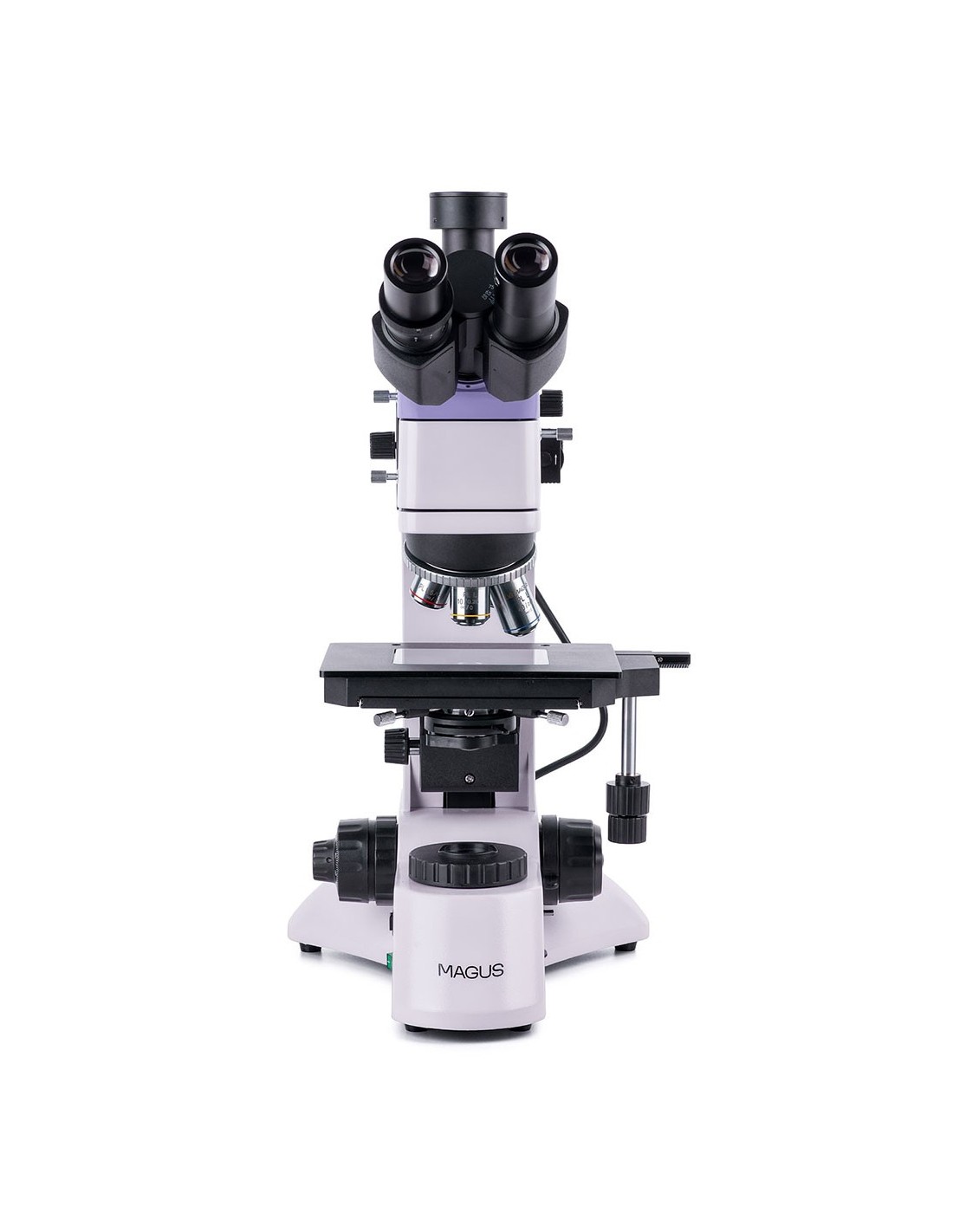

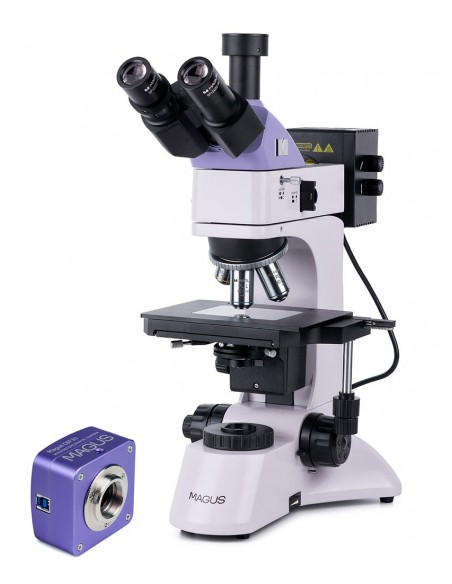

The MAGUS Metal 600 metallographic microscope is designed for the study of opaque samples (metals, alloys, paint coatings, semiconductors and other materials) in reflected light with bright field and polarized light microscopy techniques. It is possible to study the microstructures of polished flat samples. The transmitted light illuminator also allows the examination of particles stuck on filters and translucent materials (such as films) under the microscope. The microscope is suitable for research and analyzes conducted by geologists, metallurgists, engineers, archaeologists and specialists in other scientific fields.

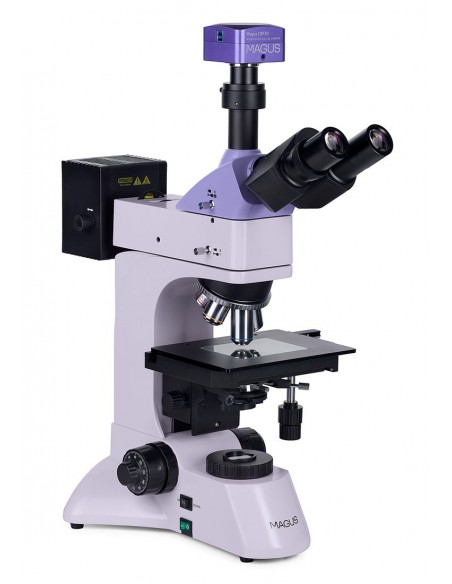

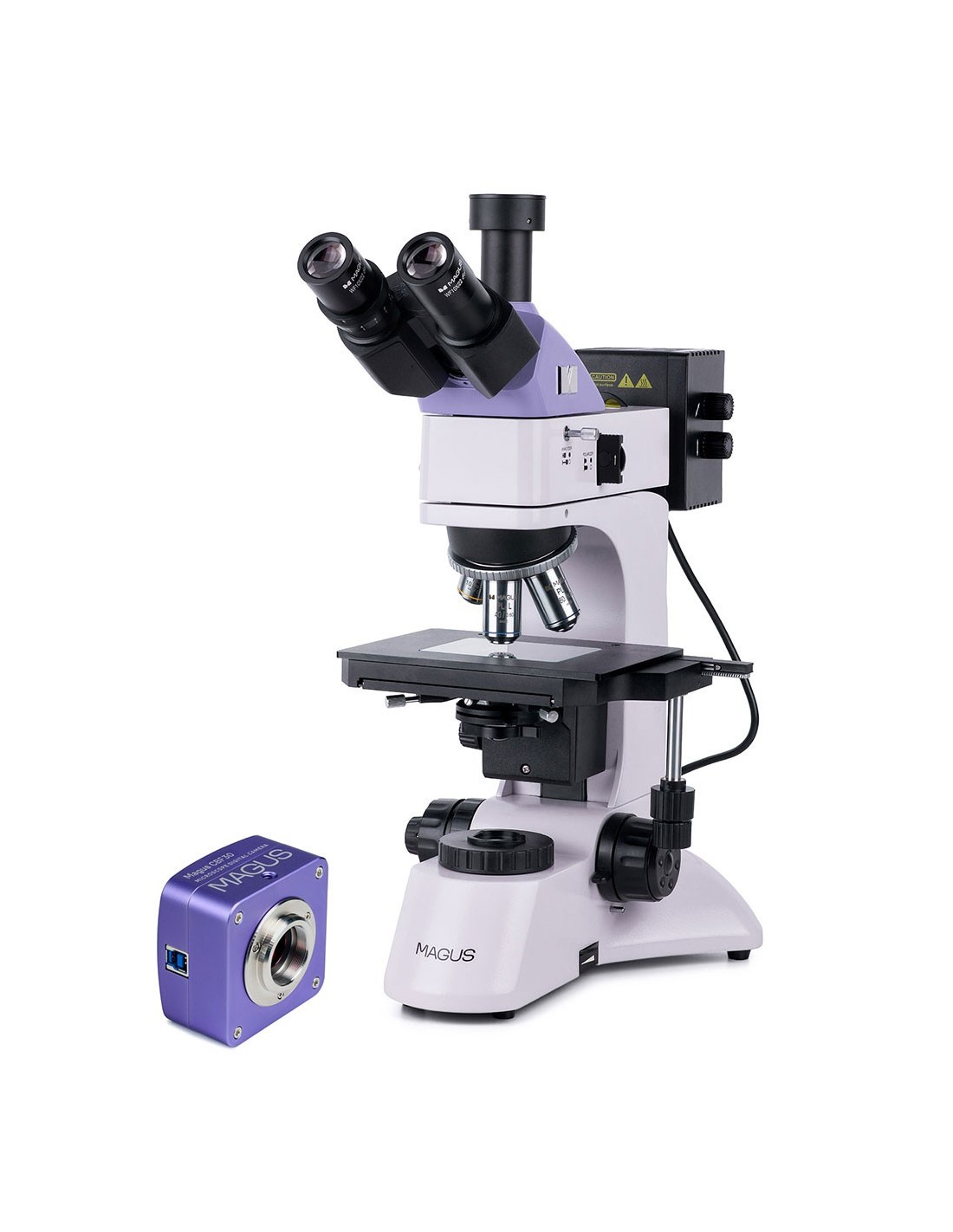

Digital camera
The MAGUS CBF30 digital camera allows you to take photographs and short videos through a microscope, edit the resulting files, organize presentations and perform linear and angular measurements of objects (after correct calibration).
The device is designed to work on microscopes using the brightfield method and 4x, 10x, 20x, and 40x objectives.
The 6.3 MP sensor allows you to take bright, detailed photos and videos at a maximum resolution of 3072x2048 px . If necessary, the resolution can be reduced to 1536x1024 px. However, this will not affect the frame rate, which will remain at 59 fps, thus ensuring smooth frame transitions without stuttering or delays.
The color back-illuminated SONY Exmor CMOS sensor allows you to use the camera even in harsh conditions. of low light. The image will remain readable and bright. Using an adapter with 0.5x to 0.75x magnification will provide the clearest image possible, without distortion.
Optics
The Trinocular head comes with a trinocular tube for mounting on the camera (not included). The light beam can take two positions: 100:0 or 0:100, i.e. the light beam can be directed onto the digital camera or the eyepiece tube. The trinocular head is inclined by 30°, making it ideal for long-lasting observations. On the left barrel there is a diopter adjustment ring.

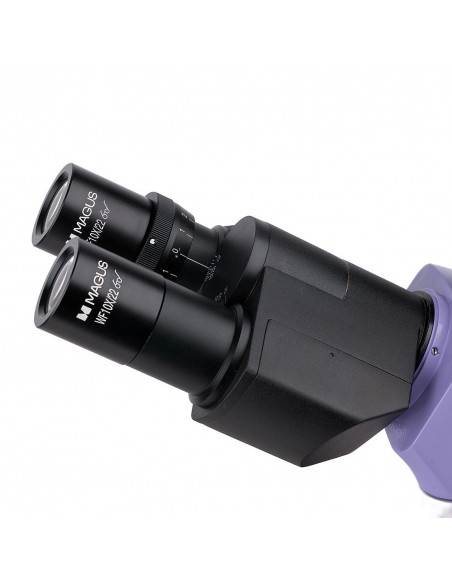

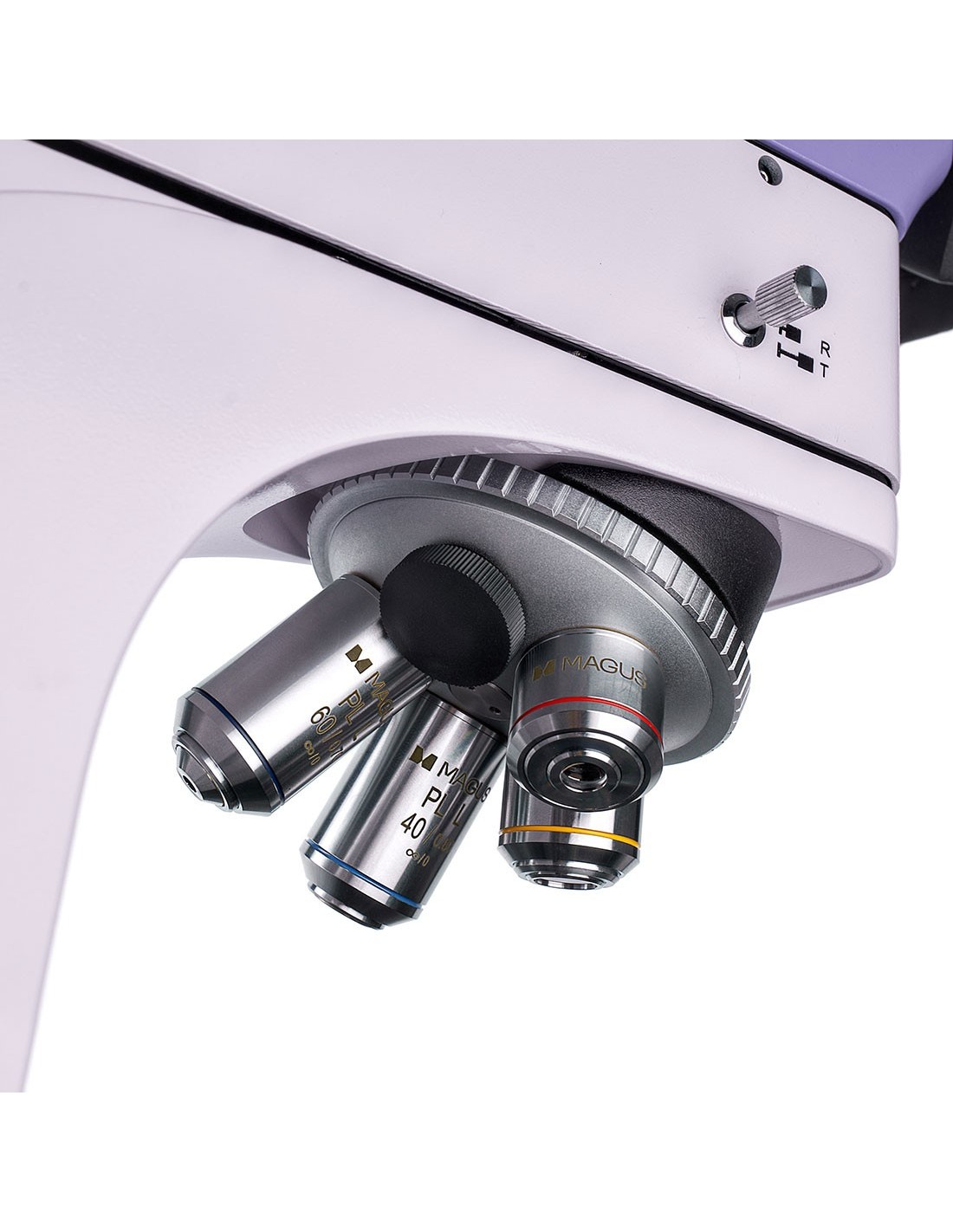

In the basic configuration, the magnification of the microscope varies from 50x to 600x. To increase the maximum magnification limit, additional eyepieces can be mounted. The nosepiece is oriented towards the inside of the instrument. Five lenses can be mounted simultaneously: four are included in the kit and one slot is free for installing an additional lens. The microscope is equipped with plan achromatic objectives with a long working distance suitable for bright field microscopy.

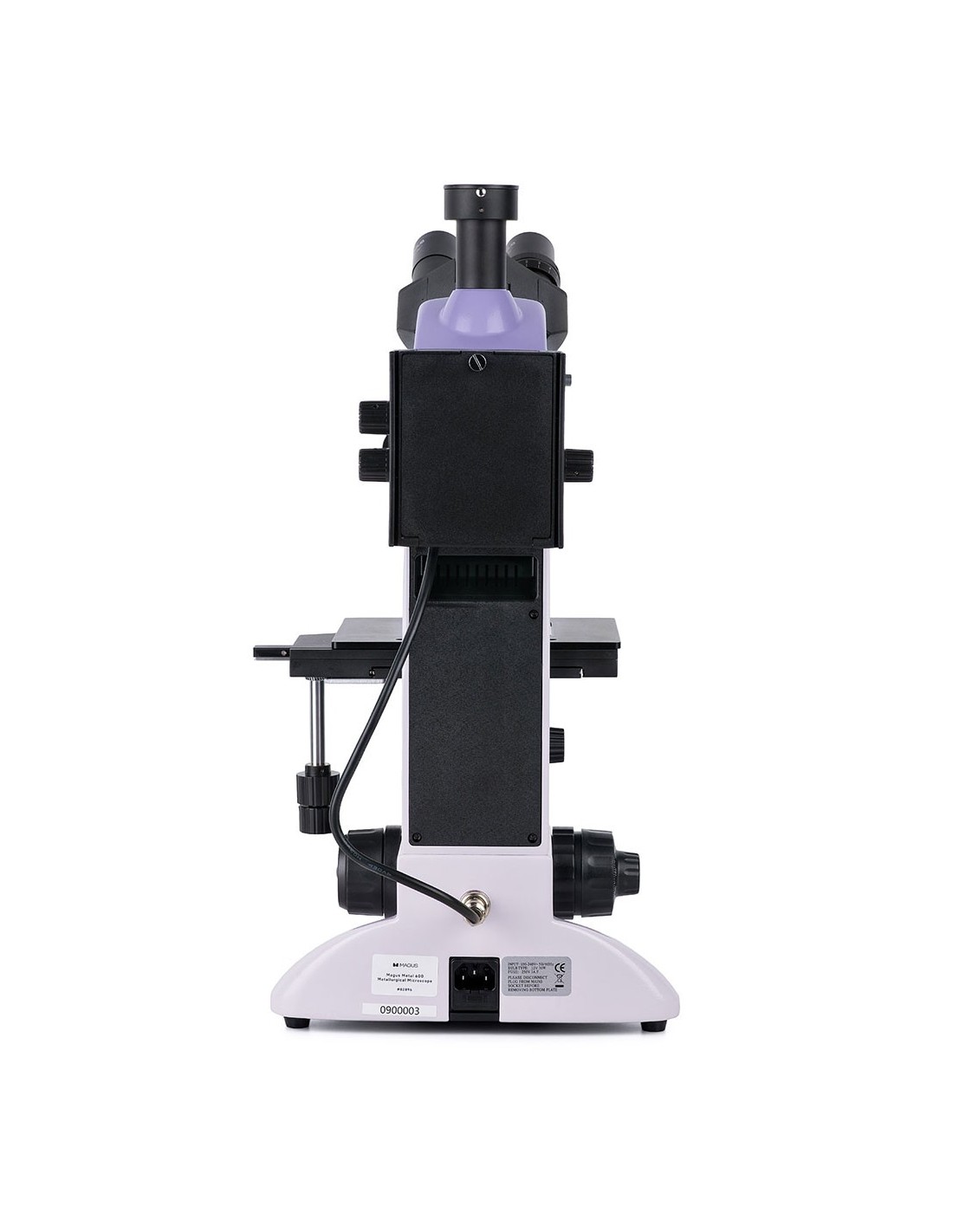

Illumination
The microscope is equipped with transmitted and reflected light illumination. Both use 30W halogen lamps with adjustable brightness, powered by AC power. Halogen lamps emit light with a color temperature that ensures greater comfort for the eyes.
The microscope is equipped with polarization tools for reflected light observations: an integrated analyzer and a removable polarizer. The aperture and field diaphragms make it possible to set the Köhler illumination. Colored filters are also included in the kit. The apertures and the reflected light light source can be centered.
The transmitted light lighting system uses a traditional Abbe condenser, the position of which can be adjusted in two ways: centered and height-adjusted. It is completed with a folding lens that allows it to be used with low magnification objectives. There are field diaphragms and an aperture, which allow the Köhler illumination method to be used.

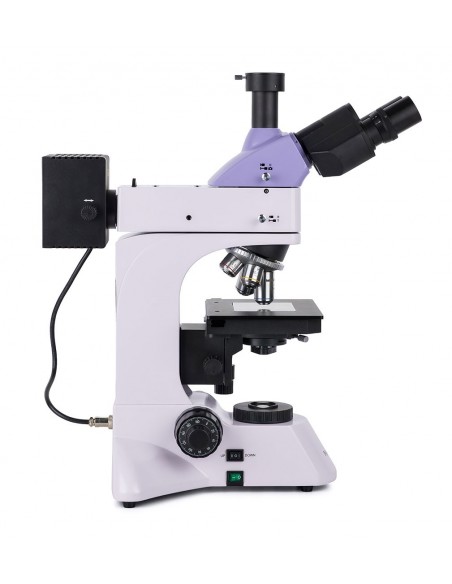

Stage and focusing mechanism
The maximum Height of the sample that can be put on the stage is 20 mm. The sample can be moved by moving the stage along the two axes. It is equipped with a glass slide to be used for the observation of opaque specimens.
Coarse and fine focusing mechanisms are used to adjust the focus. Focusing is smooth and precise. The coarse focus is equipped with a fixing knob and the tension of the coarse screw can be adjusted. The focusing knobs are positioned coaxially on both sides, so you don't have to keep your hands in the air during observation, but comfortably on the table.
Accessories
The MAGUS Metal 600 microscope can be further equipped with additional eyepieces, objectives with a long distance, digital cameras and calibration slides.
Key features of the microscope:
- Microscope for the study of opaque, flat and polished specimens in reflected light and translucent specimens in transmitted light
- Trinocular head with a trinocular tube and beam splitter
- Trinocular head with a trinocular tube and beam splitter
- li>
- Reflected and transmitted light light source: 30 W halogen lamp
- Köhler illumination method in transmitted and reflected light, reflected light polarized microscopy technique
- Elements (diaphragms and light sources) of the reflected light illumination system that can be centered, filter sets
- Abbe condenser with flip-up lenses can be used with low magnification objectives
- Wide range of additional eyepieces and lenses
Key camera features:
- Recommended for use with low magnification lenses
- Light-sensitive sensor for clear images even in low light conditions
- Frame rate of 59 fps, which is sufficient for observing moving objects or fast-moving processes
- The package includes software that fully ensures the functionality of all camera features and, consequently, a “quick start”
- Reliable USB 3.0 interface for high data transfer speeds
- Resolution adjustment so you can choose the option that best suits you at any given moment

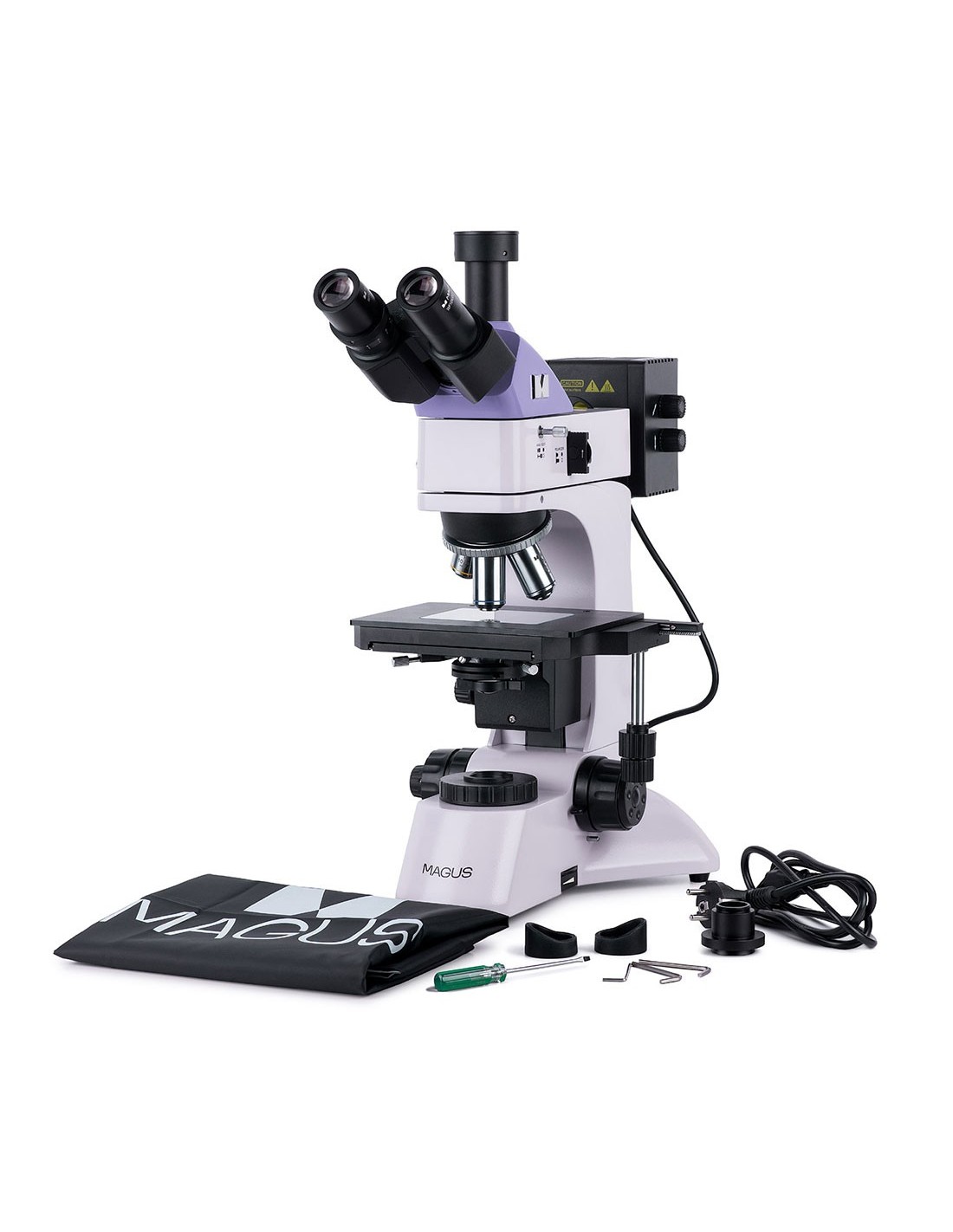

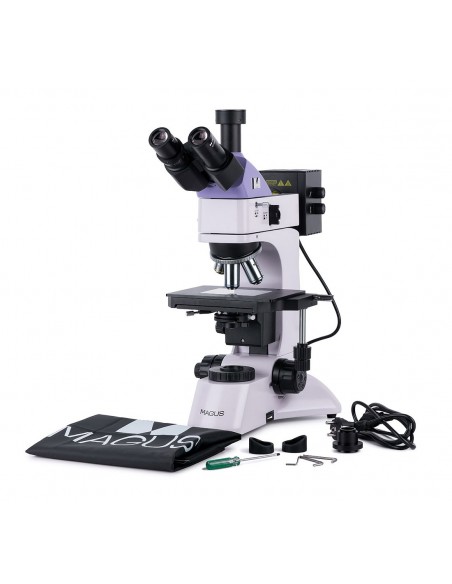

The package contains:
- MAGUS CBF30 digital camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
- Base with power input, transmitted light light source and condenser , focusing mechanism, stage and nosepiece
- Illuminator for reflected light observations with bulb housing
- Trinocular head
- Infinity planachromatic objective: PL L5x/0.12 WD 26.1 mm
- Plan achromatic infinity objective: PL L10х/0.25 WD 20.2 mm
- Plan achromatic infinity objective: PL L40х /0.60 WD: 3.98 mm
- Planachromatic infinity objective: PL L60x/0.70 WD: 2.08 mm
- 10x/22 mm eyepiece with long extension eyepiece (2 pcs.)
- Glass plate for the stage
- 1x C-mount adapter
- Allen key
- Connecting cable AC mains power supply
- Reflected light illuminator power cable
- Dust cover
- User manual and warranty card
Available on request:
- 10x/22 mm eyepiece with graduated scale
- 12.5x/14 mm eyepiece (2 pcs.)
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Infinity plan achromatic objective: PL L20х/0.40 WD 8.80 mm
- Infinity plan achromatic objective: PL L50х/0.70 WD 3.68 mm
- Infinity plan achromatic objective: PL L50х/0.70 WD 3.68 mm li>
- Infinity plan achromatic objective: PL L80x/0.80 WD: 1.25 mm
- Infinity plan achromatic objective: PL L100x/0.85 (dry) WD 0.40 mm
- Calibration glass
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018270 |
| Package size (WxDxH) | 35x30x75 cm |
| Shipping weight | 15.1 kg |
| Delimiter | MAGUS Metal 600 metallographic microscope |
| === Delimiter === | Microscope specifications |
| Type | light/optical, digital, metallographic |
| Head | trinocular |
| Vertical tube | Siedentopf |
| Head inclination angle | 30° |
| Magnification, x | 50–600 base (*optional: 50–1000/1250/1500/2000/2500) |
| Magnification range | 200x to 800x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with graduated scale, 12.5x/14 ; 15x/15; 20x/12; 25x/9) |
| Objectives | planachromatic at infinity: PL L5x/0.12, PL L10x/0.25, PL L40x/0, 60, PL L60x/0.70; parfocal distance 45 mm (*optional: PL L20x/0.40, PL L50x/0.70, PL L80x/0.80, PL L100x/0.85 (dry)) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 26.1 (5x); 20.2 (10x); 3.98 (40x); 2.08 (60x); 8.80 (20x); 3.68 (50x); 1.25 (80x); 0.40 (100x) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 210x140 |
| Range of movement of the stage, mm | 75/50 |
| Stage features | two-axis mechanical stage, with a glass slide |
| Eyepiece diopter adjustment, diopters | ±5 (on the left barrel) |
| Condenser | transmitted light: centerable and height-adjustable Abbe condenser, NA 1.25, aperture diaphragm and lenses adjustable flip-ups, with fixing screws |
| Focus | coaxial, coarse focus (25 mm, with fixing knob and tension adjustment knob) and fine focus (0.002 mm) |
| Illumination | halogen |
| Brightness adjustment< /td> | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | reflected and transmitted light: 12 V/30 W |
| Optical filters | green, blue , yellow, satin |
| Operating temperature range, °C | 5 — 35 |
| Elements extra | integrated analyzer and removable polarizer |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | metallographic |
| Search method | bright field, polarized light |
| Set with pencil case/case/bag | dust cover |
| Weight, kg | 11 |
| === Delimiter === | Digital camera |
| Sensor |
| Color/Monochrome | Color |
| Megapixel | 6.3 |
| Maximum resolution, px | 3072x2048 |
| Sensor size | 1/1.8" (7.37x4.92 mm) |
| Pixel size, µm | 2.4x2.4 |
| Light sensitivity | 425 mV at 1/30 s |
| Signal to noise ratio | 0.15 mV at 1/30 s |
| Exposure time | 0.02 ms – 15 s |
| Video recording | yes |
| Video recording | yes |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 (integrated IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure control |
| Software | MAGUS View |
| Output | USB 3.0, 5 Gb/s |
| System Requirements | Windows 8/10/11 (32-bit and 64-bit), Mac OS 2 or later, minimum 2 GB RAM, USB 3.0 port, CD-ROM, 17" or larger |
| Mount type | C-mount< /td> |
| Body | robust aluminum |
| Camera power supply | DC, 5 V , from the computer's USB port; 12 V, 3 A adapter for the Peltier cell |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
