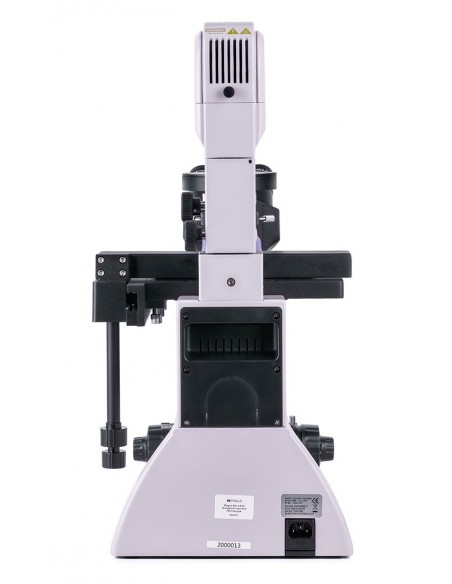

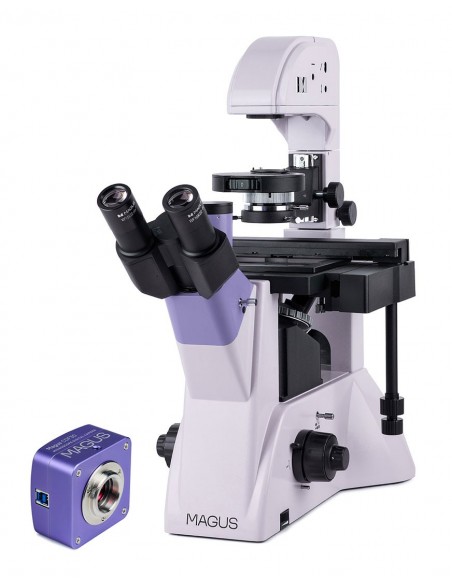

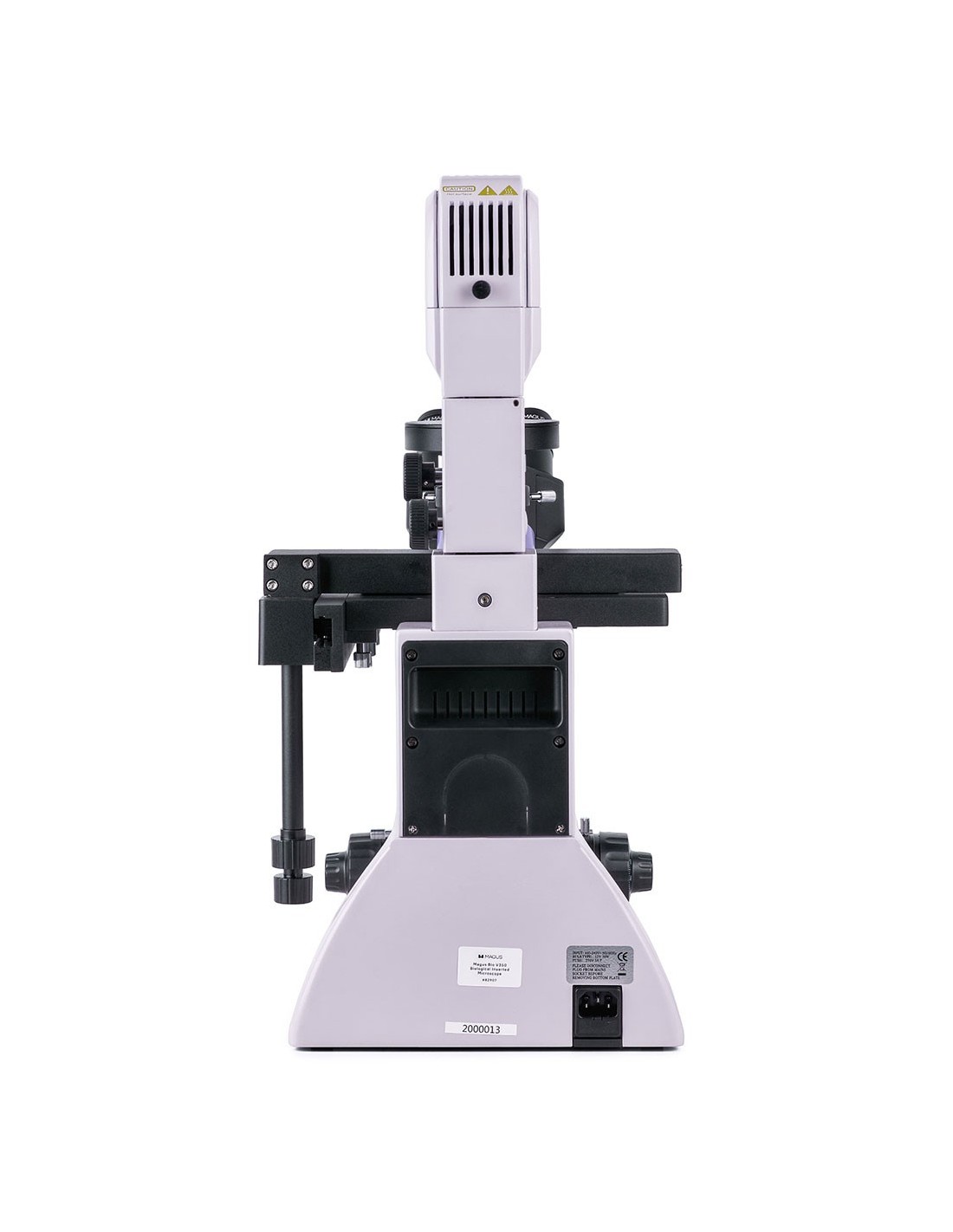

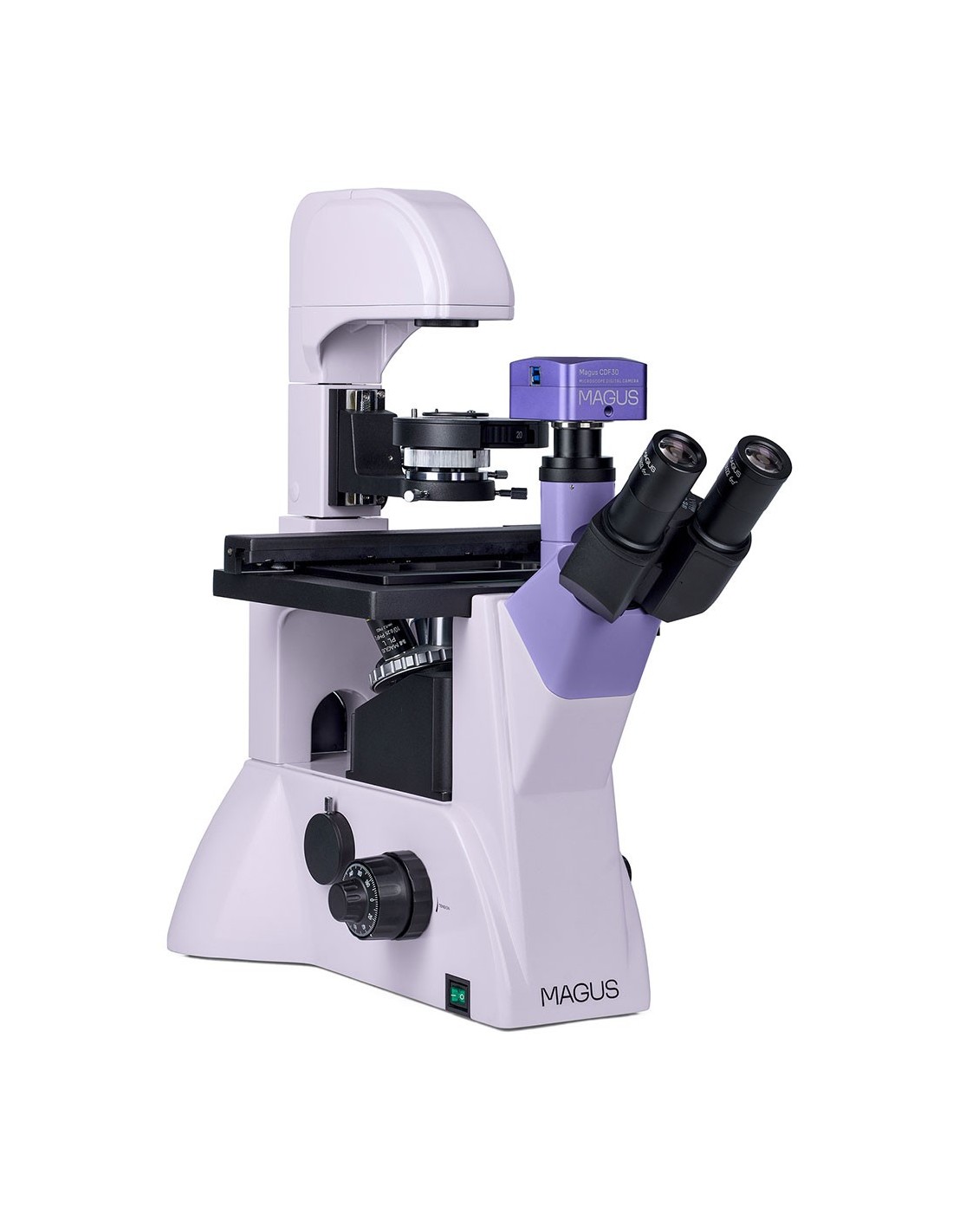

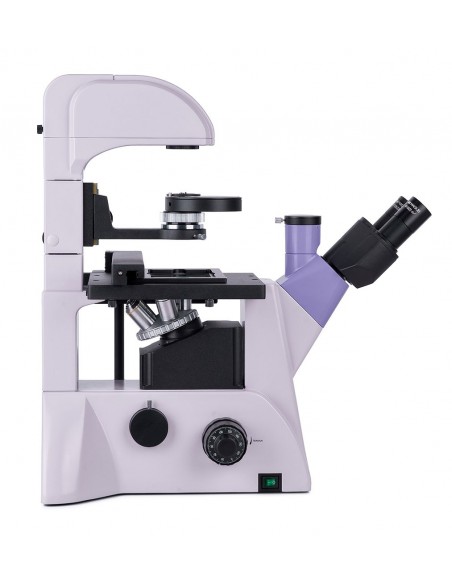

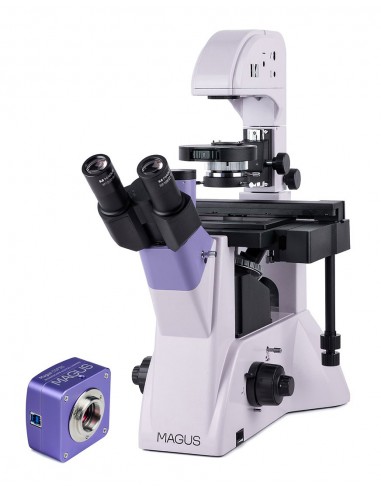

The MAGUS Bio V350 is an inverted biological microscope used for the study of samples with and without added dye, contained in laboratory glassware: Petri dishes, test tubes, crucibles, etc. The height of the glassware can start from 55 mm and, by tilting the illuminator support, reach 165 mm. The bottom of observation-compatible glassware can be up to 1.2 mm thick. This microscope, which uses phase-contrast transmitted light and bright-field microscopy techniques, has a trinocular tube and a side camera port for installing a monitor and digital camera, respectively. This model is suitable for routine work in professional and research laboratories, as well as for teaching.
Digital camera
Video optical tube with a sensor digital SONY Exmor 8.3 MP. The sensor uses backlight technology to improve light sensitivity and produce bright, sharp images even in low-light conditions. The camera is used for observation using the bright and dark field microscopy technique on objectives with 4x, 10x and 20x magnification. It can also be used for stereoscopic microscopes. To connect to a computer and display images on the screen, a USB 3.0 port with high data transfer speed (5 Gbps) is used.

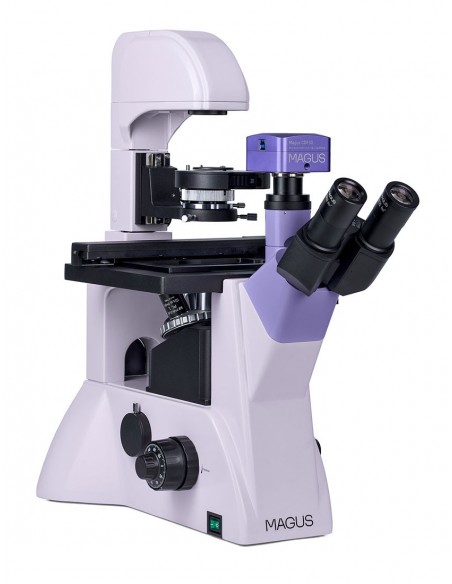

The MAGUS CDF30 camera is installed on the trinocular tube or optical tube of a microscope. The maximum field of view can be achieved without optical defects by using an adapter with magnification from 0.65x to 0.9x. In addition to the adapter, you will need an adapter of the same diameter as the tube to install the camera on the optical tube.
The image is displayed on the computer screen with a maximum resolution of 3840x2160 px. The frame rate is 45 fps. At a lower resolution (1920x1080 px), the frame rate increases up to 70 fps. Transitions between frames are almost imperceptible, without delays, making the camera suitable for studying and presenting moving objects. Photos and videos are recorded and saved in different formats.
Optics

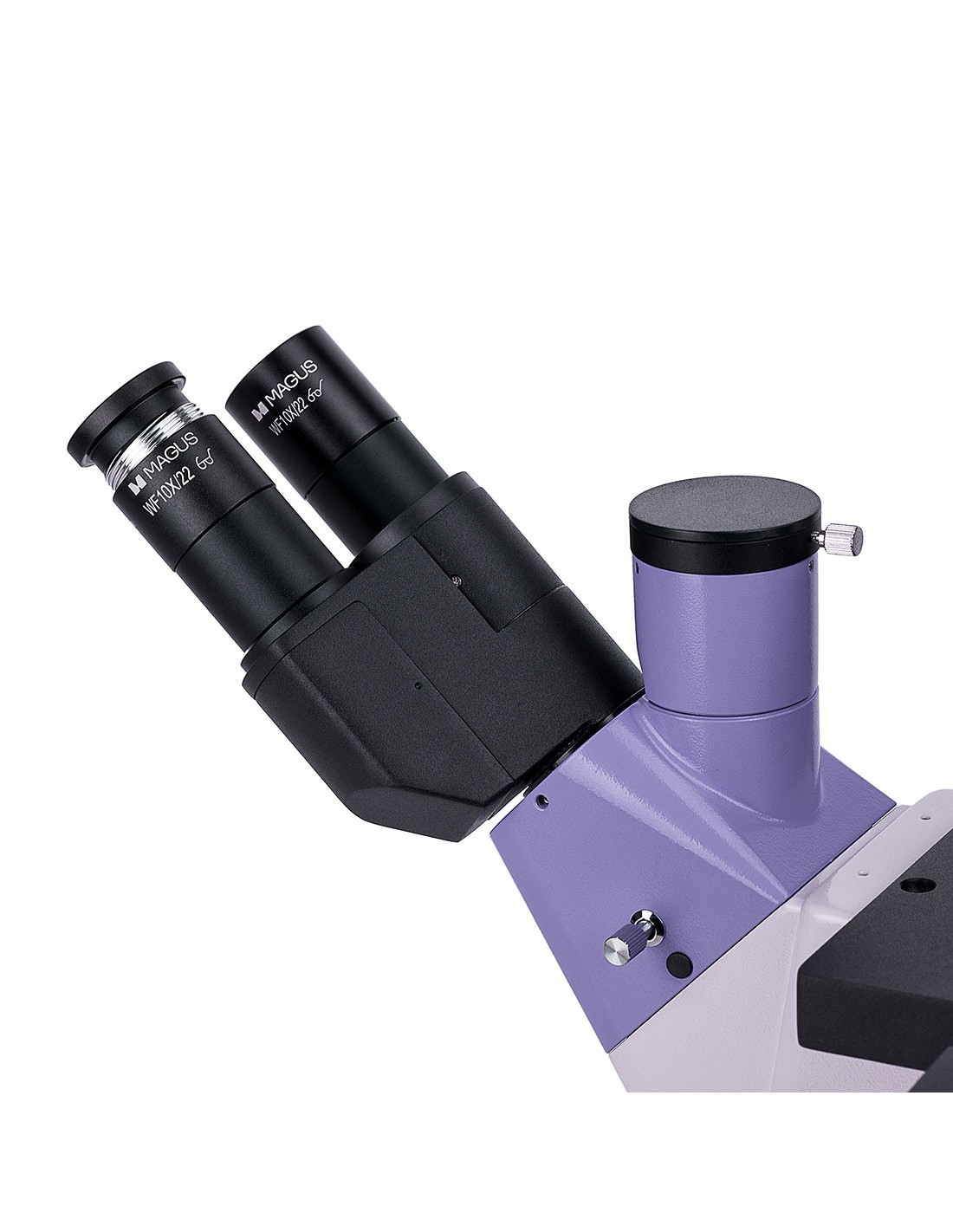

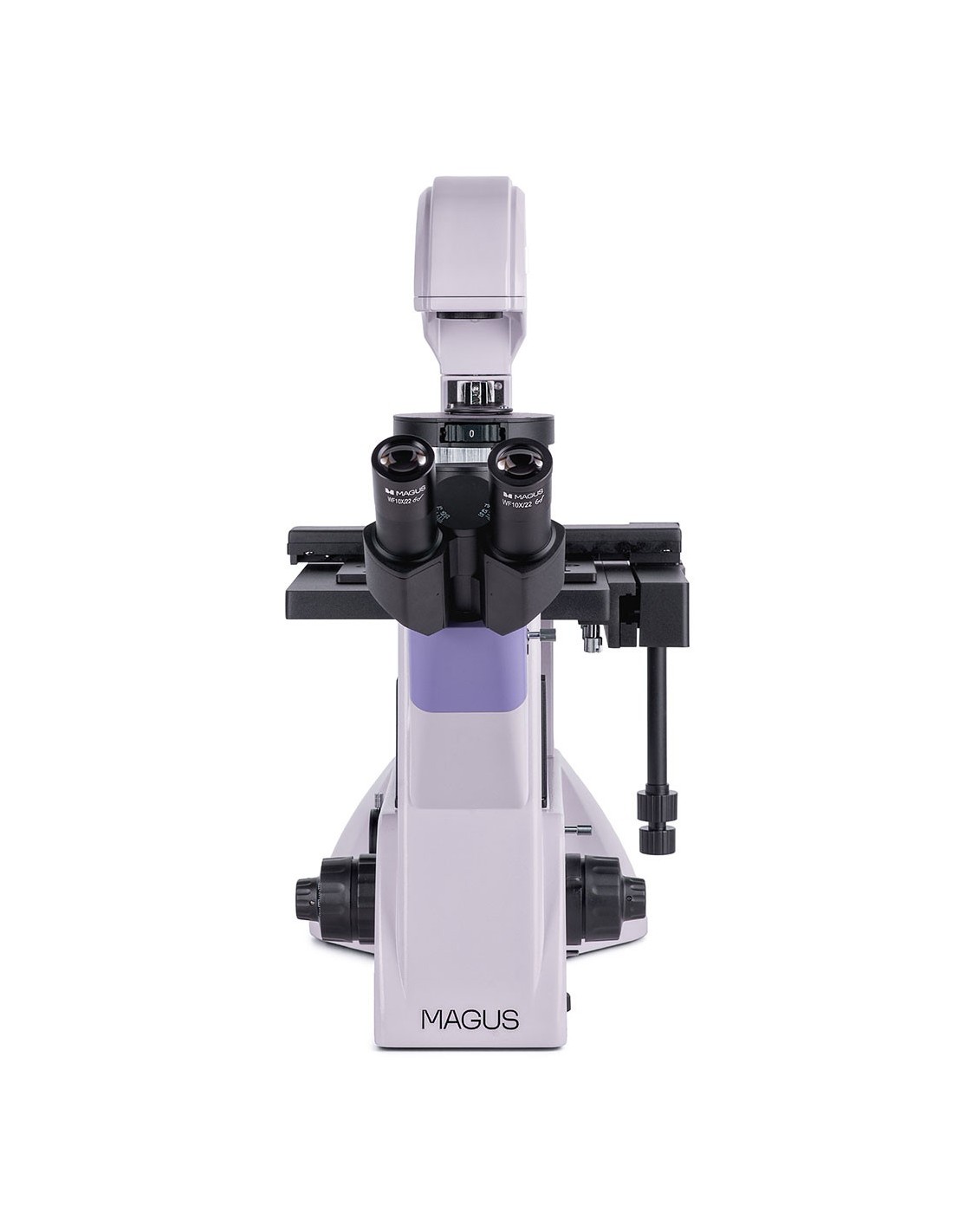

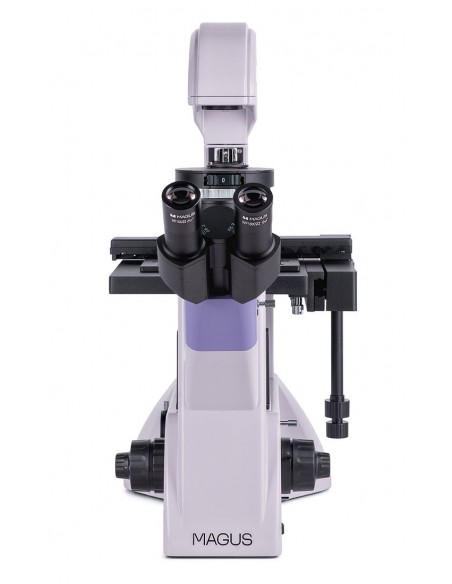

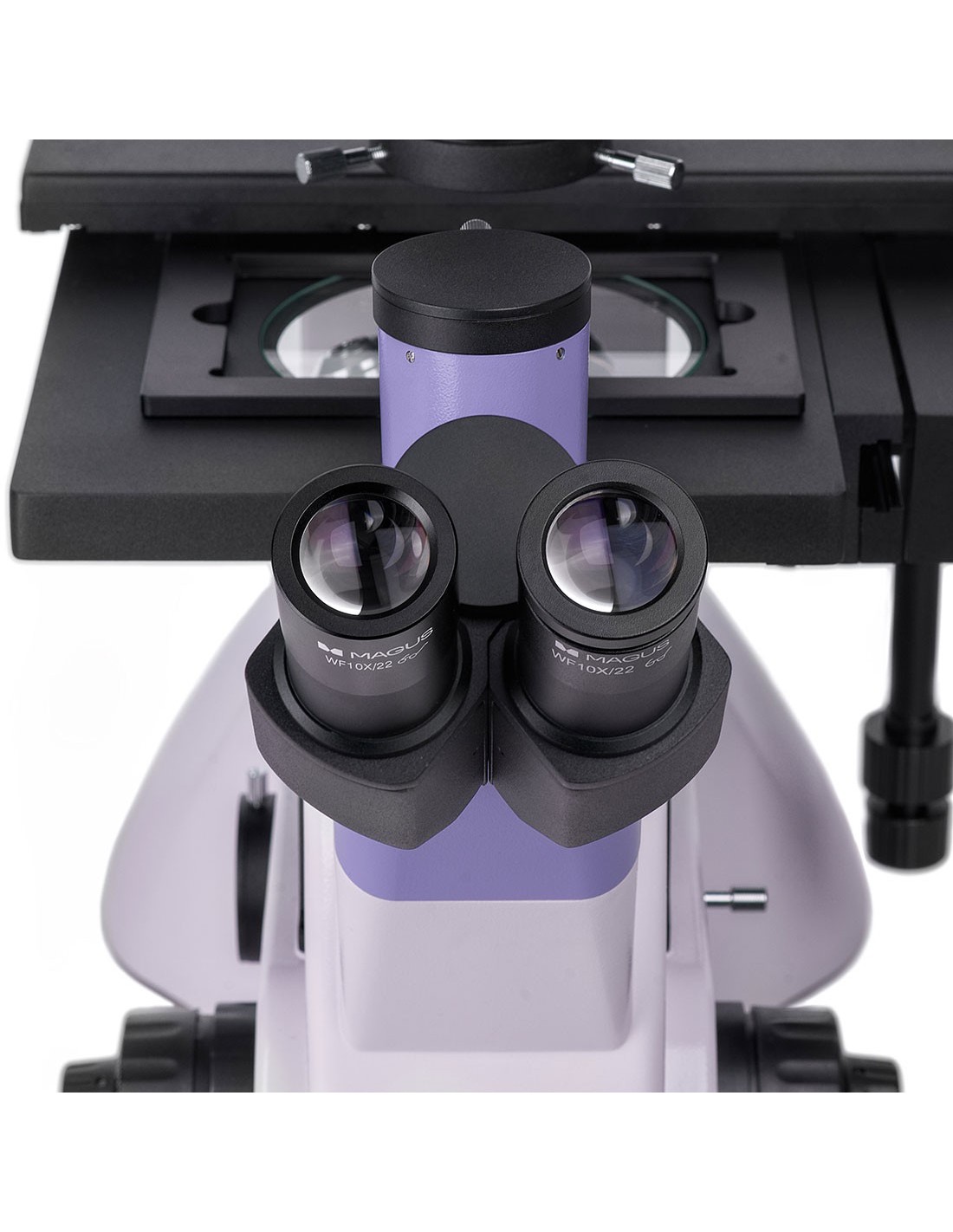

During the assembly of the microscope it is possible to select the position of the trinocular head: it can be rotated 180° to adjust the height of the exit pupil. Use the vertical tube to house the monitor and the side port on the microscope frame to install a digital camera. The beam splitter inserted in the stand divides the optical beam with a ratio of 100/0 or 0/100 while the beam splitter in the trinocular tube has a ratio of 50/50 (when open) or 100/0 (when closed).
Four infinity planachromatic objectives are included in the package, one of which is designed for phase contrast microscopy. Once all four objectives are installed, there is a free slot on the nosepiece for adding an additional objective.
Illumination
The capacitor for Phase contrast allows you to easily and practically switch from one microscopy technique to another. It has four working positions: with free aperture for bright field observations, 10x, 20x and 40x apertures for phase contrast with an appropriate magnification objective.
The light source for transmitted light observations it is a 30 W halogen lamp that emits light with a color temperature designed for greater visual comfort. The brightness is adjustable and the lamp is powered via AC electricity. The lighting system makes it possible to set up Köhler lighting to improve image quality.

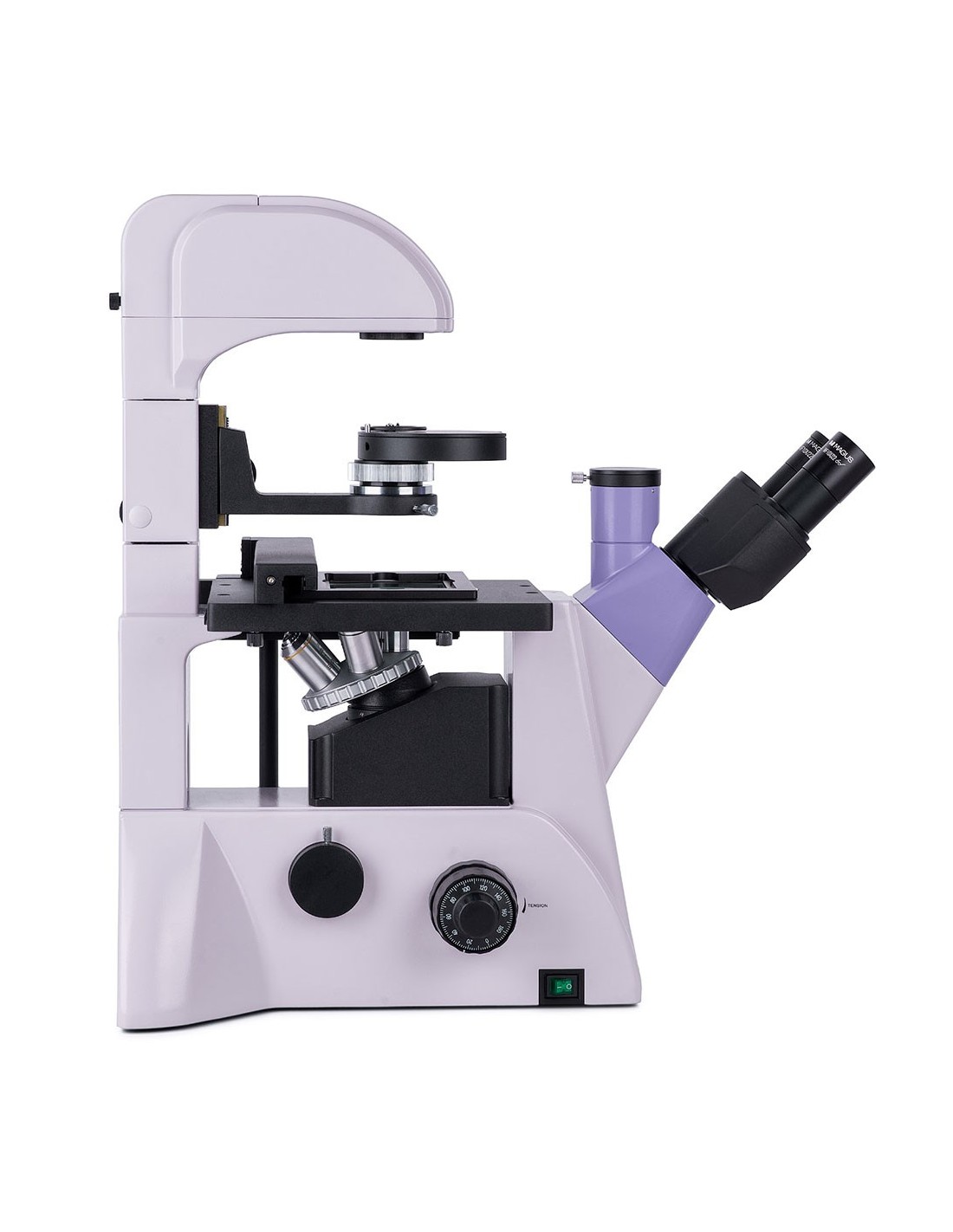

Stage and focusing mechanism
In the box four plate holders are included. The supports can be moved along the X-axis and Y-axis via a translator insert, while the stage remains stationary. The housings are designed to accommodate glassware of various sizes.
The focusing mechanism is smoothly adjustable. The coarse focus mechanism is equipped with a fixing knob and the tension of the coarse screw can be adjusted. Fine focus scale value: 2 μm. The knobs are positioned at the base of the microscope and allow you to keep your hands in a more relaxed position while working.
Accessories
Additional accessories are available to maximize the potential of the microscope: eyepieces, phase contrast objectives, digital cameras and calibration slides.
Key features of the microscope:
- For observing samples on laboratory glassware up to 55 mm high and with a bottom thickness of up to 1.2 mm
- By tilting the illumination stand it is possible to use glassware with a height of up to 165 mm
- Bright field and phase contrast techniques; condenser for phase contrast with field diaphragm
- Stage with 4 plate holders of various sizes; mechanical insert for moving the sample in the horizontal plane
- The microscope has a 180° rotatable head
- Two options for installing the monitor and camera: the vertical tube and a port on the microscope frame
- Light source for transmitted light observations: 30 W halogen lamp powered by AC power supply
- A wide range of optional accessories
Key camera features:
- Color back-illuminated SONY Exmor CMOS sensor, high light sensitivity
- Dark field operation and clear via 4x, 10x and 20x lenses
- Connection to computer via a USB 3.0 interface with a data transfer rate of 5 Gbps
- Image reproduced on a 4K resolution monitor Ultra High 3840x2160 px (45 fps) or Full HD 1920x1080 px (70 fps)
- Driver and image processing software are included
- Installation on the trinocular tube or optical tube a microscope

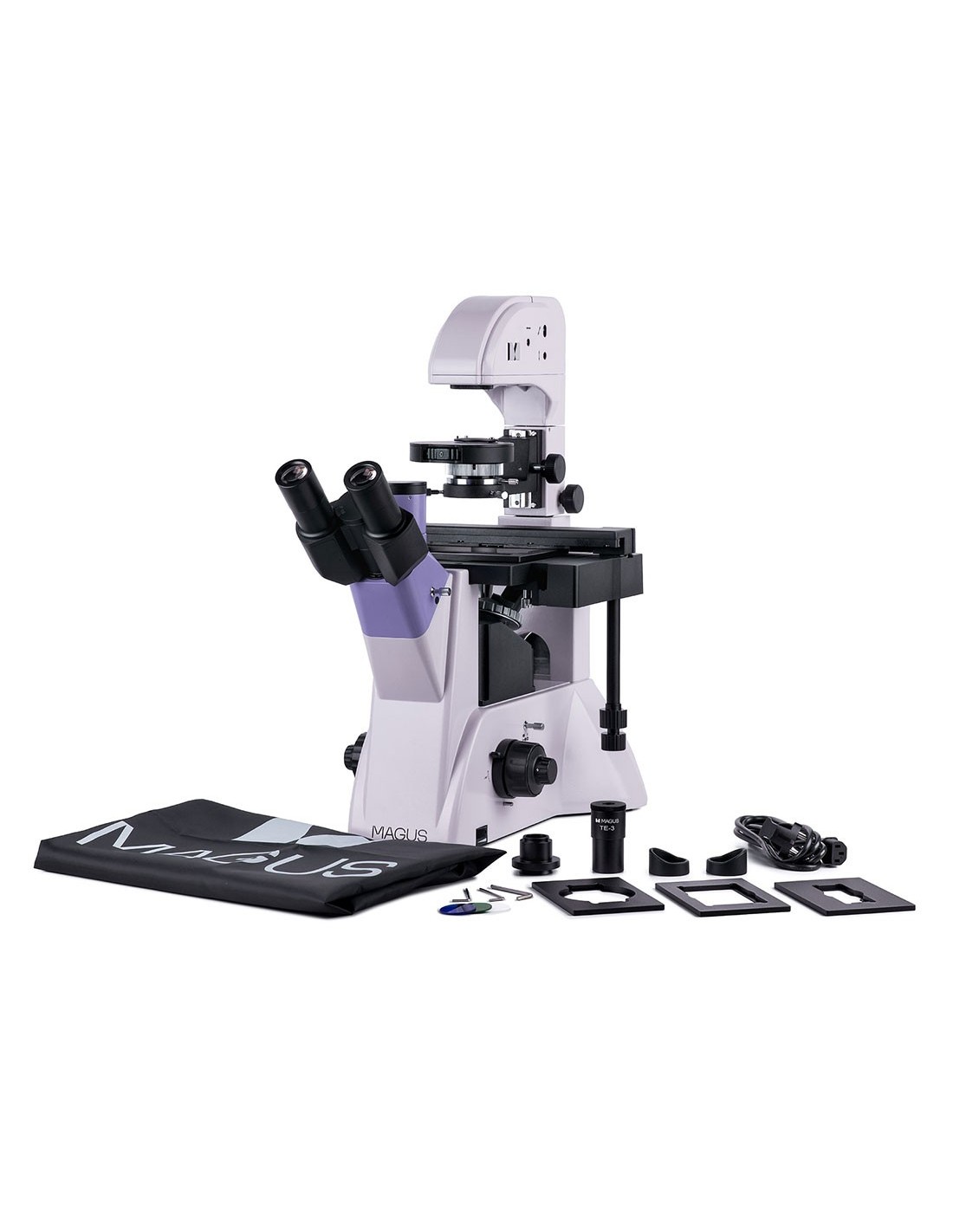

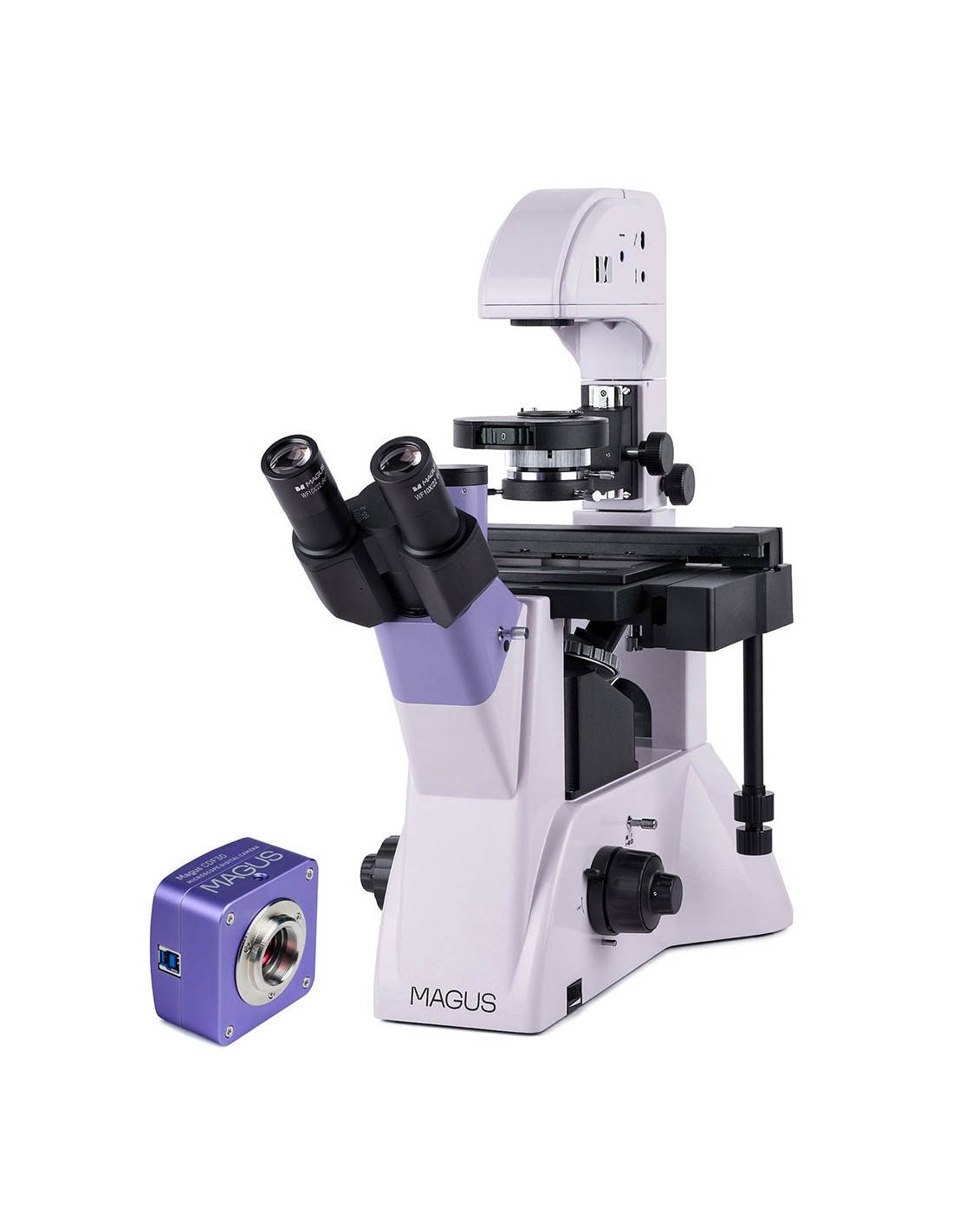

The package contains:
- MAGUS CDF30 digital camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty certificate)
- Support with integrated power supply, transmitted light source, focusing mechanism, stage, condenser mount, rotating objective holder and trinocular tube
- Phase contrast condenser
- Trinocular head
- Infinity plan achromatic objective: PHP2 10x/0.25 phase contrast WD 4.27 mm
- Plan achromatic objective at infinity: PL 10x/0.25 WD 4.27 mm
- Plan achromatic objective at infinity: PL 20x/0.40 WD 8.0 mm
- Plan achromatic objective at infinity: infinity: PL 40x/0.60 WD 3.5 mm
- Eyepiece 10x/22 mm with long eye relief (2 pcs.)
- Eyecup (2 pcs.)
- Eyecup (2 pcs.)
- li>
- Centering telescope
- Round stage plate
- Mechanical translator for moving samples
- Plate holder (4 pcs.) li>
- C-mount adapter
- Color filter
- AC mains power cable
- Dust cover
- User manual and certificate warranty
Available on request:
- 10x/22 mm eyepiece with graduated scale
- Eyepiece 12.5x/14 mm (2 pcs.)
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Infinity plan achromatic objective: PL 4x/0.10 WD 21 mm
- Infinity plan achromatic objective: PHP2 20x/ 0.40 phase contrast WD 8.0 mm
- Infinity plan achromatic objective: PHP2 40x/0.60 phase contrast WD 3.5 mm
- Calibration slide
- Calibration slide
- Calibration slide
- li>
- LCD monitor
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018126 |
| Package size ( WxDxH) | 49x34x73 cm |
| Shipping weight | 20.1 kg |
| Delimiter | MAGUS Bio V350 Inverted Biological Microscope |
| === Delimiter === | Microscope Specifications |
| Type | biological, light/optical, digital |
| Tested | trinocular |
| Standard tube | Siedentopf, 180° rotatable |
| Head tilt angle | 45° |
| Magnification, x | 100–400 in the basic configuration (*optional: 40–500/600/800/1000) |
| Magnification range | 200x to 800x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with graduated scale, 12.5x /14; 15x/15; 20x/12; 25x/9) |
| Infinity planachromatic | objectives: PL 10x/0.25; PL 20x/0.40; PL 40x/0.60; PHP2 10x/0.25 phase; parfocal distance: 45 mm (*optional: PL 4x/0.10; PHP2 20x/0.40 phase; PHP2 40x/0.60 phase) |
| Nosepiece nosepiece |
| Nosepiece | for 5 objectives |
| Working distance, mm | 4.27 (10x); 8.0 (20х); 3.5 (40x) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 227x208 |
| Range of movement of the stage, mm | 77/114 |
| Table features | fixed, with Ø118 mm glass plate and mechanical slider; plate holder: 86x129.5, Ø90 mm; 34x77.5 mm, Ø68.5 mm; 57x82 mm, Ø60 mm; 29x77.5 mm, Ø35 mm |
| Condenser | NA0.6, working distance: 55 mm; turret for phase contrast |
| Diaphragm | adjustable aperture diaphragm, field diaphragm with adjustable iris |
| Focus | coaxial, coarse focus (with micrometer screw tension adjustment knob and fixing knob) and fine focus (0.002 mm micrometer screw) |
| Lighting | halogen |
| Brightness adjustment | yes |
| Type of light source | 12 V /30 W |
| Optical filters | yes |
| Operating temperature range, °C |
| td> | 5 — 35 |
| Special Features | phase contrast capacitor (turret) with available housing and contrast ring plates phase for 10x, 20x and 40x objectives; auxiliary centering microscope |
| User level | expert users, professionals |
| Level of difficulty assembly and installation | complicated |
| Application | laboratory/medical |
| Lighting position | lower |
| Research method | bright field, phase contrast microscope |
| Set with pencil case/case/bag | dust cover |
| === Delimiter === | Camera digital |
| Sensor | SONY Exmor CMOS |
| Color/monochrome | color |
| Megapixel | 8.3 |
| Maximum resolution, px | 3840x2160 |
| Sensor size | 1/1.2'' (11.14x6.26 mm) |
| Pixel size, µm | 2.9x2.9 |
| Light sensitivity | 5970 mV/lux/s< /td> |
| Signal-to-noise ratio | 0.13 mV with 1/30 s |
| Exposure time | 0.02 ms – 15 s |
| Video recording | yes |
| Video recording | yes |
| Frame rate, fps@resolution | 45@3840x2160, 70@1920x1080 |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, * .h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 (integrated IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| White balance |
| White balance |
| td> | manual, automatic |
| Exposure control | manual, automatic |
| Software< /td> | MAGUS View |
| Output | USB 3.0, 5 Gb/s |
| System requirements | Windows 8/10/11 (32-bit and 64-bit), Mac OS USB 3.0, CD-ROM, 17" or larger |
| Mount type | C-mount |
| Body | robust aluminum |
| Camera power supply | DC, 5 V, from computer USB port; 12 V, 3 A adapter for the Peltier cell |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
