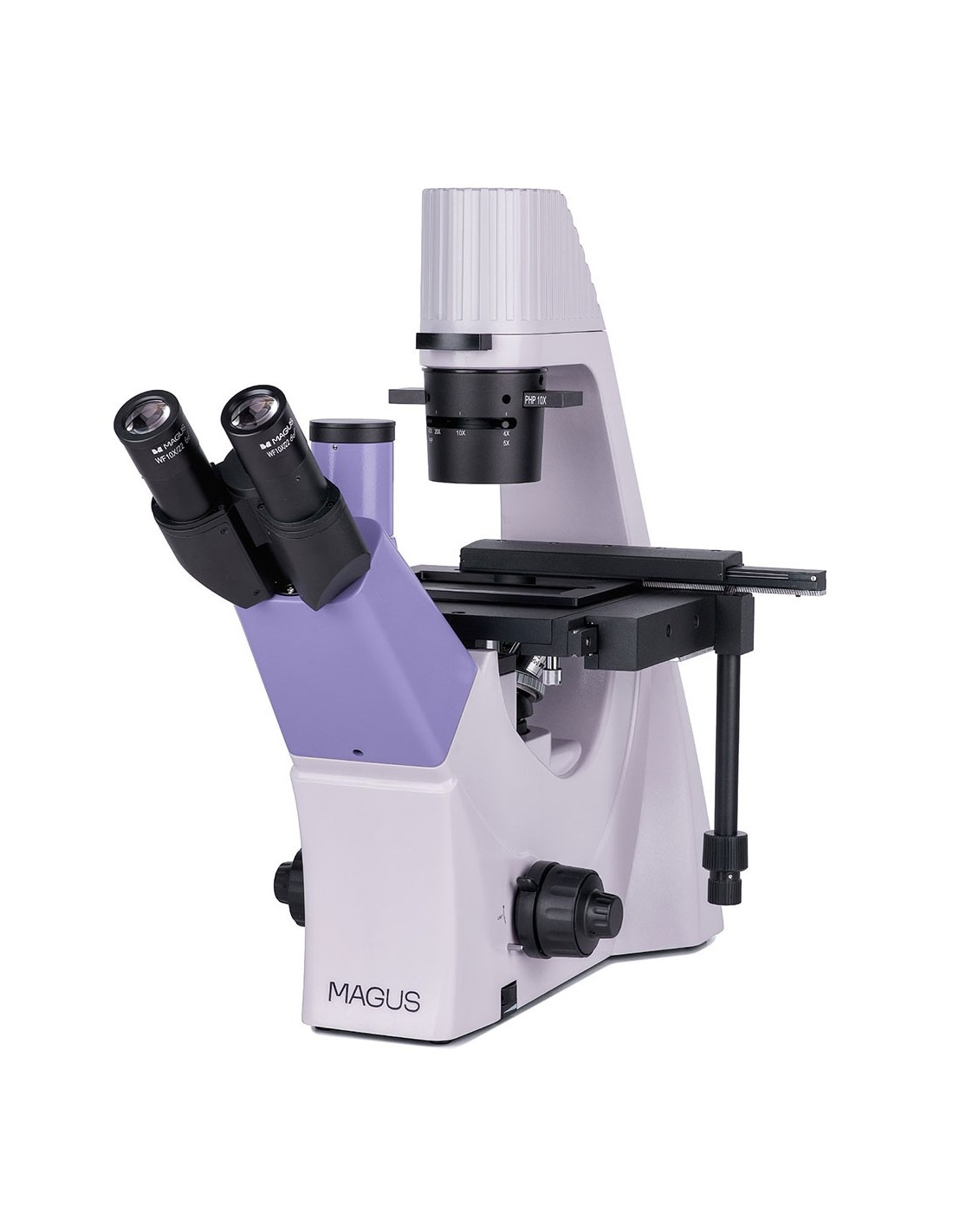

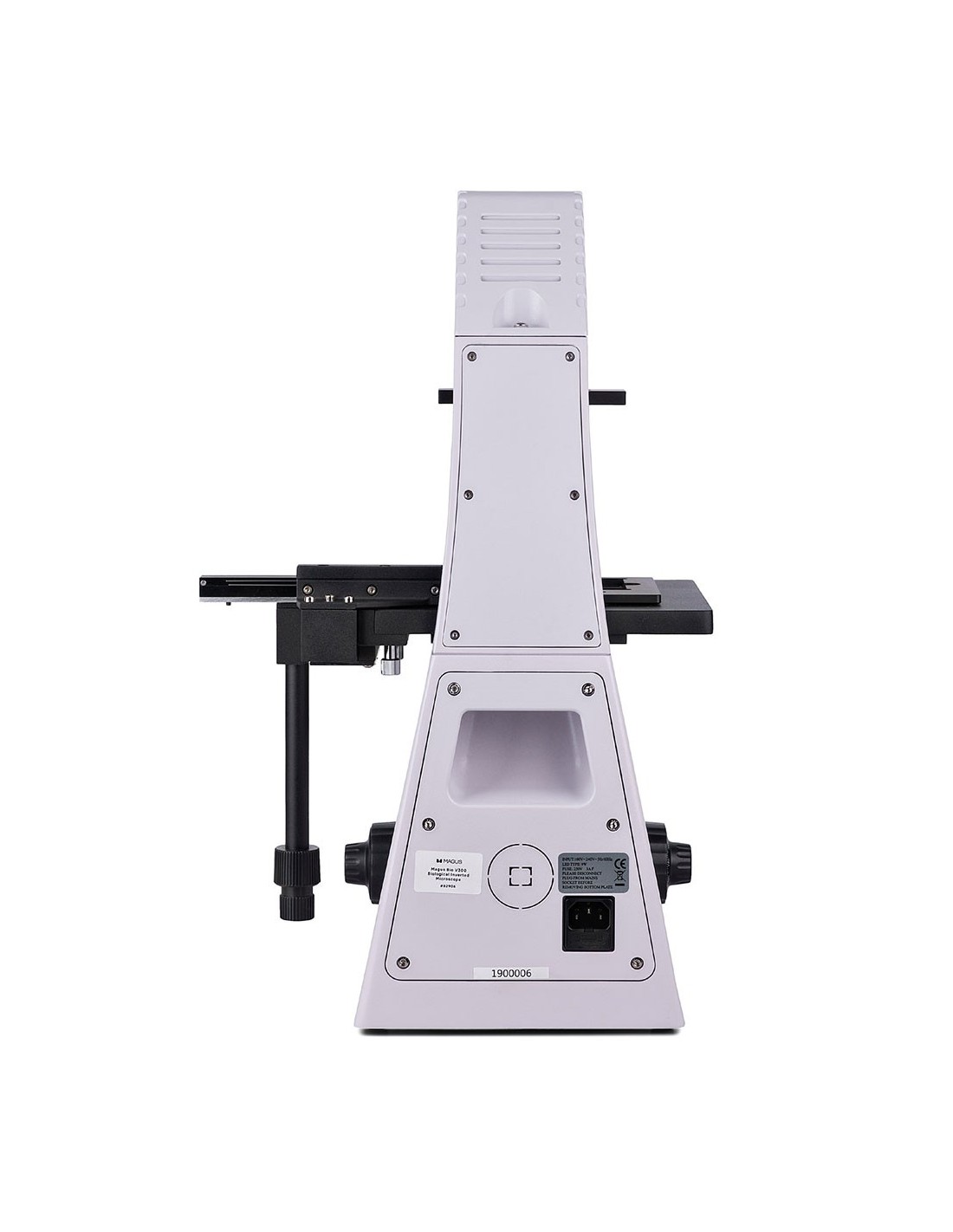

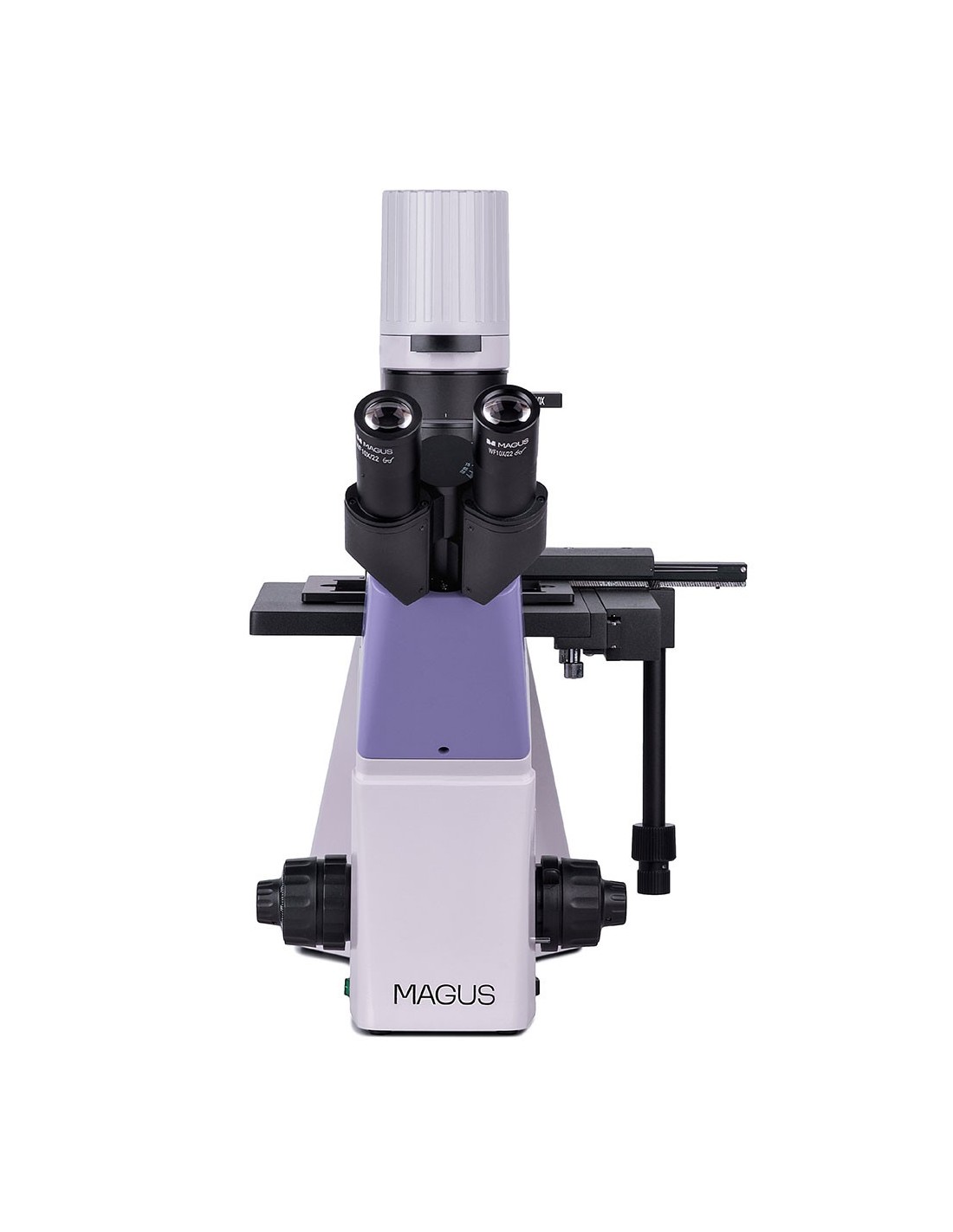

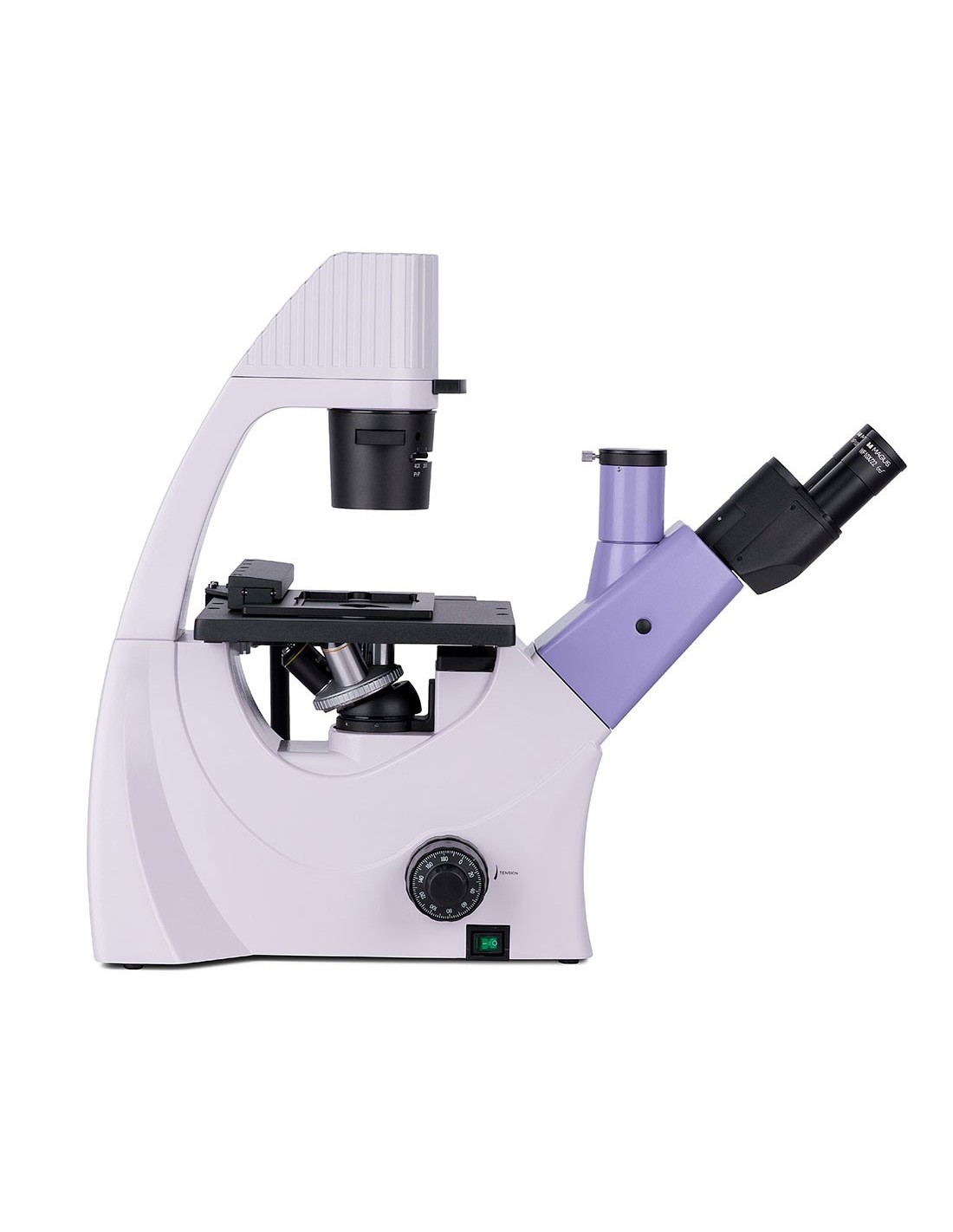

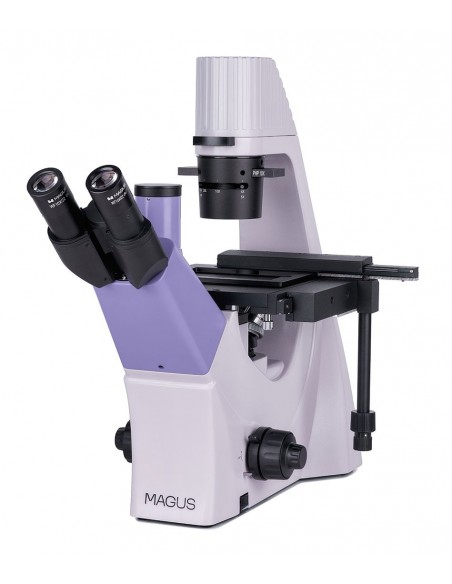

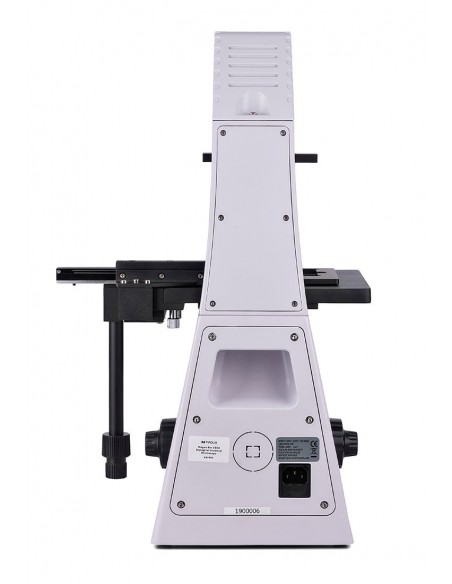

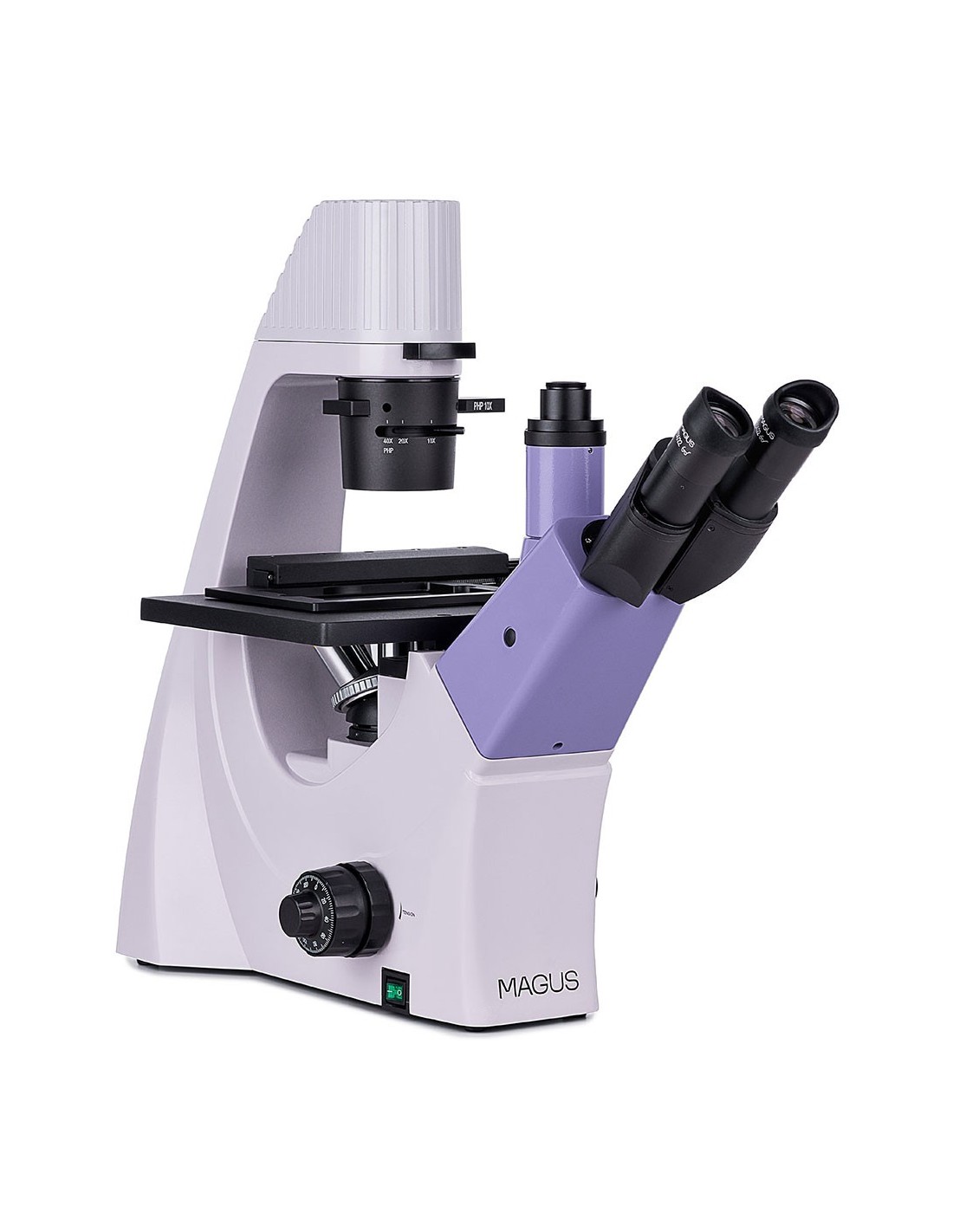

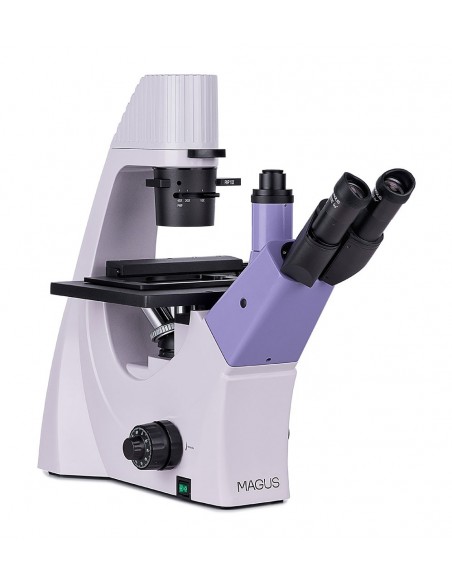

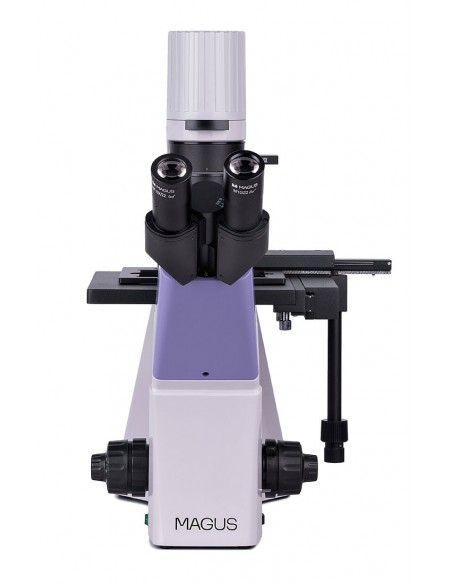

The MAGUS Bio V300 is an inverted design biological microscope for the study of samples on laboratory glassware up to 70 mm in height and with a bottom thickness of up to 1.2 mm. The objects of study can be cell colonies, tissue cultures, biological fluids, etc. Furthermore, the samples do not require the addition of dyes to facilitate examination. The observations are made in transmitted light. Microscopy techniques: bright field and phase contrast. This microscope is suitable for routine work in laboratories and research centers or for teaching.
The MAGUS Bio V300 is an inverted design biological microscope for the study of samples on laboratory glassware up to 70 mm in height and with a bottom thickness of up to 1.2 mm. The objects of study can be cell colonies, tissue cultures, biological fluids, etc. Furthermore, the samples do not require the addition of dyes to facilitate examination. The observations are made in transmitted light. Microscopy techniques: bright field and phase contrast. This microscope is suitable for routine work in laboratories and research centers or for teaching.
Optics

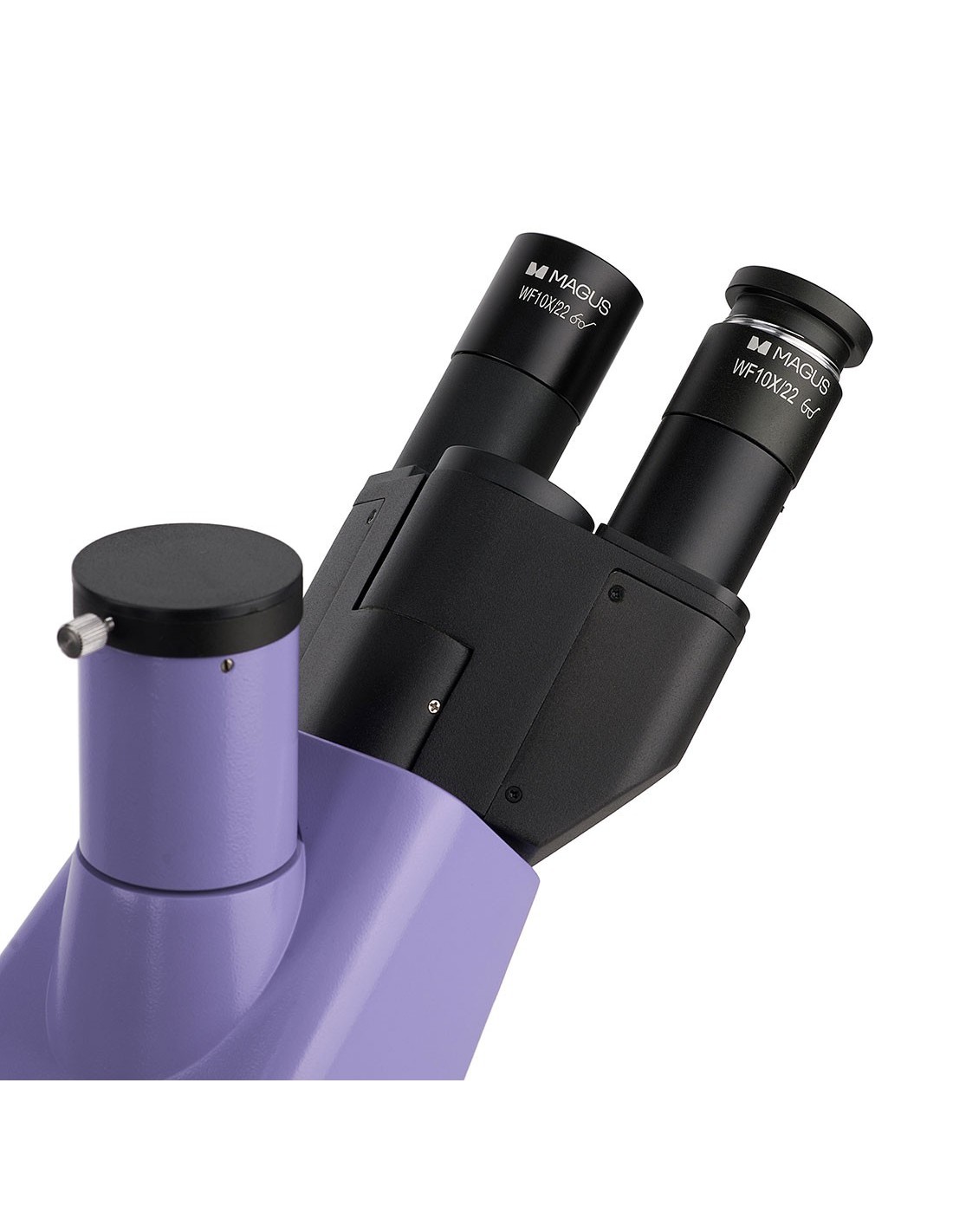

This microscope is equipped with a head classic trinocular, whose vertical tube is used to house a digital camera. The camera is not included in the package. The beam splitter along the optical path has a 50/50 ratio.

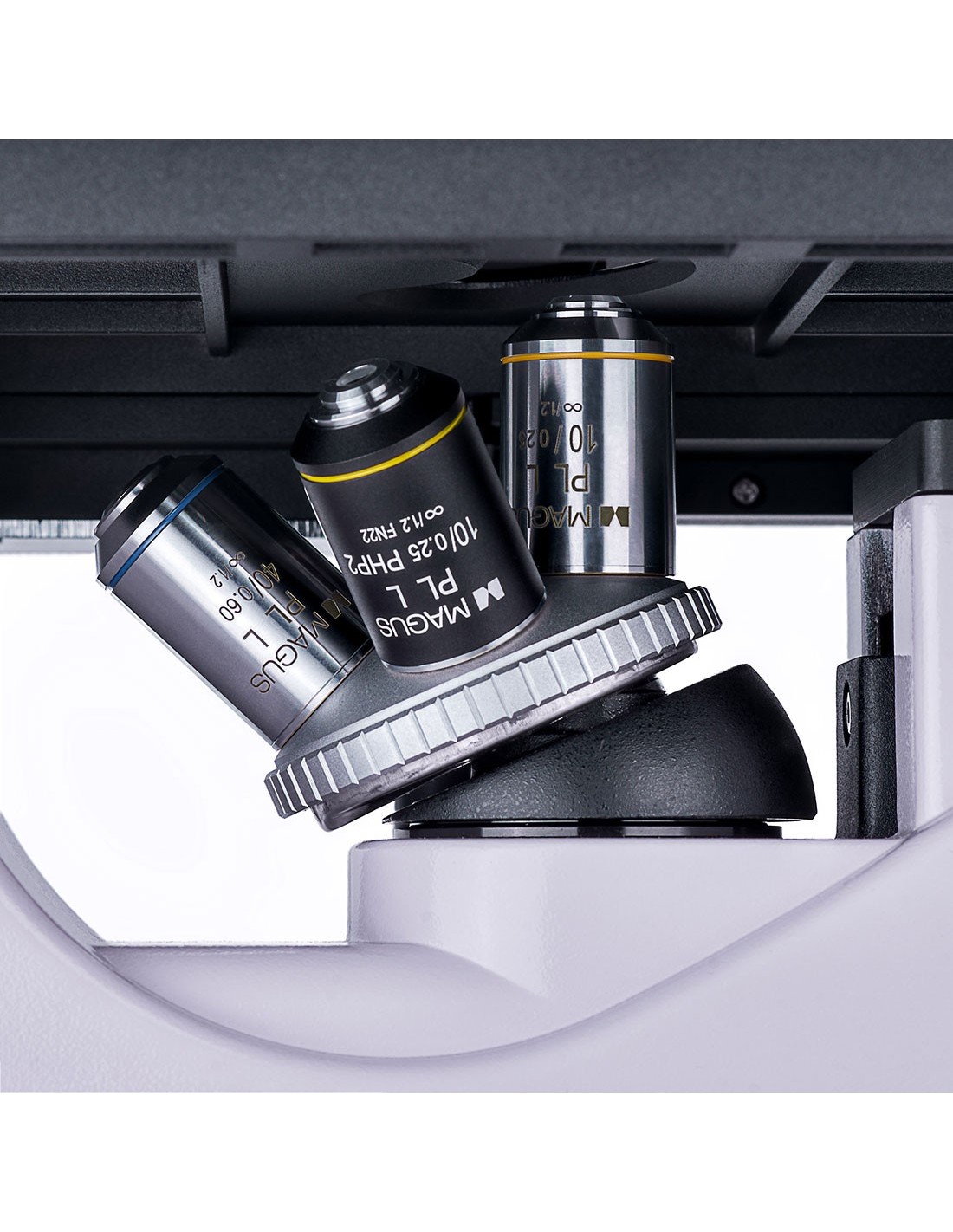

Four included objectives or others purchased separately can be housed on the nosepiece. All included objectives are designed for use with laboratory glassware and have a long working distance. Specifically, 3 planachromatic objectives for bright field observations and 1 planachromatic objective for phase contrast microscopy are included.
Illumination
The light source for transmitted light observations it is a 9 W LED. The high intensity of the LED ensures that the illumination of the field of view is sufficient to work with all objectives and with each of the expected microscopy techniques. Adjusting the brightness does not cause any change in color temperature. The life cycle of the LEDs is approximately 50,000 hours without any bulb replacement.
The capacitor has an available slot for a phase contrast slider (included). You can center the phase contrast rings. The inclusion of the slider allows you to save time when you want to switch from one microscopy technique to another.
Stage and focusing mechanism
Fixed translating table. It is equipped with plate holders (three slots for different sized glassware are included). The plates can be moved along the X-axis and Y-axis using a translator insert. The focusing mechanism with coaxial macro and micrometric screws allows you to focus the image quickly and accurately. The coarse focus (coarse screw) is equipped with a fixing mechanism and the tension of the coarse screw can be adjusted.
Accessories
The line of optional accessories includes lenses, eyepieces, digital cameras and calibration slides.
Features key:

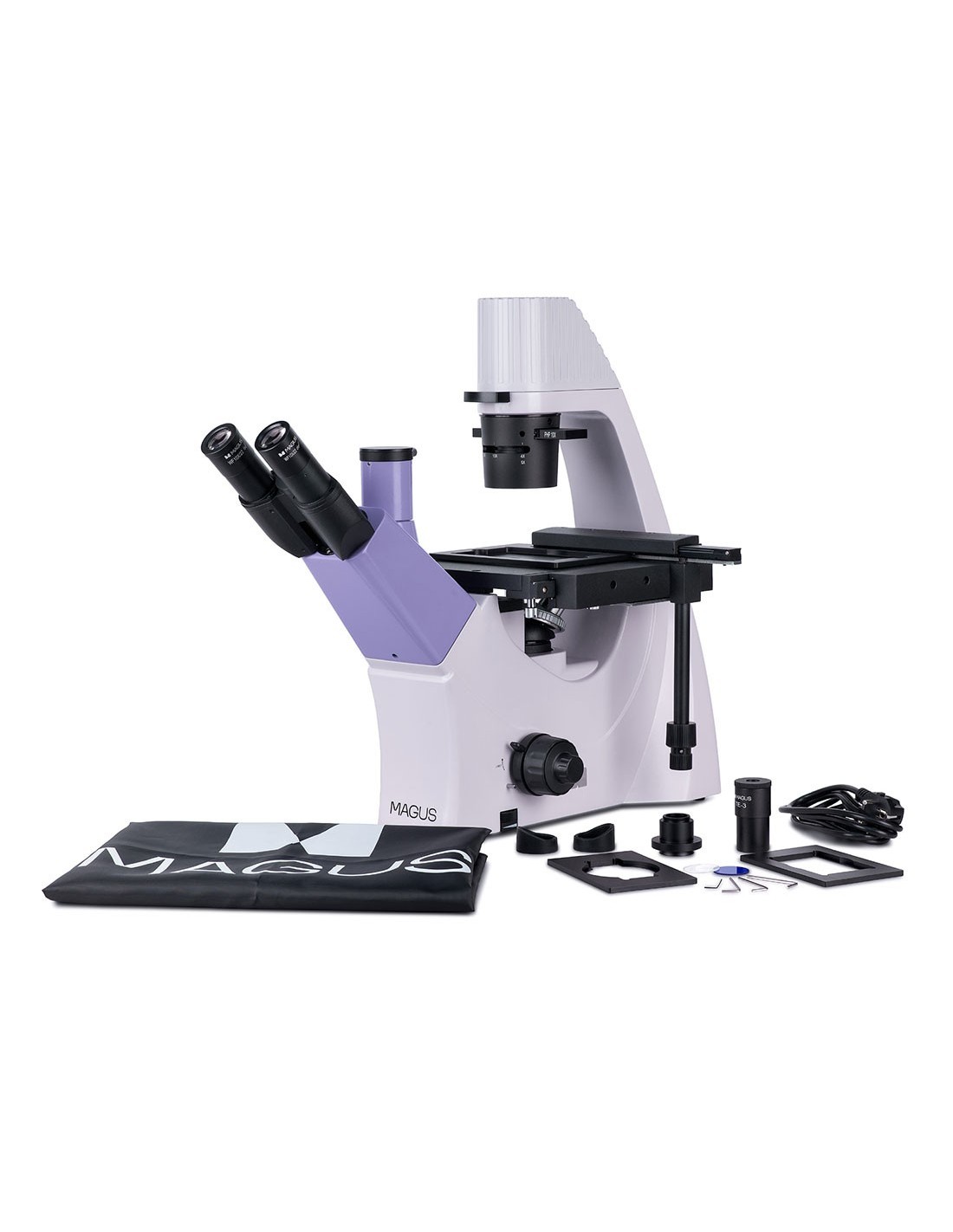

The package contains :
Available on request:
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018089 |
| Package size (LxWxH) | 64x42x67 cm |
| Shipping weight | 18 kg |
| Type | biological, light/optical |
| Tested | trinocular |
| Vertical tube | Siedentopf |
| Head inclination angle | 45° |
| Magnification, x | 100–400 in basic configuration (*optional: 40–500/600/800/1000) |
| Magnification range | 200x to 800x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with graduated scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Infinity planachromatic | objectives: PL 10x/0.25; PL 20x/0.40; PL 40x/0.60; PHP2 10x/0.25 phase; parfocal distance: 45 mm (*optional: PL 4x/0.10; PHP2 20x/0.40 phase; PHP2 40x/0.60 phase) |
| Nosepiece nosepiece | |
| Nosepiece | for 4 objectives |
| Working distance, mm | 4.27 (10x); 8.0 (20х); 3.5 (40x) |
| Interpupillary distance, mm | 48 — 75 |
| Range of stage movement, mm | 77/112 |
| Stage features | fixed, with mechanical translator for moving the sample; plate holder: 29x77 mm, Ø90 mm; 34x77.5 mm, Ø68.5 mm; 57x82 mm, Ø60 mm |
| Condenser | NA0.6, working distance: 70 mm; with adjustable aperture diaphragm and a housing for phase contrast slider |
| Diaphragm | adjustable aperture |
| Focus | coaxial, coarse focus (with micrometer screw tension adjustment knob and fixing knob) and fine focus (0.002 mm micrometer screw) |
| Lighting | LED |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | 9 W |
| Optical filters | yes |
| Operating temperature range, °C | 5 — 35 |
| Special Features | phase contrast slider for 10x objectives with a centrable phase contrast ring |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Application | laboratory/medical |
| Lighting position | lower |
| td> | |
| Research method | bright field, phase contrast microscope |
| Set with case/case/ bag | dust cover |
