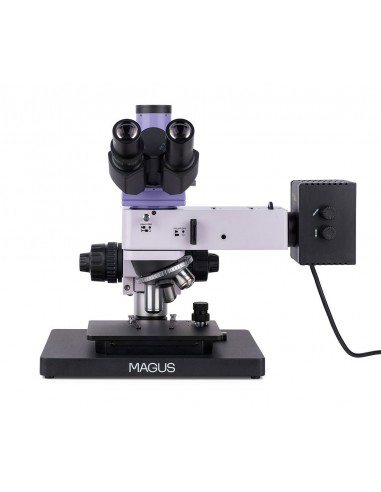

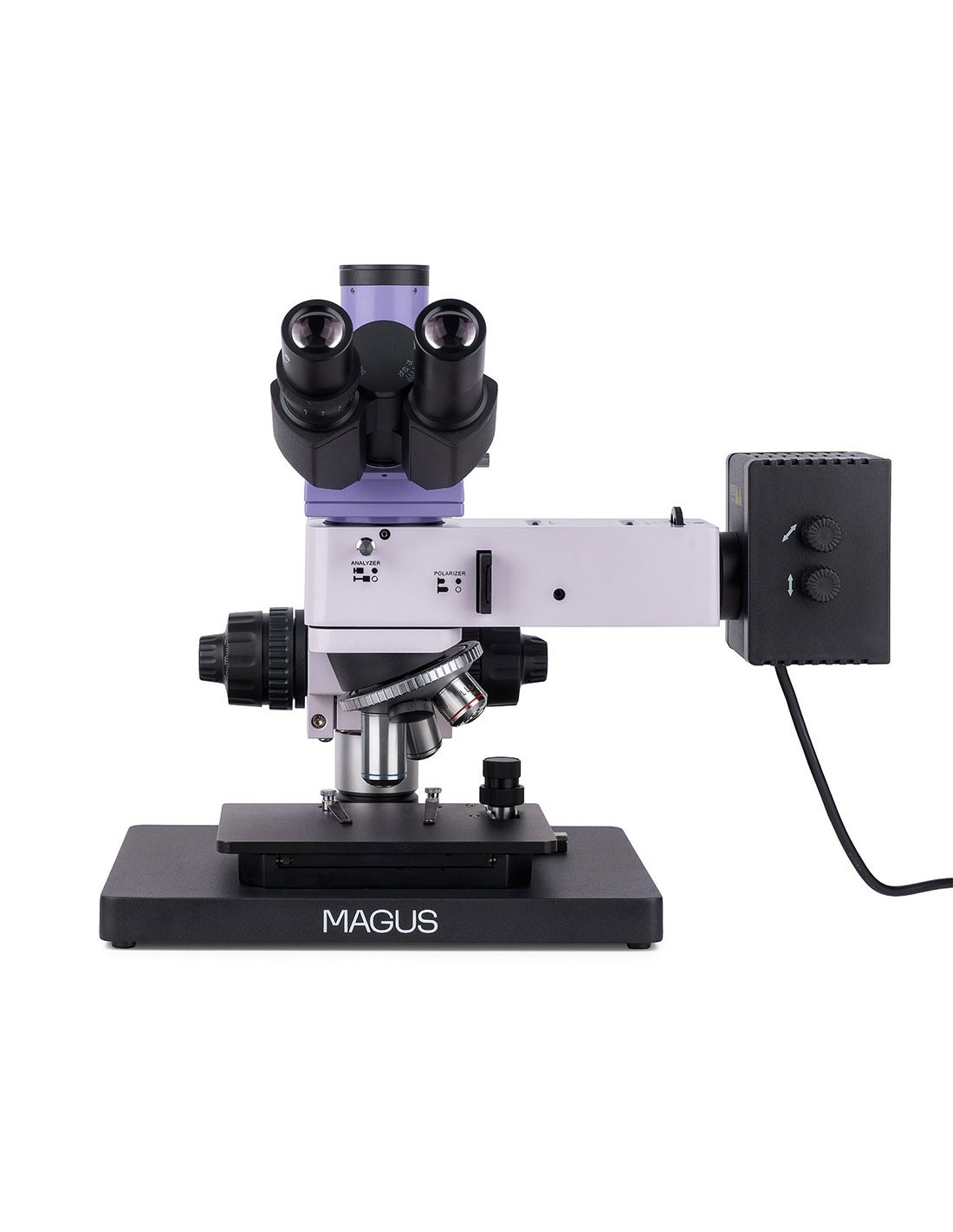

The MAGUS Metal 630 reflected light metallographic microscope is used to examine the microstructure of opaque objects of any height and size. The objects examined are metals, alloys, semiconductors and paint coatings. Microscopy techniques available are bright field and polarized light. One of the advantages of the microscope is its compact size, making it ideal for laboratories with limited working and storage space. The MAGUS Metal 630 microscope is the ideal choice for companies in various sectors, research centers and university departments.

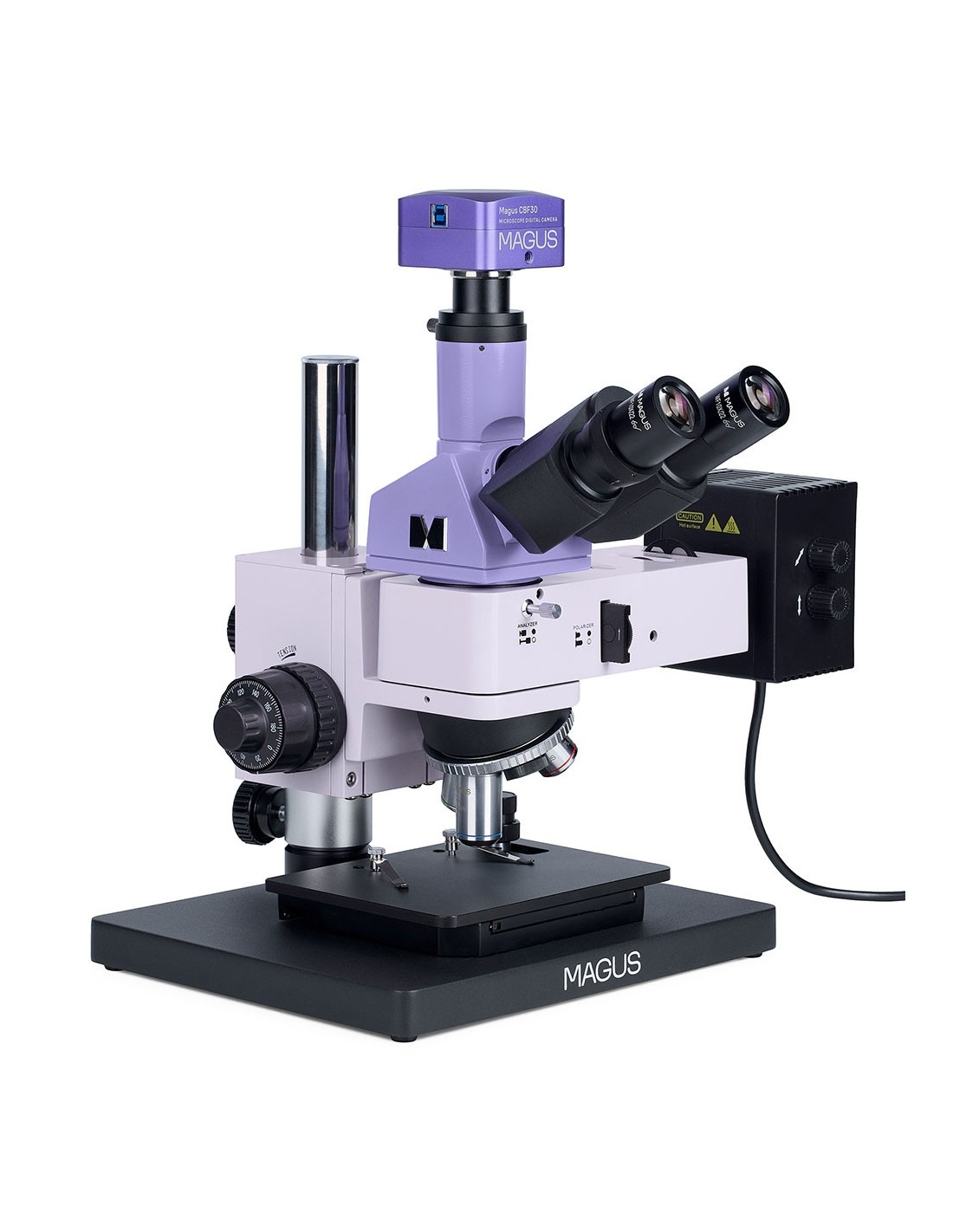

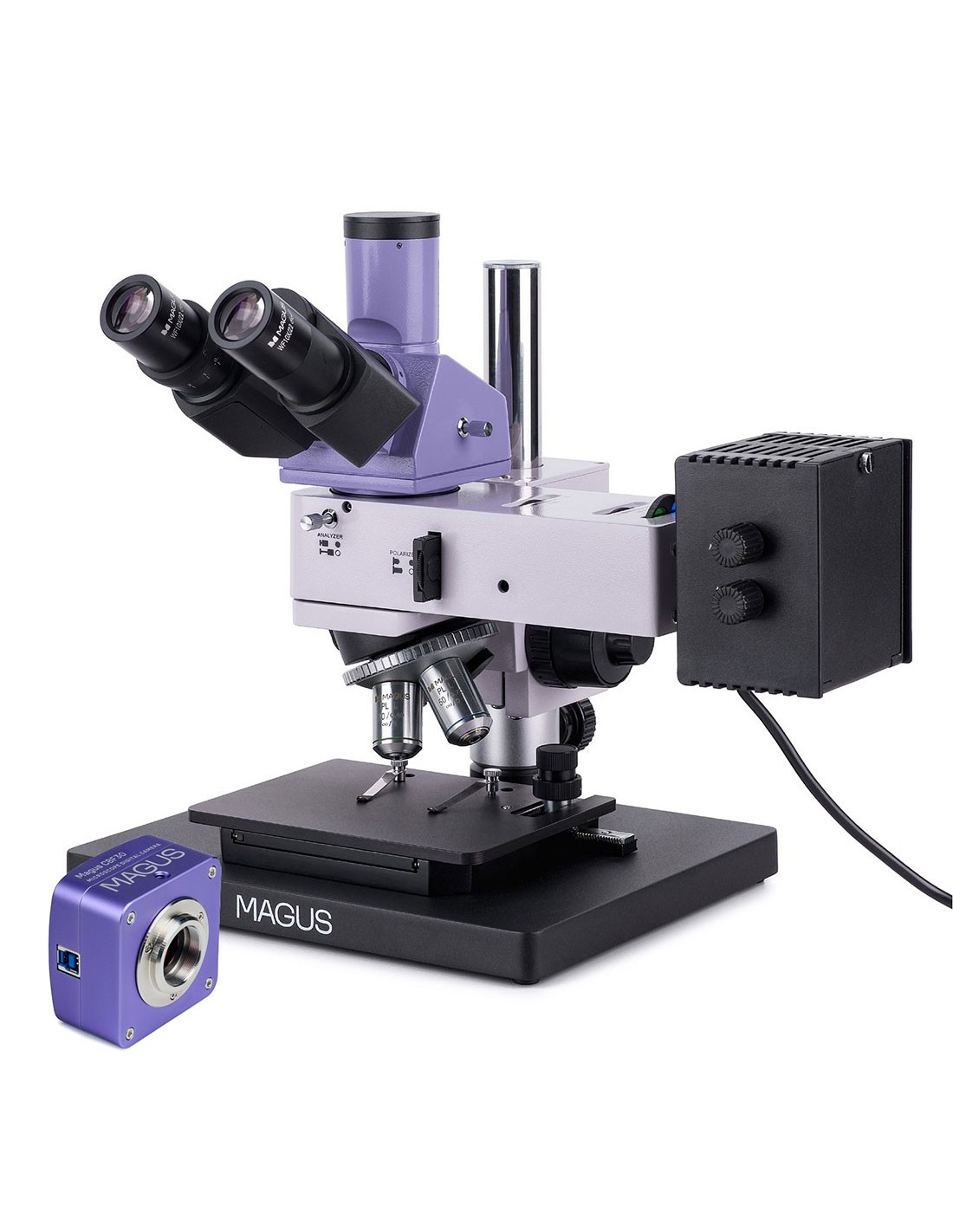

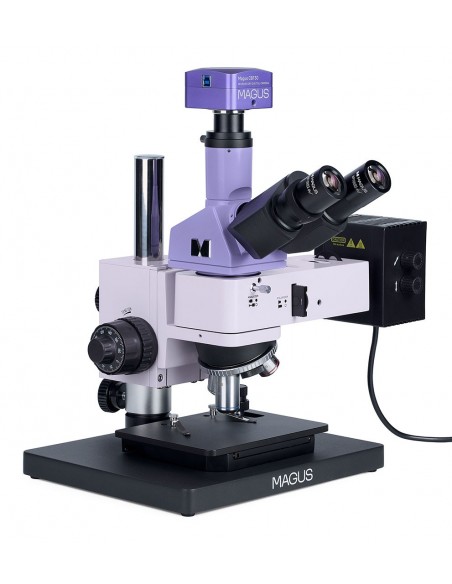

Digital camera
The MAGUS digital camera CBF30 allows you to take photographs and short videos through a microscope, edit the resulting files, organize presentations and perform linear and angular measurements of objects (after proper calibration).
The device is designed to work on microscopes using the bright field method and 4x, 10x, 20x, and 40x objectives.
The 6.3 MP sensor allows you to take bright, detailed photos and videos at a maximum resolution of 3072x2048 px. If necessary, the resolution can be reduced to 1536x1024 px. However, this will not affect the frame rate, which will remain at 59 fps, thus ensuring smooth frame transitions without stuttering or delays.
The color back-illuminated SONY Exmor CMOS sensor allows you to use the camera even in harsh conditions. of low light. The image will remain readable and bright. Using an adapter with 0.5x to 0.75x magnification will provide the clearest image possible, without distortion.

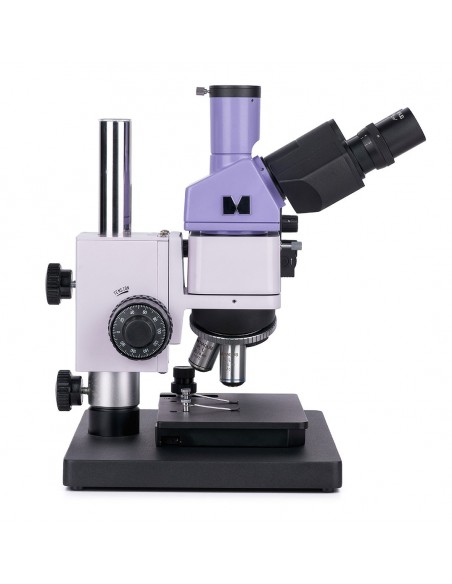

Optics
The Microscope optics are corrected to infinity. The trinocular tube intended for mounting the camera is positioned vertically. You can direct the light beam onto the eyepiece or into the trinocular tube. The camera is not included in the basic configuration. The microscope allows you to work comfortably for many hours thanks to the 30° inclination of the binocular head. The left eyepiece features a diopter correction tool to adjust the optics based on the user's vision.

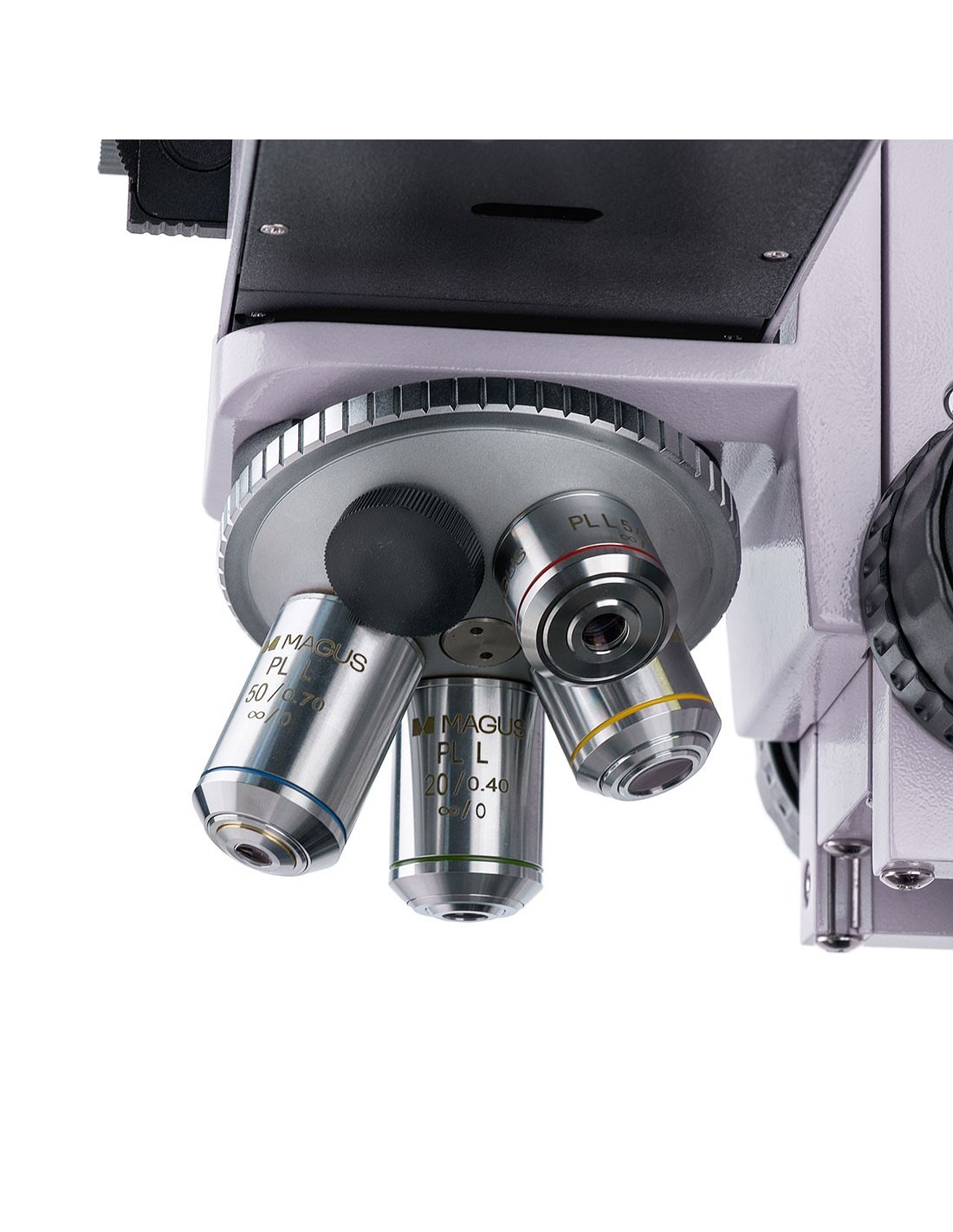

The nosepiece nosepiece has 5 slots. The kit includes 4 plan achromatic objectives. Once installed, there is a free slot for installing an optional lens. Objectives with a long working distance are designed for brightfield microscopy.

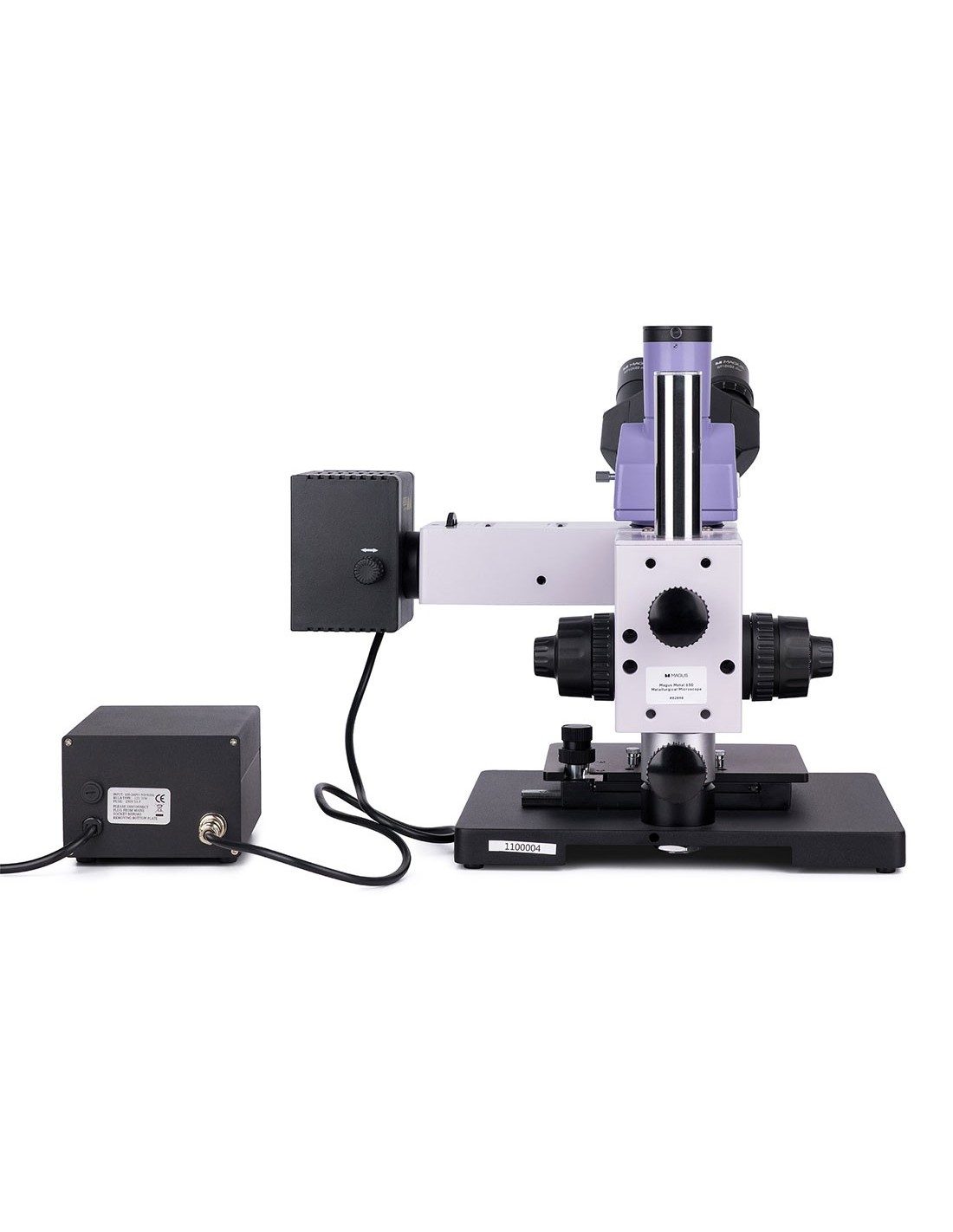

Illumination
The microscope uses only reflected light illumination. The illumination system is composed of a polarization device, an aperture diaphragm and a field diaphragm. Light source: 30W halogen lamp. The light emitted is not dazzling and does not tire the eyes. Both the iris and the light source can be centered. You can also set the Köhler lighting. The kit includes colored filters.

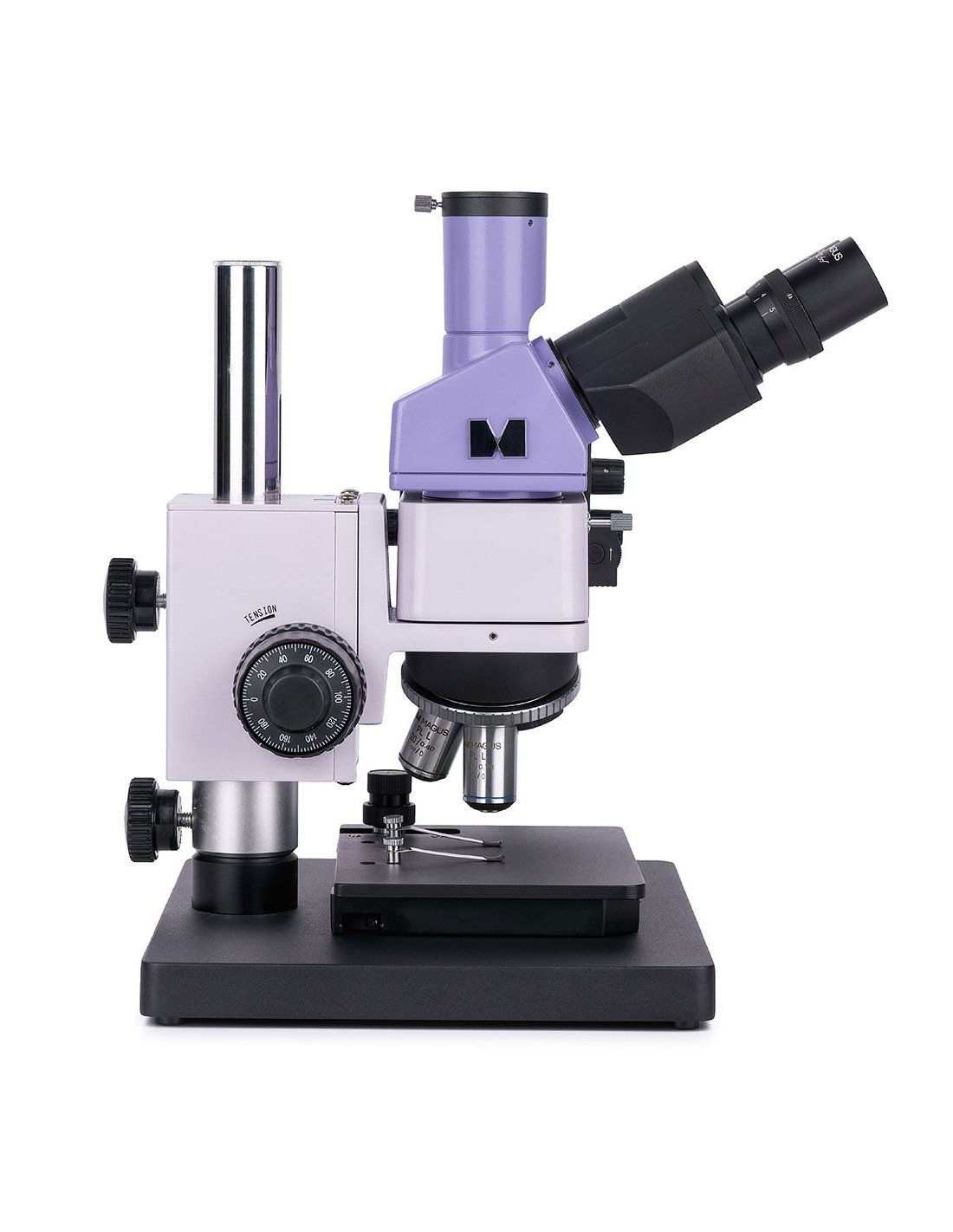

Stage and focusing mechanism

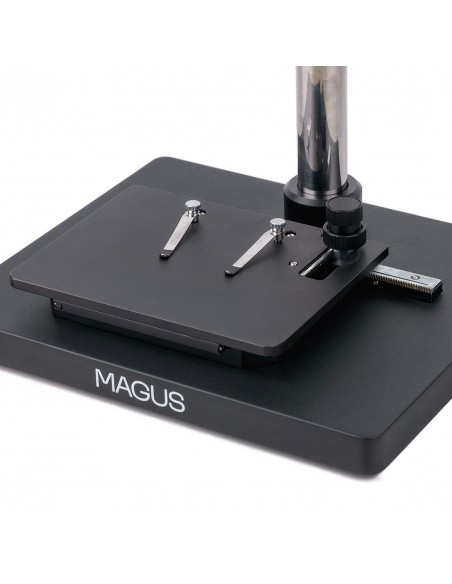

The innovatively designed stand and focusing mechanism has two advantages: compact dimensions and the possibility of observing samples of any height. The microscope can be easily placed on a laboratory floor with a maximum height of 40 cm. Small samples can be examined using a two-axis stage. Focus is adjusted via coaxial coarse and fine focus knobs, located on either side of the stand. The mechanisms work precisely and smoothly. You can also adjust the coarse tension setting.
Accessories
You can upgrade your microscope with optional accessories, such as objectives with a long distance workpiece, eyepieces, digital camera and calibration slides.
Key features of the microscope:
- Specimens of any height and size
- Trinocular head with trinocular tube for mounting a digital camera and 100:0 and 0:100 beam splitter
- 30 W halogen lamp with warm tone light for working in reflected light with technical of brightfield and polarization microscopy
- Color filters, option for setting the Köhler illumination, light source and aperture and field diagrams that can be centered
- Compact stand for mounting the microscope on a piece of furniture
- Numerous additional accessories
Key features of the camera:
- Recommended for use with low magnification lenses
- Light-sensitive sensor for clear images even in low light conditions
- Frame rate of 59 fps, which is sufficient for observation of moving objects or fast-moving processes
- The package includes software that fully ensures the functionality of all the camera's features and, consequently, a “quick start”
- USB 3.0 interface reliable for high data transfer speeds
- Resolution adjustment so you can choose the option that best suits you at any given moment

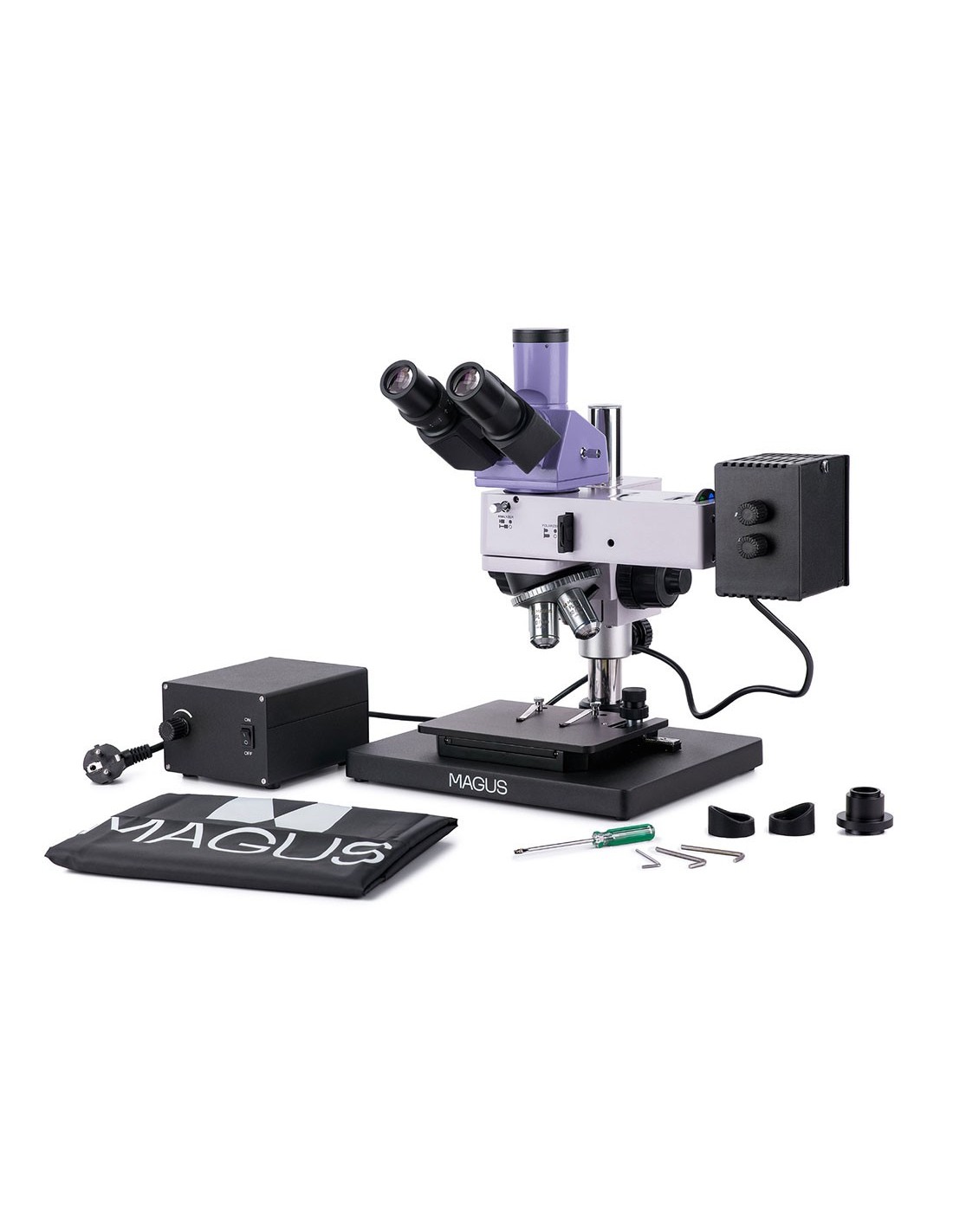

The package contains :
- MAGUS CBF30 digital camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
- Support with focusing mechanism, stage and nosepiece
- Illuminator for reflected light observations with bulb housing
- Trinocular head
- Infinity planachromatic objective: PL L5x/0.12 WD 26.1 mm
- Plan achromatic infinity objective: PL L10х/0.25 WD 20.2 mm
- Plan achromatic infinity objective: PL L20х /0.40 WD 8.80 mm
- Planachromatic infinity objective: PL L50х/0.70 WD 3.68 mm
- 10x/22 mm eyepiece with long eye relief ( 2 pcs.)
- 1x C-mount adapter
- Allen key
- Base with power input
- Power cable li>
- Reflected light illuminator power cable
- Dust cover
- User manual and warranty card
Available on request:
- 10x/22 mm eyepiece with graduated scale
- 12.5x/14 mm eyepiece (2 pcs.)
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Infinity plan achromatic objective: PL L40х/0.60 WD 3.98 mm
- Infinity plan achromatic objective: PL L60x/0.70 WD 2.08 mm
- Objective plan achromatic at infinity: PL L80x/0.80 WD 1.25 mm
- Plan achromatic at infinity objective: PL L100x/0.85 (dry) WD 0.40 mm
- Calibration glass
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018331 |
| Package size (LxWxH) | 39x37x73 cm |
| Shipping weight | 20.1 kg |
| Delimiter | td> | MAGUS Metal 630 metallographic microscope |
| === Delimiter === | Microscope specifications |
| Type | light/optical, digital, metallographic |
| Head | trinocular |
| Vertical tube | Siedentopf |
| Head inclination angle | 30° |
| Magnification, x | 50–500 base (*optional: 50–1000/1250/1500/2000/2500) |
| Magnification range | 200x to 800x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with graduated scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Infinity planachromatic | objectives: PL L5x/0.12, PL L10x/0.25, PL L20x/0, 40, PL L50x/0.70; parfocal distance 45 mm (*optional: PL L40x/0.60, PL L60x/0.70, PL L80x/0.80, PL L100x/0.85 (dry)) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 26.1 (5x); 20.2 (10x); 3.98 (40x); 2.08 (60x); 8.80 (20x); 3.68 (50x); 1.25 (80x); 0.40 (100x) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 185x140 |
| Range of movement of the stage, mm | 35/30 |
| Stage features | two-axis mechanical stage; Microscope base dimensions: 300x240 mm |
| Eyepiece diopter adjustment, diopters | ±5 (on the left barrel) |
| Iris | integrated field and aperture |
| Focus | coaxial, coarse (with focus voltage adjustment coarse) and fine focus (0.002 mm) |
| Halogen |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | 12 V/30 W |
| Optical filters | green, blue, yellow, frosted |
| Operating temperature range, °C | 5 — 35 |
| Extra elements | integrated analyzer and removable polarizer |
| User level | expert users, professionals |
| Level difficult assembly and installation | complicated |
| Application | metallographic |
| Illumination position | upper |
| Search method | bright field, polarized light |
| Set with case/case/bag | dust cover |
| === Delimiter === | Digital camera |
| Sensor | SONY Exmor CMOS |
| Color/monochrome | color |
| Megapixel | 6.3 |
| Maximum resolution, px | 3072x2048 |
| Sensor size | 1/1.8" (7.37x4.92 mm) |
| 2.4x2.4 |
| Light sensitivity | 425 mV at 1/30 s |
| Signal-to-noise ratio | 0.15 mV at 1/30 s |
| Exposure time | 0.02 ms – 15 s |
| Video recording | yes |
| Video recording | yes |
| Frame rate, fps@resolution | 59@3072x2048, 59@1536x1024 |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *. h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 (integrated IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure control |
| Software | MAGUS View |
| Output | USB 3.0, 5 Gb/s |
| System requirements | Windows 8/10/11 (32 bit and 64 bit), Mac OS > |
| Mount type | C-mount |
| Body | robust aluminum |
| Camera power supply | DC, 5 V, from computer USB port; 12 V, 3 A adapter for the Peltier cell |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
