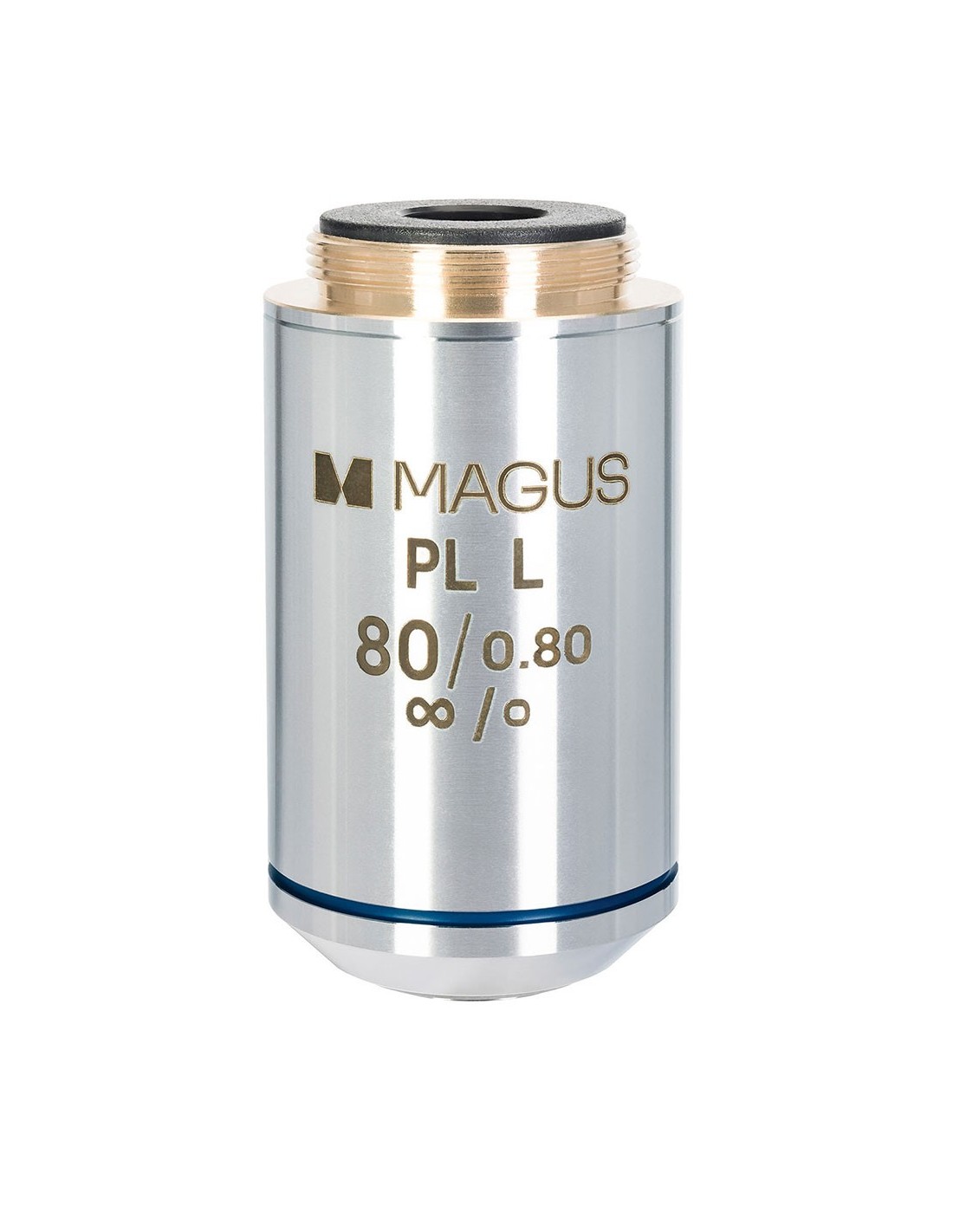

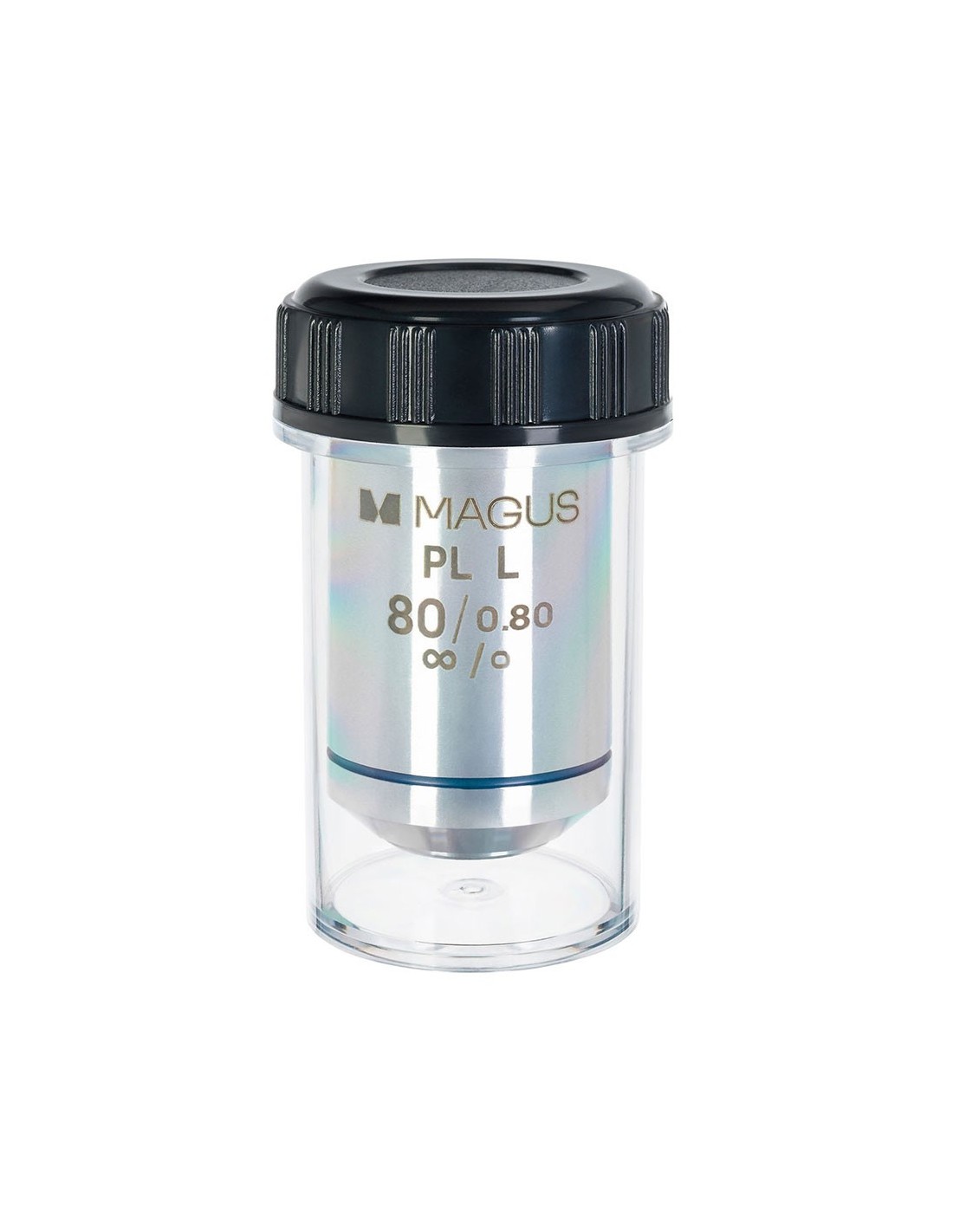

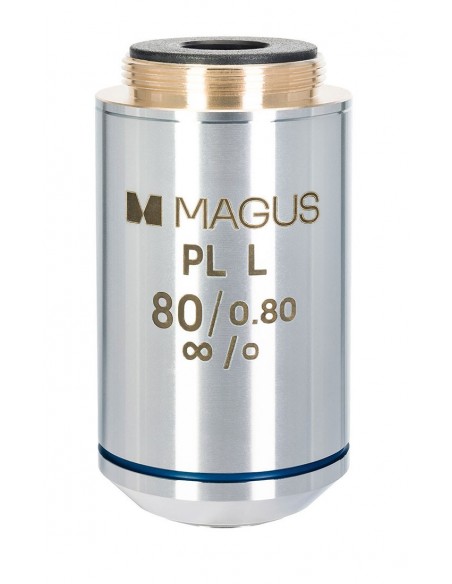

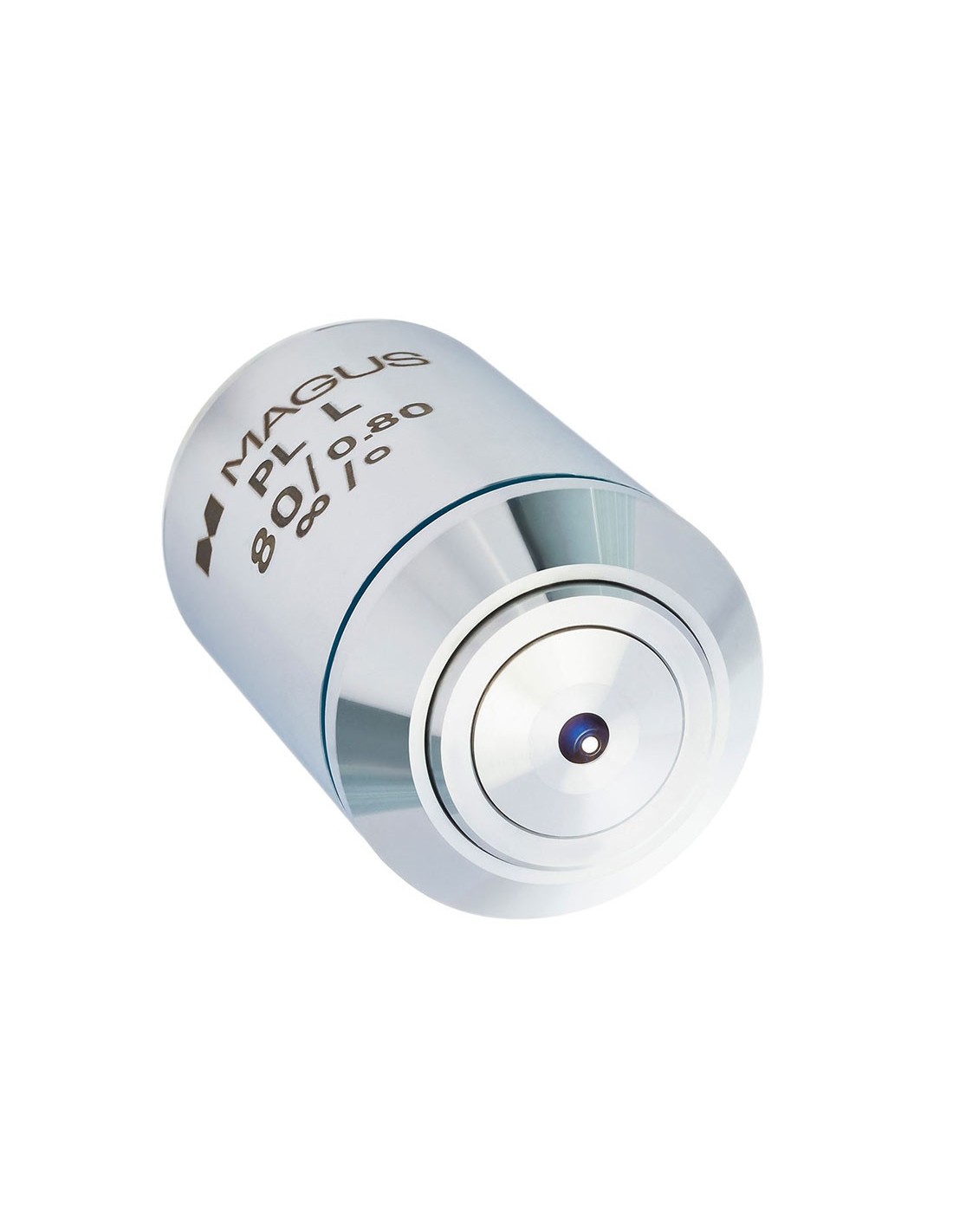

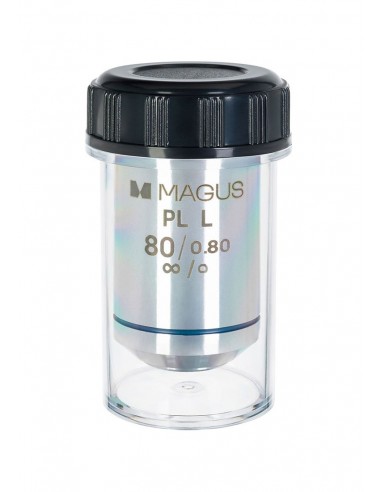

MAGUS 80PLL 80х/0.80 Plan L WD 1.25mm lens - MAGUS

Art. OM-83465
€389.95
Tax included

Objective for studying the structure of metals and alloys with 80x magnification. The accessory is designed for an infinity corrected optical system. Its parfocal height is 45 mm.



Objective for studying the structure of metals and alloys with 80x magnification. The accessory is designed for an infinity corrected optical system. Its parfocal height is 45 mm.

Objects made of metals and alloys are often textured, and manipulating the objective at normal heights can damage the lens or specimen. The Plan objective is installed at a wide working distance of 1.25 mm from the sample. It makes it safe to use for both the lens itself and the object of study. A cover glass is not required for operation.

The plan achromatic lens optics eliminates chromatic aberrations for red and blue colors and spherical aberration for green. The planachromatic objectives form a large working field of view, correcting the curvature up to 90%.

The 80x objective produces a useful magnification of the microscope ranging from 400x to 800x. Its maximum resolution is 0.33 µm. For best observation results, we recommend combining the objective with eyepieces with 5 to 10x magnification.

Compatibility:

  • Microscope metallographic microscope MAGUS Metal 600
  • Metallographic microscope MAGUS Metal 630
  • Metallographic microscope MAGUS Metal 650
  • Inverted metallographic microscope MAGUS Metal V700
Specifications
Lens material optical glass
Lens class by degree of aberration correction planachromatic
Focal length of the tube corrected to infinity (∞)
Contrast technique brightfield
Magnification, x 80
Aperture 0.80
Working distance, mm 1.25
Distance parfocal, mm 45
Coverglass thickness, mm without a coverslip
Spring mechanism +
Immersion mechanism −
Body material copper
Brand MAGUS
Warranty2 days
EAN5905555021126
td>
Package size (LxWxH)7x4x4 cm
Shipping weight0.14 kg
MAGUS

16 other products in the same category:

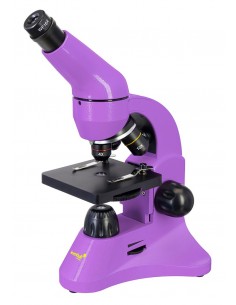

Microscopio Levenhuk... Microscopio Levenhuk... 2
Microscopes and Accessories

Microscopio Levenhuk Rainbow 50L PLUS, ametista - LEVENHUK

LEVENHUK
Art. OM-74852
€174.99
The Levenhuk Rainbow 50L PLUS Microscope would be the perfect gift for a curious teenager, biology student, or lab technician. The maximum magnification power of this instrument is 1280x – enough to see the smallest details of specimens observed under the microscope. The model has a robust and reliable body – the Rainbow 50L PLUS microscope can be used as...
Levenhuk MED 20x/9 eyepiece... Levenhuk MED 20x/9 eyepiece... 2
Microscopes and Accessories

Levenhuk MED 20x/9 eyepiece (D 23.2 mm) - LEVENHUK

LEVENHUK
Art. OM-81890
€24.95
The Levenhuk MED 20x/9 eyepiece has a 20x magnification with a standard 23.2 mm diameter eyepiece tube. The lenses are made of optical glass, therefore the quality of the transmitted image is high: Small details are clearly readable and the geometry is not distorted. The body is made of resistant aluminum, which guarantees the reliability and durability...
Levenhuk Zeno Lamp ZL13... Levenhuk Zeno Lamp ZL13... 2
Microscopes and Accessories

Levenhuk Zeno Lamp ZL13 Magnifier - LEVENHUK

LEVENHUK
Art. OM-74084
€58.45
The Levenhuk Zeno Lamp ZL13 magnifying glass is a convenient optical tool for reading, manual work, making biological slides, jewelry making, model making and other activities requiring accuracy and precision.
MAGUS Metal 630 BD... MAGUS Metal 630 BD... 2
Microscopes and Accessories

MAGUS Metal 630 BD metallographic microscope - MAGUS

MAGUS
Art. OM-82899
€6,299.95
MAGUS Metal 630 BD metallographic microscope for bright field, dark field and polarization microscopy techniques. Powerful halogen illumination produces a quality image with any objective lens and microscopy method. The microscope is designed for quality control and study of the microstructure of semiconductor materials, metals and opaque objects. It is...
Levenhuk MED 30T Trinocular... Levenhuk MED 30T Trinocular... 2
Microscopes and Accessories

Levenhuk MED 30T Trinocular Microscope - LEVENHUK

LEVENHUK
Art. OM-73997
€999.95
Levenhuk MED 30 is a trinocular microscope part of the Levenhuk MED professional series. The microscope uses achromatic, semi-planar, infinitely corrected optical elements, which allow you to install additional accessories (purchased separately) to extend the capabilities of the microscope). This microscope is excellent for a specialist in a clinical and...

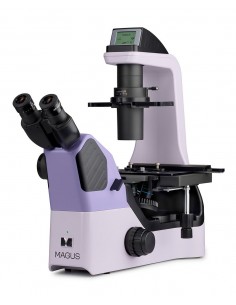

MAGUS Bio V360 inverted... MAGUS Bio V360 inverted... 2
Microscopes and Accessories

MAGUS Bio V360 inverted biological microscope - MAGUS

MAGUS
Art. OM-83483
€5,999.95
Research microscope. Designed for the study of liquid precipitates, cell colonies, live cells, tissue cultures and other stained and unstained specimens in laboratory containers. Inverted design allows the use of plates Petri dishes, multi-well plates, vials, roller bottles and flasks up to 75 mm and with a 1.2 mm thick bottom. The microscope uses special...
MAGUS SF5 5х/0.12 Plan Pol... MAGUS SF5 5х/0.12 Plan Pol... 2
Microscopes and Accessories

MAGUS SF5 5х/0.12 Plan Pol ∞/0.17 objective - MAGUS

MAGUS
Art. OM-83449
€94.95
The objective is installed on a polarizing microscope and operates under conditions of transmitted polarized light. It is equipped with optics that create neither distortions nor internal deformations, therefore the lenses do not influence the observation results.

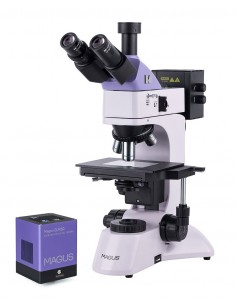

MAGUS Metal D600 BD digital... MAGUS Metal D600 BD digital... 2
Microscopes and Accessories

MAGUS Metal D600 BD digital metallographic microscope - MAGUS

MAGUS
Art. OM-83026
€6,299.95
The MAGUS Metal D600 BD metallographic digital microscope is designed for the study of objects in reflected light using bright field, dark field and polarization microscopy techniques. The microscope is used to examine metal and semiconductor samples, as well as other highly reflective polished and flat samples. The transmitted light technique allows the...

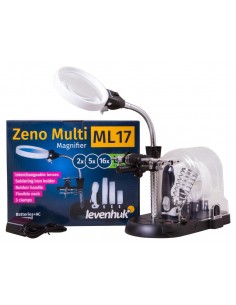

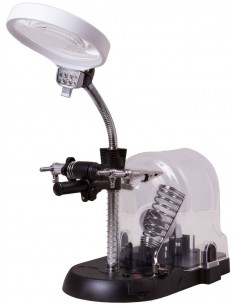

Levenhuk Zeno Multi ML17... Levenhuk Zeno Multi ML17... 2
