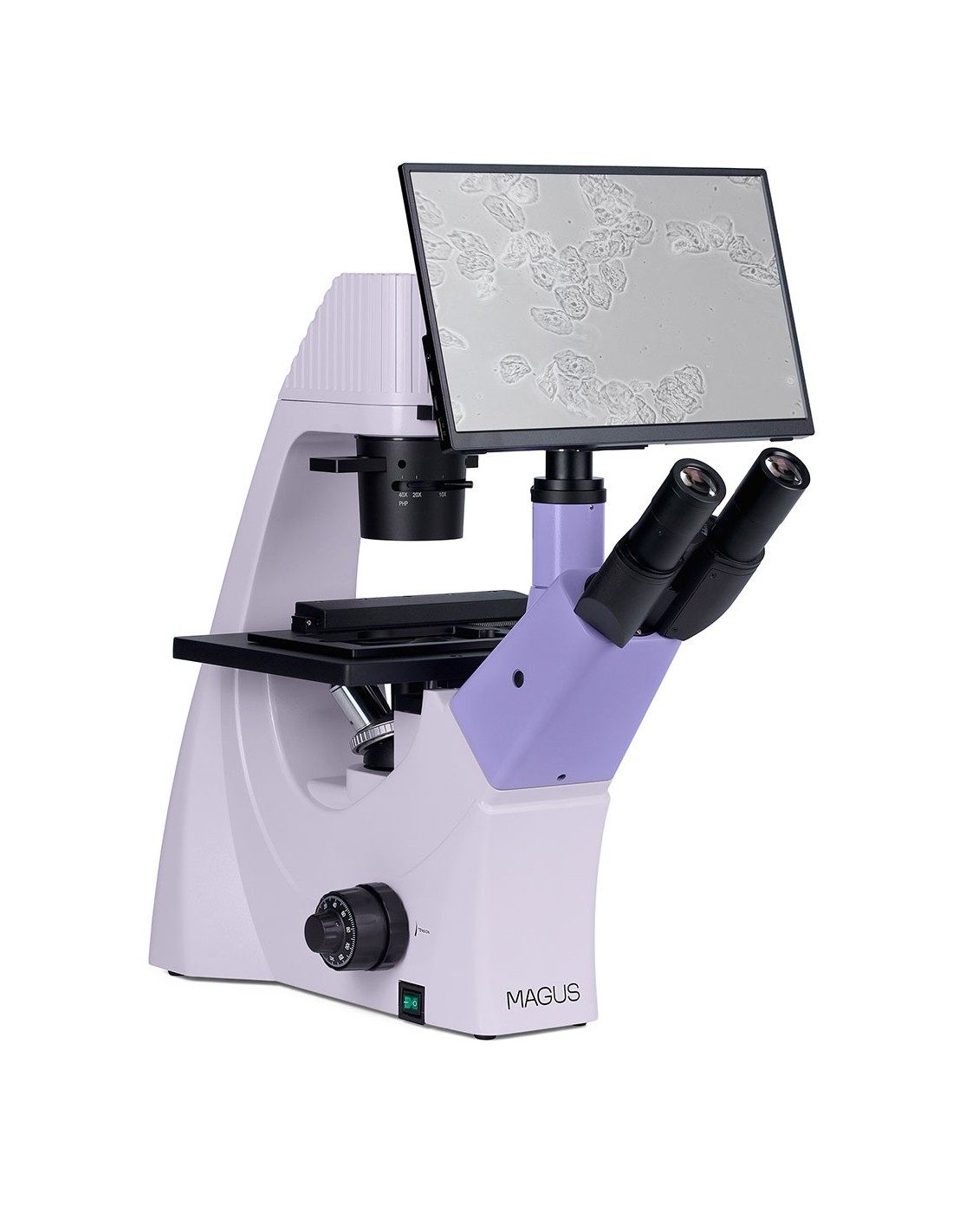

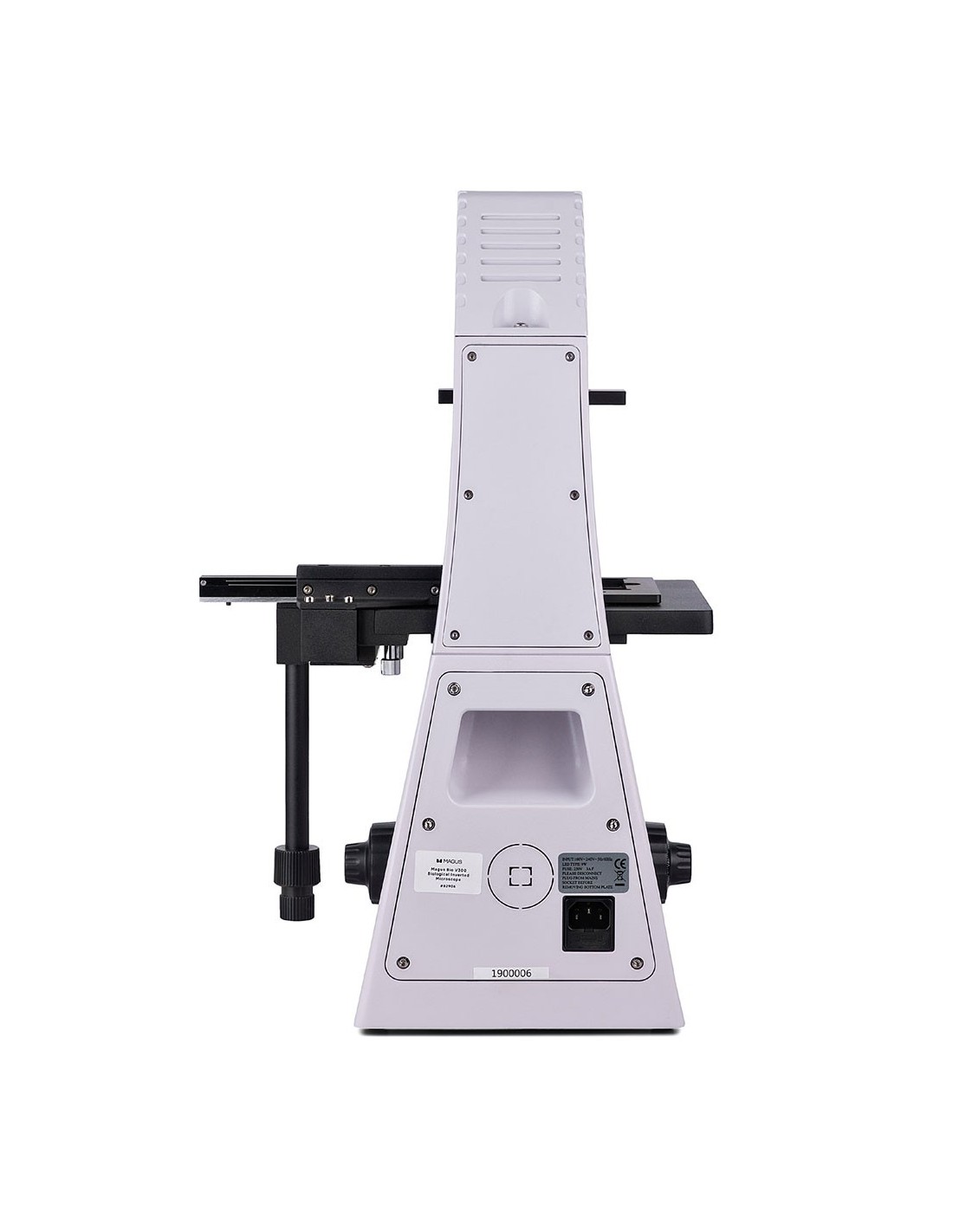

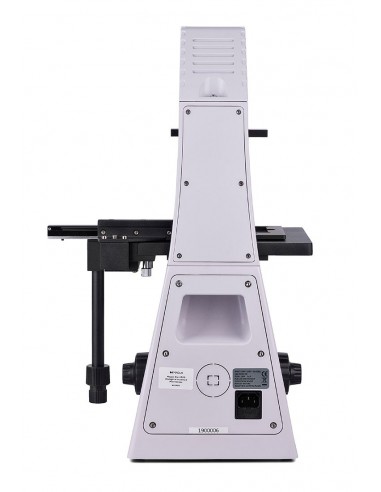

The MAGUS Bio VD300 LCD is an inverted design biological microscope for the study of samples on laboratory glassware up to 70 mm in height and with a bottom thickness of up to 1.2 mm. The objects of study can be cell colonies, tissue cultures, biological fluids, etc. Furthermore, the samples do not require the addition of dyes to facilitate examination. The observations are made in transmitted light. Microscopy techniques: bright field and phase contrast. This microscope is suitable for routine work in laboratories and research centers or for teaching.
Digital camera
The MAGUS CHD30 digital camera is equipped with a 2 MP sensor and produces realistic Full HD images at a resolution of 1920x1080 px. The camera features high light sensitivity, autofocus function and is suitable for fluorescent observations.

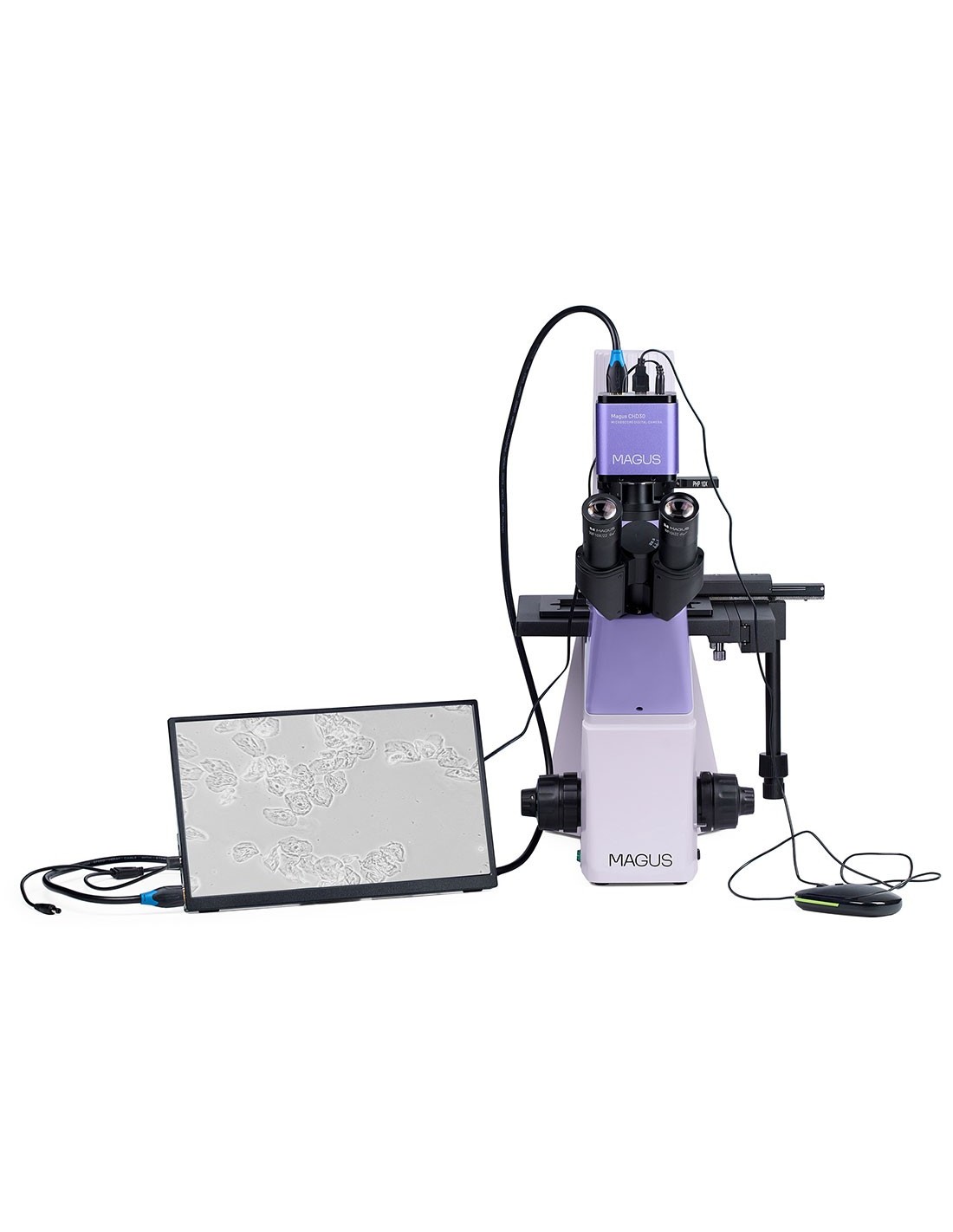

The camera uses an HDMI interface to connect directly to a TV monitor or projector. In this way, the camera operates independently without a connection to a PC. The HDMI interface enables fast and stable speed transfer from the camera to the external screen. You can connect it to a PC via Wi-Fi.
Video is recorded at 60 fps or 25 fps depending on the video output interface.
The camera combines high FPS speed and HDMI bandwidth. The videos therefore appear brilliant without freezing or skipping between frames. At maximum resolution, the image is very detailed, moving objects are visible without errors, and the moving object is displayed without delays.
Monitor

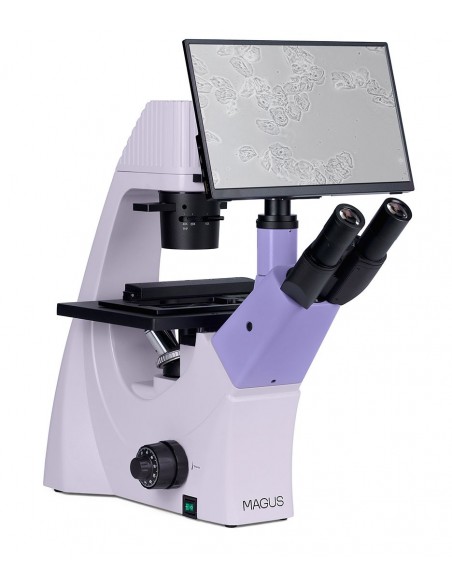

MAGUS MCD monitors work in combination with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.
The connection to the camera is via its HDMI interface. The monitor displays images in real time. Its IPS LCD display has a wide viewing angle, high brightness and good contrast. When looking at the screen even from a wide angle, the image is not distorted. The screen size is 13.3''.
The monitor can be installed on a horizontal surface using a foldable stand or mounted directly on a camera or tripod.
Optics
Optics
strong>

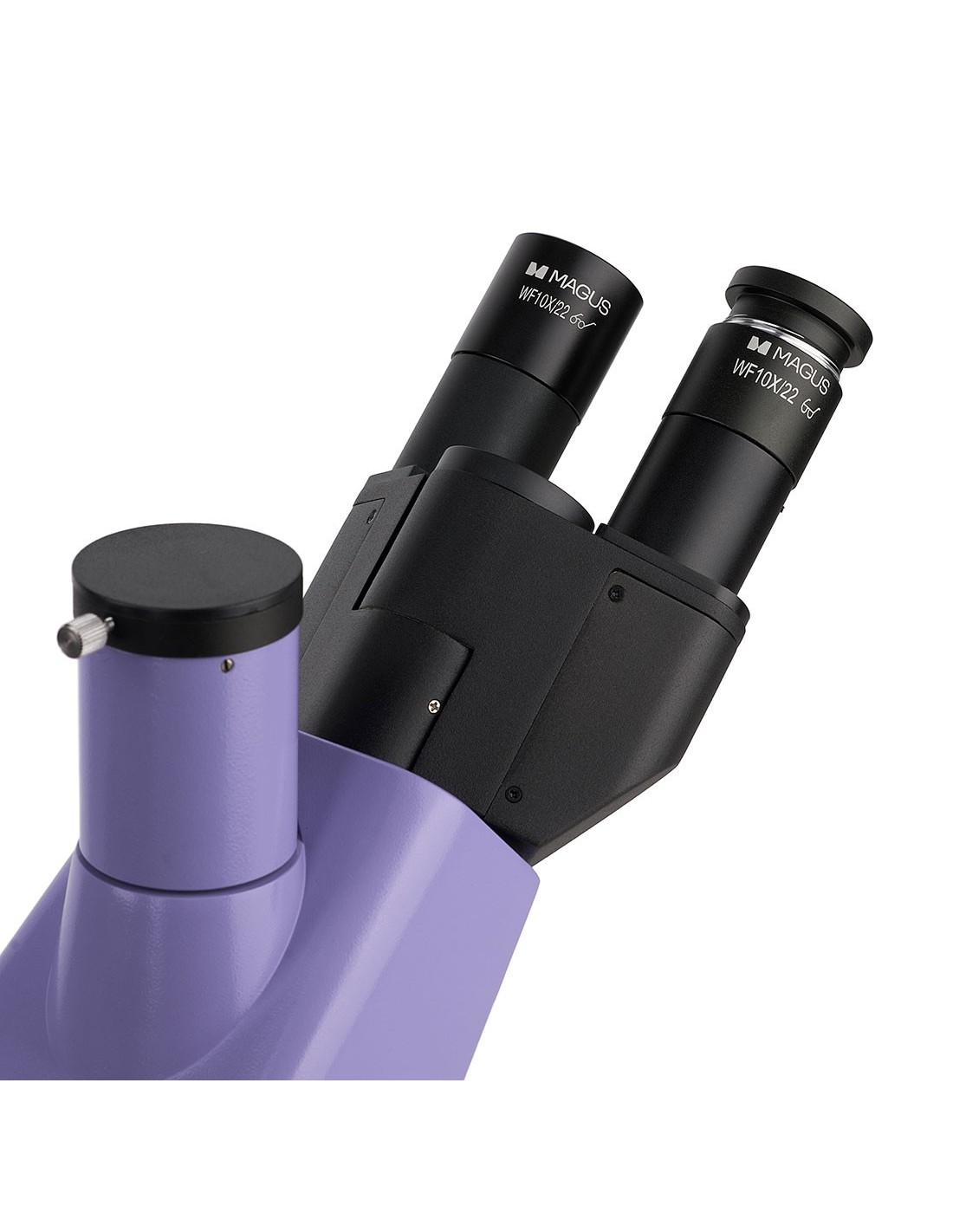

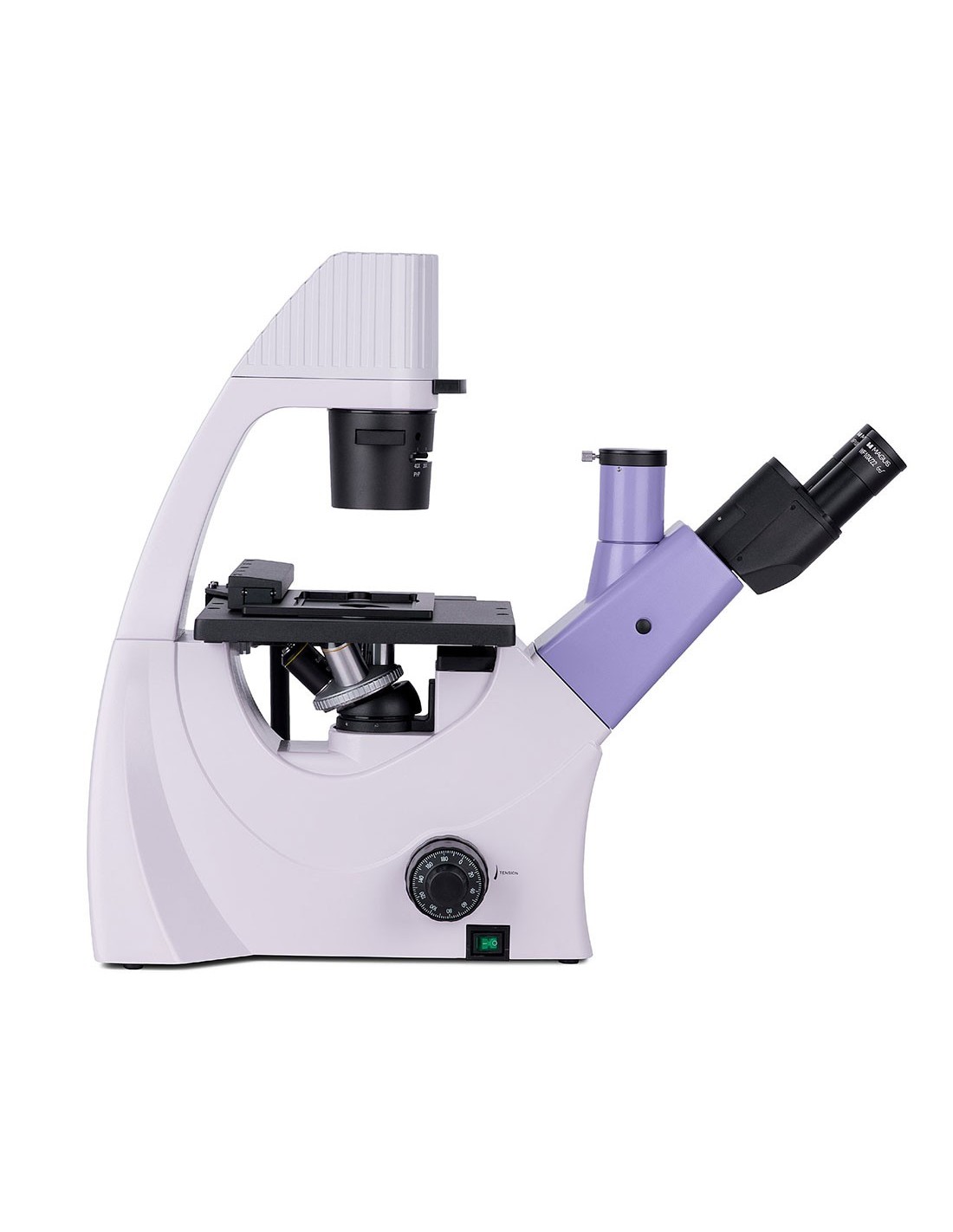

This microscope is equipped with a classic trinocular head, whose vertical tube is used to house a digital camera. The camera is not included in the package. The beam splitter along the optical path has a 50/50 ratio.

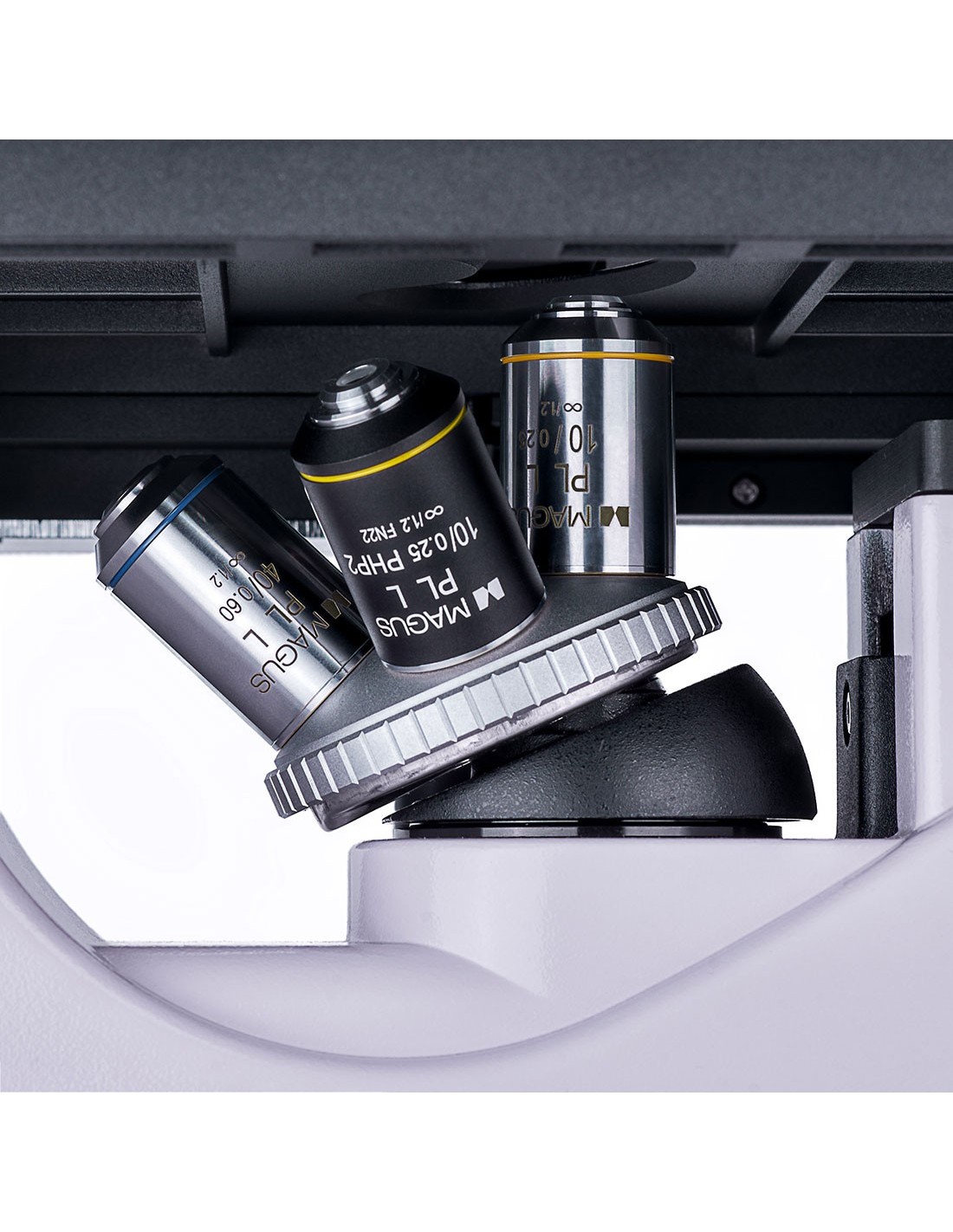

Four included objectives or others purchased separately can be housed on the nosepiece. All included objectives are designed for use with laboratory glassware and have a long working distance. Specifically, 3 planachromatic objectives for bright field observations and 1 planachromatic objective for phase contrast microscopy are included.
Illumination
The light source for transmitted light observations it is a 9 W LED. The high intensity of the LED ensures that the illumination of the field of view is sufficient to work with all objectives and with each of the expected microscopy techniques. Adjusting the brightness does not cause any change in color temperature. The life cycle of the LEDs is approximately 50,000 hours without any bulb replacement.
The capacitor has an available slot for a phase contrast slider (included). You can center the phase contrast rings. The inclusion of the slider allows you to save time when you want to switch from one microscopy technique to another.
Stage and focusing mechanism
Fixed translating table. It is equipped with plate holders (three slots for different sized glassware are included). The plates can be moved along the X-axis and Y-axis using a translator insert. The focusing mechanism with coaxial macro and micrometric screws allows you to focus the image quickly and accurately. The coarse focus (coarse screw) is equipped with a fixing mechanism and the tension of the coarse screw can be adjusted.
Accessories
The line of optional accessories includes lenses, eyepieces, digital cameras and calibration slides.
Features microscope key:
- Bright field and phase contrast microscopy techniques in transmitted light; study of samples in laboratory glassware
- Digital camera installed in the trinocular tube
- 9 W LED illuminator for transmitted light observations with adjustable brightness and long life cycle
- Fixed stage with movement along the two axes, 3 plate holders of different sizes included
- Optional accessories to improve the performance of the microscope
Key features of the camera:
- The camera works independently without a connection to a PC via the HDMI interface. It is possible to connect to a PC via USB 2.0 interface
- The autofocus in HDMI mode makes it easy to adjust the image sharpness
- The camera has a resolution of 1920x1080 pixels, the choice ideal for viewing images on a Full HD monitor
- 60 fps for observing moving objects, video recording and moving the specimen without delays or stutters
- 25 fps via Wi -Fi, sufficient for focus adjustment and image processing using software
- Color SONY CMOS sensor, low noise and high light sensitivity
- Software for recording and editing photos and videos, external display functions, linear and angular measurements

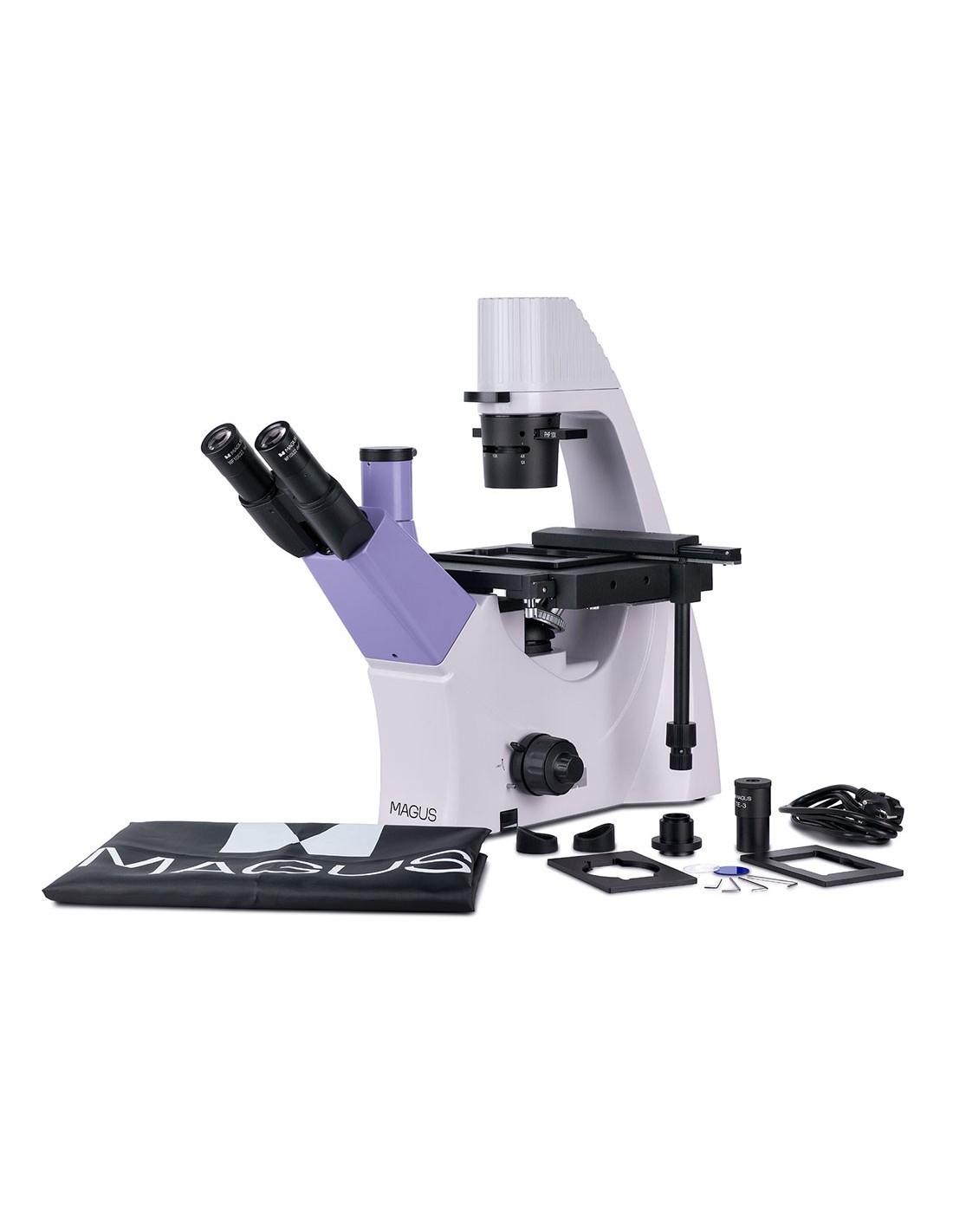

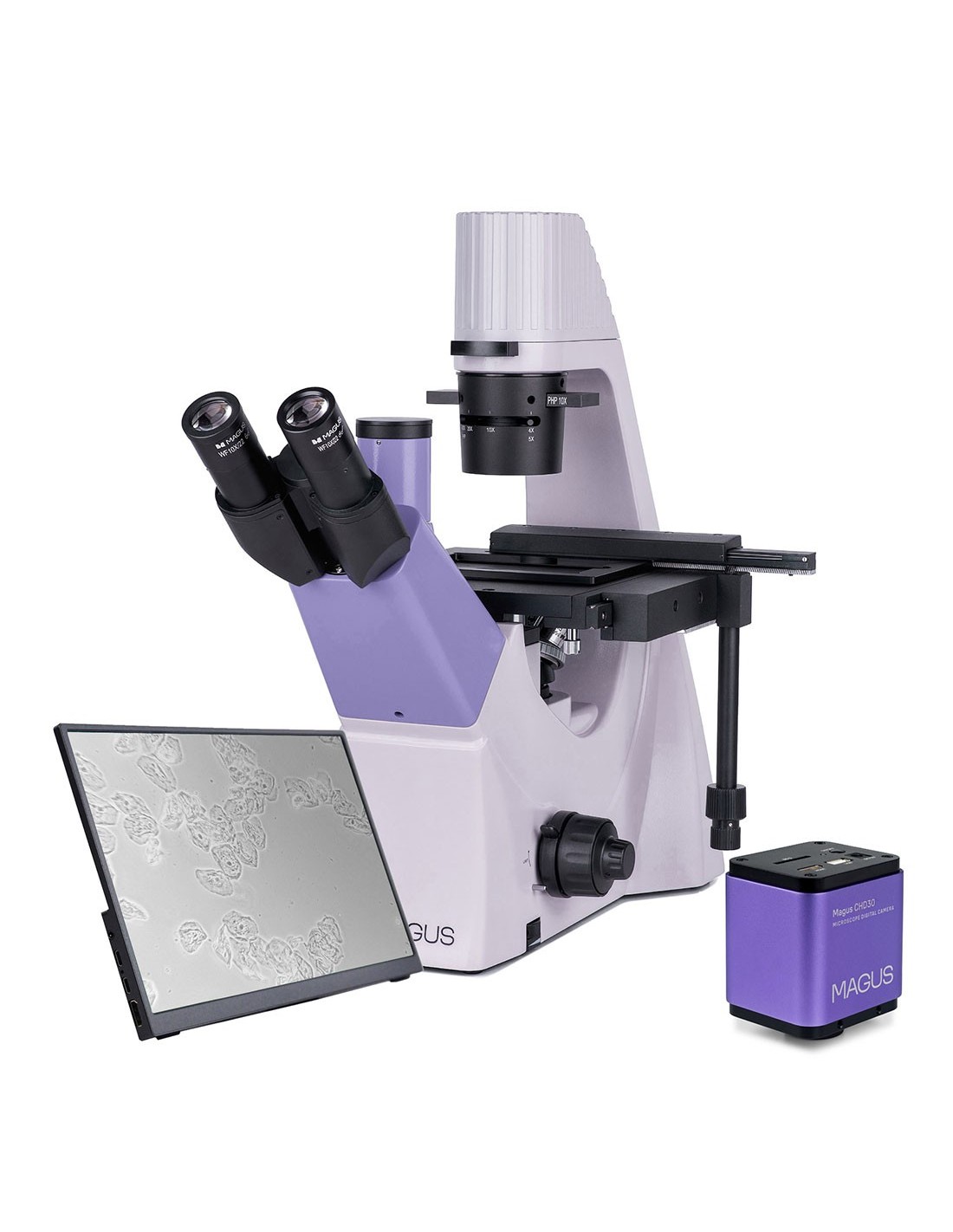

The package contains:
- MAGUS CHD30 digital camera (digital camera, HDMI cable (1.5 m), mouse with USB, 32 GB SD memory card, USB Wi-Fi adapter, 12 V/1 A AC power adapter (Euro), CD installation manual with drivers and software, user manual and warranty certificate)
- MAGUS MCD20 LCD monitor
- Support with integrated power supply, transmitted light source, focusing mechanism, stage, condenser with housing for phase contrast slide and rotating objective holder
- Trinocular head
- Planachromatic infinity objective: PL 10x/0.25 WD 4.27 mm
- Infinity plan achromatic objective: PL L20х/0.40 WD 8.0 mm
- Infinity plan achromatic objective: PL L40х/0.60 WD: 3.5 mm
- Infinity planachromatic objective: PHP2 10x/0.25 phase contrast WD 4.27 mm
- 10x/22 mm eyepiece with long eye relief (2 pcs.)
- Shell eyepiece (2 pcs.)
- Centering telescope
- Phase contrast slider with centering phase contrast rings
- Mechanical translator for moving samples
- Support for plate (3 pcs.)
- C-mount adapter
- Color filter
- Power cable for AC mains
- Dust cover
- User manual and warranty card
Available upon request:
- 10x/22 mm eyepiece with graduated scale
- 12.5x/14 mm eyepiece (2 pcs.)
- 15x/15 mm eyepiece (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.)
- Planachromatic infinity objective: PL 4x/0.10 WD 21 mm
- Infinity plan achromatic objective: PHP2 20x/0.40 phase contrast WD 8.0 mm
- Infinity plan achromatic objective: PHP2 40x/0.60 phase contrast WD 3.5 mm
- Calibration glass
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018102 |
| Package size (LxWxH) | 64x42x67 cm |
| Shipping weight | 20.75 kg |
| Delimiter | MAGUS Bio V300 inverted biological microscope |
| Type | biological, light/optical, digital |
| Head | trinocular |
| Vertical tube | Siedentopf |
| td> |
| Head inclination angle | 45° |
| Magnification, x | 100–400 in the basic configuration (*optional: 40–500/600/800/1000) |
| Magnification range | 200x to 800x |
| td> |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with graduated scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Infinity planachromatic | objectives: PL 10x/0.25; PL 20x/0.40; PL 40x/0.60; PHP2 10x/0.25 phase; parfocal distance: 45 mm (*optional: PL 4x/0.10; PHP2 20x/0.40 phase; PHP2 40x/0.60 phase) |
| Nosepiece nosepiece |
| Nosepiece | for 4 objectives |
| Working distance, mm | 4.27 (10x); 8.0 (20х); 3.5 (40x) |
| Interpupillary distance, mm | 48 — 75 |
| Range of stage movement, mm | 77/112 |
| Stage features | fixed, with mechanical translator for moving the sample; plate holder: 29x77 mm, Ø90 mm; 34x77.5 mm, Ø68.5 mm; 57x82 mm, Ø60 mm |
| Condenser | NA0.6, working distance: 70 mm; with adjustable aperture diaphragm and a housing for phase contrast slider |
| Diaphragm | adjustable aperture |
| coaxial, coarse focus (with micrometer screw tension adjustment knob and fixing knob) and fine focus (0.002 mm micrometer screw) |
| Lighting | LED |
| Brightness adjustment | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | 9 W |
| Optical filters | yes |
| Operating temperature range, °C |
| Special Features | phase contrast slider for 10x objectives with a centrable phase contrast ring |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated< /td> |
| Application | laboratory/medical |
| Lighting position | lower |
| td> |
| Research method | bright field, phase contrast microscope |
| Set with case/case/ bag | dust cover |
| === Delimiter === | Digital camera |
| Sensor | SONY CMOS |
| Color/monochrome | color |
| Megapixel | 2 |
| Maximum resolution, px | 1920x1080 |
| Sensor size | 1/1.9" (7.20x4.05 mm) |
| Pixel size, µm | 3.75x3.75 |
| Autofocus | yes |
| Interface connectors | Wi-Fi, HDMI 1.4 |
| Memory card | SD up to 32 GB |
| Ability to connect additional equipment | mouse with USB, Wi-Fi adapter (USB) |
| Wi-Fi settings | 802.11n, 150 Mbps, 20 dBm |
| Light sensitivity | 1120 mV at 1/30 s |
| Signal-to-noise ratio | 0.15 mV at 1/30 s |
| Exposure time | 0.06 ms – 918 ms |
| Video recording | yes |
| Frame rate, fps @resolution | 60@1920x1080 (HDMI), 25@1920x1080 (Wi-Fi) |
| Installation location | trinocular tube , optical tube instead of eyepiece |
| Image format | *.jpg |
| Video format | *.asf |
| Spectral range, nm | 380-650 (integrated IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| Software | HDMI: Integrated; USB: MAGUS View |
| System requirements | Windows 8/10/11 (32 bit and 64 bit), Mac OS 2.8 GHz Intel Core 2 or later, minimum 4 GB RAM, USB 2.0 port, RJ45, CD-ROM, 19" or larger screen |
| Mount type | C pitch |
| Body | CNC aluminum alloy |
| Camera power | DC adapter 12 V, 1 A |
| DC power adapter specifications | input: AC voltage 100– 240 V, 50/60 Hz, output: DC voltage 12 V/1 A |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
| === Delimiter == = | Monitor |
| Matrix type | IPS |
| Display diagonal , inches | 13.3 |
| Display resolution, px | 1920x1080 (Full HD) |
| Format | 16:9 |
| Brightness, cd/m² | 400 |
| Number of colors displayed | 16.7 m |
| Contrast | 1000:1 |
| Horizontal/vertical viewing angle, ° | 178/178 |
| Dimensions of the visible area of the screen ( WxH), mm | 295x165 |
| Pixel pitch (WxH), mm | 0.154x0.154 |
| Optical source frequency, Hz | 60 |
| Matrix type backlight | LED |
| LED backlight life, h | 50000 |
| Interface | HDMI |
| Operating temperature range, °C | -15 — 55 |
| Humidity operating range , % | 10 — 90 |
| Power Supply | AC 110–220 V, DC 5–12 V/1 A (Type C) |
| Energy consumption, W | 12 (max.) |
