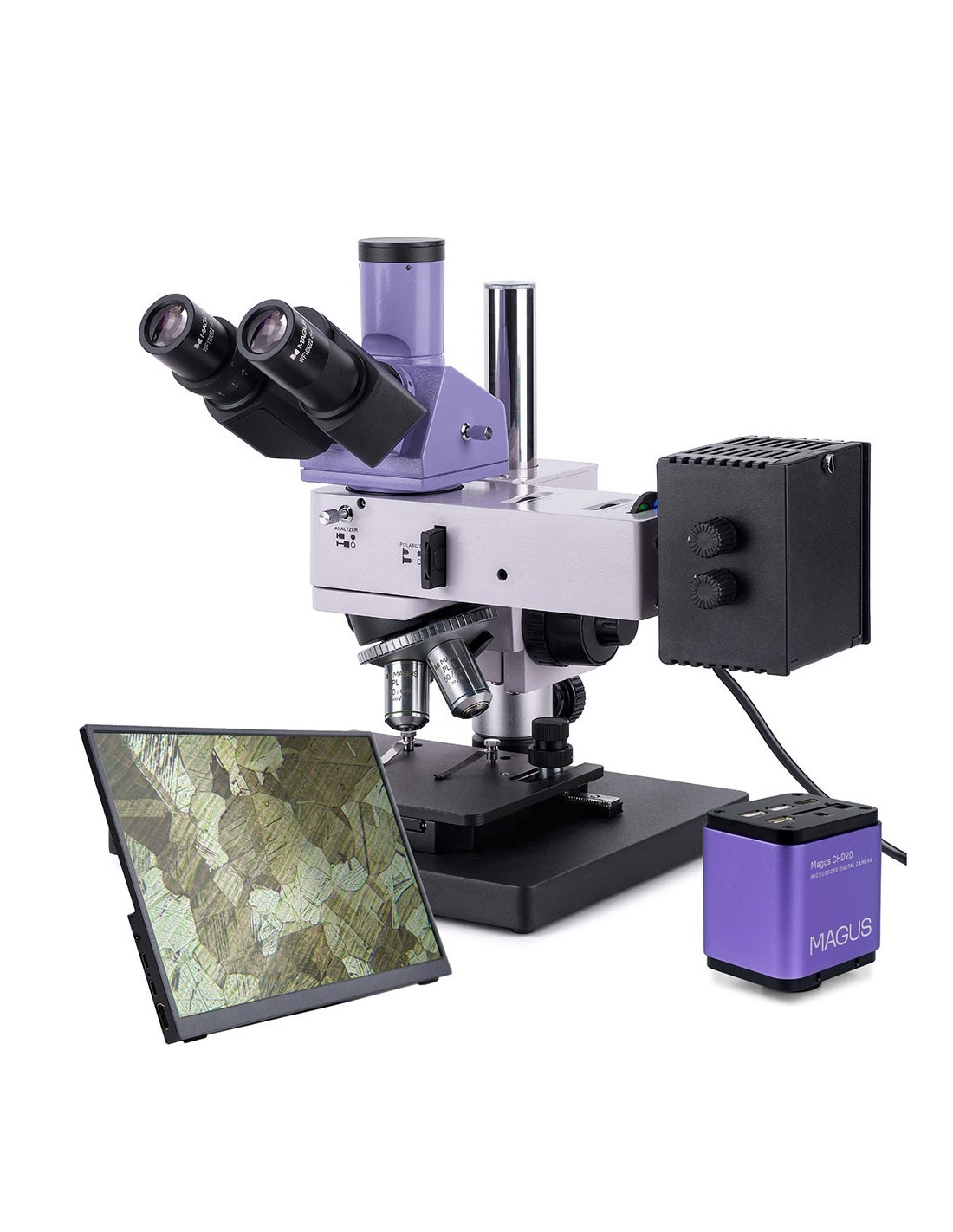

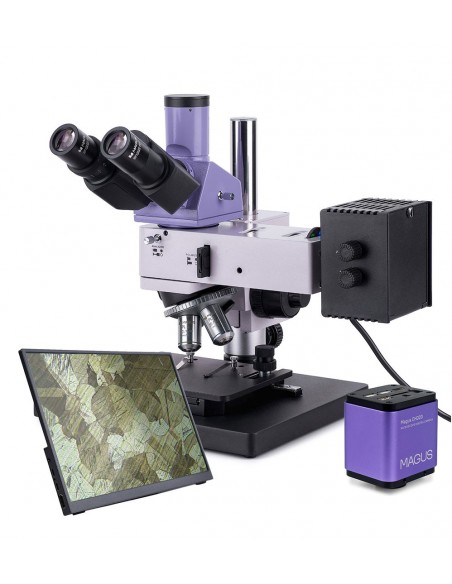

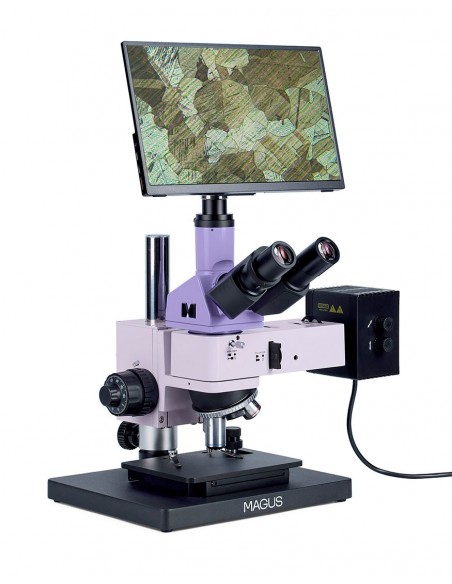

The MAGUS Metal D630 LCD reflected light metallographic microscope is used to examine the microstructure of opaque objects of any height and size. The objects examined are metals, alloys, semiconductors and paint coatings. Microscopy techniques available are bright field and polarized light. One of the advantages of the microscope is its compact size, making it ideal for laboratories with limited working and storage space. The MAGUS Metal 630 microscope is the ideal choice for companies in various sectors, research centers and university departments.
Digital camera
The MAGUS digital camera CHD20 is equipped with a 2 MP sensor and produces realistic Full HD images at a resolution of 1920x1080 px. The camera has high light sensitivity suitable for observations with fluorescent light. Using R, G, B primary color mosaic filters produces sharp, low dark current images.
The camera uses an HDMI interface to connect directly to a TV monitor or projector. In this way, the camera operates independently without a PC. The HDMI interface enables fast and stable speed transfer from the camera to the external screen. An additional USB 2.0 interface is available for connecting the camera to a PC.
Video is recorded at 60 fps or 50 fps depending on the video output interface.
The camera combines high FPS speed and high HDMI bandwidth, so videos look brilliant without stuttering or skipping between frames. At maximum resolution, the image is very detailed, moving objects are visible without errors, and the moving object is displayed without delays.
Monitor

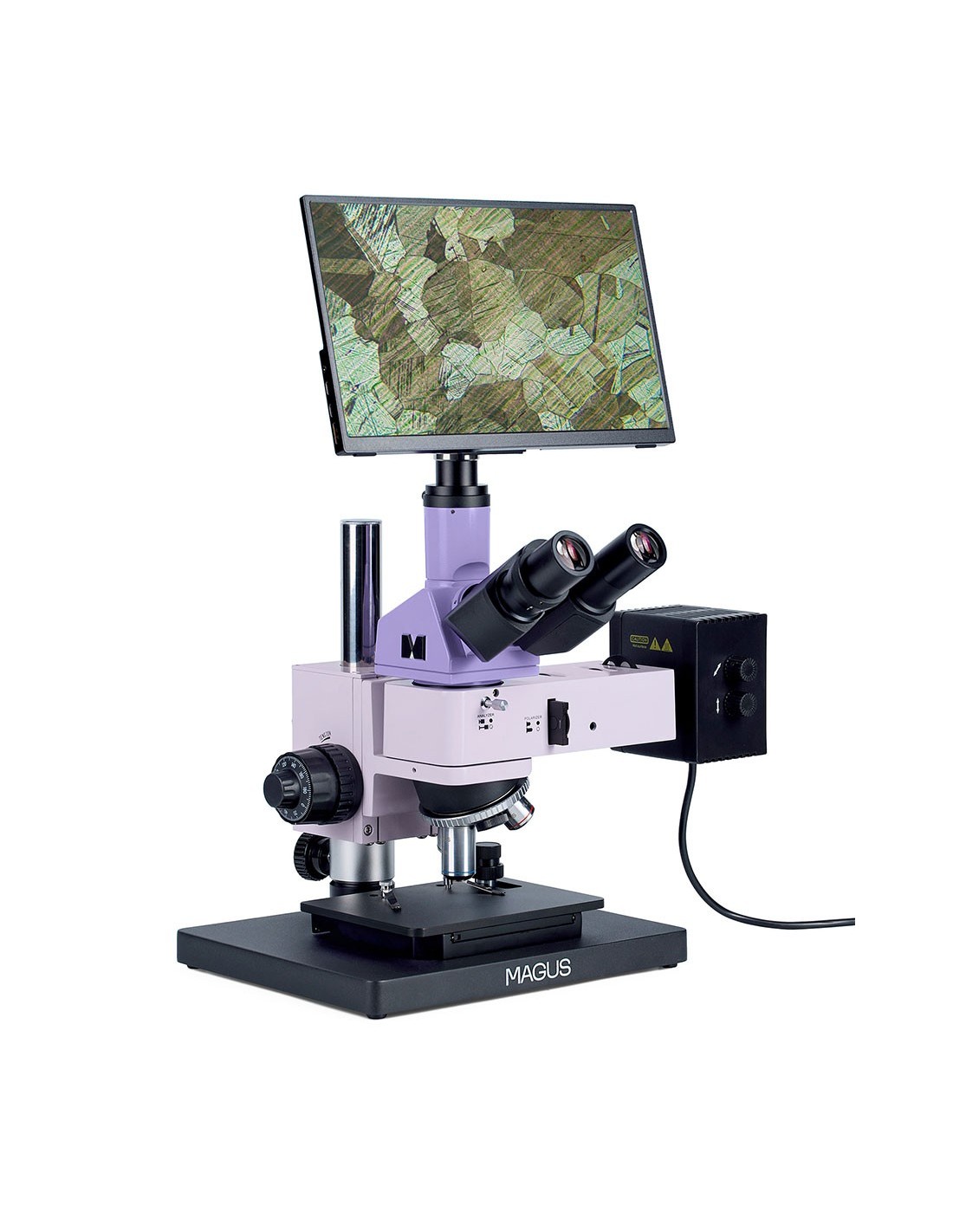

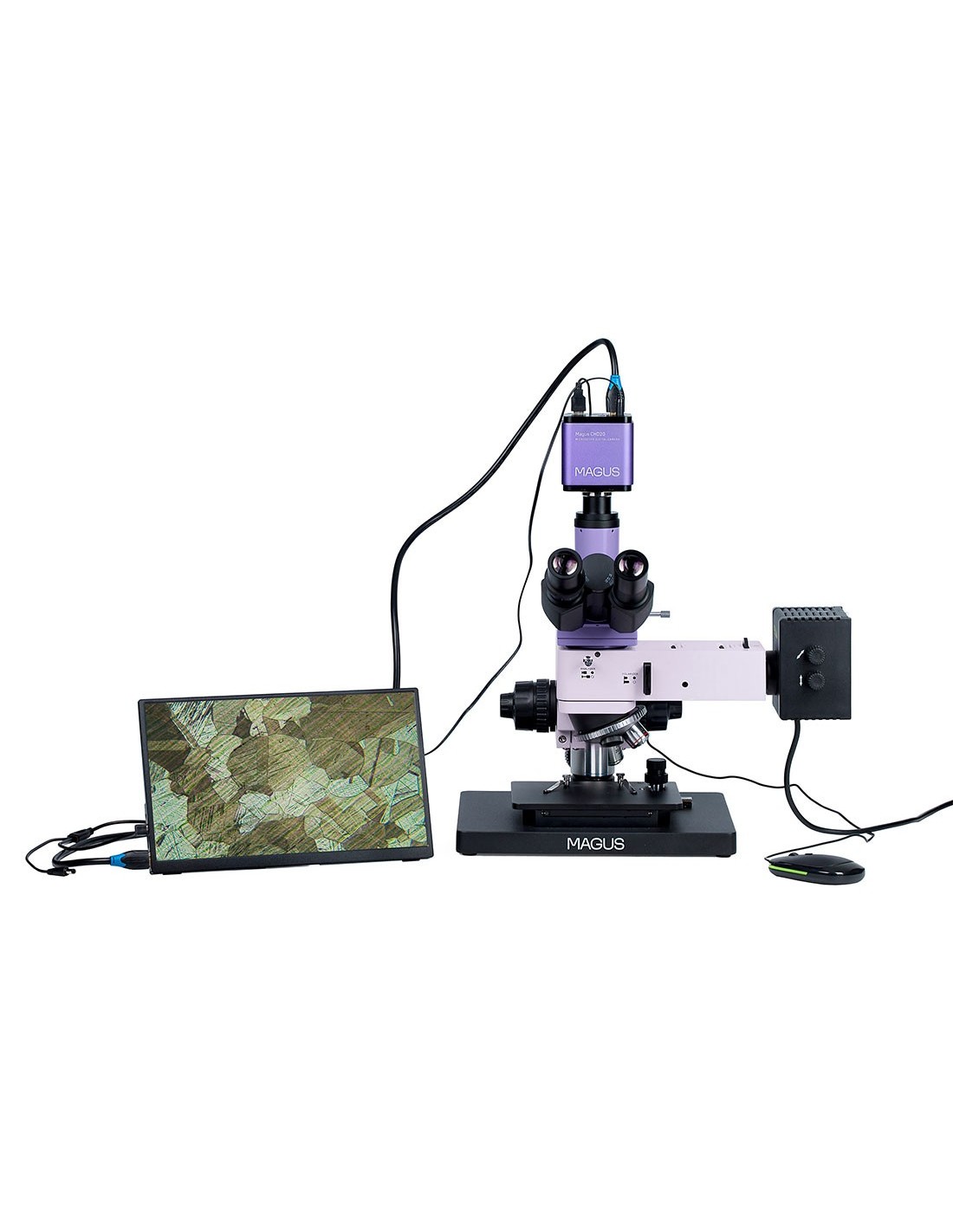

MAGUS MCD monitors work in combination with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.
The connection to the camera is via its HDMI interface. The monitor displays images in real time. Its IPS LCD display has a wide viewing angle, high brightness and good contrast. When looking at the screen even from a wide angle, the image is not distorted. The screen size is 13.3''.
The monitor can be installed on a horizontal surface using a foldable stand or mounted directly on a camera or tripod.
Optics
Optics
strong>

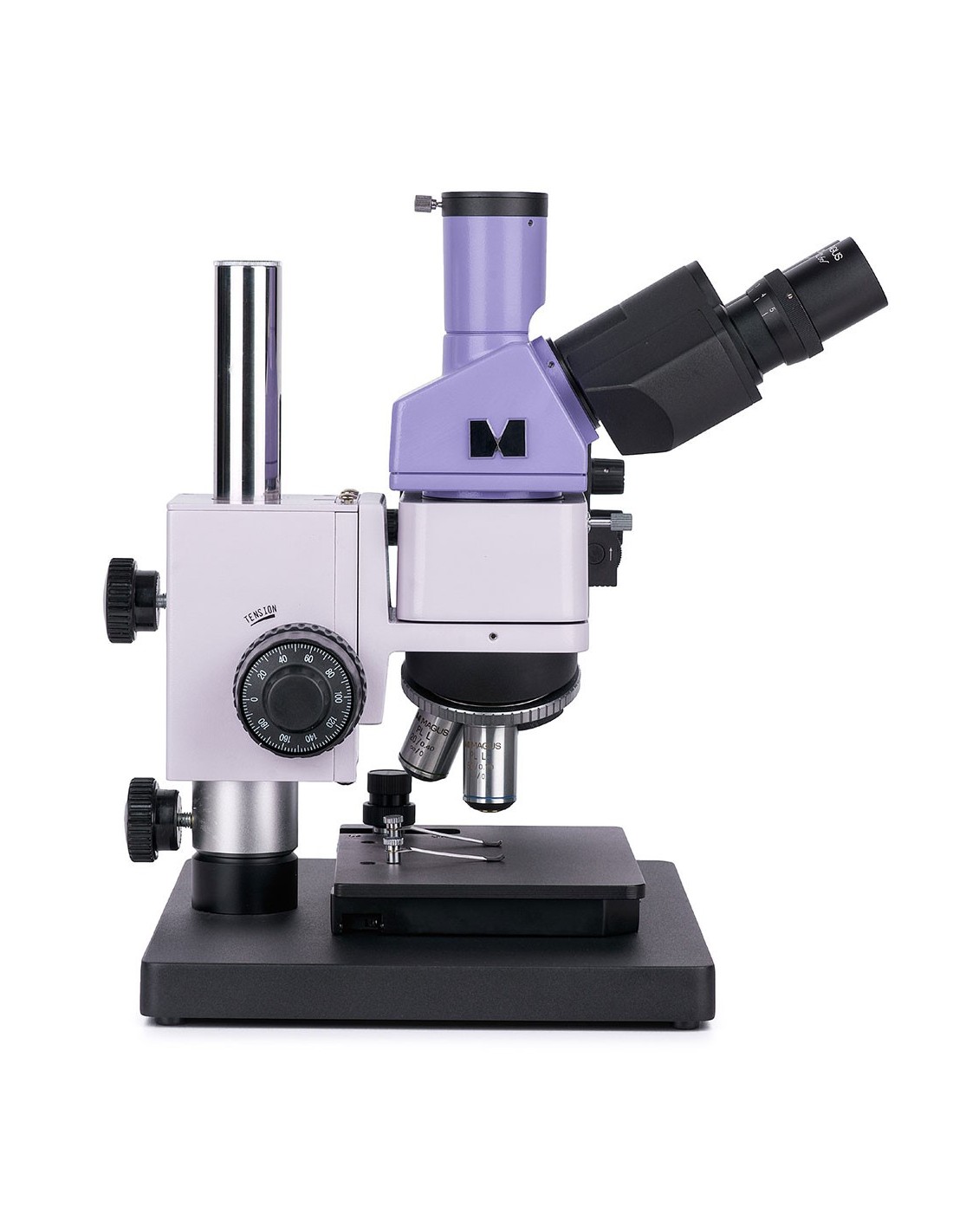

The microscope optics are corrected to infinity. The trinocular tube intended for mounting the camera is positioned vertically. You can direct the light beam onto the eyepiece or into the trinocular tube. The camera is not included in the basic configuration. The microscope allows you to work comfortably for many hours thanks to the 30° inclination of the binocular head. The left eyepiece features a diopter correction tool to adjust the optics based on the user's vision.

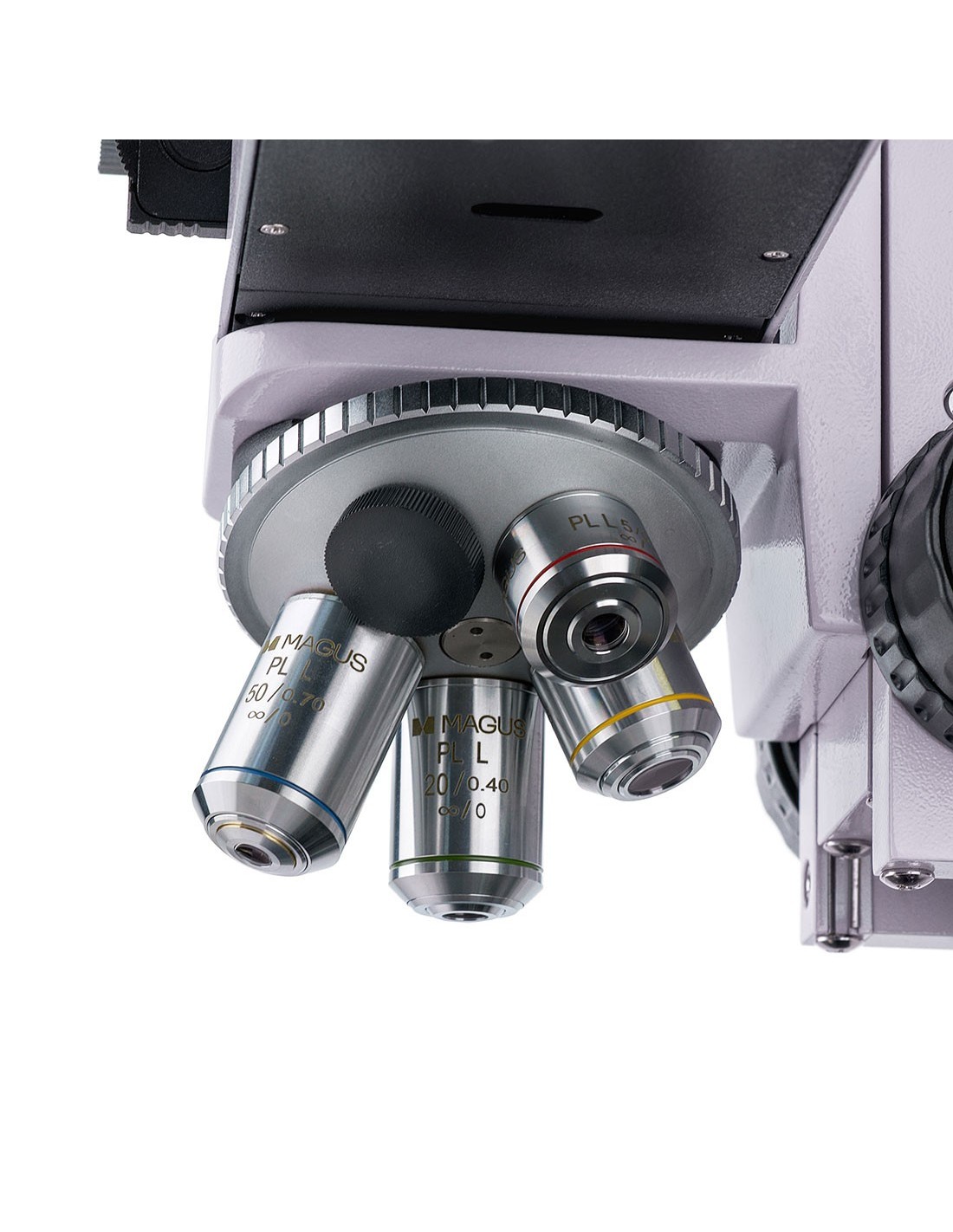

The nosepiece nosepiece has 5 slots. The kit includes 4 plan achromatic objectives. Once installed, there is a free slot for installing an optional lens. Objectives with a long working distance are designed for brightfield microscopy.
Illumination

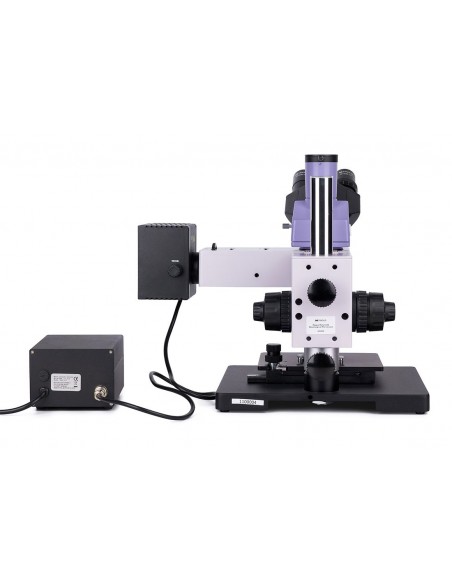

The microscope uses only reflected light illumination. The illumination system is composed of a polarization device, an aperture diaphragm and a field diaphragm. Light source: 30W halogen lamp. The light emitted is not dazzling and does not tire the eyes. Both the iris and the light source can be centered. You can also set the Köhler lighting. The kit includes colored filters.

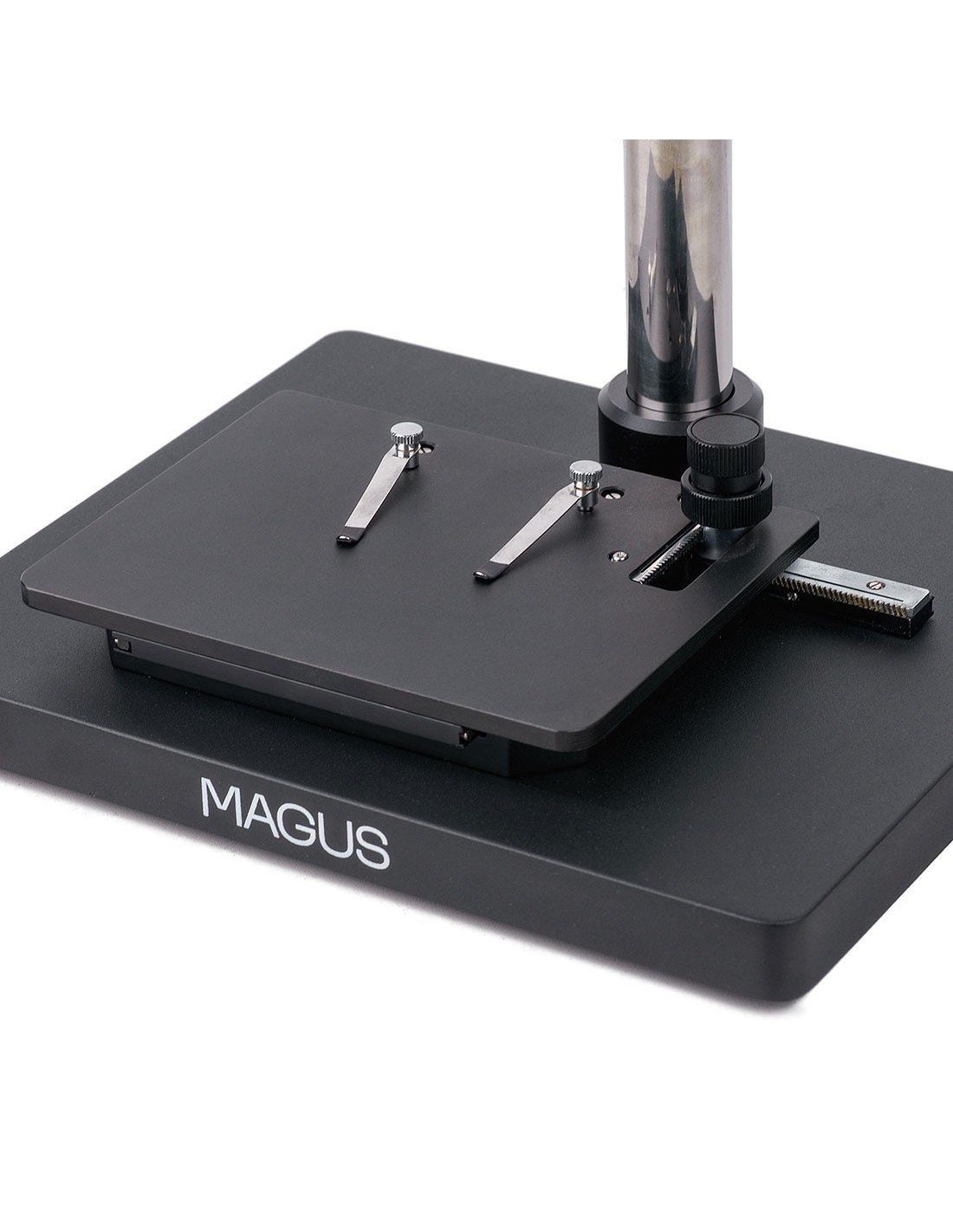

Stage and focusing mechanism

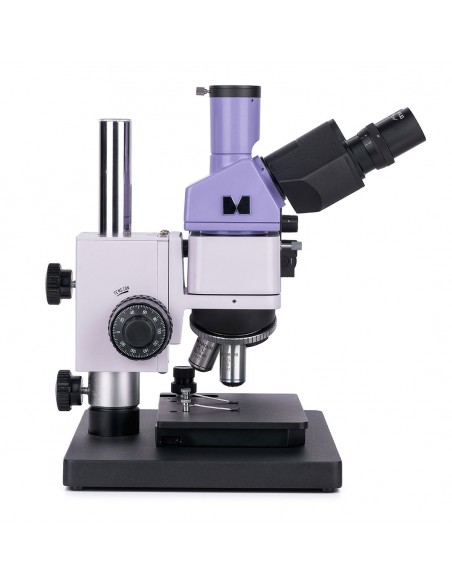

The innovatively designed stand and focusing mechanism has two advantages: compact dimensions and the possibility of observing samples of any height. The microscope can be easily placed on a laboratory floor with a maximum height of 40 cm. Small samples can be examined using a two-axis stage. Focus is adjusted via coaxial coarse and fine focus knobs, located on either side of the stand. The mechanisms work precisely and smoothly. You can also adjust the coarse tension setting.
Accessories
You can upgrade your microscope with optional accessories, such as objectives with a long distance workpiece, eyepieces, digital camera and calibration slides.
Key features of the microscope:
- Specimens of any height and size
- Trinocular head with trinocular tube for mounting a digital camera and 100:0 and 0:100 beam splitter
- 30 W halogen lamp with warm tone light for working in reflected light with technical of brightfield and polarization microscopy
- Color filters, option for setting the Köhler illumination, light source and aperture and field diagrams that can be centered
- Compact stand for mounting the microscope on a piece of furniture
- Numerous additional accessories
Key features of the camera:
- The camera It works autonomously without a PC connection via HDMI interface. It is possible to connect to a PC via USB 2.0 interface
- The camera has a resolution of 1920x1080 pixels, the ideal choice for viewing images on a Full HD monitor
- 60 fps or 50 fps based on the video output interface for observing moving objects, recording videos and specimen movements without lag or jerkiness
- The color back-illuminated SONY Starvis CMOS sensor offers images with low noise and high light sensitivity even in low light conditions. You can get sharper, brighter and more saturated color images.
- Software for recording and editing photos and videos, external display functions, linear and angular measurements

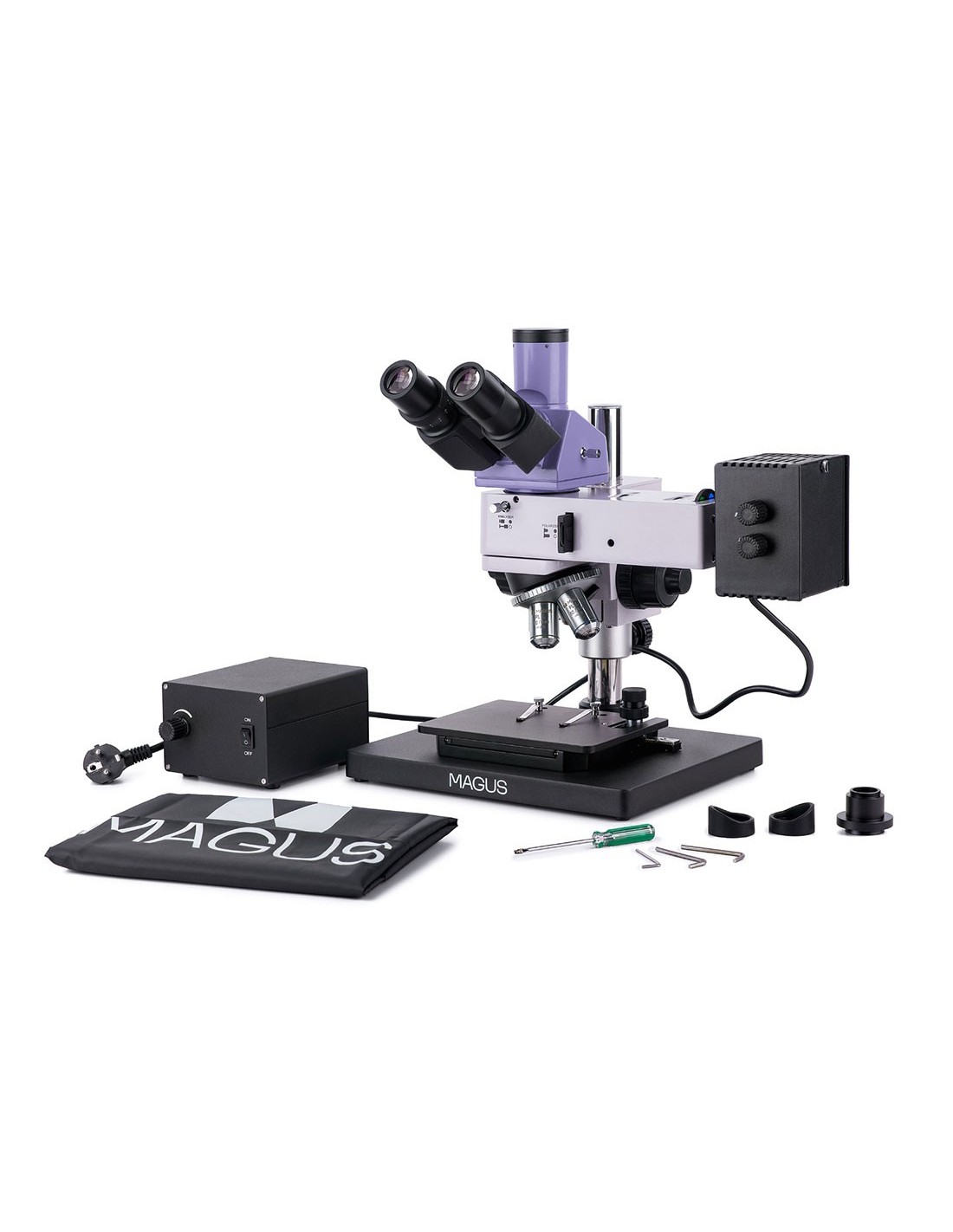

The package contains:
- MAGUS CHD20 digital camera (digital camera, HDMI cable (1.5 m), USB 2.0 cable (2 m), mouse with USB, 32 GB SD memory card, 12 V/1 A AC power adapter (Euro), installation CD with drivers and software, user manual and warranty card)
- MAGUS MCD20 LCD monitor
- MAGUS MCD20 LCD monitor li>
- Support with focusing mechanism, stage and nosepiece nosepiece
- Illuminator for reflected light observations with bulb housing
- Trinocular head
- Infinity plan achromatic objective: PL L5x/0.12 WD 26.1 mm
- Infinity plan achromatic objective: PL L10х/0.25 WD 20.2 mm
- Objective plan achromatic to infinity: PL L20х/0.40 WD 8.80 mm
- Plan achromatic to infinity objective: PL L50х/0.70 WD 3.68 mm
- Eyepiece 10x/ 22 mm with long eye relief (2 pcs.)
- 1x C-mount adapter
- Allen key
- Base with power input
- Power cord
- Reflected light illuminator power cord
- Dust cover
- User manual and warranty card
Available on request:
- 10x/22 mm eyepiece with graduated scale
- 12.5x/14 mm eyepiece (2 pcs.)
- Eyepiece 15x/15 mm (2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Eyepiece 25x/9 mm (2 pcs.) )
- Infinity plan achromatic objective: PL L40х/0.60 WD 3.98 mm
- Infinity plan achromatic objective: PL L60x/0.70 WD 2.08 mm
- Infinity plan achromatic objective: PL L80x/0.80 WD 1.25 mm
- Infinity plan achromatic objective: PL L100x/0.85 (dry) WD 0.40 mm
- Calibration glass
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555018348 |
| Package size (WxDxH) | 39x37x73 cm |
| Shipping weight | 22.25 kg |
| Delimiter | MAGUS Metal 630 metallographic microscope |
| Type | light/optical, digital, metallographic |
| Head | trinocular |
| Vertical tube | Siedentopf |
| Head tilt angle | 30° |
| Magnification, x | 50–500 base ( *optional: 50–1000/1250/1500/2000/2500) |
| Magnification range | 200x to 800x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10х/22 mm, eye relief: 10 mm (*optional: 10x/22 mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
| Infinity planachromatic | objectives: PL L5x/0.12, PL L10x/0.25, PL L20x/0, 40, PL L50x/0.70; parfocal distance 45 mm (*optional: PL L40x/0.60, PL L60x/0.70, PL L80x/0.80, PL L100x/0.85 (dry)) |
| Nosepiece nosepiece | for 5 objectives |
| Working distance, mm | 26.1 (5x); 20.2 (10x); 3.98 (40x); 2.08 (60x); 8.80 (20x); 3.68 (50x); 1.25 (80x); 0.40 (100x) |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 185x140 |
| Range of movement of the stage, mm | 35/30 |
| Stage features | two-axis mechanical stage; Microscope base dimensions: 300x240 mm |
| Eyepiece diopter adjustment, diopters | ±5 (on the left barrel) |
| Focus | coaxial, coarse (with focus voltage adjustment coarse) and fine focus (0.002 mm) |
| Halogen |
| Brightness adjustment< /td> | yes |
| Power supply | 220±22 V, 50 Hz, AC mains |
| Type of light source | 12 V/30 W |
| Optical filters | green, blue, yellow, frosted< /td> |
| Operating temperature range, °C | 5 — 35 |
| Extra elements | integrated analyzer and removable polarizer |
| User level | expert users, professionals |
| Level difficult assembly and installation | complicated |
| Application | metallographic |
| Illumination position | upper |
| Search method | bright field, polarized light |
| Set with case/case/bag | dust cover |
| === Delimiter === | Digital camera |
| Sensor | Sony Exmor/Starvis CMOS |
| Color/monochrome |
| Megapixel | 2 |
| Maximum resolution, px |
| Sensor size | 1/2" (7.2x4.05 mm) |
| 3.75x3.75 |
| Interface connectors | USB 2.0, HDMI 1.4 |
| Memory card | SD up to 32 GB |
| Possibility to connect additional equipment | mouse with USB, stick (USB) |
| Light sensitivity | 1175 mV at 1/30 s |
| Signal-to-noise ratio | 0.15 mV at 1/30 s |
| Exposure time | 0.04 ms – 1000 ms |
| Video recording | yes |
| Frame rate, fps @resolution | 60@1920x1080 (HDMI), 50@1920x1080 (USB) |
| Installation location | trinocular tube, tube optical instead of ocular |
| Image format | *.jpg, *.tif |
| Video format< /td> | *.h264/*.h265, *.mp4 |
| Spectral range, nm | 380-650 (built-in IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| Software | HDMI: integrated; USB: MAGUS View |
| System requirements | Windows 8/10/11 (32 bit and 64 bit), Mac OS 2.8 GHz Intel Core 2 or later, minimum 4 GB RAM, USB 2.0 port, RJ45, CD-ROM, 19" or larger screen |
| Mount type | C pitch |
| Body | CNC aluminum alloy |
| Camera power | DC adapter 12 V, 1 A |
| DC power adapter specifications | input: AC voltage 100– 240 V, 50/60 Hz, output: DC voltage 12 V/1 A |
| Camera operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
| === Delimiter == = | Monitor |
| Matrix type | IPS |
| Display diagonal , inches | 13.3 |
| Display resolution, px | 1920x1080 (Full HD) |
| Format | 16:9 |
| Brightness, cd/m² | 400 |
| Number of colors displayed | 16.7 m |
| Contrast | 1000:1 |
| Horizontal/vertical viewing angle, ° | 178/178 |
| Dimensions of the visible area of the screen ( WxH), mm | 295x165 |
| Pixel pitch (WxH), mm | 0.154x0.154 |
| Optical source frequency, Hz | 60 |
| Matrix type backlight | LED |
| LED backlight life, h | 50000 |
| Interface | HDMI |
| Operating temperature range, °C | -15 — 55 |
| Humidity operating range , % | 10 — 90 |
| Power Supply | AC 110–220 V, DC 5–12 V/1 A (Type C) |
| Energy consumption, W | 12 (max.) |
