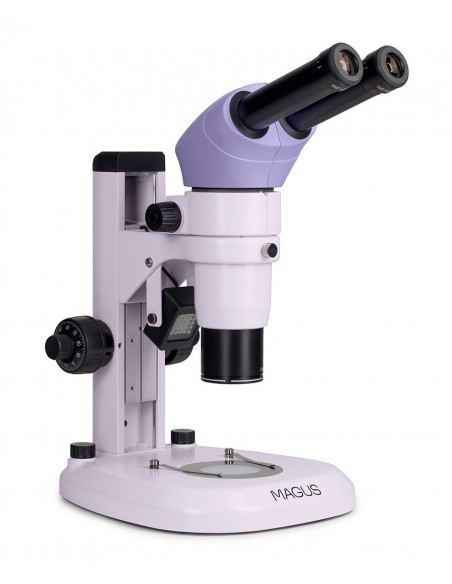

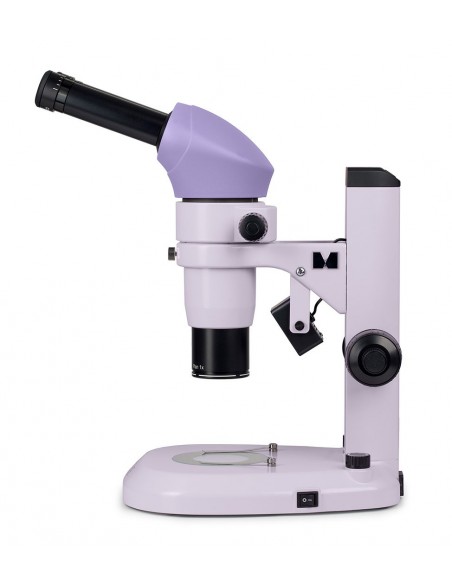

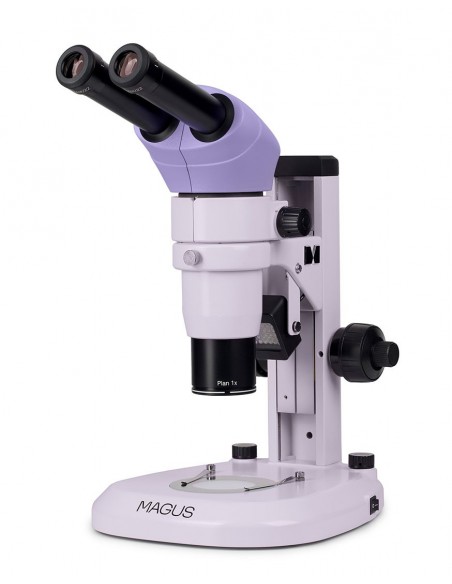

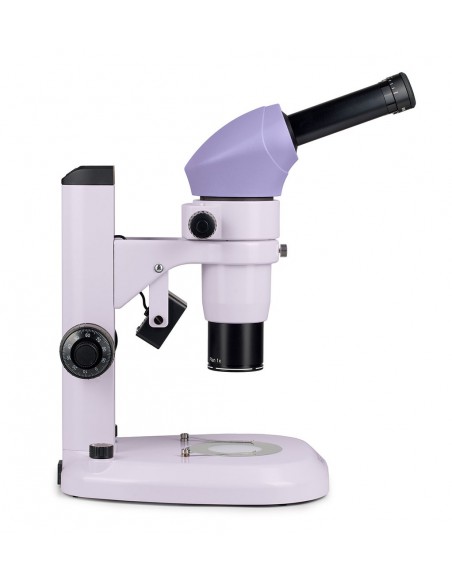

The MAGUS Stereo A10 research stereomicroscope is designed according to the CMO design. This powerful device can also expand its functionality with additional accessories. A CMO stereomicroscope with 10:1 zoom ratio will be useful in manufacturing for quality control and serious scientific research in the fields of medicine, biology, forensics, materials research, archeology and others. The CMO system guarantees a high-quality three-dimensional image of an object with authentic reproduction of color and shape, a wide field of view and high resolution. It is suitable for research in both transmitted and reflected light.
The two tubes of the binocular head are located at an angle of 20° with respect to the horizontal plane: this position is comfortable and effective, especially when it is necessary to conduct prolonged observations. There is no diopter adjustment mechanism on the tubes; if it is necessary to adjust the sharpness for imperfect vision, use eyepieces with a diopter adjustment ring. The microscope can be equipped with a digital camera, which can be installed in the intermediate connection with photo output (not included); you will also need a C-mount adapter for the connection.
The next optical element in the tubes are the zoom lenses. Each tube has its own lens system, which, with a gradual change in magnification, automatically changes the focal length. This means that the microscope always produces a clear, in-focus image of the object. The zoom capabilities of this microscope model are determined by a ratio of 10:1.
The tubes are connected in the main objective. It is located at a 90° angle to the surface of the object. Thanks to this position, the shapes of the object are conveyed precisely. CMO microscopes have a stereoscopic angle of 11°. The MAGUS Stereo A10 set includes a 1x objective with a working distance of 78 mm. The optics are planachromatic, with the correction of spherical and chromatic distortions.

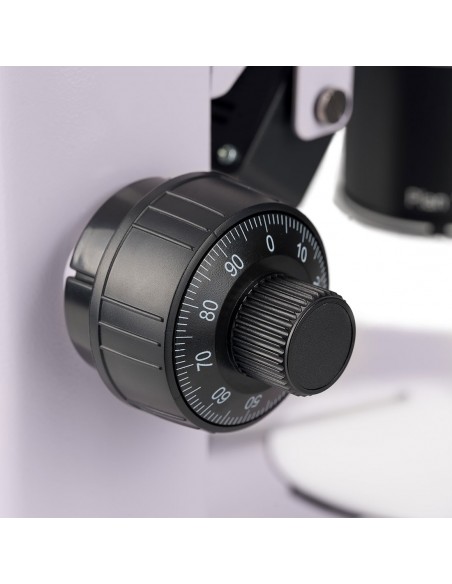

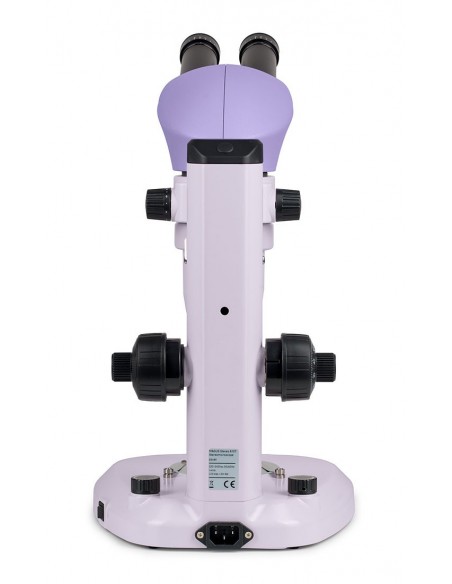

The focusing system is located on both sides of the support and consists of coarse and fine focusing knobs. The tension of the coarse focusing travel can be adjusted.
To work in both reflected and transmitted light, the stage is equipped with two plates. For opaque samples, a double-sided black and white plate is required, installed on the stage according to the principle of contrast with the object: the black side for light samples and the white side for dark ones. A transparent plate helps illuminate the object more uniformly with diffuse transmitted light.
The microscope is equipped with LED illuminators for transmitted and reflected light of oblique illumination. The transmitted light illuminator has a power of 6 W, while the reflected light illuminator has a power of 3 W. The LEDs have a life of 50,000 hours.
The microscope kit can be supplemented with additional parts. These include eyepieces that expand magnification capabilities, a primary objective with different magnifications, working distance and field of view, and calibration slides for stereo microscopes. Calibration slides help measure the size of the object. The space between divisions is 0.1 mm.
Key features:
- CMO stereoscopic microscope: guarantees the absence of geometric distortions of the object, has a wide field of view, high resolution and authentic color rendering
- Allows the installation of a digital camera in an additional mount
- The zoom lens provides a ratio of 10:1 zoom and automatically adjusts the focal length
- The main objective is plan achromatic with 1x magnification and a working distance of 78 mm
- Illumination: from oblique illumination sources in transmitted light and reflected, powered by LED
- Step plates for working with transparent and opaque samples
The package contains:
- Base with integrated transmitted light source and power supply
- Support with focusing mechanism
- Microscope head – objective with visual attachment
- 1x planachromatic main objective
- 10x/22 mm eyepiece with diopter adjustment (2 pcs.)
- 10x/24 mm eyepiece with diopter adjustment (2 pcs.)
- >Black and white plate
- Transparent plate
- Oblique reflected light illuminator
- Power cord for AC mains
- Dust cover
- User manual and warranty certificate
Available on request:
- 15x/16 mm eyepiece ( 2 pcs.)
- Eyepiece 20x/12 mm (2 pcs.)
- Achromatic main objective 0.3x
- Planachromatic main objective 0.5x
- 2x plan achromatic main objective
- Calibration slide
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019550 |
| Package size (LxWxH) | 46x44x62 cm |
| Shipping weight | 9.4 kg |
| Type | stereo/instrumental |
| Tested | binocular |
| Magnification, x | 8–80 in basic configuration (*optional: 2.4–320), zoom ratio 10:1 |
| Magnifying range | up to 200x |
| Eyepiece tube diameter, mm | 30 |
| Eyepieces | 10x/22 mm, 10x/24 mm (*optional: 15x/16 mm, 20х/12 mm) |
| Objectives | main objective: 1x planachromatic (*optional: 0.3x achromatic, 0.5x planachromatic, 2x planachromatic); zoom lens: 0.8–8х |
| Working distance, mm | 78 |
| Distance interpupillary, mm | 55 — 75 |
| Linear visual field, mm | 9.17 — 2.75 |
| Stage Features | white/black plate, glass plate |
| Eyepiece diopter adjustment, diopters | ±5D on each eyepiece |
| Eyepiece diopter adjustment | yes |
| Focus |
| Focus |
| td> | coaxial, coarse (105 mm, with coarse focus tension adjustment) and fine |
| Illumination | LED |
| Brightness adjustment | yes |
| Power supply | 220 V/50 Hz, AC mains, via 5 V, 2 A power adapter |
| Type of light source | reflected light: oblique illuminator – 3 W LED; transmitted light: 6 W LED |
| Operating temperature range, °C | 5 — 35 |
| User level | expert users, professionals |
| Assembly and installation level of difficulty | complicated |
| Optical scheme | CMO |
| Application | laboratory/medical, for applied research | td> |
| Lighting position | double |
| Search method | bright field |
| td> |
| Set with pencil case/case/bag | dust cover |
