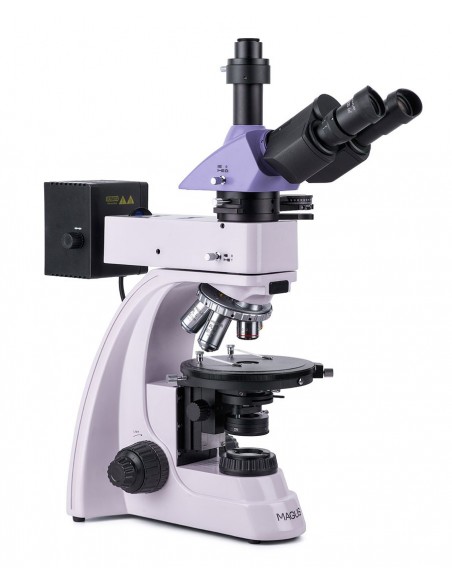

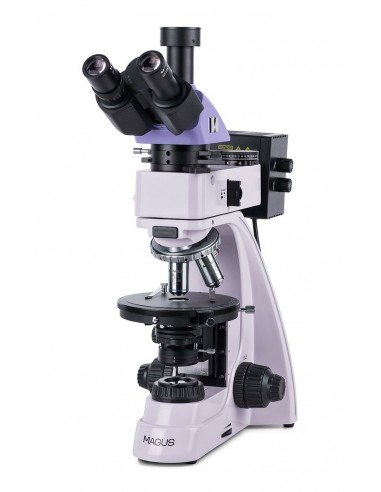

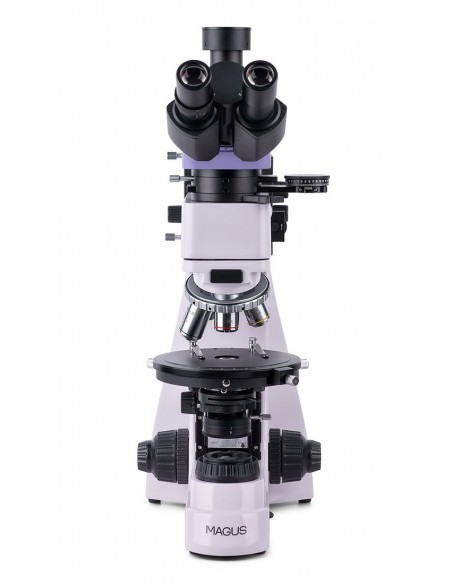

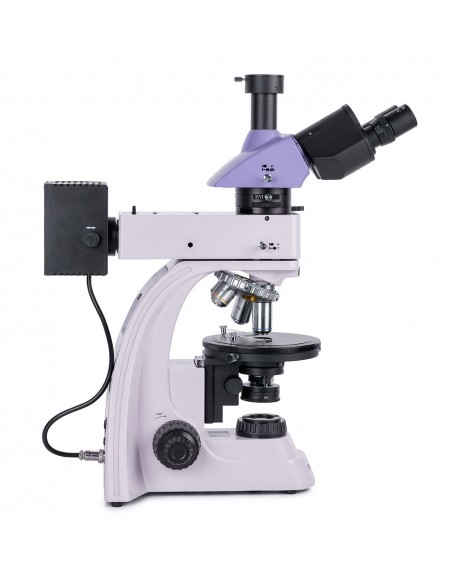

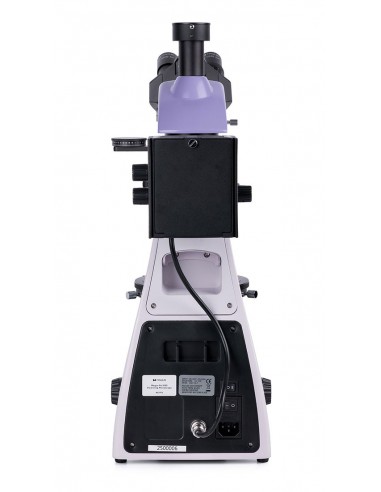

MAGUS Pol 850 polarizing microscope - MAGUS

The MAGUS Pol 850 polarizing microscope is designed to operate in transmitted and reflected light. Available research methods: polarization and bright field. The microscope is used to study anisotropic anibiological, geological and polymeric objects, as well as opaque polished sections up to 15 mm thick with a polished side. The microscope is perfect for a wide range of tasks of professionals in the fields of medicine, forensics, mineralogy, crystallography or petrography.

Optics

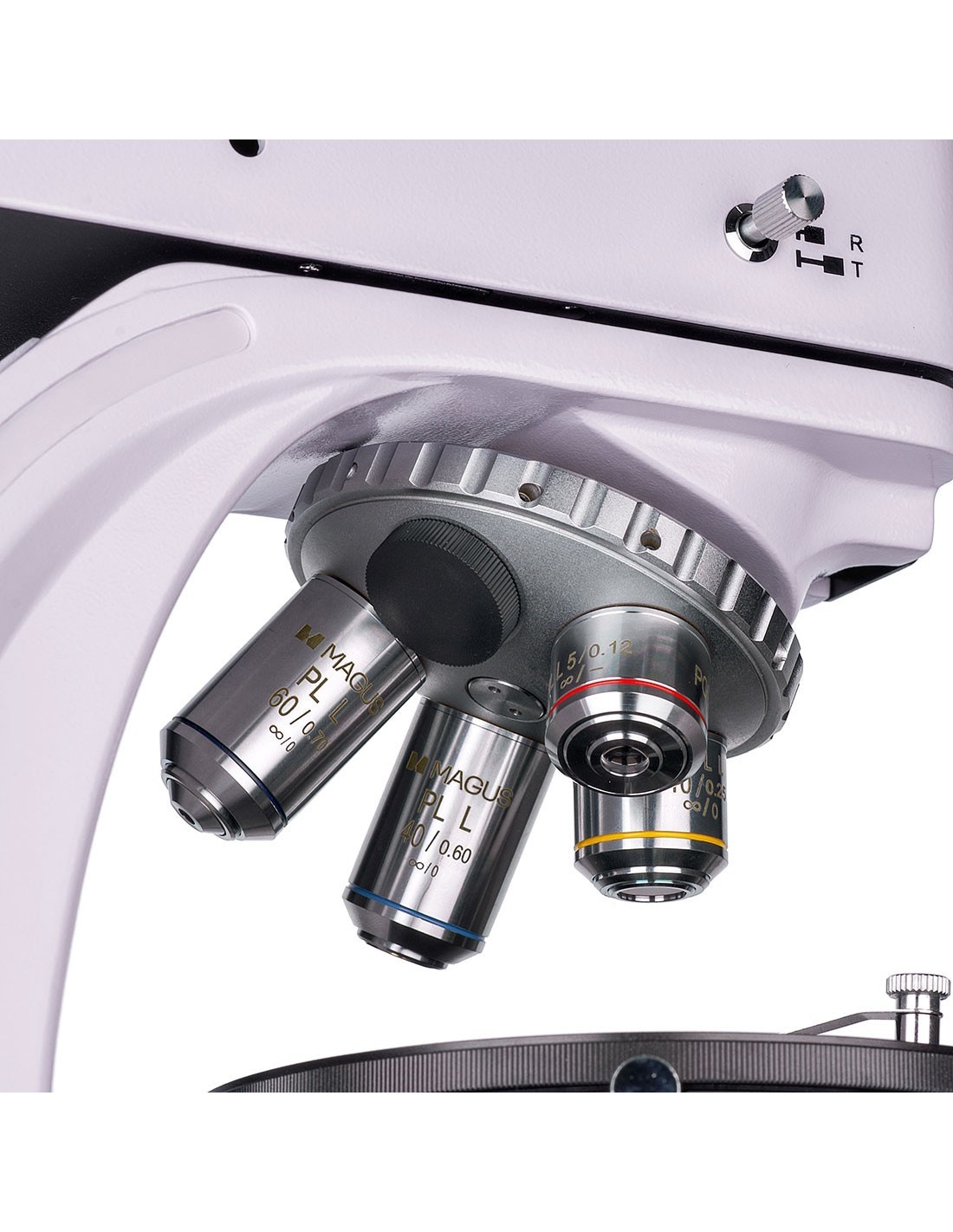

L The optics of the microscope are corrected to infinity and are free from internal tensions. The image formed by the lens is authentic, glare-free, high-contrast and detailed. The lens is installed in a nosepiece with grooves centered on the optical axis. There are five grooves, with four lenses included in the kit; An additional objective can be installed to achieve further magnification within the magnification range of the microscope. The objectives are designed to work with specimens without coverslips.

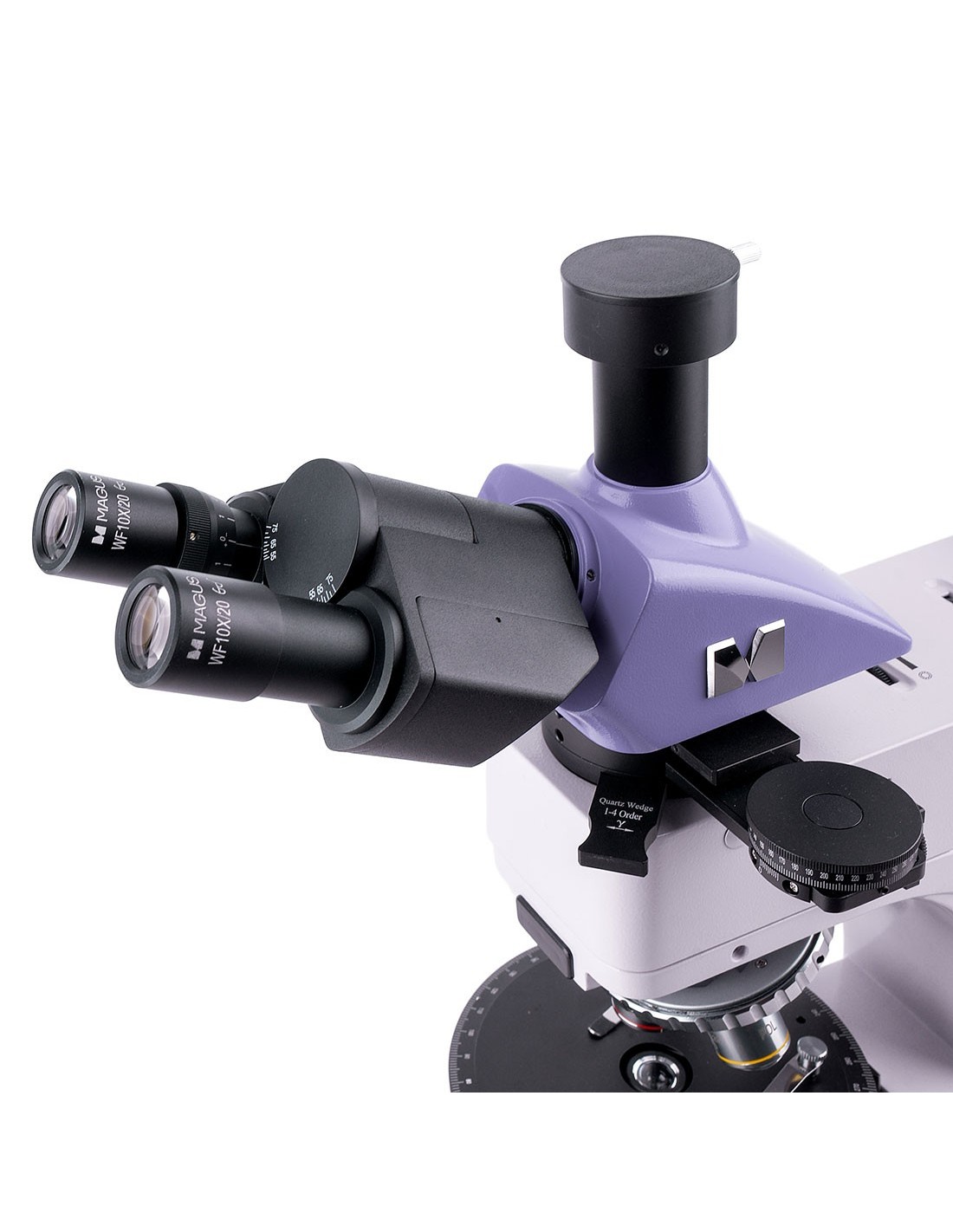

The trinocular head allows you to install a digital camera (not included) in the trinocular tube. The beam split is 100:0 or 0:100, meaning all the light goes to the camera or eyepiece tubes. The left eyepiece tube is equipped with a diopter adjustment ring: it is rotated to compensate for the difference in vision between the eyes and to obtain the clearest possible image of the specimen.

Illumination

30W halogen lamps are used for transmitted and reflected light. Their brightness is sufficient to obtain a clearly readable image on each lens, and the “warm” emission spectrum is comfortable during long-term use. The Köhler illumination setting will provide greater resolution and remove artifacts in the field of view and darkening at the edges. Light filters are used to fine-tune color reproduction when working in reflected light.

Polarization is available for both transmitted and reflected light. To begin observations in polarized light, an analyzer is introduced into the optical path. Next, the relative position of the analyzer and polarizer is changed by rotating them, which also changes the polarization angle. The contrast of objects is increased with the help of compensators installed in a special housing in the intermediate tube. The same attachment also contains a Bertrand lens which is used for Conopic examinations.

Stage and focusing mechanism

The microscope has a rotatable stage: rotating it changes how the sample refracts light in the presence of polarized light. The stage is equipped with a scale on which the angle of rotation can be determined with an accuracy of up to 0.1°. To get the brightest and clearest image, the stage can be centered on the optical axis of the microscope.

The coarse and fine focus knobs are located at the bottom of the stand, so the user can assume a relaxed pose with hands on the table. The coarse tension can be adjusted and there is also a coarse focus lock. The fine focus ensures smooth movement of the sample.

Accessories

To make the most of the microscope, use accessories from the MAGUS line: objective eyepieces, calibration slides, digital cameras, etc.

Key features:

• For working in transmitted, reflected polarized and natural light conditions
• Trinocular head with tube for digital camera; Beam split of 100:0 or 0:100
• Voltage-free planachromatic objectives for sharp images free from artifacts and false internal reflections
• Halogen illumination of the working area, a spectrum of colors comfortable for the eyes; lamp power 30 W
• Rotating stage, polarizer and analyzer with rotation angle markings, Bertrand lens and compensators
• The grooves of the revolver and the stage are centered on the axis optical microscope
• Compatible with additional accessories

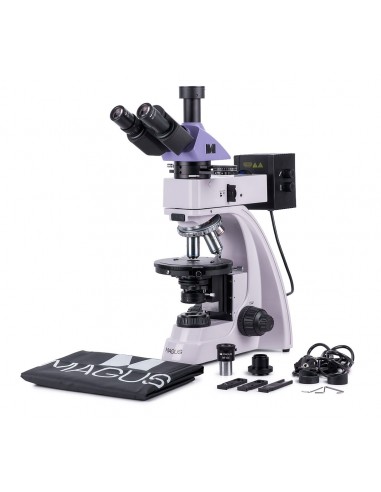

The package contains:

• Base with input of power supply, transmitted light light source and condenser, focusing mechanism, stage and nosepiece
• Illuminator for reflected light observations with bulb housing
• Trinocular head
• Intermediate tube with Bertrand lenses, analyzer and compensator housing
• Compensators: λ compensator, λ/4 compensator, quartz wedge
• Infinity plan achromatic objective: PL 5x/ 0.12 WD 26.1 mm
• Infinity plan achromatic objective: PL 10x/0.25 WD 5.0 mm
• Infinity plan achromatic objective: PL 40x/0, 6 (with spring mechanism) WD 3.98 mm
• Infinity plan achromatic objective: PL 60x/0.7 (with spring mechanism) WD 2.03 mm
• Eyepiece 10x/20 mm (2 pcs.)
• 10x/20 mm eyepiece with graduated scale. Scale value: 0.1 mm
• 1x C-mount adapter
• Allen key
• Power cable
• Dust cover
• Dust cover li>
• User manual and warranty certificate

Available on request:

• 16x/11 mm eyepiece (2 pcs.)
• Eyepiece 20x/11 mm (2 pcs.)
• Infinity planachromatic objective: PL 2.5x/0.07 WD 11 mm
• Infinity plan achromatic objective: PL 50x/0.7 (with spring mechanism) WD 3.67 mm
• Infinity plan achromatic objective: PL 80x/0.8 (with spring mechanism) WD 1.25 mm
• Planachromatic infinity objective: PL 100x/0.85 (with spring mechanism) WD 0.4 mm
• Mechanical stage
• Digital camera
• Calibration glass
