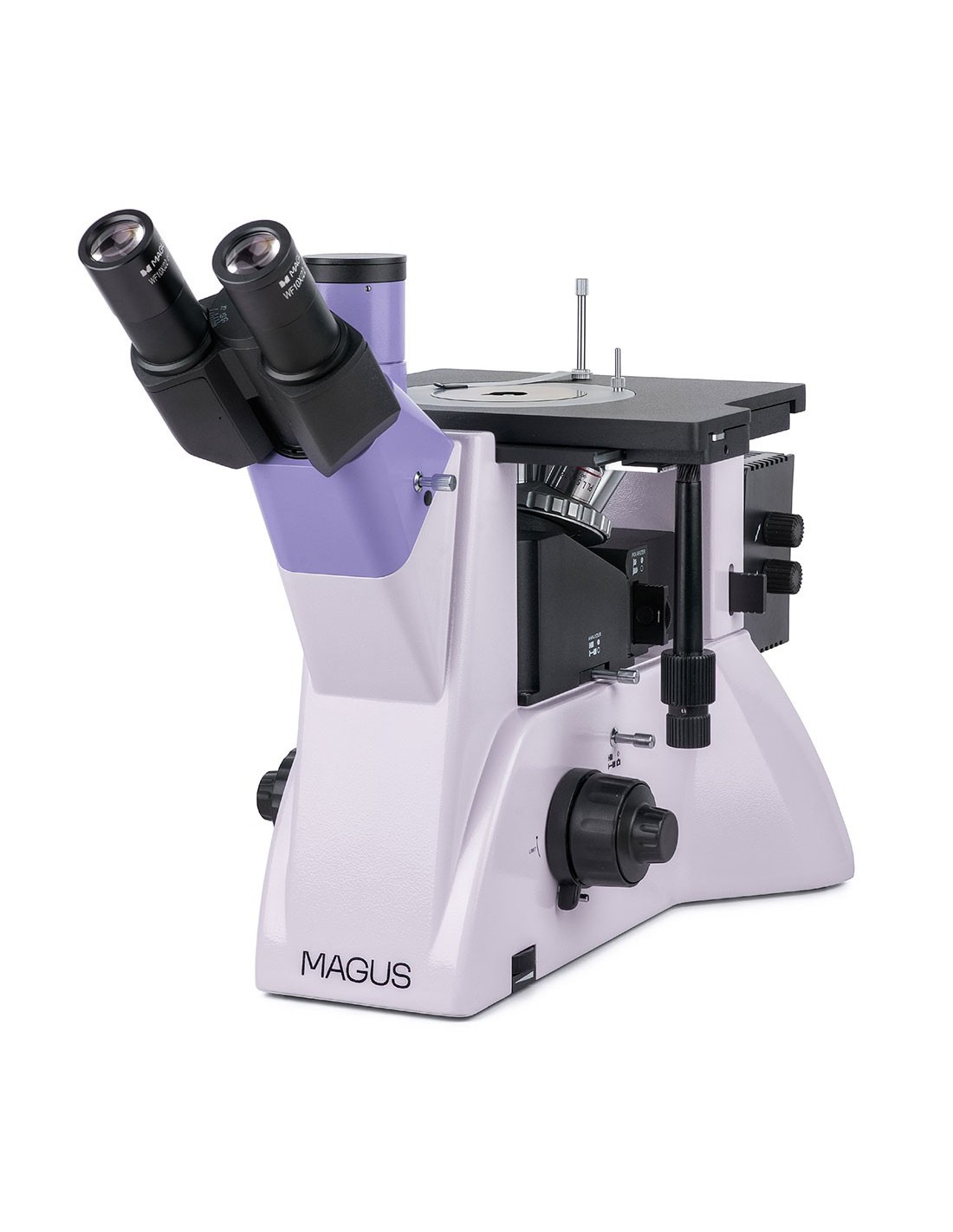

MAGUS Metal V700 inverted metallographic microscope - MAGUS

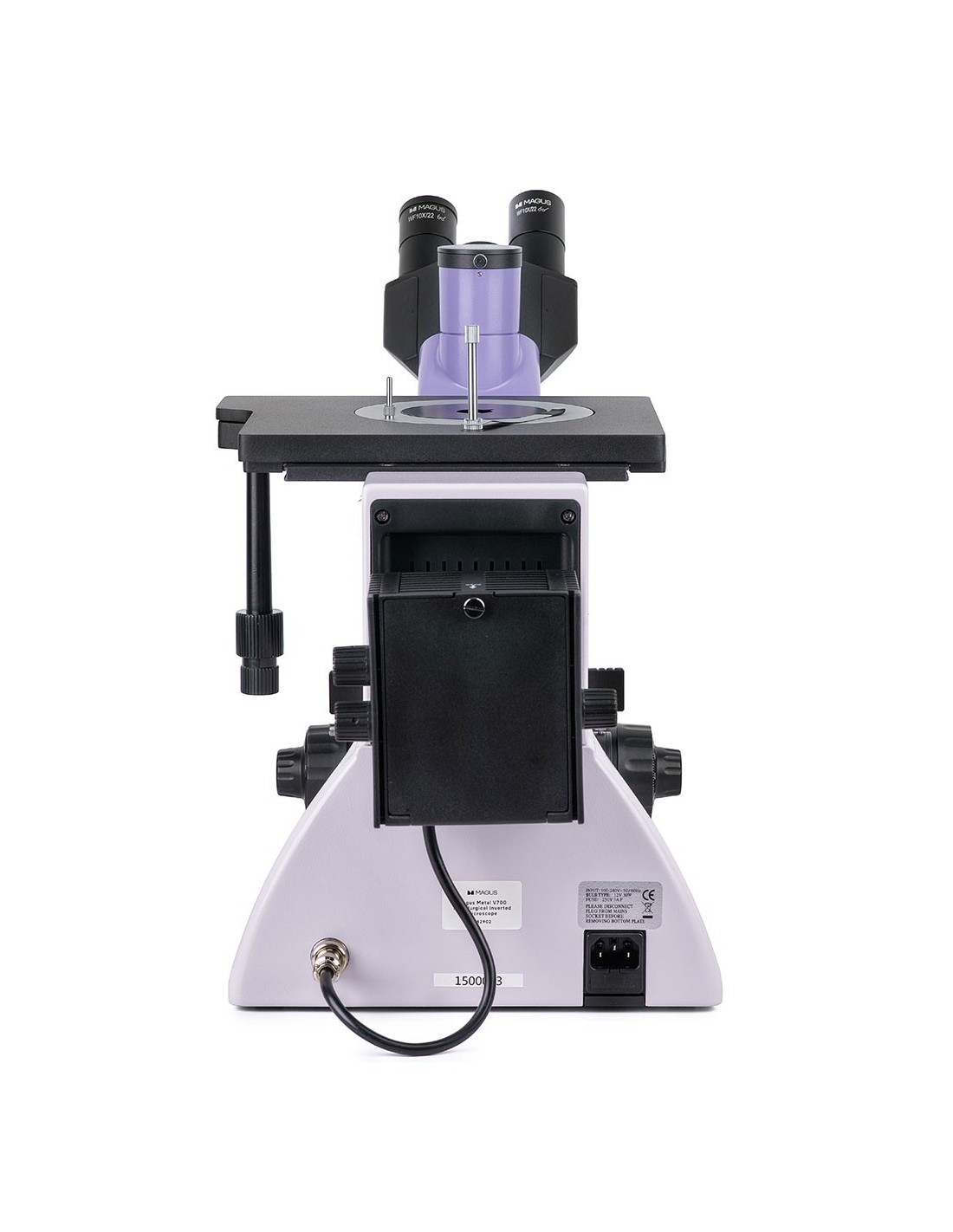

The MAGUS Metal V700 inverted metallographic microscope is suitable for studying the microstructures of metals, alloys and semiconductor materials in reflected light. The stage can hold samples up to 2 kg (only the bottom surface of the sample needs to be flat). The other parts of the sample do not need to be prepared and can be of any shape. This microscope is designed for brightfield and polarized light observations, features a side camera port and a trinocular tube; Furthermore, it is suitable for a wide range of applications in the laboratory and in the field of industrial production.

Optics

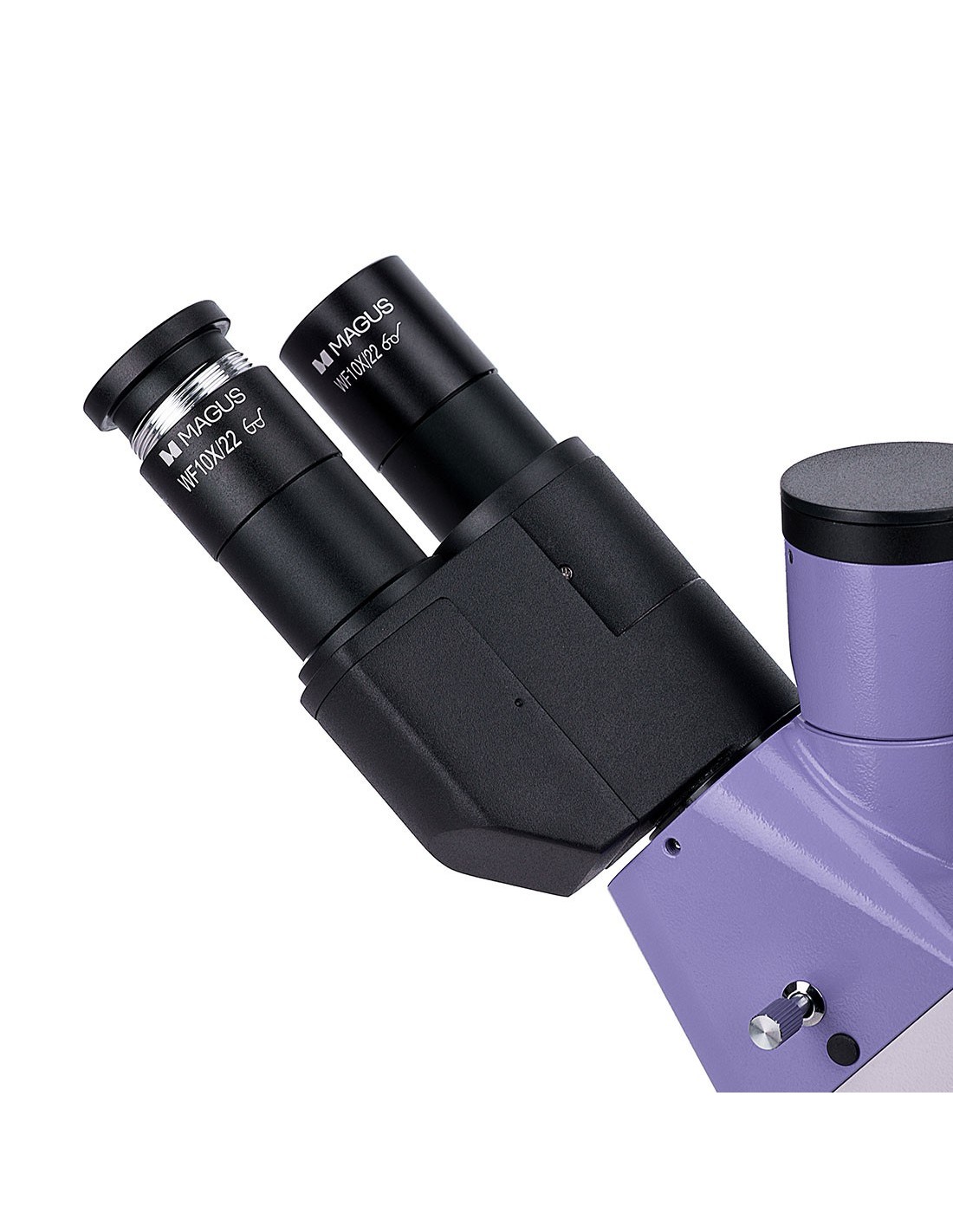

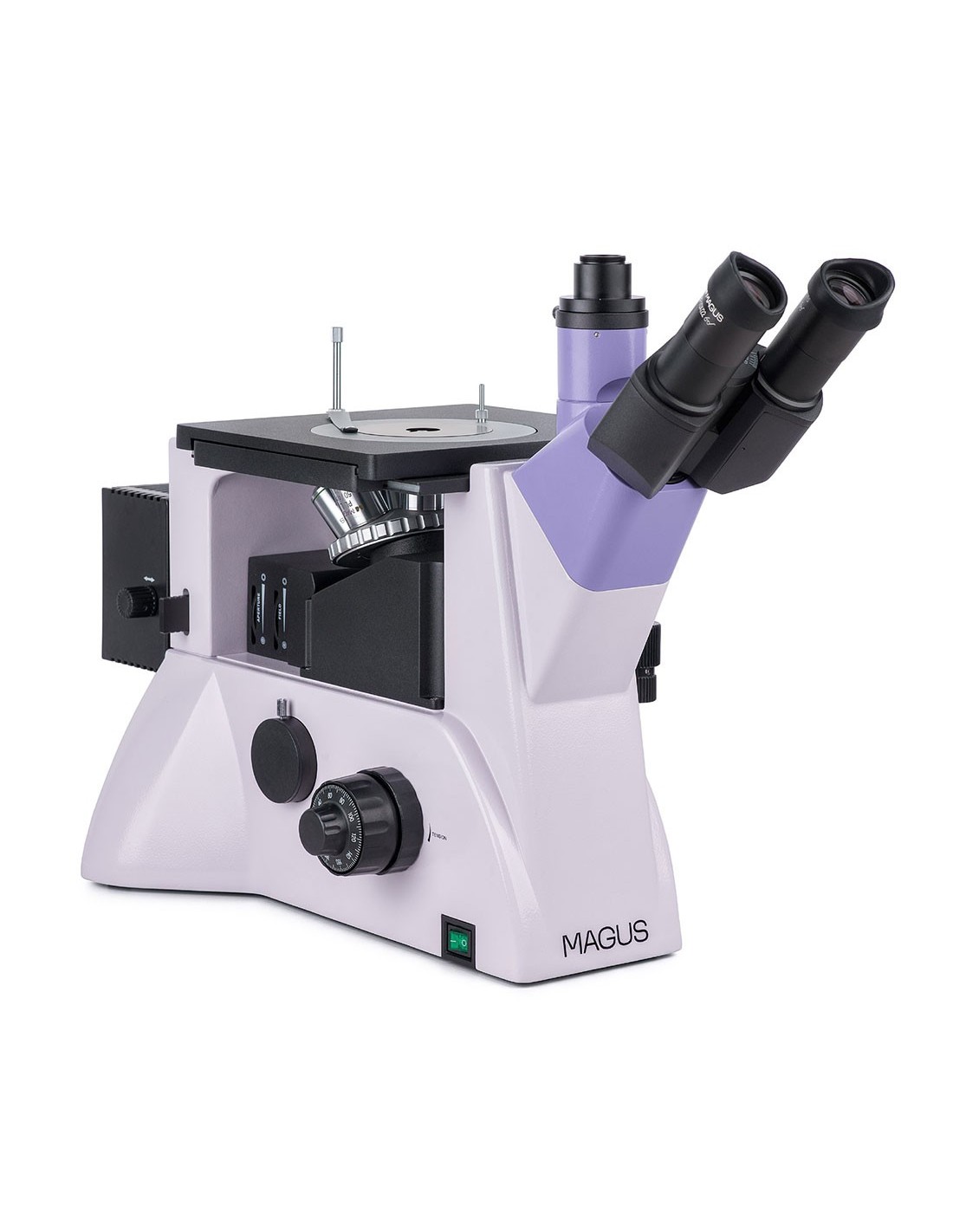

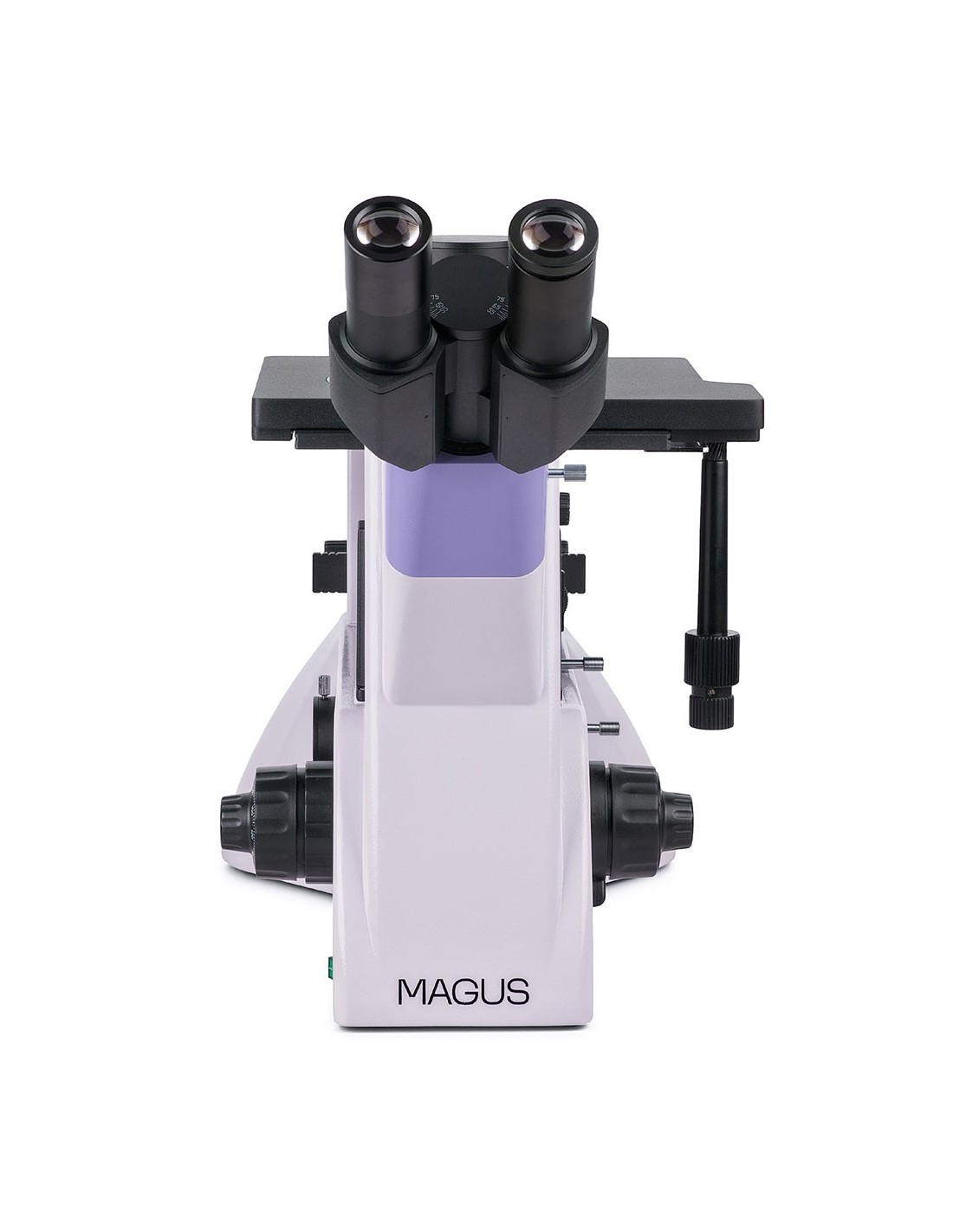

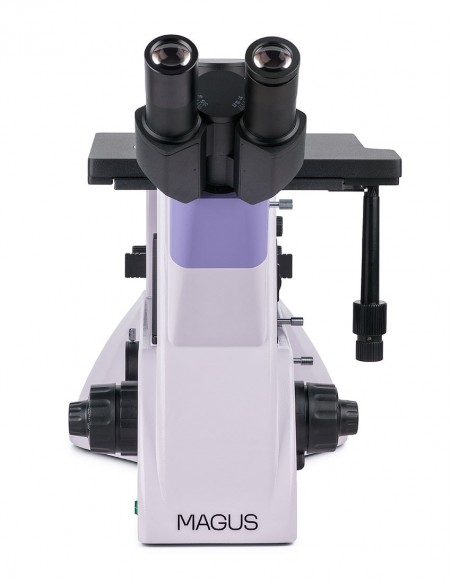

The microscope is equipped with a trinocular head with a special design, whereby it is possible to adjust the position of the eyepieces; it is also possible to rotate the head 180°. The digital camera must be housed in the appropriate side port on the microscope frame and the monitor can be installed in the third tube of the trinocular head. The beam splitter in the microscope body diverts the light beam with a ratio of 100:0 and 0:100, while the beam splitter in the trinocular head has a ratio of 50:50 and 100:0.

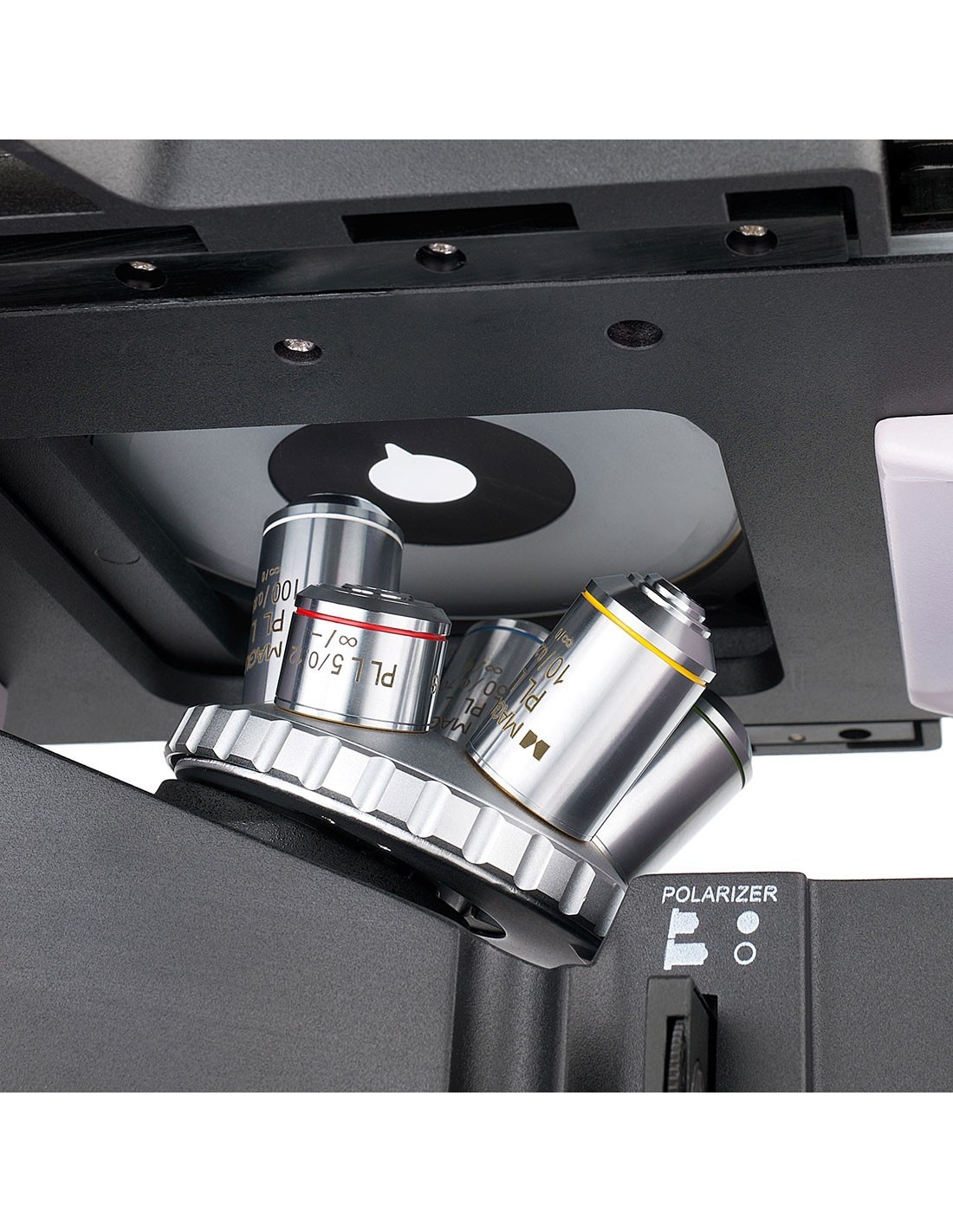

The nosepiece is positioned under the sample to be examined and is equipped with 5 slots for objectives (all included in the basic configuration). All objectives are infinity corrected plan achromatic, with long working distance. An additional lens can be mounted in place of one of the ones supplied. In its basic configuration, the total magnification range of the microscope is from 50x to 1000x.

Illumination

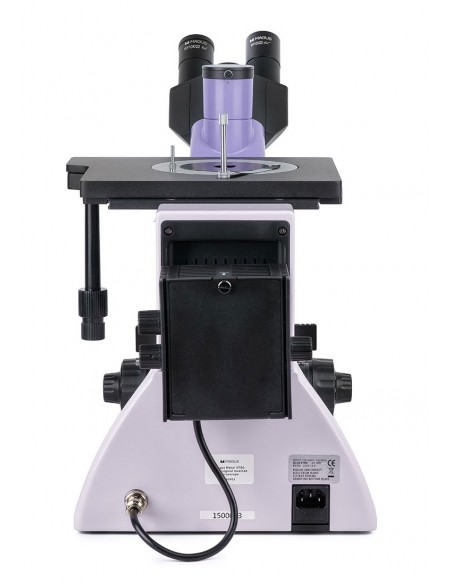

The illuminator for reflected light observations has a 30W halogen bulb with adjustable brightness. The light is powered by the AC mains electricity supply. The brightness is bright enough to make observations with all included objectives, using brightfield or polarized light microscopy techniques. Köhler illumination can be set up and the light source can be centered along the three axes. To modify the color rendering in photomicrograph images you can use the color filters provided. Polarization tools are also available: an analyzer and a polarizer, both removable.

Stage and focusing mechanism

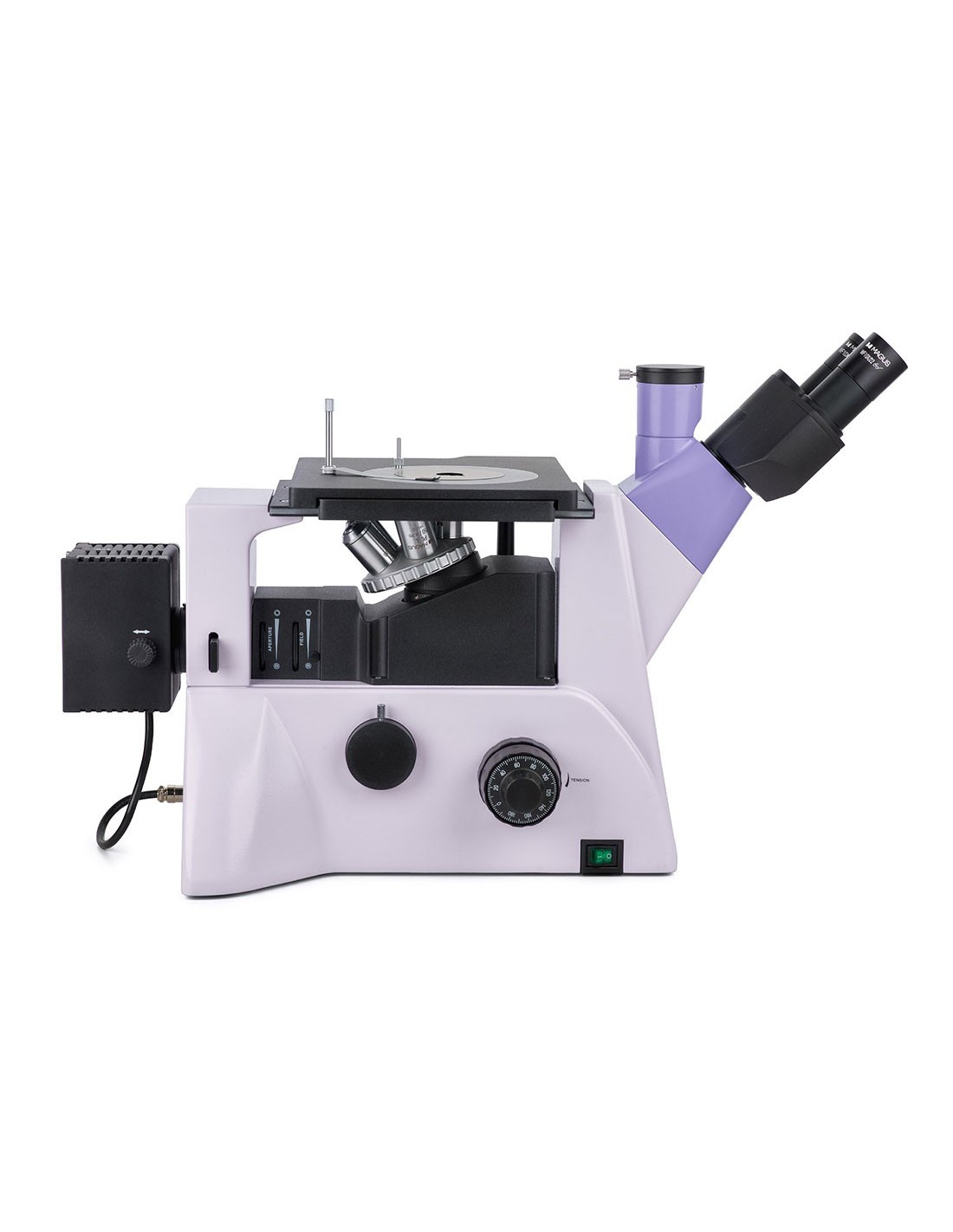

The stage includes the insertion of a round plate with a 10 mm, 20 mm or 30 mm hole to which the sample to be observed is fixed with a support system. The stage is quite large (242x200 mm) and moves along two axes integrally with the sample fixed to it. You can adjust the sharpness of the image using the coarse and fine focus knobs (coarse and fine screw). It is possible to adjust the tension stiffness for the coarse screw and there is a fixing knob.

Accessories

Additional accessories make it possible to obtain maximum performance performance from the MAGUS Metal V700 microscope. Eyepieces, planachromatic objectives with long working distance, calibration slides and digital cameras are available.

Key features:

• Examination of heavy samples and large dimensions using bright field and polarized light microscopy techniques; only one side of the sample needs to be prepared
• Large stage with round plates equipped with holes of 10 mm, 20 mm or 30 mm diameter
• The trinocular head can be rotated 180 ° during assembly
• Two options for housing a digital camera and a monitor: on the trinocular head with 50:50 and 100:0 beam splitter or on the microscope frame with 100:0 or 0 beam splitter: 100
• Observations in reflected light, light source: 30 W halogen lamp with adjustable brightness
• Configurable Köhler illumination, removable analyzer and polarizer and light source with centering possibility
• Wide selection of compatible accessories to expand the potential of the microscope

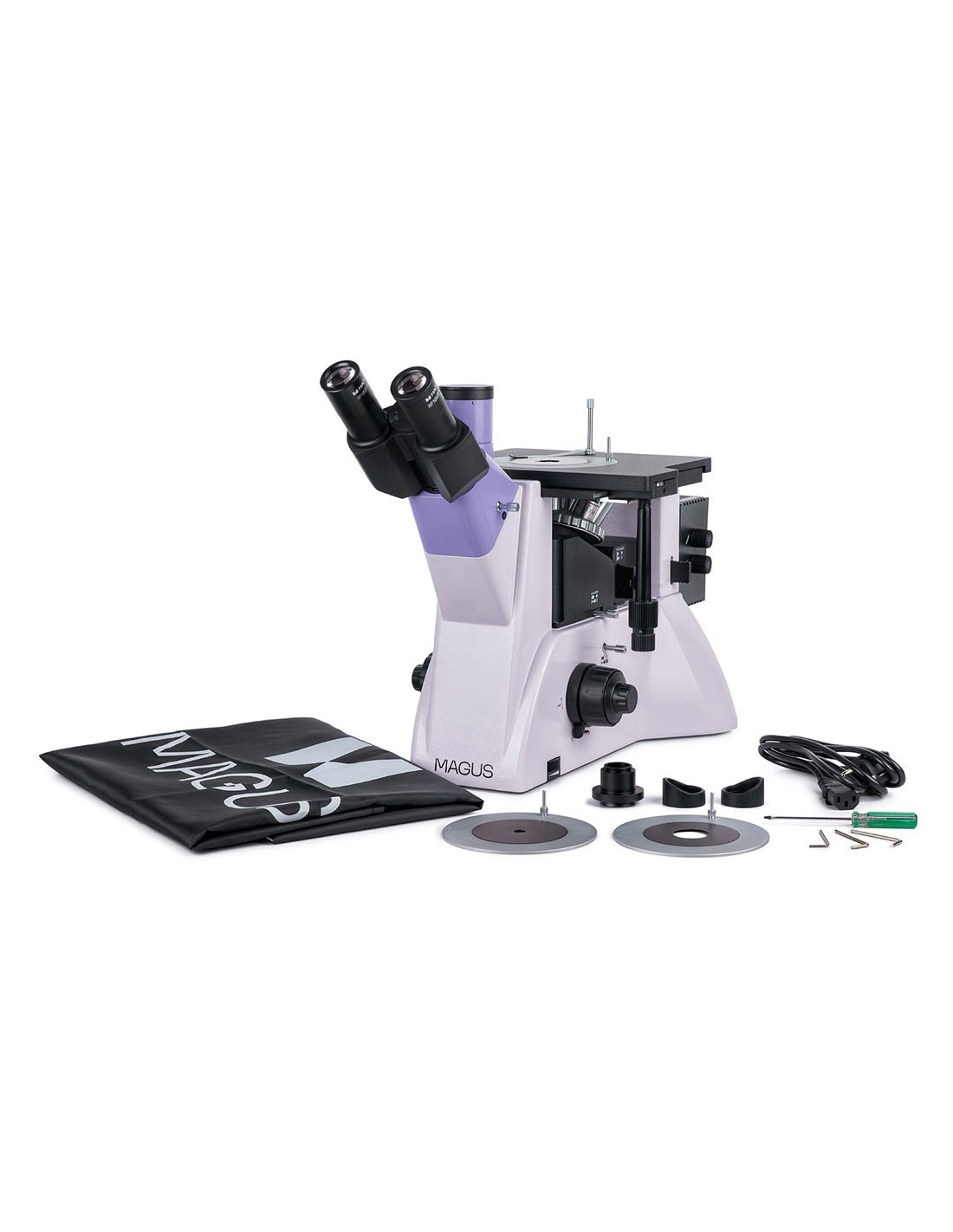

The package contains:

• Stand with input power supply, focusing mechanism, stage and nosepiece
• Illuminator for reflected light observations with bulb housing
• Trinocular head
• Planachromatic objective infinity: PL L5x/0.12 WD 26.1 mm
• Infinity plan achromatic objective: PL L10х/0.25 WD 20.2 mm
• Infinity plan achromatic objective: PL L20х/0.40 WD 8.80 mm
• Infinity plan achromatic objective: PL L50х/0.70 WD 3.68 mm
• Infinity plan achromatic objective: PL L100x /0.85 (dry) WD 0.40 mm
• 10x/22 mm eyepiece with long eye relief (2 pcs.)
• 1x C-mount adapter
• Allen key
• AC power cord
• Dust cover
• User manual and warranty card

Available on request:

• 10x/22 mm eyepiece with graduated scale
• 12.5x/14 mm eyepiece (2 pcs.)
• Eyepiece 15x/15 mm (2 pcs.)
• Eyepiece 20x/12 mm (2 pcs.)
• Eyepiece 25x/9 mm (2 pcs.) )
• Infinity plan achromatic objective: PL L40х/0.60 WD: 3.98 mm
• Infinity plan achromatic objective: PL L60x/0.70 WD: 2.08 mm
• Infinity plan achromatic objective: PL L80x/0.80 WD: 1.25 mm
• Digital camera
• Calibration slide
